Manufacturer

Model Number

32LG30UA

Description

32lg30-ua

Interactive Exploded View

Parts List

Part Number	Description
AAN74592401	BASE ASSEMBLY [900]
ABA35815704	BRACKET ASSEMBLY [122]
ABA35569902	BRACKET ASSEMBLY [521]
MAZ40616401	BRACKET [401]
ABJ35835004	CABINET ASSEMBLY [300]
0CE476WH6DC	CAPACITOR,AL,CHIP [C241]
0CH8106F691	CAPACITOR,AL,CHIP [C2601]
0CE335WK6D8	CAPACITOR,AL,CHIP [C2665]
0CE106WFKDC	CAPACITOR,AL,CHIP [C400]
0CE476WF6DC	CAPACITOR,AL,CHIP [C422]
0CE337WJ6D8	CAPACITOR,AL,CHIP [C513]
0CH8226F691	CAPACITOR,AL,CHIP [C555]
0CE105WK6DC	CAPACITOR,AL,CHIP [C583]
0CE106VF6DC	CAPACITOR,AL,CHIP [C716]
EAE30840401	CAPACITOR,AL,CHIP [C813]
0CK104BF56A	CAPACITOR,CERAMIC,CHIP [C100]
0CK475CC94A	CAPACITOR,CERAMIC,CHIP [C102]
0CK103BH56A	CAPACITOR,CERAMIC,CHIP [C109]
0CK101BK4EA	CAPACITOR,CERAMIC,CHIP [C207]
0CK102BK56A	CAPACITOR,CERAMIC,CHIP [C214]
EAE33970001	CAPACITOR,CERAMIC,CHIP [C220]
EAE32479401	CAPACITOR,CERAMIC,CHIP [C222]
0CC120CK41A	CAPACITOR,CERAMIC,CHIP [C229]
0CZZB00035A	CAPACITOR,CERAMIC,CHIP [C232]
0CK106DC67A	CAPACITOR,CERAMIC,CHIP [C239]
EAE32166101	CAPACITOR,CERAMIC,CHIP [C303]
0CK272BKF6A	CAPACITOR,CERAMIC,CHIP [C304]
0CK103CK56A	CAPACITOR,CERAMIC,CHIP [C354]
0CK225DD66A	CAPACITOR,CERAMIC,CHIP [C357]
0CK334CF56A	CAPACITOR,CERAMIC,CHIP [C404]
0CC221BKFAA	CAPACITOR,CERAMIC,CHIP [C409]
0CH5220K618	CAPACITOR,CERAMIC,CHIP [C435]
0CK223CK56A	CAPACITOR,CERAMIC,CHIP [C512]
0CK104CK56A	CAPACITOR,CERAMIC,CHIP [C514]
0CK102CK56A	CAPACITOR,CERAMIC,CHIP [C531]
0CK474DK56A	CAPACITOR,CERAMIC,CHIP [C543]
0CH5470K618	CAPACITOR,CERAMIC,CHIP [C570]
0CC270BK61A	CAPACITOR,CERAMIC,CHIP [C704]
0CC150BK4AA	CAPACITOR,CERAMIC,CHIP [C721]
0CK105DH56A	CAPACITOR,CERAMIC,CHIP [C736]
0CC100CK41A	CAPACITOR,CERAMIC,CHIP [C807]
0CC101CK41A	CAPACITOR,CERAMIC,CHIP [C808]
0CC102CK41A	CAPACITOR,CERAMIC,CHIP [C811]
0CK104CF56A	CAPACITOR,CERAMIC,CHIP [C826]
0CK226FF67A	CAPACITOR,CERAMIC,CHIP [C830]
0CK476FD67A	CAPACITOR,CERAMIC,CHIP [C832]
0CK475DD57A	CAPACITOR,CERAMIC,CHIP [C871]
0CK105CF94A	CAPACITOR,CERAMIC,CHIP [C896]
AGF37007001	CHASSIS ASSEMBLY [550]
6630G70017A	CONNECTOR,DSUB [JK400]
6630TGA004K	CONNECTOR,DSUB [JK705]
EAG41945401	CONNECTOR,USB [JK202]
6602T12005C	CONNECTOR,WAFER [P101]
6602T25008C	CONNECTOR,WAFER [P200]
6630VF03415	CONNECTOR,WAFER [P404]
6602T25009C	CONNECTOR,WAFER [P501]
EAG39798201	CONNECTOR,WAFER [P800]
ACQ35838706	COVER ASSEMBLY [400]
MCK40874001	COVER [830]
6212AA2600B	CRYSTAL [X200]
0DD184009AA	DIODE ASSEMBLY [D400]
0DSON00138A	DIODE,SCHOTTKY [D603]
0DRSE00038A	DIODE,TVS [D401]
0DZ560009DA	DIODE,ZENER [ZD101]
0DZDI00078A	DIODE,ZENER [ZD600]
0DZRM00178A	DIODE,ZENER [ZD700]
0DZRM00218A	DIODE,ZENER [ZD719]
0TR830009BA	FET [Q600]
EBK32753101	FET [Q804]
6200J00005F	FILTER,BEAD [L100]
EAM33008605	FILTER,BEAD [L100]
EAM30764101	FILTER,BEAD [L204]
6210TCE001E	FILTER,BEAD [L207]
EAM42641602	FILTER,BEAD [L207]
EAM38769505	FILTER,BEAD [L417]
6210TCE001Z	FILTER,BEAD [L602]
EAM42641601	FILTER,BEAD [L602]
EAM38058401	FILTER,BEAD [L803]
6200J000123	FILTER,LCR [L805]
6200J000091	FILTER,LINE NOISE [L301]
6631V12031J	HARNESS,SINGLE [S1]
EAD42065901	HARNESS,SINGLE [S2]
EAD43525701	HARNESS,SINGLE [S3]
EAD43289502	HARNESS,SINGLE [S4]
6631900049N	HARNESS,SINGLE [S5]
0IPRPCI013A	IC,A/D CONVERTER [IC502]
EAN30267601	IC,ANALOG SWITCH [IC201]
EAN39310001	IC,ANALOG SWITCH [IC600]
EAN32404602	IC,AUDIO AMPLIFIER [IC501]
0IPRP00665A	IC,BUS CONTROLLER [IC500]
0ISTLPH026A	IC,CMOS [IC401]
0ISTL00024A	IC,CMOS [IC408]
EAN41860701	IC,DC,DC CONVERTER [IC803]
EAN41786801	IC,DDR SDRAM [IC300]
0IMCRAL021A	IC,EEPROM [IC403]
0IMCRAL006A	IC,EEPROM [IC406]
0IMMRAL014D	IC,EEPROM [IC601]
0IPRPFA015B	IC,IMAGE FILTER [IC808]
0IPMGA0010A	IC,LDO VOLTAGE REGULATOR [IC404]
0IPMG00049A	IC,LDO VOLTAGE REGULATOR [IC807]
0IPMG00027A	IC,LDO VOLTAGE REGULATOR [IC809]
0IPMGS1006B	IC,LDO VOLTAGE REGULATOR [IC810]
0IPMGKE030A	IC,LDO VOLTAGE REGULATOR [IC812]
0ISTL00029A	IC,OP AMPLIFIER [IC504]
EAN41348201	IC,TX/RX [IC402]
0IPRP00702C	IC,VIDEO PROCESSORS [IC100]
0IPMG78391A	IC,VOLTAGE REGULATOR [IC304]
EAN32662801	IC,VOLTAGE REGULATOR [IC811]
6210TCE001T	INDUCTOR,MULTILAYER,CHIP [L700]
EAP39314713	INDUCTOR,MULTILAYER,CHIP [L700]
EAP39314701	INDUCTOR,MULTILAYER,CHIP [L802]
EAP37991401	INDUCTOR,WIRE WOUND,CHIP [L206]
EAP38319001	INDUCTOR,WIRE WOUND,CHIP [L520]
EAP32842804	INDUCTOR,WIRE WOUND,CHIP [L808]
EAY56797501	INVERTER ASSEMBLY [200N]
6612J00062H	JACK,COMPLEX [JK701]
6612B00015C	JACK,DIN [JK600]
EAG42463001	JACK,DIN [JK708]
EAG37842001	JACK,FIBER OPTIC [JK501]
6612J10031A	JACK,RCA [JK700]
6612J10043A	JACK,RCA [JK704]
EAG42205801	JACK,RCA [JK707]
CRD30160601	LCD,MODULE-TFT [200]
AGF54131301	MAIN TOTAL ASSEMBLY [540]
EBR42596401	PCB ASSEMBLY,FRONT [500]
AGF37008701	PCB ASSEMBLY,SUB [510]
MGJ40619002	PLATE [803]
MGJ40618704	PLATE [804]
MGJ40315502	PLATE [821]
MGJ40618304	PLATE,METAL [802]
MGJ40620502	PLATE,METAL [805]
MGJ40652303	PLATE,METAL [820]

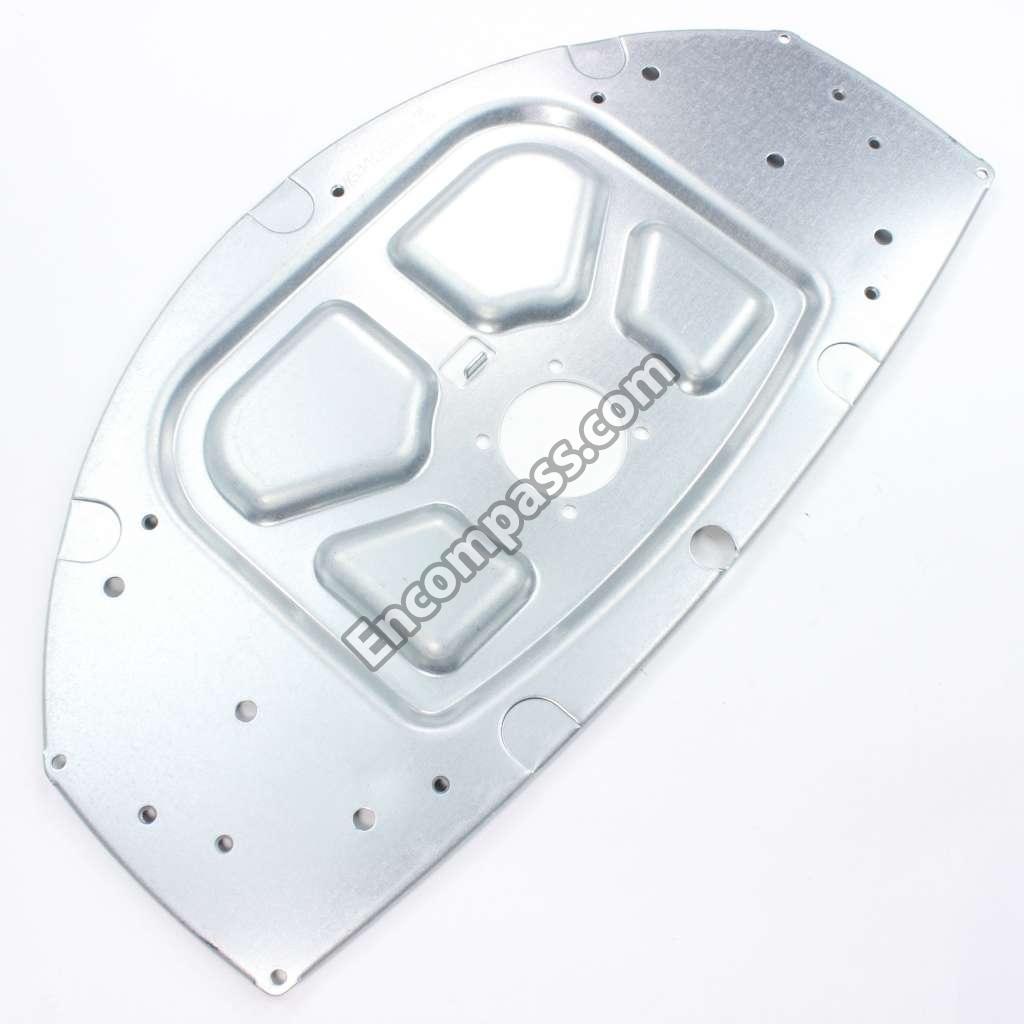

MGJ40620901	PLATE,METAL [901]
MGJ40651702	PLATE,SHIELD [822]
6410TUW008A	POWER CORD [A3]
AKB74115501	REMOTE CONTROLLER [A2]
0RJ1001C687	RESISTOR,ARRAY [AR200]
0RZZH033273	RESISTOR,ARRAY [AR301]
EBC32260404	RESISTOR,ARRAY [AR352]
0RR0222T621	RESISTOR,ARRAY [AR356]
0RH2702D622	RESISTOR,CHIP [R101]
0RH7501D622	RESISTOR,CHIP [R102]
0RH2001D622	RESISTOR,CHIP [R103]
0RH2700D622	RESISTOR,CHIP [R104]
0RJ0000D677	RESISTOR,CHIP [R109]
0RJ1001C678	RESISTOR,CHIP [R109]
0RJ0222C678	RESISTOR,CHIP [R112]
0RJ4701C678	RESISTOR,CHIP [R136]
0RJ0000C678	RESISTOR,CHIP [R179]
0RJ5600C678	RESISTOR,CHIP [R188]
0RJ1501D477	RESISTOR,CHIP [R202]
0RJ3901C478	RESISTOR,CHIP [R206]
0RJ2701C678	RESISTOR,CHIP [R2141]
0RJ1001D677	RESISTOR,CHIP [R219]
EBC38019801	RESISTOR,CHIP [R220]
0RJ1000C678	RESISTOR,CHIP [R2400]
0RZZ000067A	RESISTOR,CHIP [R2407]
0RJ1200C678	RESISTOR,CHIP [R241]
0RJ1003C678	RESISTOR,CHIP [R2440]
EBC37049601	RESISTOR,CHIP [R2600]
0RJ0342D477	RESISTOR,CHIP [R2602]
0RJ0102C678	RESISTOR,CHIP [R2627]
0RJ0272C678	RESISTOR,CHIP [R2638]
0RJ4990C478	RESISTOR,CHIP [R2639]
0RJ4703C678	RESISTOR,CHIP [R2641]
0RJ1501C678	RESISTOR,CHIP [R2642]
0RJ2000D477	RESISTOR,CHIP [R2643]
0RJ0511D677	RESISTOR,CHIP [R2646]
0RJ1002C678	RESISTOR,CHIP [R2668]
0RJ2001C678	RESISTOR,CHIP [R2677]
0RJ0000G676	RESISTOR,CHIP [R2905]
EBC30996801	RESISTOR,CHIP [R3000]
0RJ0752C478	RESISTOR,CHIP [R3008]
0RJ0752C678	RESISTOR,CHIP [R3066]
0RJ3000C478	RESISTOR,CHIP [R3098]
0RJ1500C678	RESISTOR,CHIP [R3102]
0RJ0332C478	RESISTOR,CHIP [R3138]
0RJ3002C678	RESISTOR,CHIP [R3601]
0RJ1502C678	RESISTOR,CHIP [R3602]
0RJ4700C678	RESISTOR,CHIP [R3604]
0RJ3300C678	RESISTOR,CHIP [R401]
0RJ8201C478	RESISTOR,CHIP [R403]
0RJ4702C678	RESISTOR,CHIP [R411]
0RJ3302C678	RESISTOR,CHIP [R428]
0RJ2200C678	RESISTOR,CHIP [R431]
0RJ6801C678	RESISTOR,CHIP [R453]
0RJ3301C678	RESISTOR,CHIP [R456]
0RJ6802C678	RESISTOR,CHIP [R493]
0RJ0331D677	RESISTOR,CHIP [R506]
0RJ0471G676	RESISTOR,CHIP [R508]
0RJ4701D477	RESISTOR,CHIP [R547]
0RJ2700D677	RESISTOR,CHIP [R548]
0RJ5601C478	RESISTOR,CHIP [R705]
0RJ0752D677	RESISTOR,CHIP [R711]
0RJ1002D677	RESISTOR,CHIP [R773]
0RJ2001D677	RESISTOR,CHIP [R802]
0RJ8200D677	RESISTOR,CHIP [R804]
0RJ1202C678	RESISTOR,CHIP [R806]
0RJ4700D677	RESISTOR,CHIP [R809]
0RJ0182C478	RESISTOR,CHIP [R810]
0RJ6341D477	RESISTOR,CHIP [R821]
0RJ4300D677	RESISTOR,CHIP [R822]
0RJ3650D477	RESISTOR,CHIP [R823]
0RJ1502D477	RESISTOR,CHIP [R824]
0RJ1202D677	RESISTOR,CHIP [R825]
0RJ1001D477	RESISTOR,CHIP [R826]
0RJ0102D477	RESISTOR,CHIP [R827]
0RH0000D622	RESISTOR,CHIP [R857]
0RJ8201D477	RESISTOR,CHIP [R863]
0RJ1001E478	RESISTOR,CHIP [R879]
SAA32977703	S/W,FIRMWARE [IC101]
SAA30881220	S/W,FIRMWARE [IC407]
FAB30016415	SCREW ASSEMBLY [A7]
FAB30021301	SCREW,TAPPING [A5]
EAY40504401	SMPS,AC/DC [530]
EAB41280201	SPEAKER,FULL RANGE [120]
EAB41284401	SPEAKER,TWEETER [121]
MJH40621404	SUPPORTER [800]
MJH40619105	SUPPORTER [801]
MJH40614002	SUPPORTER [902]
MJH40613901	SUPPORTER [910]
140-313B	SWITCH,TACT [SW101]
EBF32593901	SWITCH,TACT [SW400]
EAT56801301	TIME CONTROL [200T]
0TR102009AJ	TR,BIPOLAR [Q604]
EBK58172301	TR,BIPOLAR [Q607]
0TR102009AM	TR,BIPOLAR [Q612]
EBL37676801	TUNER,ANALOG/DIGITAL [TU1]
6102W5V016A	VARISTOR [VR600]
