Model Image
Manufacturer

LG

Model Number

42LE5400

Description

42-inch Class Full Hd 1080p Broadband 120hz Led Lc

Interactive Exploded View
Exploded View

Parts List

Part Number Description
38809P0013M 38809P0013M BAG [BAG]
AAN74592401 AAN74592401 BASE ASSEMBLY [900]

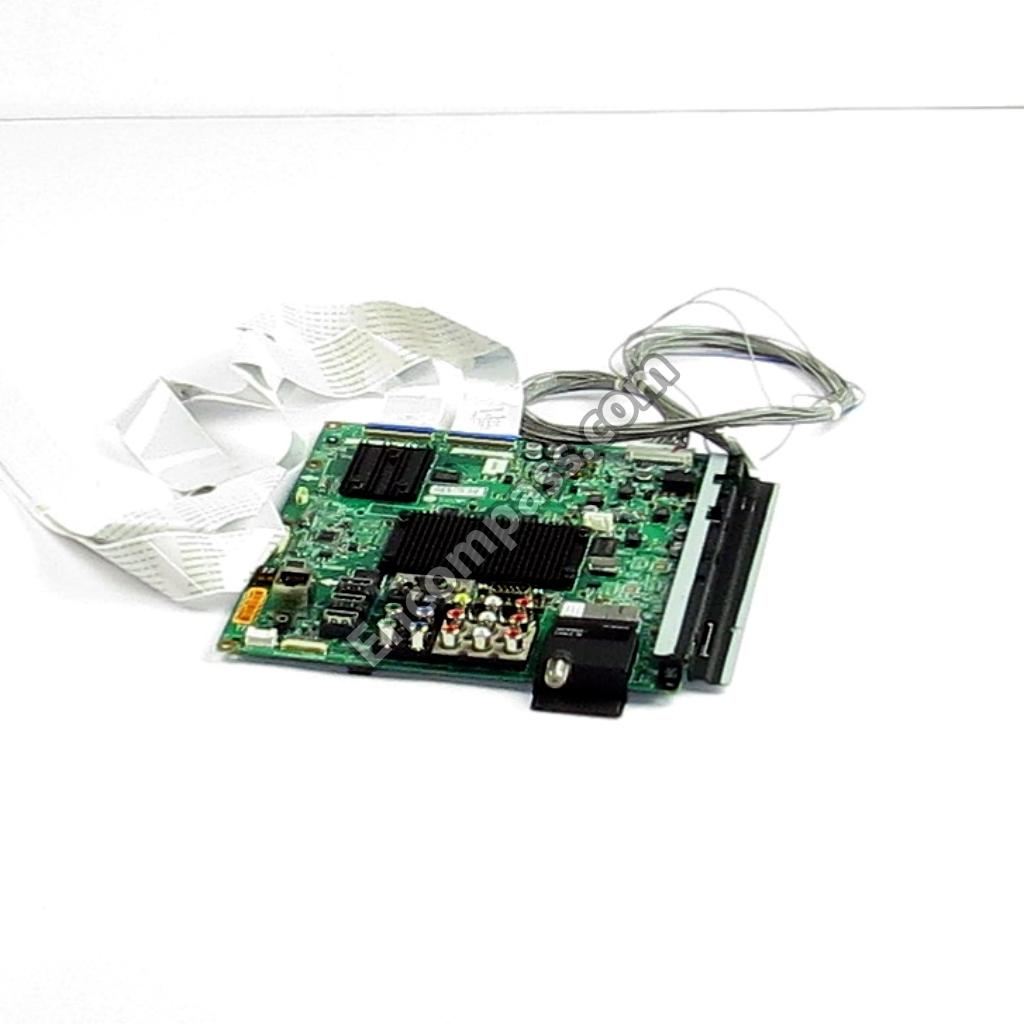

EBT60919502 EBT60919502 BPR TOTAL ASSEMBLY [540]
MAZ61972206 MAZ61972206 BRACKET [800]
MAZ61972205 MAZ61972205 BRACKET [800]
MAZ61991509 MAZ61991509 BRACKET [880]

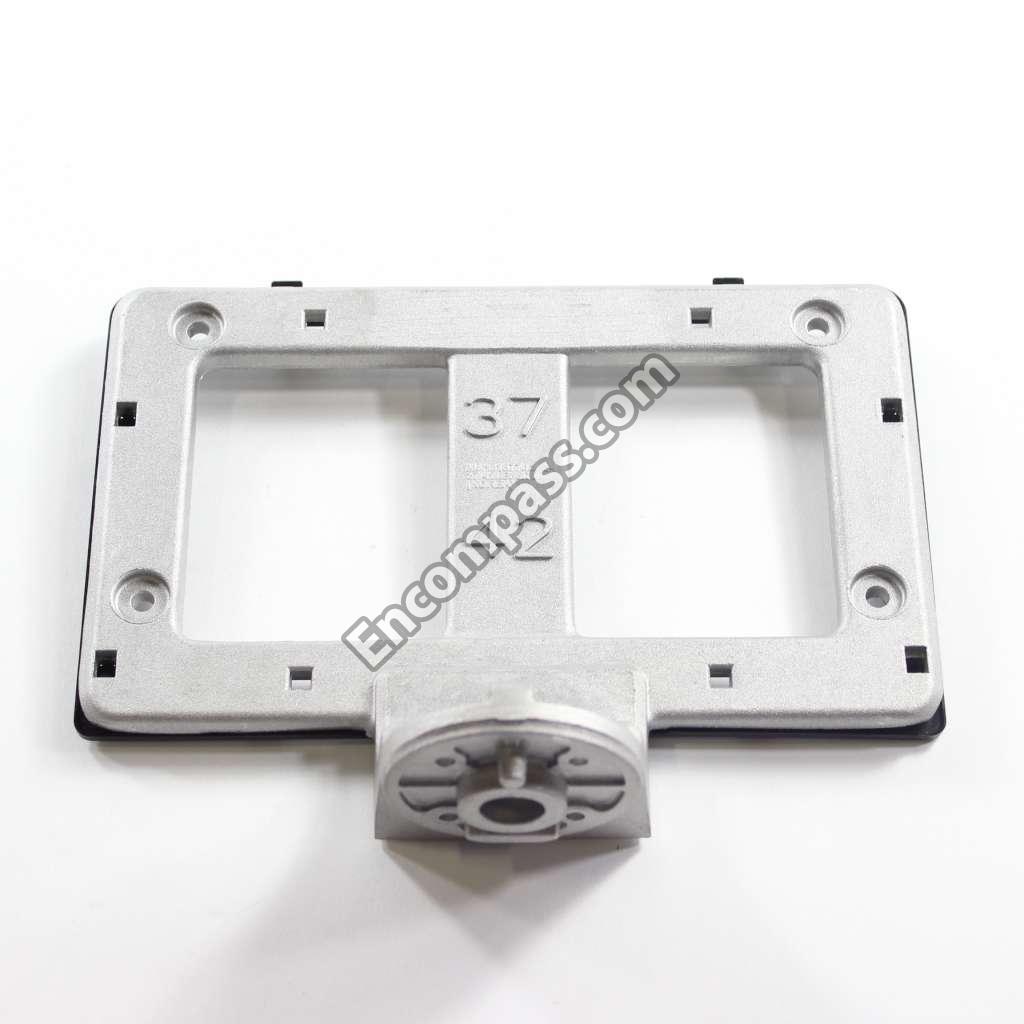

MAZ61971803 MAZ61971803 BRACKET [920]
ABJ72967485 ABJ72967485 CABINET ASSEMBLY [300]
EAD60974140 EAD60974140 CABLE,FFC [LV1]
EAD60974141 EAD60974141 CABLE,FFC [LV2]
0CE106WFKDC 0CE106WFKDC CAPACITOR,AL,CHIP [C1010]
0CE336WD6D8 0CE336WD6D8 CAPACITOR,AL,CHIP [C1090]
EAE60171702 EAE60171702 CAPACITOR,AL,CHIP [C8001]
EAE60171701 EAE60171701 CAPACITOR,AL,CHIP [C8024]
0CE476WH6DC 0CE476WH6DC CAPACITOR,AL,CHIP [C9141]
0CC120CK41A 0CC120CK41A CAPACITOR,CERAMIC,CHIP [C1000]
0CK475DD56A 0CK475DD56A CAPACITOR,CERAMIC,CHIP [C1002]
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP [C1003]
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP [C1004]
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP [C1008]
0CK105DH56A 0CK105DH56A CAPACITOR,CERAMIC,CHIP [C101]
0CK103BH56A 0CK103BH56A CAPACITOR,CERAMIC,CHIP [C1020]
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP [C1026]
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP [C1051]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C105]
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP [C106]
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP [C112]
EAE60685701 EAE60685701 CAPACITOR,CERAMIC,CHIP [C150]
0CK154CH51A 0CK154CH51A CAPACITOR,CERAMIC,CHIP [C159]
EAE60685801 EAE60685801 CAPACITOR,CERAMIC,CHIP [C165]
0CK474DH56A 0CK474DH56A CAPACITOR,CERAMIC,CHIP [C175]
0CK225DD66A 0CK225DD66A CAPACITOR,CERAMIC,CHIP [C316]
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP [C320]
0CK471BK56A 0CK471BK56A CAPACITOR,CERAMIC,CHIP [C620]
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP [C625]
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP [C629]
EAE50191801 EAE50191801 CAPACITOR,CERAMIC,CHIP [C637]
0CK225DF56A 0CK225DF56A CAPACITOR,CERAMIC,CHIP [C717]
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP [C720]
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP [C722]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C724]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C7402]
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP [C7403]
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP [C8002]
EAE59211001 EAE59211001 CAPACITOR,CERAMIC,CHIP [C8013]
EAE42868301 EAE42868301 CAPACITOR,CERAMIC,CHIP [C8028]
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP [C8039]
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP [C8040]
EAE60365101 EAE60365101 CAPACITOR,CERAMIC,CHIP [C8052]
0CK332CK56A 0CK332CK56A CAPACITOR,CERAMIC,CHIP [C8054]
0CH5130K416 0CH5130K416 CAPACITOR,CERAMIC,CHIP [C8101]
0CC220CK41A 0CC220CK41A CAPACITOR,CERAMIC,CHIP [C8105]
0CH2334F566 0CH2334F566 CAPACITOR,CERAMIC,CHIP [C8200]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C8216]
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP [C8405]
0CK104DK56A 0CK104DK56A CAPACITOR,CERAMIC,CHIP [C8613]
0CC225EKFBA 0CC225EKFBA CAPACITOR,CERAMIC,CHIP [C8701]
EAE58112401 EAE58112401 CAPACITOR,CERAMIC,CHIP [C8821]
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP [C8826]
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP [C8835]
0CK474EK66A 0CK474EK66A CAPACITOR,CERAMIC,CHIP [C8839]
0CC200CK41A 0CC200CK41A CAPACITOR,CERAMIC,CHIP [C9038]
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP [C909]
0CK224DK46A 0CK224DK46A CAPACITOR,CERAMIC,CHIP [C9101]
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP [C9113]
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP [C9120]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C9145]
0CC151CK41A 0CC151CK41A CAPACITOR,CERAMIC,CHIP [C9146]
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP [C963]
6630G00001E 6630G00001E CONNECTOR,DSUB [P8201]
6630TGA004Q 6630TGA004Q CONNECTOR,DSUB [P8400]
EAG61008601 EAG61008601 CONNECTOR,FFC/FPC/PIC [P7400]
EAG61008301 EAG61008301 CONNECTOR,I/O [JK8700]
EAG41945401 EAG41945401 CONNECTOR,USB [P300]
6630V90209C 6630V90209C CONNECTOR,WAFER [P1000]
EAG61251501 EAG61251501 CONNECTOR,WAFER [P8001]
6602T12004L 6602T12004L CONNECTOR,WAFER [P8100]
6630V90141H 6630V90141H CONNECTOR,WAFER [P8200]
EAG61091601 EAG61091601 CONNECTOR,WAFER [P8800]
6602T12004C 6602T12004C CONNECTOR,WAFER [P9000]
ACQ75452112 ACQ75452112 COVER ASSEMBLY,REAR [400]
MCK62976001 MCK62976001 COVER,REAR [A21]
6212AA2600E 6212AA2600E CRYSTAL [X1001]
6212AB2015E 6212AB2015E CRYSTAL [X8100]
EAW39040101 EAW39040101 CRYSTAL [X8101]
6202VDT002A 6202VDT002A CRYSTAL [X9000]
MCR62199804 MCR62199804 DECOR [820]
0DSON00138A 0DSON00138A DIODE,SCHOTTKY [D8312]
0DSON00108A 0DSON00108A DIODE,SCHOTTKY [D9104]
0DSIH00028A 0DSIH00028A DIODE,SWITCHING [D8306]
0DS226009AA 0DS226009AA DIODE,SWITCHING [D9101]
0DSON00218A 0DSON00218A DIODE,SWITCHING [D9103]
EAH39491701 EAH39491701 DIODE,TVS [D104]
EAH60667401 EAH60667401 DIODE,TVS [D107]
EAH33945901 EAH33945901 DIODE,TVS [D8202]
EAH42720601 EAH42720601 DIODE,TVS [D8204]
EAH39491601 EAH39491601 DIODE,TVS [D8402]
EAN60345904 EAN60345904 DISPLAY SOC,DIGITAL TV [IC900]
EBK60752601 EBK60752601 FET [Q200]
EBK60752501 EBK60752501 FET [Q8004]
0TR830009BA 0TR830009BA FET [Q8308]
EAM32500203 EAM32500203 FILTER,BEAD [L1000]
0LCML00003B 0LCML00003B FILTER,BEAD [L300]
EAM38769501 EAM38769501 FILTER,BEAD [L303]
EAM42641612 EAM42641612 FILTER,BEAD [L600]
EAM58459601 EAM58459601 FILTER,BEAD [L603]
EAM44020101 EAM44020101 FILTER,BEAD [L702]
EAM58113401 EAM58113401 FILTER,BEAD [L8000]
EAM32500903 EAM32500903 FILTER,BEAD [L8900]
MDS62110204 MDS62110204 GASKET [GAS10]
EAD61052402 EAD61052402 HARNESS,SINGLE [CA1]
EAD52821213 EAD52821213 HARNESS,SINGLE [CA2]
EAD60676308 EAD60676308 HARNESS,SINGLE [CA3]
EAD56480805 EAD56480805 HARNESS,SINGLE [CA4]
EAD60958520 EAD60958520 HARNESS,SINGLE [CA5]
EAN60921001 EAN60921001 IC,ANALOG SWITCH [IC301]
EAN60992401 EAN60992401 IC,ANALOG SWITCH [IC8300]
EAN60724701 EAN60724701 IC,AUDIO AMPLIFIER [IC300]
EAN60969603 EAN60969603 IC,AUDIO AMPLIFIER [IC8801]
0ISTL00024A 0ISTL00024A IC,CMOS [IC8700]
EAN31346002 EAN31346002 IC,DC,DC CONVERTER [IC8000]
EAN60911601 EAN60911601 IC,DC,DC CONVERTER [IC8001]
EAN60991601 EAN60991601 IC,DC,DC CONVERTER [IC8002]
EAN60922901 EAN60922901 IC,DC,DC CONVERTER [IC8003]
EAN60660601 EAN60660601 IC,DC,DC CONVERTER [IC8005]
EAN60985901 EAN60985901 IC,DC,DC CONVERTER [IC9102]
EAN60992101 EAN60992101 IC,DDR2 SDRAM [IC603]
EAN60774101 EAN60774101 IC,DDR3 SDRAM [IC8900]
EAN60987201 EAN60987201 IC,DISPLAY DRIVER [IC9101]
EAN61133501 EAN61133501 IC,EEPROM [IC601]
0IMMRSG036B 0IMMRSG036B IC,EEPROM [IC8100]
0IMMRAL014D 0IMMRAL014D IC,EEPROM [IC8401]
EAN52430901 EAN52430901 IC,LDO VOLTAGE REGULATOR [IC602]
EAN54428101 EAN54428101 IC,LDO VOLTAGE REGULATOR [IC700]
0IPMGS1010A 0IPMGS1010A IC,LDO VOLTAGE REGULATOR [IC8004]
EAN54428201 EAN54428201 IC,LDO VOLTAGE REGULATOR [IC8800]
EAN59750501 EAN59750501 IC,MICROCONTROLLERS [IC8101]
EAN60997701 EAN60997701 IC,NAND FLASH MEMORY [IC901]
EAN60985801 EAN60985801 IC,PMIC [IC9100]
EAN60924401 EAN60924401 IC,PMIC [IC9103]
EAN60670101 EAN60670101 IC,RESET [IC8007]
EAN61009401 EAN61009401 IC,SERIAL FLASH MEMORY [IC9000]
0IPH740800H 0IPH740800H IC,TTL [IC8400]
EAN41348201 EAN41348201 IC,TX/RX [IC8200]
EAN60659102 EAN60659102 IC,VIDEO PROCESSORS [IC9001]
EAP39314713 EAP39314713 INDUCTOR,MULTILAYER,CHIP [L100]
EAP40283004 EAP40283004 INDUCTOR,MULTILAYER,CHIP [L302]
EAP37991401 EAP37991401 INDUCTOR,WIRE WOUND,CHIP [L1009]
EAP32842802 EAP32842802 INDUCTOR,WIRE WOUND,CHIP [L8004]
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,CHIP [L8009]
EAP61008401 EAP61008401 INDUCTOR,WIRE WOUND,CHIP [L8804]
EAP61006801 EAP61006801 INDUCTOR,WIRE WOUND,CHIP [L9100]
EAP38274507 EAP38274507 INDUCTOR,WIRE WOUND,CHIP [L9101]
EAG59023302 EAG59023302 JACK,DIN [JK8300]
EAG42463001 EAG42463001 JACK,DIN [JK8303]
EAG37842001 EAG37842001 JACK,FIBER OPTIC [JK8400]
EAG35781001 EAG35781001 JACK,MODULAR [JK8200]
EAG61030001 EAG61030001 JACK,PHONE [JK300]
EAG60841801 EAG60841801 JACK,PHONE [JK8401]
EAG61030006 EAG61030006 JACK,PHONE [JK8600]
EAG61007801 EAG61007801 JACK,RCA [JK100]
CRD30301001 CRD30301001 LCD,MODULE-TFT [200]
EBR64966804 EBR64966804 PCB ASSEMBLY,FRONT [560]
EBR64966201 EBR64966201 PCB ASSEMBLY,SUB [500]
AGU72968602 AGU72968602 PLATE ASSEMBLY [810]
MGJ62006009 MGJ62006009 PLATE,METAL [520]
EAD60817902 EAD60817902 POWER CORD [A3]
AKB74115501 AKB74115501 REMOTE CONTROLLER ASSEMBLY [A2]
EBC37094001 EBC37094001 RESISTOR,ARRAY [AR606]
EBC32260404 EBC32260404 RESISTOR,ARRAY [AR8900]
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP [R1001]
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP [R1002]
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP [R1007]
0RJ3901C478 0RJ3901C478 RESISTOR,CHIP [R1009]
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP [R100]
0RJ1200C678 0RJ1200C678 RESISTOR,CHIP [R1010]
0RJ2400C678 0RJ2400C678 RESISTOR,CHIP [R1011]
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP [R1014]
0RJ5600D677 0RJ5600D677 RESISTOR,CHIP [R1019]
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP [R1021]
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP [R1023]
0RJ0102D477 0RJ0102D477 RESISTOR,CHIP [R102]
0RJ4703D677 0RJ4703D677 RESISTOR,CHIP [R103]
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP [R1041]
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP [R1043]
EBC38019801 EBC38019801 RESISTOR,CHIP [R1047]
0RJ3300C678 0RJ3300C678 RESISTOR,CHIP [R1049]
EBC32176601 EBC32176601 RESISTOR,CHIP [R1050]
0RJ2701D677 0RJ2701D677 RESISTOR,CHIP [R108]
0RZZ000004A 0RZZ000004A RESISTOR,CHIP [R1100]
0RJ1001D677 0RJ1001D677 RESISTOR,CHIP [R113]
0RJ0492C478 0RJ0492C478 RESISTOR,CHIP [R154]
0RJ0511D677 0RJ0511D677 RESISTOR,CHIP [R164]
0RJ0822D477 0RJ0822D477 RESISTOR,CHIP [R400]
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP [R401]
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP [R611]
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP [R613]
0RH2400C422 0RH2400C422 RESISTOR,CHIP [R614]
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP [R617]
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP [R657]
0RJ0101D677 0RJ0101D677 RESISTOR,CHIP [R721]
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP [R722]
0RJ4700D677 0RJ4700D677 RESISTOR,CHIP [R732]
0RJ2200E472 0RJ2200E472 RESISTOR,CHIP [R733]
0RJ0822D677 0RJ0822D677 RESISTOR,CHIP [R737]
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP [R8001]
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP [R8003]
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP [R8011]
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP [R8016]
0RJ6201C477 0RJ6201C477 RESISTOR,CHIP [R8017]
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP [R8040]
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP [R8041]
0RH4703D422 0RH4703D422 RESISTOR,CHIP [R8043]
0RJ3002D477 0RJ3002D477 RESISTOR,CHIP [R8046]
0RJ9103C478 0RJ9103C478 RESISTOR,CHIP [R8048]
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP [R8049]
0RJ6801C678 0RJ6801C678 RESISTOR,CHIP [R8051]
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP [R8053]
0RJ5601C478 0RJ5601C478 RESISTOR,CHIP [R8054]
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP [R8055]
0RJ1002D477 0RJ1002D477 RESISTOR,CHIP [R8056]
0RJ2002D677 0RJ2002D677 RESISTOR,CHIP [R8058]
0RJ2402D477 0RJ2402D477 RESISTOR,CHIP [R8061]
0RJ5101D677 0RJ5101D677 RESISTOR,CHIP [R8062]
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP [R8063]
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP [R8064]
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP [R8069]
0RJ4701D477 0RJ4701D477 RESISTOR,CHIP [R8070]
0RJ3902D477 0RJ3902D477 RESISTOR,CHIP [R8072]
0RJ1802D477 0RJ1802D477 RESISTOR,CHIP [R8073]
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP [R8074]
0RJ1002D677 0RJ1002D677 RESISTOR,CHIP [R8105]
0RH4704D622 0RH4704D622 RESISTOR,CHIP [R8175]
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP [R8185]
0RJ5100D677 0RJ5100D677 RESISTOR,CHIP [R8281]
0RJ3301D677 0RJ3301D677 RESISTOR,CHIP [R8324]
0RJ1801D677 0RJ1801D677 RESISTOR,CHIP [R8324]
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP [R8329]
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP [R8400]
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP [R8411]
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP [R8705]
0RJ0000G676 0RJ0000G676 RESISTOR,CHIP [R8709]
0RJ0122D677 0RJ0122D677 RESISTOR,CHIP [R8812]
0RH0000D622 0RH0000D622 RESISTOR,CHIP [R8824]
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP [R8828]
EBC32154201 EBC32154201 RESISTOR,CHIP [R8924]
0RJ9101C478 0RJ9101C478 RESISTOR,CHIP [R8925]
0RJ2700D477 0RJ2700D477 RESISTOR,CHIP [R8927]
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP [R8930]
0RJ2702D477 0RJ2702D477 RESISTOR,CHIP [R8933]
0RJ1200D677 0RJ1200D677 RESISTOR,CHIP [R901]
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP [R9029]
0RJ8200D677 0RJ8200D677 RESISTOR,CHIP [R9041]
EBC32174501 EBC32174501 RESISTOR,CHIP [R904]
0RJ3001C678 0RJ3001C678 RESISTOR,CHIP [R9109]
0RJ0102D677 0RJ0102D677 RESISTOR,CHIP [R9111]
0RJ0102E472 0RJ0102E472 RESISTOR,CHIP [R9112]
0RJ7501D677 0RJ7501D677 RESISTOR,CHIP [R9120]
0RJ1802D677 0RJ1802D677 RESISTOR,CHIP [R9124]
0RJ5103C478 0RJ5103C478 RESISTOR,CHIP [R9126]
0RJ1503C478 0RJ1503C478 RESISTOR,CHIP [R9127]
0RJ2003C478 0RJ2003C478 RESISTOR,CHIP [R9128]
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP [R9129]
0RJ2203C478 0RJ2203C478 RESISTOR,CHIP [R9130]
0RJ1102C478 0RJ1102C478 RESISTOR,CHIP [R9131]
0RJ3601D677 0RJ3601D677 RESISTOR,CHIP [R9135]
0RJ7502C478 0RJ7502C478 RESISTOR,CHIP [R9157]
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP [R9166]
0RJ0221D677 0RJ0221D677 RESISTOR,CHIP [R9169]
0RJ3600D477 0RJ3600D477 RESISTOR,CHIP [R9180]
0RH9101D422 0RH9101D422 RESISTOR,CHIP [R9182]
0RJ2402C678 0RJ2402C678 RESISTOR,CHIP [R9196]
EBC41607701 EBC41607701 RESISTOR,CHIP [R921]
EBC30996801 EBC30996801 RESISTOR,CHIP [R928]
EBC00837802 EBC00837802 RESISTOR,CHIP [R929]
0RJ4990C478 0RJ4990C478 RESISTOR,CHIP [R930]
EBC35172101 EBC35172101 RESISTOR,CHIP [R933]
0RJ0472C678 0RJ0472C678 RESISTOR,CHIP [R969]
FAB30016105 FAB30016105 SCREW ASSEMBLY [A10]
EAY60803101 EAY60803101 SMPS,AC/DC [530]
CRB31006301 CRB31006301 SMPS,AC/DC [530]
EAB60961501 EAB60961501 SPEAKER,FULL RANGE [120]
MJH61881001 MJH61881001 SUPPORTER [830]
MJH61890704 MJH61890704 SUPPORTER [840]
MJH61880908 MJH61880908 SUPPORTER [850]
MJH61877602 MJH61877602 SUPPORTER [910]
6600VR1004A 6600VR1004A SWITCH,TACT [SW1000]
6600R00004C 6600R00004C SWITCH,TACT [SW8100]
6322A00028A 6322A00028A THERMISTOR,NTC [TH9100]
0TRIY80001A 0TRIY80001A TR,BIPOLAR [Q308]
EBK58172301 EBK58172301 TR,BIPOLAR [Q701]
0TRIH80004A 0TRIH80004A TR,BIPOLAR [Q8002]
0TR104009AF 0TR104009AF TR,BIPOLAR [Q8300]
0TRIH80001A 0TRIH80001A TR,BIPOLAR [Q8700]
0TR103009AG 0TR103009AG TR,BIPOLAR [Q901]
Main Menu x
