Model Image
Manufacturer

LG

Model Number

42PN4500UA

Description

42-inch Class Plasma Hd Tv

Interactive Exploded View

Parts List

Part Number Description

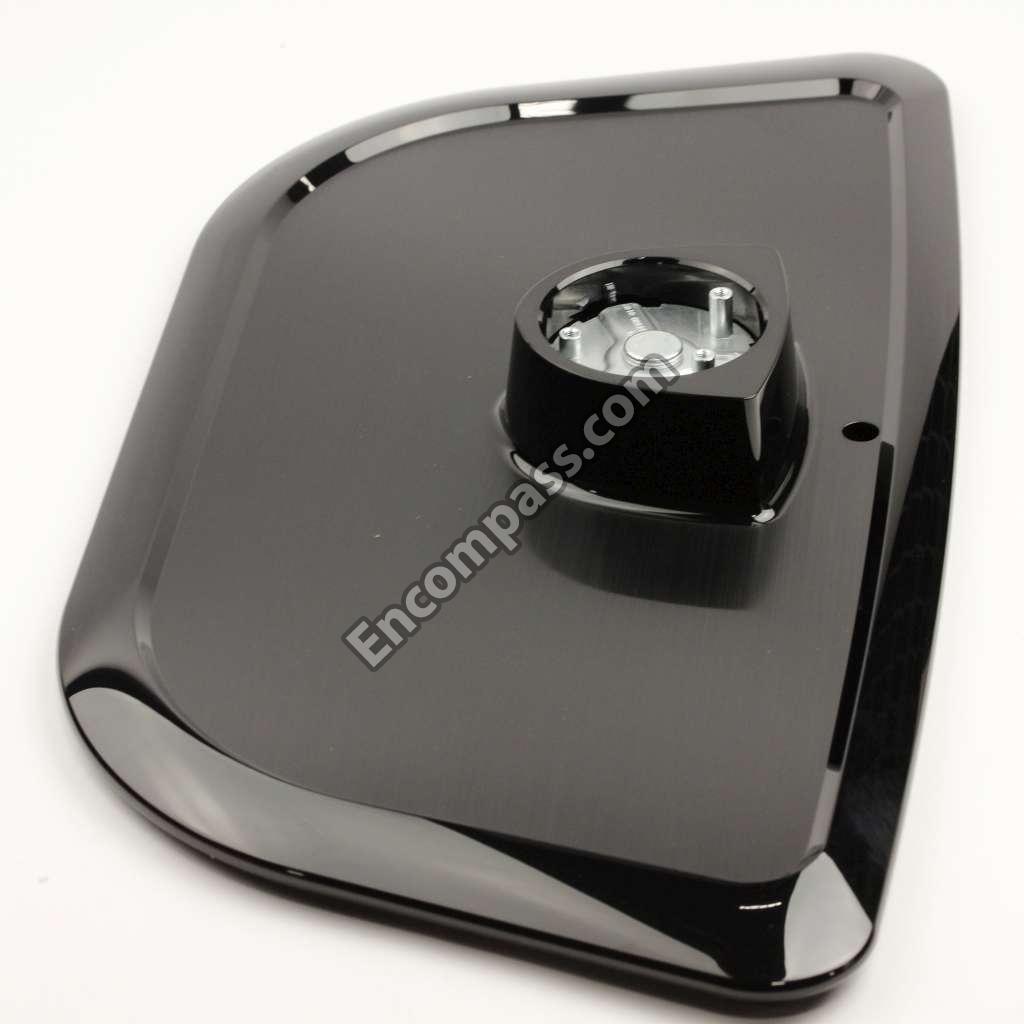

AAN74248602 AAN74248602 BASE ASSEMBLY
MAY65781103 MAY65781103 BOX
ABA74310104 ABA74310104 BRACKET ASSEMBLY

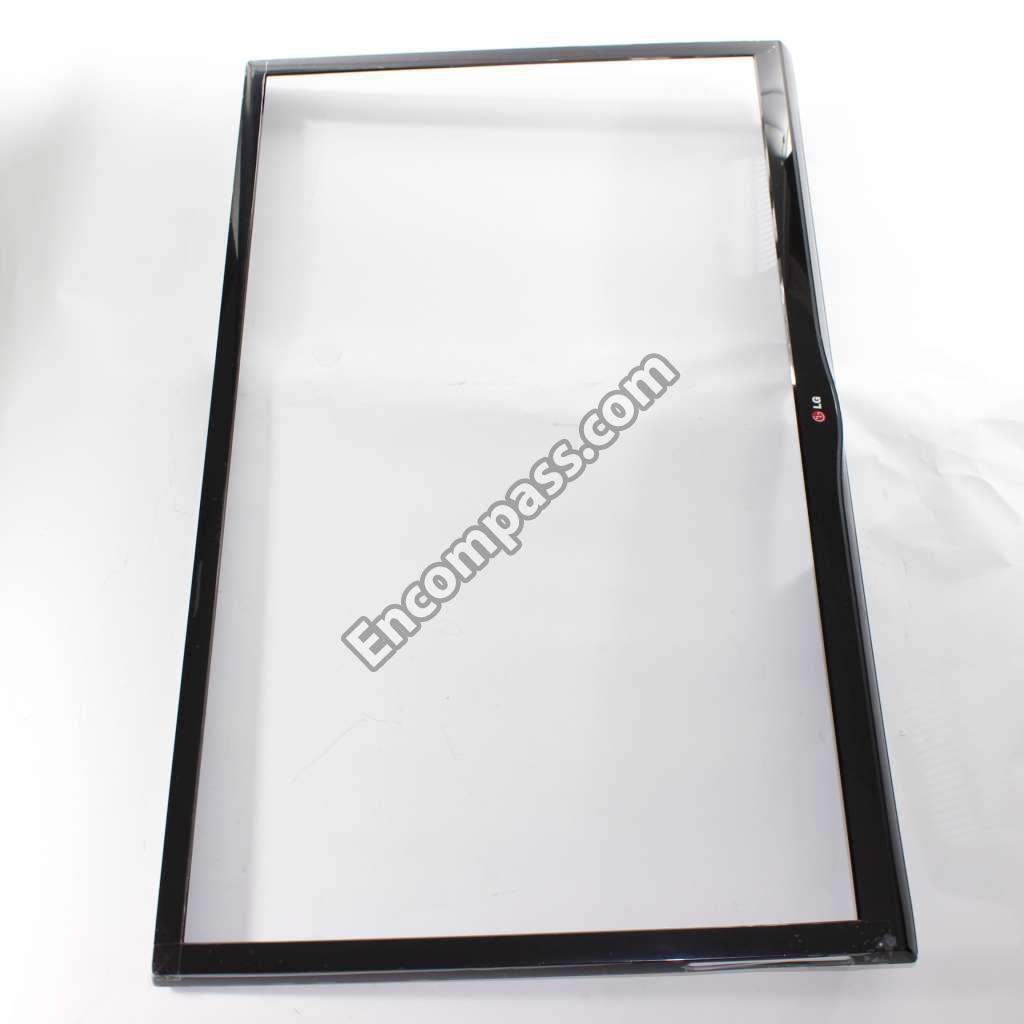

ABJ73927303 ABJ73927303 CABINET ASSEMBLY
EAD61858723 EAD61858723 CABLE,FFC
EAE60171701 EAE60171701 CAPACITOR,AL,CHIP
ECZH0001215 ECZH0001215 CAPACITOR,CERAMIC,CHIP
EAE62764101 EAE62764101 CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE58112401 EAE58112401 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE33970001 EAE33970001 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
0CK680BK4DA 0CK680BK4DA CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CK224DK56A 0CK224DK56A CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAG60692001 EAG60692001 CONNECTOR,FFC/FPC/PIC
EAG62611201 EAG62611201 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG61091601 EAG61091601 CONNECTOR,WAFER
EAG61091501 EAG61091501 CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
6630V90141E 6630V90141E CONNECTOR,WAFER
CRB33174501 CRB33174501 CONTROL PCB ASSY
ACQ86251111 ACQ86251111 COVER ASSEMBLY,REAR
EAW61645501 EAW61645501 CRYSTAL
0DD184009AA 0DD184009AA DIODE ASSEMBLY
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH41961301 EAH41961301 DIODE,SWITCHING
EAN62575501 EAN62575501 DISPLAY SOC,DIGITAL TV
EBK60752501 EBK60752501 FET
MDJ63428201 MDJ63428201 FILTER
EAM60670804 EAM60670804 FILTER,AC LINE
EAM62272001 EAM62272001 FILTER,BEAD
EAM62091201 EAM62091201 FILTER,BEAD
EAM62091101 EAM62091101 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM58113401 EAM58113401 FILTER,BEAD
EAM32500903 EAM32500903 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
EAD61646602 EAD61646602 HARNESS,SINGLE
EAD61646232 EAD61646232 HARNESS,SINGLE
EAD60958304 EAD60958304 HARNESS,SINGLE
EAD58345802 EAD58345802 HARNESS,SINGLE
EAN62648801 EAN62648801 IC,ANALOG SWITCH
EAN62668201 EAN62668201 IC,AUDIO AMPLIFIER
EAN61832901 EAN61832901 IC,DC,DC CONVERTER
EAN61836301 EAN61836301 IC,DDR3 SDRAM
EAN43349003 EAN43349003 IC,EEPROM
EAN62673301 EAN62673301 IC,LDO VOLTAGE REGULATOR
EAN58801701 EAN58801701 IC,LDO VOLTAGE REGULATOR
EAN54428601 EAN54428601 IC,LDO VOLTAGE REGULATOR
EAN62626201 EAN62626201 IC,SERIAL FLASH MEMORY
EAN41348201 EAN41348201 IC,TX/RX
EAN61507501 EAN61507501 IC,VOLTAGE REGULATOR
EAP62107401 EAP62107401 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EBR76306602 EBR76306602 IR & LED PCB ASSY
EAG59023301 EAG59023301 JACK,DIN
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG60841807 EAG60841807 JACK,PHONE
EAG60968202 EAG60968202 JACK,RCA
EAV60793101 EAV60793101 LED,CHIP

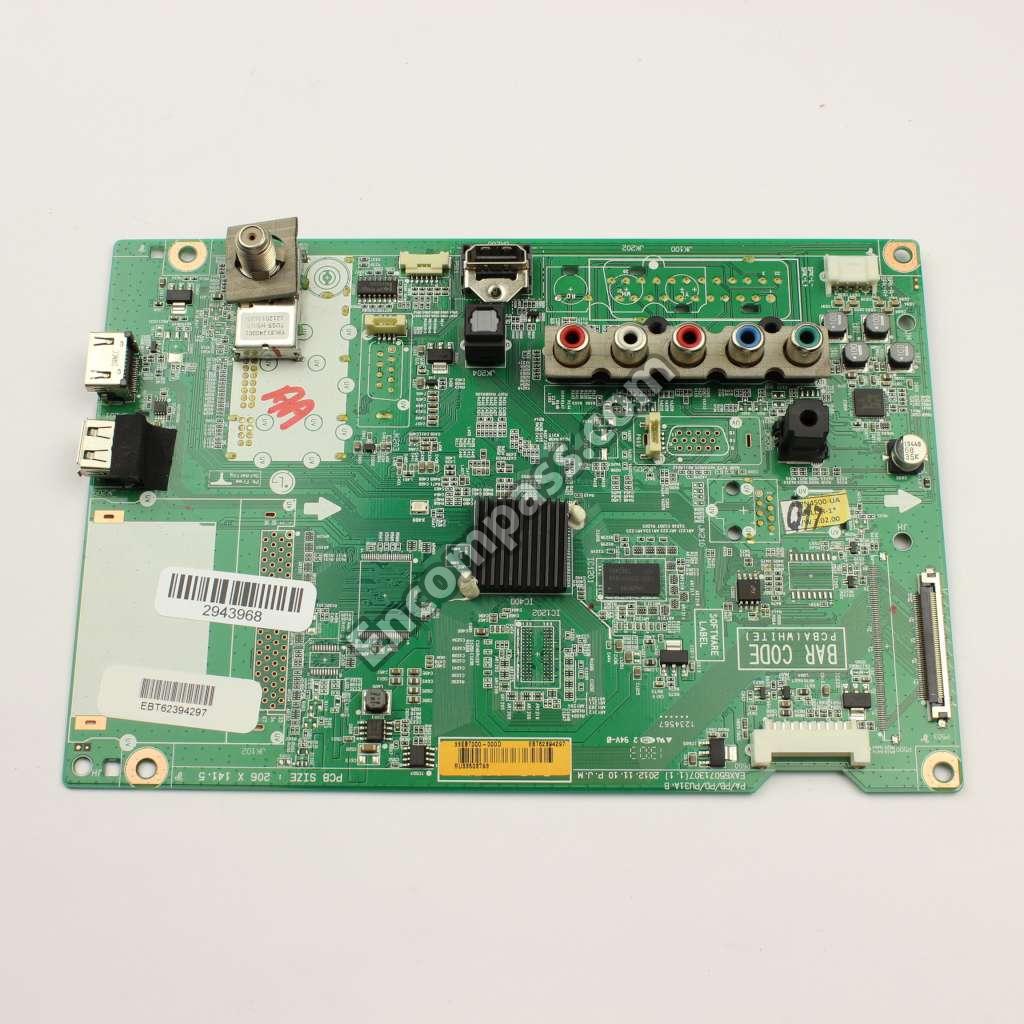

CRB33586101 CRB33586101 MAIN PCB ASSY
AKB73715608 AKB73715608 PACKAGE ASSEMBLY
EAJ61908427 EAJ61908427 PDP,MODULE-XGA
6410TUW008A 6410TUW008A POWER CORD

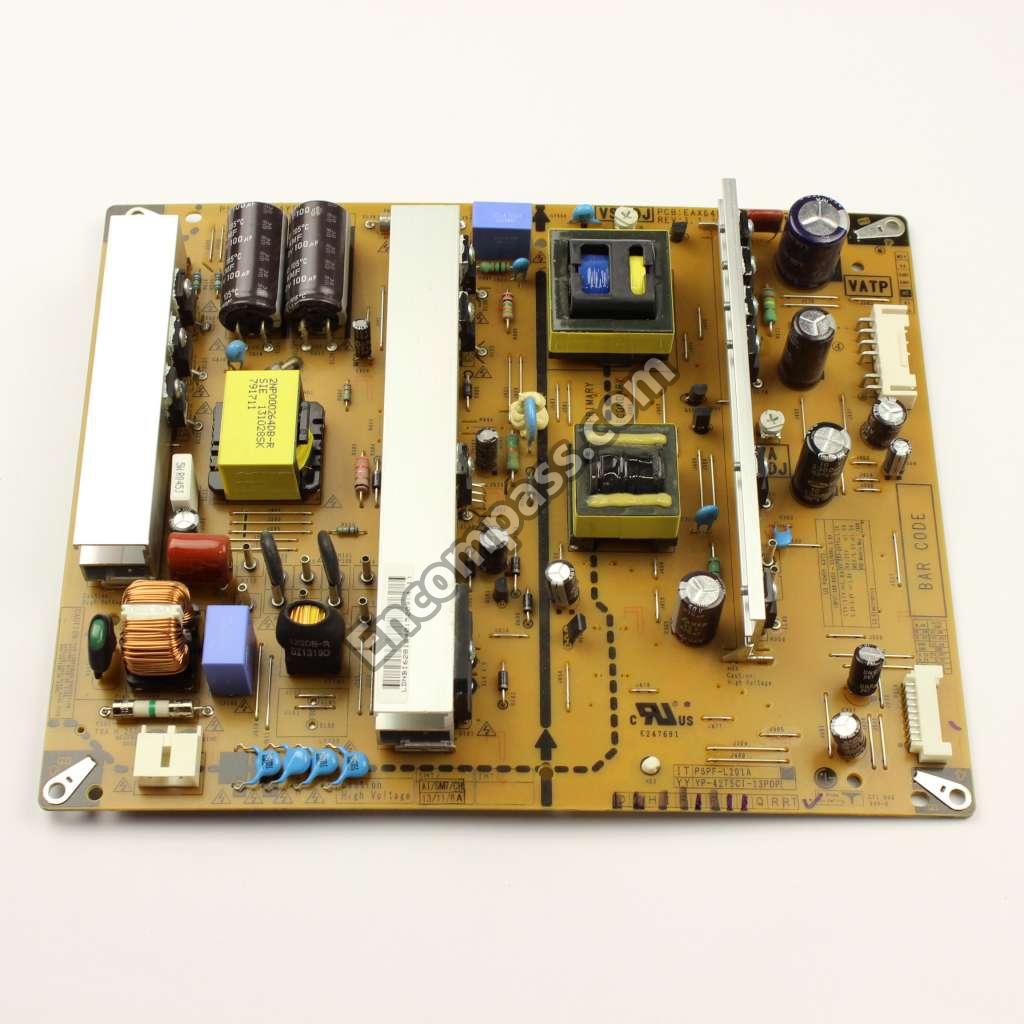

CRB33417901 CRB33417901 POWER SYPPLY ASSY
EBC39283301 EBC39283301 RESISTOR,ARRAY
EBC32260601 EBC32260601 RESISTOR,ARRAY
EBC30996801 EBC30996801 RESISTOR,CHIP
0RJ5102C478 0RJ5102C478 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ2401C678 0RJ2401C678 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ2200C678 0RJ2200C678 RESISTOR,CHIP
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000D677 0RJ1000D677 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0752C678 0RJ0752C678 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ0392D677 0RJ0392D677 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP

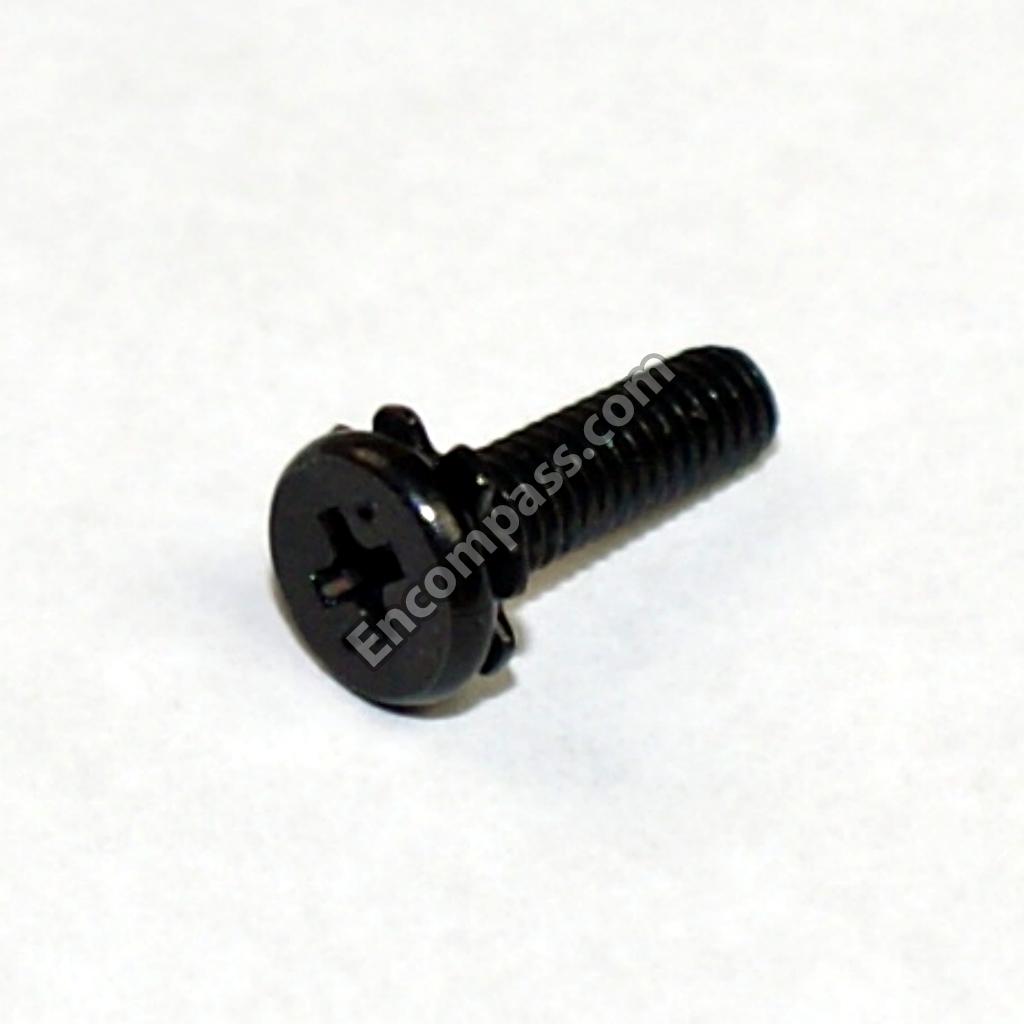

FAB30016403 FAB30016403 SCREW ASSEMBLY
FAB30016124 FAB30016124 SCREW ASSEMBLY
EAB62828301 EAB62828301 SPEAKER,FULL RANGE
MJH62895302 MJH62895302 SUPPORTER
MJH62894402 MJH62894402 SUPPORTER
AJJ73838602 AJJ73838602 SUPPORTER ASSEMBLY
AJJ73838502 AJJ73838502 SUPPORTER ASSEMBLY
AJJ73838402 AJJ73838402 SUPPORTER ASSEMBLY
AJJ73838302 AJJ73838302 SUPPORTER ASSEMBLY
AJJ73798802 AJJ73798802 SUPPORTER ASSEMBLY
EBK61012601 EBK61012601 TR,BIPOLAR
0TRIY80001A 0TRIY80001A TR,BIPOLAR
EBL61240001 EBL61240001 TUNER,DIGITAL
EAF61630101 EAF61630101 VARISTOR
EAF61530301 EAF61530301 VARISTOR
EAF61530101 EAF61530101 VARISTOR
EBR73575501 EBR73575501 XRLB PCB ASSY
EBR73575601 EBR73575601 XRRB PCB ASSY
EBR73575401 EBR73575401 YDRV PCB ASSY
EBR73575201 EBR73575201 YSUS PCB ASSY
EBR73575301 EBR73575301 ZSUS PCB ASSY
EBR73769001 EBR73769001 ZSUS SUB PCB ASSY
