Model Image
Manufacturer

LG

Model Number

47LN5700UH

Description

47 Inch 1080p Led Tv With Smart Tv

Interactive Exploded View

Parts List

Part Number Description
AAN74211102 AAN74211102 BASE ASSEMBLY
MAY65873301 MAY65873301 BOX
MAZ63704502 MAZ63704502 BRACKET
MAZ63704402 MAZ63704402 BRACKET

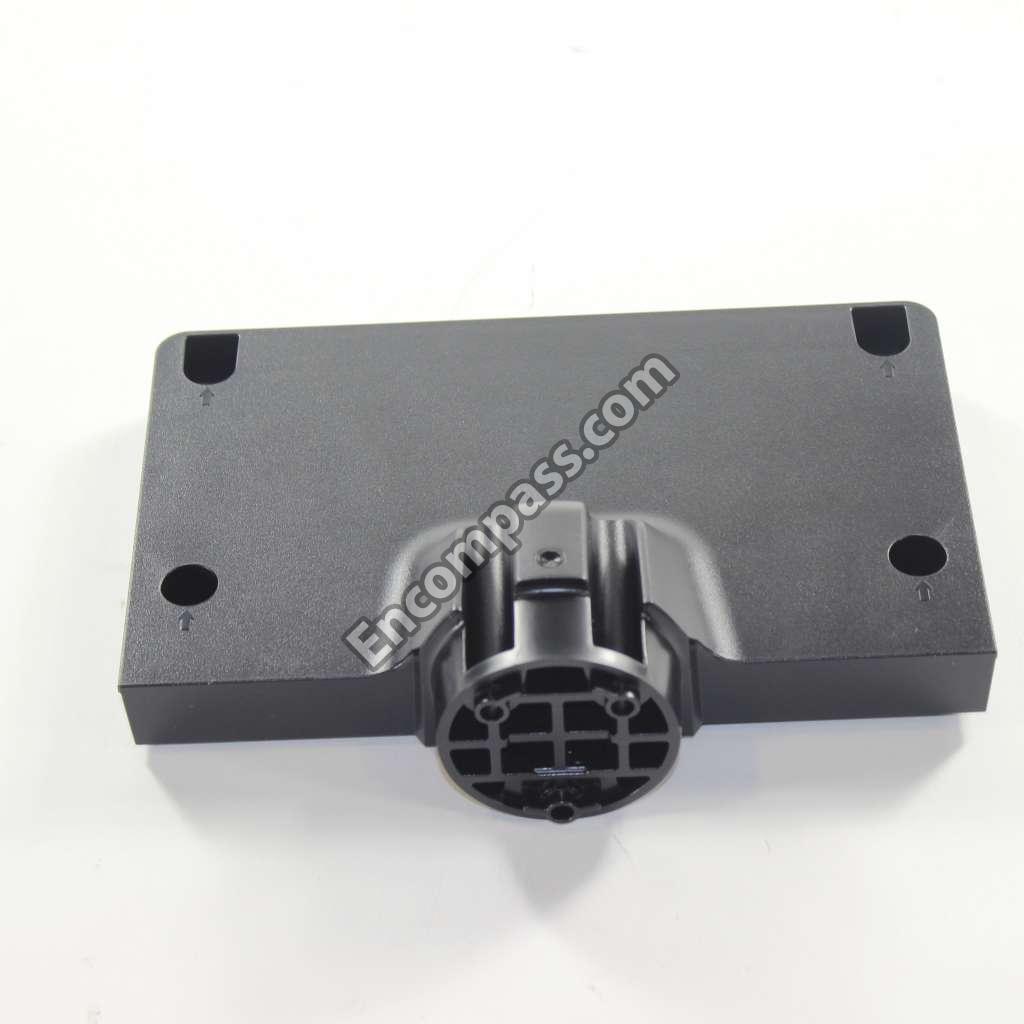

ABA74489610 ABA74489610 BRACKET ASSEMBLY
ABA74488603 ABA74488603 BRACKET ASSEMBLY
ABJ73950701 ABJ73950701 CABINET ASSEMBLY
EAD62370713 EAD62370713 CABLE,FFC
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
EAE62764101 EAE62764101 CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
EAE62281601 EAE62281601 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE59211001 EAE59211001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE31360401 EAE31360401 CAPACITOR,CERAMIC,CHIP
EAE30383301 EAE30383301 CAPACITOR,CERAMIC,CHIP
EAE30276501 EAE30276501 CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
0CZZB00061A 0CZZB00061A CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CZZB00024A 0CZZB00024A CAPACITOR,CERAMIC,CHIP
0CK682BKK6A 0CK682BKK6A CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CK2R7BK0DA 0CK2R7BK0DA CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
0CK152BKG6A 0CK152BKG6A CAPACITOR,CERAMIC,CHIP
0CK122BK56A 0CK122BK56A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CH1474K562 0CH1474K562 CAPACITOR,CERAMIC,CHIP
0CC151BK41A 0CC151BK41A CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAG62611204 EAG62611204 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
EAG61091601 EAG61091601 CONNECTOR,WAFER
EAG61091503 EAG61091503 CONNECTOR,WAFER
EAG61091501 EAG61091501 CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
6630V93270J 6630V93270J CONNECTOR,WAFER
6630V90141F 6630V90141F CONNECTOR,WAFER
ACQ86086118 ACQ86086118 COVER ASSEMBLY,REAR
EAW61645503 EAW61645503 CRYSTAL
EAW58239602 EAW58239602 CRYSTAL
EAH61433701 EAH61433701 DIODE,SCHOTTKY
EAH40458801 EAH40458801 DIODE,SCHOTTKY
EAH61714301 EAH61714301 DIODE,SWITCHING
0DSGD00038A 0DSGD00038A DIODE,SWITCHING
EAN62651401 EAN62651401 DISPLAY SOC,DIGITAL TV
EBK62091801 EBK62091801 FET
EBK61913601 EBK61913601 FET
EBK61731301 EBK61731301 FET
EBK60752501 EBK60752501 FET
0TFON80004C 0TFON80004C FET
EAM58459601 EAM58459601 FILTER,BEAD
EAM32500903 EAM32500903 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAD62293506 EAD62293506 HARNESS,MULTI
EAD61646261 EAD61646261 HARNESS,SINGLE
EAD60958306 EAD60958306 HARNESS,SINGLE
EAD60732910 EAD60732910 HARNESS,SINGLE
EAD60678801 EAD60678801 HARNESS,SINGLE
EAN62649001 EAN62649001 IC,ANALOG SWITCH
EAN62648801 EAN62648801 IC,ANALOG SWITCH
EAN62573101 EAN62573101 IC,ANALOG SWITCH
EAN62668301 EAN62668301 IC,AUDIO AMPLIFIER
EAN62653101 EAN62653101 IC,AUDIO AMPLIFIER
EAN62653501 EAN62653501 IC,DC,DC CONVERTER
EAN62653301 EAN62653301 IC,DC,DC CONVERTER
EAN61849301 EAN61849301 IC,DC,DC CONVERTER
EAN61832901 EAN61832901 IC,DC,DC CONVERTER
EAN62571101 EAN62571101 IC,DDR3 SDRAM
EAN61829203 EAN61829203 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN58801701 EAN58801701 IC,LDO VOLTAGE REGULATOR
EAN62570501 EAN62570501 IC,MCP,EMMC
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN62458601 EAN62458601 IC,RECEIVER
EAN60670101 EAN60670101 IC,RESET
EAN61829801 EAN61829801 IC,VOLTAGE REGULATOR
EAN60910801 EAN60910801 IC,VOLTAGE REGULATOR
EAP62326601 EAP62326601 INDUCTOR,WIRE WOUND,CHIP
EAP62026301 EAP62026301 INDUCTOR,WIRE WOUND,CHIP
EAP38274503 EAP38274503 INDUCTOR,WIRE WOUND,CHIP
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,CHIP
EBT62421504 EBT62421504 IR/LED/AMBIENT LIGHT SENSOR SUB CBA
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG35781010 EAG35781010 JACK,MODULAR
EAG60841811 EAG60841811 JACK,PHONE
EAG60968211 EAG60968211 JACK,RCA
CRD30976401 CRD30976401 LCD DISPLAY ASSEMBLY
CRB34047001 CRB34047001 MAIN CBA
EAT61813801 EAT61813801 MODULE,ASSEMBLY
AKB73756542 AKB73756542 PACKAGE ASSEMBLY - REMOTE CONTROL
EAD62348802 EAD62348802 POWER CORD
EAY62810801 EAY62810801 POWER SUPPLY ASSEMBLY
EBC32260601 EBC32260601 RESISTOR,ARRAY
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY
EBC59174901 EBC59174901 RESISTOR,CHIP
0RJ8200C678 0RJ8200C678 RESISTOR,CHIP
0RJ6801C478 0RJ6801C478 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
0RJ5102C478 0RJ5102C478 RESISTOR,CHIP
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4302C478 0RJ4302C478 RESISTOR,CHIP
0RJ3303C678 0RJ3303C678 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ3002D677 0RJ3002D677 RESISTOR,CHIP
0RJ3002C478 0RJ3002C478 RESISTOR,CHIP
0RJ2702C678 0RJ2702C678 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
0RJ2402C478 0RJ2402C478 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2202C478 0RJ2202C478 RESISTOR,CHIP
0RJ1803C678 0RJ1803C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1800C678 0RJ1800C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1203C678 0RJ1203C678 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ0512C678 0RJ0512C678 RESISTOR,CHIP
0RJ0511C478 0RJ0511C478 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ0122D677 0RJ0122D677 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
EBR76384101 EBR76384101 RUBBER 8 KEY CONTROL PCB WITH NETCAST 4.0
FAB30021301 FAB30021301 SCREW,TAPPING
FAB31740201 FAB31740201 SCREW,TAPTITE
EAB62849301 EAB62849301 SPEAKER,FULL RANGE
6600R00004C 6600R00004C SWITCH,TACT
961-0021 961-0021 TAPE,GLASS FIBER
EBK61012701 EBK61012701 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBL61240003 EBL61240003 TUNER,DIGITAL
EAF61630101 EAF61630101 VARISTOR
EAF61530201 EAF61530201 VARISTOR
