Model Image
Manufacturer

LG

Model Number

50LS4000UA

Description

50-inch Full Hd 1080p Led Lcd Tv

Interactive Exploded View

Parts List

Part Number Description
EAD62047007 EAD62047007 41 PIN LVDS CABLE
EAD62046914 EAD62046914 51 PIN LVDS CABLE
ABA72942714 ABA72942714 BRACKET ASSEMBLY
ABJ73867602 ABJ73867602 CABINET ASSEMBLY
EAE60171701 EAE60171701 CAPACITOR,AL,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP
0CC270BK61A 0CC270BK61A CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK103BH56A 0CK103BH56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK105DH56A 0CK105DH56A CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
0CK225DD66A 0CK225DD66A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
0CK332CK56A 0CK332CK56A CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
EAE32246001 EAE32246001 CAPACITOR,CERAMIC,CHIP
EAE33831901 EAE33831901 CAPACITOR,CERAMIC,CHIP
EAE33970001 EAE33970001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE58111001 EAE58111001 CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
6630G00001E 6630G00001E CONNECTOR,DSUB
6630TGA004Q 6630TGA004Q CONNECTOR,DSUB
EAG62611201 EAG62611201 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
6602T12004B 6602T12004B CONNECTOR,WAFER
6602T12004L 6602T12004L CONNECTOR,WAFER
6630V90141D 6630V90141D CONNECTOR,WAFER
6630V93270J 6630V93270J CONNECTOR,WAFER
6630V93270K 6630V93270K CONNECTOR,WAFER
EAG60670701 EAG60670701 CONNECTOR,WAFER
EAG61091601 EAG61091601 CONNECTOR,WAFER
MCK67226002 MCK67226002 COVER
ACQ86022605 ACQ86022605 COVER ASSEMBLY,REAR
EAW30067102 EAW30067102 CRYSTAL
0DD184009AA 0DD184009AA DIODE ASSEMBLY
EAH61433701 EAH61433701 DIODE,SCHOTTKY
0DSIH00028A 0DSIH00028A DIODE,SWITCHING
EAH39491601 EAH39491601 DIODE,TVS
EAH39491701 EAH39491701 DIODE,TVS
EAH42720601 EAH42720601 DIODE,TVS
0DZKE00318A 0DZKE00318A DIODE,ZENER

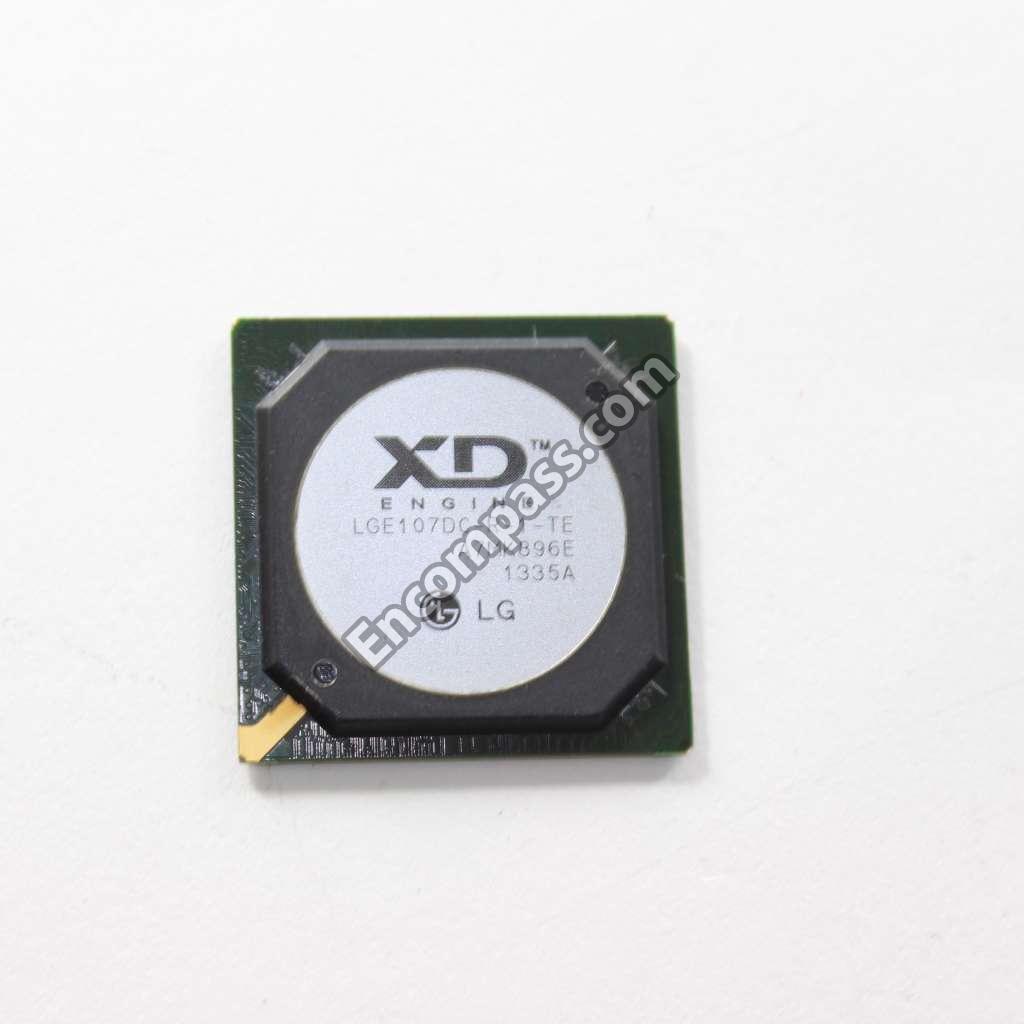

EAN61832801 EAN61832801 DISPLAY SOC,DIGITAL TV
0TR830009BA 0TR830009BA FET
EBK60752501 EBK60752501 FET
EBK60752601 EBK60752601 FET
EBK61011501 EBK61011501 FET
0LCML00003B 0LCML00003B FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAM32500902 EAM32500902 FILTER,BEAD
EAM32500903 EAM32500903 FILTER,BEAD
EAM58113401 EAM58113401 FILTER,BEAD
MDS62110205 MDS62110205 GASKET
6631900049N 6631900049N HARNESS,SINGLE
EAD57675113 EAD57675113 HARNESS,SINGLE
EAD60673315 EAD60673315 HARNESS,SINGLE
EAD60958519 EAD60958519 HARNESS,SINGLE
EAN61849601 EAN61849601 IC,ANALOG SWITCH
EAN60969603 EAN60969603 IC,AUDIO AMPLIFIER
EAN62449901 EAN62449901 IC,AUDIO AMPLIFIER
EAN60660502 EAN60660502 IC,DC,DC CONVERTER
EAN60922902 EAN60922902 IC,DC,DC CONVERTER
EAN61548102 EAN61548102 IC,DC,DC CONVERTER
EAN61849301 EAN61849301 IC,DC,DC CONVERTER
EAN61828901 EAN61828901 IC,DDR3 SDRAM
EAN61857201 EAN61857201 IC,DDR3 SDRAM
0IMMR00014A 0IMMR00014A IC,EEPROM
0IMMRAL014E 0IMMRAL014E IC,EEPROM
0IMMRCS012C 0IMMRCS012C IC,EEPROM
0IMMRSG036B 0IMMRSG036B IC,EEPROM
EAN61133501 EAN61133501 IC,EEPROM
0IMMRAL014D 0IMMRAL014D IC,EEPROM
EAN61086701 EAN61086701 IC,EEPROM
0IMCRAL006A 0IMCRAL006A IC,EEPROM
EAN61925801 EAN61925801 IC,EEPROM
EAN54428101 EAN54428101 IC,LDO VOLTAGE REGULATOR
EAN54428201 EAN54428201 IC,LDO VOLTAGE REGULATOR
EAN60923001 EAN60923001 IC,LDO VOLTAGE REGULATOR
EAN61367101 EAN61367101 IC,MICROCONTROLLERS
EAN60670101 EAN60670101 IC,RESET
EAN55718402 EAN55718402 IC,SERIAL FLASH MEMORY
EAN61327101 EAN61327101 IC,SERIAL FLASH MEMORY
EAN41348201 EAN41348201 IC,TX/RX
EAN61507501 EAN61507501 IC,VOLTAGE REGULATOR
EAP39314712 EAP39314712 INDUCTOR,MULTILAYER,CHIP
EAP32842802 EAP32842802 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EBR72671301 EBR72671301 IR AND TOUCH CONTROL BOARD
EAG59023302 EAG59023302 JACK,DIN
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG37842003 EAG37842003 JACK,FIBER OPTIC
EAG60841801 EAG60841801 JACK,PHONE
EAG60841807 EAG60841807 JACK,PHONE
EAG61030001 EAG61030001 JACK,PHONE
EAG60841301 EAG60841301 JACK,RCA
EAG60968101 EAG60968101 JACK,RCA
EAG60968201 EAG60968201 JACK,RCA
EAG61007601 EAG61007601 JACK,RCA
CRB33484901 CRB33484901 MAIN BOARD PCB
MGJ62004701 MGJ62004701 PLATE,METAL
EAD63505502 EAD63505502 POWER CORD
AKB74115501 AKB74115501 REMOTE CONTROL
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY
EBC39283301 EBC39283301 RESISTOR,ARRAY
0RH3901D422 0RH3901D422 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ0101D677 0RJ0101D677 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0122D677 0RJ0122D677 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ0222D677 0RJ0222D677 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0472C678 0RJ0472C678 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ1100D677 0RJ1100D677 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1211D477 0RJ1211D477 RESISTOR,CHIP
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP
0RJ1501D477 0RJ1501D477 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ2001E472 0RJ2001E472 RESISTOR,CHIP
0RJ2002C478 0RJ2002C478 RESISTOR,CHIP
0RJ2200E472 0RJ2200E472 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ2202C478 0RJ2202C478 RESISTOR,CHIP
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2402C478 0RJ2402C478 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ2701D477 0RJ2701D477 RESISTOR,CHIP
0RJ2701D677 0RJ2701D677 RESISTOR,CHIP
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP
0RJ3001D677 0RJ3001D677 RESISTOR,CHIP
0RJ3300D677 0RJ3300D677 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ3303C678 0RJ3303C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RJ4700D677 0RJ4700D677 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ5102C478 0RJ5102C478 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ6802C678 0RJ6802C678 RESISTOR,CHIP
0RJ7501C678 0RJ7501C678 RESISTOR,CHIP
0RJ7502E472 0RJ7502E472 RESISTOR,CHIP
0RJ8200D677 0RJ8200D677 RESISTOR,CHIP
0RJ8201D477 0RJ8201D477 RESISTOR,CHIP
EBC42830501 EBC42830501 RESISTOR,CHIP
FAB30021301 FAB30021301 SCREW,TAPPING
EAY62769901 EAY62769901 SMPS,AC/DC
EAB60961403 EAB60961403 SPEAKER,FULL RANGE
AAN74592501 AAN74592501 STAND BASE
FAB30016122 FAB30016122 STAND SCREW

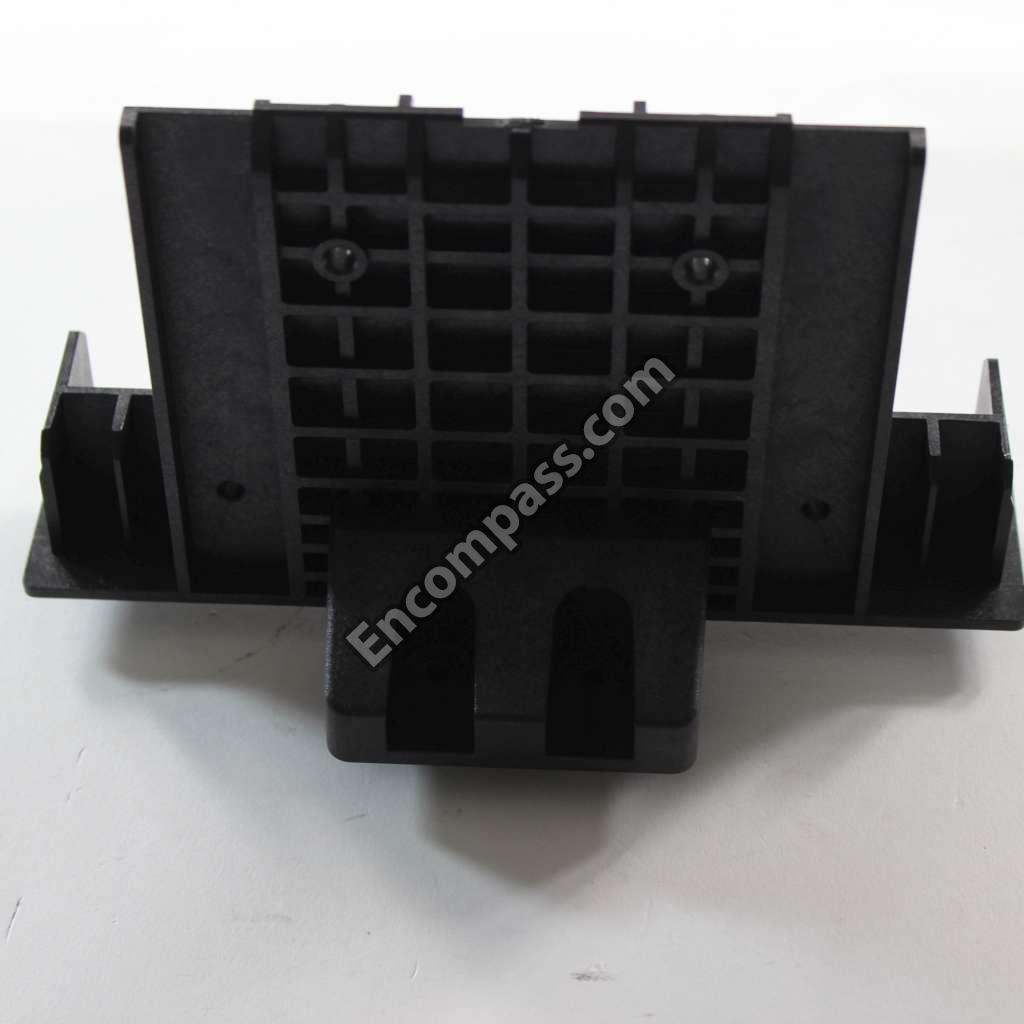

MJH62763002 MJH62763002 STAND SUPPORT / STAND BODY
MJH61887802 MJH61887802 SUPPORTER
MJH62762902 MJH62762902 SUPPORTER
0TRDI80002A 0TRDI80002A TR,BIPOLAR
0TRIH80004A 0TRIH80004A TR,BIPOLAR
0TRIY80001A 0TRIY80001A TR,BIPOLAR
EBK58172301 EBK58172301 TR,BIPOLAR
EBK61012501 EBK61012501 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBK61012701 EBK61012701 TR,BIPOLAR
EBL60860103 EBL60860103 TUNER,ANALOG/DIGITAL
