Model Image
Manufacturer

LG

Model Number

50PB560BUA

Description

50-inch Plasma Tv - 720p

Interactive Exploded View

Parts List

Part Number Description

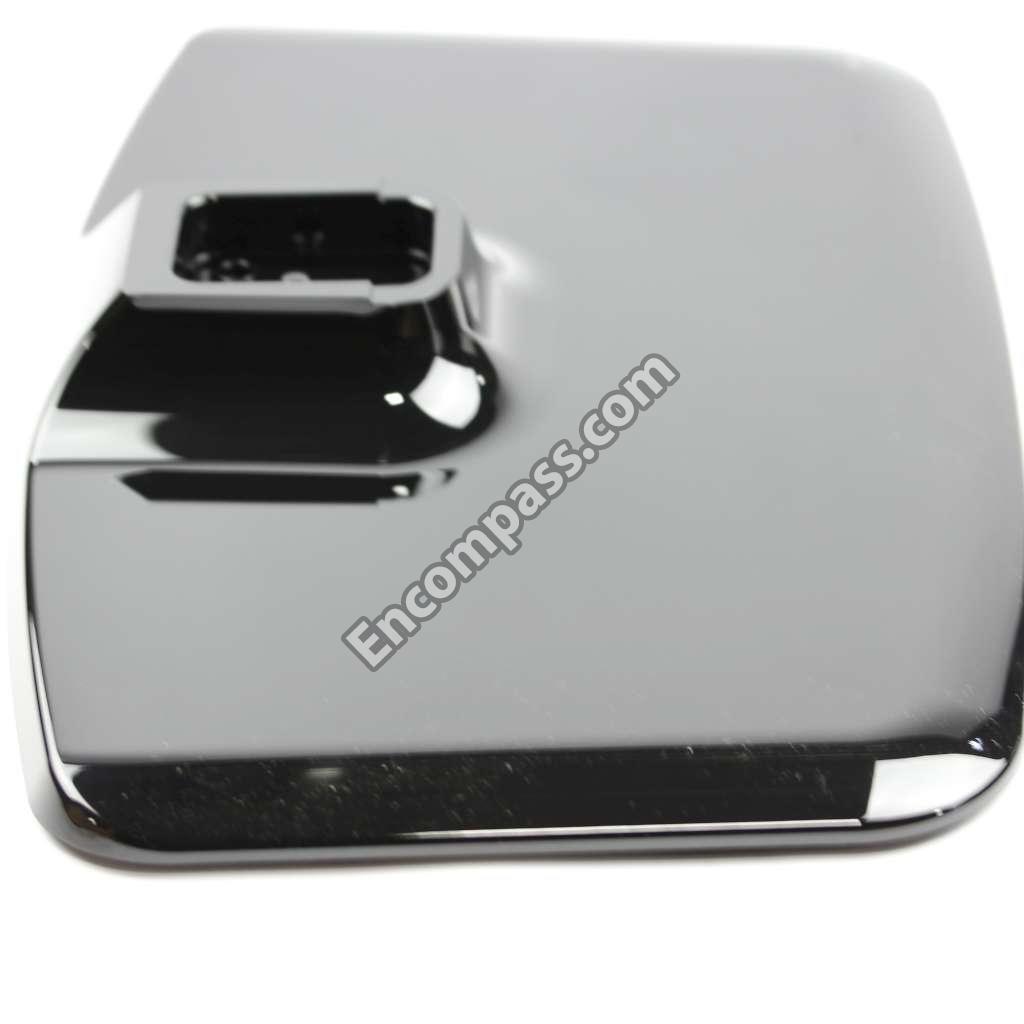

AAN74392901 AAN74392901 BASE ASSEMBLY
ABA74533607 ABA74533607 BRACKET ASSEMBLY
EAD61858760 EAD61858760 CABLE,FFC
EBU62117403 EBU62117403 CHASSIS ASSEMBLY
EAG60692001 EAG60692001 CONNECTOR,FFC/FPC/PIC
ACQ87002901 ACQ87002901 COVER ASSEMBLY
ACQ86692904 ACQ86692904 COVER ASSEMBLY,REAR
EAW61645501 EAW61645501 CRYSTAL
EAN62738601 EAN62738601 DISPLAY SOC,DIGITAL TV
EBK61913701 EBK61913701 FET
MDJ63704401 MDJ63704401 FILTER
MDJ63647801 MDJ63647801 FILTER
EBR77287801 EBR77287801 HAND INSERT PCB ASSEMBLY
EBR77287401 EBR77287401 HAND INSERT PCB ASSEMBLY
EBR77141501 EBR77141501 HAND INSERT PCB ASSEMBLY
EBR77101001 EBR77101001 HAND INSERT PCB ASSEMBLY
EBR77100901 EBR77100901 HAND INSERT PCB ASSEMBLY
EAD62292803 EAD62292803 HARNESS,SINGLE
EAD61646233 EAD61646233 HARNESS,SINGLE
EAD60958305 EAD60958305 HARNESS,SINGLE
EAD60678802 EAD60678802 HARNESS,SINGLE
EAN62869101 EAN62869101 IC,LDO VOLTAGE REGULATOR
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAP62107401 EAP62107401 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG61030012 EAG61030012 JACK,PHONE
EAG60968215 EAG60968215 JACK,RCA
AFN76092102 AFN76092102 MANUAL ASSEMBLY

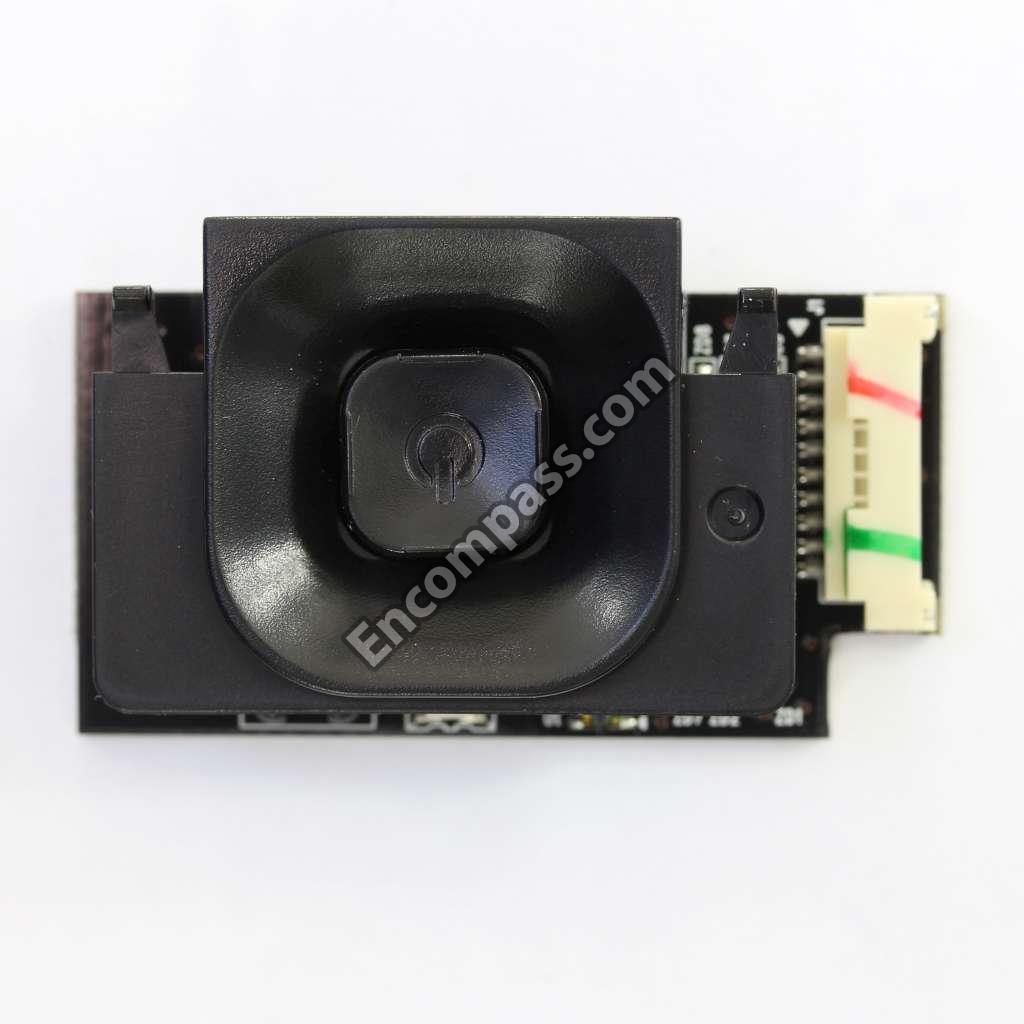

EBR78101501 EBR78101501 PCB ASSEMBLY,SUB
EAJ61908599 EAJ61908599 PDP,MODULE-XGA
6410TUW008A 6410TUW008A POWER CORD
AKB73715608 AKB73715608 REMOTE CONTROLLER ASSEMBLY
FAB30016124 FAB30016124 SCREW ASSEMBLY

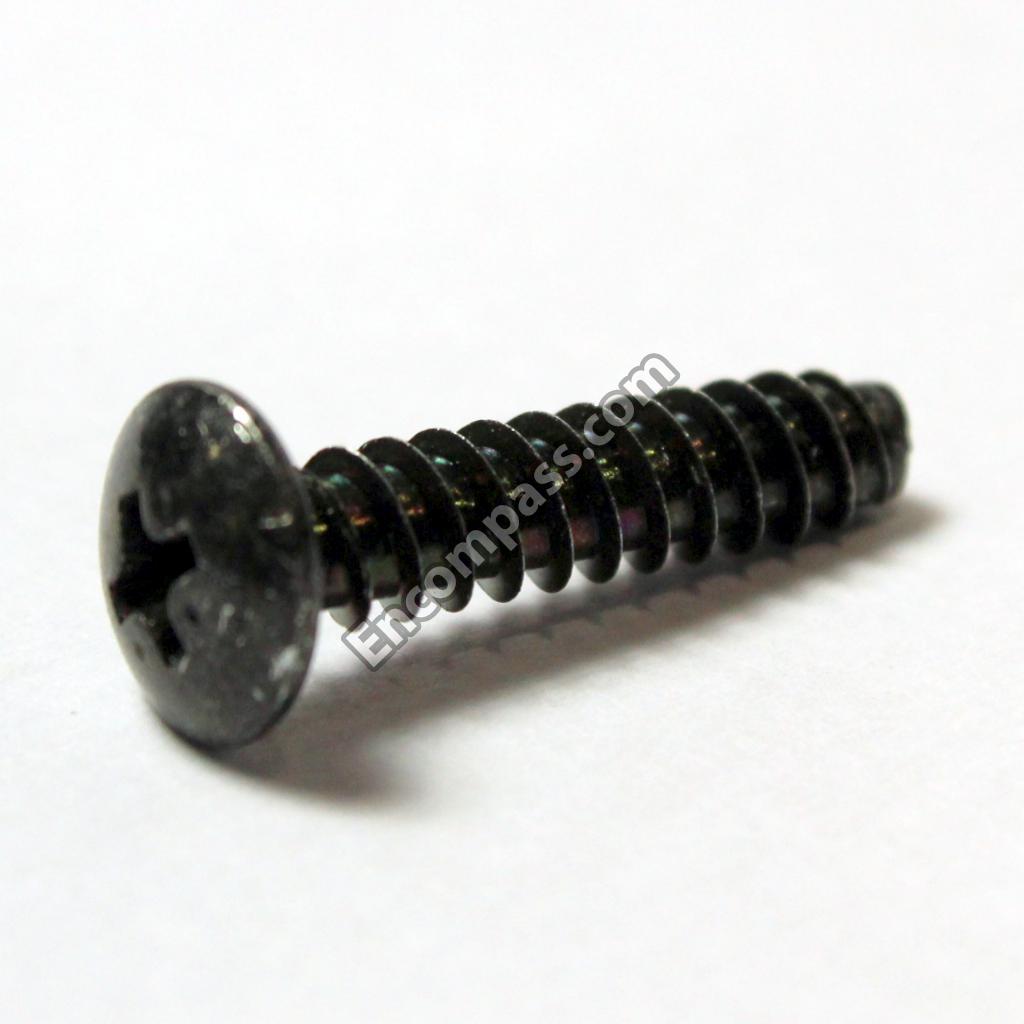

FAB31740201 FAB31740201 SCREW,TAPTITE
EAY63168601 EAY63168601 SMPS,AC/DC
EAB62828302 EAB62828302 SPEAKER,FULL RANGE
MJH63101503 MJH63101503 SUPPORTER
MJH63101402 MJH63101402 SUPPORTER

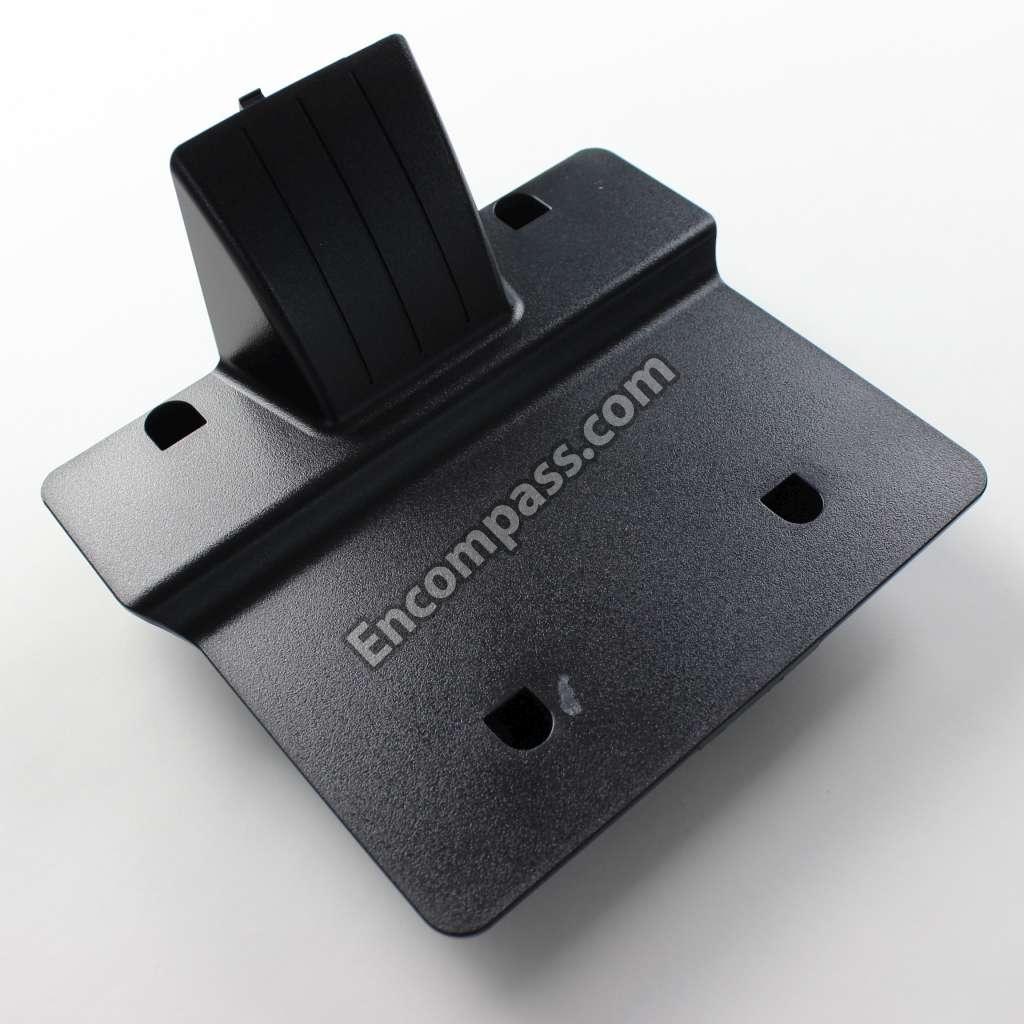

AJJ73919602 AJJ73919602 SUPPORTER ASSEMBLY
AJJ73919502 AJJ73919502 SUPPORTER ASSEMBLY
AJJ73919402 AJJ73919402 SUPPORTER ASSEMBLY
AJJ73919302 AJJ73919302 SUPPORTER ASSEMBLY
EBK61012701 EBK61012701 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBL61380101 EBL61380101 TUNER,ANALOG/DIGITAL
