Model Image
Manufacturer

LG

Model Number

50PC1DR

Description

50-inch Plasma Integrated Hdtv With Built-in Hd Dv

Interactive Exploded View

Parts List

Part Number Description
AAN74592601 AAN74592601 BASE ASSEMBLY [430]
6850TD9007E 6850TD9007E CABLE,ASSEMBLY [A4]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A5]
6850U00002C 6850U00002C CABLE,ASSEMBLY [C1]
6850J00005C 6850J00005C CABLE,ASSEMBLY [C3]
6851V00022D 6851V00022D CABLE,ASSEMBLY [C4]
6631V10004A 6631V10004A CABLE,FFC [C19]
6631V10004Z 6631V10004Z CABLE,FFC [C20]
0CE226WF6DC 0CE226WF6DC CAPACITOR,AL,CHIP [C1001]
0CE106WFKDC 0CE106WFKDC CAPACITOR,AL,CHIP [C100]
0CE105WK6DC 0CE105WK6DC CAPACITOR,AL,CHIP [C101]
0CE476WF6DC 0CE476WF6DC CAPACITOR,AL,CHIP [C1022]
0CE225WK6DC 0CE225WK6DC CAPACITOR,AL,CHIP [C109]
0CE475WJ6DC 0CE475WJ6DC CAPACITOR,AL,CHIP [C1107]
0CE335WK6D8 0CE335WK6D8 CAPACITOR,AL,CHIP [C1115]
0CE227WF6DC 0CE227WF6DC CAPACITOR,AL,CHIP [C116]
0CE227SF6DC 0CE227SF6DC CAPACITOR,AL,CHIP [C116]
0CE476WK6DC 0CE476WK6DC CAPACITOR,AL,CHIP [C1334]
0CE337WJ6D8 0CE337WJ6D8 CAPACITOR,AL,CHIP [C1604]
0CE477WF6DC 0CE477WF6DC CAPACITOR,AL,CHIP [C1607]
0CE475WK6DC 0CE475WK6DC CAPACITOR,AL,CHIP [C272]
0CE686SJ6D8 0CE686SJ6D8 CAPACITOR,AL,CHIP [C309]
0CE106SK6DC 0CE106SK6DC CAPACITOR,AL,CHIP [C428]
0CE476WH6DC 0CE476WH6DC CAPACITOR,AL,CHIP [C626]
0CE335SK6DC 0CE335SK6DC CAPACITOR,AL,CHIP [R1334]
0CE4763F618 0CE4763F618 CAPACITOR,AL,RADIAL [C103]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C1000]
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP [C1003]
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP [C1006]
0CC101CK41A 0CC101CK41A CAPACITOR,CERAMIC,CHIP [C101]
0CK474CH94A 0CK474CH94A CAPACITOR,CERAMIC,CHIP [C102]
0CC330CK41A 0CC330CK41A CAPACITOR,CERAMIC,CHIP [C102]
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP [C1034]
0CK472CK56A 0CK472CK56A CAPACITOR,CERAMIC,CHIP [C1044]
0CK392CK56A 0CK392CK56A CAPACITOR,CERAMIC,CHIP [C1102]
0CC561CK41A 0CC561CK41A CAPACITOR,CERAMIC,CHIP [C1104]
0CC471CK41A 0CC471CK41A CAPACITOR,CERAMIC,CHIP [C1108]
0CK271CK46A 0CK271CK46A CAPACITOR,CERAMIC,CHIP [C1109]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C1113]
0CC180CK41A 0CC180CK41A CAPACITOR,CERAMIC,CHIP [C1117]
0CC200CK41A 0CC200CK41A CAPACITOR,CERAMIC,CHIP [C1200]
0CK105DF64A 0CK105DF64A CAPACITOR,CERAMIC,CHIP [C1231]
0CC050CK11A 0CC050CK11A CAPACITOR,CERAMIC,CHIP [C1362]
0CC020CK01A 0CC020CK01A CAPACITOR,CERAMIC,CHIP [C201]
0CC560CK41A 0CC560CK41A CAPACITOR,CERAMIC,CHIP [C205]
0CK222CK56A 0CK222CK56A CAPACITOR,CERAMIC,CHIP [C211]
0CC220CK41A 0CC220CK41A CAPACITOR,CERAMIC,CHIP [C232]
0CC100CK41A 0CC100CK41A CAPACITOR,CERAMIC,CHIP [C3044]
0CK226FF67A 0CK226FF67A CAPACITOR,CERAMIC,CHIP [C3079]
0CK334CF94A 0CK334CF94A CAPACITOR,CERAMIC,CHIP [C316]
0CK473CH56A 0CK473CH56A CAPACITOR,CERAMIC,CHIP [C322]
0CC102CK41A 0CC102CK41A CAPACITOR,CERAMIC,CHIP [C323]
0CK105CF94A 0CK105CF94A CAPACITOR,CERAMIC,CHIP [C409]
0CK333CK56A 0CK333CK56A CAPACITOR,CERAMIC,CHIP [C446]
0CK474EK66A 0CK474EK66A CAPACITOR,CERAMIC,CHIP [C465]
0CK104CF56A 0CK104CF56A CAPACITOR,CERAMIC,CHIP [C530]
31419SN902A 31419SN902A CHASSIS ASSEMBLY [552]
6140VB0004B 6140VB0004B COIL,CHOKE [L1601]
61409B0008A 61409B0008A COIL,CHOKE [L408]
6630G70017A 6630G70017A CONNECTOR,DSUB [CN300]
6630G70016A 6630G70016A CONNECTOR,DSUB [J601]
6630X60151A 6630X60151A CONNECTOR,FFC/FPC/PIC [P101]
6630VE00731 6630VE00731 CONNECTOR,FFC/FPC/PIC [P1610]
6634D00016A 6634D00016A CONNECTOR,RF [TU2]
366-036B 366-036B CONNECTOR,WAFER [C24]
6630U60039A 6630U60039A CONNECTOR,WAFER [P1000]
6630V90142A 6630V90142A CONNECTOR,WAFER [P100]
6602T20009J 6602T20009J CONNECTOR,WAFER [P100]
6602T20009C 6602T20009C CONNECTOR,WAFER [P100]
6602T20009L 6602T20009L CONNECTOR,WAFER [P100]
366-921D 366-921D CONNECTOR,WAFER [P1100]
6630VE01269 6630VE01269 CONNECTOR,WAFER [P1200]
6602Q39005A 6602Q39005A CONNECTOR,WAFER [P1601]
6602T25008L 6602T25008L CONNECTOR,WAFER [P1603]
6602T25008M 6602T25008M CONNECTOR,WAFER [P1604]
366-932E 366-932E CONNECTOR,WAFER [P1605]
366-932B 366-932B CONNECTOR,WAFER [P1606]
6602T25009J 6602T25009J CONNECTOR,WAFER [P301]
6602T25009C 6602T25009C CONNECTOR,WAFER [P403]
6602T25009B 6602T25009B CONNECTOR,WAFER [P404]
6602T12007D 6602T12007D CONNECTOR,WAFER [P801]
30919E0004B 30919E0004B COVER ASSEMBLY [300]
3809900102C 3809900102C COVER ASSEMBLY [400]
35509K0101A 35509K0101A COVER [431]
6212AB2872A 6212AB2872A CRYSTAL [X1000]
6212AB2015E 6212AB2015E CRYSTAL [X1100]
6212AC2001D 6212AC2001D CRYSTAL [X1200]
6202VDT002H 6202VDT002H CRYSTAL [X201]
6212AB2015A 6212AB2015A CRYSTAL [X502]
6202TST001A 6202TST001A CRYSTAL [X601]
6212AB2873A 6212AB2873A CRYSTAL [X701]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D1300]
0DSIH00028A 0DSIH00028A DIODE,SWITCHING [D101]
0DS113379BA 0DS113379BA DIODE,SWITCHING [D1300]
0DRSE00038A 0DRSE00038A DIODE,TVS [D302]
0DRSE00048A 0DRSE00048A DIODE,TVS [D600]
0DZ560009DA 0DZ560009DA DIODE,ZENER [ZD101]
0DZRM00248A 0DZRM00248A DIODE,ZENER [ZD201]
0ICTMLG009E 0ICTMLG009E DISPLAY SOC,DIGITAL TV [IC402]
0TFVI80067A 0TFVI80067A FET [Q1600]
0TR830009BA 0TR830009BA FET [Q603]
5230V00025B 5230V00025B FILTER [305]
0LCML00003B 0LCML00003B FILTER,BEAD [B116]
6200J000013 6200J000013 FILTER,BEAD [L301]
6210TCE001S 6210TCE001S FILTER,BEAD [L413]
6871QCH059B 6871QCH059B HAND INSERT PCB ASSEMBLY [201]
6871QDH088A 6871QDH088A HAND INSERT PCB ASSEMBLY [202]
6871QDH089A 6871QDH089A HAND INSERT PCB ASSEMBLY [203]
6871QLH049D 6871QLH049D HAND INSERT PCB ASSEMBLY [204]
6871QXH030A 6871QXH030A HAND INSERT PCB ASSEMBLY [205]
6871QRH057A 6871QRH057A HAND INSERT PCB ASSEMBLY [206]
6871QYH039B 6871QYH039B HAND INSERT PCB ASSEMBLY [207]
CRB30627901 CRB30627901 HAND INSERT PCB ASSEMBLY [208]
68719MM701A 68719MM701A HAND INSERT PCB ASSEMBLY,MAIN [520]
68719SMJ48A 68719SMJ48A HAND INSERT PCB ASSEMBLY,SUB [560]

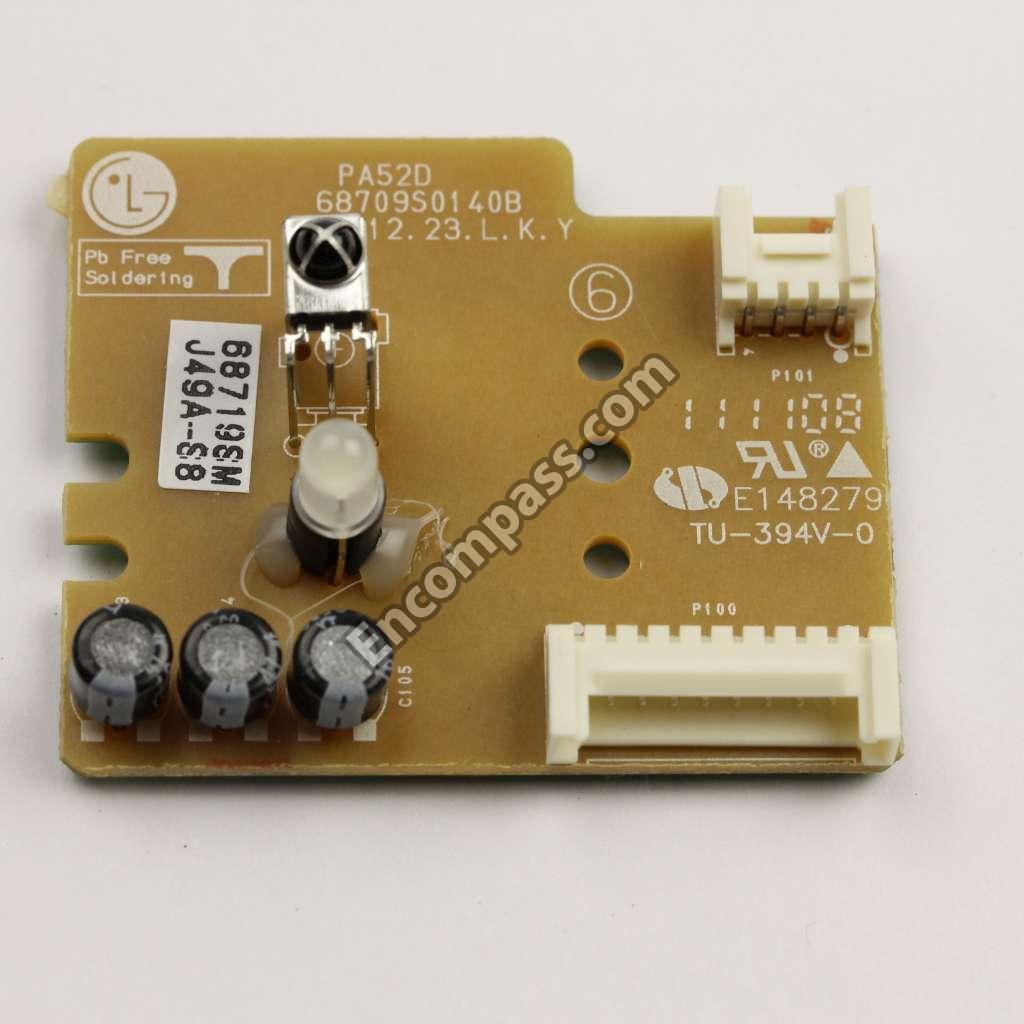

68719SMJ49A 68719SMJ49A HAND INSERT PCB ASSEMBLY,SUB [570]
68719SMJ47A 68719SMJ47A HAND INSERT PCB ASSEMBLY,SUB [600]
6631900097D 6631900097D HARNESS,SINGLE [C10]
6631900098D 6631900098D HARNESS,SINGLE [C11]
6631900012J 6631900012J HARNESS,SINGLE [C12]
6631900027G 6631900027G HARNESS,SINGLE [C13]
6631900065C 6631900065C HARNESS,SINGLE [C14]
6631900099B 6631900099B HARNESS,SINGLE [C15]
6631900100C 6631900100C HARNESS,SINGLE [C16]
6631900101D 6631900101D HARNESS,SINGLE [C17]
6631900104A 6631900104A HARNESS,SINGLE [C18]
6631V25032G 6631V25032G HARNESS,SINGLE [C21]
6631V39015E 6631V39015E HARNESS,SINGLE [C22]
6631V39016E 6631V39016E HARNESS,SINGLE [C23]
6851V00080E 6851V00080E HARNESS,SINGLE [C2]
6631900105C 6631900105C HARNESS,SINGLE [C7]
6631T20033J 6631T20033J HARNESS,SINGLE [C8]
6631900106C 6631900106C HARNESS,SINGLE [C9]
EAZ36872201 EAZ36872201 HDD [550]
4921QP1053B 4921QP1053B HEAT SINK ASSEMBLY [0]
4921QP1052B 4921QP1052B HEAT SINK ASSEMBLY [0]
0ICB533100A 0ICB533100A IC,A/D CONVERTER [IC1000]
0IPRP00696A 0IPRP00696A IC,A/D CONVERTER [IC603]
0ISO206900A 0ISO206900A IC,ANALOG SWITCH [IC101]
0IPRP00538A 0IPRP00538A IC,ANALOG SWITCH [IC1303]
0ILNR00015A 0ILNR00015A IC,AUDIO AMPLIFIER [IC401]
0IMCRTI028C 0IMCRTI028C IC,AUDIO AMPLIFIER [IC403]
0IMCRCY002A 0IMCRCY002A IC,BUFFER [IC203]
0IMCRPH026B 0IMCRPH026B IC,BUFFER [IC206]
0IMCR02015A 0IMCR02015A IC,BUS CONTROLLER [IC1002]
0IPRPBM001B 0IPRPBM001B IC,BUS CONTROLLER [IC100]
0ISTL00024A 0ISTL00024A IC,CMOS [IC1101]
0IMCRFA013A 0IMCRFA013A IC,CMOS [IC1202]
0ISTLPH026A 0ISTLPH026A IC,CMOS [IC306]
0IPMGNS026A 0IPMGNS026A IC,COMPARATOR [IC1102]
0ICTM00006B 0ICTM00006B IC,DATA CONTROLLER [IC1305]
0IMMR00159A 0IMMR00159A IC,DDR SDRAM [IC909]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC209]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC502]
0IMMRAL014B 0IMMRAL014B IC,EEPROM [IC601]
0IMMRCS012B 0IMMRCS012B IC,EEPROM [IC604]
0IMI623200B 0IMI623200B IC,I/O SUPPORT CHIP [IC1603]
0IPRPFA016A 0IPRPFA016A IC,IMAGE FILTER [IC607]
0IPRPFA015B 0IPRPFA015B IC,IMAGE FILTER [IC702]
0IPMGKE032A 0IPMGKE032A IC,LDO VOLTAGE REGULATOR [IC1003]
0IPMG00049A 0IPMG00049A IC,LDO VOLTAGE REGULATOR [IC1007]
0IMCRSJ001B 0IMCRSJ001B IC,LDO VOLTAGE REGULATOR [IC1201]
0IPMG78403A 0IPMG78403A IC,LDO VOLTAGE REGULATOR [IC1300]
0IPMGA0010A 0IPMGA0010A IC,LDO VOLTAGE REGULATOR [IC1307]
0IMCRKE006A 0IMCRKE006A IC,LDO VOLTAGE REGULATOR [IC1602]
0IMCRSJ001A 0IMCRSJ001A IC,LDO VOLTAGE REGULATOR [IC302]
0IMCRRH001A 0IMCRRH001A IC,LDO VOLTAGE REGULATOR [IC304]
0IPMG00028A 0IPMG00028A IC,LDO VOLTAGE REGULATOR [IC708]
0IMCRMT003A 0IMCRMT003A IC,MICROCONTROLLERS [IC1100]
0IMCRMP006A 0IMCRMP006A IC,MICROCONTROLLERS [IC1103]
0ICTM00006C 0ICTM00006C IC,MICROPROCESSORS [IC1306]
0ISTL00029A 0ISTL00029A IC,OP AMPLIFIER [IC1001]
0IPRP00687A 0IPRP00687A IC,PLD [IC301]
0IPRP00687B 0IPRP00687B IC,PLD [IC305]
0ICTMLG013B 0ICTMLG013B IC,PLL/SYNTHESIZER [IC505]
0IPRPML004B 0IPRPML004B IC,PMIC [IC1204]
0ICB841500B 0ICB841500B IC,RECEIVER [IC1006]
0IMMRHY038E 0IMMRHY038E IC,SDRAM [IC201]
0IMMR00141A 0IMMR00141A IC,SDRAM [IC500]
0IMMR00080A 0IMMR00080A IC,SDRAM [IC703]
0IPRP00670A 0IPRP00670A IC,SOUND/AUDIO PROCESSOR [IC201]
0IMCRMN028C 0IMCRMN028C IC,SOUND/AUDIO PROCESSOR [IC202]
0ICTMLG017A 0ICTMLG017A IC,TRANSCEIVER [IC1200]
0IPH740800H 0IPH740800H IC,TTL [IC602]
0IPRP00009A 0IPRP00009A IC,TX/RX [IC304]
0IMCRTH002A 0IMCRTH002A IC,TX/RX [IC803]
0IPRPNE011B 0IPRPNE011B IC,VIDEO DECODE [IC701]
0ICTM00040A 0ICTM00040A IC,VIDEO DECODE [IC908]
0IMCRSO025A 0IMCRSO025A IC,VIDEO PROCESSORS [IC501]
0ICTMLG018C 0ICTMLG018C IC,VIDEO PROCESSORS [IC804]
0IMCRSH001A 0IMCRSH001A IC,VOLTAGE REGULATOR [IC1302]
0IPMGON013B 0IPMGON013B IC,VOLTAGE REGULATOR [IC1304]
0IMCRFA010A 0IMCRFA010A IC,VOLTAGE REGULATOR [IC303]
0IPMG78391A 0IPMG78391A IC,VOLTAGE REGULATOR [IC907]
6612J10033A 6612J10033A JACK,COMPLEX [J100]
6612J00062N 6612J00062N JACK,COMPLEX [J101]
6612B00015B 6612B00015B JACK,DIN [J601]
6612BBBHN4D 6612BBBHN4D JACK,FIBER OPTIC [JK100]
6612F00099A 6612F00099A JACK,PHONE [J604]
6612J10031A 6612J10031A JACK,RCA [J602]
0DLAU0410AA 0DLAU0410AA LED,DIP [LD101]
6204B48360A 6204B48360A OSCILLATOR,CRYSTAL [X200]
6204B47985K 6204B47985K OSCILLATOR,CRYSTAL [X3070]
6204B62705A 6204B62705A OSCILLATOR,CRYSTAL [X500]
6871VSMFA8A 6871VSMFA8A PCB ASSEMBLY,SUB [P1002]
3301900089B 3301900089B PLATE ASSEMBLY [501]
3301900092H 3301900092H PLATE ASSEMBLY [502]
EAD60817903 EAD60817903 POWER CORD [A3]

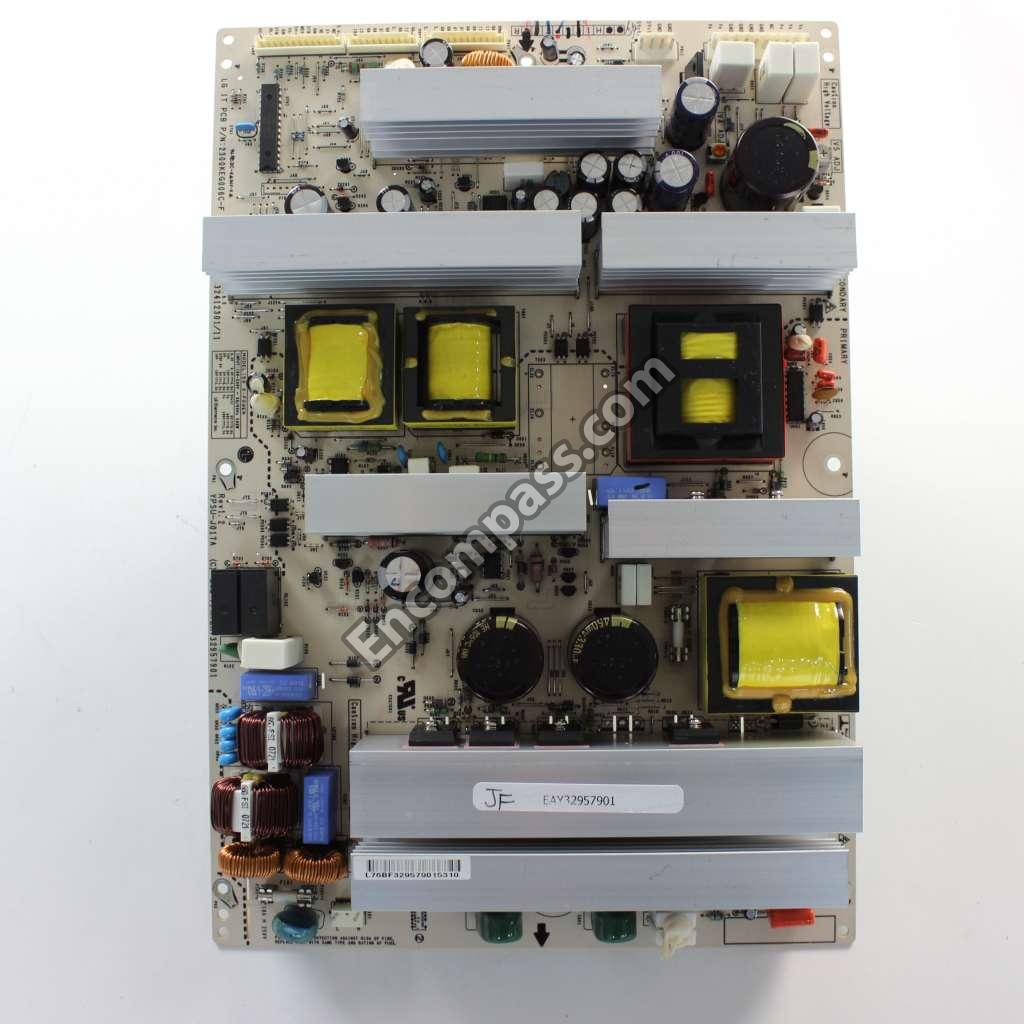

EAY32957901 EAY32957901 POWER SUPPLY ASSEMBLY [580]
6712000011B 6712000011B RECEIVER MODULE [PA101]
AKB73575301 AKB73575301 REMOTE CONTROLLER [10]
MKJ39927806 MKJ39927806 REMOTE CONTROLLER [6]
MKJ39927807 MKJ39927807 REMOTE CONTROLLER [7]
AKB73575302 AKB73575302 REMOTE CONTROLLER [A2]
0RRZVTA001D 0RRZVTA001D RESISTOR,ARRAY [AR1300]
0RHZTCZ001D 0RHZTCZ001D RESISTOR,ARRAY [AR900]
0RD0331H609 0RD0331H609 RESISTOR,CARBON FILM [R1302]
0RD0272H609 0RD0272H609 RESISTOR,CARBON FILM [R1631]
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM [R505]
6212AB3004D 6212AB3004D RESONATOR,CERAMIC [X501]
692791110AG 692791110AG S/W,FIRMWARE [IC01]
692791111AG 692791111AG S/W,FIRMWARE [IC02]
692791112AD 692791112AD S/W,FIRMWARE [IC03]
692791113AD 692791113AD S/W,FIRMWARE [IC04]
692791130AD 692791130AD S/W,FIRMWARE [IC504]
0IPRPNS054A 0IPRPNS054A SENSOR,TEMPERATURE [IC1604]
6630CE00168 6630CE00168 SOCKET,CARD [P1613]
EAB30826001 EAB30826001 SPEAKER,TWEETER [121]
EAB30829601 EAB30829601 SPEAKER,WOOFER [120]
4980900101A 4980900101A SUPPORTER [240]
4980900102A 4980900102A SUPPORTER [250]
4980900103A 4980900103A SUPPORTER [301]
4980900104A 4980900104A SUPPORTER [302]
4980900105A 4980900105A SUPPORTER [303]
4980900106A 4980900106A SUPPORTER [304]
4980900138C 4980900138C SUPPORTER [551]
140-313B 140-313B SWITCH,TACT [SW101]
6600VR1004A 6600VR1004A SWITCH,TACT [SW300]
0TRIH80002A 0TRIH80002A TR,BIPOLAR [Q102]
0TRIY80001A 0TRIY80001A TR,BIPOLAR [Q105]
0TR390609DC 0TR390609DC TR,BIPOLAR [Q1101]
EBK58172301 EBK58172301 TR,BIPOLAR [Q1302]
0TR102009AM 0TR102009AM TR,BIPOLAR [Q207]
0TR102009AJ 0TR102009AJ TR,BIPOLAR [Q601]
0TRIH80003A 0TRIH80003A TR,BIPOLAR [Q612]
6700NF0024A 6700NF0024A TUNER,ANALOG [TU1302]
6700AB0001A 6700AB0001A TUNER,ANALOG/DIGITAL [TU1300]
6102W5V016A 6102W5V016A VARISTOR [VR601]
Main Menu x
