Manufacturer

LG

Model Number

50PX1DH

Description

50px1dh

Interactive Exploded View

Parts List

Part Number Description
4811V00118K 4811V00118K BRACKET ASSEMBLY [601]
5020V01068A 5020V01068A BUTTON [541]
6850TD9007E 6850TD9007E CABLE,ASSEMBLY [A4]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY [A5]
6850J00005C 6850J00005C CABLE,ASSEMBLY [C1]
6851V00022B 6851V00022B CABLE,ASSEMBLY [C2]
6631V10004A 6631V10004A CABLE,FFC [C6]
6631V10004Z 6631V10004Z CABLE,FFC [C7]
0CE336SH6DC 0CE336SH6DC CAPACITOR,AL,CHIP [C1003]
0CE225VK6DC 0CE225VK6DC CAPACITOR,AL,CHIP [C101]
0CE106VF6DC 0CE106VF6DC CAPACITOR,AL,CHIP [C103]
0CE105SK6DC 0CE105SK6DC CAPACITOR,AL,CHIP [C118]
0CE475SK6DC 0CE475SK6DC CAPACITOR,AL,CHIP [C1200]
0CE226SF6DC 0CE226SF6DC CAPACITOR,AL,CHIP [C1203]
0CE476SF6DC 0CE476SF6DC CAPACITOR,AL,CHIP [C1213]
0CE107SF6DC 0CE107SF6DC CAPACITOR,AL,CHIP [C1269]
0CE336SD6DC 0CE336SD6DC CAPACITOR,AL,CHIP [C126]
0CE477SF6DC 0CE477SF6DC CAPACITOR,AL,CHIP [C1277]
0CE106SK6DC 0CE106SK6DC CAPACITOR,AL,CHIP [C172]
0CE335SK6DC 0CE335SK6DC CAPACITOR,AL,CHIP [C280]
0CE106SF6DC 0CE106SF6DC CAPACITOR,AL,CHIP [C298]
0CE106SH6DC 0CE106SH6DC CAPACITOR,AL,CHIP [C375]
0CE476VK6DC 0CE476VK6DC CAPACITOR,AL,CHIP [C504]
0CE107VF6DC 0CE107VF6DC CAPACITOR,AL,CHIP [C605]
0CE4763F618 0CE4763F618 CAPACITOR,AL,RADIAL [C202]
0CE477DJ618 0CE477DJ618 CAPACITOR,AL,RADIAL [C207]

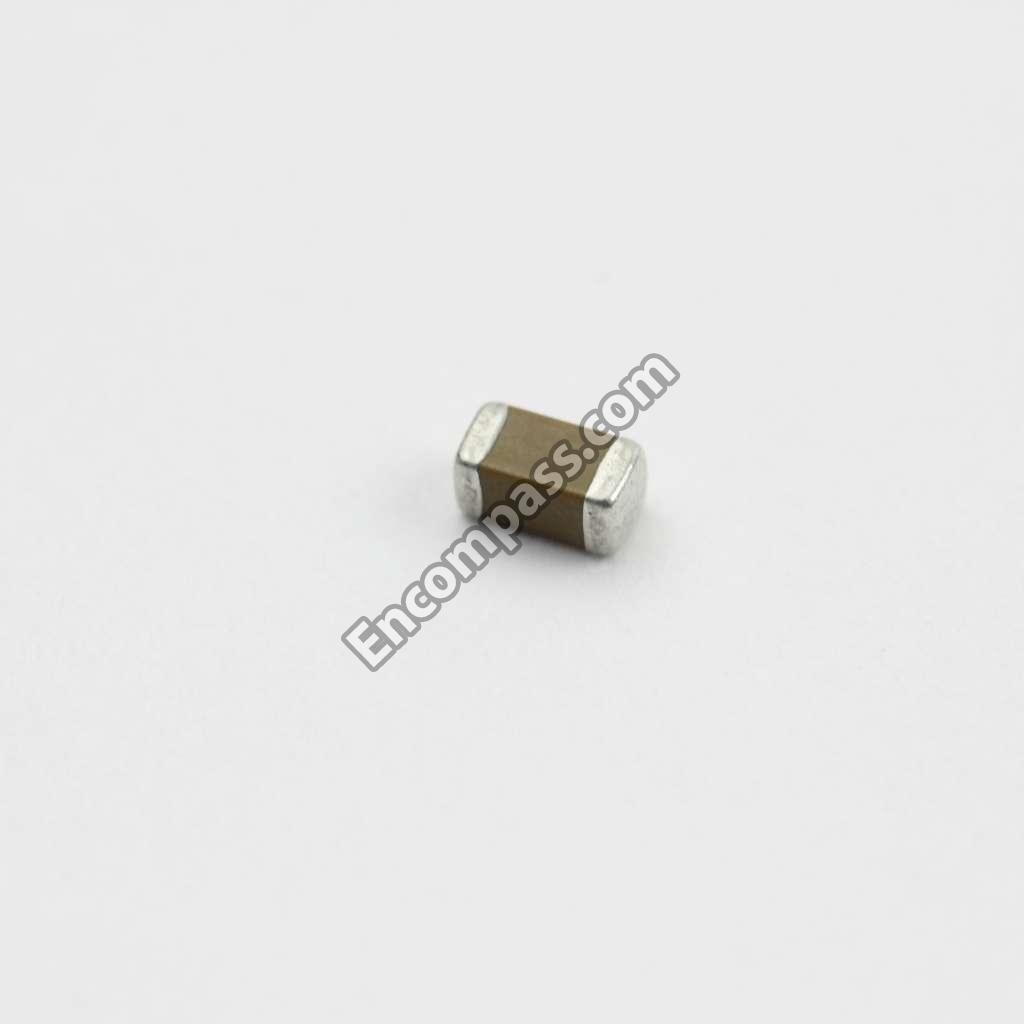

0CK104CF56A 0CK104CF56A CAPACITOR,CERAMIC,CHIP [C1005]
0CC200CK41A 0CC200CK41A CAPACITOR,CERAMIC,CHIP [C1015]
0CK103CK56A 0CK103CK56A CAPACITOR,CERAMIC,CHIP [C102]
0CK105DF64A 0CK105DF64A CAPACITOR,CERAMIC,CHIP [C1214]
0CK102CK56A 0CK102CK56A CAPACITOR,CERAMIC,CHIP [C1331]
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP [C1363]
0CC100CK11A 0CC100CK11A CAPACITOR,CERAMIC,CHIP [C226]
0CC270CK41A 0CC270CK41A CAPACITOR,CERAMIC,CHIP [C539]
0CC470CK41A 0CC470CK41A CAPACITOR,CERAMIC,CHIP [C603]
0CK472CK56A 0CK472CK56A CAPACITOR,CERAMIC,CHIP [C619]
0CC180CKH1A 0CC180CKH1A CAPACITOR,CERAMIC,CHIP [C8008]
0CK473CH56A 0CK473CH56A CAPACITOR,CERAMIC,CHIP [C818]
0CK823CF56A 0CK823CF56A CAPACITOR,CERAMIC,CHIP [C843]
0CK822CK46A 0CK822CK46A CAPACITOR,CERAMIC,CHIP [C849]
0CC331CK41A 0CC331CK41A CAPACITOR,CERAMIC,CHIP [C923]
0CK334CF56A 0CK334CF56A CAPACITOR,CERAMIC,CHIP [C925]
0CF4741L438 0CF4741L438 CAPACITOR,FILM,DIP [C186]
0CS335EFKDC 0CS335EFKDC CAPACITOR,TA,NIOBIUM [C100]
3110V00351A 3110V00351A CASE [122]
3110V00352A 3110V00352A CASE [124]
3141VSNS84A 3141VSNS84A CHASSIS ASSEMBLY [590]
6140VB0032A 6140VB0032A COIL,CHOKE [L130]
6140VB0004B 6140VB0004B COIL,CHOKE [L1700]
6630VE01268 6630VE01268 CONNECTOR,BTOB [CN1000]
6630G70017A 6630G70017A CONNECTOR,DSUB [CN900]
6630G70016A 6630G70016A CONNECTOR,DSUB [JK300]
6630VE00731 6630VE00731 CONNECTOR,FFC/FPC/PIC [CN1705]
6612J00042G 6612J00042G CONNECTOR,RF [ANT1]
366-036B 366-036B CONNECTOR,WAFER [C17]
6602T12007D 6602T12007D CONNECTOR,WAFER [CN1300]
366-921L 366-921L CONNECTOR,WAFER [CN1700]
366-932B 366-932B CONNECTOR,WAFER [CN1701]
366-921E 366-921E CONNECTOR,WAFER [CN901]
366-922L 366-922L CONNECTOR,WAFER [P101]
6630V90142A 6630V90142A CONNECTOR,WAFER [P101]
366-921J 366-921J CONNECTOR,WAFER [P201]
366-922G 366-922G CONNECTOR,WAFER [P201]
366-922C 366-922C CONNECTOR,WAFER [P202]
366-921C 366-921C CONNECTOR,WAFER [P205]
366-932G 366-932G CONNECTOR,WAFER [P401]
366-921F 366-921F CONNECTOR,WAFER [P402]
366-922B 366-922B CONNECTOR,WAFER [P803]
3091V00671N 3091V00671N COVER ASSEMBLY [300]
3809V00463L 3809V00463L COVER ASSEMBLY [400]
3550V00396A 3550V00396A COVER [123]
6212AC2001D 6212AC2001D CRYSTAL [X1000]
6212AB2015A 6212AB2015A CRYSTAL [X104]
6202VDT002H 6202VDT002H CRYSTAL [X200]
6202VDT002D 6202VDT002D CRYSTAL [X401]
6212AB2806A 6212AB2806A CRYSTAL [X6602]
6212AB2845A 6212AB2845A CRYSTAL [X801]
0DD184009AA 0DD184009AA DIODE ASSEMBLY [D200]
0DRSE00038A 0DRSE00038A DIODE,TVS [D900]
0DZRM00248A 0DZRM00248A DIODE,ZENER [D204]

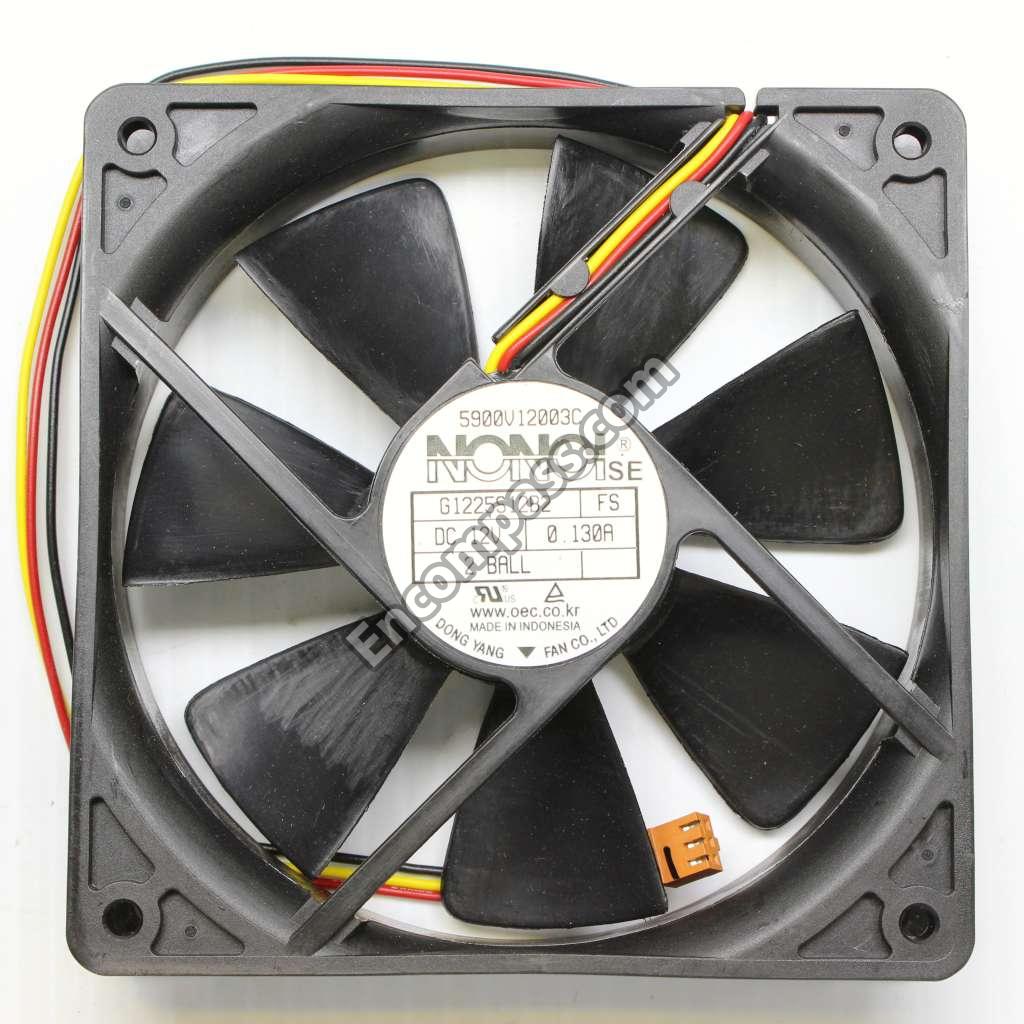

5900V12003C 5900V12003C FAN MODULE [101]
5900V04010A 5900V04010A FAN MODULE [104]
0TR830009BA 0TR830009BA FET [IC407]
5230V00017B 5230V00017B FILTER [305]
0LCML00003B 0LCML00003B FILTER,BEAD [B1000]
6210VC0006A 6210VC0006A FILTER,BEAD [L112]
6210VC0005A 6210VC0005A FILTER,BEAD [L116]
6200QJ3001A 6200QJ3001A FILTER,LCR [F1700]
6200QL3002E 6200QL3002E FILTER,SAW [IC502]
6871QRH041C 6871QRH041C HAND INSERT PCB ASSEMBLY [201]
6871QCH045B 6871QCH045B HAND INSERT PCB ASSEMBLY [202]
6871QZH036B 6871QZH036B HAND INSERT PCB ASSEMBLY [203]
6871QLH035E 6871QLH035E HAND INSERT PCB ASSEMBLY [205]
6871QXH025C 6871QXH025C HAND INSERT PCB ASSEMBLY [206]
6871QLH036C 6871QLH036C HAND INSERT PCB ASSEMBLY [207]
6871QDH081A 6871QDH081A HAND INSERT PCB ASSEMBLY [208]
6871QYH032C 6871QYH032C HAND INSERT PCB ASSEMBLY [209]
6871QDH080A 6871QDH080A HAND INSERT PCB ASSEMBLY [210]
6871QRH042C 6871QRH042C HAND INSERT PCB ASSEMBLY [211]
6871QXH024C 6871QXH024C HAND INSERT PCB ASSEMBLY [212]
387-G03E 387-G03E HARNESS,SINGLE [C11]
6631V00045B 6631V00045B HARNESS,SINGLE [C12]
6631V25083C 6631V25083C HARNESS,SINGLE [C13]
6631V25084C 6631V25084C HARNESS,SINGLE [C14]
6631V39015E 6631V39015E HARNESS,SINGLE [C15]
6631V39016E 6631V39016E HARNESS,SINGLE [C16]
387-G04Q 387-G04Q HARNESS,SINGLE [C3]
387-J08Q 387-J08Q HARNESS,SINGLE [C4]
387-J12N 387-J12N HARNESS,SINGLE [C5]
6631V25032E 6631V25032E HARNESS,SINGLE [C8]
6631V25032G 6631V25032G HARNESS,SINGLE [C9]
4921QP1053B 4921QP1053B HEAT SINK ASSEMBLY [0]
4921QP1052B 4921QP1052B HEAT SINK ASSEMBLY [0]
0ICB533100A 0ICB533100A IC,A/D CONVERTER [IC601]
0IPRPAD008B 0IPRPAD008B IC,A/D CONVERTER [IC801]
0IMCRLT002A 0IMCRLT002A IC,ANALOG SWITCH [IC1003]
0ISO206900A 0ISO206900A IC,ANALOG SWITCH [IC101]
0IPRP00538A 0IPRP00538A IC,ANALOG SWITCH [IC305]
0ICTMLG013A 0ICTMLG013A IC,ASIC [IC505]
0ILNR00015A 0ILNR00015A IC,AUDIO AMPLIFIER [IC201]
0IMCRTI028C 0IMCRTI028C IC,AUDIO AMPLIFIER [IC402]
0IMCRCY001A 0IMCRCY001A IC,BUFFER [IC204]
0IMCRCY002A 0IMCRCY002A IC,BUFFER [IC205]
0IMCRPH026B 0IMCRPH026B IC,BUFFER [IC300]
0IPRPBM001B 0IPRPBM001B IC,BUS CONTROLLER [IC100]
0IMCRFA013A 0IMCRFA013A IC,CMOS [IC1002]
0ISTLPH026A 0ISTLPH026A IC,CMOS [IC201]
0ITO741570C 0ITO741570C IC,CMOS [IC603]
0ITK118100B 0ITK118100B IC,DC,DC CONVERTER [IC302]
0IMMRAL014B 0IMMRAL014B IC,EEPROM [IC112]
0IMCRAL021A 0IMCRAL021A IC,EEPROM [IC301]
0IMCRAL006A 0IMCRAL006A IC,EEPROM [IC405]
0IMI623200B 0IMI623200B IC,I/O SUPPORT CHIP [IC1700]
0IPRPFA015A 0IPRPFA015A IC,IMAGE FILTER [IC607]
0IPRPFA016A 0IPRPFA016A IC,IMAGE FILTER [IC805]
0IMCRSJ001B 0IMCRSJ001B IC,LDO VOLTAGE REGULATOR [IC1000]
0IMCRSJ001A 0IMCRSJ001A IC,LDO VOLTAGE REGULATOR [IC101]
0IPMGKE032A 0IPMGKE032A IC,LDO VOLTAGE REGULATOR [IC1702]
0IPMGA0010A 0IPMGA0010A IC,LDO VOLTAGE REGULATOR [IC209]
0IPMGSG018C 0IPMGSG018C IC,LDO VOLTAGE REGULATOR [IC606]
0IMCRFA004A 0IMCRFA004A IC,OP AMPLIFIER [IC506]
0IMO330780B 0IMO330780B IC,OP AMPLIFIER [IC602]
0IMCRXL004A 0IMCRXL004A IC,PLD [IC203]
0IMCRXL003B 0IMCRXL003B IC,PLD [IC900]
0ICTM00006A 0ICTM00006A IC,RECEIVER [IC304]
0ICB841500B 0ICB841500B IC,RECEIVER [IC604]
0IPRPS5006A 0IPRPS5006A IC,RECEIVER [IC800]
0IMMRHY038E 0IMMRHY038E IC,SDRAM [IC302]
0IMMRSS041F 0IMMRSS041F IC,SDRAM [IC500]
0ISS416162D 0ISS416162D IC,SDRAM [IC602]
0IMCRMN028C 0IMCRMN028C IC,SOUND/AUDIO PROCESSOR [IC200]
0ICTMLG017A 0ICTMLG017A IC,TRANSCEIVER [IC1001]
0IMCRTH002A 0IMCRTH002A IC,TX/RX [IC1302]
0IPRP00009A 0IPRP00009A IC,TX/RX [IC902]
0IMCRTI035A 0IMCRTI035A IC,VIDEO AMPLIFIER [IC504]

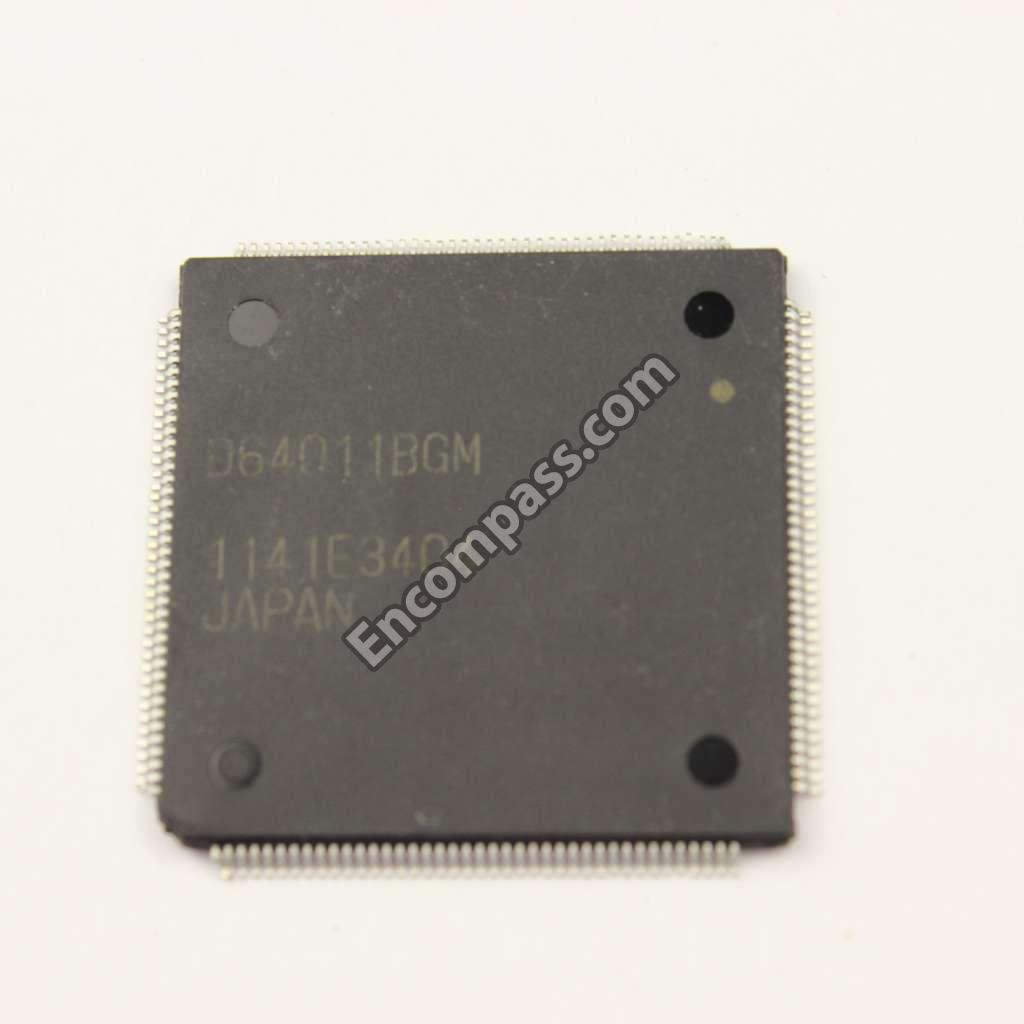

0IPRPNE008A 0IPRPNE008A IC,VIDEO DECODE [IC603]
0ICTMLG018B 0ICTMLG018B IC,VIDEO PROCESSORS [IC1305]
0IMCRSO025A 0IMCRSO025A IC,VIDEO PROCESSORS [IC300]

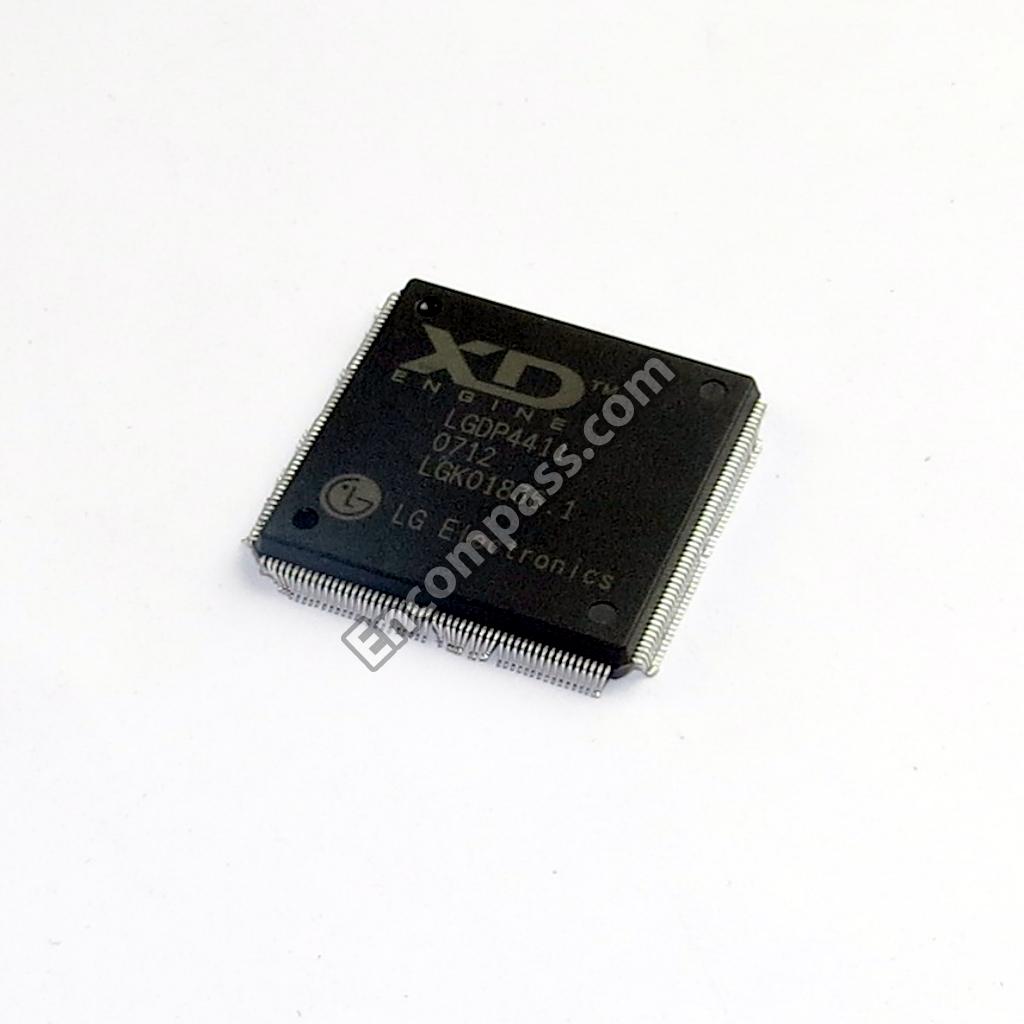

0ICTMLG009C 0ICTMLG009C IC,VIDEO PROCESSORS [IC401]
0IKE704200J 0IKE704200J IC,VOLTAGE DETECTOR [IC406]
0IMCRSH001A 0IMCRSH001A IC,VOLTAGE REGULATOR [IC1706]
0IMCRFA010A 0IMCRFA010A IC,VOLTAGE REGULATOR [IC206]
6613V00026A 6613V00026A JACK,COMPLEX [JK101]
6612J00040B 6612J00040B JACK,COMPLEX [JK407]
6612B00015B 6612B00015B JACK,DIN [CN801]
6612BBBHN4D 6612BBBHN4D JACK,FIBER OPTIC [JOPT101]
6612BBBHN4E 6612BBBHN4E JACK,FIBER OPTIC [JOPT102]
6612F00087A 6612F00087A JACK,PHONE [JK402]
6612J10012A 6612J10012A JACK,RCA [JK408]
0DL200000CA 0DL200000CA LED,DIP [LD201]
3828VA0528F 3828VA0528F MANUAL [A1]
6204B47985L 6204B47985L OSCILLATOR,CRYSTAL [X200]
6204B47985K 6204B47985K OSCILLATOR,CRYSTAL [X302]
6204B60001B 6204B60001B OSCILLATOR,VCXO [VX500]
6871VMMZX6A 6871VMMZX6A PCB ASSEMBLY,MAIN [520]
6871VSMR99A 6871VSMR99A PCB ASSEMBLY,SUB [530]
6871VSMF97A 6871VSMF97A PCB ASSEMBLY,SUB [540]
6871VSMQ67A 6871VSMQ67A PCB ASSEMBLY,SUB [550]
6871VSMR94A 6871VSMR94A PCB ASSEMBLY,SUB [560]
6871VSMT96A 6871VSMT96A PCB ASSEMBLY,SUB [600]
6348Q-C037F 6348Q-C037F PDP,MODULE-XGA [200]
3301V00070B 3301V00070B PLATE ASSEMBLY [501]
3301V00071B 3301V00071B PLATE ASSEMBLY [502]

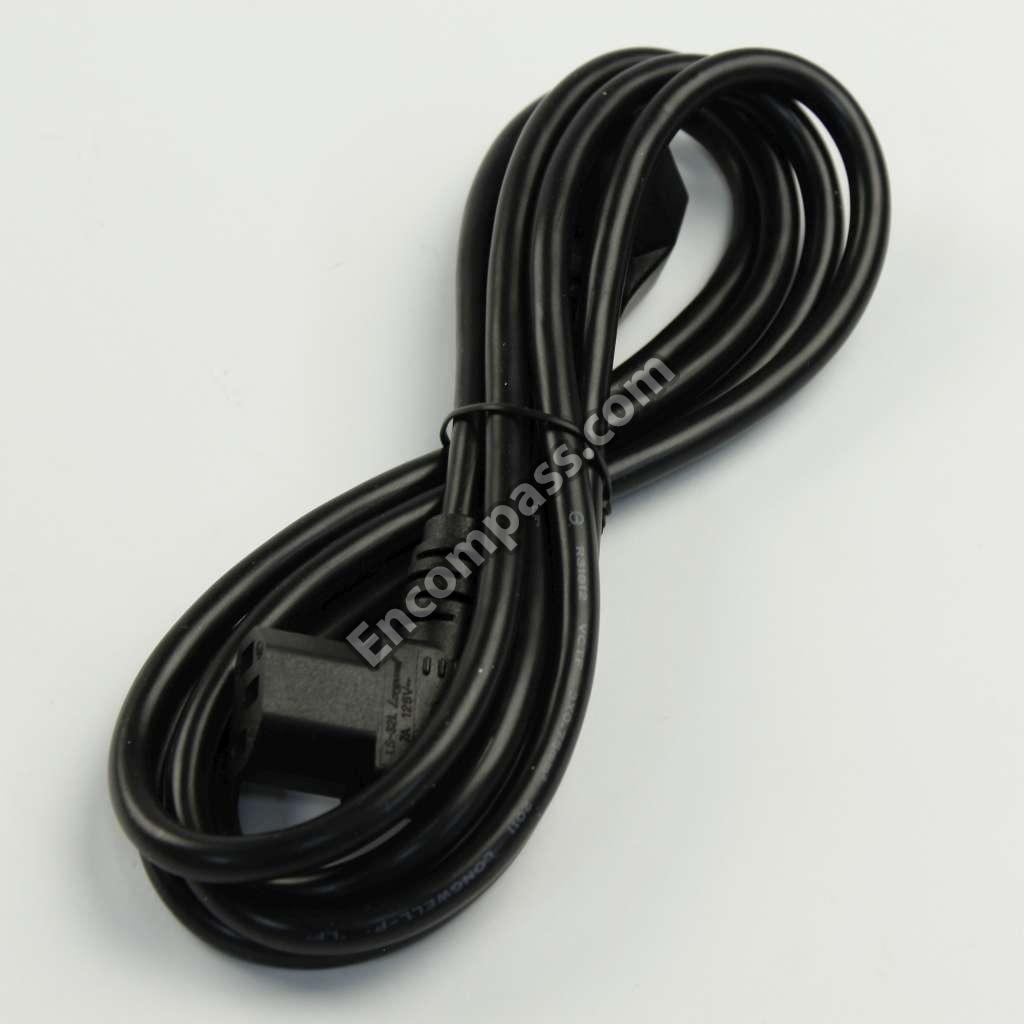

EAD36518301 EAD36518301 POWER CORD [A3]
AKB73575301 AKB73575301 REMOTE CONTROLLER [A2]
0RRZVTA001C 0RRZVTA001C RESISTOR,ARRAY [AR110]
0RRZVTA001D 0RRZVTA001D RESISTOR,ARRAY [AR1301]
0RD0222H609 0RD0222H609 RESISTOR,CARBON FILM [R1716]
0RD0332H609 0RD0332H609 RESISTOR,CARBON FILM [R1754]
0RN1002F409 0RN1002F409 RESISTOR,METAL FILM [R675]
6212AB3004D 6212AB3004D RESONATOR,CERAMIC [X103]
0IPRPNS054A 0IPRPNS054A SENSOR,TEMPERATURE [IC1701]
6709900007A 6709900007A SMPS,AC/DC [580]
6630CE00168 6630CE00168 SOCKET,CARD [C10]
6401VD0011E 6401VD0011E SPEAKER,WOOFER [120]
4980V01017A 4980V01017A SUPPORTER [102]
4980V01018A 4980V01018A SUPPORTER [103]
4980V00D89B 4980V00D89B SUPPORTER [105]
4980V00D78A 4980V00D78A SUPPORTER [214]
4980V00D77A 4980V00D77A SUPPORTER [215]
4980V01112A 4980V01112A SUPPORTER [301]
4980V01113A 4980V01113A SUPPORTER [302]
4980V01114A 4980V01114A SUPPORTER [303]
4980V01115A 4980V01115A SUPPORTER [304]
6600VM2006C 6600VM2006C SWITCH,PUSH BUTTON [S1]
EBF43466201 EBF43466201 SWITCH,TACT [CN201]
140-315F 140-315F SWITCH,TACT [SW201]
6927V1280AG 6927V1280AG SYSTEM S/W [IC305]
6927V1281AG 6927V1281AG SYSTEM S/W [IC306]
6927V1211AQ 6927V1211AQ SYSTEM S/W [IC404]
EBK58172301 EBK58172301 TR,BIPOLAR [Q119]
0TR102008AA 0TR102008AA TR,BIPOLAR [Q207]
0TRKE80038A 0TRKE80038A TR,BIPOLAR [Q305]
0TR102009AG 0TR102009AG TR,BIPOLAR [Q800]
6700NC0001B 6700NC0001B TUNER,ANALOG [TU500]

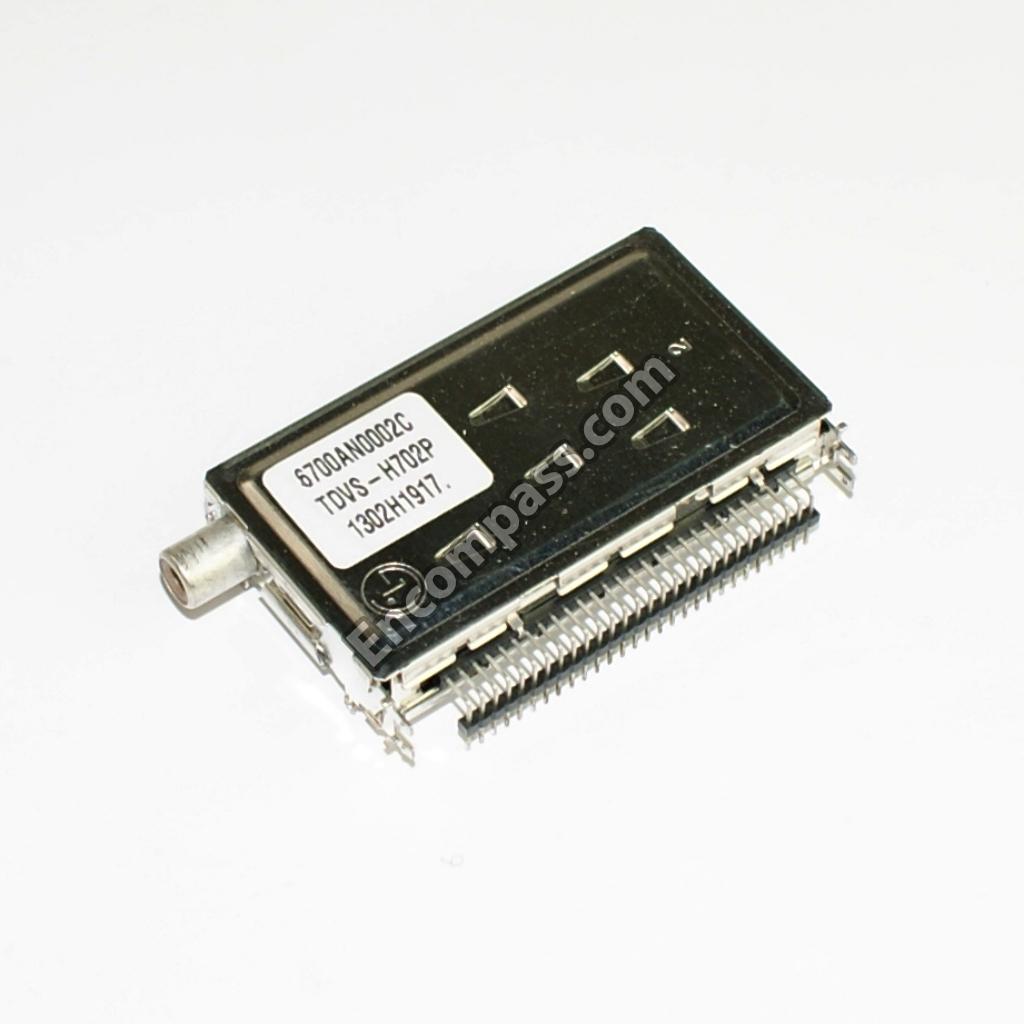

6700AN0002C 6700AN0002C TUNER,ANALOG/DIGITAL [TU301]
6634D00010B 6634D00010B TUNER,RF MODULATOR [SW301]
