Model Image
Manufacturer

LG

Model Number

51026

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND
4770JA3001E 4770JA3001E BAND
4770JA3001B 4770JA3001B BAND
3103JJ1004B 3103JJ1004B BASE ASSEMBLY,COMPRESSOR
MAN61844501 MAN61844501 BASKET,DOOR
MAN61844601 MAN61844601 BASKET,DOOR
MAN61847501 MAN61847501 BASKET,DOOR
MAN61847301 MAN61847301 BASKET,DOOR
MAZ61976201 MAZ61976201 BRACKET,MOTOR
AKC72909202 AKC72909202 BUCKET ASSEMBLY,DAIRY
5075JJ1003F 5075JJ1003F BUCKET ASSEMBLY,ICE
MKK61841701 MKK61841701 BUCKET,DAIRY
MBG62102104 MBG62102104 BUTTON,LEVER
ABN72909907 ABN72909907 CAP ASSEMBLY,DUCT
ABN75058701 ABN75058701 CAP ASSEMBLY,HEAD
0CZZJB2010H 0CZZJB2010H CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL
ABQ72954502 ABQ72954502 CASE ASSEMBLY,CONTROL REFRIGERATOR
TCA37091210 TCA37091210 COMPRESSOR,SET ASSEMBLY
5403JA1003C 5403JA1003C CONDENSER ASSEMBLY,WIRE
4932JA3002C 4932JA3002C CONNECTOR,TUBE
MCD61866804 MCD61866804 CONNECTOR,TUBE
6615JB2002R 6615JB2002R CONTROLLER ASSEMBLY
ACQ85694901 ACQ85694901 COVER ASSEMBLY
ACQ75198210 ACQ75198210 COVER ASSEMBLY,DISPLAY
ACQ77080311 ACQ77080311 COVER ASSEMBLY,HINGE
ACQ77080312 ACQ77080312 COVER ASSEMBLY,HINGE
ACQ85290801 ACQ85290801 COVER ASSEMBLY,MACHINERY(REAR)
ACQ85612408 ACQ85612408 COVER ASSEMBLY,PCB
3551JA1110A 3551JA1110A COVER ASSEMBLY,PCB
ACQ74897303 ACQ74897303 COVER ASSEMBLY,TRAY
ACQ74897402 ACQ74897402 COVER ASSEMBLY,TRAY
MCK62546804 MCK62546804 COVER,DISPLAY
MCK35849501 MCK35849501 COVER,LAMP
3550JA1496A 3550JA1496A COVER,LAMP
MCK62215001 MCK62215001 COVER,LAMP
3551JJ1066B 3551JJ1066B COVER,LOWER
3550JA2147A 3550JA2147A COVER,MOTOR
MCK67707701 MCK67707701 COVER,PTC
3550C-0042C 3550C-0042C COVER,RELAY
3550JA2035D 3550JA2035D COVER,SENSOR
MCK63305801 MCK63305801 COVER,TRAY
3550JA2184B 3550JA2184B COVER,TUBE
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR
5040JA2009A 5040JA2009A DAMPER,MOTOR SUPPORT
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT
5072JA3003M 5072JA3003M DAMPER,NOISE
5072JA3003F 5072JA3003F DAMPER,NOISE
4J03020A 4J03020A DAMPER,PIPE
MCR62192409 MCR62192409 DECOR,CONTROL
MCR61988504 MCR61988504 DECOR,DRAIN
ADC72986414 ADC72986414 DOOR ASSEMBLY,FREEZER
ADC30116643 ADC30116643 DOOR ASSEMBLY,REFRIGERATOR
ADD72912810 ADD72912810 DOOR FOAM ASSEMBLY,FREEZER
ADD30170739 ADD30170739 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADH73150202 ADH73150202 DRIER ASSEMBLY
ADJ72911501 ADJ72911501 DUCT ASSEMBLY,INSULATION
ADL72916201 ADL72916201 EVAPORATOR ASSEMBLY
5901JJ1019A 5901JJ1019A FAN ASSEMBLY
5901JA1022A 5901JA1022A FAN ASSEMBLY
ADQ72911006 ADQ72911006 FILTER ASSEMBLY,HEAD
5231JA2002A 5231JA2002A FILTER ASSEMBLY,WATER
MDR61882404 MDR61882404 FUNNEL
ADW34028006 ADW34028006 FUNNEL ASSEMBLY
4987JJ1010M 4987JJ1010M GASKET ASSEMBLY,DOOR
4987JJ1010L 4987JJ1010L GASKET ASSEMBLY,DOOR
3531JJ1011D 3531JJ1011D GRILLE ASSEMBLY,FAN
3531JJ1011E 3531JJ1011E GRILLE ASSEMBLY,FAN
3531JJ1010A 3531JJ1010A GRILLE ASSEMBLY,FAN
4974JJ2048A 4974JJ2048A GUIDE,AIR
4974JJ1053A 4974JJ1053A GUIDE,FAN
4974JA3028A 4974JA3028A GUIDE,ICE
4974JA1064B 4974JA1064B GUIDE,RAIL
4974JA1063B 4974JA1063B GUIDE,RAIL
MEA40002602 MEA40002602 GUIDE,RAIL
MEA40002601 MEA40002601 GUIDE,RAIL
4974JA1084C 4974JA1084C GUIDE,RAIL
4974JA1084D 4974JA1084D GUIDE,RAIL
AED37083023 AED37083023 HANDLE ASSEMBLY,REFRIGERATOR
3650JA3041X 3650JA3041X HANDLE,REAR
MEB64014304 MEB64014304 HANDLE,REAR
3650JA3041W 3650JA3041W HANDLE,REAR
6877JB2040M 6877JB2040M HARNESS ASSEMBLY
6877JB2040U 6877JB2040U HARNESS ASSEMBLY
6877JB2039G 6877JB2039G HARNESS ASSEMBLY
6877JB3019F 6877JB3019F HARNESS ASSEMBLY
5300JB1102H 5300JB1102H HEATER,SHEATH
4775JA2113A 4775JA2113A HINGE ASSEMBLY,LOWER
4775JA2104E 4775JA2104E HINGE ASSEMBLY,LOWER
4775JA2084B 4775JA2084B HINGE ASSEMBLY,UPPER
4775JA2105B 4775JA2105B HINGE ASSEMBLY,UPPER
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
4930JA3043A 4930JA3043A HOLDER,LEVER
MEG42758601 MEG42758601 HOLDER,PIPE
5989JA1005G 5989JA1005G ICE MAKER ASSEMBLY,KIT
AEY73232001 AEY73232001 KIT ASSEMBLY
MEZ62600802 MEZ62600802 LABEL,ENERGY
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST
MFC62049501 MFC62049501 LEVER,DISPENSER
4510JA3004A 4510JA3004A LEVER,HINGE
MFL63288304 MFL63288304 MANUAL,OWNERS
4681JB1029B 4681JB1029B MOTOR ASSEMBLY,DC,COOLING
4681JJ1001B 4681JJ1001B MOTOR,AC
EAU59551207 EAU59551207 MOTOR,DC
4681JB1029A 4681JB1029A MOTOR,DC
MFT61866216 MFT61866216 NAME PLATE
1NZZJA3023A 1NZZJA3023A NUT,CUSTOMIZED
6750C-0004U 6750C-0004U OVERLOAD PROTECT
EBR61526803 EBR61526803 PCB ASSEMBLY,DISPLAY
EBR64585301 EBR64585301 PCB ASSEMBLY,MAIN
1PZZJA3013A 1PZZJA3013A PIN,COMMON
MGE58810304 MGE58810304 PIPE,JOINT
5200JA1019A 5200JA1019A PIPE,JOINT
EAD56779012 EAD56779012 POWER CORD ASSEMBLY
4580JA3024A 4580JA3024A ROLLER
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED
4J00415D 4J00415D SCREW,CUSTOMIZED
FAB30138101 FAB30138101 SCREW,SET
1TRL0302818 1TRL0302818 SCREW,TAPPING
6500JB2002T 6500JB2002T SENSOR,TEMPERATURE
6500JB2001B 6500JB2001B SENSOR,TEMPERATURE
5027JJ1098D 5027JJ1098D SHELF ASSEMBLY,FREEZER
5027JJ1100K 5027JJ1100K SHELF ASSEMBLY,FREEZER
AHT72913502 AHT72913502 SHELF ASSEMBLY,REFRIGERATOR
5026JJ1195A 5026JJ1195A SHELF,FREEZER
MHL61848904 MHL61848904 SHELF,REFRIGERATOR
MHL61848903 MHL61848903 SHELF,REFRIGERATOR
4999JJ2004D 4999JJ2004D SHROUD ASSEMBLY,FREEZER
5070JJ3004C 5070JJ3004C SKIRT,LOWER
6620JB1001P 6620JB1001P SOCKET,LAMP
6421JA3001D 6421JA3001D SOLENOID,REVERSING,VALVE
4970JA3011K 4970JA3011K SPRING,LEVER
AJC34211602 AJC34211602 STOPPER ASSEMBLY,DOOR
4621JA3003A 4621JA3003A STOPPER ASSEMBLY,DOOR
MJB63190001 MJB63190001 STOPPER,HANDLE
4980JA2071B 4980JA2071B SUPPORTER,GEAR MOTOR
MJH36429401 MJH36429401 SUPPORTER,TUBE GUIDE
MJM61904702 MJM61904702 TANK,WATER
EBG42993601 EBG42993601 THERMISTOR ASSEMBLY,PTC
3391JA2036A 3391JA2036A TRAY ASSEMBLY,DRAIN
AJP72994802 AJP72994802 TRAY ASSEMBLY,VEGETABLE
MJS61846901 MJS61846901 TRAY ASSEMBLY,VEGETABLE
MJS61850601 MJS61850601 TRAY,DRAWER

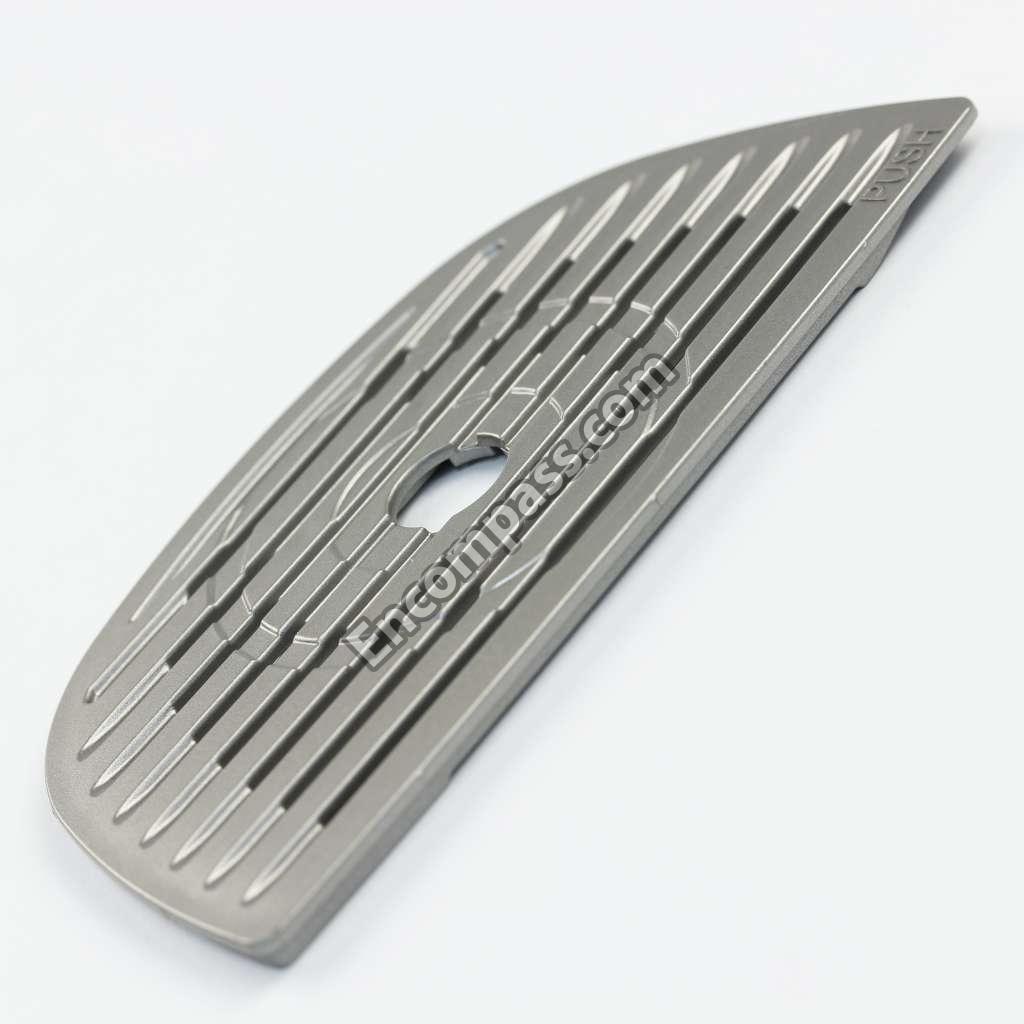

3390JJ1109A 3390JJ1109A TRAY,DRIP
MJS61846501 MJS61846501 TRAY,SNACK
5251JA3004B 5251JA3004B TUBE ASSEMBLY,DRAIN
5211JA2003C 5211JA2003C TUBE ASSEMBLY,INJECT
5210JA2006B 5210JA2006B TUBE,INJECT
5221JA2006D 5221JA2006D VALVE,WATER
