Model Image
Manufacturer

LG

Model Number

55LM5800UC

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
EBX61668501 EBX61668501 ACCESSORY,3D GLASSES
MAF60779001 MAF60779001 BAG,VINYL
EBT61930012 EBT61930012 BPR TOTAL ASSEMBLY
MAZ63308301 MAZ63308301 BRACKET
MAZ63307202 MAZ63307202 BRACKET
ABA74208606 ABA74208606 BRACKET ASSEMBLY
EAD62046909 EAD62046909 CABLE,FFC
ECZH0001215 ECZH0001215 CAP,CHIP,MAKER
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
EAE62281601 EAE62281601 CAPACITOR,CERAMIC,CHIP
EAE39487601 EAE39487601 CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
EAE32246001 EAE32246001 CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
EAE58111501 EAE58111501 CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP
0CK106CC67A 0CK106CC67A CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CK225DD66A 0CK225DD66A CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
0CC475CD5DA 0CC475CD5DA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
EAE58111001 EAE58111001 CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
6630TGA004Q 6630TGA004Q CONNECTOR,DSUB
EAG62611201 EAG62611201 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
6630V93270J 6630V93270J CONNECTOR,WAFER
EAG61091601 EAG61091601 CONNECTOR,WAFER
EAG61251501 EAG61251501 CONNECTOR,WAFER
6630V90141F 6630V90141F CONNECTOR,WAFER
6630V90141B 6630V90141B CONNECTOR,WAFER
ACQ85737339 ACQ85737339 COVER ASSEMBLY
ACQ85736827 ACQ85736827 COVER ASSEMBLY,REAR
AKB74115502 AKB74115502 COVER,REAR
EAH41961301 EAH41961301 DIODE,SWITCHING
EAH61714301 EAH61714301 DIODE,SWITCHING
EAN62354101 EAN62354101 DISPLAY SOC,DIGITAL TV
EAN62325801 EAN62325801 DISPLAY SOC,DIGITAL TV
EBK60752501 EBK60752501 FET
EAM32500902 EAM32500902 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAM32500903 EAM32500903 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
EAM58113401 EAM58113401 FILTER,BEAD
EAD61646216 EAD61646216 HARNESS,SINGLE
EAD60678817 EAD60678817 HARNESS,SINGLE
EAD61052405 EAD61052405 HARNESS,SINGLE
EAN61849601 EAN61849601 IC,ANALOG SWITCH
EAN62332901 EAN62332901 IC,AUDIO AMPLIFIER
EAN61849301 EAN61849301 IC,DC,DC CONVERTER
EAN62206401 EAN62206401 IC,DC,DC CONVERTER
EAN61829001 EAN61829001 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN41406705 EAN41406705 IC,LDO VOLTAGE REGULATOR
EAN61573501 EAN61573501 IC,LDO VOLTAGE REGULATOR
EAN54428201 EAN54428201 IC,LDO VOLTAGE REGULATOR
EAN61508001 EAN61508001 IC,NAND FLASH MEMORY
EAN60670101 EAN60670101 IC,RESET
EAN61327101 EAN61327101 IC,SERIAL FLASH MEMORY
EAN55718402 EAN55718402 IC,SERIAL FLASH MEMORY
EAP39314717 EAP39314717 INDUCTOR,MULTILAYER,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAP32842802 EAP32842802 INDUCTOR,WIRE WOUND,CHIP
EAG59023302 EAG59023302 JACK,DIN
EAG37842003 EAG37842003 JACK,FIBER OPTIC
EAG35781005 EAG35781005 JACK,MODULAR
EAG60841807 EAG60841807 JACK,PHONE
EAG61008001 EAG61008001 JACK,RCA
EAJ62208201 EAJ62208201 LCD,MODULE-TFT

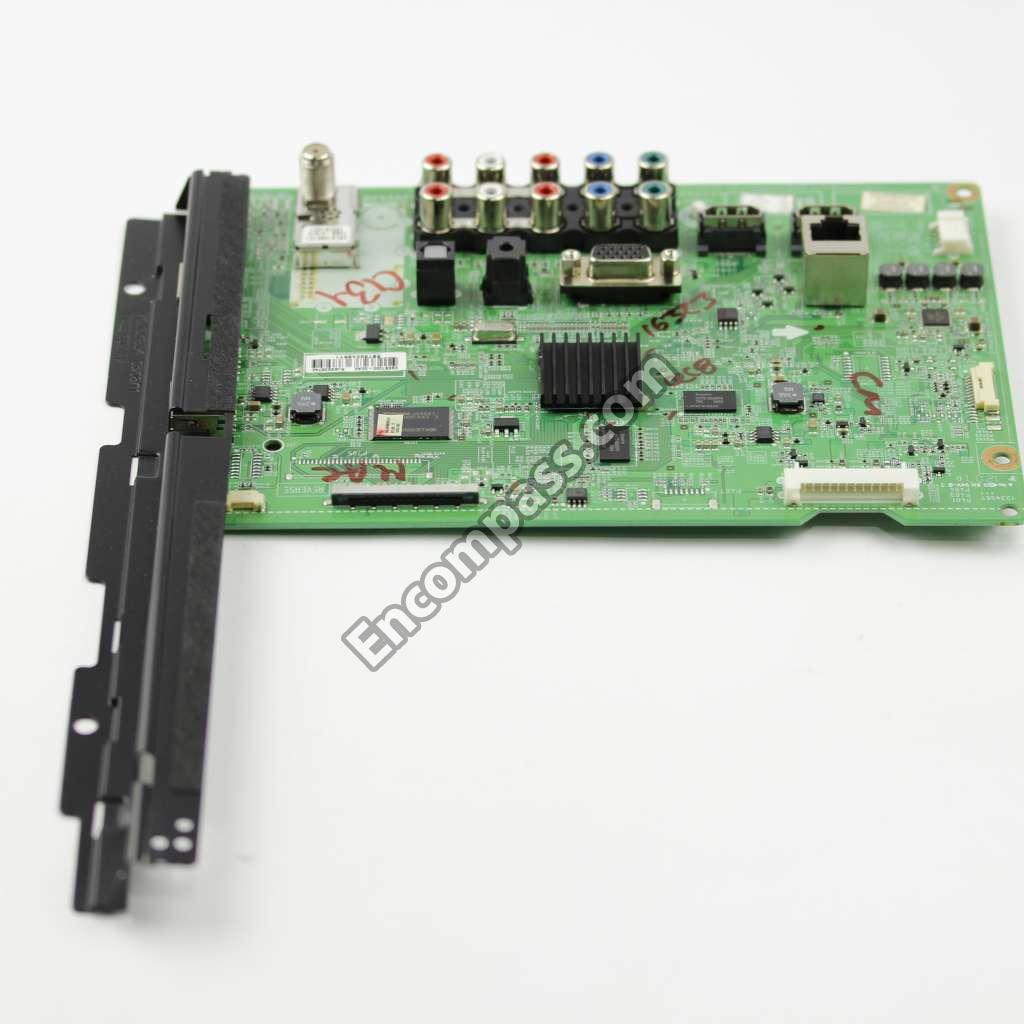

EBR74561003 EBR74561003 PCB ASSEMBLY,SUB
MGJ63185408 MGJ63185408 PLATE
AGU73828002 AGU73828002 PLATE ASSEMBLY
EAD63505502 EAD63505502 POWER CORD
EAY62512801 EAY62512801 POWER SUPPLY ASSEMBLY
AKB74115501 AKB74115501 REMOTE CONTROL
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ1102C478 0RJ1102C478 RESISTOR,CHIP
EBC32174501 EBC32174501 RESISTOR,CHIP
0RJ8201C478 0RJ8201C478 RESISTOR,CHIP
0RJ4301C478 0RJ4301C478 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ2202C678 0RJ2202C678 RESISTOR,CHIP
0RJ3303C678 0RJ3303C678 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
EBC42830501 EBC42830501 RESISTOR,CHIP
EBC32176201 EBC32176201 RESISTOR,CHIP
0RJ2401C678 0RJ2401C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ0492C478 0RJ0492C478 RESISTOR,CHIP
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ6202C678 0RJ6202C678 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ0472C678 0RJ0472C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ2201C678 0RJ2201C678 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
FAB30016122 FAB30016122 SCREW ASSEMBLY
EAB62648905 EAB62648905 SPEAKER, FULL RANGE
MJH62635702 MJH62635702 SUPPORTER
MJH62635302 MJH62635302 SUPPORTER
EBK61012701 EBK61012701 TR,BIPOLAR
EBK61012601 EBK61012601 TR,BIPOLAR
EBL61060101 EBL61060101 TUNER, ANALOG/DIGITAL
EAF61530101 EAF61530101 VARISTOR
