Model Image
Manufacturer

LG

Model Number

55LM6200UE

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

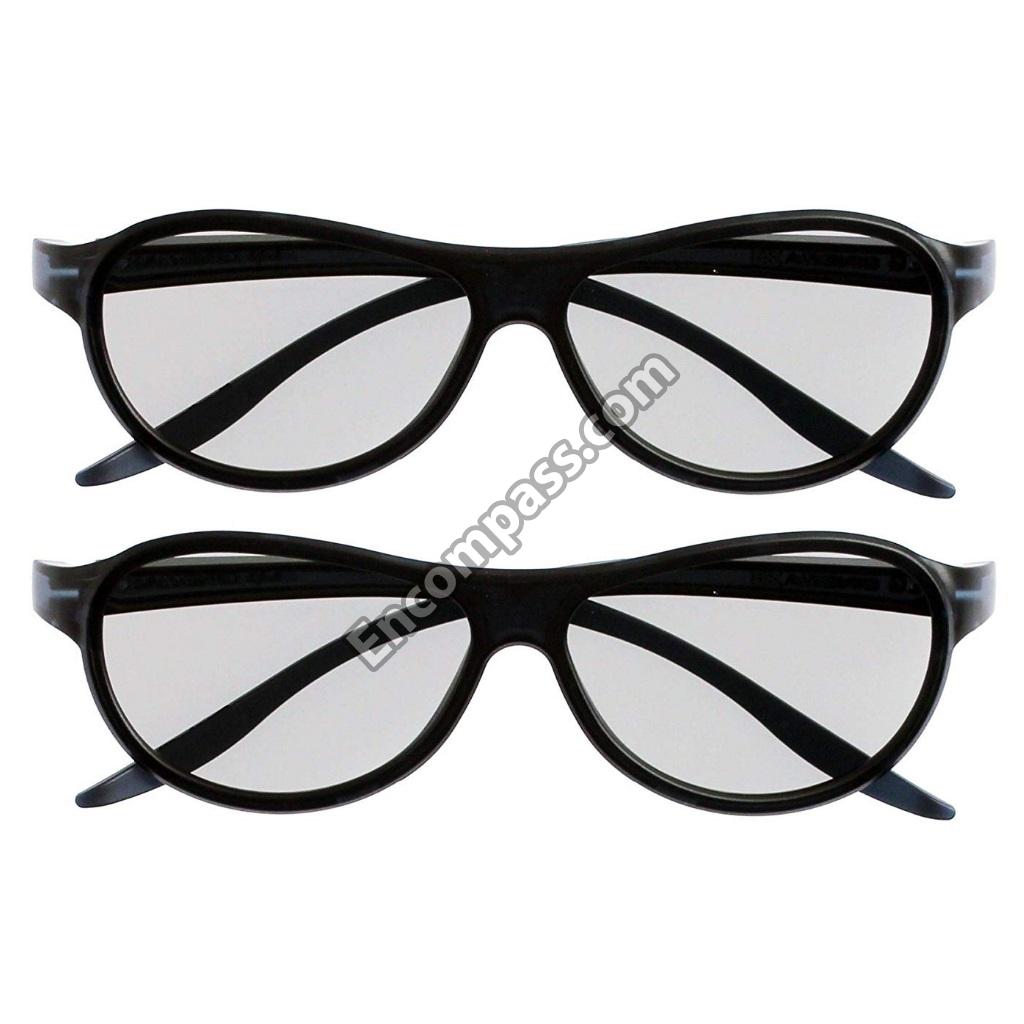

EBX61668501 EBX61668501 ACCESSORY,3D GLASSES

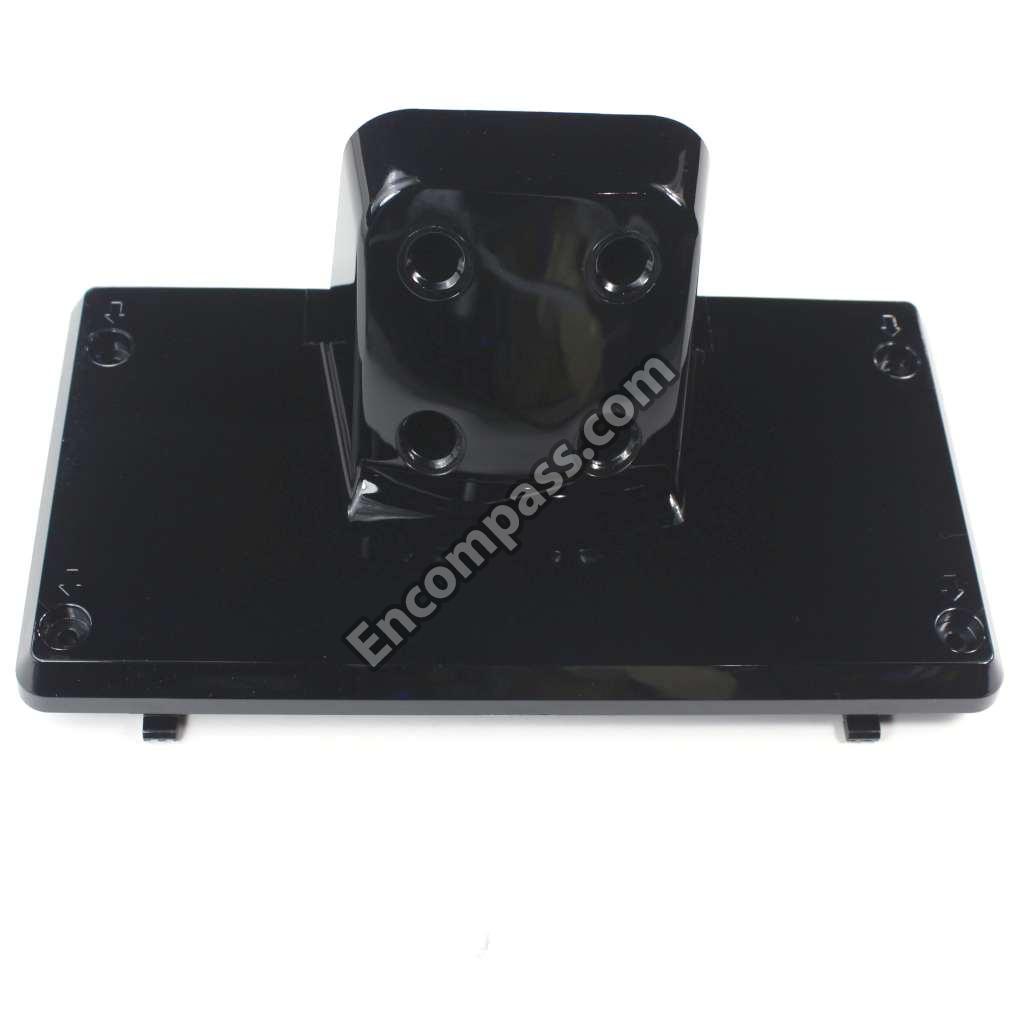

AAN74592601 AAN74592601 BASE ASSEMBLY
MAZ63308301 MAZ63308301 BRACKET

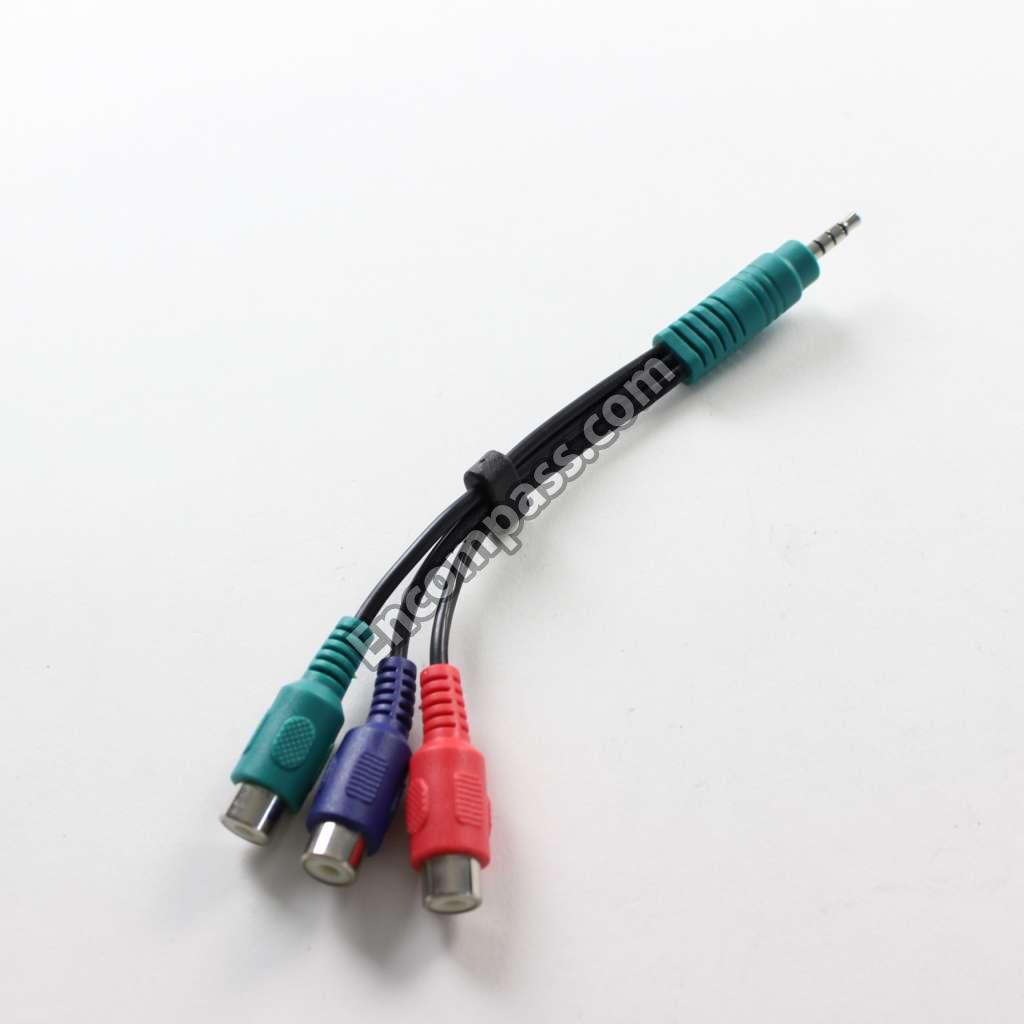

EAD61273107 EAD61273107 CABLE, COMPONENT

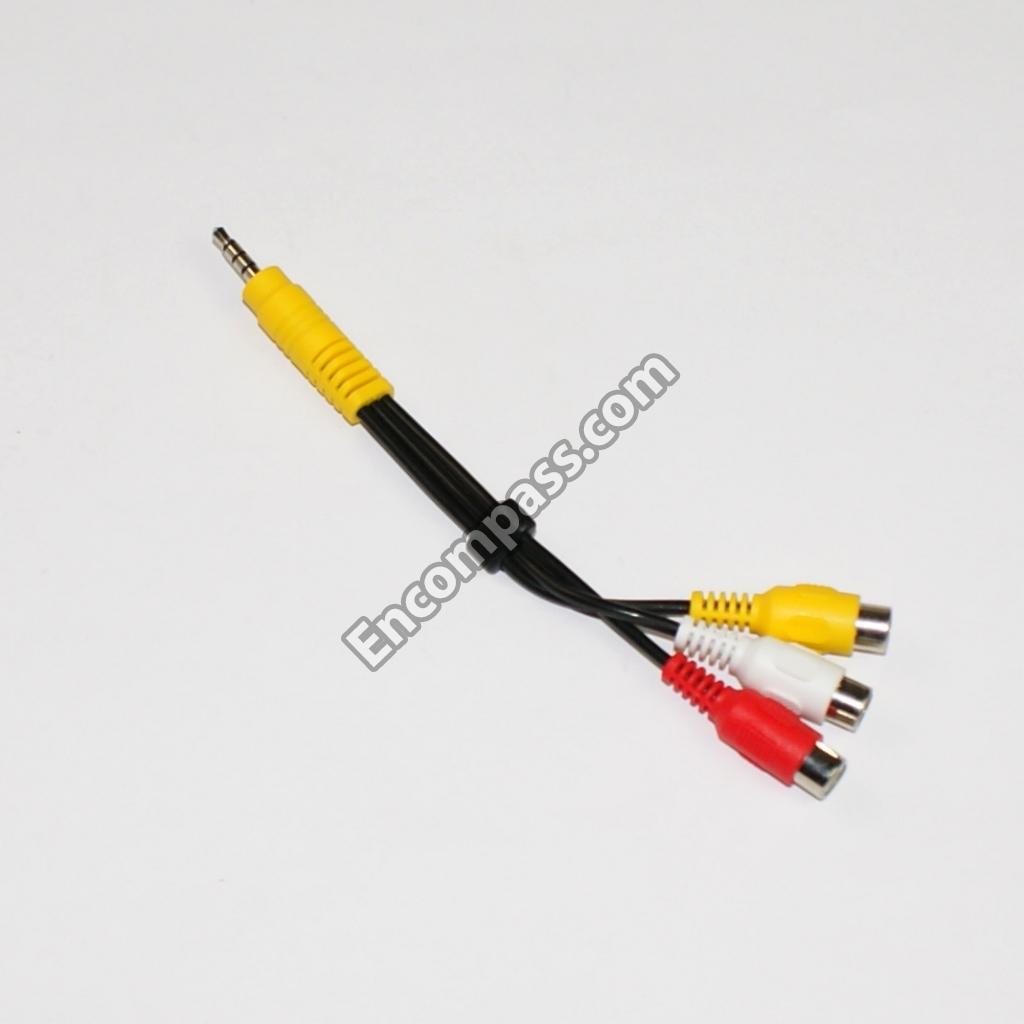

EAD61273106 EAD61273106 CABLE, COMPOSITE

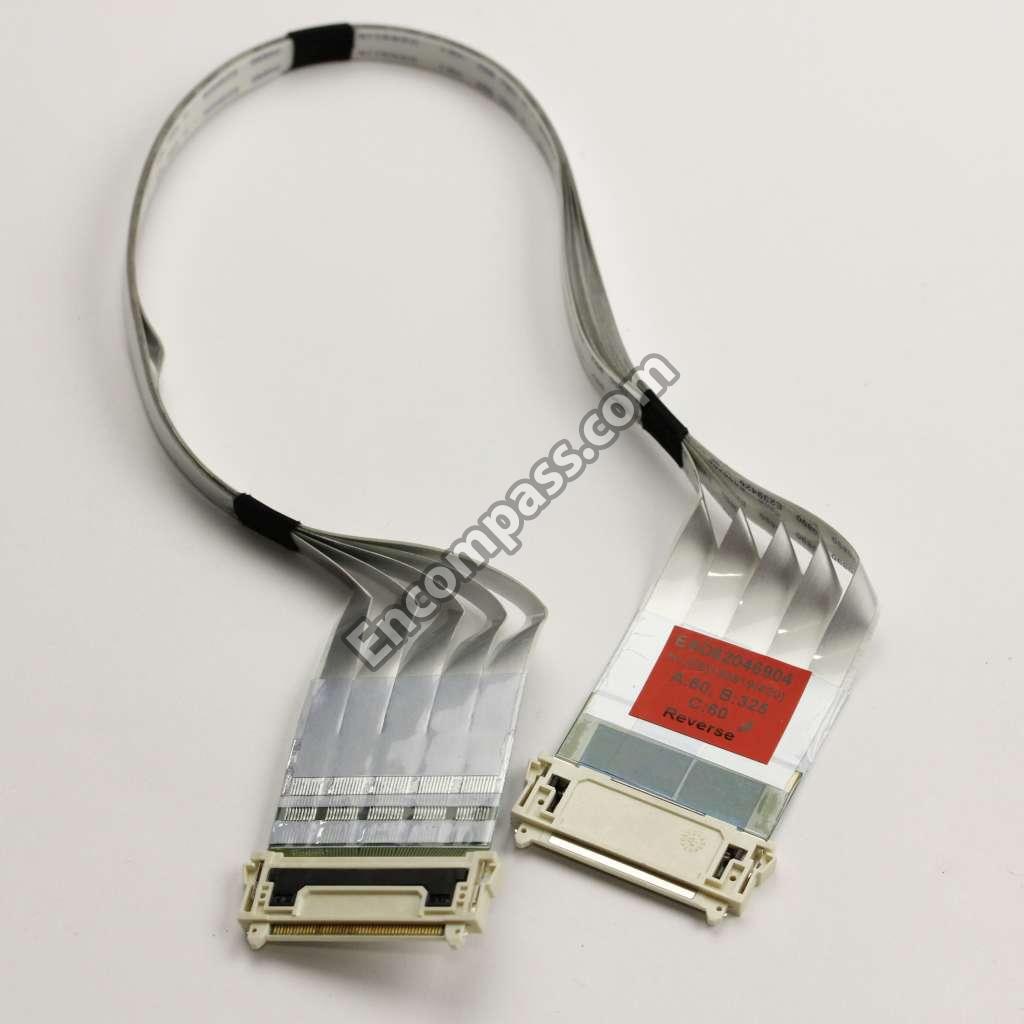

EAD62046904 EAD62046904 CABLE,FFC
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
EAE62764101 EAE62764101 CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,CERAMIC,CHIP
EAE60364701 EAE60364701 CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK122BK56A 0CK122BK56A CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
0CK152BKG6A 0CK152BKG6A CAPACITOR,CERAMIC,CHIP
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CH1474K562 0CH1474K562 CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
EAE59211001 EAE59211001 CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
0CK332BK56A 0CK332BK56A CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK106EF56A 0CK106EF56A CAPACITOR,CERAMIC,CHIP
EAE37992001 EAE37992001 CAPACITOR,CERAMIC,CHIP
0CZZB00024A 0CZZB00024A CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
EAG62012201 EAG62012201 CONNECTOR,DSUB
EAG62611201 EAG62611201 CONNECTOR,HDMI
EAG62571101 EAG62571101 CONNECTOR,USB
6630V93270J 6630V93270J CONNECTOR,WAFER
EAG61091601 EAG61091601 CONNECTOR,WAFER
6630V90141C 6630V90141C CONNECTOR,WAFER
6630V90141F 6630V90141F CONNECTOR,WAFER
6630V90141B 6630V90141B CONNECTOR,WAFER
EAG61251501 EAG61251501 CONNECTOR,WAFER
ACQ85736814 ACQ85736814 COVER ASSEMBLY,REAR
EAW58239602 EAW58239602 CRYSTAL
6202TST001H 6202TST001H CRYSTAL
0DD184009AA 0DD184009AA DIODE ASSEMBLY
0DSON00108A 0DSON00108A DIODE,SCHOTTKY
0DSKE00048A 0DSKE00048A DIODE,SCHOTTKY
EAH61433701 EAH61433701 DIODE,SCHOTTKY
0DSDI00018A 0DSDI00018A DIODE,SCHOTTKY
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH61752501 EAH61752501 DIODE,ZENER
EAN62408001 EAN62408001 DISPLAY SOC,DIGITAL TV
EBK61731301 EBK61731301 FET
EBK60752501 EBK60752501 FET
EAM54407902 EAM54407902 FILTER,BEAD
EAM62272001 EAM62272001 FILTER,BEAD
EAM32500903 EAM32500903 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM62091101 EAM62091101 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
MDS62110217 MDS62110217 GASKET
MDS62110209 MDS62110209 GASKET
EAD61052405 EAD61052405 HARNESS,SINGLE
EAD61646216 EAD61646216 HARNESS,SINGLE
EAD62094404 EAD62094404 HARNESS,SINGLE
EAD56480836 EAD56480836 HARNESS,SINGLE
EAD60678817 EAD60678817 HARNESS,SINGLE
EAN62231201 EAN62231201 IC,ANALOG SWITCH
EAN62332901 EAN62332901 IC,AUDIO AMPLIFIER
EAN62409001 EAN62409001 IC,DC,DC CONVERTER
EAN57771001 EAN57771001 IC,DC,DC CONVERTER
EAN61950701 EAN61950701 IC,DC,DC CONVERTER
EAN61832901 EAN61832901 IC,DC,DC CONVERTER
EAN61849301 EAN61849301 IC,DC,DC CONVERTER
EAN61961301 EAN61961301 IC,DC,DC CONVERTER
EAN61829201 EAN61829201 IC,DDR3 SDRAM

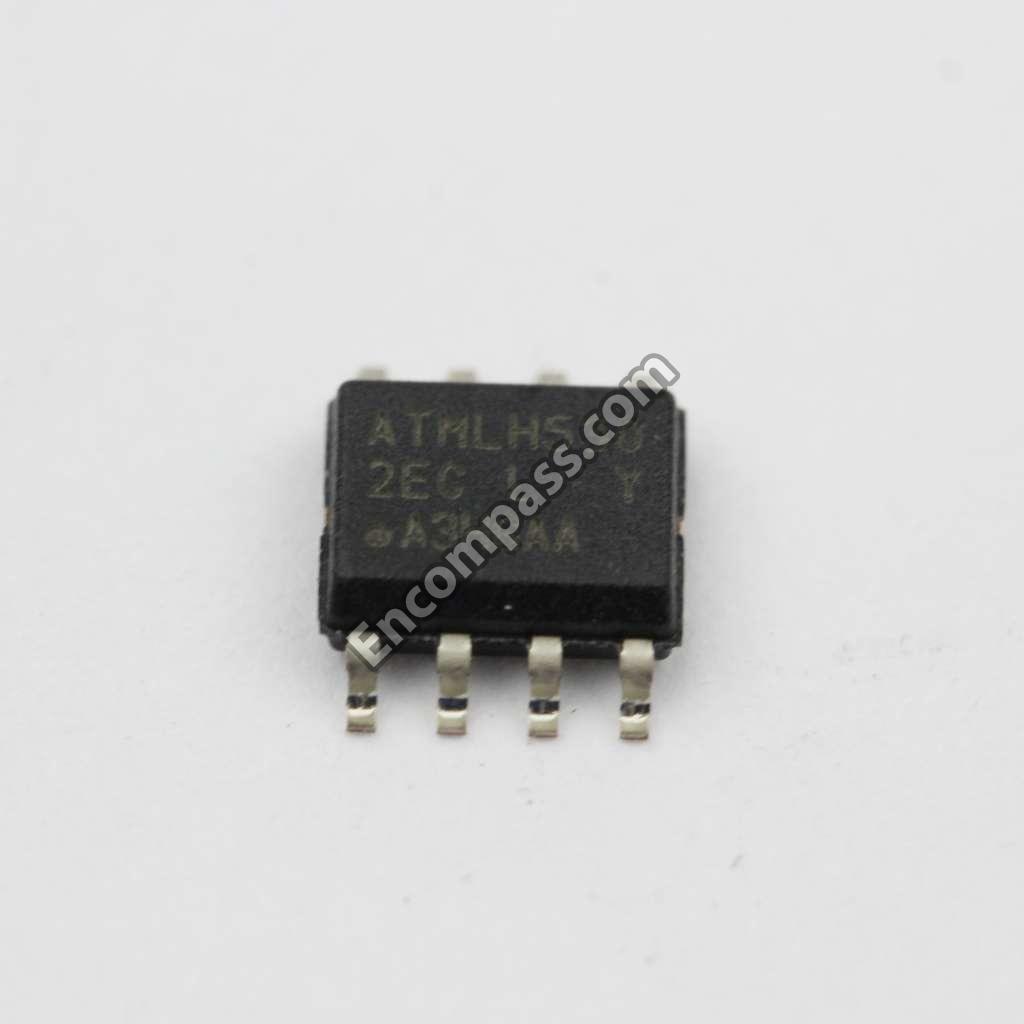

EAN61133501 EAN61133501 IC,EEPROM
EAN61925802 EAN61925802 IC,EEPROM
EAN54428201 EAN54428201 IC,LDO VOLTAGE REGULATOR
EAN54428601 EAN54428601 IC,LDO VOLTAGE REGULATOR
EAN62331701 EAN62331701 IC,MCP,EMMC
EAN62222501 EAN62222501 IC,MICROCONTROLLERS
EAN60670101 EAN60670101 IC,RESET
EAN61829901 EAN61829901 IC,VOLTAGE DETECTOR
EAN61829801 EAN61829801 IC,VOLTAGE REGULATOR
EAP61747401 EAP61747401 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAP62167001 EAP62167001 INDUCTOR,WIRE WOUND,CHIP
EAP32842803 EAP32842803 INDUCTOR,WIRE WOUND,CHIP
EAP61967101 EAP61967101 INDUCTOR,WIRE WOUND,CHIP
EAP32842802 EAP32842802 INDUCTOR,WIRE WOUND,CHIP
EAP62166901 EAP62166901 INDUCTOR,WIRE WOUND,CHIP
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,CHIP
EAG37842007 EAG37842007 JACK,FIBER OPTIC
EAG37842004 EAG37842004 JACK,FIBER OPTIC
EAG62012403 EAG62012403 JACK,MODULAR
EAG62012402 EAG62012402 JACK,MODULAR
EAG61030007 EAG61030007 JACK,PHONE
EAG61030006 EAG61030006 JACK,PHONE
EAG61030001 EAG61030001 JACK,PHONE
EAJ62208201 EAJ62208201 LCD,MODULE-TFT

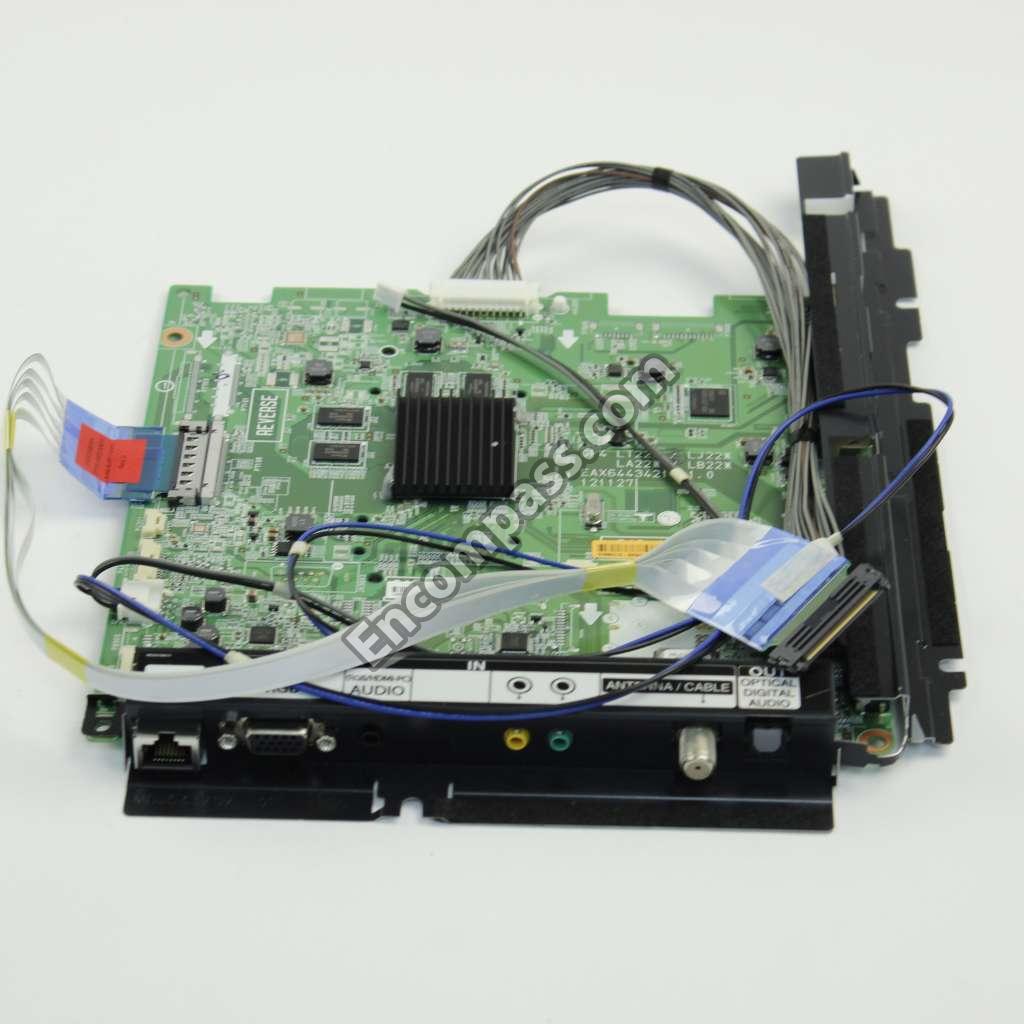

EBT62018901 EBT62018901 MAIN BOARD

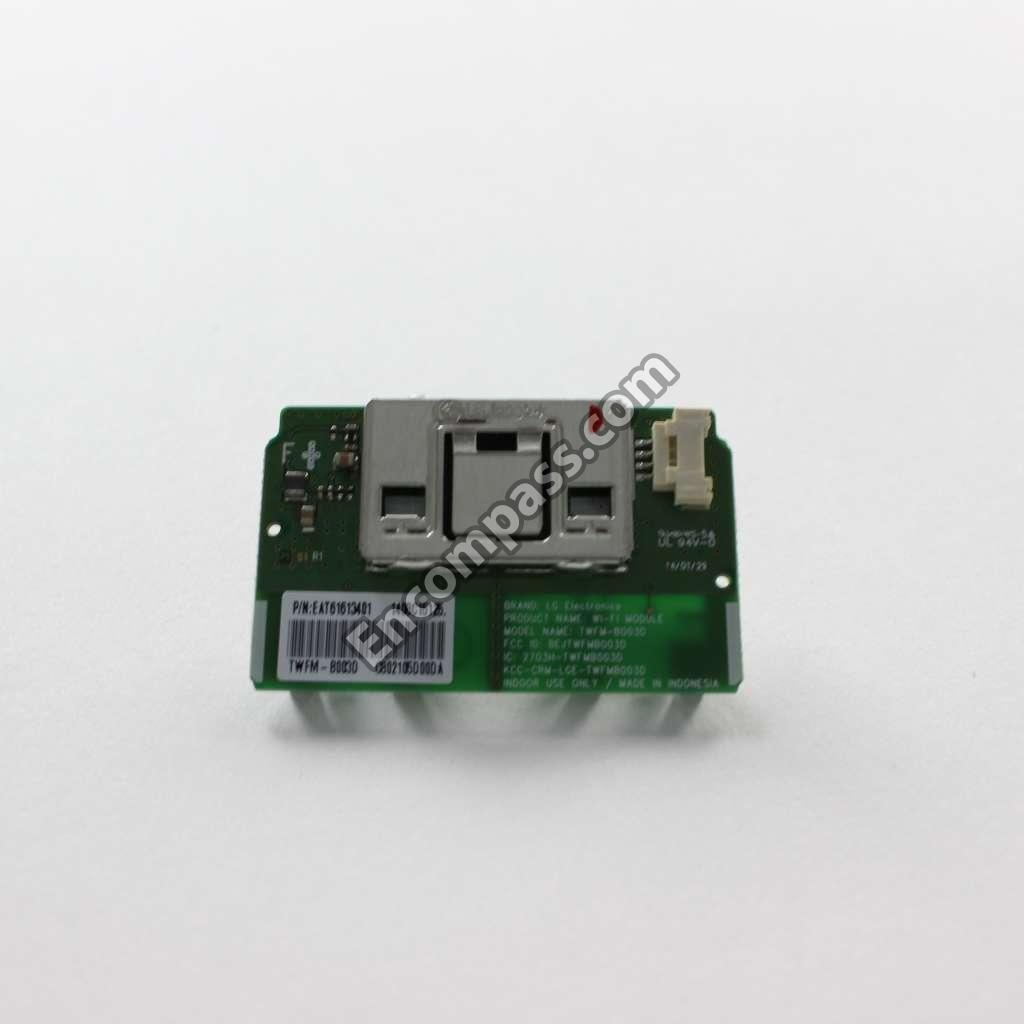

EAT61613401 EAT61613401 MODULE ASSEMBLY
EBR74561201 EBR74561201 PCB ASSEMBLY RF
AGU73828002 AGU73828002 PLATE ASSEMBLY
AGU73908208 AGU73908208 PLATE ASSEMBLY
EAD63505502 EAD63505502 POWER CORD

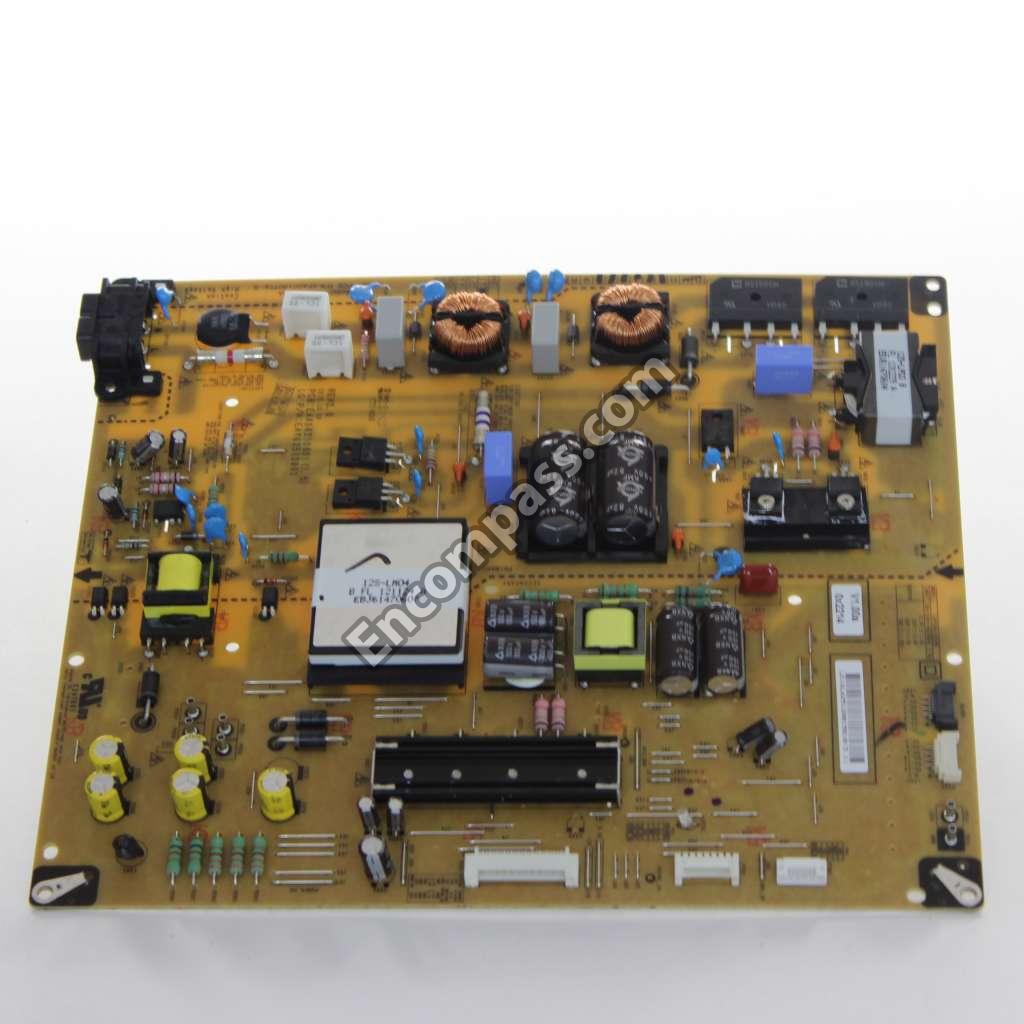

EAY62512801 EAY62512801 POWER SUPPLY ASSEMBLY
AKB73795402 AKB73795402 REMOTE CONTROL
0RJ0222C692 0RJ0222C692 RESISTOR,ARRAY
EBC32260601 EBC32260601 RESISTOR,ARRAY
EBC32260401 EBC32260401 RESISTOR,ARRAY
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RH2200D622 0RH2200D622 RESISTOR,CHIP
0RJ4700D677 0RJ4700D677 RESISTOR,CHIP
0RJ5101C678 0RJ5101C678 RESISTOR,CHIP
0RJ0122D677 0RJ0122D677 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ8200C478 0RJ8200C478 RESISTOR,CHIP
EBC41607701 EBC41607701 RESISTOR,CHIP
0RJ2002C678 0RJ2002C678 RESISTOR,CHIP
0RJ2702D477 0RJ2702D477 RESISTOR,CHIP
0RJ1501C678 0RJ1501C678 RESISTOR,CHIP
0RJ3002D677 0RJ3002D677 RESISTOR,CHIP
0RJ0512C678 0RJ0512C678 RESISTOR,CHIP
0RJ4702C678 0RJ4702C678 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ2402C478 0RJ2402C478 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ3002C678 0RJ3002C678 RESISTOR,CHIP
0RJ0822C678 0RJ0822C678 RESISTOR,CHIP
0RJ1203C678 0RJ1203C678 RESISTOR,CHIP
0RJ2702C678 0RJ2702C678 RESISTOR,CHIP
0RJ1800C678 0RJ1800C678 RESISTOR,CHIP
0RJ3302C678 0RJ3302C678 RESISTOR,CHIP
0RJ5601C678 0RJ5601C678 RESISTOR,CHIP
0RJ4702C478 0RJ4702C478 RESISTOR,CHIP
0RJ3303C678 0RJ3303C678 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ5601C478 0RJ5601C478 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ2701C678 0RJ2701C678 RESISTOR,CHIP
0RJ1201C678 0RJ1201C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP

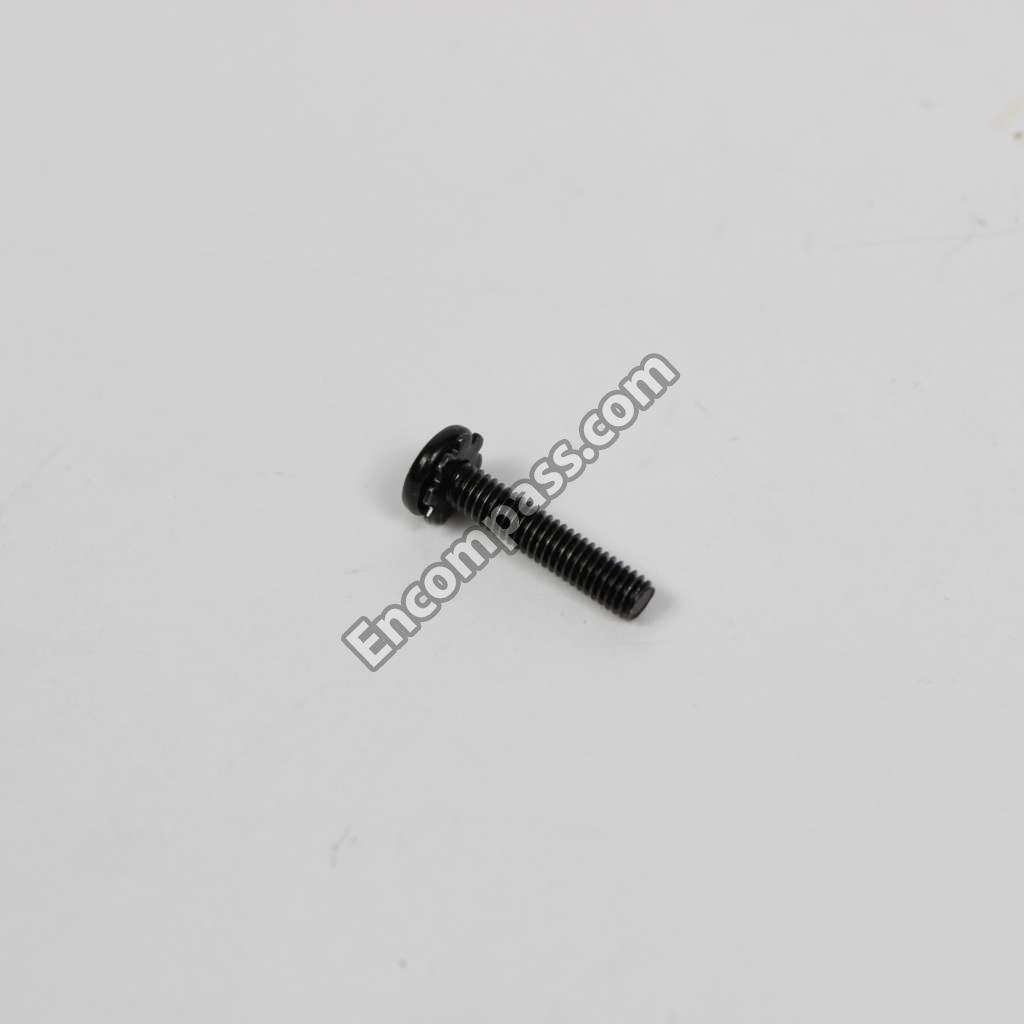

FAB30016122 FAB30016122 SCREW ASSEMBLY

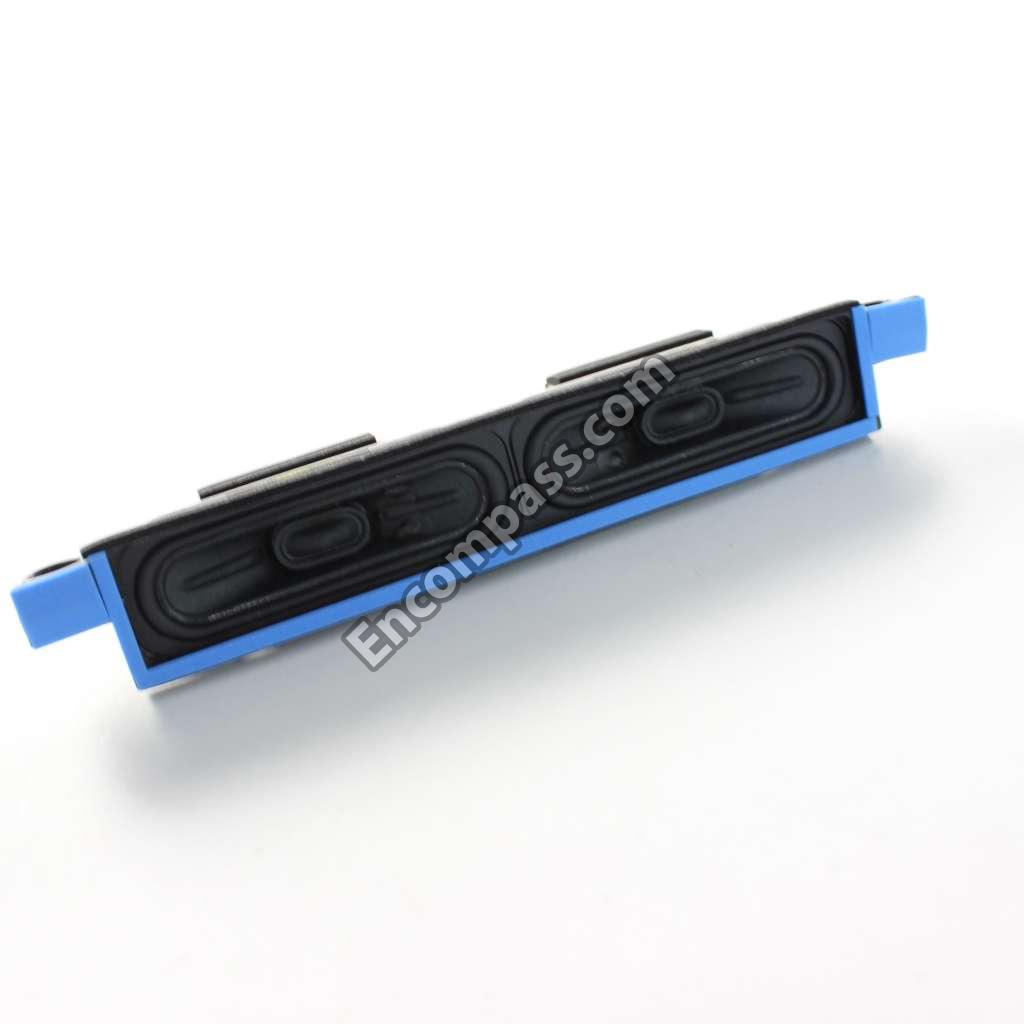

EAB62648905 EAB62648905 SPEAKER, FULL RANGE
MJH62637302 MJH62637302 SUPPORTER
MJH62635302 MJH62635302 SUPPORTER
EBK61012601 EBK61012601 TR,BIPOLAR
EBK61012701 EBK61012701 TR,BIPOLAR
EBL61060102 EBL61060102 TUNER,ANALOG/DIGITAL
EAF61530201 EAF61530201 VARISTOR
EAF61530301 EAF61530301 VARISTOR
EAF61530101 EAF61530101 VARISTOR
EAF61630101 EAF61630101 VARISTOR
