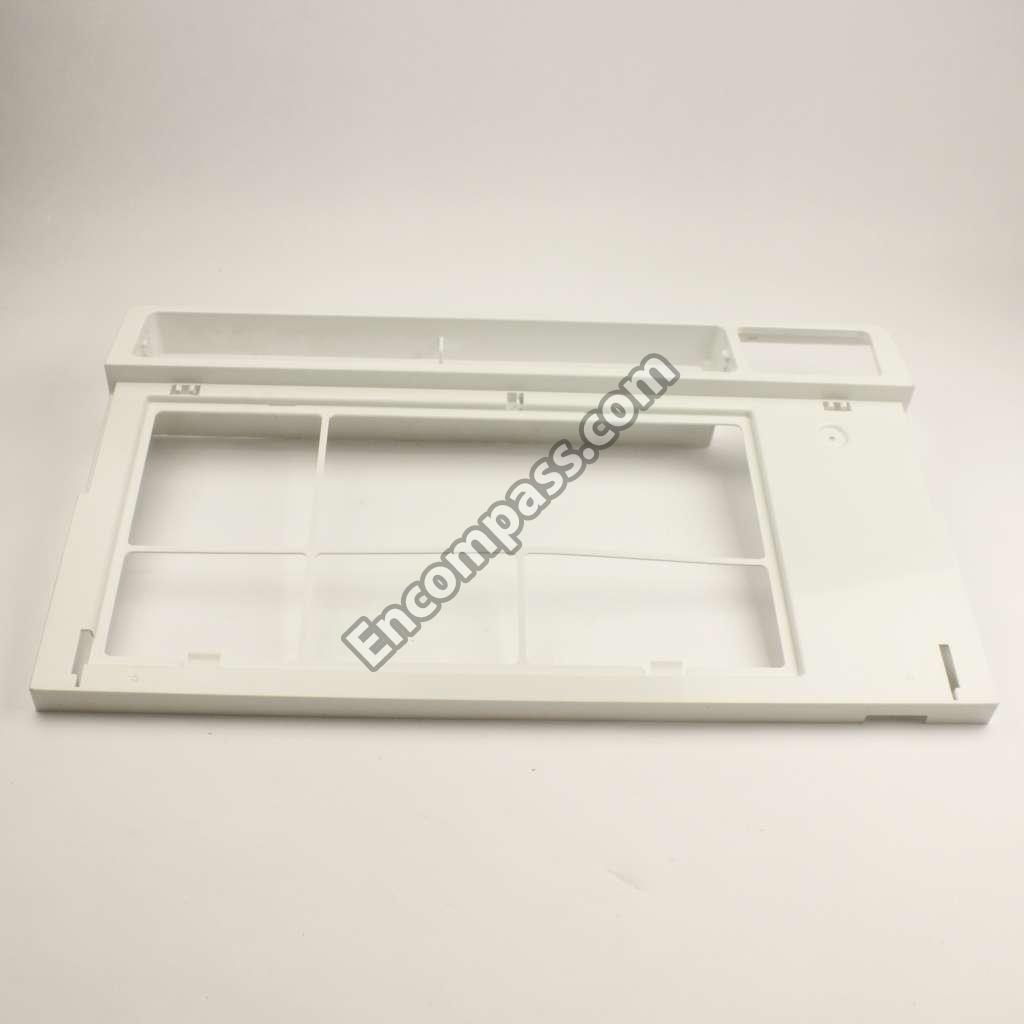

Model Image
Manufacturer

LG

Model Number

580

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4681A20069Y 4681A20069Y AC MOTOR ASSEMBLY
3041A10046K 3041A10046K BASE ASSEMBLY,SINGLE
3041A10046C 3041A10046C BASE ASSEMBLY,SINGLE
4810AR4155A 4810AR4155A BRACKET
4810AR4155B 4810AR4155B BRACKET
4960A20008A 4960A20008A BRACKET,MOTOR
3090A20017L 3090A20017L CABINET
3090A20017D 3090A20017D CABINET
3091A10028G 3091A10028G CABINET ASSEMBLY,SLEEVE
3091A10028D 3091A10028D CABINET ASSEMBLY,SLEEVE
EAE43285406 EAE43285406 CAPACITOR,FILM,BOX
0CZZA20001N 0CZZA20001N CAPACITOR,FILM,BOX
MBN35987101 MBN35987101 CASE,CONTROL
MBN35986901 MBN35986901 CASE,CONTROL
4994A20080A 4994A20080A CASE,CONTROL
3H02932B 3H02932B CLAMP,SPRING
TBZ31170601 TBZ31170601 COMPRESSOR SET,CHINA
2520UKGC2BA 2520UKGC2BA COMPRESSOR SET,KOREA
5403A20183M 5403A20183M CONDENSER ASSEMBLY,BENDING
5403A20183D 5403A20183D CONDENSER ASSEMBLY,BENDING
3550U-L006B 3550U-L006B COVER
3550A20257B 3550A20257B COVER
3550U-L004A 3550U-L004A COVER,TERMINAL
4H00982E 4H00982E DAMPER,COMPRESSOR
5238A20026A 5238A20026A DUCT
3831A10037A 3831A10037A ESCUTCHEON
3831A10037B 3831A10037B ESCUTCHEON
5421A20071G 5421A20071G EVAPORATOR ASSEMBLY,FIRST
5421A20071F 5421A20071F EVAPORATOR ASSEMBLY,FIRST
5900AR1173A 5900AR1173A FAN ASSEMBLY,AXIAL
5900A20009A 5900A20009A FAN,TURBO
5900A20019A 5900A20019A FAN,TURBO
5230A20041A 5230A20041A FILTER,AIR
3210A20075B 3210A20075B FRAME
4986U-L001G 4986U-L001G GASKET
MDX62673201 MDX62673201 GRILLE,FRONT
3530A20094D 3530A20094D GRILLE,FRONT
3530A20095D 3530A20095D GRILLE,INLET
MDX33964101 MDX33964101 GRILLE,REAR
3530A30015A 3530A30015A GRILLE,REAR
3530A20101A 3530A20101A GRILLE,REAR
3530A30002A 3530A30002A GRILLE,REAR
3530A20033B 3530A20033B GRILLE,REAR
4974A30053A 4974A30053A GUIDE
5238A20033A 5238A20033A GUIDE,AIR
6631A30012E 6631A30012E HARNESS,MULTI
6631A30027C 6631A30027C HARNESS,MULTI
6631A30003A 6631A30003A HARNESS,MULTI
6631A30027A 6631A30027A HARNESS,MULTI
6631A10011K 6631A10011K HARNESS,SINGLE
5410A20046S 5410A20046S INSULATOR
5410A20046Q 5410A20046Q INSULATOR
5410A20069A 5410A20069A INSULATOR
5410A20518E 5410A20518E INSULATOR,FOAM
MEZ41960915 MEZ41960915 LABEL,ENERGY
3850A24020B 3850A24020B LABEL,ENERGY
4520A20007A 4520A20007A LINK
4758A20058A 4758A20058A LOUVER,HORIZONTAL
4758A30045B 4758A30045B LOUVER,VERTICAL
4758A30045A 4758A30045A LOUVER,VERTICAL
4681A20041H 4681A20041H MOTOR,AC
4H00947A 4H00947A NUT,COMMON
1NHA0801206 1NHA0801206 NUT,COMMON
4948A20045A 4948A20045A ORIFICE
4948A20029A 4948A20029A ORIFICE
6750U-L005A 6750U-L005A OVERLOAD PROTECT
6750U-L029A 6750U-L029A OVERLOAD PROTECT
3858A20001A 3858A20001A PACKING,VINYL
MGC35987201 MGC35987201 PANEL,CONTROL
3720A20251A 3720A20251A PANEL,CONTROL
EBR30852301 EBR30852301 PCB ASSEMBLY,DISPLAY
6871A20448A 6871A20448A PCB ASSEMBLY,DISPLAY
EBR39264102 EBR39264102 PCB ASSEMBLY,MAIN
6871A01001A 6871A01001A PCB ASSEMBLY,MAIN
6411A20056P 6411A20056P POWER CORD ASSEMBLY
6411A20028D 6411A20028D POWER CORD ASSEMBLY
6711A20034G 6711A20034G REMOTE CONTROLLER ASSEMBLY
4001AR4160A 4001AR4160A SCREW ASSEMBLY
4998A20003A 4998A20003A SHROUD
EBG61106848 EBG61106848 THERMISTOR,NTC
6323A20004D 6323A20004D THERMISTOR,NTC
5211A21809A 5211A21809A TUBE ASSEMBLY,CONDENSER(OUT)
5211A20560H 5211A20560H TUBE ASSEMBLY,CONDENSER(OUT)
5211A21421L 5211A21421L TUBE ASSEMBLY,DISCHARGE
5211A29024H 5211A29024H TUBE ASSEMBLY,EVAPORATOR(IN)
5211A20496G 5211A20496G TUBE ASSEMBLY,EVAPORATOR(IN)
5211A21428A 5211A21428A TUBE ASSEMBLY,SUCTION
5211A20497A 5211A20497A TUBE ASSEMBLY,SUCTION
3H01535V 3H01535V TUBE,CAPILLARY
4H01058A 4H01058A WASHER,COMMON
