Model Image
Manufacturer

LG

Model Number

60PC1DUE

Description

60pc1d-ue

Interactive Exploded View

Parts List

Part Number Description
MAF60779001 MAF60779001 BAG,VINYL [A]
AAN30325802 AAN30325802 BASE ASSEMBLY [430]
6852TAZ010F 6852TAZ010F CABLE,ASSEMBLY
0CH4101K416 0CH4101K416 CAPACITOR,CERAMIC,CHIP
EBT32662201 EBT32662201 CHASSIS ASSEMBLY
EBT32652701 EBT32652701 CHASSIS ASSEMBLY [560]
EBT32662101 EBT32662101 CHASSIS ASSEMBLY [570]
31419SF081B 31419SF081B CHASSIS ASSEMBLY [590]
6602T20009L 6602T20009L CONNECTOR,WAFER
3550V00684A 3550V00684A COVER
3808900566A 3808900566A COVER
ACQ30321302 ACQ30321302 COVER ASSEMBLY [400]
6212AA2600B 6212AA2600B CRYSTAL
EAL30846301 EAL30846301 FAN MODULE [102]
MDJ38042601 MDJ38042601 FILTER [305]
EBR30166901 EBR30166901 HAND INSERT PCB ASSEMBLY [202]
EBR30162301 EBR30162301 HAND INSERT PCB ASSEMBLY [203]
EBR30165401 EBR30165401 HAND INSERT PCB ASSEMBLY [205]
EBR30165901 EBR30165901 HAND INSERT PCB ASSEMBLY [207]
EBR30165201 EBR30165201 HAND INSERT PCB ASSEMBLY [209]
EBR30168901 EBR30168901 HAND INSERT PCB ASSEMBLY [209]
EBR30156301 EBR30156301 HAND INSERT PCB ASSEMBLY [210]
EBR30161801 EBR30161801 HAND INSERT PCB ASSEMBLY [211]
68719SMJ47A 68719SMJ47A HAND INSERT PCB ASSEMBLY,SUB [600]
6631V39002P 6631V39002P HARNESS,SINGLE
6631V39002C 6631V39002C HARNESS,SINGLE
6631900050D 6631900050D HARNESS,SINGLE
6631900098C 6631900098C HARNESS,SINGLE
6631900097D 6631900097D HARNESS,SINGLE
6631900105C 6631900105C HARNESS,SINGLE
EAP37991401 EAP37991401 INDUCTOR,WIRE WOUND,CHIP
6612J10033A 6612J10033A JACK,COMPLEX
38289U0527F 38289U0527F MANUAL [A1]

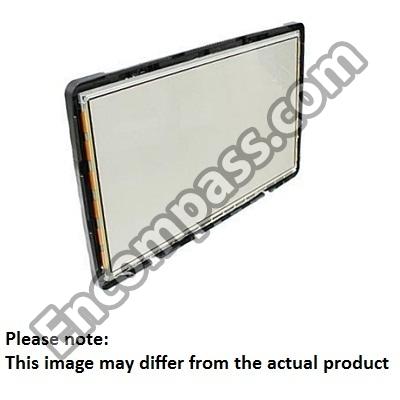

EAJ35776108 EAJ35776108 PDP,MODULE-XGA [200]
AGU30325301 AGU30325301 PLATE ASSEMBLY [501]
3301900094V 3301900094V PLATE ASSEMBLY [502]
EAD60817903 EAD60817903 POWER CORD [A3]
AKB73575301 AKB73575301 REMOTE CONTROLLER [A2]
0RH4700D622 0RH4700D622 RESISTOR,CHIP
0RH0000D622 0RH0000D622 RESISTOR,CHIP

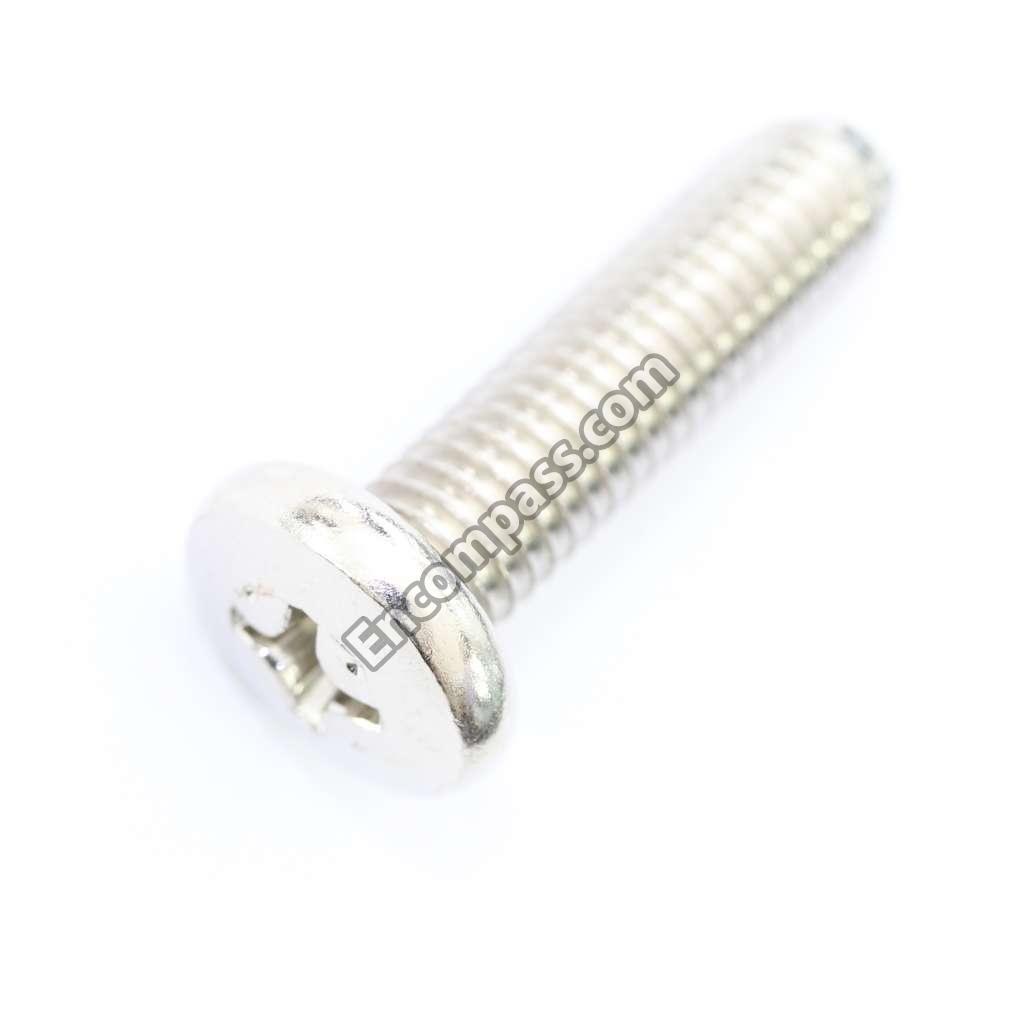

FAB30007002 FAB30007002 SCREW,MACHINE
EAY32961801 EAY32961801 SMPS,AC/DC [580]
EAY32961901 EAY32961901 SMPS,AC/DC [581]
EAB30824301 EAB30824301 SPEAKER,TWEETER [121]
EAB30829601 EAB30829601 SPEAKER,WOOFER [120]
4980V00D91D 4980V00D91D SUPPORTER
MJH38374001 MJH38374001 SUPPORTER
4980V00E25G 4980V00E25G SUPPORTER
AJJ32303802 AJJ32303802 SUPPORTER ASSEMBLY [104]
AJJ30325104 AJJ30325104 SUPPORTER ASSEMBLY [240]
AJJ30325103 AJJ30325103 SUPPORTER ASSEMBLY [250]
AJJ30324602 AJJ30324602 SUPPORTER ASSEMBLY [301]
AJJ30324702 AJJ30324702 SUPPORTER ASSEMBLY [302]
AJJ30324802 AJJ30324802 SUPPORTER ASSEMBLY [303]
AJJ30325002 AJJ30325002 SUPPORTER ASSEMBLY [304]
MJH36431302 MJH36431302 SUPPORTER [103]
4980900389B 4980900389B SUPPORTER [105]
4980V00E26M 4980V00E26M SUPPORTER [260]
4980900380A 4980900380A SUPPORTER [260]
4980900380B 4980900380B SUPPORTER [270]
