Model Image
Manufacturer

LG

Model Number

65UF6450UA

Description

65-inch Class 4k Uhd Smart Led Tv W/ Webos 2.0

Interactive Exploded View

Parts List

Part Number Description

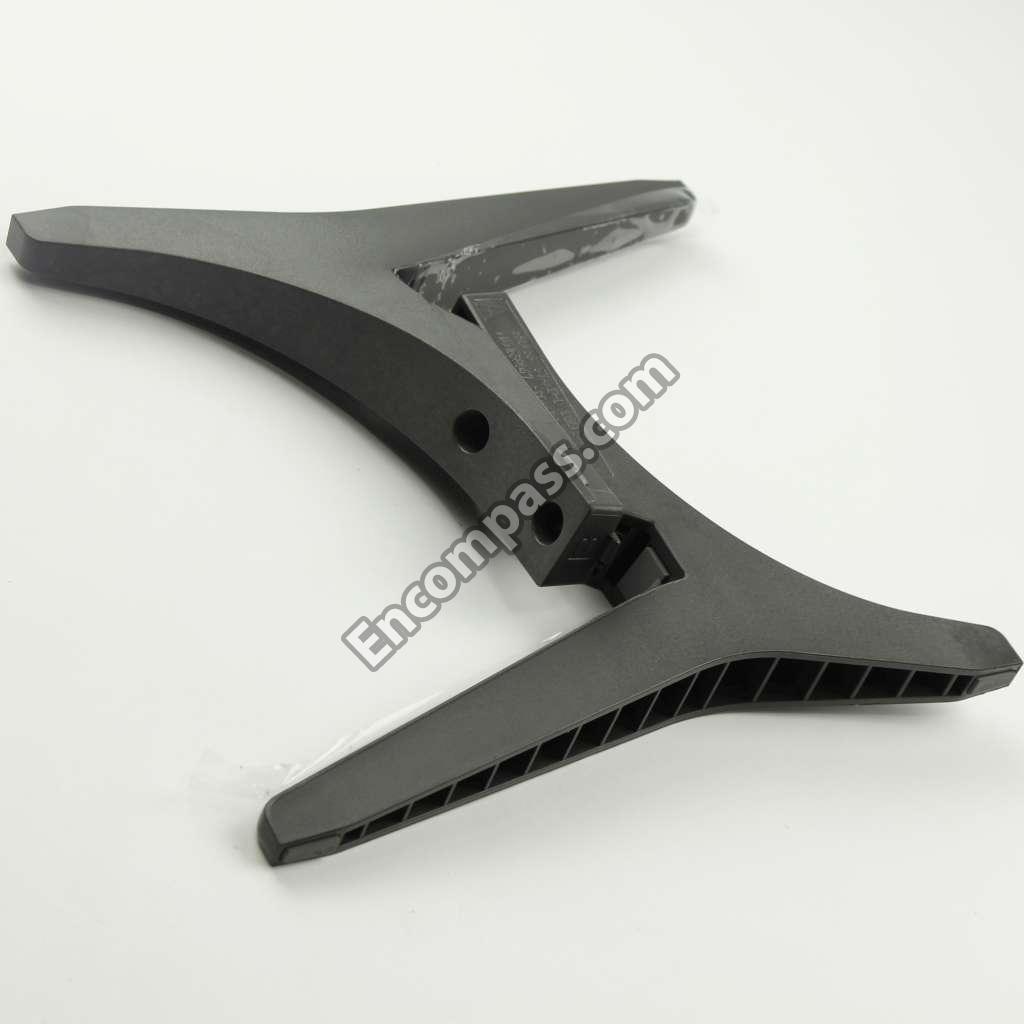

AAN75488606 AAN75488606 BASE ASSEMBLY
MAZ64584432 MAZ64584432 BRACKET
ABA75269624 ABA75269624 BRACKET ASSEMBLY

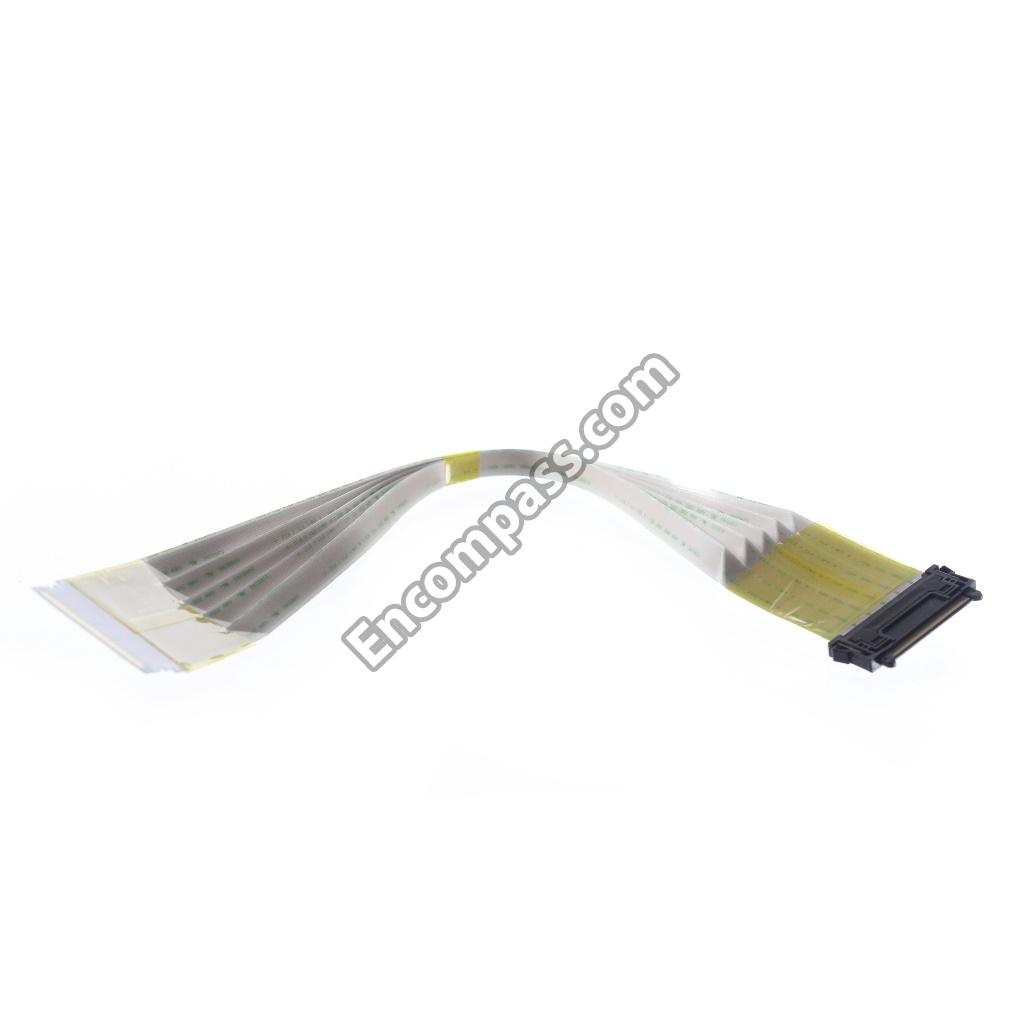

EAD63285701 EAD63285701 CABLE,FFC
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
EAE62161801 EAE62161801 CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE58112401 EAE58112401 CAPACITOR,CERAMIC,CHIP
EAE58111001 EAE58111001 CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CHIP
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CHIP
EAE30281901 EAE30281901 CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
0CZZB00061A 0CZZB00061A CAPACITOR,CERAMIC,CHIP
0CZZB00058A 0CZZB00058A CAPACITOR,CERAMIC,CHIP
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CHIP
0CZZB00024A 0CZZB00024A CAPACITOR,CERAMIC,CHIP
0CK682BKK6A 0CK682BKK6A CAPACITOR,CERAMIC,CHIP
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CHIP
0CK223CK56A 0CK223CK56A CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK105CK56A 0CK105CK56A CAPACITOR,CERAMIC,CHIP
0CK104CK56A 0CK104CK56A CAPACITOR,CERAMIC,CHIP
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CHIP
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CHIP
0CK102EY48A 0CK102EY48A CAPACITOR,CERAMIC,CHIP
0CK102BK56A 0CK102BK56A CAPACITOR,CERAMIC,CHIP
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CHIP
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CHIP
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CHIP
0CH1474K562 0CH1474K562 CAPACITOR,CERAMIC,CHIP
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CHIP
0CC150BK4AA 0CC150BK4AA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CHIP
EAE62987401 EAE62987401 CAPACITOR,TA,POLYMER
EAG64329801 EAG64329801 CONNECTOR,FFC/FPC/PIC
EAG62571101 EAG62571101 CONNECTOR,USB
EAG63590905 EAG63590905 CONNECTOR,WAFER
EAG63590904 EAG63590904 CONNECTOR,WAFER
EAG61091602 EAG61091602 CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
6602T12004C 6602T12004C CONNECTOR,WAFER
ACQ87692849 ACQ87692849 COVER ASSEMBLY
EAW61645502 EAW61645502 CRYSTAL
EAW30067102 EAW30067102 CRYSTAL
EAH61433701 EAH61433701 DIODE,SCHOTTKY
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH62735601 EAH62735601 DIODE,TVS
EAH62134701 EAH62134701 DIODE,TVS
EAH61515101 EAH61515101 DIODE,TVS
0DTKE00018A 0DTKE00018A DIODE,TVS
EAN63027603 EAN63027603 DISPLAY SOC,DIGITAL TV
EAN63010003 EAN63010003 DISPLAY SOC,DIGITAL TV
EBK62072501 EBK62072501 FET
EBK61731401 EBK61731401 FET
EBK61313102 EBK61313102 FET
EAM62091201 EAM62091201 FILTER,BEAD
EAM61130602 EAM61130602 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
EAM38769505 EAM38769505 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
0LCML00003B 0LCML00003B FILTER,BEAD
MDS62110225 MDS62110225 GASKET
EAD63665602 EAD63665602 HARNESS,MULTI
EAD62847614 EAD62847614 HARNESS,MULTI
EAN62886102 EAN62886102 IC,AUDIO AMPLIFIER
EAN63530101 EAN63530101 IC,DC,DC CONVERTER
EAN63530001 EAN63530001 IC,DC,DC CONVERTER
EAN62911301 EAN62911301 IC,DC,DC CONVERTER
EAN62870301 EAN62870301 IC,DC,DC CONVERTER
EAN62788601 EAN62788601 IC,DC,DC CONVERTER
EAN62653301 EAN62653301 IC,DC,DC CONVERTER
EAN63648701 EAN63648701 IC,DDR3 SDRAM
EAN63053202 EAN63053202 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN63492401 EAN63492401 IC,LDO VOLTAGE REGULATOR
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN63508001 EAN63508001 IC,MCP,EMMC
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN62459501 EAN62459501 IC,SERIAL FLASH MEMORY
EAN61829902 EAN61829902 IC,VOLTAGE DETECTOR
EAP63025901 EAP63025901 INDUCTOR,WIRE WOUND,CHIP
EAP62886501 EAP62886501 INDUCTOR,WIRE WOUND,CHIP
EAP62506413 EAP62506413 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,CHIP
MEV65172902 MEV65172902 INSULATOR
EAG59023302 EAG59023302 JACK,DIN
EAG37842003 EAG37842003 JACK,FIBER OPTIC
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG35781015 EAG35781015 JACK,MODULAR
CRD32135101 CRD32135101 LCD,MODULE-TFT
EAV62034801 EAV62034801 LED,CHIP
0DLRH0288AA 0DLRH0288AA LED,CHIP
AGF78364101 AGF78364101 MAGIC REMOTE AN-MR600

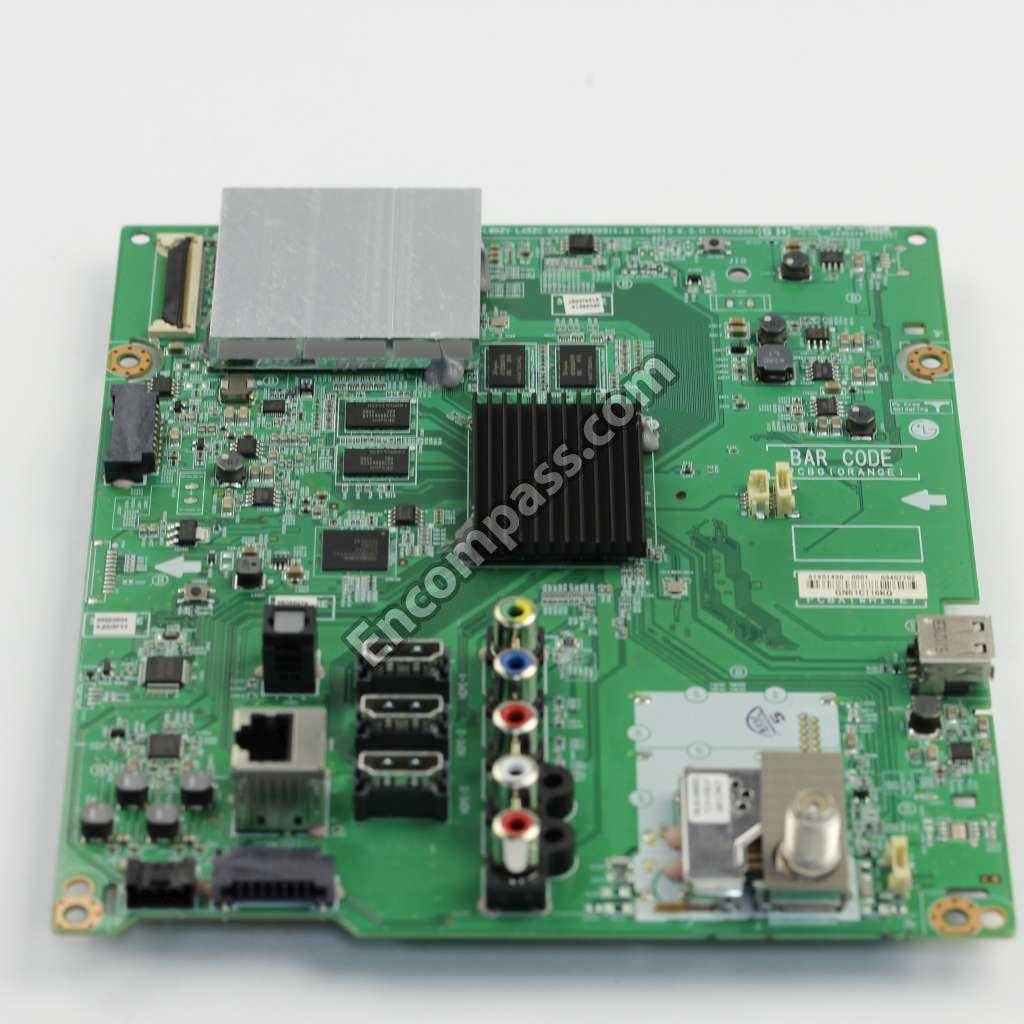

EBU63457702 EBU63457702 MIAN BOARD CHASSIS ASSEMBLY
EAD63505502 EAD63505502 POWER CORD

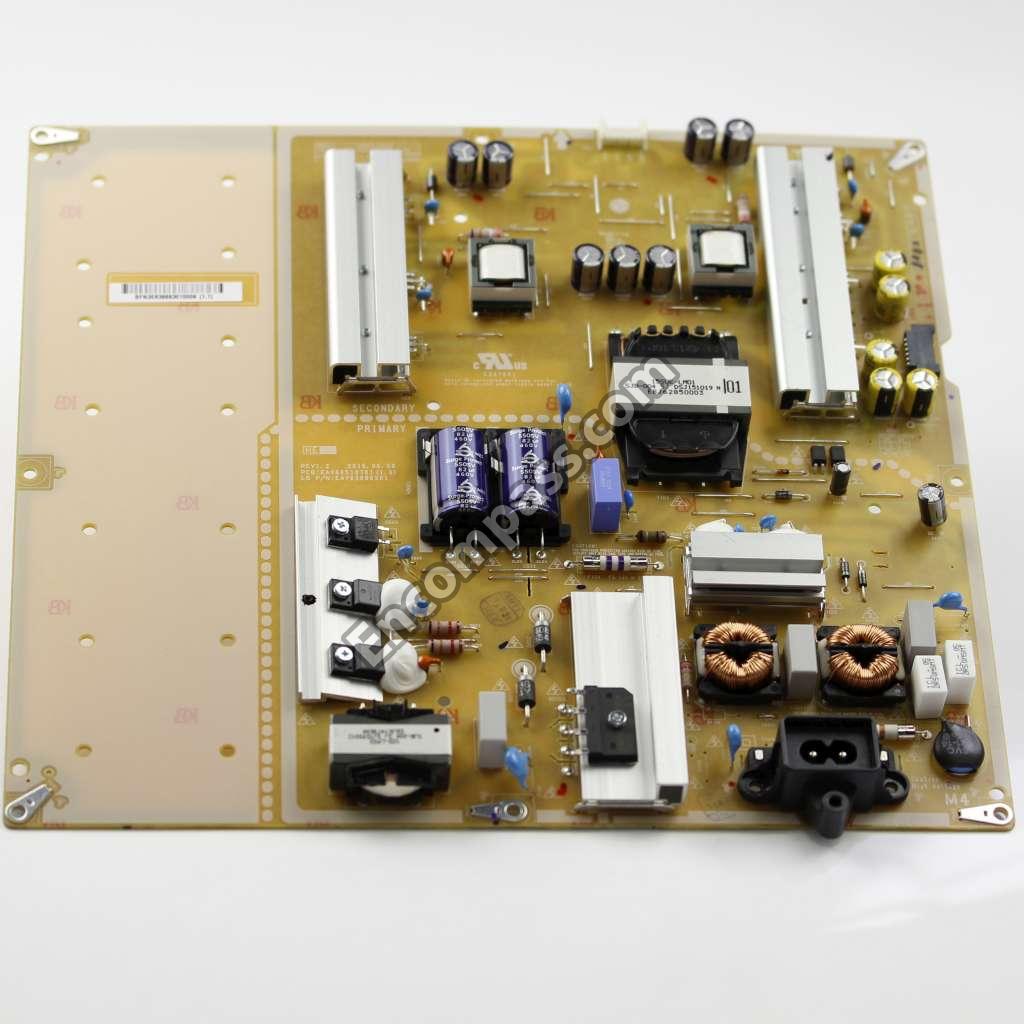

EAY63989301 EAY63989301 POWER SUPPLY ASSEMBLY
AKB74475401 AKB74475401 REMOTE CONTROL
EBC62582704 EBC62582704 RESISTOR,ARRAY
EBC62582703 EBC62582703 RESISTOR,ARRAY
EBC62582701 EBC62582701 RESISTOR,ARRAY
EBC39283301 EBC39283301 RESISTOR,ARRAY
EBC32260501 EBC32260501 RESISTOR,ARRAY
EBC32260401 EBC32260401 RESISTOR,ARRAY
EBC35273701 EBC35273701 RESISTOR,CHIP
EBC34656201 EBC34656201 RESISTOR,CHIP
EBC01890805 EBC01890805 RESISTOR,CHIP
0RJ7502C478 0RJ7502C478 RESISTOR,CHIP
0RJ6201C478 0RJ6201C478 RESISTOR,CHIP
0RJ5602C478 0RJ5602C478 RESISTOR,CHIP
0RJ5601C478 0RJ5601C478 RESISTOR,CHIP
0RJ5102C478 0RJ5102C478 RESISTOR,CHIP
0RJ5101C478 0RJ5101C478 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RJ3601C478 0RJ3601C478 RESISTOR,CHIP
0RJ3302C478 0RJ3302C478 RESISTOR,CHIP
0RJ3301D477 0RJ3301D477 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ2202C478 0RJ2202C478 RESISTOR,CHIP
0RJ2001C678 0RJ2001C678 RESISTOR,CHIP
0RJ2000D677 0RJ2000D677 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ1503C478 0RJ1503C478 RESISTOR,CHIP
0RJ1502C678 0RJ1502C678 RESISTOR,CHIP
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ1203C478 0RJ1203C478 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ1102C478 0RJ1102C478 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0471C678 0RJ0471C678 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ0332C478 0RJ0332C478 RESISTOR,CHIP
0RJ0331D677 0RJ0331D677 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
0RJ0221C678 0RJ0221C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ0000G676 0RJ0000G676 RESISTOR,CHIP
0RJ0000D677 0RJ0000D677 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RH3902B622 0RH3902B622 RESISTOR,CHIP
FAB30016124 FAB30016124 SCREW ASSEMBLY
EAB63688306 EAB63688306 SPEAKER ASSEMBLY
EAB63688305 EAB63688305 SPEAKER ASSEMBLY
MJH63133502 MJH63133502 SUPPORTER
6600R00004C 6600R00004C SWITCH,TACT
0CZZB00084B 0CZZB00084B TANTAL CAPACITOR,POLYMER
EBK61012701 EBK61012701 TR,BIPOLAR
0TRKE80046A 0TRKE80046A TR,BIPOLAR
0TR390609DC 0TR390609DC TR,BIPOLAR
EBL61540001 EBL61540001 TUNER,ANALOG/DIGITAL
EAF61630101 EAF61630101 VARISTOR
EAF61530301 EAF61530301 VARISTOR
EAF61530201 EAF61530201 VARISTOR
EAF61530101 EAF61530101 VARISTOR
