Model Image
Manufacturer

LG

Model Number

65UF7690UH

Description

65-inch Class 4k Uhd Smart Led Tv

Interactive Exploded View

Parts List

Part Number Description
AAN75329107 AAN75329107 BASE ASSEMBLY
AAN75329108 AAN75329108 BASE ASSEMBLY
MAY66251007 MAY66251007 BOX
MAY67039303 MAY67039303 BOX
MAZ64584412 MAZ64584412 BRACKET
ABA75269619 ABA75269619 BRACKET ASSEMBLY
EAD63285701 EAD63285701 CABLE,FFC
EAD63285601 EAD63285601 CABLE,FFC
0CZZB00035A 0CZZB00035A CAPACITOR,CERAMIC,CH
0CC120BK4AA 0CC120BK4AA CAPACITOR,CERAMIC,CH
0CK474DK56A 0CK474DK56A CAPACITOR,CERAMIC,CH
0CK101BK4EA 0CK101BK4EA CAPACITOR,CERAMIC,CH
0CC180BKFAA 0CC180BKFAA CAPACITOR,CERAMIC,CH
0CC100BKF1A 0CC100BKF1A CAPACITOR,CERAMIC,CH
0CH5220K618 0CH5220K618 CAPACITOR,CERAMIC,CH
EAE32166601 EAE32166601 CAPACITOR,CERAMIC,CH
EAE30281901 EAE30281901 CAPACITOR,CERAMIC,CH
0CH5470K618 0CH5470K618 CAPACITOR,CERAMIC,CH
EAE30281301 EAE30281301 CAPACITOR,CERAMIC,CH
0CK103BH56A 0CK103BH56A CAPACITOR,CERAMIC,CH
0CZZB00061A 0CZZB00061A CAPACITOR,CERAMIC,CH
EAE32166101 EAE32166101 CAPACITOR,CERAMIC,CH
0CK104BH56A 0CK104BH56A CAPACITOR,CERAMIC,CH
0CK104BF56A 0CK104BF56A CAPACITOR,CERAMIC,CH
0CH1474K562 0CH1474K562 CAPACITOR,CERAMIC,CHIP
0CH1224K512 0CH1224K512 CAPACITOR,CERAMIC,CHIP
0CK222BKG6A 0CK222BKG6A CAPACITOR,CERAMIC,CHIP
0CK331BKFDA 0CK331BKFDA CAPACITOR,CERAMIC,CHIP
EAE58112401 EAE58112401 CAPACITOR,CERAMIC,CHIP
0CK682BKK6A 0CK682BKK6A CAPACITOR,CERAMIC,CHIP
EAE62771201 EAE62771201 CAPACITOR,CERAMIC,CHIP
0CC820BKFAA 0CC820BKFAA CAPACITOR,CERAMIC,CHIP
0CC103BK5BA 0CC103BK5BA CAPACITOR,CERAMIC,CHIP
0CK102EY48A 0CK102EY48A CAPACITOR,CERAMIC,CHIP
EAE52158501 EAE52158501 CAPACITOR,CERAMIC,CHIP
0CZZB00110A 0CZZB00110A CAPACITOR,CERAMIC,CHIP
EAE61081701 EAE61081701 CAPACITOR,CERAMIC,CHIP
EAE62303301 EAE62303301 CAPACITOR,CERAMIC,CHIP
0CK475DD56A 0CK475DD56A CAPACITOR,FIXED CERA
0CK102BK56A 0CK102BK56A CAPACITOR,FIXED CERA
0CK104CK56A 0CK104CK56A CAPACITOR,FIXED CERA
0CK105CK56A 0CK105CK56A CAPACITOR,FIXED CERA
0CK333CK56A 0CK333CK56A CAPACITOR,FIXED CERA
0CK223CK56A 0CK223CK56A CAPACITOR,FIXED CERA
0CK105CD56A 0CK105CD56A CAPACITOR,FIXED CERA
0CK106EF56A 0CK106EF56A CAPACITOR,FIXED CERA
EAE62987401 EAE62987401 CAPACITOR,TA,POLYMER
EBT63894503 EBT63894503 CHASSIS ASSEMBLY
EAG64250901 EAG64250901 CONNECTOR,BTOB
EAG64329802 EAG64329802 CONNECTOR,FFC/FPC/PIC
EAG64329801 EAG64329801 CONNECTOR,FFC/FPC/PIC
EAG63530101 EAG63530101 CONNECTOR,HDMI
EAG63374201 EAG63374201 CONNECTOR,USB
EAG62571101 EAG62571101 CONNECTOR,USB
EAG63590901 EAG63590901 CONNECTOR,WAFER
EAG63590902 EAG63590902 CONNECTOR,WAFER
EAG61091602 EAG61091602 CONNECTOR,WAFER
6630VK19605 6630VK19605 CONNECTOR,WAFER
EAG58732903 EAG58732903 CONNECTOR,WAFER
ACQ87692836 ACQ87692836 COVER ASSEMBLY
EAW61645502 EAW61645502 CRYSTAL
EAW58239602 EAW58239602 CRYSTAL
0DR050008AA 0DR050008AA DIODE,RECTIFIER
EAH61433701 EAH61433701 DIODE,SCHOTTKY
0DSGD00038A 0DSGD00038A DIODE,SWITCHING
EAH61714301 EAH61714301 DIODE,SWITCHING
EAH61515101 EAH61515101 DIODE,TVS
0DTKE00018A 0DTKE00018A DIODE,TVS
EAH61232601 EAH61232601 DIODE,TVS
EAH62134701 EAH62134701 DIODE,TVS
EAN63010001 EAN63010001 DISPLAY SOC,DIGITAL TV
EAN63728101 EAN63728101 DISPLAY SOC,DIGITAL TV
EBK61313102 EBK61313102 FET
EBK62072501 EBK62072501 FET
EBK61731401 EBK61731401 FET
0LCML00003B 0LCML00003B FILTER(CIRC),EMC
EAM38769505 EAM38769505 FILTER,BEAD
EAM61130602 EAM61130602 FILTER,BEAD
EAM32500203 EAM32500203 FILTER,BEAD
EAM58459601 EAM58459601 FILTER,BEAD
MDS62110209 MDS62110209 GASKET
MDS62110225 MDS62110225 GASKET
EAD62847614 EAD62847614 HARNESS,MULTI
EAD63305303 EAD63305303 HARNESS,MULTI
EAD62732506 EAD62732506 HARNESS,SINGLE
EAN62871401 EAN62871401 IC,ANALOG SWITCH
EAN63047601 EAN63047601 IC,ANALOG SWITCH
EAN62658501 EAN62658501 IC,ANALOG SWITCH
EAN62668301 EAN62668301 IC,AUDIO AMPLIFIER
EAN62886102 EAN62886102 IC,AUDIO AMPLIFIER
EAN62911501 EAN62911501 IC,DC,DC CONVERTER
EAN62653301 EAN62653301 IC,DC,DC CONVERTER
EAN63530101 EAN63530101 IC,DC,DC CONVERTER
EAN63530201 EAN63530201 IC,DC,DC CONVERTER
EAN63648701 EAN63648701 IC,DDR3 SDRAM
EAN63053202 EAN63053202 IC,DDR3 SDRAM
EAN63511401 EAN63511401 IC,DDR3 SDRAM
EAN61133501 EAN61133501 IC,EEPROM
EAN58801701 EAN58801701 IC,LDO VOLTAGE REGULATOR
EAN62868801 EAN62868801 IC,LDO VOLTAGE REGULATOR
EAN63492401 EAN63492401 IC,LDO VOLTAGE REGULATOR
EAN63508001 EAN63508001 IC,MCP,EMMC
EAN62632101 EAN62632101 IC,MICROCONTROLLERS
EAN62459501 EAN62459501 IC,SERIAL FLASH MEMORY
EAN62459301 EAN62459301 IC,SERIAL FLASH MEMORY
EAN41348201 EAN41348201 IC,TX/RX
EAN62945801 EAN62945801 IC,VOLTAGE DETECTOR
EAP32842801 EAP32842801 INDUCTOR,WIRE WOUND,
EAP62506410 EAP62506410 INDUCTOR,WIRE WOUND,CHIP
EAP61607101 EAP61607101 INDUCTOR,WIRE WOUND,CHIP
EAP62886505 EAP62886505 INDUCTOR,WIRE WOUND,CHIP
EAP63025901 EAP63025901 INDUCTOR,WIRE WOUND,CHIP
MEV65172901 MEV65172901 INSULATOR
EAG37842001 EAG37842001 JACK,FIBER OPTIC
EAG60841811 EAG60841811 JACK,PHONE
EAG60968213 EAG60968213 JACK,RCA
CRD32013301 CRD32013301 LCD,MODULE-TFT
0DLRH0288AA 0DLRH0288AA LED,CHIP
EAV62034801 EAV62034801 LED,CHIP
AFN76832132 AFN76832132 MANUAL ASSEMBLY
MFL68741502 MFL68741502 MANUAL,OWNERS
AKB74495307 AKB74495307 PACKAGE ASSEMBLY
EAD62397301 EAD62397301 POWER CORD
EAY63729201 EAY63729201 POWER SUPPLY ASSEMBLY

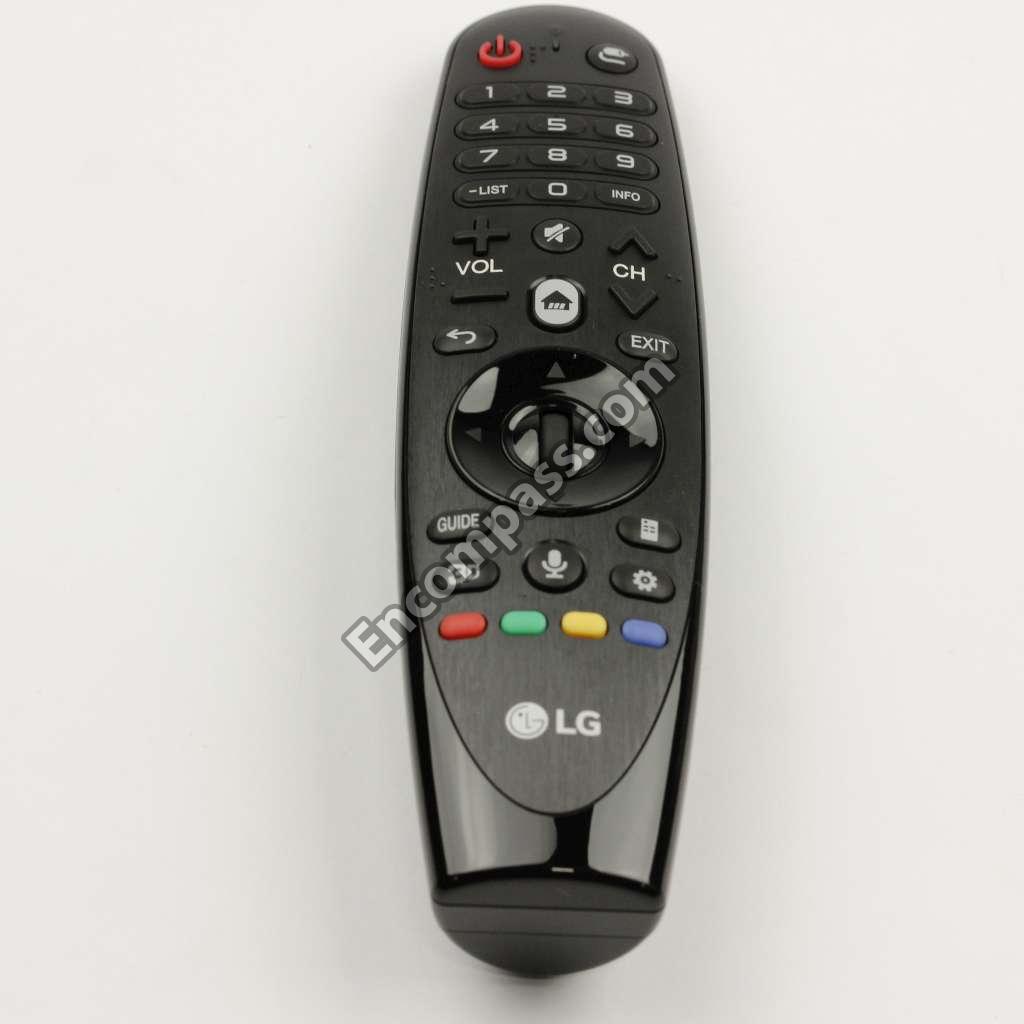

AKB74495302 AKB74495302 REMOTE CONTROLLER ASSEMBLY
EBC62582702 EBC62582702 RESISTOR,ARRAY
EBC32260401 EBC32260401 RESISTOR,ARRAY
EBC62582701 EBC62582701 RESISTOR,ARRAY
EBC62582706 EBC62582706 RESISTOR,ARRAY
EBC62582703 EBC62582703 RESISTOR,ARRAY
EBC39283301 EBC39283301 RESISTOR,ARRAY
EBC32260501 EBC32260501 RESISTOR,ARRAY
EBC62582704 EBC62582704 RESISTOR,ARRAY
EBC32260601 EBC32260601 RESISTOR,ARRAY
0RJ1502C478 0RJ1502C478 RESISTOR,CHIP
0RJ2702C478 0RJ2702C478 RESISTOR,CHIP
0RJ5102C478 0RJ5102C478 RESISTOR,CHIP
0RJ0332C478 0RJ0332C478 RESISTOR,CHIP
0RH3903D622 0RH3903D622 RESISTOR,CHIP
0RJ1203C478 0RJ1203C478 RESISTOR,CHIP
0RJ2000D677 0RJ2000D677 RESISTOR,CHIP
0RJ0101C678 0RJ0101C678 RESISTOR,CHIP
0RJ2701C478 0RJ2701C478 RESISTOR,CHIP
EBC35273701 EBC35273701 RESISTOR,CHIP
0RJ1402C478 0RJ1402C478 RESISTOR,CHIP
0RJ0222C678 0RJ0222C678 RESISTOR,CHIP
EBC01890805 EBC01890805 RESISTOR,CHIP
0RJ1302C478 0RJ1302C478 RESISTOR,CHIP
0RJ0562C478 0RJ0562C478 RESISTOR,CHIP
0RJ1202C678 0RJ1202C678 RESISTOR,CHIP
0RJ4703C678 0RJ4703C678 RESISTOR,CHIP
0RJ4303C478 0RJ4303C478 RESISTOR,CHIP
0RJ1003C478 0RJ1003C478 RESISTOR,CHIP
EBC59174901 EBC59174901 RESISTOR,CHIP
0RJ3301C678 0RJ3301C678 RESISTOR,CHIP
0RJ0682C678 0RJ0682C678 RESISTOR,CHIP
0RJ1801C678 0RJ1801C678 RESISTOR,CHIP
0RJ0102C678 0RJ0102C678 RESISTOR,CHIP
0RJ3901C678 0RJ3901C678 RESISTOR,CHIP
0RJ1004C478 0RJ1004C478 RESISTOR,CHIP
0RJ1201C478 0RJ1201C478 RESISTOR,CHIP
0RJ0752C478 0RJ0752C478 RESISTOR,CHIP
0RJ1002C478 0RJ1002C478 RESISTOR,CHIP
0RJ2202C478 0RJ2202C478 RESISTOR,CHIP
0RJ1802C478 0RJ1802C478 RESISTOR,CHIP
0RJ4302C478 0RJ4302C478 RESISTOR,CHIP
0RJ4701C678 0RJ4701C678 RESISTOR,CHIP
0RJ2400C478 0RJ2400C478 RESISTOR,CHIP
0RJ0000G676 0RJ0000G676 RESISTOR,CHIP
0RJ0000C678 0RJ0000C678 RESISTOR,CHIP
0RJ1001C678 0RJ1001C678 RESISTOR,CHIP
0RJ0472C678 0RJ0472C678 RESISTOR,CHIP
0RJ1000C478 0RJ1000C478 RESISTOR,CHIP
0RJ0332C678 0RJ0332C678 RESISTOR,CHIP
0RJ3301C478 0RJ3301C478 RESISTOR,CHIP
0RJ1003C678 0RJ1003C678 RESISTOR,CHIP
0RJ1000C678 0RJ1000C678 RESISTOR,CHIP
0RJ1202C478 0RJ1202C478 RESISTOR,CHIP
0RJ1002C678 0RJ1002C678 RESISTOR,CHIP
0RJ1503C478 0RJ1503C478 RESISTOR,CHIP
0RJ2003C478 0RJ2003C478 RESISTOR,CHIP
0RJ6801C478 0RJ6801C478 RESISTOR,CHIP
0RJ4701C478 0RJ4701C478 RESISTOR,CHIP
0RJ3002C478 0RJ3002C478 RESISTOR,CHIP
EBC42830501 EBC42830501 RESISTOR,CHIP
0RJ1001E478 0RJ1001E478 RESISTOR,CHIP
0RJ1500D677 0RJ1500D677 RESISTOR,METAL GLAZE
0RJ2002C478 0RJ2002C478 RESISTOR,METAL GLAZE
0RJ2203D677 0RJ2203D677 RESISTOR,METAL GLAZE
0RJ0331D677 0RJ0331D677 RESISTOR,METAL GLAZE
0RJ0000D677 0RJ0000D677 RESISTOR,METAL GLAZE
FAB30016124 FAB30016124 SCREW ASSEMBLY
FAB30016403 FAB30016403 SCREW ASSEMBLY
FAB31843211 FAB31843211 SCREW,MACHINE
FAB32418704 FAB32418704 SCREW,MACHINE
FAB31639801 FAB31639801 SCREW,TAPTITE
EAB63688304 EAB63688304 SPEAKER ASSEMBLY
EAB63688303 EAB63688303 SPEAKER ASSEMBLY
MJH63133502 MJH63133502 SUPPORTER
6600R00004C 6600R00004C SWITCH,TACT
EBK61012701 EBK61012701 TR,BIPOLAR
0TR390609DC 0TR390609DC TR,BIPOLAR
0TRKE80046A 0TRKE80046A TR,BIPOLAR
EBL61540001 EBL61540001 TUNER,ANALOG/DIGITAL
EAF61530201 EAF61530201 VARISTOR
EAF61630101 EAF61630101 VARISTOR
EAF61530301 EAF61530301 VARISTOR
EAF61530101 EAF61530101 VARISTOR
