Manufacturer

Model Number

BD370

Description

Network Blu-ray Disc Player

Interactive Exploded View

Parts List

Part Number	Description
3880SCS001E	BAG [804]
MAM51178701	BASE [1011]
MAM50148901	BASE [1020]
4400H-1014A	BELT [1015]
AAX71868806	BOARD ASSEMBLY [A43]
MAY58758161	BOX,MASTER [802]
6850R-PBA8H	CABLE,ASSEMBLY [812]
6850R-PCA8F	CABLE,ASSEMBLY [813]
EAD55660703	CABLE,ASSEMBLY [CABLE3]
EAD56949601	CABLE,FFC [1030]
EAD56950901	CABLE,FFC [1045]
EAD56950902	CABLE,FFC [1045]
EAD42150103	CABLE,FFC [CABLE1]
EAD39815204	CABLE,FFC [CABLE2]
0CH8107C621	CAPACITOR,AL,CHIP [C137]
0CE476SF6DC	CAPACITOR,AL,CHIP [C2E1]
EAE33602601	CAPACITOR,AL,CHIP [C345]
0CE226SF6DC	CAPACITOR,AL,CHIP [CA101]
0CH8107F611	CAPACITOR,AL,CHIP [CA415]
0CH8477C611	CAPACITOR,AL,CHIP [CA618]
EAE35846401	CAPACITOR,AL,CHIP [CA704]
EAE36144701	CAPACITOR,AL,CHIP [CA723]
0CH8107F621	CAPACITOR,AL,CHIP [LC205]
0CH8476F611	CAPACITOR,AL,CHIP [LC905]
0CE1076R610	CAPACITOR,AL,RADIAL [C103]
624-085D	CAPACITOR,AL,RADIAL [C109]
0CE108EH610	CAPACITOR,AL,RADIAL [C121]
0CE108EF630	CAPACITOR,AL,RADIAL [C122]
EAE34802401	CAPACITOR,AL,RADIAL [C124]
0CE2276F638	CAPACITOR,AL,RADIAL [C126]
624-082H	CAPACITOR,AL,RADIAL [C133]
0CE1074F638	CAPACITOR,AL,RADIAL [C151]
0CE2263F638	CAPACITOR,AL,RADIAL [CE501]
0CE2264F638	CAPACITOR,AL,RADIAL [CE502]
0CE4763F638	CAPACITOR,AL,RADIAL [CE503]
0CN1040K948	CAPACITOR,CERAMIC,AXIAL [C104]
0CK104BF56A	CAPACITOR,CERAMIC,CHIP [C101]
0CH4180K412	CAPACITOR,CERAMIC,CHIP [C102]
0CH4080K412	CAPACITOR,CERAMIC,CHIP [C104]
0CK475CD64A	CAPACITOR,CERAMIC,CHIP [C105]
0CH4150K412	CAPACITOR,CERAMIC,CHIP [C116]
0CK226FF67A	CAPACITOR,CERAMIC,CHIP [C128]
0CK225CFK7A	CAPACITOR,CERAMIC,CHIP [C206]
0CK105BF94A	CAPACITOR,CERAMIC,CHIP [C212]
0CK104CHG6A	CAPACITOR,CERAMIC,CHIP [C352]
0CH1103K562	CAPACITOR,CERAMIC,CHIP [C402]
0CH1102K562	CAPACITOR,CERAMIC,CHIP [C425]
0CK104CK66A	CAPACITOR,CERAMIC,CHIP [C501]
0CH1105F942	CAPACITOR,CERAMIC,CHIP [C502]
0CH1223K942	CAPACITOR,CERAMIC,CHIP [C519]
0CK104CKG6A	CAPACITOR,CERAMIC,CHIP [C520]
0CH4101K412	CAPACITOR,CERAMIC,CHIP [C530]
0CH1471K562	CAPACITOR,CERAMIC,CHIP [C612]
0CH4151K412	CAPACITOR,CERAMIC,CHIP [C677]
0CH1474K562	CAPACITOR,CERAMIC,CHIP [C689]
0CH1153K562	CAPACITOR,CERAMIC,CHIP [C735]
EAE30383301	CAPACITOR,CERAMIC,CHIP [C736]
0CH1331K412	CAPACITOR,CERAMIC,CHIP [C762]
0CK101BF4DA	CAPACITOR,CERAMIC,CHIP [C764]
0CH1104K562	CAPACITOR,CERAMIC,CHIP [LC108]
0CH1222K562	CAPACITOR,CERAMIC,CHIP [LC202]
0CH4331K412	CAPACITOR,CERAMIC,CHIP [LC238]
0CK225CF94A	CAPACITOR,CERAMIC,CHIP [LC501]
0CK105CC56A	CAPACITOR,CERAMIC,CHIP [LC5B0]
0CK106DD64A	CAPACITOR,CERAMIC,CHIP [LC913]
0CH4470K412	CAPACITOR,CERAMIC,CHIP [LC923]
0CG1020U630	CAPACITOR,CERAMIC,RADIAL [C110]
624-088N	CAPACITOR,FILM,BOX [C101]
624-088F	CAPACITOR,FILM,DIP [C101]
624-088L	CAPACITOR,FILM,DIP [C101]
EAE39104801	CAPACITOR,FILM,DIP [C101]
0CQ1031Y519	CAPACITOR,FILM,DIP [C105]
0CQ2221N409	CAPACITOR,FILM,DIP [C107]
0CQ4721N409	CAPACITOR,FILM,DIP [C115]
0CQ1042K409	CAPACITOR,FILM,DIP [C143]
0CS476HD6DC	CAPACITOR,TA,NIOBIUM [LC920]
MBN42965401	CASE [250]
MBS42965001	CHASSIS [260]
ACA65103311	CLAMP ASSEMBLY [1003]
6140RCC003H	COIL,RF [L123]
6630VL01006	CONNECTOR,BTOB [CN403]
6630R-BF07P	CONNECTOR,BTOB [CN701]
6630R-BF03P	CONNECTOR,BTOB [P101]
EAG40562101	CONNECTOR,DSUB [JK603]
6630R-FB06E	CONNECTOR,FFC/FPC/PIC [CN401]
6630XE00123	CONNECTOR,FFC/FPC/PIC [CN402]
6630R-FB05W	CONNECTOR,FFC/FPC/PIC [CN501]
6630XE00105	CONNECTOR,FFC/FPC/PIC [CN503]
6630HXE440E	CONNECTOR,FFC/FPC/PIC [LCN700]
6630X60106A	CONNECTOR,FFC/FPC/PIC [LPF301]
6630X60088B	CONNECTOR,FFC/FPC/PIC [LPM301]
6630XE00204	CONNECTOR,FFC/FPC/PIC [LPM302]
EAG55700001	CONNECTOR,FFC/FPC/PIC [LPT301]
6630X60027E	CONNECTOR,FFC/FPC/PIC [LPT302]
EAG43125201	CONNECTOR,USB [CN502]
EAG56285901	CONNECTOR,WAFER [CN405]
EAG35550102	CONNECTOR,WAFER [CN406]
EAG56809201	CONNECTOR,WAFER [LPB800]
6630VK19605	CONNECTOR,WAFER [LPB801]
ACQ67706802	COVER ASSEMBLY [1047]
ACQ65103211	COVER ASSEMBLY [A001]
MCK30125801	COVER [1001]
MCK51179601	COVER [1002]
MCK42305501	COVER [1048]
EAW31525401	CRYSTAL [LX501]
6212AA2540D	CRYSTAL [X104]
EAW32265901	CRYSTAL [X501]
5040R-1081B	DAMPER [1025]
MCQ51197601	DAMPER [1041]
5040H-1023W	DAMPER [1046]
MCQ32325001	DAMPER [261]
0DRDI00201A	DIODE,BRIDGE [BD101]
EAH31952001	DIODE,BRIDGE [BD101]
0DRRE00163A	DIODE,RECTIFIER [D101]
0DR104009BA	DIODE,RECTIFIER [D102]
0DRGF00239A	DIODE,RECTIFIER [D102]
0DSDI00110A	DIODE,RECTIFIER [D121]
0DSDI00090A	DIODE,SCHOTTKY [D123]
0DSTW00030A	DIODE,SCHOTTKY [D123]
EAH54213301	DIODE,SCHOTTKY [D124]
0DSKE00141B	DIODE,SCHOTTKY [D132]
0DRRM00138A	DIODE,SCHOTTKY [D501]
0DSKE00048A	DIODE,SCHOTTKY [D701]
0DRRM00048A	DIODE,SCHOTTKY [D702]
EAH36256501	DIODE,SCHOTTKY [LD801]
EAH31951401	DIODE,SWITCHING [D121]
0DD133009AA	DIODE,SWITCHING [D130]
0DSNH00020B	DIODE,SWITCHING [D132]
0DS135519AA	DIODE,SWITCHING [D703]
0DTSE00018A	DIODE,TVS [D400]
EAH31345801	DIODE,TVS [D604]
0DZ330009CA	DIODE,ZENER [ZD101]
0DZ100009AA	DIODE,ZENER [ZD103]
0DZ102609AB	DIODE,ZENER [ZD103]
0DZ270009BD	DIODE,ZENER [ZD121]
0DZPH00118A	DIODE,ZENER [ZD501]
0DZPH00079A	DIODE,ZENER [ZD503]
MCV42965701	DOOR [283]
MCV42965801	DOOR [285]
0TRRH80042A	FET [IC505]
636-004C	FILTER,BEAD [BC101]
EAM56488801	FILTER,BEAD [BC101]
6200HJC102A	FILTER,BEAD [L101]
0LC11608C01	FILTER,BEAD [L406]
6200HJC106B	FILTER,BEAD [L609]
6200HJC106A	FILTER,BEAD [LL728]
6200JB8013V	FILTER,LINE NOISE [L102]
ADV37132111	FRAME ASSEMBLY [A44]
0FS1601B51D	FUSE,TIME DELAY [F101]
MDT30123101	GEAR [1013]
MDT30122801	GEAR [1017]
MEA40275901	GUIDE [1012]
EAD56862801	HARNESS,SINGLE [CABLE4]
EAN35416401	IC,D/A CONVERTER [IC607]
EAN31859201	IC,DC,DC CONVERTER [IC704]
EAN39690601	IC,DC,DC CONVERTER [IC706]
EAN33624402	IC,DDR2 SDRAM [IC301]
EAN60658602	IC,DDR2 SDRAM [IC301]
0IPRPPY002A	IC,DISPLAY DRIVER [IC502]
EAN56285401	IC,FRONT END [LIC501]
0IPRP00664A	IC,I/O SUPPORT CHIP [Q401]
0IPMGUC004B	IC,LDO VOLTAGE REGULATOR [IC103]
0IPMGKE047A	IC,LDO VOLTAGE REGULATOR [IC152]
EAN44022001	IC,LDO VOLTAGE REGULATOR [IC152]
0IPMGGM002A	IC,LDO VOLTAGE REGULATOR [IC153]
0IPMGKE006B	IC,LDO VOLTAGE REGULATOR [IC153]
EAN43506901	IC,LDO VOLTAGE REGULATOR [IC153]
0IPMGKE048A	IC,LDO VOLTAGE REGULATOR [IC154]
0IPMGKE030A	IC,LDO VOLTAGE REGULATOR [IC702]
EAN38671001	IC,LDO VOLTAGE REGULATOR [IC708]
0IPMG78430B	IC,LDO VOLTAGE REGULATOR [LIC901]
EAN34180901	IC,LDO VOLTAGE REGULATOR [LIC902]
EAN56746801	IC,LDO VOLTAGE REGULATOR [LIC903]
EAN33391101	IC,MICROCONTROLLERS [IC501]
EAN33391102	IC,MICROCONTROLLERS [IC501]
EAN56819501	IC,MOTOR DRIVER [LIC201]
EAN56680501	IC,MOTOR DRIVER [LIC601]
0ILNRJR014B	IC,OP AMPLIFIER [IC603]
0IPMG78398A	IC,PWM CONTROLLER [IC101]
EAN32259901	IC,RESET [IC102]
0IMMR00188B	IC,SERIAL FLASH MEMORY [LIC100]
EAN40273601	IC,TELECOM FILTER [IC609]
EAN39308101	IC,TX/RX [IC601]
EAN40083901	IC,VIDEO AMPLIFIER [IC606]
EAN40084701	IC,VIDEO AMPLIFIER [IC610]
EAN50729101	IC,VIDEO PROCESSORS [IC101]
EAN38941301	IC,VOLTAGE DETECTOR [IC504]
0IKE431000A	IC,VOLTAGE REGULATOR [IC103]
0ISS431000A	IC,VOLTAGE REGULATOR [IC103]
EAP36125901	INDUCTOR,MULTILAYER,CHIP [L110]
0LCCE00004E	INDUCTOR,MULTILAYER,CHIP [L618]
6140RF0001D	INDUCTOR,WIRE WOUND,CHIP [L109]
EAP39240301	INDUCTOR,WIRE WOUND,CHIP [L719]
EAP57167401	INDUCTOR,WIRE WOUND,CHIP [L721]
EAG36157201	JACK,FIBER OPTIC [JK601]
EAG32089101	JACK,MODULAR [JK403]
EAG39524801	JACK,RCA [JK602]
0DLAU0300AA	LED DIP [LED401]
AFN68983713	MANUAL ASSEMBLY,OWNERS [801]
4680R-E009A	MOTOR,DC [1018]
EBR61156703	OPTION CODE ASSEMBLY [A46]
MFZ47272602	PACKING [803]
AGL37132206	PANEL ASSEMBLY,FRONT [A43A]
MGC42965111	PANEL,REAR [320]
EBR37922641	PCB ASSEMBLY [A47]
EBR40307103	PCB ASSEMBLY,DECK [A005]
EBR48829261	PCB ASSEMBLY,FRONT [A50]
3300RCH001B	PLATE [275]
EAD61909201	POWER CORD [300]
EAC44080001	PRIMARY CELL BATTERY,CARBON ZINC [808]
MGN30124101	PULLEY [1016]
4560H-1005A	PULLEY [1019]
624-087G	RADIAL TYPE CERAMIC CAPACITOR [C106]
6712R1238GA	RECEIVER MODULE [RC501]

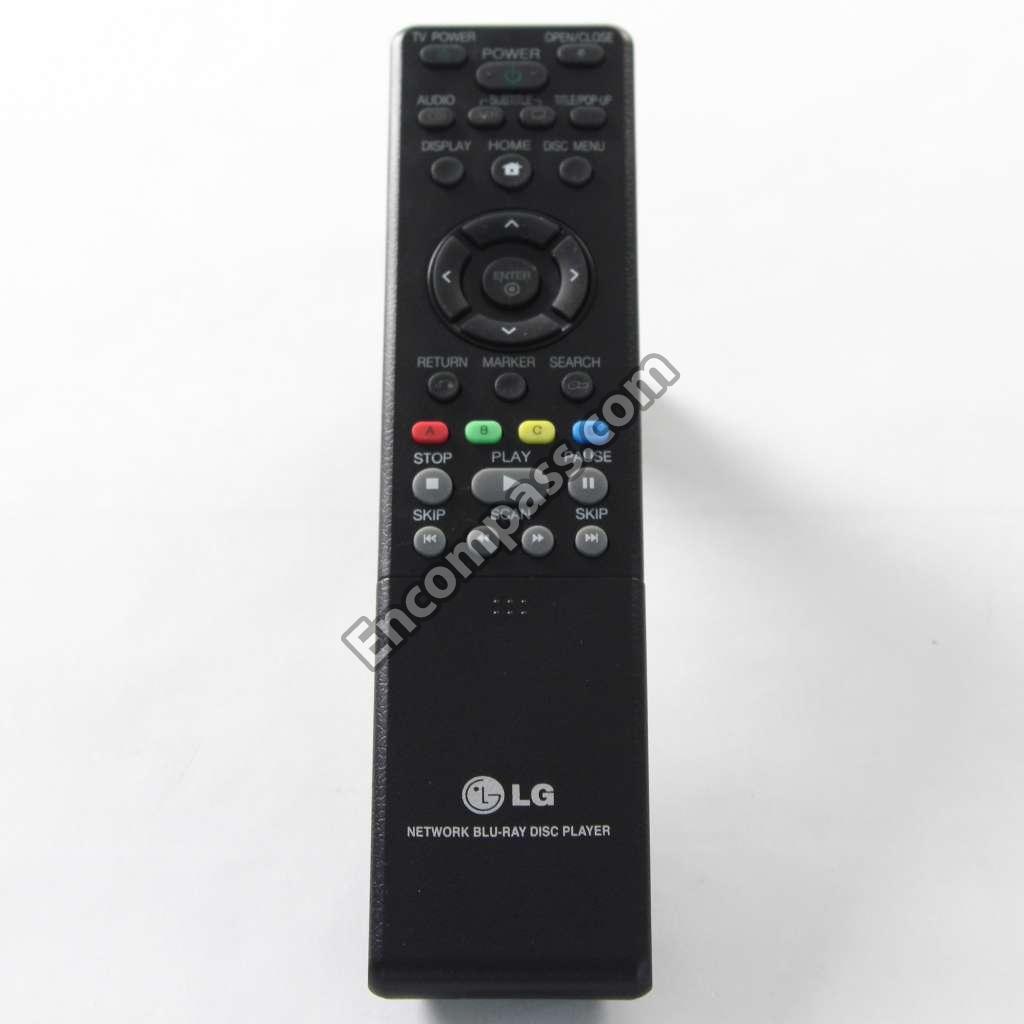

AKB68183601	REMOTE CONTROLLER ASSEMBLY [900]
EBC41533601	RESISTOR,ARRAY [RA201]
0RR0332B621	RESISTOR,ARRAY [RA603]
0RD1504H632	RESISTOR,CARBON FILM [R100]
0RD0222F608	RESISTOR,CARBON FILM [R105]
0RD1003F608	RESISTOR,CARBON FILM [R122]
0RD8202F608	RESISTOR,CARBON FILM [R131]
0RD2200F608	RESISTOR,CARBON FILM [R141]
0RD2201F608	RESISTOR,CARBON FILM [R142]
0RD1001F608	RESISTOR,CARBON FILM [R143]
0RD8200F608	RESISTOR,CARBON FILM [R146]
0RD4701F608	RESISTOR,CARBON FILM [R153]
0RD1002F608	RESISTOR,CARBON FILM [R157]
0RD0152F608	RESISTOR,CARBON FILM [R181]
614-007A	RESISTOR,CEMENT [R101]
0RH0222C622	RESISTOR,CHIP [LR101]
0RH1502C622	RESISTOR,CHIP [LR201]
0RH1002C622	RESISTOR,CHIP [LR202]
0RH8201C622	RESISTOR,CHIP [LR204]
0RH1001C622	RESISTOR,CHIP [LR5070]
0RH0471C622	RESISTOR,CHIP [LR532]
0RH1000C622	RESISTOR,CHIP [LR544]
0RH2002C622	RESISTOR,CHIP [LR550]
0RH1003C622	RESISTOR,CHIP [LR574]
0RH0102C622	RESISTOR,CHIP [LR575]
0RH2001C622	RESISTOR,CHIP [LR5B1]
0RH1201C422	RESISTOR,CHIP [LR5C80]
0RJ2202D477	RESISTOR,CHIP [LR5C8]
0RH0000E622	RESISTOR,CHIP [LR903]
0RH1001C422	RESISTOR,CHIP [LR911]
0RH2701C422	RESISTOR,CHIP [LR913]
0RJ5620C477	RESISTOR,CHIP [R101]
0RJ1001E478	RESISTOR,CHIP [R102]
0RJ4701C678	RESISTOR,CHIP [R103]
0RH2200C622	RESISTOR,CHIP [R106]
0RH0182C622	RESISTOR,CHIP [R111]
0RJ3000C477	RESISTOR,CHIP [R112]
0RH1002C422	RESISTOR,CHIP [R114]
0RH1501C622	RESISTOR,CHIP [R121]
0RH4701C622	RESISTOR,CHIP [R122]
0RJ1501C678	RESISTOR,CHIP [R131]
0RH1201C622	RESISTOR,CHIP [R1A0]
0RJ0332C477	RESISTOR,CHIP [R1C5]
0RJ0332C678	RESISTOR,CHIP [R1D1]
0RJ1200C478	RESISTOR,CHIP [R301]
0RJ1200C477	RESISTOR,CHIP [R308]
0RH2201C622	RESISTOR,CHIP [R401]
0RH1500C622	RESISTOR,CHIP [R404]
0RJ1002C678	RESISTOR,CHIP [R437]
0RJ0492C477	RESISTOR,CHIP [R448]
0RJ1502C678	RESISTOR,CHIP [R470]
0RH0000C622	RESISTOR,CHIP [R472]
0RH1004C622	RESISTOR,CHIP [R507]
0RH3300C622	RESISTOR,CHIP [R513]
0RH5602C622	RESISTOR,CHIP [R523]
0RH6800C622	RESISTOR,CHIP [R525]
0RH8200C622	RESISTOR,CHIP [R526]
0RH7501C622	RESISTOR,CHIP [R544]
0RH2702C622	RESISTOR,CHIP [R553]
0RH3302C622	RESISTOR,CHIP [R564]
0RH0000D622	RESISTOR,CHIP [R568]
0RH4702C622	RESISTOR,CHIP [R575]
0RJ0372C477	RESISTOR,CHIP [R606]
0RJ1201C678	RESISTOR,CHIP [R616]
EBC39488101	RESISTOR,CHIP [R628]
0RH0752C422	RESISTOR,CHIP [R632]
0RH3302C422	RESISTOR,CHIP [R636]
0RH1200C622	RESISTOR,CHIP [R642]
0RH4301C622	RESISTOR,CHIP [R672]
EBC32554902	RESISTOR,CHIP [R6B1]
0RH2002C422	RESISTOR,CHIP [R6D4]
0RH0562C622	RESISTOR,CHIP [R6F0]
0RJ1300C677	RESISTOR,CHIP [R6F1]
EBC40339401	RESISTOR,CHIP [R705]
EBC31459601	RESISTOR,CHIP [R708]
0RJ0472C678	RESISTOR,CHIP [R710]
0RH2402C422	RESISTOR,CHIP [R716]
0RH3002C422	RESISTOR,CHIP [R720]
0RF0200F708	RESISTOR,FUSIBLE [R121]
0RN4701F408	RESISTOR,METAL FILM [R144]
0RN3301F408	RESISTOR,METAL FILM [R145]
0RS5602K619	RESISTOR,METAL OXIDE FILM [R104]
0RS0330K618	RESISTOR,METAL OXIDE FILM [R109]
SAA33408816	S/W,FIRMWARE [IC402A]
1SZZR-0098J	SCREW,CUSTOMIZED [1431]
1SZZR-0075A	SCREW,CUSTOMIZED [1433]
1SZZH-1003E	SCREW,CUSTOMIZED [1437]
1SZZH-1007B	SCREW,CUSTOMIZED [1439]
1SZZR-0098A	SCREW,CUSTOMIZED [452]
1SZZR-0098H	SCREW,CUSTOMIZED [462]
1SZZR-0097N	SCREW,CUSTOMIZED [465]
353-022S	SCREW,CUSTOMIZED [470]
6500RDB010A	SENSOR,POSITION [IC102]
657-063A	SENSOR,POSITION [IC102]
EAG35192701	SOCKET,POWER [PW101]
4970R-0146D	SPRING [284]
6600KW3004G	SWITCH,DETECTOR [1043]
6600KW3004C	SWITCH,MICRO [1043]
EBF40098801	SWITCH,TACT [SW401]
0TR534409AA	TR,BIPOLAR [IC506]
0TR150409AC	TR,BIPOLAR [Q401]
0TR103009AC	TR,BIPOLAR [Q502]
0TRKE80059A	TR,BIPOLAR [Q602]
0TR201409BB	TR,BIPOLAR [Q604]
EBJ48766701	TRANSFORMER,SWITCHING [T101]
0TR320509AB	TRANSISTOR ASSEMBLY [Q501]
MJS50149001	TRAY [1026]
EAF38754501	VARISTOR [V101]
EAJ49965601	VFD [DIG501]
MKC57094401	WINDOW [283A]
MKC57094901	WINDOW [285A]
MKC42967001	WINDOW,DECOR [285B]
