BD570

Description

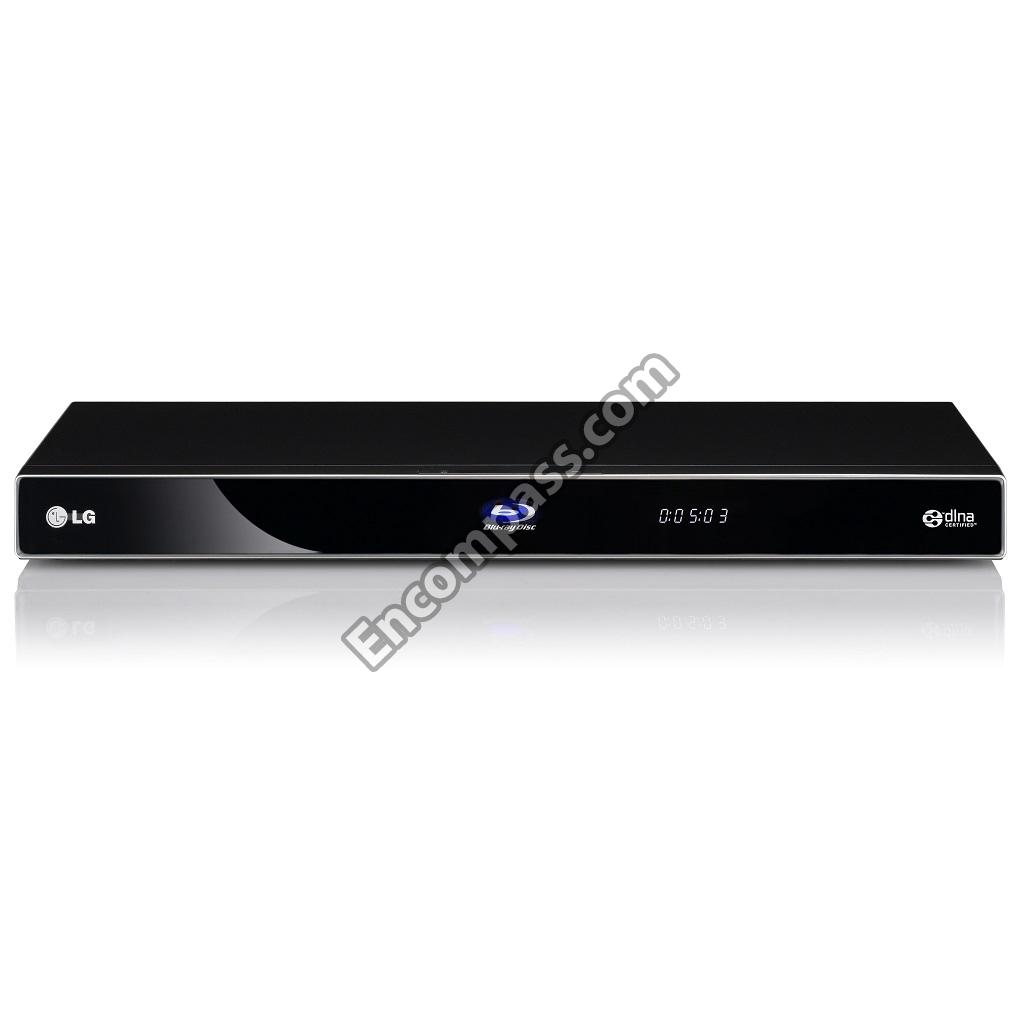

Network Blu-ray Disc Player With Wireless Connecti

Interactive Exploded View

Parts List

Part Number	Description
0CE1082F610	AL CAPACITOR,RADIAL [C124]
MAF61906402	BAG [804]
MAM61847301	BASE [1011]
MAM61847202	BASE [1020]
4400H-1014A	BELT [1015]
MAY62788108	BOX,MASTER [802]
6850R-PAA2F	CABLE,ASSEMBLY [811]
6850R-PBA2H	CABLE,ASSEMBLY [812]
EAD56949605	CABLE,FFC [1030]
EAD57536604	CABLE,FFC [1031]
EAD43082702	CABLE,FFC [1045]
EAD35683702	CABLE,FFC [CABLE2]
0CE476CQ610	CAPACITOR,AL,RADIAL [C103]
624-085D	CAPACITOR,AL,RADIAL [C109]
0CE108EH610	CAPACITOR,AL,RADIAL [C123]
0CE228ED610	CAPACITOR,AL,RADIAL [C129]
0CE2276F618	CAPACITOR,AL,RADIAL [C130]
0CN1040K948	CAPACITOR,CERAMIC,AXIAL [C108]
0CK104CHG6A	CAPACITOR,CERAMIC,CH [C212]
0CK475DC6CA	CAPACITOR,CERAMIC,CH [C703]
0CH1104K512	CAPACITOR,CERAMIC,CHIP [C1102]
0CH1103K562	CAPACITOR,CERAMIC,CHIP [C1104]
0CK104CKG6A	CAPACITOR,CERAMIC,CHIP [C1105]
0CK105CK56A	CAPACITOR,CERAMIC,CHIP [C1107]
0CH1223K942	CAPACITOR,CERAMIC,CHIP [C1108]
0CK106DD64A	CAPACITOR,CERAMIC,CHIP [C1109]
0CK105DF56A	CAPACITOR,CERAMIC,CHIP [C202]
0CH1104K566	CAPACITOR,CERAMIC,CHIP [C216]
0CK101BK4EA	CAPACITOR,CERAMIC,CHIP [C219]
0CK106DC56A	CAPACITOR,CERAMIC,CHIP [C224]
EAE61081701	CAPACITOR,CERAMIC,CHIP [C226]
0CH1102K562	CAPACITOR,CERAMIC,CHIP [C230]
0CZZB00019A	CAPACITOR,CERAMIC,CHIP [C232]
0CH1104K562	CAPACITOR,CERAMIC,CHIP [C301]
0CH4100K412	CAPACITOR,CERAMIC,CHIP [C302]
0CH4220K412	CAPACITOR,CERAMIC,CHIP [C304]
0CH4121K412	CAPACITOR,CERAMIC,CHIP [C309]
0CK103BKK6A	CAPACITOR,CERAMIC,CHIP [C501]
0CK104BF56A	CAPACITOR,CERAMIC,CHIP [C502]
0CK226FF67A	CAPACITOR,CERAMIC,CHIP [C506]
0CK475CD64A	CAPACITOR,CERAMIC,CHIP [C508]
0CH4300K412	CAPACITOR,CERAMIC,CHIP [C513]
0CK105BCG7A	CAPACITOR,CERAMIC,CHIP [C536]
0CK225CFK7A	CAPACITOR,CERAMIC,CHIP [C548]
0CH1472K562	CAPACITOR,CERAMIC,CHIP [C709]
0CK104BH56A	CAPACITOR,CERAMIC,CHIP [C719]
0CH1225D946	CAPACITOR,CERAMIC,CHIP [C722]
0CK102BK56A	CAPACITOR,CERAMIC,CHIP [C767]
0CK225DD56A	CAPACITOR,CERAMIC,CHIP [C806]
0CH1474K562	CAPACITOR,CERAMIC,CHIP [C810]
0CH4101K412	CAPACITOR,CERAMIC,CHIP [C811]
0CH1222K562	CAPACITOR,CERAMIC,CHIP [C843]
0CG1020U630	CAPACITOR,CERAMIC,RADIAL [C100]
EAE61103301	CAPACITOR,FILM,BOX [C101]
624-088N	CAPACITOR,FILM,BOX [C101]
EAE39104801	CAPACITOR,FILM,DIP [C101]
624-088L	CAPACITOR,FILM,DIP [C101]
624-088F	CAPACITOR,FILM,DIP [C101]
0CQ1031Y519	CAPACITOR,FILM,DIP [C105]
0CQ2221N409	CAPACITOR,FILM,DIP [C113]
0CQ1042K409	CAPACITOR,FILM,DIP [C128]
MBN61880001	CASE [250]
ACA65103311	CLAMP ASSEMBLY [1001]
MBU51178201	CLAMP [1003]
6140RCC003L	COIL,RF [L123]
6140RCC003H	COIL,RF [L123]
6630VL01006	CONNECTOR,BTOB [CN501]
EAG40562101	CONNECTOR,DSUB [JK803]
6630R-FB10T	CONNECTOR,FFC/FPC/PIC [CN1100]
6630XE00120	CONNECTOR,FFC/FPC/PIC [CN301]
6630XE00116	CONNECTOR,FFC/FPC/PIC [CN701]
6630XE00106	CONNECTOR,FFC/FPC/PIC [CN702]
6630X60142J	CONNECTOR,FFC/FPC/PIC [CN703]
EAG43125201	CONNECTOR,USB [CN1101]
561-711J	CONNECTOR,WAFER [CN201S]
6630R3S006L	CONNECTOR,WAFER [CN303]
6630V90108A	CONNECTOR,WAFER [PW101]
ACQ65103214	COVER ASSEMBLY [A001]
MCK62785301	COVER [1002]
EAW60803401	CRYSTAL [X301]
EAW60673001	CRYSTAL [X501]
MCQ62066401	DAMPER [1024]
MCQ62066402	DAMPER [1025]
MCQ62096404	DAMPER [261A]
MCQ62096408	DAMPER [261B]
MCQ62096409	DAMPER [261C]
MCQ32325007	DAMPER [261]
0DRRE00060A	DIODE,RECTIFIER [BD101]
0DRRE00163A	DIODE,RECTIFIER [D101]
0DRSA00119B	DIODE,RECTIFIER [D104]
0DR400709AA	DIODE,RECTIFIER [D111]
0DSGF00040A	DIODE,RECTIFIER [D124]
0DRTW00268A	DIODE,RECTIFIER [D202]
0DSTW00030A	DIODE,SCHOTTKY [D126]
0DSGF00030A	DIODE,SCHOTTKY [D126]
0DSDI00090A	DIODE,SCHOTTKY [D126]
0DRRM00048A	DIODE,SCHOTTKY [D201]
EAH31951401	DIODE,SWITCHING [D124]
0DSRM00148A	DIODE,SWITCHING [D301]
EAH35293601	DIODE,SWITCHING [D812]
0DZPH00038A	DIODE,ZENER [D1101]
0DZ332609AA	DIODE,ZENER [ZD101]
0DZ330009CA	DIODE,ZENER [ZD101]
0DZ102609AB	DIODE,ZENER [ZD102]
0DZ100009AA	DIODE,ZENER [ZD102]
0DZ270009BD	DIODE,ZENER [ZD128]
0DZPH00118A	DIODE,ZENER [ZD303]
0TRRH80042A	FET [Q301]
EAM56488801	FILTER,BEAD [BC101]
636-004C	FILTER,BEAD [BC101]
6200HJC102A	FILTER,BEAD [L1100]
6200HJC106A	FILTER,BEAD [L203]
0LC11608C01	FILTER,BEAD [L508]
EAM60870702	FILTER,LINE NOISE [L101]
ADV73045701	FRAME ASSEMBLY [A44]
MDQ61930801	FRAME [260]
0FS1601B51D	FUSE,TIME DELAY [F101]
MDT30123101	GEAR [1013]
MDT61842401	GEAR [1016]
MDT61842301	GEAR [1017]
MEA61856701	GUIDE [1012]
EAD61073402	HARNESS,SINGLE [CABLE6]
6631R-E078V	HARNESS,SINGLE [P101]
MEG61896001	HOLDER [286]
586-008B	HOLDER [FH01]
EAN60920801	IC,D/A CONVERTER [IC803]
EAN39690601	IC,DC,DC CONVERTER [IC201]
EAN31346002	IC,DC,DC CONVERTER [IC202]
0IPRPPY002A	IC,DISPLAY DRIVER [IC1100]
0IPMGUC004B	IC,LDO VOLTAGE REGULATOR [IC103]
EAN50484701	IC,LDO VOLTAGE REGULATOR [IC203]
EAN60686001	IC,LDO VOLTAGE REGULATOR [IC205]
EAN34180901	IC,LDO VOLTAGE REGULATOR [IC707]
EAN61012401	IC,LDO VOLTAGE REGULATOR [IC806]
EAN60732801	IC,MOTOR DRIVER [IC704]
EAN56680501	IC,MOTOR DRIVER [IC705]
0ILNRUC003A	IC,OP AMPLIFIER [IC706]
EAN60759401	IC,PWM CONTROLLER [IC101]
EAN60918701	IC,VIDEO AMPLIFIER [IC805]
EAN60908901	IC,VIDEO PROCESSORS [IC500]
EAN60705901	IC,VOLTAGE DETECTOR [IC302]
EAN60911701	IC,VOLTAGE REFERENCE [IC103]
EAP36125901	INDUCTOR,MULTILAYER,CHIP [L505]
EAP60684801	INDUCTOR,WIRE WOUND,CHIP [L201]
EAP59307001	INDUCTOR,WIRE WOUND,CHIP [L206]
EAG36157204	JACK,FIBER OPTIC [JK801]
EAG36157201	JACK,FIBER OPTIC [JK801]
EAG32089102	JACK,MODULAR [JK805]
6612JH002XG	JACK,RCA [JK802]
EAV42536401	LED,DIP [LED1101]
RAB31561501	MAGNET,NDFEB [1004]
AFN73472182	MANUAL ASSEMBLY,OWNERS [801]
EAT60713101	MODULE,ASSEMBLY [A51]
4680R-E008A	MOTOR,DC [1018]
EBR65915019	OPTION CODE ASSEMBLY [A46]
MFZ47272617	PACKING [803]
AGL72955410	PANEL ASSEMBLY,FRONT [A43A]
MGC61876401	PANEL,REAR [320]
EBR52819476	PCB ASSEMBLY [A006]
EBR65267401	PCB ASSEMBLY [A47] SMPS POWER SUPPLY
EBR40307103	PCB ASSEMBLY,DECK [A005]
EBR64234801	PCB ASSEMBLY,MAIN [A50]
EAZ54166606	PICK UP ASSEMBLY [1049]
3300R-D049A	PLATE [1005]
MGJ62209001	PLATE [251]
3300R-0211A	PLATE [275]
EAD60816734	POWER CORD [300]
534-008C	PRIMARY CELL BATTERY,CARBON ZINC [808]
4560H-1005A	PULLEY [1019]
6712R1238GA	RECEIVER MODULE [RC1100]

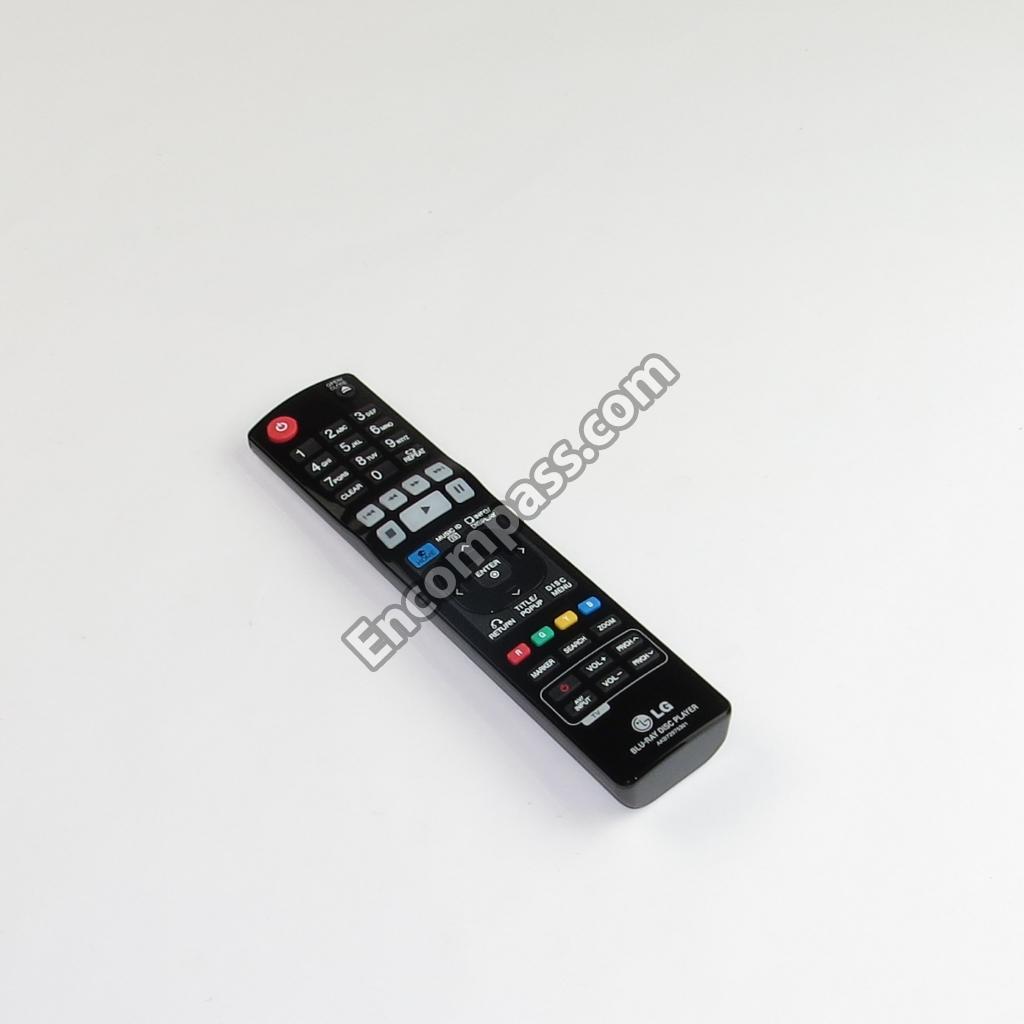

AKB72975301	REMOTE CONTROLLER ASSEMBLY [900]
EBC41813701	RESISTOR,ARRAY [RN801]
0RD0221F608	RESISTOR,CARBON FILM [R105]
0RD2200F608	RESISTOR,CARBON FILM [R124]
0RD2201F608	RESISTOR,CARBON FILM [R125]
0RD1001F608	RESISTOR,CARBON FILM [R126]
0RD1800F608	RESISTOR,CARBON FILM [R129]
0RD3303F608	RESISTOR,CARBON FILM [R131]
614-007A	RESISTOR,CEMENT [R101]
0RH0000D622	RESISTOR,CHIP [L720]
0RH6800C622	RESISTOR,CHIP [R1100]
0RH0000C622	RESISTOR,CHIP [R1101]
0RH8200C622	RESISTOR,CHIP [R1102]
0RH1201C622	RESISTOR,CHIP [R1103]
0RH3300C622	RESISTOR,CHIP [R1104]
0RH1501C622	RESISTOR,CHIP [R1105]
0RH2201C622	RESISTOR,CHIP [R1106]
0RH0102C622	RESISTOR,CHIP [R1107]
0RH1000C622	RESISTOR,CHIP [R1113]
0RH1500D622	RESISTOR,CHIP [R1116]
0RH5602C622	RESISTOR,CHIP [R1117]
0RH1001C622	RESISTOR,CHIP [R1118]
0RH4701C622	RESISTOR,CHIP [R1121]
0RH1003C622	RESISTOR,CHIP [R201]
EBC40339401	RESISTOR,CHIP [R202]
EBC31459601	RESISTOR,CHIP [R203]
0RH0472C622	RESISTOR,CHIP [R204]
0RH4701C422	RESISTOR,CHIP [R205]
0RH0472D622	RESISTOR,CHIP [R210]
0RH2400C422	RESISTOR,CHIP [R211]
0RH5101C422	RESISTOR,CHIP [R212]
0RH8201C422	RESISTOR,CHIP [R219]
0RH1800C622	RESISTOR,CHIP [R221]
0RH2002C422	RESISTOR,CHIP [R230]
0RJ6201C477	RESISTOR,CHIP [R231]
0RJ3000C477	RESISTOR,CHIP [R232]
0RH2701C422	RESISTOR,CHIP [R236]
0RH0562C422	RESISTOR,CHIP [R237]
0RH2201C422	RESISTOR,CHIP [R239]
0RH4700C622	RESISTOR,CHIP [R240]
0RH1002C622	RESISTOR,CHIP [R243]
0RH1202C622	RESISTOR,CHIP [R309]
0RH3303C622	RESISTOR,CHIP [R314]
0RH1801C622	RESISTOR,CHIP [R341]
0RH7501C622	RESISTOR,CHIP [R359]
0RH1502C622	RESISTOR,CHIP [R363]
0RH0752C422	RESISTOR,CHIP [R501]
0RH5600C422	RESISTOR,CHIP [R505]
0RH1202C422	RESISTOR,CHIP [R506]
0RJ0000C678	RESISTOR,CHIP [R507]
0RJ2702C678	RESISTOR,CHIP [R508]
0RJ3901C478	RESISTOR,CHIP [R515]
0RJ1241C477	RESISTOR,CHIP [R516]
0RJ0332C678	RESISTOR,CHIP [R517]
0RJ1002C678	RESISTOR,CHIP [R533]
0RJ4701C678	RESISTOR,CHIP [R553]
0RJ1501C678	RESISTOR,CHIP [R557]
0RH4702C622	RESISTOR,CHIP [R567]
0RH1001C422	RESISTOR,CHIP [R575]
0RJ1200C478	RESISTOR,CHIP [R601]
0RJ2400C478	RESISTOR,CHIP [R603]
0RJ1001C678	RESISTOR,CHIP [R612]
0RH1002C422	RESISTOR,CHIP [R702]
0RJ2002C678	RESISTOR,CHIP [R718]
0RJ3301C678	RESISTOR,CHIP [R732]
0RH0152D622	RESISTOR,CHIP [R735]
0RH0471D622	RESISTOR,CHIP [R736]
0RH0222C622	RESISTOR,CHIP [R740]
0RJ1004C678	RESISTOR,CHIP [R755]
0RH5601C622	RESISTOR,CHIP [R776]
0RJ2701C678	RESISTOR,CHIP [R7A9]
0RH5600C622	RESISTOR,CHIP [R804]
0RH9101C422	RESISTOR,CHIP [R818]
0RH1200C622	RESISTOR,CHIP [R821]
0RH0562C622	RESISTOR,CHIP [R822]
0RJ1300C677	RESISTOR,CHIP [R823]
0RH2702C622	RESISTOR,CHIP [R845]
0RN3301F408	RESISTOR,METAL FILM [R127]
0RN2701F408	RESISTOR,METAL FILM [R128]
0RH2402C422	RESISTOR,METAL GLAZE [R206]
0RS0600K619	RESISTOR,METAL OXIDE FILM [R102]
0RS2203J618	RESISTOR,METAL OXIDE FILM [R130]
SAB34053005	S/W PACKAGE [832]
SAA33408849	S/W,FIRMWARE [IC301A]
SAA33408848	S/W,FIRMWARE [IC604A]
1SZZR-0011A	SCREW,CUSTOMIZED [1431]
1SZZR-0075A	SCREW,CUSTOMIZED [1433]
1SZZH-1003E	SCREW,CUSTOMIZED [1437]
1SZZH-1007B	SCREW,CUSTOMIZED [1439]
1SZZR-0098A	SCREW,CUSTOMIZED [452]
1SZZR-0098H	SCREW,CUSTOMIZED [462]
1SZZR-0097N	SCREW,CUSTOMIZED [465]
1SZZR-0098J	SCREW,CUSTOMIZED [468]
657-063A	SENSOR,POSITION [IC102]
6500RDB010A	SENSOR,POSITION [IC102]
3858R-S001A	SHEET [804]
MHY61943902	SPRING [284]
6600KW3004G	SWITCH,MICRO [1043]
6600KW3004C	SWITCH,MICRO [1043]
EBF40098801	SWITCH,TACT [SW1100]
EBF32615602	SWITCH,TACT [SW1107]
0TRKE80030A	TR,BIPOLAR [Q1101]
0TR103009AC	TR,BIPOLAR [Q1103]
0TR150409AC	TR,BIPOLAR [Q1104]
0TR103009AM	TR,BIPOLAR [Q1105]
0TR387509AC	TR,BIPOLAR [Q204]
0TRON80001C	TR,BIPOLAR [Q712]
EBK33822201	TR,BIPOLAR [Q715]
EBJ60770103	TRANSFORMER,SWITCHING [T101]
MJS61851401	TRAY [1026]
EAF43134701	VARISTOR [V101]
EAF43134201	VARISTOR [V101]
EAF38754501	VARISTOR [V101]
EAJ57607401	VFD [DIG1101]
