Model Image
Manufacturer

LG

Model Number

LCE3010SB

Description

30-inch Radiant Cooktop

Interactive Exploded View
Exploded View

Parts List

Part Number Description
7242000019C 7242000019C ALUMINIUM
MAL53385001 MAL53385001 BARRIER
MAL53384901 MAL53384901 BARRIER
MAM37918602 MAM37918602 BASE
MAM53385301 MAM53385301 BASE,PCB
MAZ39918701 MAZ39918701 BRACKET,IDLE
4810W1A216A 4810W1A216A BRACKET,MOTOR
MAZ50040102 MAZ50040102 BRACKET,MOUNT
MAZ39601701 MAZ39601701 BRACKET,MOUNT
MAZ50040101 MAZ50040101 BRACKET,MOUNT
MBF65433501 MBF65433501 BUSH
4830W1N005A 4830W1N005A BUSH
5006W1N002D 5006W1N002D CAP,IDLE
ABQ30232906 ABQ30232906 CASE ASSEMBLY,SET
6640000045A 6640000045A CONNECTOR,TERMINAL BLOCK
MCK47148801 MCK47148801 COVER,BASE
5901W1N002A 5901W1N002A FAN MODULE
EAD62030402 EAD62030402 HARNESS,SINGLE
EAD62029703 EAD62029703 HARNESS,SINGLE
EAD62027602 EAD62027602 HARNESS,SINGLE

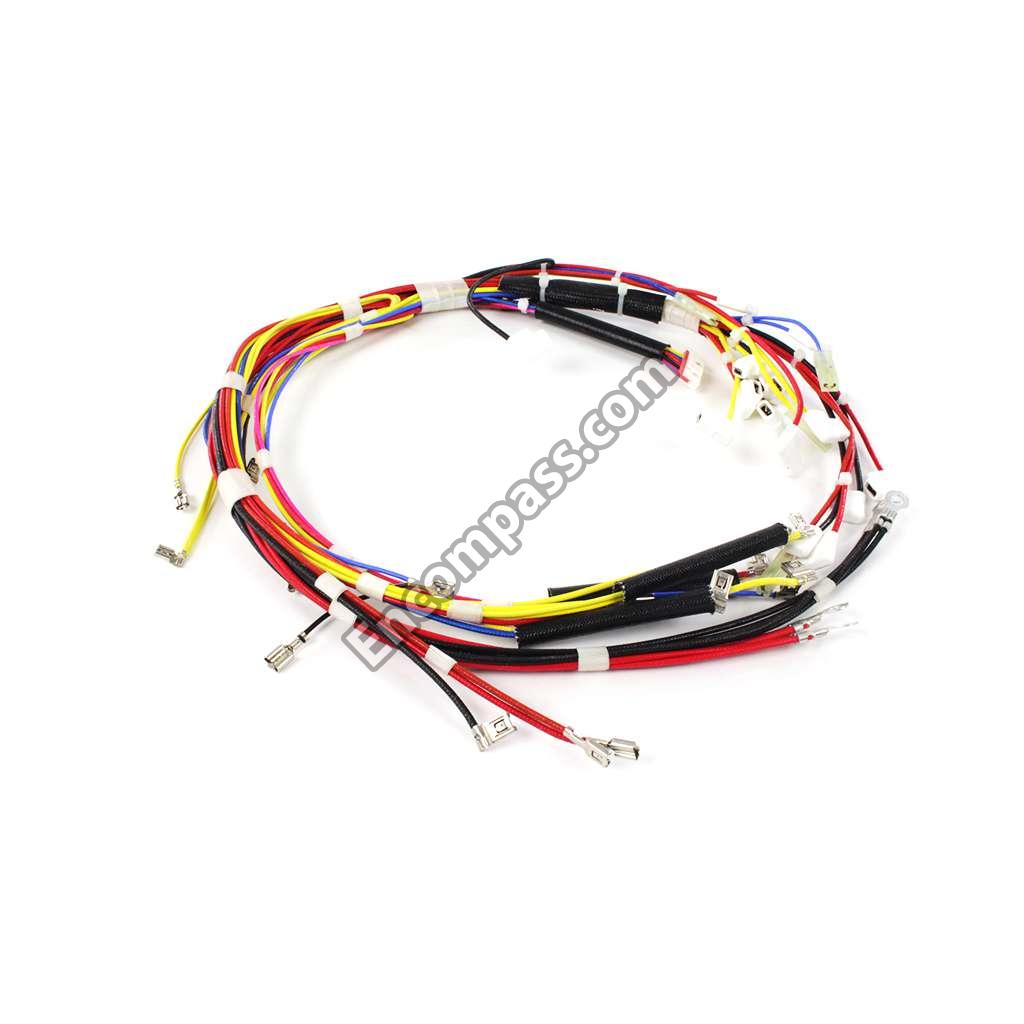

EAD62029502 EAD62029502 HARNESS,SINGLE
MED47155001 MED47155001 HEAT SINK
AEG33897001 AEG33897001 HEATER ASSEMBLY
MEE62385201 MEE62385201 HEATER,RADIATION
MEE64284801 MEE64284801 HEATER,RADIATION
MEE64105401 MEE64105401 HEATER,RADIATION
MEE62385001 MEE62385001 HEATER,RADIATION

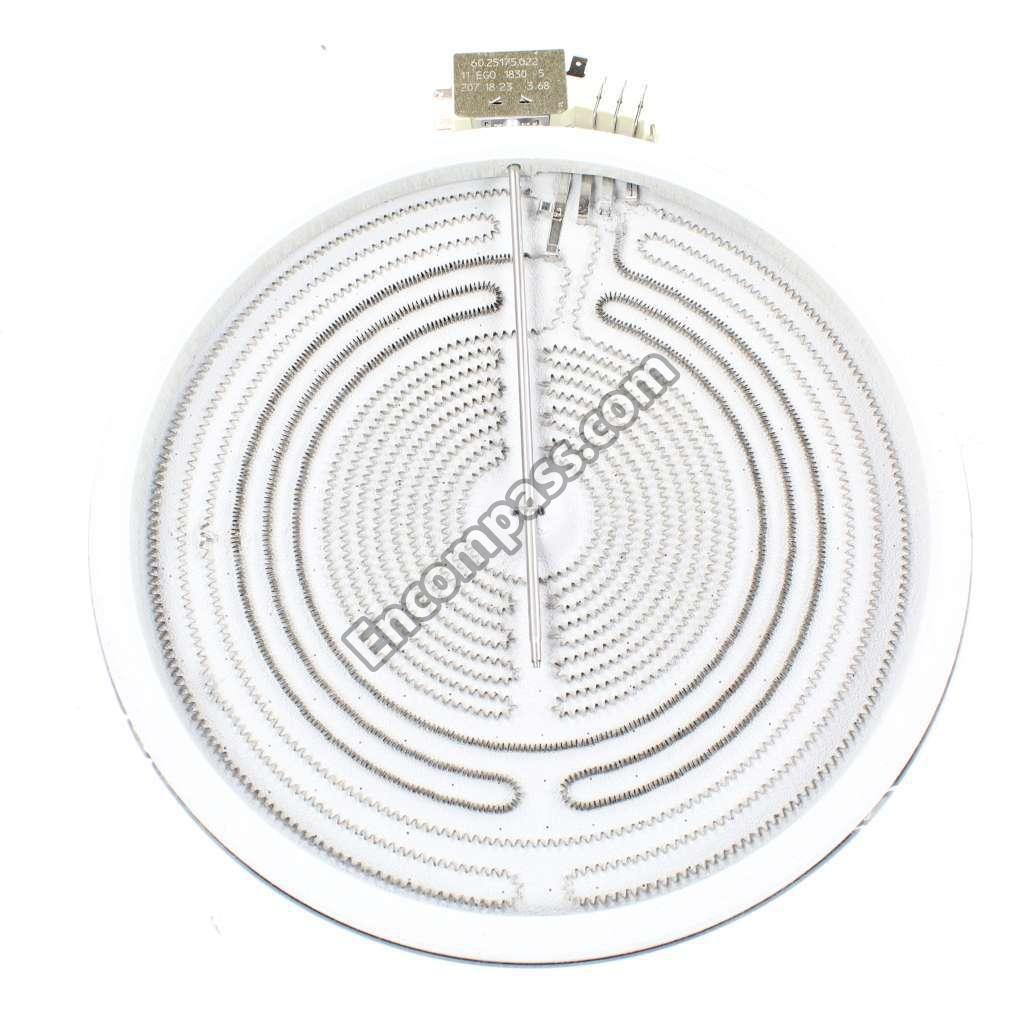

MEE62704901 MEE62704901 HEATER,RADIATION
MEE64286201 MEE64286201 HEATER,RADIATION
MEG51759401 MEG51759401 HOLDER,DISPLAY
MEG47150101 MEG47150101 HOLDER,DISPLAY
4B72510F 4B72510F HOLDER,WIRE
MES54174401 MES54174401 INDICATOR
MES54174501 MES54174501 INDICATOR
MEV54159902 MEV54159902 INSULATOR
MEV54159901 MEV54159901 INSULATOR
MEV53385101 MEV53385101 INSULATOR
MEV63033001 MEV63033001 INSULATOR
EBR84545111 EBR84545111 MAIN BOARD
EBR84545112 EBR84545112 MAIN BOARD
EBR84545110 EBR84545110 MAIN BOARD
EBR84545113 EBR84545113 MAIN BOARD
1NZZW1N002A 1NZZW1N002A NUT,CUSTOMIZED
EBR84545108 EBR84545108 PCB ASSEMBLY,MAIN
EBR84545107 EBR84545107 PCB ASSEMBLY,MAIN
EBR84545106 EBR84545106 PCB ASSEMBLY,MAIN
EBR84545109 EBR84545109 PCB ASSEMBLY,MAIN
EBR56867401 EBR56867401 PCB ASSEMBLY,SUB
EBR84545303 EBR84545303 PCB ASSEMBLY,SUB
EAX55462001 EAX55462001 PCB,GUIDE

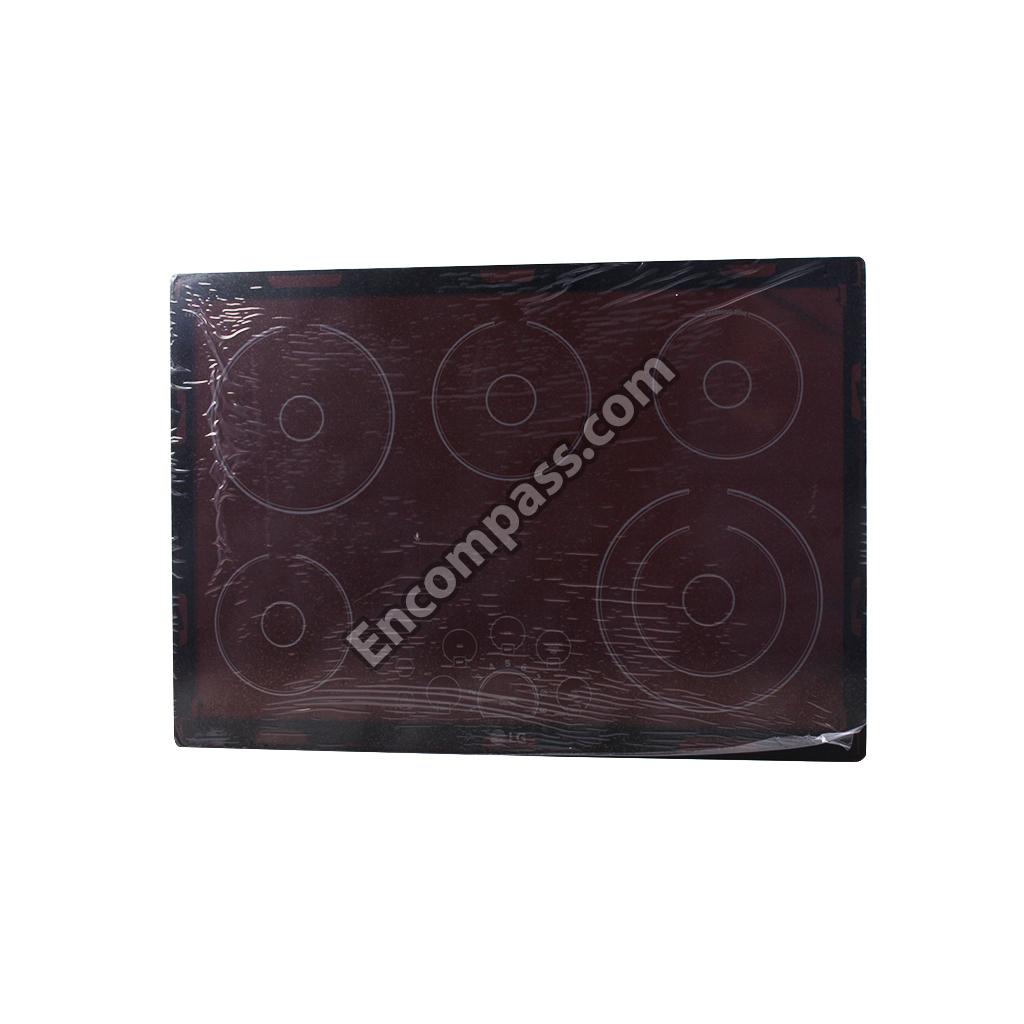

AGU73228801 AGU73228801 PLATE ASSEMBLY,UPPER
EAD39575702 EAD39575702 POWER CORD ASSEMBLY
AGM30048202 AGM30048202 RADIANT HEATER,PARTS ASSEMBLY,SVC
AGM30048201 AGM30048201 RADIANT HEATER,PARTS ASSEMBLY,SVC
1MPC0504916 1MPC0504916 SCREW,MACHINE

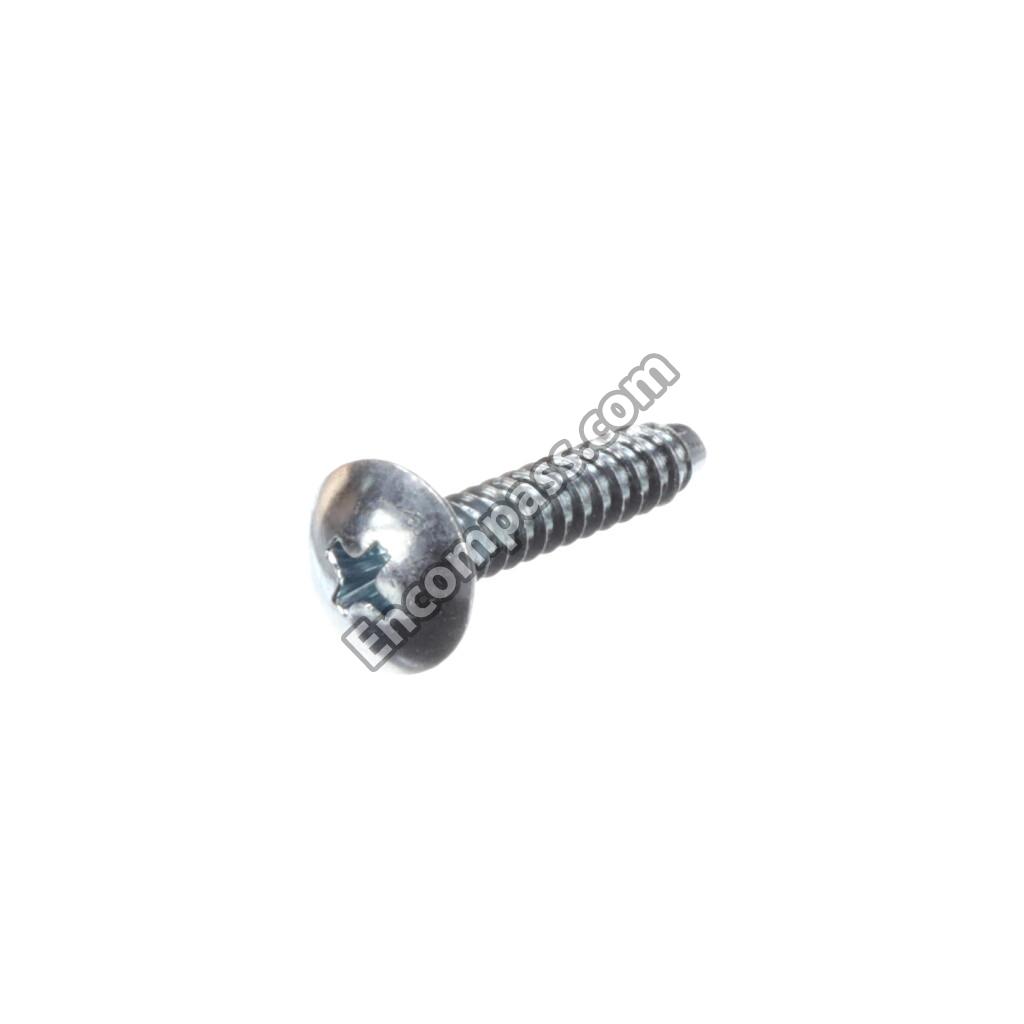

1TBL0503518 1TBL0503518 SCREW,TAPPING
1TTL0402422 1TTL0402422 SCREW,TAPPING
1TPL0402418 1TPL0402418 SCREW,TAPPING
1TTL0402618 1TTL0402618 SCREW,TAPPING
1TTL0403418 1TTL0403418 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1SBF0402418 1SBF0402418 SCREW,TAPTITE
1ATF0502610 1ATF0502610 SCREW,TAPTITE
1TTG0402422 1TTG0402422 SCREW,TAPTITE
4970W1N006A 4970W1N006A SPRING
4980W1N028A 4980W1N028A SUPPORTER
MJH39579101 MJH39579101 SUPPORTER
4980W1N005A 4980W1N005A SUPPORTER
MJH53385401 MJH53385401 SUPPORTER,PCB
1WZZ81N001A 1WZZ81N001A WASHER,COMMON
