Model Image
Manufacturer

LG

Model Number

LFX23961SW

Description

3-door French Door Refrigerator With Ice And Water

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4770JA3001A 4770JA3001A BAND [623C]
4770JA3001E 4770JA3001E BAND [627C]

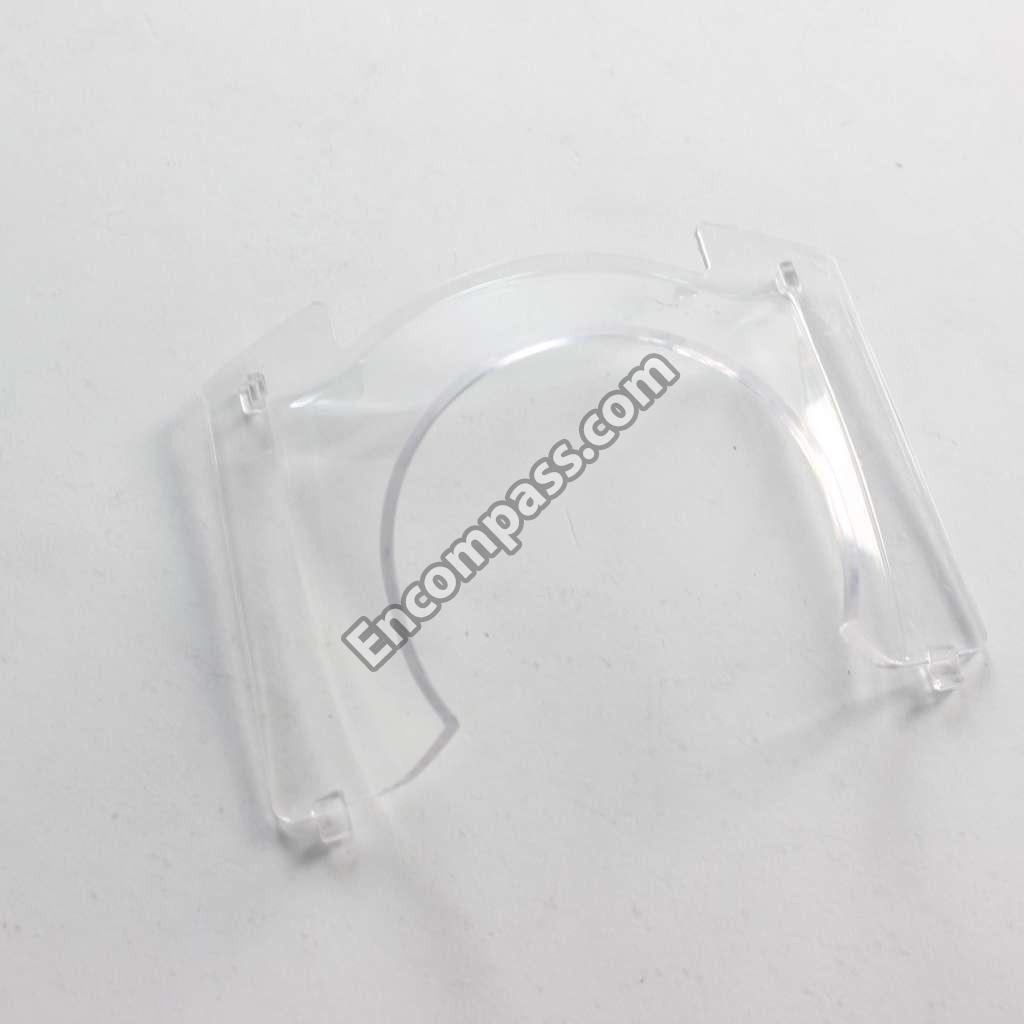

4270JJ3001P 4270JJ3001P BAR [250A]
3103JJ1001Z 3103JJ1001Z BASE ASSEMBLY,COMPRESSOR [315A]
5005JJ2022A 5005JJ2022A BASKET ASSEMBLY,DOOR [241C]
5005JJ2021E 5005JJ2021E BASKET ASSEMBLY,DOOR [241F]
AAP37000301 AAP37000301 BASKET ASSEMBLY,DOOR [241G]
4811JJ2002L 4811JJ2002L BRACKET ASSEMBLY,MOTOR [405G]
4810JJ2005A 4810JJ2005A BRACKET,MOTOR [319E]
4810JJ0001A 4810JJ0001A BRACKET,MOTOR [405A]
AKC37000402 AKC37000402 BUCKET ASSEMBLY,ICE [600B]

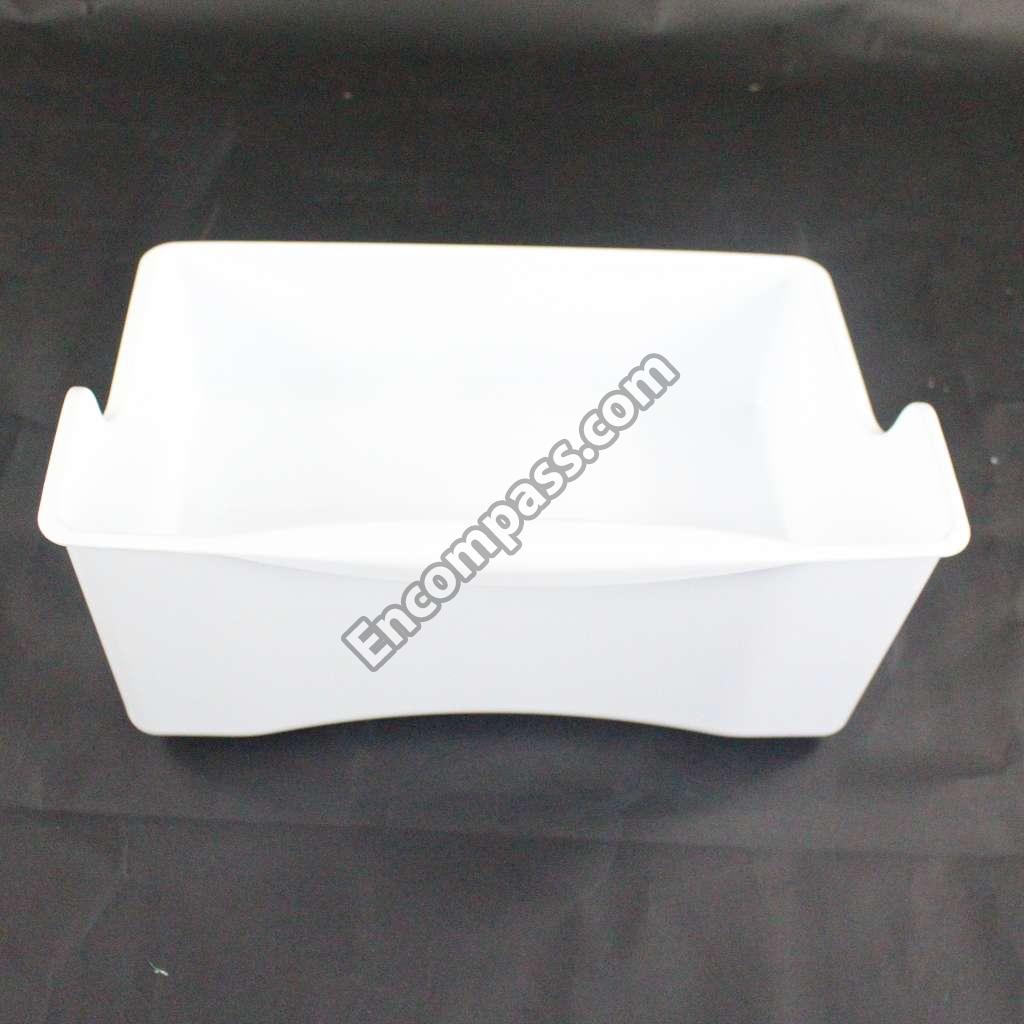

5074JJ1005A 5074JJ1005A BUCKET,DAIRY
MKK42001801 MKK42001801 BUCKET,ICE [131A]
4984JJ3003A 4984JJ3003A BUSH [286A]

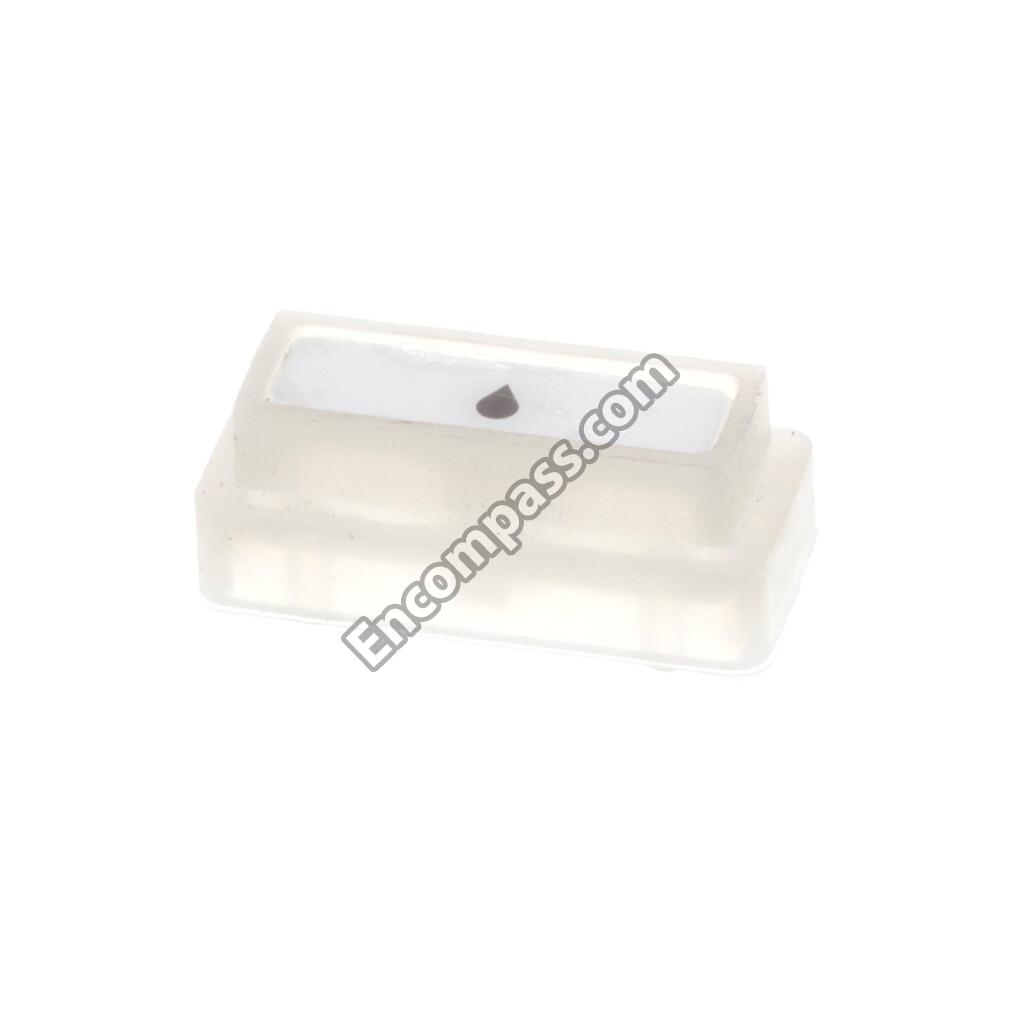

ABH37000110 ABH37000110 BUTTON ASSEMBLY [276C]
ABH34641203 ABH34641203 BUTTON ASSEMBLY [500E]
MBG42907107 MBG42907107 BUTTON,LEVER [276B]
MBG38252601 MBG38252601 BUTTON,LEVER [280F]
4430JJ2005B 4430JJ2005B CAM,SHAFT [233G]
4430JJ2005A 4430JJ2005A CAM,SHAFT [233H]
ABN72909907 ABN72909907 CAP ASSEMBLY,DUCT [282G]
MBL67039201 MBL67039201 CAP,COVER
5006JJ2009A 5006JJ2009A CAP,COVER [623B]
5006JA3049A 5006JA3049A CAP,DRAIN TUBE
5006JA3034A 5006JA3034A CAP,DRAIN TUBE [327A]
0CZZJB2014K 0CZZJB2014K CAPACITOR,ELECTRIC APPLIANCE FILM,BOX
0CZZJB2014S 0CZZJB2014S CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410G]
ABQ33905311 ABQ33905311 CASE ASSEMBLY,DISPLAY [503F]
3110JJ1021A 3110JJ1021A CASE,DISPLAY [503D]
4004JA3002A 4004JA3002A CLIP [262A]

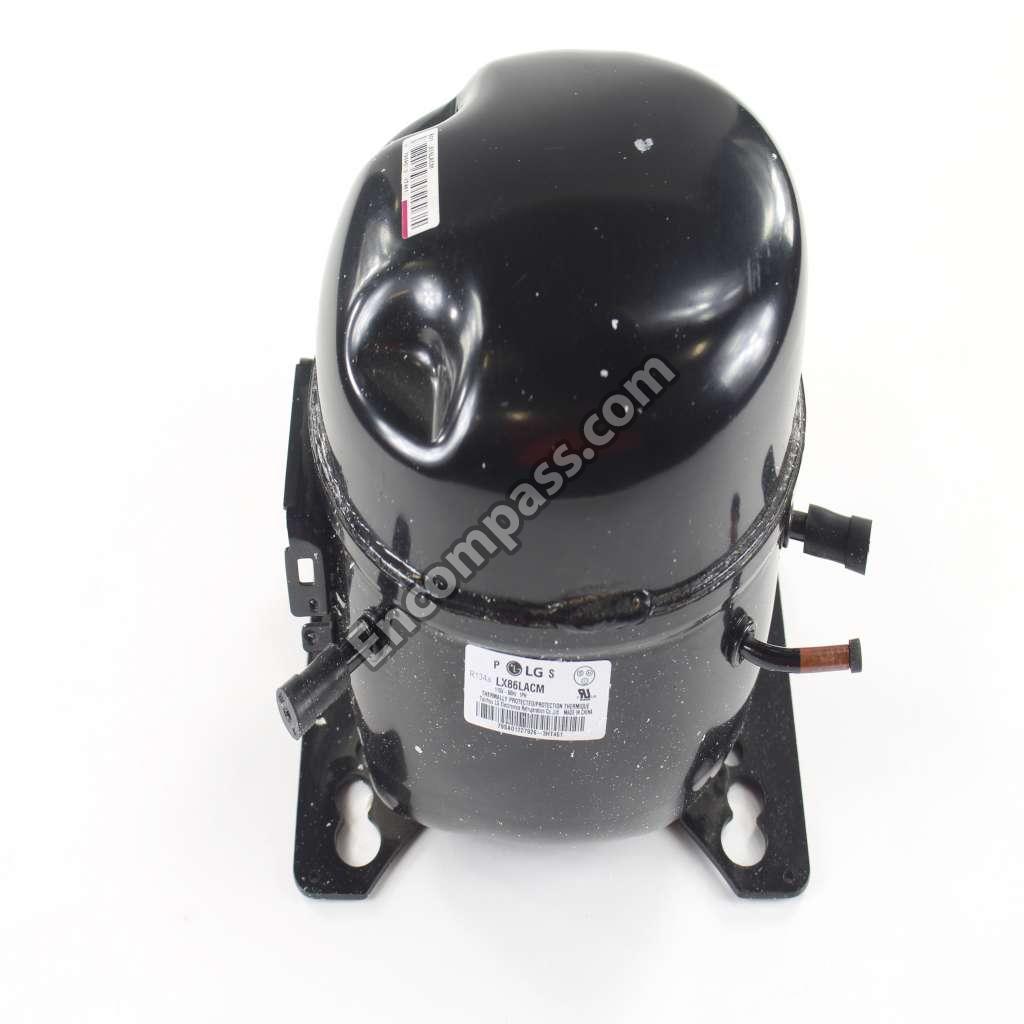

ACF67062312 ACF67062312 COMPRESSOR ASSEMBLY [307B]
TCA37091210 TCA37091210 COMPRESSOR,SET ASSEMBLY [307A]
5403JJ1007A 5403JJ1007A CONDENSER ASSEMBLY,WIRE
ACG73746801 ACG73746801 CONDENSER ASSEMBLY,WIRE [323B]
5098JJ1002F 5098JJ1002F CONNECTOR ASSEMBLY
MCD36888904 MCD36888904 CONNECTOR ASSEMBLY [249A]
5098JJ1002E 5098JJ1002E CONNECTOR ASSEMBLY [249B]
4403JJ3001A 4403JJ3001A CONNECTOR ASSEMBLY [250B]
MCD36888903 MCD36888903 CONNECTOR,RAIL [621C]
4932JA3002B 4932JA3002B CONNECTOR,TUBE
MCD61866805 MCD61866805 CONNECTOR,TUBE
4932JA3002A 4932JA3002A CONNECTOR,TUBE [616J]
MCD38280806 MCD38280806 CONNECTOR,TUBE [616K]
6615JB2005C 6615JB2005C CONTROLLER ASSEMBLY [401A]
ACQ36835926 ACQ36835926 COVER ASSEMBLY,DISPLAY [280A]
ACQ67902601 ACQ67902601 COVER ASSEMBLY,FRONT [233C]
ACQ67902602 ACQ67902602 COVER ASSEMBLY,FRONT [233D]
ACQ36833802 ACQ36833802 COVER ASSEMBLY,HINGE [281A]
ACQ36833801 ACQ36833801 COVER ASSEMBLY,HINGE [282E]
ACQ76219904 ACQ76219904 COVER ASSEMBLY,MACHINERY(REAR) [304A]
ACQ75453701 ACQ75453701 COVER ASSEMBLY,PCB [501F]
3550JJ1017A 3550JJ1017A COVER,BUCKET
3550JJ1111A 3550JJ1111A COVER,CONNECTOR [249J]
3550JJ1111B 3550JJ1111B COVER,CONNECTOR [249K]
MCK46755801 MCK46755801 COVER,DISPENSER [279B]
3550JL1008E 3550JL1008E COVER,FILTER [611C]
3550JJ2028B 3550JJ2028B COVER,FILTER [611D]
MCK41996402 MCK41996402 COVER,FRONT [631A]
MCK42523301 MCK42523301 COVER,HOME BAR [630H]

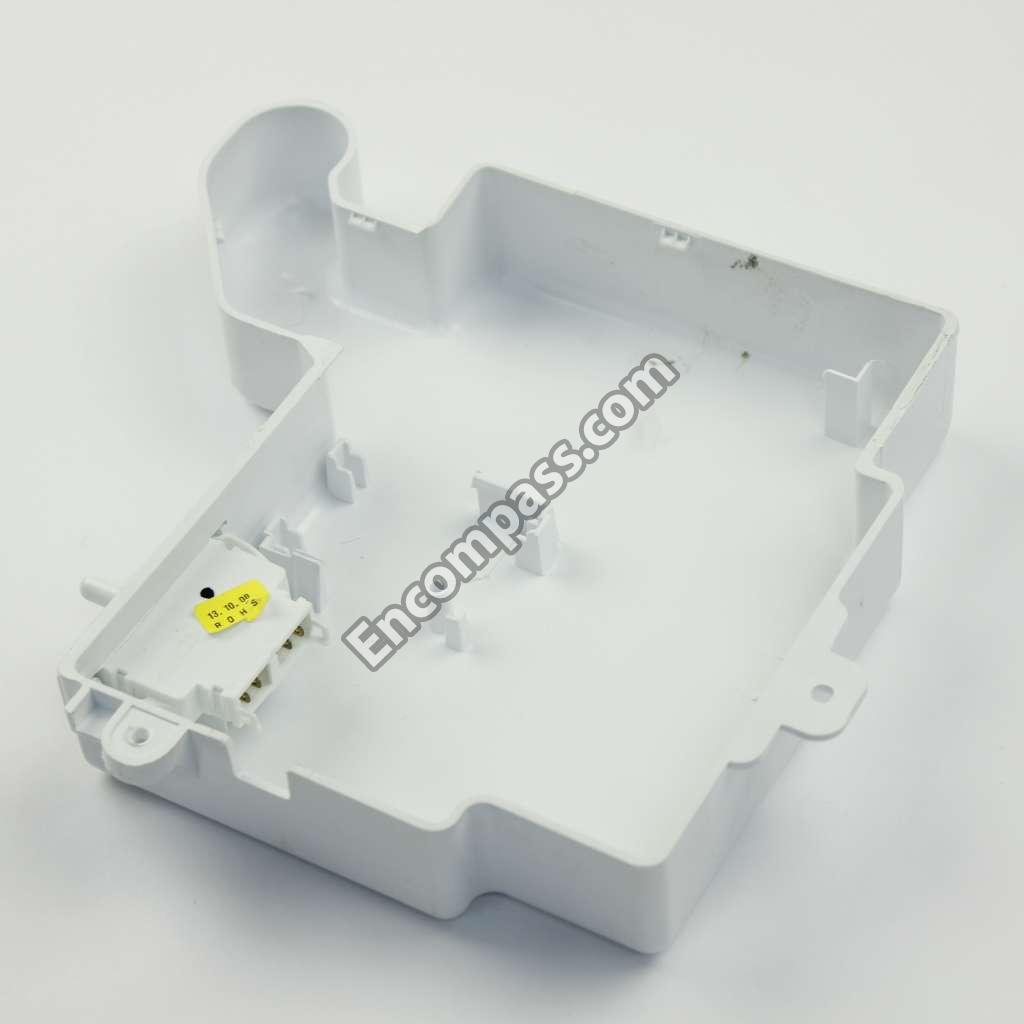

3550JJ1070A 3550JJ1070A COVER,LAMP
3550JJ1070B 3550JJ1070B COVER,LAMP [158A]
MCK62661401 MCK62661401 COVER,LAMP [158E]
3550JJ0006A 3550JJ0006A COVER,LOWER [103C]
3550C-0042C 3550C-0042C COVER,RELAY [310A]
3550JJ2020A 3550JJ2020A COVER,SENSOR [610A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
3551JJ1065C 3551JJ1065C COVER,TV [154A]
5040JA3031A 5040JA3031A DAMPER,COMPRESSOR [312A]
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT [405B]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
4J03020A 4J03020A DAMPER,PIPE [328A]
4J04328A 4J04328A DAMPER,PIPE [328B]
MCR42758703 MCR42758703 DECOR,CONTROL [279C]
MCR41995601 MCR41995601 DECOR,DRAIN [281F]
3806JL2006H 3806JL2006H DECOR,DUCT [282F]

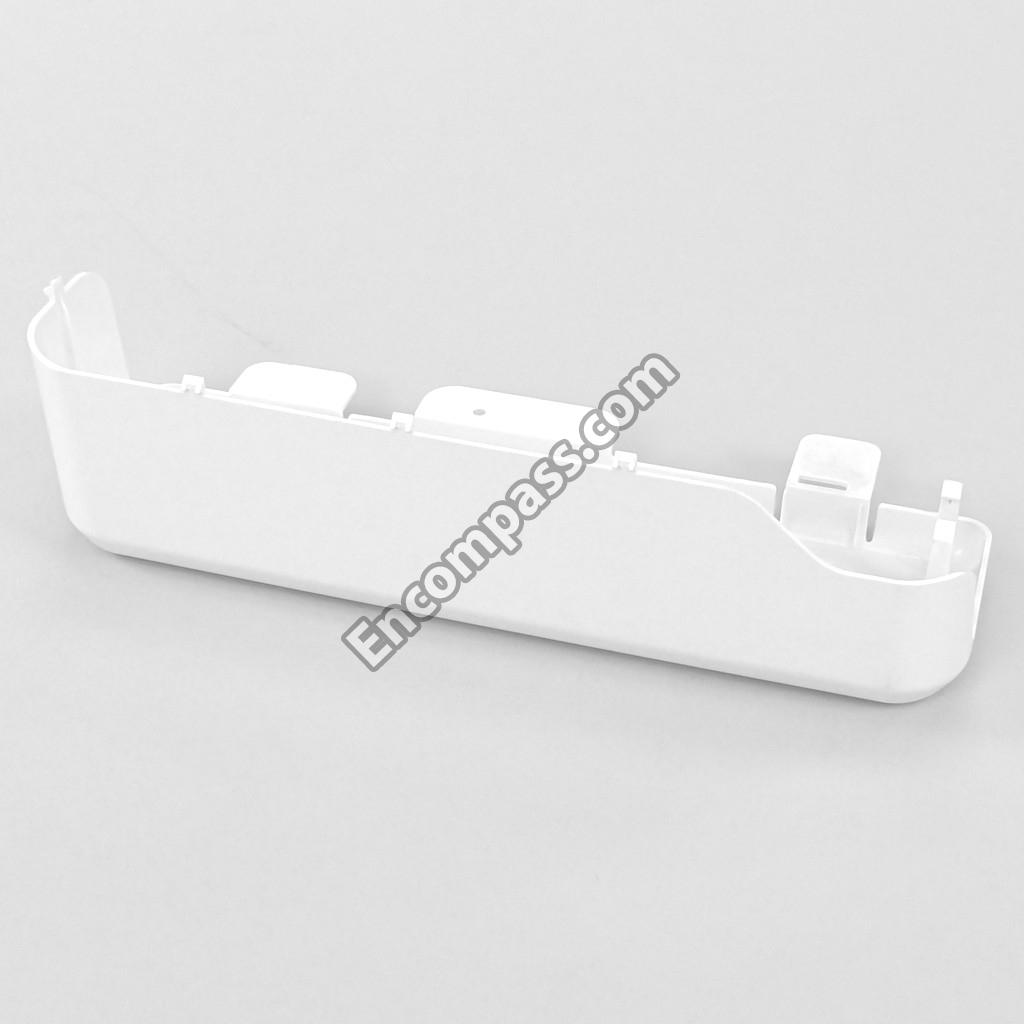

3806JJ1048A 3806JJ1048A DECOR,TRAY [248E]
3806JL2011D 3806JL2011D DECOR,TRAY [248F]
3581JA1182F 3581JA1182F DOOR ASSEMBLY,FREEZE ROOM [630A]
ADC52734101 ADC52734101 DOOR ASSEMBLY,FREEZER [200A]
ADC73027806 ADC73027806 DOOR ASSEMBLY,REFRIGERATOR(LEFT) [230B]
ADC52734301 ADC52734301 DOOR ASSEMBLY,REFRIGERATOR(RIGHT) [230A]
ADD36429901 ADD36429901 DOOR FOAM ASSEMBLY,FREEZER [201A]
ADD36429801 ADD36429801 DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
ADD72977909 ADD72977909 DOOR FOAM ASSEMBLY,REFRIGERATOR [231B]
6621JK2003B 6621JK2003B DRAWING,ASSEMBLY [410A]
6877JK2011D 6877JK2011D DRAWING,ASSEMBLY [412D]
ADH73150210 ADH73150210 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY [317A]
ADJ36834101 ADJ36834101 DUCT ASSEMBLY,CONNECTOR
5209JJ1002A 5209JJ1002A DUCT ASSEMBLY,MULTI [120B]
5421JJ1001B 5421JJ1001B EVAPORATOR ASSEMBLY [301A]
5901JA1022A 5901JA1022A FAN ASSEMBLY [329A]
ADP36665702 ADP36665702 FAN ASSEMBLY [329C]
5231JA2005A 5231JA2005A FILTER ASSEMBLY,HEAD
5231JA2006F 5231JA2006F FILTER ASSEMBLY,HEAD [611E]
5230JA2003A 5230JA2003A FILTER,HEAD
MDR61842101 MDR61842101 FUNNEL [278G]
ADX73350925 ADX73350925 GASKET ASSEMBLY,DOOR [203A]
ADX73410707 ADX73410707 GASKET ASSEMBLY,DOOR [233A]
ADX73410701 ADX73410701 GASKET ASSEMBLY,DOOR [233B]
4987JA3025H 4987JA3025H GASKET ASSEMBLY,DOOR [630J]
AEB36834002 AEB36834002 GRILLE ASSEMBLY,FAN

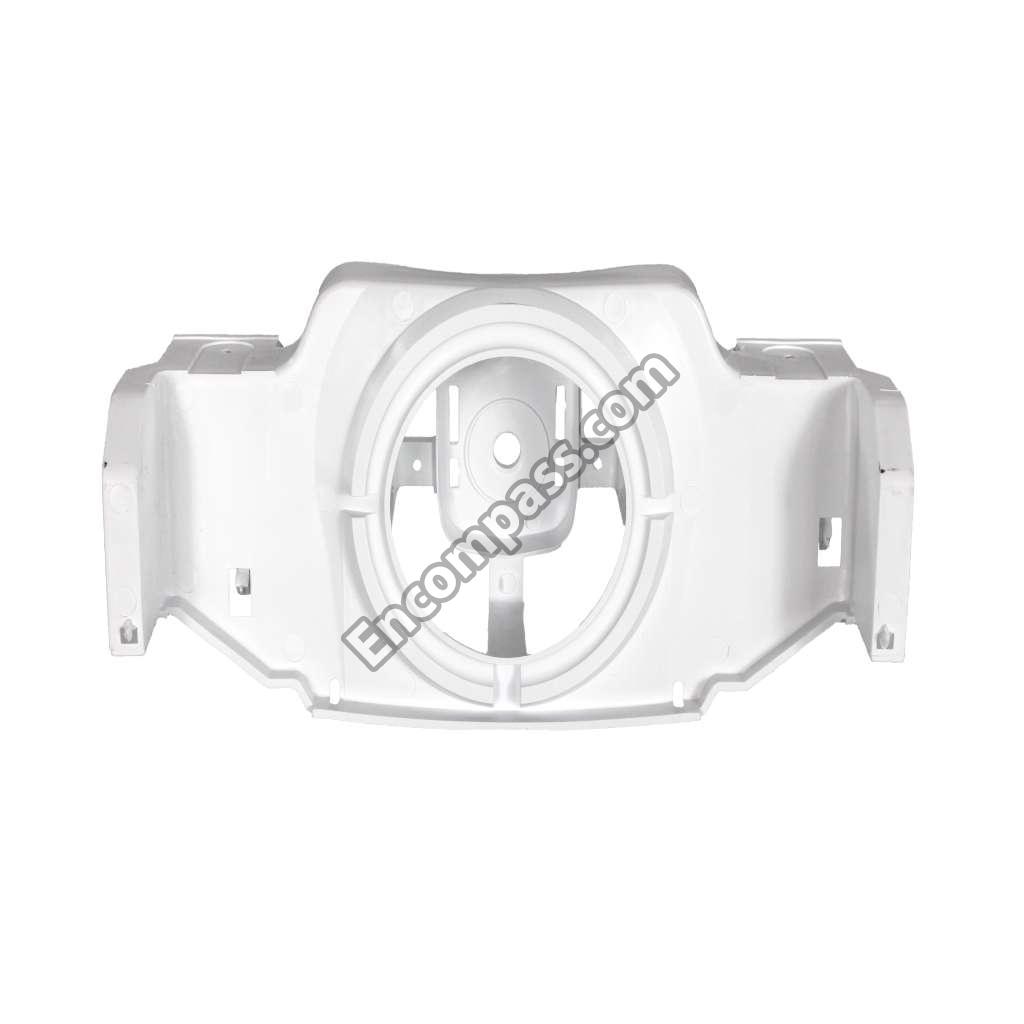

AEC72997401 AEC72997401 GUIDE ASSEMBLY,FAN [319D]
4975JJ2002A 4975JJ2002A GUIDE ASSEMBLY,RAIL [128A]
4975JJ2002B 4975JJ2002B GUIDE ASSEMBLY,RAIL [128B]
4975JJ2028C 4975JJ2028C GUIDE ASSEMBLY,RAIL [145C]
4975JJ2028D 4975JJ2028D GUIDE ASSEMBLY,RAIL [145F]
MEA62191701 MEA62191701 GUIDE,DRAWER
AED37133133 AED37133133 HANDLE ASSEMBLY,FREEZER [212A]

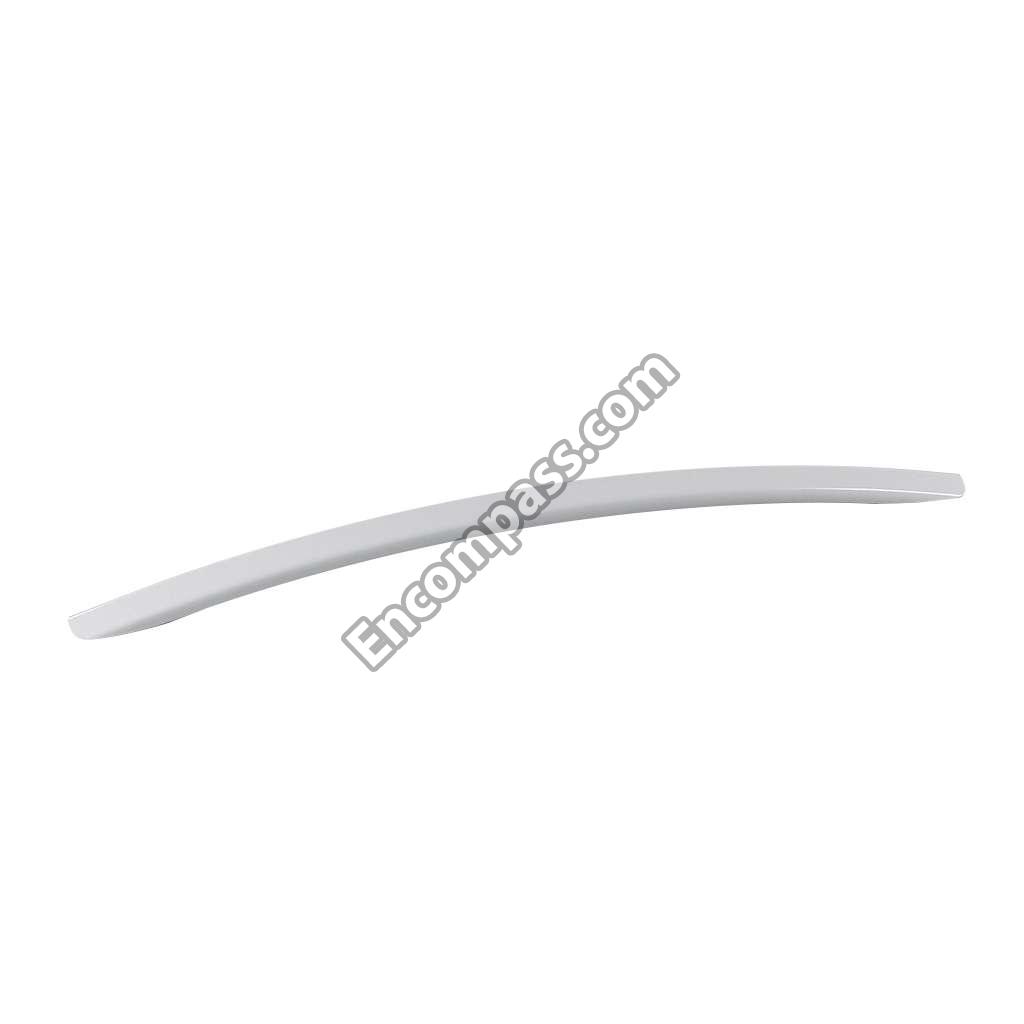

AED37082931 AED37082931 HANDLE ASSEMBLY,REFRIGERATOR [244A]
3650JJ2003E 3650JJ2003E HANDLE,REAR [103A]
3650JJ2003A 3650JJ2003A HANDLE,REAR [103B]
5300JB1100Q 5300JB1100Q HEATER,SHEATH [418A]
4775JJ2017B 4775JJ2017B HINGE ASSEMBLY,CENTER
4775JJ2017D 4775JJ2017D HINGE ASSEMBLY,CENTER
AEH73856202 AEH73856202 HINGE ASSEMBLY,CENTER [262H]
AEH73856201 AEH73856201 HINGE ASSEMBLY,CENTER [282B]
AEH36582701 AEH36582701 HINGE ASSEMBLY,LOWER [630G]
AEH36437001 AEH36437001 HINGE ASSEMBLY,UPPER [271A]
AEH36437002 AEH36437002 HINGE ASSEMBLY,UPPER [271C]
AEH36582801 AEH36582801 HINGE ASSEMBLY,UPPER [630F]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET [603B]
4931JJ3002A 4931JJ3002A HOLDER ASSEMBLY,GASKET [104E]
4930JJ3007A 4930JJ3007A HOLDER,BRACKET [125D]
4930JA3091A 4930JA3091A HOLDER,BRACKET [627B]
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JJ2028B 4930JJ2028B HOLDER,GASKET [233E]
4930JJ2028A 4930JJ2028A HOLDER,GASKET [233F]
4930JA3043A 4930JA3043A HOLDER,LEVER [113F]
4930JJ2003D 4930JJ2003D HOLDER,SHELF [145A]
4930JJ2004D 4930JJ2004D HOLDER,SHELF [145B]

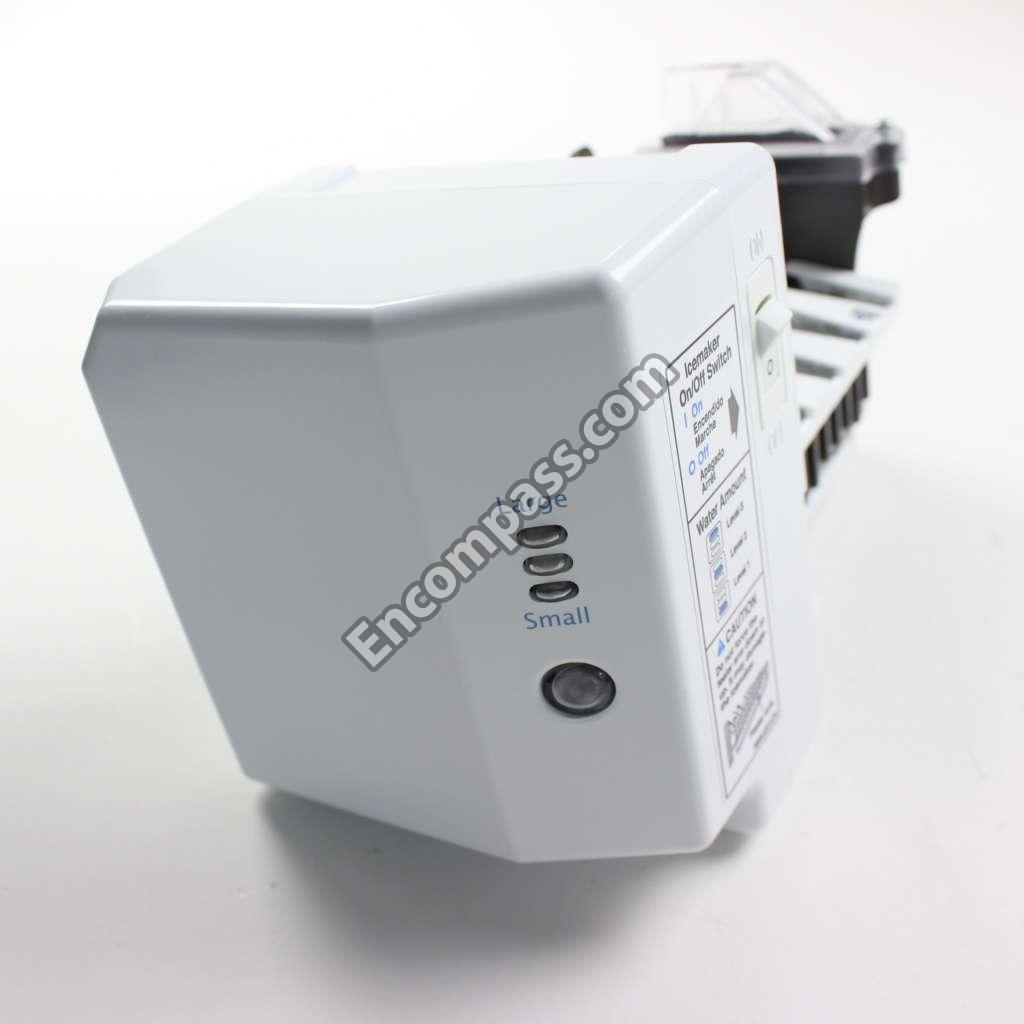

AEQ36756913 AEQ36756913 ICE MAKER ASSEMBLY,KIT [600A]
AEY73231701 AEY73231701 KIT ASSEMBLY
4940JJ2010A 4940JJ2010A KNOB,SHUTTER [151C]
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
4779JA3001E 4779JA3001E LEG ASSEMBLY,ADJUST
4779JA2003A 4779JA2003A LEG ASSEMBLY,ADJUST [106A]
MFC62050201 MFC62050201 LEVER,DISPENSER [113G]
EAU60943403 EAU60943403 MOTOR, AC DISPENSER [606A]
4681JB1027C 4681JB1027C MOTOR,DC [404A]
EAU61644105 EAU61644105 MOTOR,DC [420A]

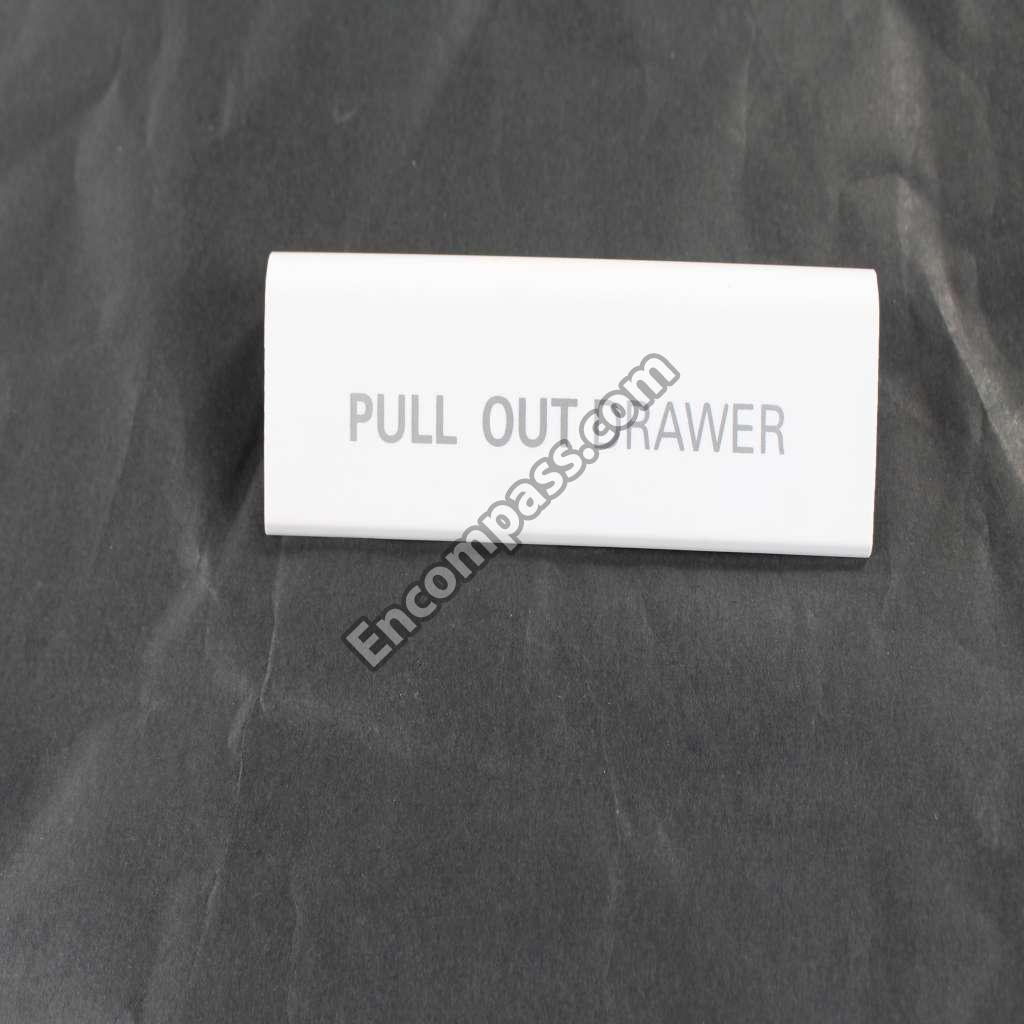

MFT61843001 MFT61843001 NAME PLATE
MFT62346508 MFT62346508 NAME PLATE
MFT61843003 MFT61843003 NAME PLATE
MFT62346511 MFT62346511 NAME PLATE [212G]

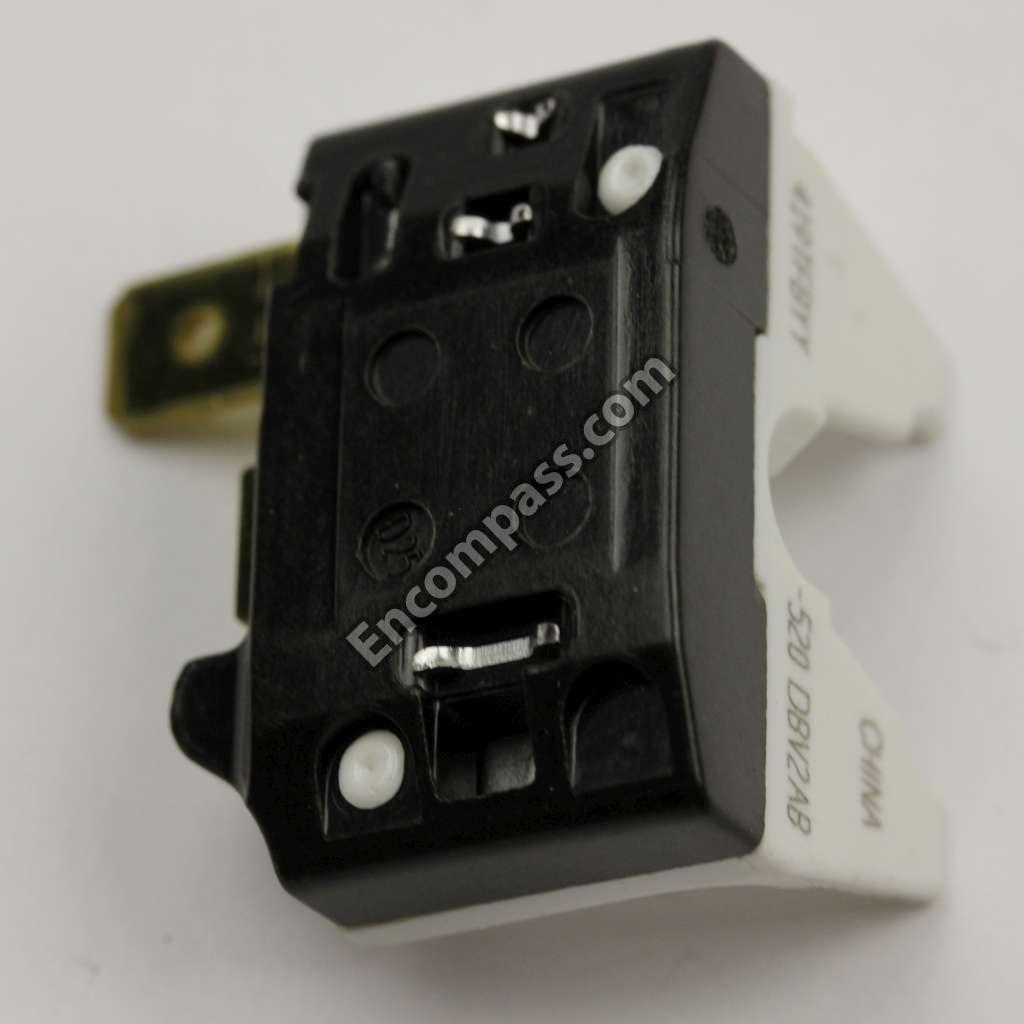

6750C-0004U 6750C-0004U OVERLOAD PROTECT [309A]

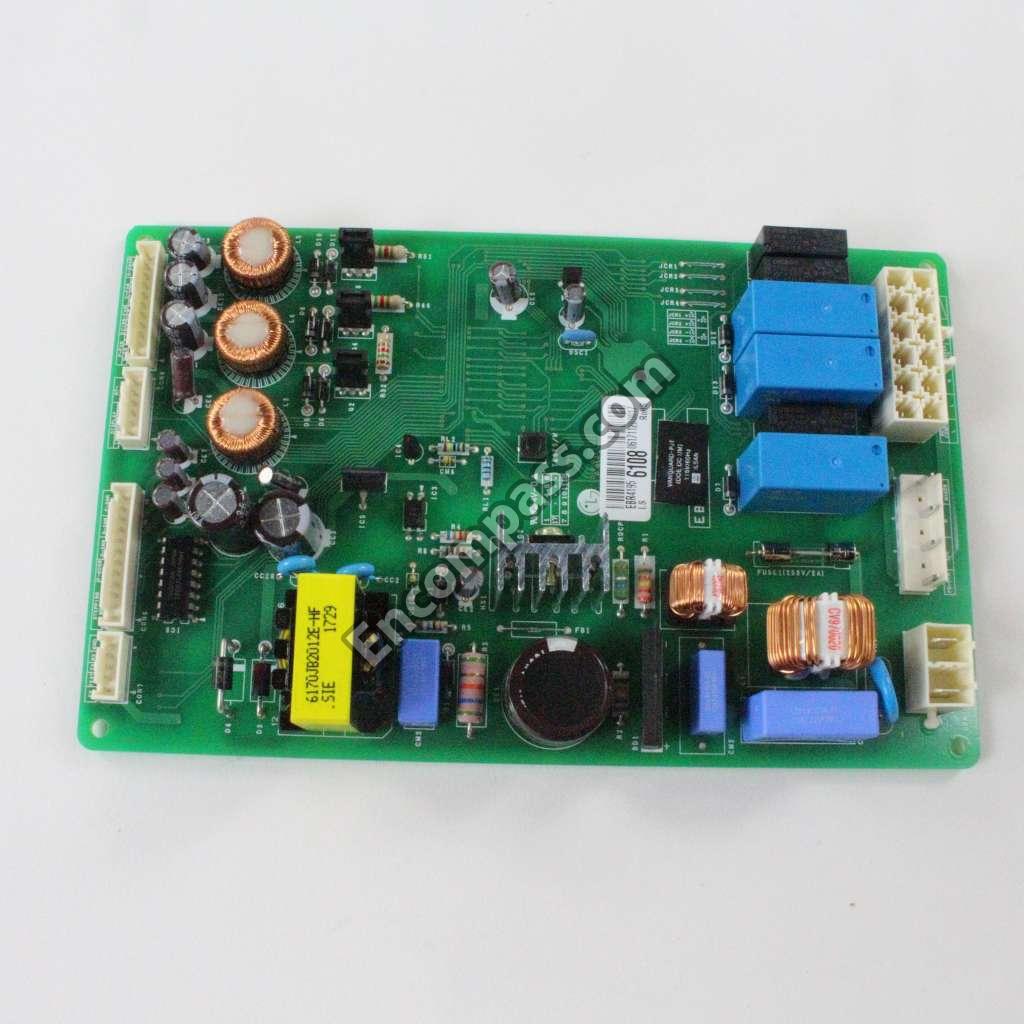

EBR41956108 EBR41956108 PCB ASSEMBLY [501A]

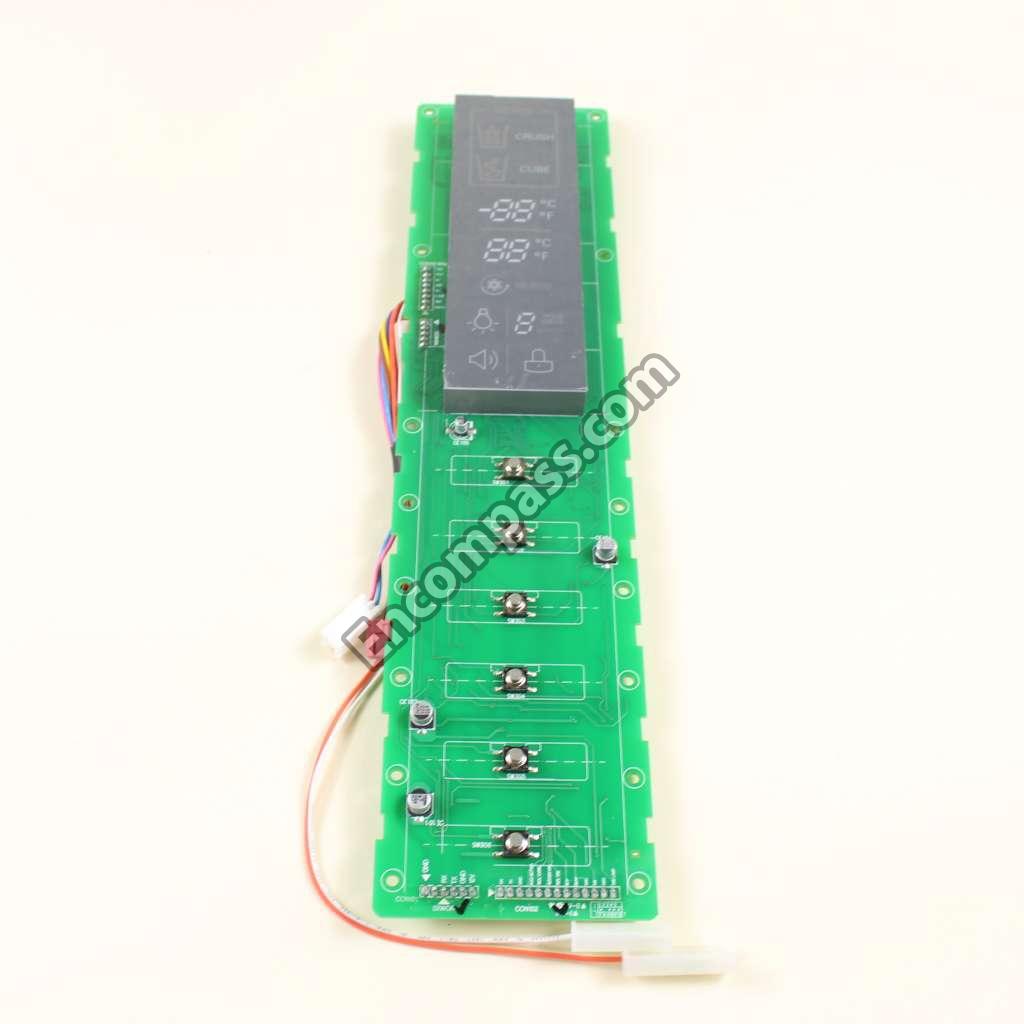

EBR42478907 EBR42478907 PCB ASSEMBLY,DISPLAY [501B]
EBR36498901 EBR36498901 PCB ASSEMBLY,TIMER/KEY [500D]
4J04238A 4J04238A PIN,COMMON [305C]
6411JB1042Y 6411JB1042Y POWER CORD ASSEMBLY [411A]
5218JJ3001A 5218JJ3001A RAIL,SLIDE [103E]
5218JA1010E 5218JA1010E RAIL,SLIDE [249E]
5218JA1010F 5218JA1010F RAIL,SLIDE [249F]
3034JJ1001A 3034JJ1001A REFLECTOR,LAMP
3034JJ1002B 3034JJ1002B REFLECTOR,LAMP [409D]
4350JA3005B 4350JA3005B RING [262E]
MHA62513601 MHA62513601 ROLLER [305B]
AHJ72989901 AHJ72989901 ROLLER [305D]
1SZZJJ3010A 1SZZJJ3010A SCREW,CUSTOMIZED
1STZJA3004C 1STZJA3004C SCREW,CUSTOMIZED
1STZJA3004F 1STZJA3004F SCREW,CUSTOMIZED [B01]
4J01425B 4J01425B SCREW,CUSTOMIZED [S22]
1SZZJA3011B 1SZZJA3011B SCREW,CUSTOMIZED [S24]
4J01424C 4J01424C SCREW,CUSTOMIZED [S27]
4J00415D 4J00415D SCREW,CUSTOMIZED [S31]
FAB30138101 FAB30138101 SCREW,SET
6500JB2002T 6500JB2002T SENSOR [903D]
6500JB2001B 6500JB2001B SENSOR [903E]
AHT72996103 AHT72996103 SHELF ASSEMBLY,REFRIGERATOR
AHT72996107 AHT72996107 SHELF ASSEMBLY,REFRIGERATOR [140B]
AHT72996106 AHT72996106 SHELF ASSEMBLY,REFRIGERATOR [143F]
4890JL1002N 4890JL1002N SHELF,GLASS [167B]
5026JJ2001L 5026JJ2001L SHELF,NET
MHL38615403 MHL38615403 SHELF,NET [140D]
MHL38615404 MHL38615404 SHELF,NET [140E]
AHT72974106 AHT72974106 SHELF,NET [142D]
5026JJ2001M 5026JJ2001M SHELF,NET [142E]
5070JJ3002A 5070JJ3002A SKIRT,LOWER [105F]
EAG62831801 EAG62831801 SOCKET,LAMP
6421JB2002R 6421JB2002R SOLENOID,REVERSING,VALVE [405H]

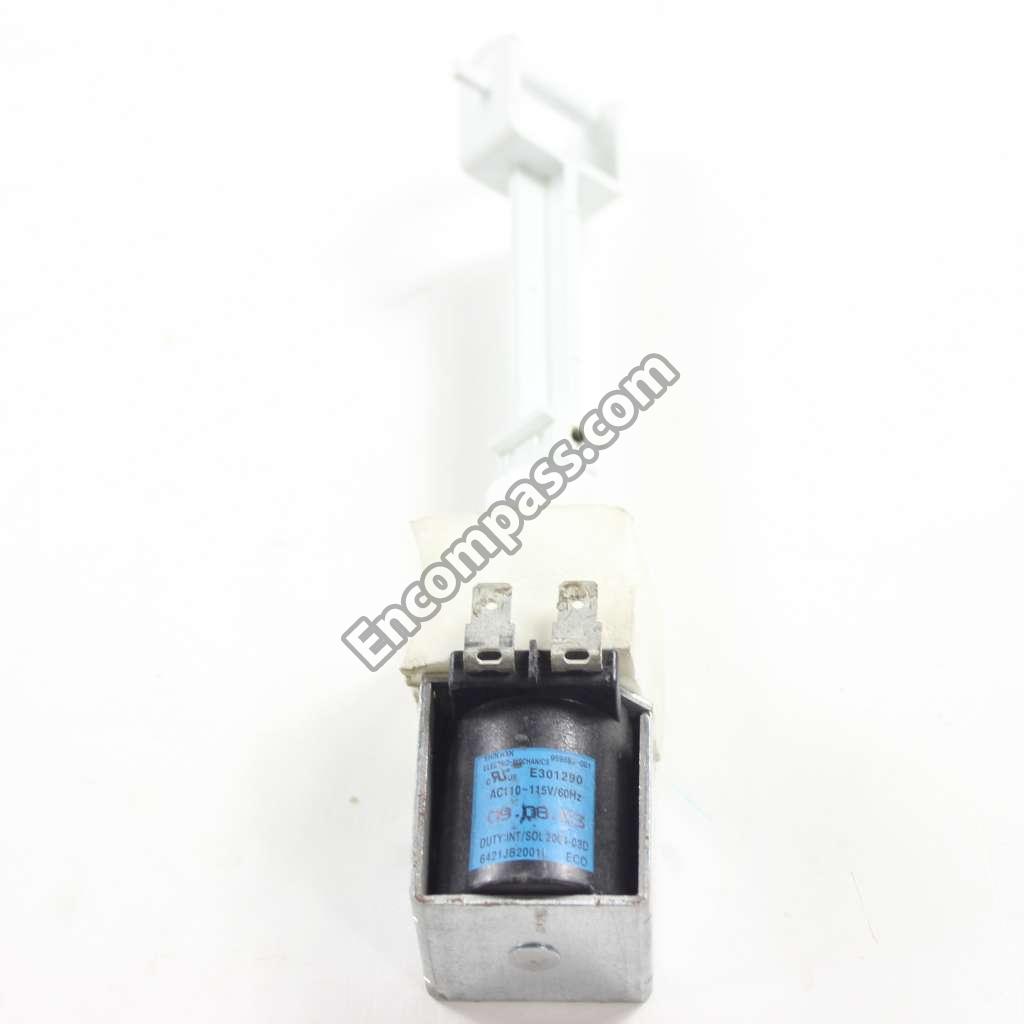

6421JA3001X 6421JA3001X SOLENOID,REVERSING,VALVE [614A]
4970JA3004G 4970JA3004G SPRING [617B]
4970JA3011K 4970JA3011K SPRING,LEVER [113E]
MJB61877901 MJB61877901 STOPPER,COMPRESSOR [314A]
4620JJ2009A 4620JJ2009A STOPPER,DOOR
4620JJ3006D 4620JJ3006D STOPPER,DOOR [243A]
MJB63029901 MJB63029901 STOPPER,DOOR [243B]
MJB63190002 MJB63190002 STOPPER,HANDLE
MJB63190001 MJB63190001 STOPPER,HANDLE [212J]
MJH62074601 MJH62074601 SUPPORTER,COVER TV [155B]
4980JJ2019A 4980JJ2019A SUPPORTER,HOLDER
6600JB3001C 6600JB3001C SWITCH,MICRO [402C]
6600JB3007L 6600JB3007L SWITCH,PUSH BUTTON [402A]
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [406B]

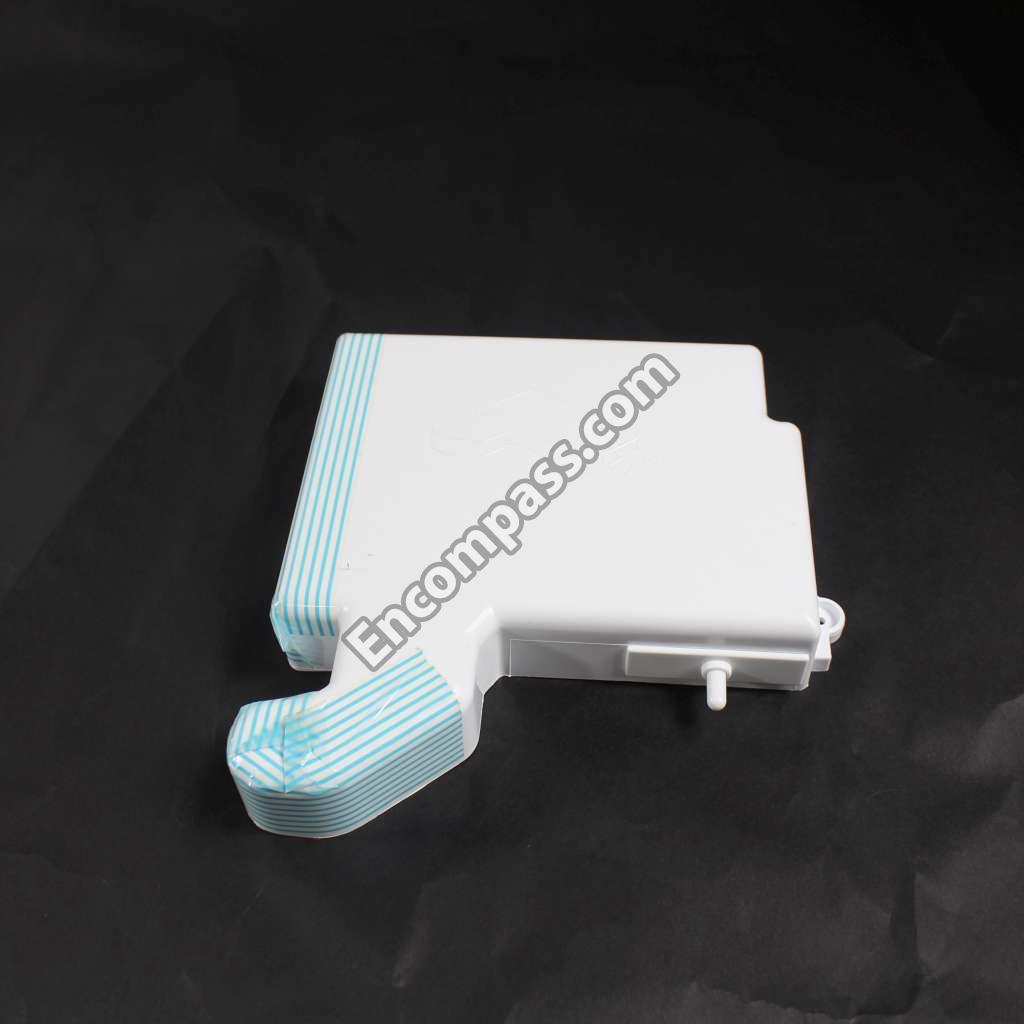

4838JA2003B 4838JA2003B TANK,WATER
EBG42993601 EBG42993601 THERMISTOR ASSEMBLY,PTC [308A]
3391JJ1011B 3391JJ1011B TRAY ASSEMBLY,DRAWER [136A]
3391JJ2018D 3391JJ2018D TRAY ASSEMBLY,MEAT [170A]
3391JJ1038B 3391JJ1038B TRAY ASSEMBLY,VEGETABLE [151A]
MJS41995501 MJS41995501 TRAY,DRAIN [281J]
MJS42003601 MJS42003601 TRAY,DRAWER
3390JJ1014A 3390JJ1014A TRAY,EGG [147B]
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]

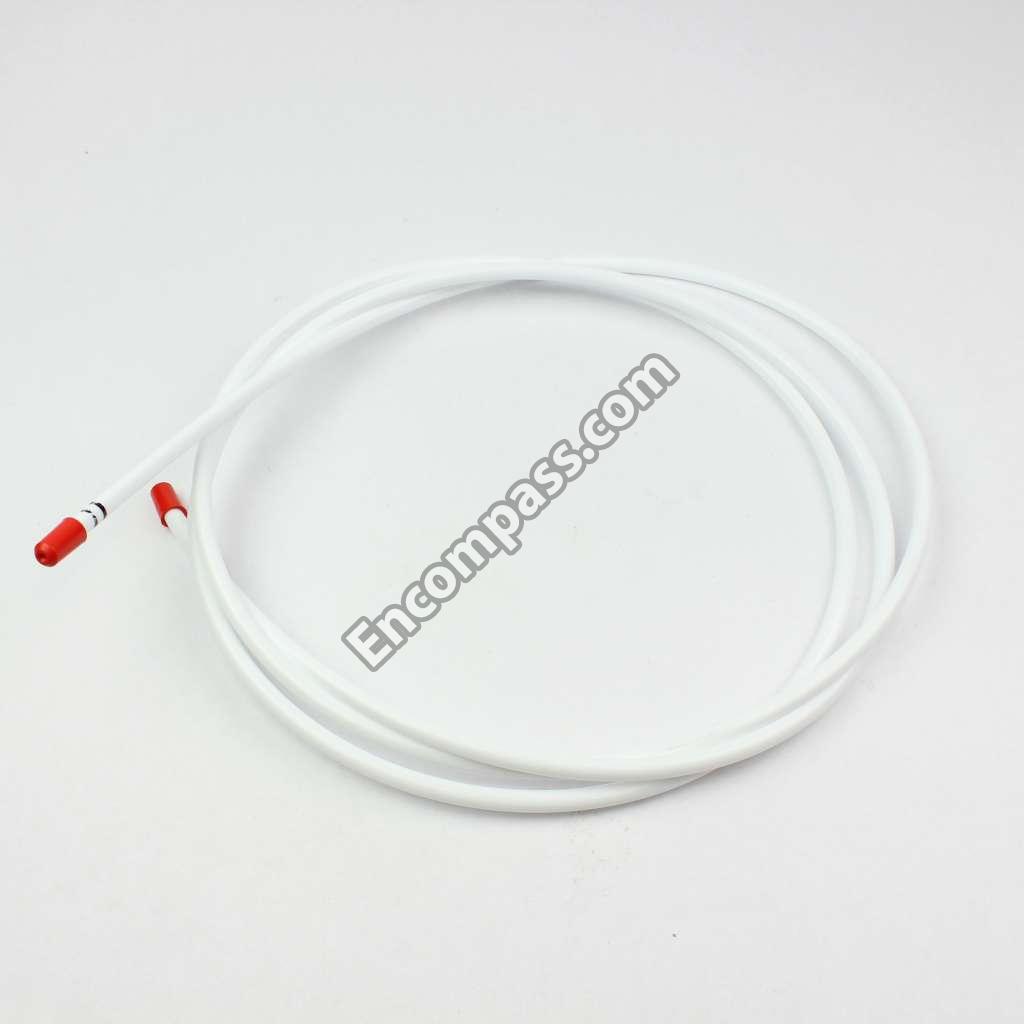

5210JA3005X 5210JA3005X TUBE,PLASTIC [616A]
5210JA3005E 5210JA3005E TUBE,PLASTIC [616B]
MJU61958908 MJU61958908 TUBE,PLASTIC [616F]

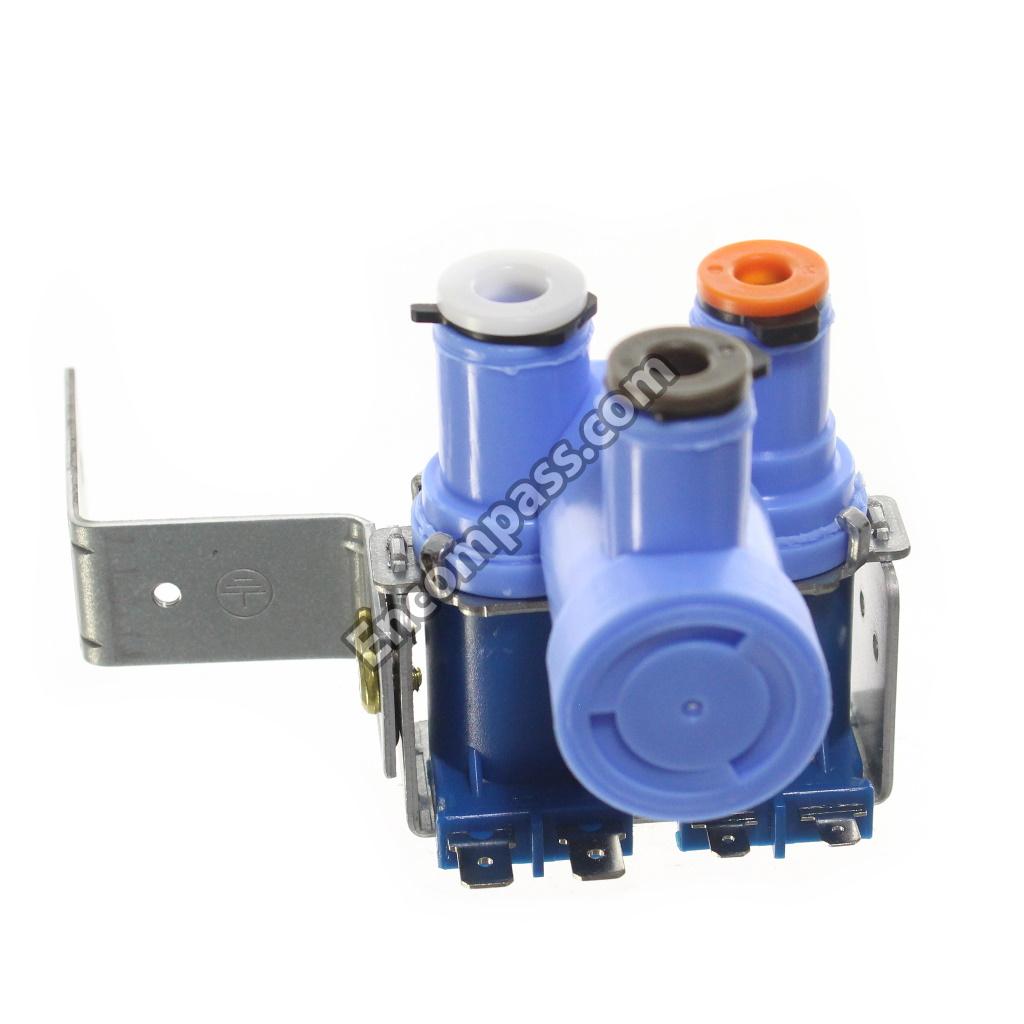

5221JB2010G 5221JB2010G VALVE,WATER [619A]
AJU73532901 AJU73532901 VALVE,WATER [619D]
4J00382C 4J00382C WASHER,COMMON
