LG

Model Number

LFX28978SB

Description

Ultra-large Capacity 3 Door French Door Refrigerat

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4270JA3009M 4270JA3009M BAR [250A]
AAN74109205 AAN74109205 BASE ASSEMBLY,COMPRESSOR [315A]
AAP73631501 AAP73631501 BASKET ASSEMBLY,DOOR
AAP72931603 AAP72931603 BASKET ASSEMBLY,DOOR
AAP33686302 AAP33686302 BASKET ASSEMBLY,DOOR [241A]
AAP72909204 AAP72909204 BASKET ASSEMBLY,DOOR [241E]
AAP72931501 AAP72931501 BASKET ASSEMBLY,DOOR [241K]
MAN38143001 MAN38143001 BASKET,WINDOW [241C]
1BZZJA2002A 1BZZJA2002A BOLT,COMMON [B04]
ABA72913501 ABA72913501 BRACKET ASSEMBLY,MOTOR
ABA72913404 ABA72913404 BRACKET ASSEMBLY,MOTOR
ABA72913302 ABA72913302 BRACKET ASSEMBLY,MOTOR [407A]
4810JA2055A 4810JA2055A BRACKET,MOTOR [405B]
MAZ61845501 MAZ61845501 BRACKET,MOTOR [405G]
AKC72949319 AKC72949319 BUCKET ASSEMBLY,ICE [611A]
MBG62527602 MBG62527602 BUTTON,LEVER [279H]
MBG62527502 MBG62527502 BUTTON,LEVER [279I]
MBG38252601 MBG38252601 BUTTON,LEVER [279J]
ABN72938901 ABN72938901 CAP ASSEMBLY,DUCT [275A]
ABN73019101 ABN73019101 CAP ASSEMBLY,HEAD [624E]
MEG61879201 MEG61879201 CAP,COVER [623B]
MBL61865401 MBL61865401 CAP,DUCT [282F]
MBL61865301 MBL61865301 CAP,DUCT [282G]
MBL62065801 MBL62065801 CAP,RUBBER [132P]

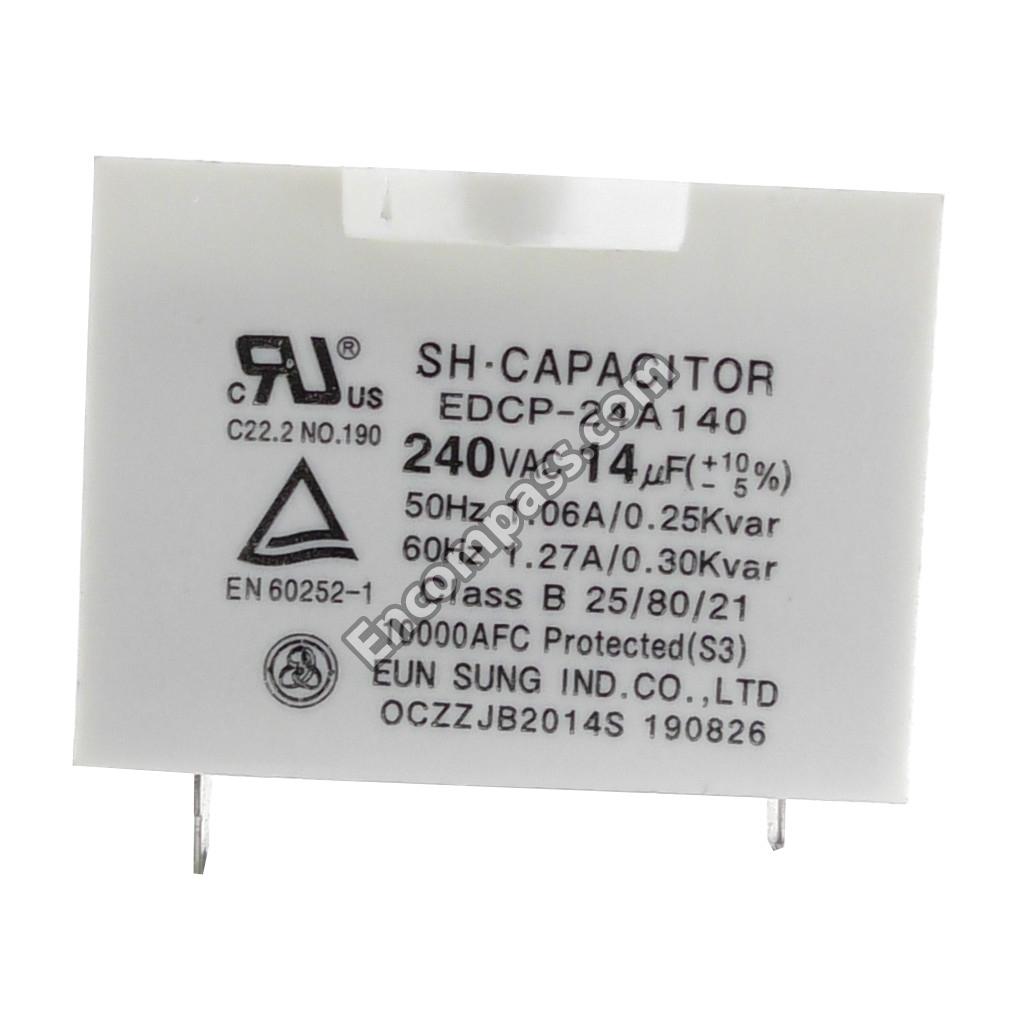

0CZZJB2014S 0CZZJB2014S CAPACITOR,ELECTRIC APPLIANCE FILM,BOX [410J]
EAE58905701 EAE58905701 CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL [410G]
MBN61844901 MBN61844901 CASE,LAMP [503D]
ACQ75432188 ACQ75432188 CASE,PCB [279D]
4004JA3002A 4004JA3002A CLIP [603C]
4004JA3003A 4004JA3003A CLIP [603E]

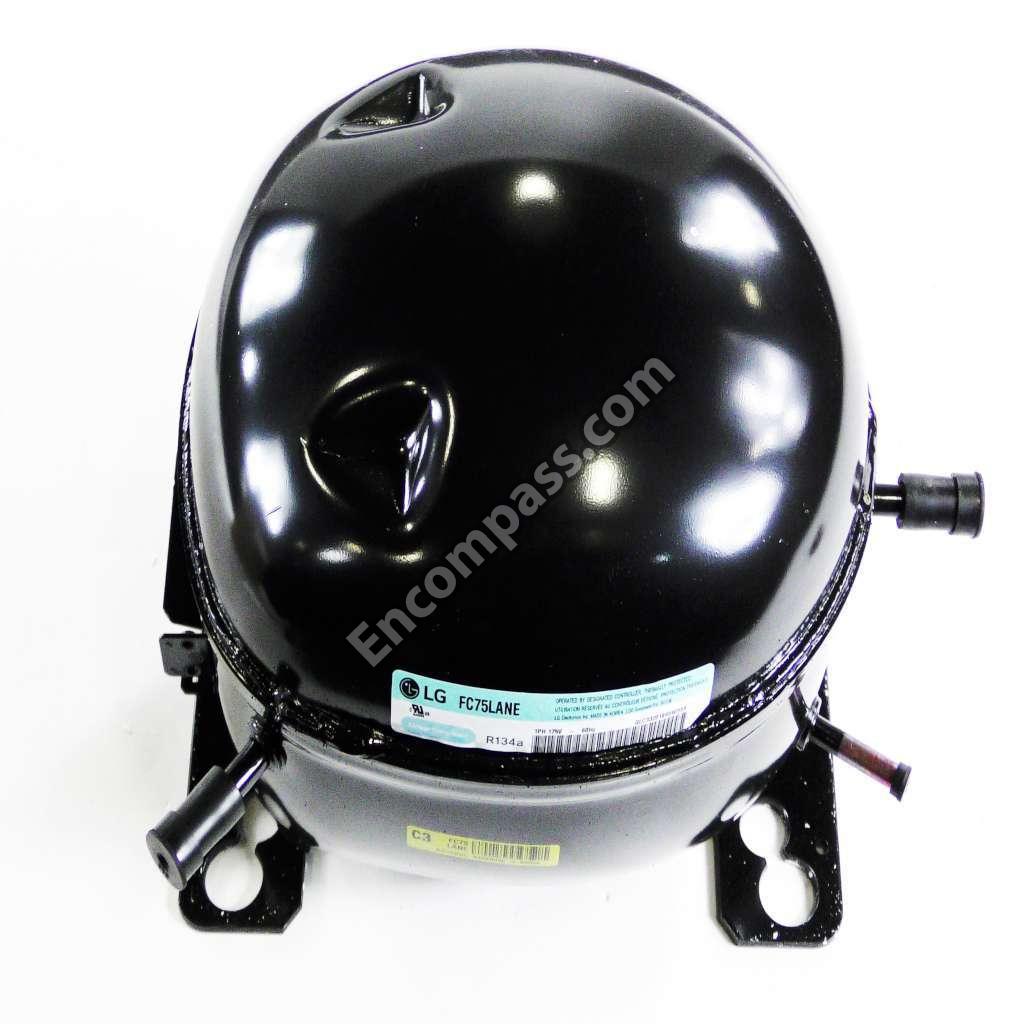

TCA36411702 TCA36411702 COMPRESSOR,SET ASSEMBLY
ACG73784701 ACG73784701 CONDENSER ASSEMBLY,WIRE [323B]
4403JA3005A 4403JA3005A CONNECTOR ASSEMBLY [250B]
MCD61841301 MCD61841301 CONNECTOR [249P]
MCD61841103 MCD61841103 CONNECTOR,RAIL
MCD61841104 MCD61841104 CONNECTOR,RAIL
MCD61841101 MCD61841101 CONNECTOR,RAIL [249J]
MCD61841102 MCD61841102 CONNECTOR,RAIL [249K]
4932JA3009A 4932JA3009A CONNECTOR,TUBE [616J]
6615JB2005N 6615JB2005N CONTROLLER ASSEMBLY
6615JB2005H 6615JB2005H CONTROLLER ASSEMBLY [400A]
ACQ73657701 ACQ73657701 COVER ASSEMBLY
ACQ73657702 ACQ73657702 COVER ASSEMBLY

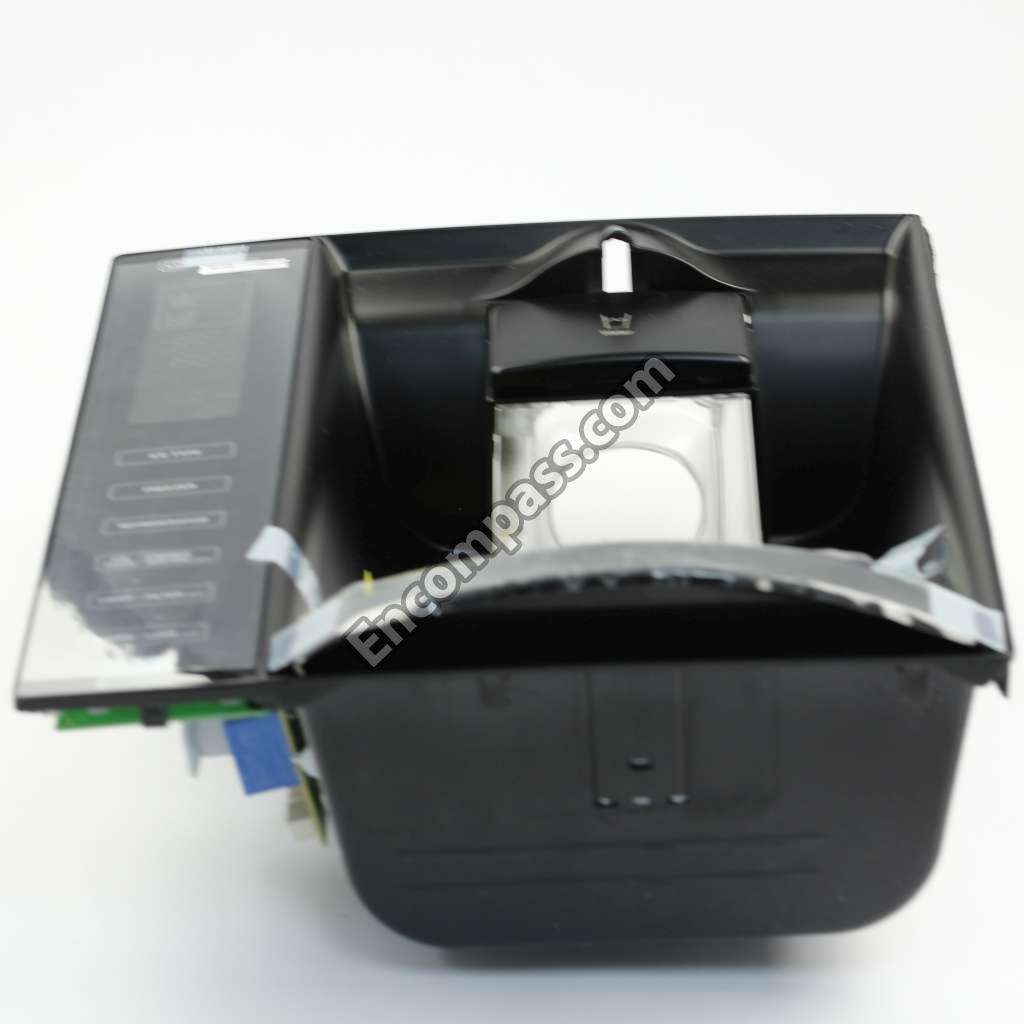

ACQ75432104 ACQ75432104 COVER ASSEMBLY,DISPLAY [279A]
ACQ33676511 ACQ33676511 COVER ASSEMBLY,LAMP [503E]
ACQ55957511 ACQ55957511 COVER ASSEMBLY,LOWER [103C]
3551JJ2018A 3551JJ2018A COVER ASSEMBLY,MACHINERY(REAR) [313A]
ACQ75168204 ACQ75168204 COVER ASSEMBLY,PCB [290A]
3551JA2144H 3551JA2144H COVER ASSEMBLY,PCB [501F]
ACQ73244001 ACQ73244001 COVER ASSEMBLY,SENSOR [610C]
ACQ73152602 ACQ73152602 COVER ASSEMBLY,TRAY
ACQ73152508 ACQ73152508 COVER ASSEMBLY,TV
MCK62965303 MCK62965303 COVER,DISPENSER [279B]
MCK63604303 MCK63604303 COVER,DISPLAY [279C]
MCK67447801 MCK67447801 COVER,FILTER [624C]
EBS61443328 EBS61443328 COVER,FILTER [626A]
MCK67107201 MCK67107201 COVER,FRONT [312B]
ACQ36833804 ACQ36833804 COVER,HINGE [207A]
3550JJ1097F 3550JJ1097F COVER,HINGE [207B]
MCK67480101 MCK67480101 COVER,HOME BAR [630H]
MCK61881301 MCK61881301 COVER,LAMP [158A]
MCK61881401 MCK61881401 COVER,LAMP [405I]
MCK66846501 MCK66846501 COVER,LAMP [503F]
MCK63734901 MCK63734901 COVER,LEVER [630E]
3550JA2273A 3550JA2273A COVER,MOTOR [405H]
MCK38209801 MCK38209801 COVER,PCB [279E]
3550JA2284A 3550JA2284A COVER,PTC [304A]
3550JA2184B 3550JA2184B COVER,TUBE [625A]
MCQ67247501 MCQ67247501 DAMPER ASSEMBLY,SEAT [312A]
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
5040JJ2001A 5040JJ2001A DAMPER,MOTOR SUPPORT [309B]
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT [405C]
5040JA2004A 5040JA2004A DAMPER,MOTOR SUPPORT [405F]
5072JA3003F 5072JA3003F DAMPER,NOISE [316A]
MCQ62106201 MCQ62106201 DAMPER,RUBBER [501G]
MCR61954801 MCR61954801 DECOR,CONTROL [503G]
MCR62326503 MCR62326503 DECOR,DRAIN [281A]
ADC72987149 ADC72987149 DOOR ASSEMBLY,FREEZE ROOM
ADC72987102 ADC72987102 DOOR ASSEMBLY,FREEZE ROOM [630A]
ADC71974616 ADC71974616 DOOR ASSEMBLY,FREEZER [200A]
ADD72915902 ADD72915902 DOOR FOAM ASSEMBLY [630B]
ADD72936130 ADD72936130 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADD72935903 ADD72935903 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADD72936103 ADD72936103 DOOR FOAM ASSEMBLY,REFRIGERATOR [231A]
AJU72992601 AJU72992601 DRAWING,ASSEMBLY [619E]
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ72909811 ADJ72909811 DUCT ASSEMBLY,MULTI
MCZ62651901 MCZ62651901 DUCT,CONNECTOR
MCZ62033001 MCZ62033001 DUCT,CONNECTOR [145G]
MCZ61845001 MCZ61845001 DUCT,MULTI [120B]
ADL73741401 ADL73741401 EVAPORATOR ASSEMBLY [302B]

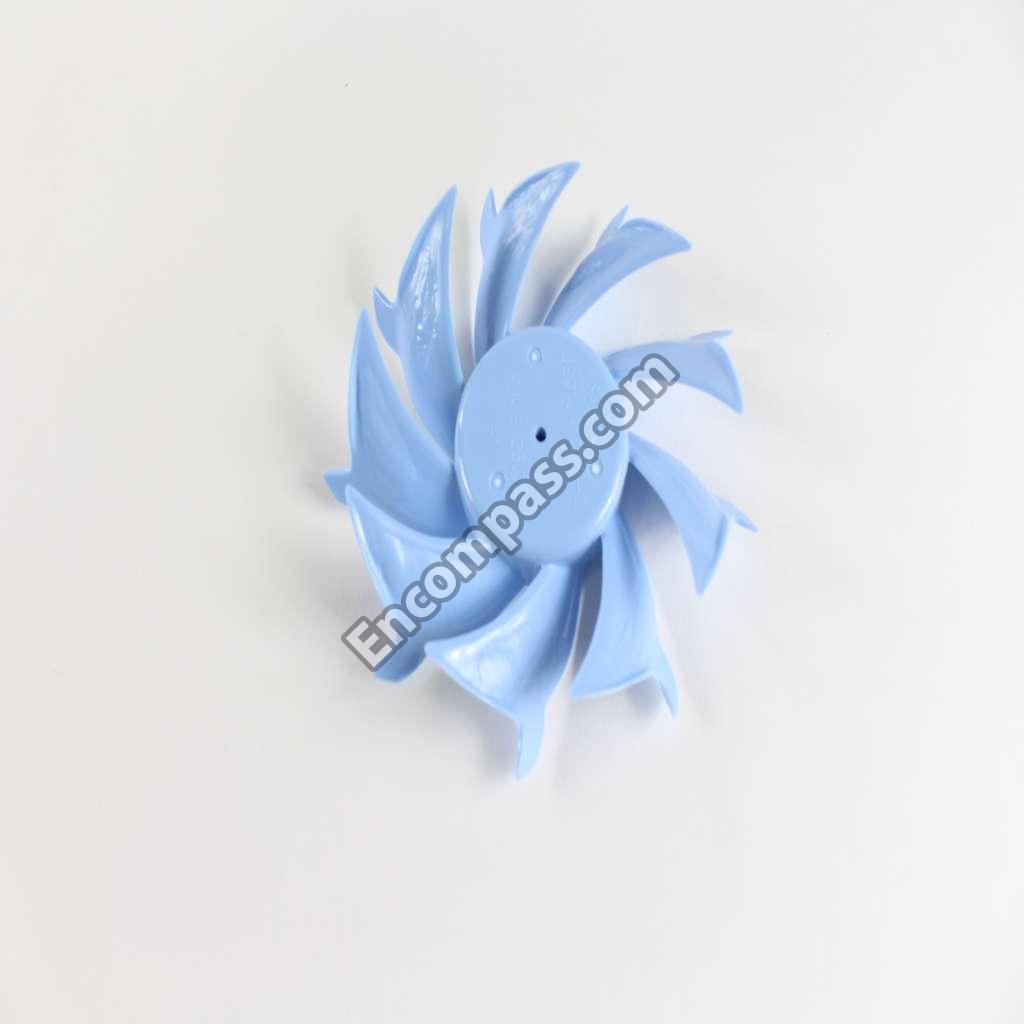

5901JA1016B 5901JA1016B FAN ASSEMBLY [329A]
ADP73013901 ADP73013901 FAN ASSEMBLY [329B]
ADP36665705 ADP36665705 FAN ASSEMBLY [329C]
ADQ36006101 ADQ36006101 FILTER ASSEMBLY,WATER [624A]
ADQ36011708 ADQ36011708 FILTER,HEAD [624D]
MDR61842201 MDR61842201 FUNNEL [278D]
ADX73550626 ADX73550626 GASKET ASSEMBLY,DOOR [233A]
ADX73550623 ADX73550623 GASKET ASSEMBLY,DOOR [233B]
ADX73571201 ADX73571201 GASKET ASSEMBLY,DOOR [630J]
MDS64172918 MDS64172918 GASKET,DOOR [203A]
MDS62111103 MDS62111103 GASKET,DOOR [630C]
AEB73764504 AEB73764504 GRILLE ASSEMBLY,FAN
AEC73617602 AEC73617602 GUIDE ASSEMBLY,RAIL [145C]
AEC73617601 AEC73617601 GUIDE ASSEMBLY,RAIL [145F]
AEC73637401 AEC73637401 GUIDE ASSEMBLY,RAIL [161C]
AEC73438101 AEC73438101 GUIDE ASSEMBLY,RAIL [162A]
AEC73438105 AEC73438105 GUIDE ASSEMBLY,RAIL [162B]
AEC73637501 AEC73637501 GUIDE ASSEMBLY,TV [161A]
AEC72910002 AEC72910002 GUIDE ASSEMBLY,TV [161B]
MEA61842101 MEA61842101 GUIDE,DRAWER
AJP73594401 AJP73594401 GUIDE,DRAWER [237C]
MEA62550101 MEA62550101 GUIDE,FAN
MEA42257901 MEA42257901 GUIDE,FAN [319C]

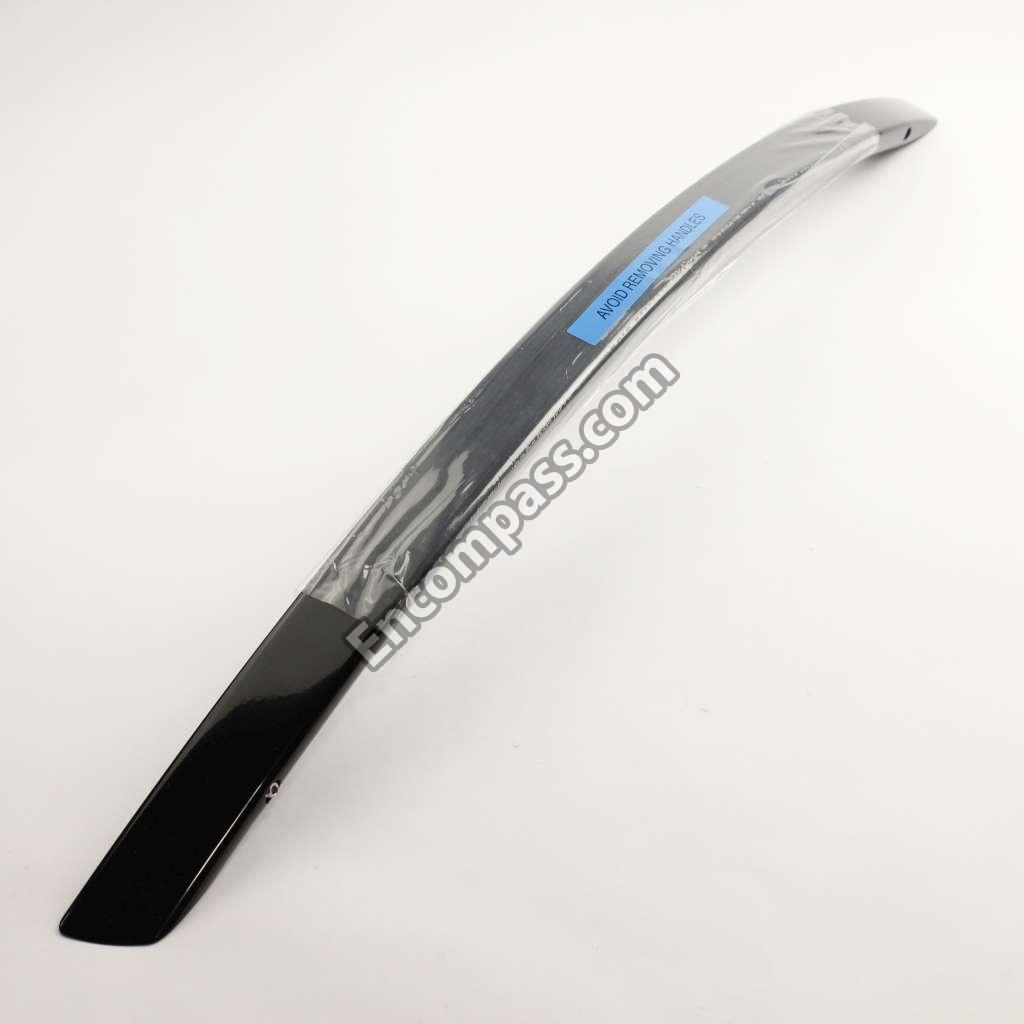

AED37133118 AED37133118 HANDLE ASSEMBLY,FREEZER
AED37133102 AED37133102 HANDLE ASSEMBLY,FREEZER [212D]
AED37082913 AED37082913 HANDLE ASSEMBLY,REFRIGERATOR [244A]
MEB61894003 MEB61894003 HANDLE,HOME BAR [630D]
3650JA2113N 3650JA2113N HANDLE,REAR [103A]
3650JA2113P 3650JA2113P HANDLE,REAR [103B]
EAD61050801 EAD61050801 HARNESS ASSEMBLY [303A]
5300JK1005K 5300JK1005K HEATER,SHEATH [408A]
AEH36821908 AEH36821908 HINGE ASSEMBLY,CENTER [243C]
AEH36821910 AEH36821910 HINGE ASSEMBLY,CENTER [243D]
AEH71135342 AEH71135342 HINGE ASSEMBLY,CENTER [262B]
AEH71135344 AEH71135344 HINGE ASSEMBLY,CENTER [262H]
AEH74156201 AEH74156201 HINGE ASSEMBLY,LOWER [630G]
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER
AEH74216501 AEH74216501 HINGE ASSEMBLY,UPPER [271D]
AEH72976201 AEH72976201 HINGE ASSEMBLY,UPPER [630F]
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
MEG61958701 MEG61958701 HOLDER,BRACKET [276G]
4930JA3091A 4930JA3091A HOLDER,BRACKET [603B]
MEG62119501 MEG62119501 HOLDER,CAPACITOR
MEG61899901 MEG61899901 HOLDER,DOOR [406D]
4930JA3034A 4930JA3034A HOLDER,DRIER [318A]
4930JA3043A 4930JA3043A HOLDER,LEVER [276B]
4930JA3054A 4930JA3054A HOLDER,PIPE [627A]
MEG42758601 MEG42758601 HOLDER,PIPE [627B]
AEJ73800301 AEJ73800301 HOLDER,RAIL [249C]
MEG63342502 MEG63342502 HOLDER,RAIL [249D]
ADJ73852107 ADJ73852107 HOLDER,SHELF [145A]
MEG63060501 MEG63060501 HOLDER,SHELF [145B]
AEQ73110205 AEQ73110205 ICE MAKER ASSEMBLY,KIT
6912JB2004M 6912JB2004M LAMP,INCANDESCENT
6912JK2002E 6912JK2002E LAMP,INCANDESCENT [409B]
EAV60663406 EAV60663406 LED ASSEMBLY [405J]
EAV48995107 EAV48995107 LED ASSEMBLY [409D]
AFC72909201 AFC72909201 LEG ASSEMBLY,ADJUST [106A]
MFC38030001 MFC38030001 LEVER,DISPENSER [278C]
MFF61863101 MFF61863101 LINK [276F]
ADQ36006118 ADQ36006118 LT700P REFRIDGERATER WATER FILTER (3 PK)
EAU60784204 EAU60784204 MOTOR, AC INDOOR [606A]
EAU607838013 EAU607838013 MOTOR,AC
EAU61843013 EAU61843013 MOTOR,AC
EAU61843016 EAU61843016 MOTOR,AC
4681JB1027C 4681JB1027C MOTOR,DC [404A]
4681JB1027J 4681JB1027J MOTOR,DC [404B]
EAU59551204 EAU59551204 MOTOR,DC [405A]
4681JB1029D 4681JB1029D MOTOR,DC [420A]
MFT62346511 MFT62346511 NAME PLATE

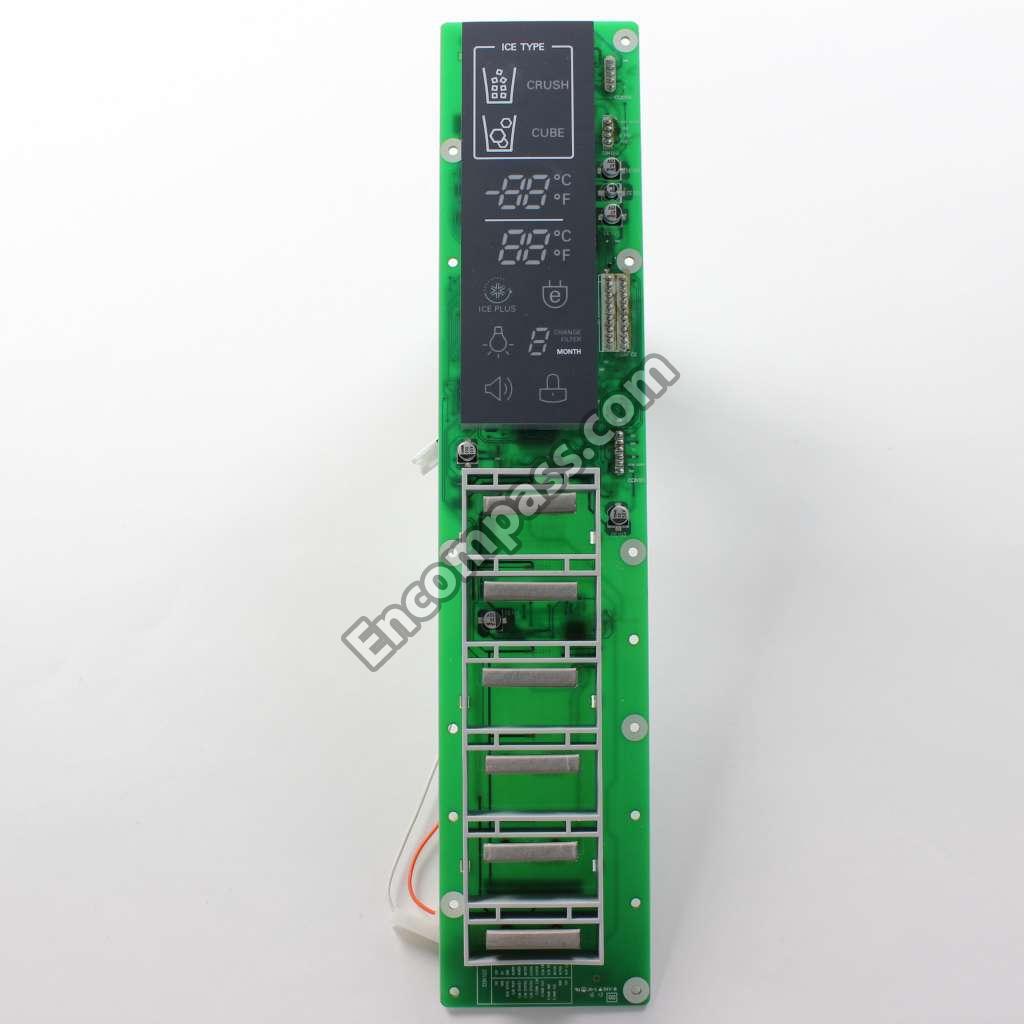

EBR65749301 EBR65749301 PCB ASSEMBLY,DISPLAY [501A]

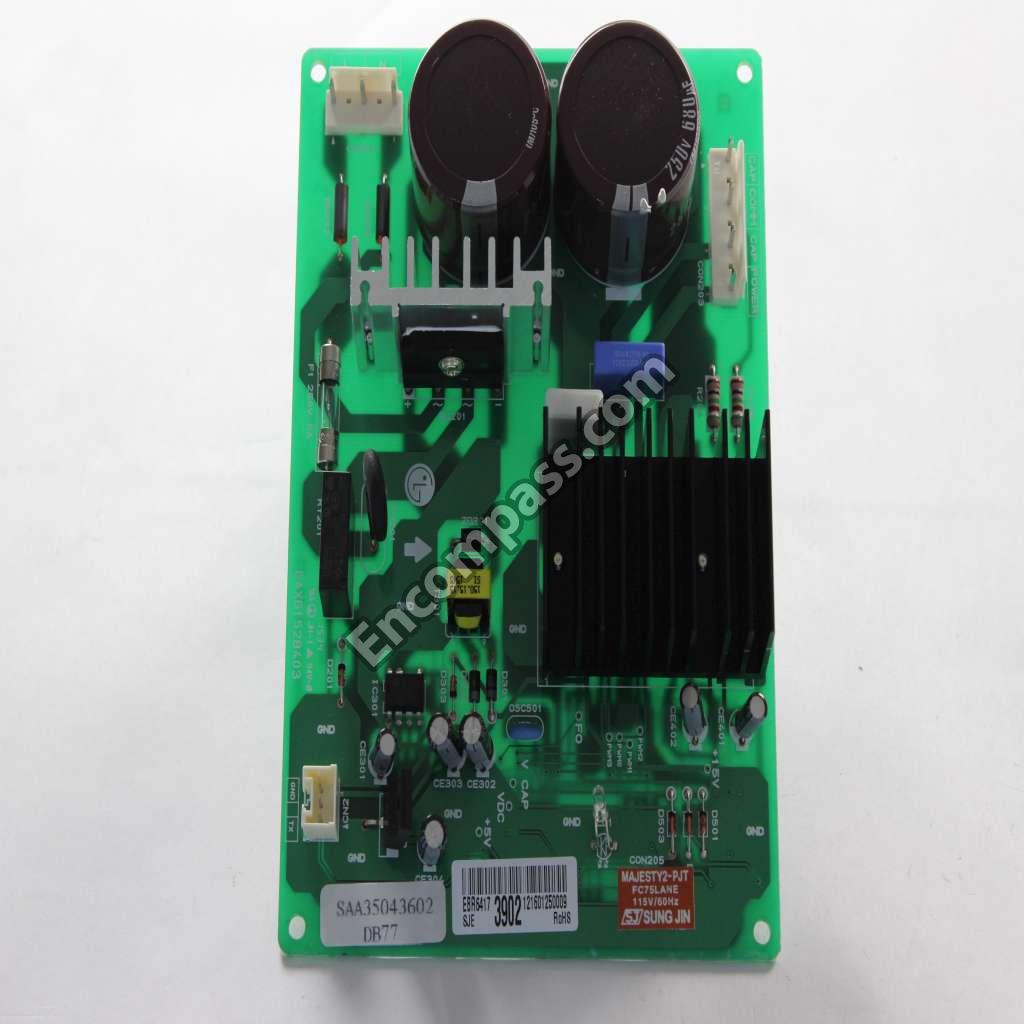

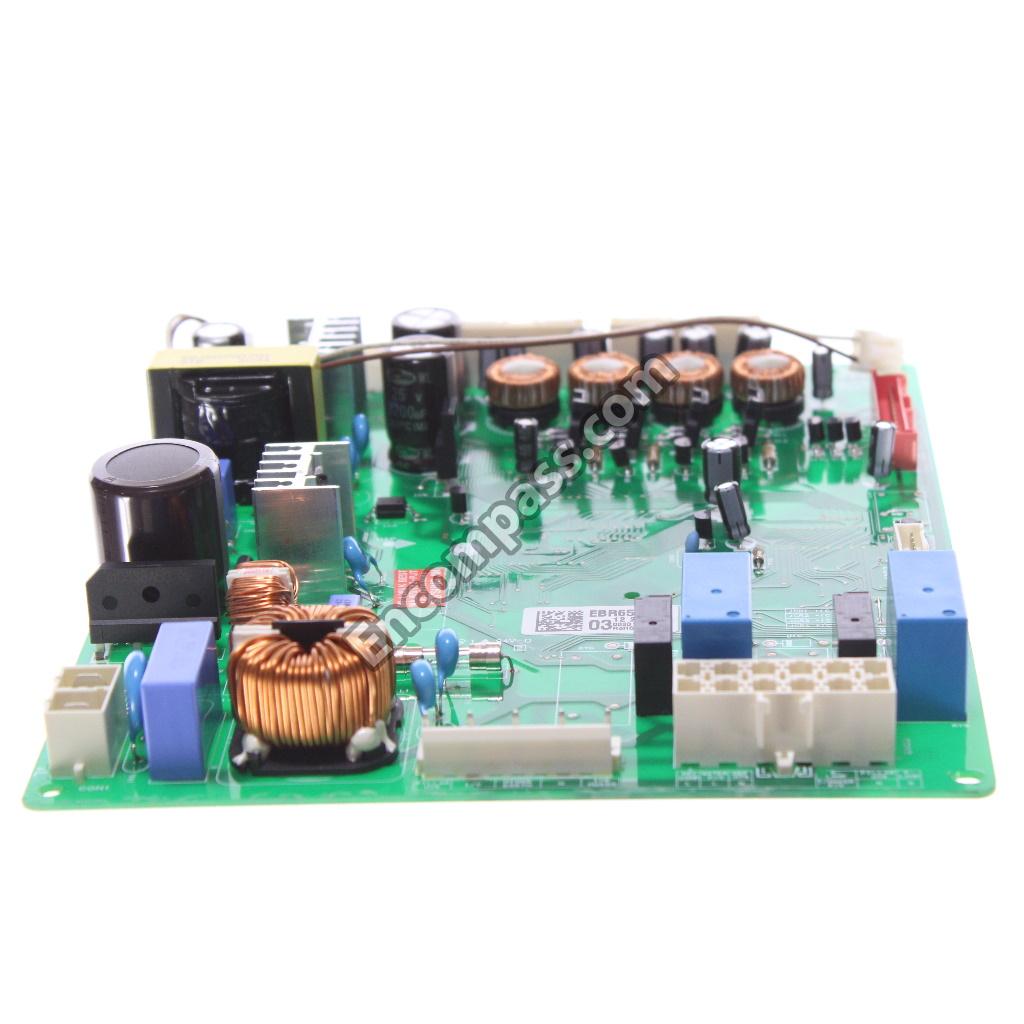

EBR65002703 EBR65002703 PCB ASSEMBLY,MAIN [500A]
EBR60070707 EBR60070707 PCB ASSEMBLY,SUB [500C]
EBR64173902 EBR64173902 PCB ASSEMBLY,SUB [500H]
EBR60388502 EBR60388502 PCB ASSEMBLY,SUB [501D]
1PZZJA3013B 1PZZJA3013B PIN,COMMON [315C]
4J00977P 4J00977P PIPE,COMPRESSOR SEALING [310B]
AGU74110903 AGU74110903 PLATE ASSEMBLY,FRONT
6411JB1042L 6411JB1042L POWER CORD ASSEMBLY [411A]
MGT61844001 MGT61844001 RAIL,SLIDE [249E]
MGT61844002 MGT61844002 RAIL,SLIDE [249F]
MGZ42997101 MGZ42997101 RING [262C]
AHJ72909001 AHJ72909001 ROLLER ASSEMBLY [133A]
AHJ72909101 AHJ72909101 ROLLER ASSEMBLY [133B]
MHA62513601 MHA62513601 ROLLER [315B]
MHA62652801 MHA62652801 ROLLER [630Q]
1SZZJJ3010F 1SZZJJ3010F SCREW,CUSTOMIZED
4000W4A003A 4000W4A003A SCREW,CUSTOMIZED [B01]
1STZJA3004Q 1STZJA3004Q SCREW,CUSTOMIZED [B02]
4J00415D 4J00415D SCREW,CUSTOMIZED [S01]
4J01424B 4J01424B SCREW,CUSTOMIZED [S03]
1SBZJA3004L 1SBZJA3004L SCREW,CUSTOMIZED [S10]
3J05696W 3J05696W SCREW,CUSTOMIZED [S11]
1SZZJJ3010D 1SZZJJ3010D SCREW,CUSTOMIZED [S14]
1SZZJA3016A 1SZZJA3016A SCREW,CUSTOMIZED [S20]
1SZZJA3009N 1SZZJA3009N SCREW,CUSTOMIZED [S31]
1SZZJA3022B 1SZZJA3022B SCREW,CUSTOMIZED [S32]
6500JB2001B 6500JB2001B SENSOR [610D]
6500JB2002X 6500JB2002X SENSOR,TEMPERATURE
5027JJ2012R 5027JJ2012R SHELF ASSEMBLY,NET [141C]
5027JJ2012S 5027JJ2012S SHELF ASSEMBLY,NET [142D]

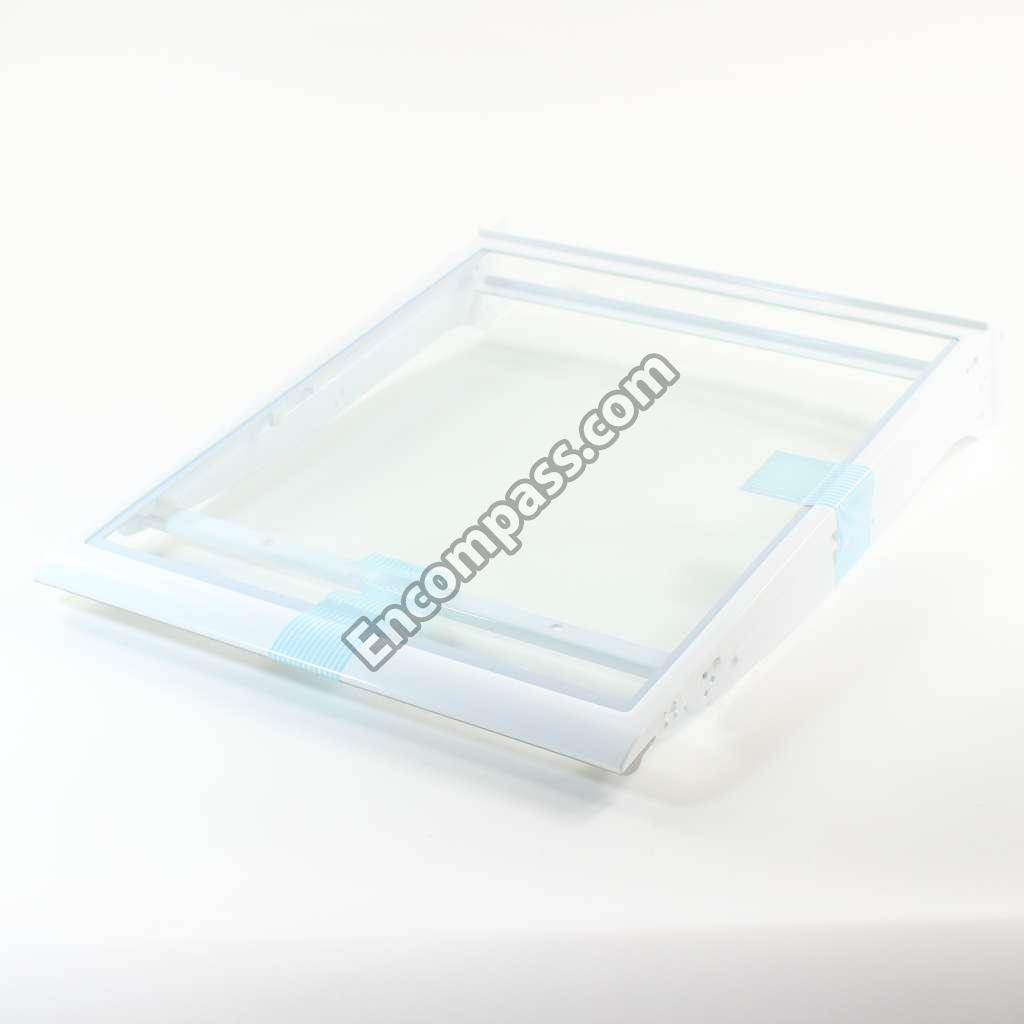

AHT72910607 AHT72910607 SHELF ASSEMBLY,REFRIGERATOR [140A]
AHT73453801 AHT73453801 SHELF ASSEMBLY,REFRIGERATOR [141A]
AHT72910201 AHT72910201 SHELF ASSEMBLY,REFRIGERATOR [141B]
AHT72910401 AHT72910401 SHELF ASSEMBLY,REFRIGERATOR [142A]
AHT72910501 AHT72910501 SHELF ASSEMBLY,REFRIGERATOR [142B]
MHL62691504 MHL62691504 SHELF,GLASS [141D]
MHN61841002 MHN61841002 SHROUD,FREEZER
MHN61841101 MHN61841101 SHROUD,REFRIGERATOR [405E]
MHU38218908 MHU38218908 SPANNER
MHU38218901 MHU38218901 SPANNER [262E]
4970JA3004J 4970JA3004J SPRING
4970JA3004F 4970JA3004F SPRING [617A]
4970JA3011K 4970JA3011K SPRING,LEVER [276A]
AJC68689618 AJC68689618 STOPPER ASSEMBLY,DOOR [243A]
AJC68689617 AJC68689617 STOPPER ASSEMBLY,DOOR [243B]
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR [314A]
MJB63190001 MJB63190001 STOPPER,HANDLE [B06]
6600JB3001F 6600JB3001F SWITCH,MICRO [402C]
6600JB3007E 6600JB3007E SWITCH,PUSH BUTTON [402A]
6600JB1010A 6600JB1010A SWITCH,PUSH BUTTON [406B]
AJL72911502 AJL72911502 TANK ASSEMBLY,WATER [615A]
3391JJ2013C 3391JJ2013C TRAY ASSEMBLY,DRAIN [312C]
AJP72909701 AJP72909701 TRAY ASSEMBLY,DRAWER
AJP72909806 AJP72909806 TRAY ASSEMBLY,DRAWER
AJP73294701 AJP73294701 TRAY ASSEMBLY,DRIP
AJP72909606 AJP72909606 TRAY ASSEMBLY,FRESH ROOM [145D]
AJP72910213 AJP72910213 TRAY ASSEMBLY,VEGETABLE
AJP72910212 AJP72910212 TRAY ASSEMBLY,VEGETABLE [151A]
AJP73574701 AJP73574701 TRAY ASSEMBLY,VEGETABLE [151B]
MJS61871903 MJS61871903 TRAY,DRAIN [281B]
MJS61845701 MJS61845701 TRAY,DRIP [319A]
AJP73594506 AJP73594506 TRAY,FREEZER [131A]
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN [105A]
AJR56656503 AJR56656503 TUBE ASSEMBLY,ICE WATER [616G]
MJU39256412 MJU39256412 TUBE,PLASTIC [616D]
MJU62070602 MJU62070602 TUBE,PLASTIC [616F]
MJX41869202 MJX41869202 VALVE ASSEMBLY,WATER
