LG

Model Number

LMWS27626S

Description

27 Cu. Ft. French Door Refrigerator

Interactive Exploded View

Parts List

Part Number Description
AAP74271331 AAP74271331 APPLIANCE DOOR BASKET
4770JA3001A 4770JA3001A BAND
MAK64727011 MAK64727011 BAR
MAN63948504 MAN63948504 BASKET,DOOR
1BZZJA2002A 1BZZJA2002A BOLT,COMMON
ABA74268214 ABA74268214 BRACKET ASSEMBLY,MOTOR
ABA74268215 ABA74268215 BRACKET ASSEMBLY,MOTOR
ABH76379903 ABH76379903 BUTTON ASSEMBLY
MBJ62121901 MBJ62121901 CAM,HINGE
ABQ74229145 ABQ74229145 CASE ASSEMBLY,DISPLAY
ABQ74229129 ABQ74229129 CASE ASSEMBLY,DISPLAY
TCA37091605 TCA37091605 COMPRESSOR,SET ASSEMBLY
ACG76384402 ACG76384402 CONDENSER ASSEMBLY,WIRE
MCD62287501 MCD62287501 CONNECTOR,RAIL
MCD62287502 MCD62287502 CONNECTOR,RAIL
4932JA3009R 4932JA3009R CONNECTOR,TUBE
ACQ90088703 ACQ90088703 COVER ASSEMBLY,DISPENSER
ACQ85963302 ACQ85963302 COVER ASSEMBLY,FRONT
ACQ86664774 ACQ86664774 COVER ASSEMBLY,HINGE
ACQ86664782 ACQ86664782 COVER ASSEMBLY,HINGE
ACQ85930905 ACQ85930905 COVER ASSEMBLY,MACHINERY(REAR)
ACQ86388101 ACQ86388101 COVER ASSEMBLY,PCB
ACQ90063008 ACQ90063008 COVER ASSEMBLY,TRAY
ACQ89579312 ACQ89579312 COVER ASSEMBLY,TRAY VEGETABLE
MCK67227903 MCK67227903 COVER,DOOR SWITCH
MCK69605202 MCK69605202 COVER,FILTER
MCK69605302 MCK69605302 COVER,FILTER
MCK66769007 MCK66769007 COVER,LAMP
MCK70864305 MCK70864305 COVER,LAMP
3550JA2273B 3550JA2273B COVER,MOTOR
MCK69300903 MCK69300903 COVER,PTC
MCK70185002 MCK70185002 COVER,TRAY
5040JA3071C 5040JA3071C DAMPER,COMPRESSOR
5040JQ2002B 5040JQ2002B DAMPER,MOTOR SUPPORT
5040JQ2003B 5040JQ2003B DAMPER,MOTOR SUPPORT
5072JA3003F 5072JA3003F DAMPER,NOISE
5072JA3003G 5072JA3003G DAMPER,NOISE
MCR66849224 MCR66849224 DECOR,COVER
MCR66806901 MCR66806901 DECOR,TRAY
ADD73936019 ADD73936019 DOOR FOAM ASSEMBLY,FREEZER
ADD73936020 ADD73936020 DOOR FOAM ASSEMBLY,FREEZER
ADD73656078 ADD73656078 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADD73996081 ADD73996081 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ74812524 ADJ74812524 DUCT ASSEMBLY,MULTI
ADL73762017 ADL73762017 EVAPORATOR ASSEMBLY
ADL73762028 ADL73762028 EVAPORATOR ASSEMBLY
ADL73762013 ADL73762013 EVAPORATOR ASSEMBLY
ADP73273402 ADP73273402 FAN ASSEMBLY
ADP74833601 ADP74833601 FAN ASSEMBLY
AGF80300704 AGF80300704 FILTER ASSEMBLY,WATER
AGF80300705 AGF80300705 FILTER ASSEMBLY,WATER
ADX72930474 ADX72930474 GASKET ASSEMBLY,DOOR
ADX72930475 ADX72930475 GASKET ASSEMBLY,DOOR
MDS38201428 MDS38201428 GASKET,DOOR
MDS38201429 MDS38201429 GASKET,DOOR
MDT62207801 MDT62207801 GEAR,ICE
AEB73764526 AEB73764526 GRILLE ASSEMBLY,FAN
AEC73957606 AEC73957606 GUIDE ASSEMBLY,RAIL
AEC73957607 AEC73957607 GUIDE ASSEMBLY,RAIL
AEC73977404 AEC73977404 GUIDE ASSEMBLY,RAIL
AEC73977405 AEC73977405 GUIDE ASSEMBLY,RAIL
AEC74897822 AEC74897822 GUIDE ASSEMBLY,RAIL
AEC74897823 AEC74897823 GUIDE ASSEMBLY,RAIL
MEA61842702 MEA61842702 GUIDE,DRAWER
MEA42772909 MEA42772909 GUIDE,FAN
AED37133173 AED37133173 HANDLE ASSEMBLY,FREEZER
AED73593115 AED73593115 HANDLE ASSEMBLY,FREEZER
AED73593256 AED73593256 HANDLE ASSEMBLY,REFRIGERATOR
AED73593258 AED73593258 HANDLE ASSEMBLY,REFRIGERATOR
AED75493802 AED75493802 HANDLE ASSEMBLY,REFRIGERATOR
MEB65420101 MEB65420101 HANDLE,REAR
MEB65420102 MEB65420102 HANDLE,REAR
EAD62428627 EAD62428627 HARNESS ASSEMBLY
AKN72949013 AKN72949013 HEAD ASSEMBLY,FILTER
MEE63545715 MEE63545715 HEATER,SHEATH
MEE63545708 MEE63545708 HEATER,SHEATH
AEH36821905 AEH36821905 HINGE ASSEMBLY,CENTER
AEH76036209 AEH76036209 HINGE ASSEMBLY,CENTER
AEH76036212 AEH76036212 HINGE ASSEMBLY,CENTER
AEH74216502 AEH74216502 HINGE ASSEMBLY,UPPER
AEH60614115 AEH60614115 HINGE ASSEMBLY,UPPER
4930JA3091A 4930JA3091A HOLDER,BRACKET
MEG65158801 MEG65158801 HOLDER,BRACKET
MEG63261302 MEG63261302 HOLDER,DOOR
4930JA3034C 4930JA3034C HOLDER,DRIER
MEG61879201 MEG61879201 HOLDER,PIPE
MEG65119006 MEG65119006 HOLDER,SHELF
AEQ72909603 AEQ72909603 ICE MAKER ASSEMBLY,KIT
EAV63613211 EAV63613211 LED ASSEMBLY
EAV64632103 EAV64632103 LED ASSEMBLY
AFC72909201 AFC72909201 LEG ASSEMBLY,ADJUST
4510JA3003D 4510JA3003D LEVER,ICE MAKER
MFF62123101 MFF62123101 LINK
EAU65058327 EAU65058327 MOTOR ASSEMBLY,DC
EAU65058502 EAU65058502 MOTOR ASSEMBLY,DC
EAU65058511 EAU65058511 MOTOR ASSEMBLY,DC
MFT62346511 MFT62346511 NAME PLATE
MFT64808222 MFT64808222 NAME PLATE,PET
EAF61170610 EAF61170610 OVERLOAD PROTECT
EBR83845079 EBR83845079 PCB ASSEMBLY,MAIN
EBR71326806 EBR71326806 PCB ASSEMBLY,SENSOR
EBR64730408 EBR64730408 PCB ASSEMBLY,SUB
1PZZJA3013B 1PZZJA3013B PIN,COMMON
4J00977P 4J00977P PIPE,COMPRESSOR SEALING
MGE62010610 MGE62010610 PIPE,COMPRESSOR SEALING
AGU73950905 AGU73950905 PLATE ASSEMBLY,CENTER
AGU75188619 AGU75188619 PLATE ASSEMBLY,FRONT
AGU75188629 AGU75188629 PLATE ASSEMBLY,FRONT
EAD62329195 EAD62329195 POWER CORD ASSEMBLY
MGT61844108 MGT61844108 RAIL,SLIDE
MGT61844109 MGT61844109 RAIL,SLIDE
TCA36911411 TCA36911411 REFRIGERATOR COMPRESSOR
TCA37091615 TCA37091615 REFRIGERATOR COMPRESSOR
MGZ62766901 MGZ62766901 RING
MHA62513604 MHA62513604 ROLLER
MHA62513601 MHA62513601 ROLLER
1SZZJJ3010F 1SZZJJ3010F SCREW,CUSTOMIZED
6500JB2002X 6500JB2002X SENSOR,TEMPERATURE
AHT74574217 AHT74574217 SHELF ASSEMBLY,REFRIGERATOR
AHT74574218 AHT74574218 SHELF ASSEMBLY,REFRIGERATOR
MHL64031801 MHL64031801 SHELF,NET
MHL64031802 MHL64031802 SHELF,NET
MHL64031808 MHL64031808 SHELF,NET
MHL64031809 MHL64031809 SHELF,NET
MHL64351401 MHL64351401 SHELF,REFRIGERATOR
MHL64351403 MHL64351403 SHELF,REFRIGERATOR
AHT74574210 AHT74574210 SHELF,REFRIGERATOR
MHL64351503 MHL64351503 SHELF,REFRIGERATOR
MHU38218911 MHU38218911 SPANNER
MHU38218908 MHU38218908 SPANNER
MHY62644404 MHY62644404 SPRING
AJC73112301 AJC73112301 STOPPER ASSEMBLY,DOOR
AJC73112302 AJC73112302 STOPPER ASSEMBLY,DOOR
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR
4620JJ2009A 4620JJ2009A STOPPER,DOOR
MJB63190001 MJB63190001 STOPPER,HANDLE
MJH62553609 MJH62553609 SUPPORTER,COVER TRAY
EBF61314813 EBF61314813 SWITCH,MAGNET
EBF62234504 EBF62234504 SWITCH,MAGNET
EBF62234513 EBF62234513 SWITCH,MAGNET
EBF64334701 EBF64334701 SWITCH,MAGNET
6600JB3001C 6600JB3001C SWITCH,MICRO

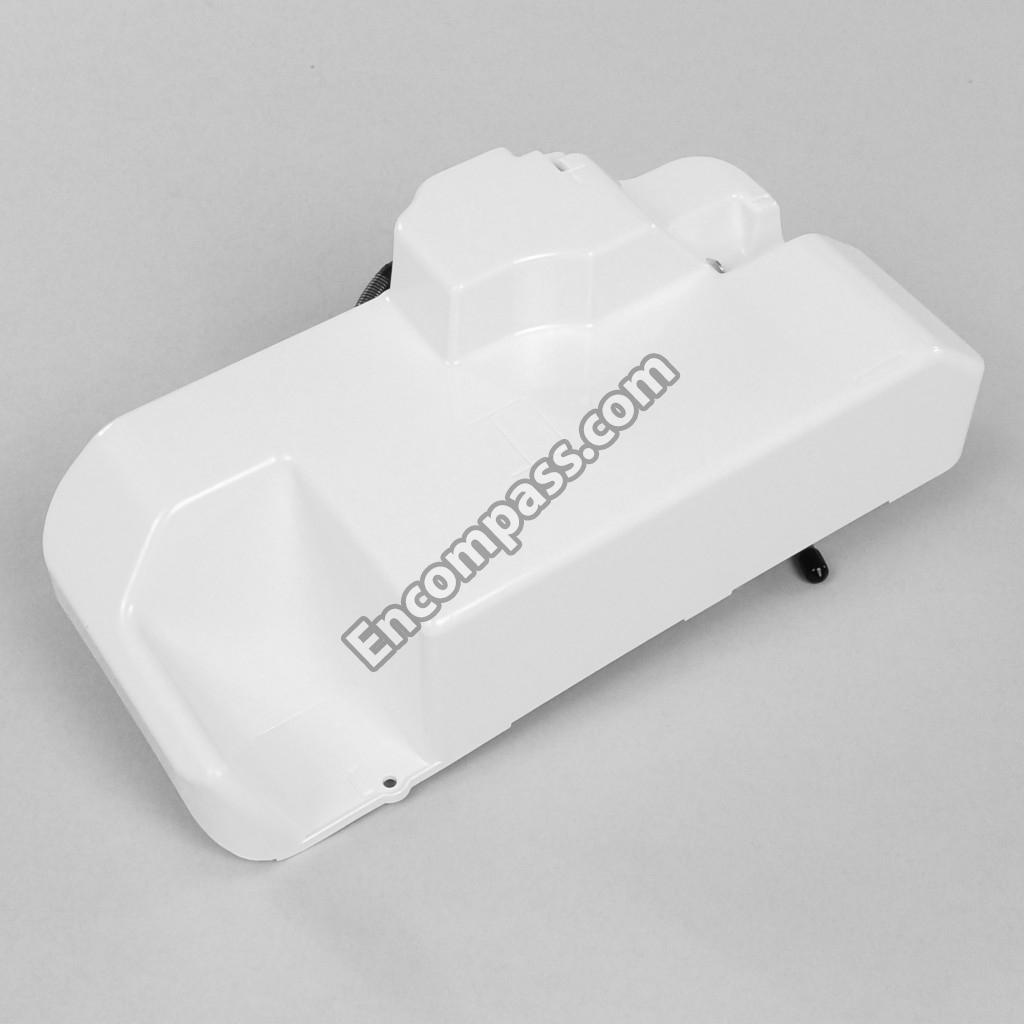

AJL72911510 AJL72911510 TANK ASSEMBLY,WATER
EBG60663279 EBG60663279 THERMISTOR ASSEMBLY,PTC
AJP73574405 AJP73574405 TRAY ASSEMBLY,DRAIN
AJP73754603 AJP73754603 TRAY ASSEMBLY,DRAWER
AJP73794403 AJP73794403 TRAY ASSEMBLY,DRAWER
AJP73794505 AJP73794505 TRAY ASSEMBLY,DRAWER
AJP75235121 AJP75235121 TRAY ASSEMBLY,FRESH ROOM
AJP75235038 AJP75235038 TRAY ASSEMBLY,VEGETABLE
AJP75235039 AJP75235039 TRAY ASSEMBLY,VEGETABLE
MJS65314001 MJS65314001 TRAY,DRIP
MJS65314003 MJS65314003 TRAY,DRIP
MJS61849401 MJS61849401 TRAY,FREEZER
5251JA3003D 5251JA3003D TUBE ASSEMBLY,DRAIN

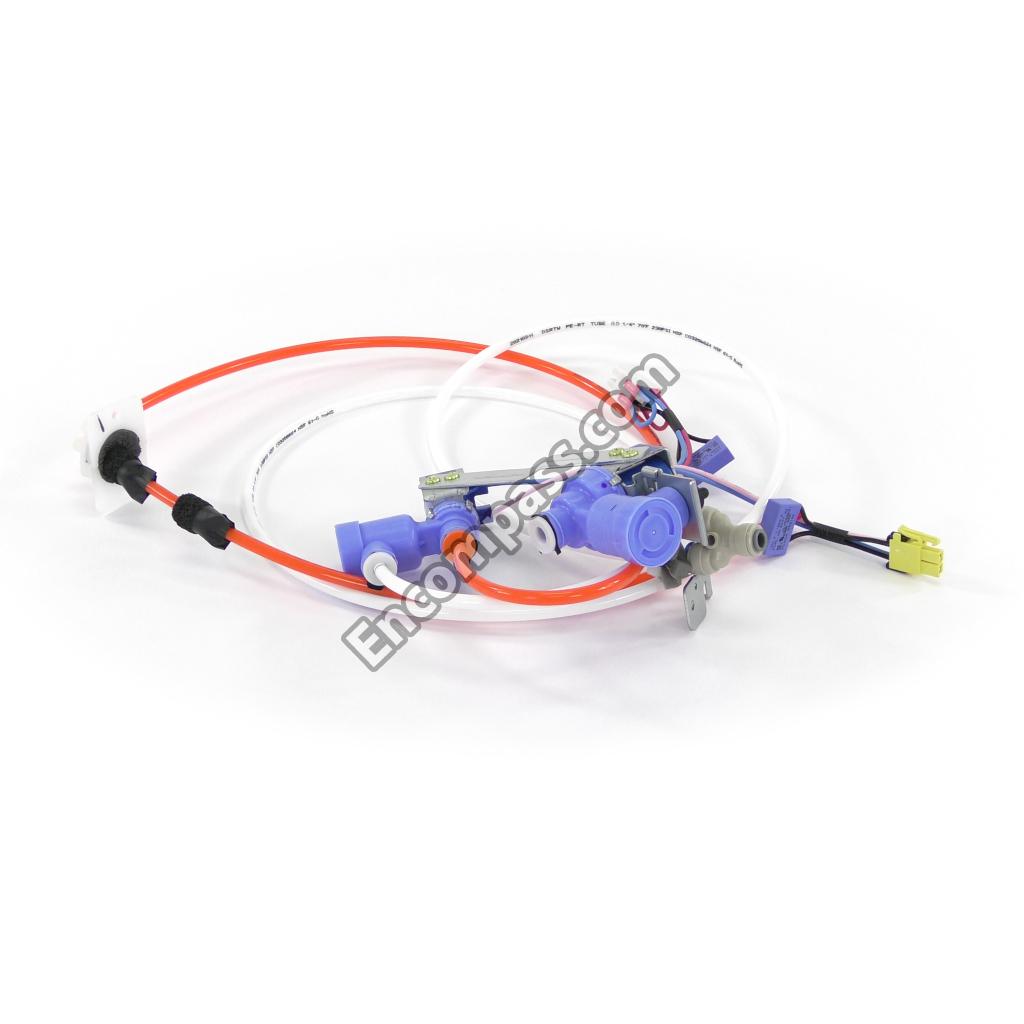

AJU73432818 AJU73432818 VALVE ASSEMBLY,WATER
