Model Image
Manufacturer

LG

Model Number

LRE30755SB

Description

5.6 Cu.ft. Freestanding Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4270W1N001A 4270W1N001A BAR [5501]
4790W0N002C 4790W0N002C BARRIER [2033]
3890W2Y324C 3890W2Y324C BOX [01-MAY]
ABA34660001 ABA34660001 BRACKET ASSEMBLY [5063]
4810W1N020B 4810W1N020B BRACKET,HEATER [5506]
4810W1N022A 4810W1N022A BRACKET,HEATER [5507]
4810W1N018A 4810W1N018A BRACKET,HEATER [8509]
4810W1N023A 4810W1N023A BRACKET,HEATER [8510]
4810W1N040A 4810W1N040A BRACKET,HINGE [5512]
MAZ34877101 MAZ34877101 BRACKET,IDLE
MAZ60113201 MAZ60113201 BRACKET,MOUNT [1703]
3840W5T149A 3840W5T149A CARD,TECHNICAL [MBM2]
MBM37524801 MBM37524801 CARD,TEMPLATE [MBM3]
3504W0N001A 3504W0N001A CHAMBER
EAG32629302 EAG32629302 CONNECTOR,TERMINAL BLOCK
EAG32629301 EAG32629301 CONNECTOR,TERMINAL BLOCK [36640B]
ACM33627121 ACM33627121 CONTROLLER ASSEMBLY,KEYPAD
3550W1N003D 3550W1N003D COVER,HEATER [3202]
3550W1N011A 3550W1N011A COVER,HEATER [8505]
3550W0N006B 3550W0N006B COVER,INNER [1020]
3550W1N004A 3550W1N004A COVER,POWER CORD [8506]
MCK36350004 MCK36350004 COVER,REAR
3550W0N008A 3550W0N008A COVER,REAR [2048]
MCK36350001 MCK36350001 COVER,REAR [3013]
3806W0N012B 3806W0N012B DECOR,DOOR [1015]
4870W0N002E 4870W0N002E DRAWER [8514]
4870W0N001A 4870W0N001A DRAWER [8515]
5900W1N001B 5900W1N001B FAN [5407]
5230W1N001B 5230W1N001B FILTER,CHARCOAL [5037]
4778W1N001B 4778W1N001B FOOT [847781]
ADV66482002 ADV66482002 FRAME ASSEMBLY,DOOR [1000]
3212W0N001A 3212W0N001A FRAME,DOOR [8501]
3650W0N004C 3650W0N004C HANDLE,DOOR [1009]
6877W1N024D 6877W1N024D HARNESS,SINGLE
6631W3A006X 6631W3A006X HARNESS,SINGLE
6877W1N034A 6877W1N034A HARNESS,SINGLE [3014]
6877W1N035A 6877W1N035A HARNESS,SINGLE [3016]
6877W1N025B 6877W1N025B HARNESS,SINGLE [5019]
6877W1N024B 6877W1N024B HARNESS,SINGLE [8519]
5300W1R009A 5300W1R009A HEATER,RADIANT [3301]
5300W1R005A 5300W1R005A HEATER,RADIANT [3302]
5300W1R004A 5300W1R004A HEATER,RADIANT [3303]
5300W1R010A 5300W1R010A HEATER,RADIATION
MEE36592903 MEE36592903 HEATER,SHEATH
MEE36593202 MEE36593202 HEATER,SHEATH
MEE36593201 MEE36593201 HEATER,SHEATH [5513]
MEE36592904 MEE36592904 HEATER,SHEATH [5514]
MEE36602201 MEE36602201 HEATER,SHEATH [5521]
MEE36602403 MEE36602403 HEATER,SHEATH [8518]
AEH72957505 AEH72957505 HINGE ASSEMBLY [1704]
4930W0N001A 4930W0N001A HOLDER,DISPLAY [2402]
4930W1N005A 4930W1N005A HOLDER,DISPLAY [2403]
4930W1A071A 4930W1A071A HOLDER,DISPLAY [2404]
4B72510F 4B72510F HOLDER,WIRE [3006]
5290W1N003F 5290W1N003F INSULATOR [1023]
5290W1N003G 5290W1N003G INSULATOR [1024]
5012W1N016A 5012W1N016A INSULATOR [3007]
5012W0N002A 5012W0N002A INSULATOR [5409]
5012W0N001A 5012W0N001A INSULATOR [8517]
6913W1N002D 6913W1N002D LAMP,INCANDESCENT
6913W1N002C 6913W1N002C LAMP,INCANDESCENT [5511]
6549W1S025A 6549W1S025A MOTOR ASSEMBLY,AC,SYNCHRONOUS [5502]
EAU36206002 EAU36206002 MOTOR,AC FAN [5404]
3846W1N001B 3846W1N001B NAME PLATE [2038]
1NHB0500032 1NHB0500032 NUT,COMMON [W233]
3920W0N001A 3920W0N001A PACKING,GASKET [5515]
3920W1N013A 3920W1N013A PACKING,GASKET [5516]
3920W1N014A 3920W1N014A PACKING,IDLE [3057]
3720W0E011A 3720W0E011A PANEL [5509]
3720W0E012C 3720W0E012C PANEL [5510]
3720W0E010C 3720W0E010C PANEL [8507]
3720W0C247V 3720W0C247V PANEL,CONTROL [2002]
383EW1N006H 383EW1N006H PARTS ASSEMBLY [2385]
383EW0N001E 383EW0N001E PARTS ASSEMBLY [8388]

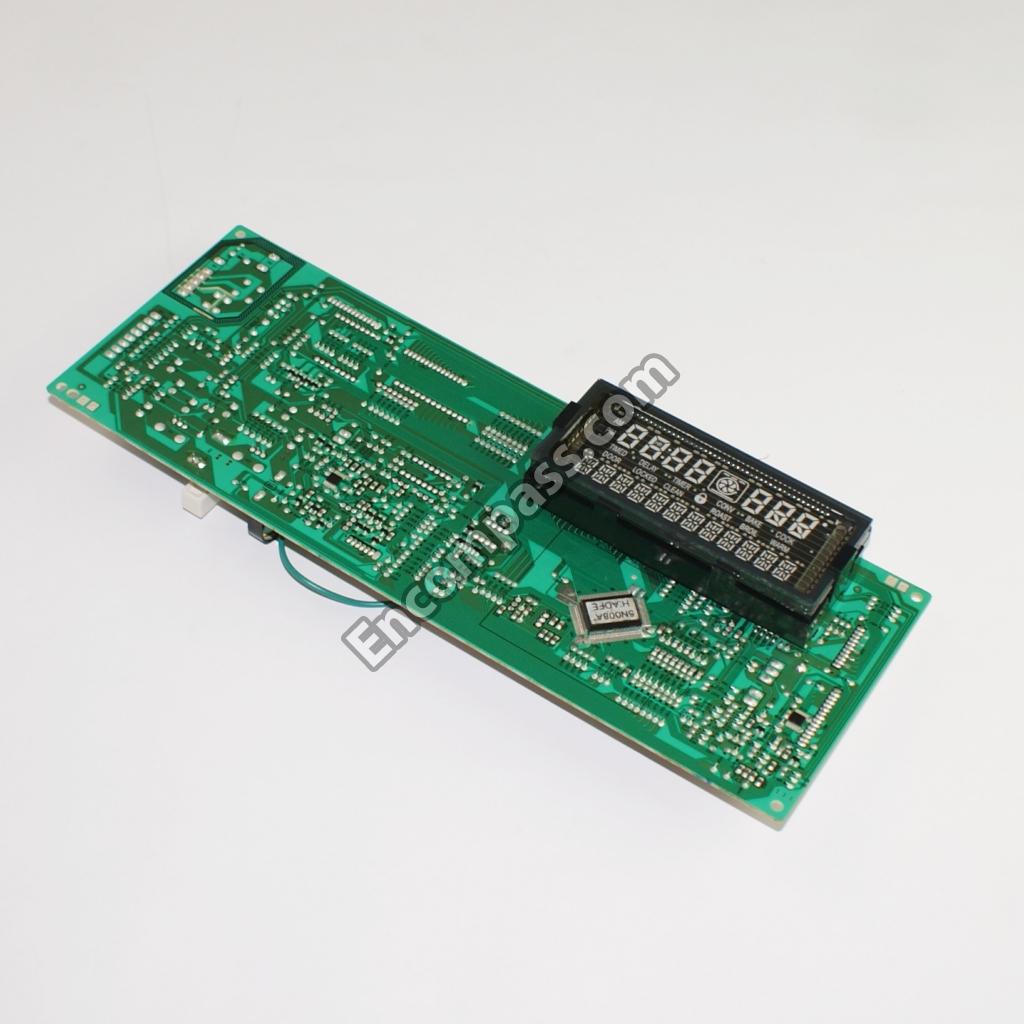

6871W1N009A 6871W1N009A PCB ASSEMBLY,OPTION
EBR74632606 EBR74632606 PCB ASSEMBLY,SUB

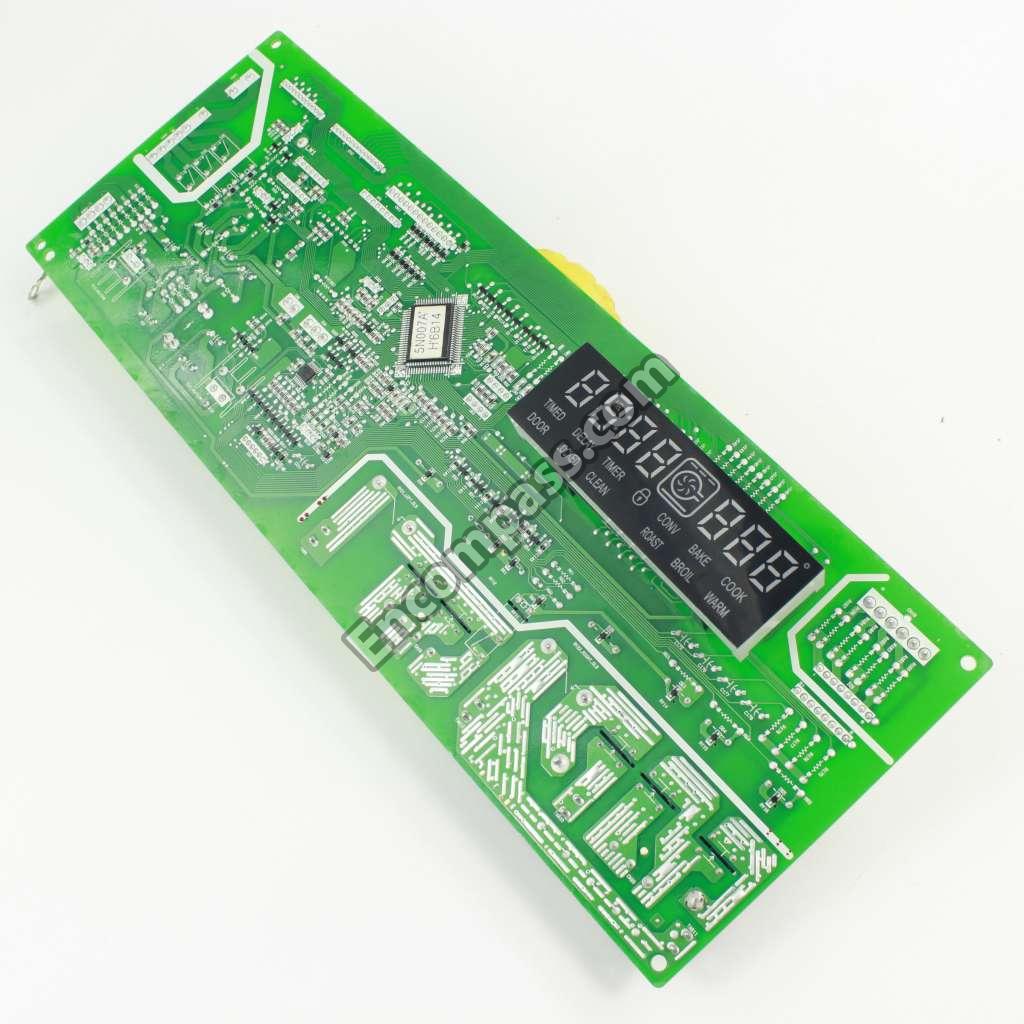

EBR74632605 EBR74632605 PCB ASSEMBLY,SUB
6871W1N011D 6871W1N011D PCB ASSEMBLY,SUB
EBR74632601 EBR74632601 PCB ASSEMBLY,SUB
6871W1N010A 6871W1N010A PCB ASSEMBLY,SUB [2009]
6871W1N011A 6871W1N011A PCB ASSEMBLY,SUB [2030]
6871W1N012A 6871W1N012A PCB ASSEMBLY,SUB [5070]
3301W0N002F 3301W0N002F PLATE ASSEMBLY
4960W0N001A 4960W0N001A PLATE [8516]
3302W1N001B 3302W1N001B PLATE,BASE [8502]
3446W0N001B 3446W0N001B PLATE,FRONT
3446W0N001D 3446W0N001D PLATE,FRONT [8503]
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED [W222]
1SZZW5N001B 1SZZW5N001B SCREW,CUSTOMIZED [W224]
1SZZW5N001E 1SZZW5N001E SCREW,CUSTOMIZED [W228]
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED [W230]
1SZZW1N006A 1SZZW1N006A SCREW,CUSTOMIZED [W231]
4000W4A001E 4000W4A001E SCREW,CUSTOMIZED [W234]
1TTL0402418 1TTL0402418 SCREW,TAPPING [W105]
1TTL0402618 1TTL0402618 SCREW,TAPPING [W144]
1TTL0403418 1TTL0403418 SCREW,TAPPING [W146]
1TTL0402622 1TTL0402622 SCREW,TAPPING [W149]
1TTL0403118 1TTL0403118 SCREW,TAPPING [W172]
1TPL0402018 1TPL0402018 SCREW,TAPPING [W238]
1TTL0403116 1TTL0403116 SCREW,TAPPING [W239]
1TTG0402422 1TTG0402422 SCREW,TAPTITE [W101]
1ATF0502610 1ATF0502610 SCREW,TAPTITE [W235]
1SBF0402618 1SBF0402618 SCREW,TAPTITE [W237]
MHL39274601 MHL39274601 SHELF

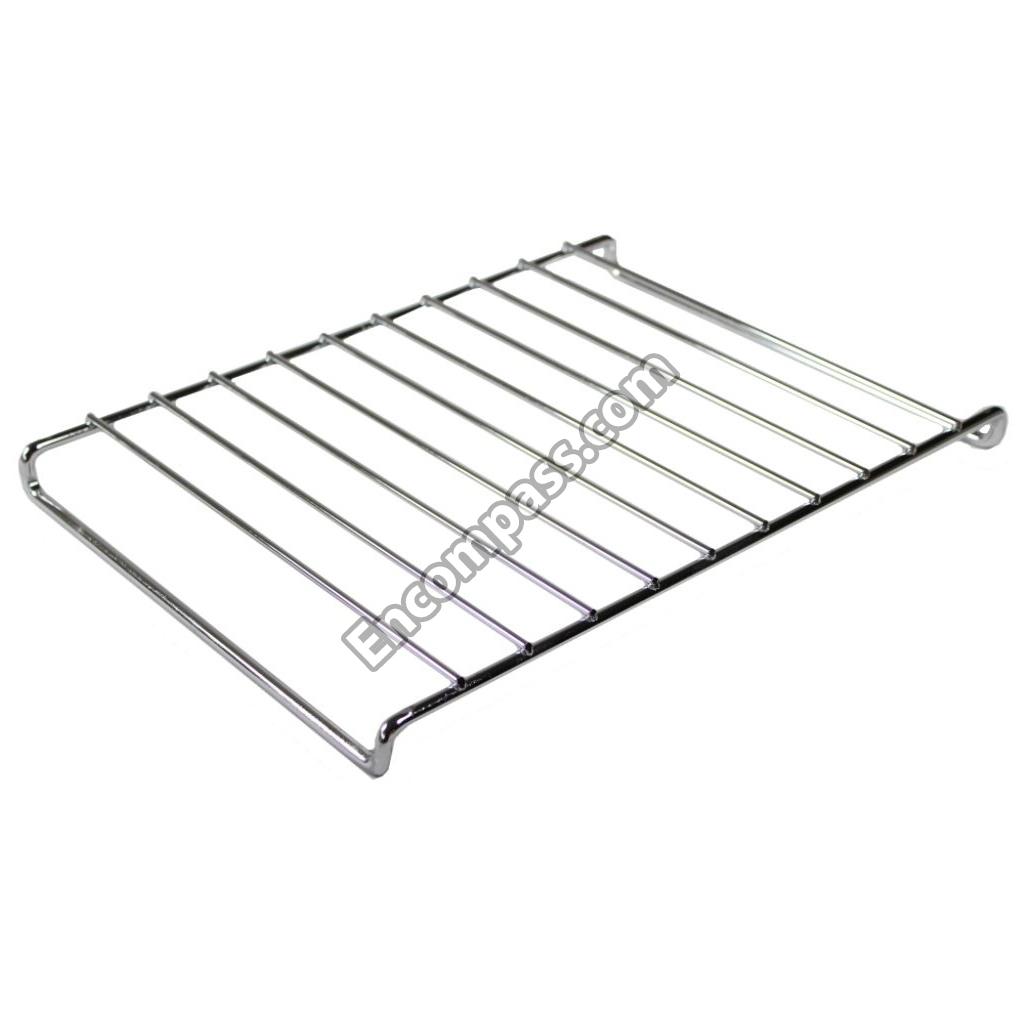

5026W1N001B 5026W1N001B SHELF
MHL39256102 MHL39256102 SHELF
MHL39256107 MHL39256107 SHELF [3501]
5026W1N002B 5026W1N002B SHELF [3504]
4818W1N001A 4818W1N001A SLIDER [8512]
4818W1N002A 4818W1N002A SLIDER [8513]
4970W1N004A 4970W1N004A SPRING [3058]
4980W1N010C 4980W1N010C SUPPORTER [1401]
4980W1N010F 4980W1N010F SUPPORTER [1402]
4980W1N011C 4980W1N011C SUPPORTER [1403]
4980W1N017D 4980W1N017D SUPPORTER [1404]
4980W1N020C 4980W1N020C SUPPORTER [2036]
4980W1N021C 4980W1N021C SUPPORTER [2037]
4980W1N014A 4980W1N014A SUPPORTER [3401]
4980W0N002A 4980W0N002A SUPPORTER [3402]
4980W1N026B 4980W1N026B SUPPORTER [5503]
4980W1N009B 4980W1N009B SUPPORTER [5504]
4980W1N013A 4980W1N013A SUPPORTER [5505]
4980W1N023B 4980W1N023B SUPPORTER [8520]
EBF60663401 EBF60663401 SWITCH,TACT
EBF60663403 EBF60663403 SWITCH,TACT [4002]
EBG61305801 EBG61305801 THERMISTOR,PTC [5021]
6930W1A003X 6930W1A003X THERMOSTAT [5016]
6170W1G035A 6170W1G035A TRANSFORMER,POWER [2018]
3390W0N002D 3390W0N002D TRAY,METAL [3044]
3390W0N001E 3390W0N001E TRAY,METAL [3144]
AJV33791702 AJV33791702 VENT ASSEMBLY [5517]
4H00056C 4H00056C WASHER,COMMON [W236]
1WZZ81N001A 1WZZ81N001A WASHER,CUSTOMIZED [W232]
4890W0N002B 4890W0N002B WINDOW,GLASS
4890W1N005A 4890W1N005A WINDOW,GLASS [1018]
