Model Image
Manufacturer

LG

Model Number

LREL6323S

Description

6.3 Cu Ft. Smart Fan Convection Electric Range

Interactive Exploded View
Exploded View

Parts List

Part Number Description
EAU61865305 EAU61865305 AC FAN MOTOR
MAG64123004 MAG64123004 BALANCE WEIGHT
MAG64123001 MAG64123001 BALANCE WEIGHT
MAK61907202 MAK61907202 BAR
MAL64203703 MAL64203703 BARRIER
MAZ62210803 MAZ62210803 BARRIER
MGJ67004802 MGJ67004802 BASE PLATE
MGJ67004801 MGJ67004801 BASE PLATE
ABA30100101 ABA30100101 BRACKET ASSEMBLY
ABA75389602 ABA75389602 BRACKET ASSEMBLY
MAZ63310803 MAZ63310803 BRACKET,HEATER
MAZ61885801 MAZ61885801 BRACKET,HINGE
MAZ61859006 MAZ61859006 BRACKET,IDLE
MAZ64590502 MAZ64590502 BRACKET,IDLE
MAZ67454001 MAZ67454001 BRACKET,MOUNT
MBR62041705 MBR62041705 CHAMBER
MBR62041701 MBR62041701 CHAMBER
5230W1N001A 5230W1N001A CHARCOAL FILTER
1NHB0500032 1NHB0500032 COMMON NUT
EBR32418503 EBR32418503 CONTROL BOARD,WIFI
EBR85871801 EBR85871801 CONTROL BOARD,WIFI
MDG35948702 MDG35948702 CONVECTION FAN
4930W1A069C 4930W1A069C COOK AUXILIARY HOLDER
MJH66074502 MJH66074502 COVER SUPPORTER
MJH66074501 MJH66074501 COVER SUPPORTER
MCK71414904 MCK71414904 COVER,GUIDE
MCK71167511 MCK71167511 COVER,MOTOR
MCK71167512 MCK71167512 COVER,MOTOR
FAK30249601 FAK30249601 CUSTOMIZED ANCHOR
1SZZW5N001C 1SZZW5N001C CUSTOMIZED SCREW
1SZZW1N003A 1SZZW1N003A CUSTOMIZED SCREW
1SZZW5N001A 1SZZW5N001A CUSTOMIZED SCREW
1SZZW1E002C 1SZZW1E002C CUSTOMIZED SCREW
1SZZW5N001H 1SZZW5N001H CUSTOMIZED SCREW
1SZZW1N006A 1SZZW1N006A CUSTOMIZED SCREW
1WZZW3Z003E 1WZZW3Z003E CUSTOMIZED WASHER
1WZZ81N001A 1WZZ81N001A CUSTOMIZED WASHER
EBR89296401 EBR89296401 DISPLAY PCB ASSEMBLY
MDQ64177003 MDQ64177003 DOOR FRAME
MEB65414301 MEB65414301 DOOR HANDLE
MCX62621401 MCX62621401 DRAWER

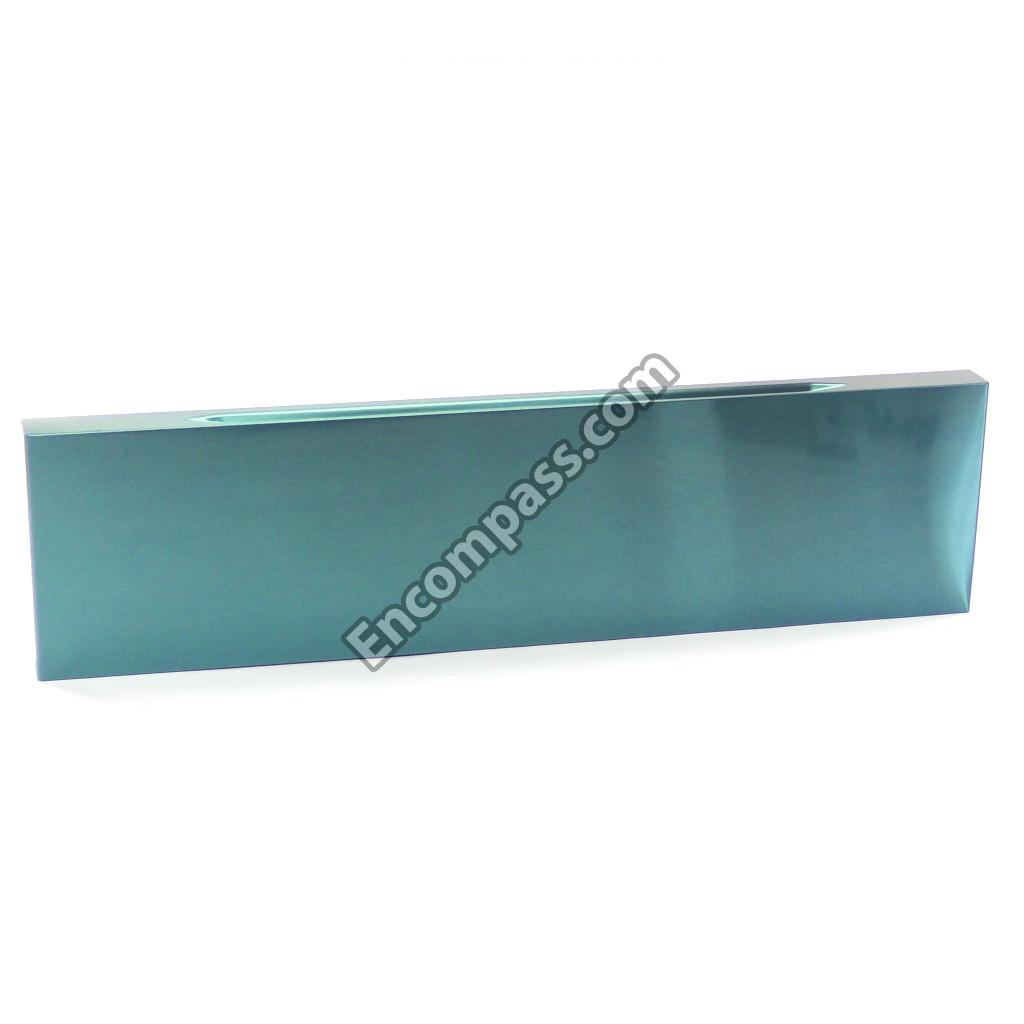

MGC63820408 MGC63820408 DRAWER PANEL
MDQ66517601 MDQ66517601 FIXING FRAME
MEG66479101 MEG66479101 FIXING HOLDER
4778W1N001E 4778W1N001E FOOT
4778W1N001B 4778W1N001B FOOT
ADU73169401 ADU73169401 FOOT
ADU73169405 ADU73169405 FOOT ASSEMBLY
MGJ67004004 MGJ67004004 FRONT PLATE
MFZ66946601 MFZ66946601 GASKET PACKING
3920W1N013D 3920W1N013D GASKET PACKING
MFZ62037301 MFZ62037301 GASKET PACKING
4890W1N009H 4890W1N009H GLASS WINDOW
MCK71414901 MCK71414901 GUIDE COVER
MGZ63727001 MGZ63727001 GUIDE RING
EAQ62881201 EAQ62881201 HALOGEN LAMP
AEG33897013 AEG33897013 HEATER ASSEMBLY
MAZ63310801 MAZ63310801 HEATER BRACKET
MAZ63491302 MAZ63491302 HEATER BRACKET
MCK71166602 MCK71166602 HEATER COVER
MEE64286101 MEE64286101 HEATER,RADIATION
AEH75637213 AEH75637213 HINGE ASSEMBLY
MAZ64788501 MAZ64788501 HINGE BRACKET
MAZ63548109 MAZ63548109 HINGE BRACKET
MAZ63548110 MAZ63548110 HINGE BRACKET
MAZ63548113 MAZ63548113 HINGE BRACKET
MAZ61859201 MAZ61859201 IDLE BRACKET
MAZ61859202 MAZ61859202 IDLE BRACKET
MAZ61859001 MAZ61859001 IDLE BRACKET
MGJ67004401 MGJ67004401 INNER PLATE
MEV65115502 MEV65115502 INSULATOR
MEV65115503 MEV65115503 INSULATOR
MEV65115501 MEV65115501 INSULATOR
MEV67477202 MEV67477202 INSULATOR
AEV73732801 AEV73732801 INSULATOR ASSEMBLY
MCK71166701 MCK71166701 INSULATOR COVER

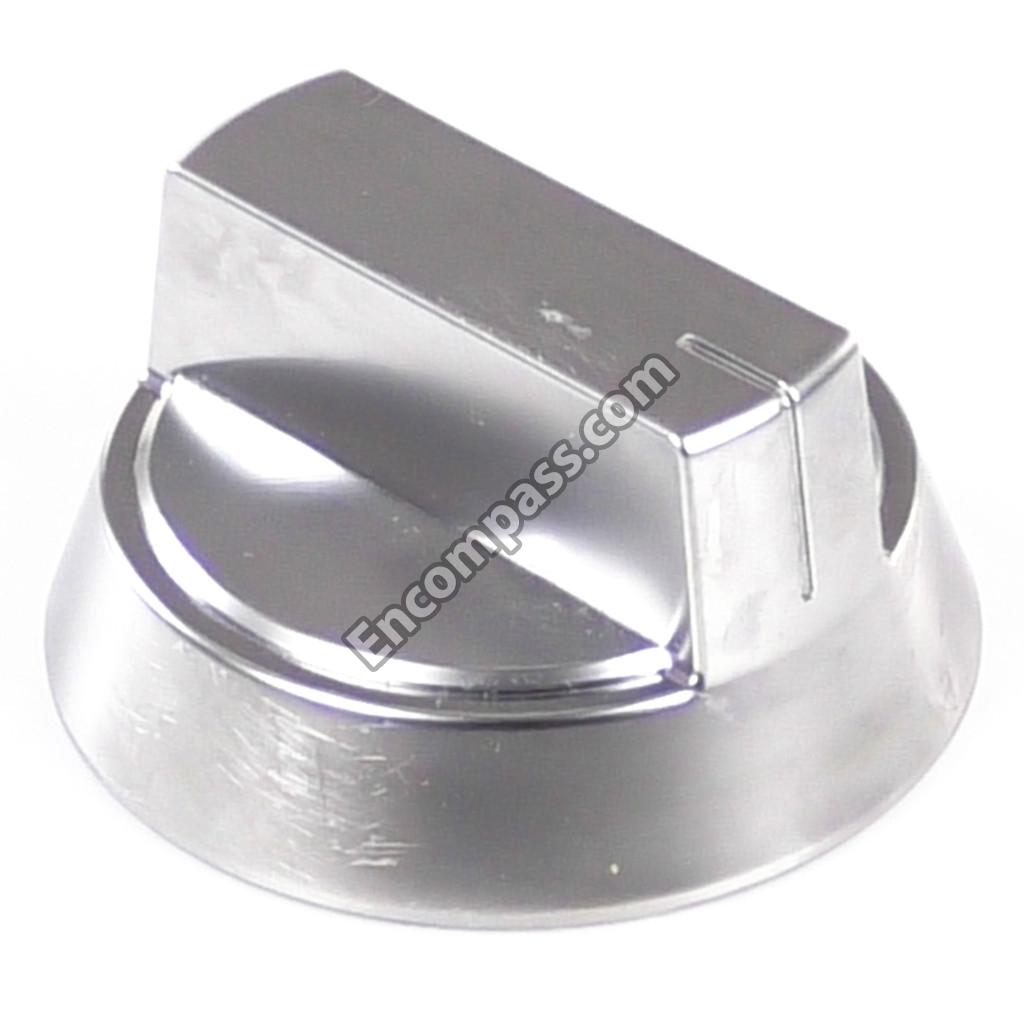

AEZ75853703 AEZ75853703 KNOB ASSEMBLY
EBR89296002 EBR89296002 MAIN BOARD
EBR42712505 EBR42712505 MAIN PCB ASSEMBLY
EAU62862906 EAU62862906 MOTOR ASSEMBLY,AC,SYNCHRONOUS
4810W1N060B 4810W1N060B MOTOR BRACKET
MCK71167504 MCK71167504 MOTOR COVER
MCK71167503 MCK71167503 MOTOR COVER
MAZ67456202 MAZ67456202 MOUNT BRACKET
MGC63820409 MGC63820409 PANEL,DRAWER
MGC66180404 MGC66180404 PANEL,REAR
MGC62644047 MGC62644047 PANEL,SIDE
MGC62644048 MGC62644048 PANEL,SIDE

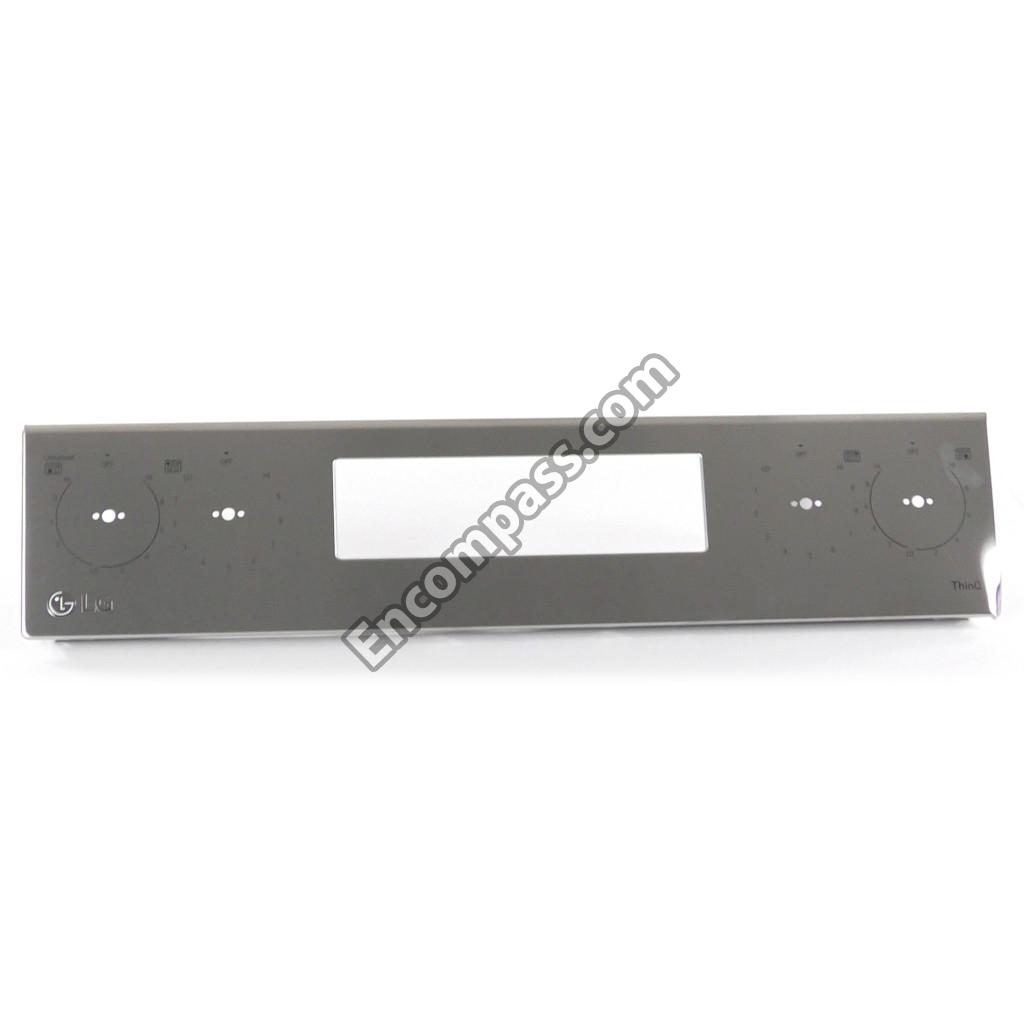

AGM30025901 AGM30025901 PARTS ASSEMBLY
AGM30025503 AGM30025503 PARTS ASSEMBLY
AGU76970502 AGU76970502 PLATE ASSEMBLY
MGJ67004403 MGJ67004403 PLATE,INNER
MCK66822404 MCK66822404 POWER CORD COVER
EBG61305805 EBG61305805 PTC THERMISTOR
MEE64286401 MEE64286401 RADIATION HEATER
MEE64286201 MEE64286201 RADIATION HEATER
MEE62385001 MEE62385001 RADIATION HEATER
MEA66170001 MEA66170001 RAIL GUIDE
MCK71167101 MCK71167101 REAR COVER
MGC66180401 MGC66180401 REAR PANEL
MGZ63727002 MGZ63727002 RING,GUIDE
EBF62174907 EBF62174907 ROTARY SWITCH
EBF64395301 EBF64395301 ROTARY SWITCH
MCK71167402 MCK71167402 SAFETY COVER
FAB31821701 FAB31821701 SCREW,CUSTOMIZED
1SZZW1N006E 1SZZW1N006E SCREW,CUSTOMIZED
1TTL0402618 1TTL0402618 SCREW,TAPPING

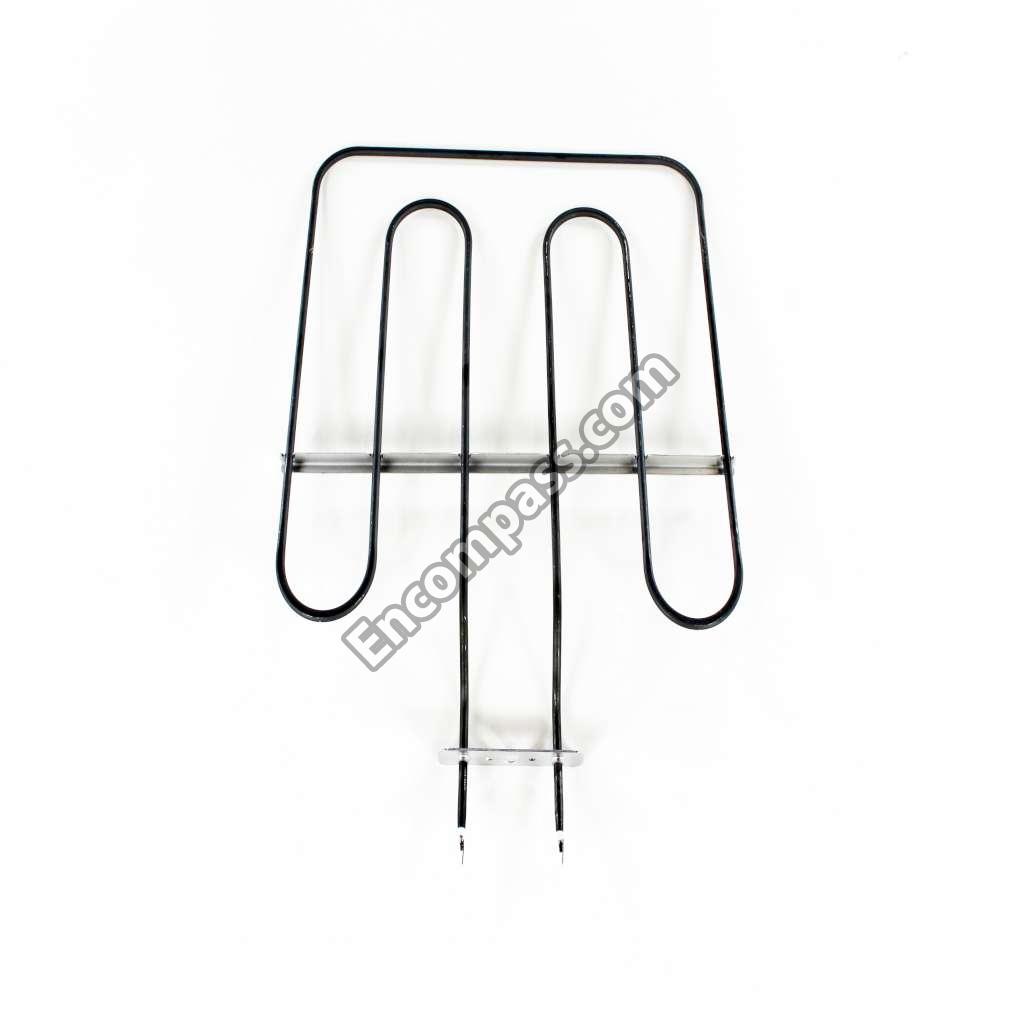

MEE62306504 MEE62306504 SHEATH HEATER
MEE62306405 MEE62306405 SHEATH HEATER

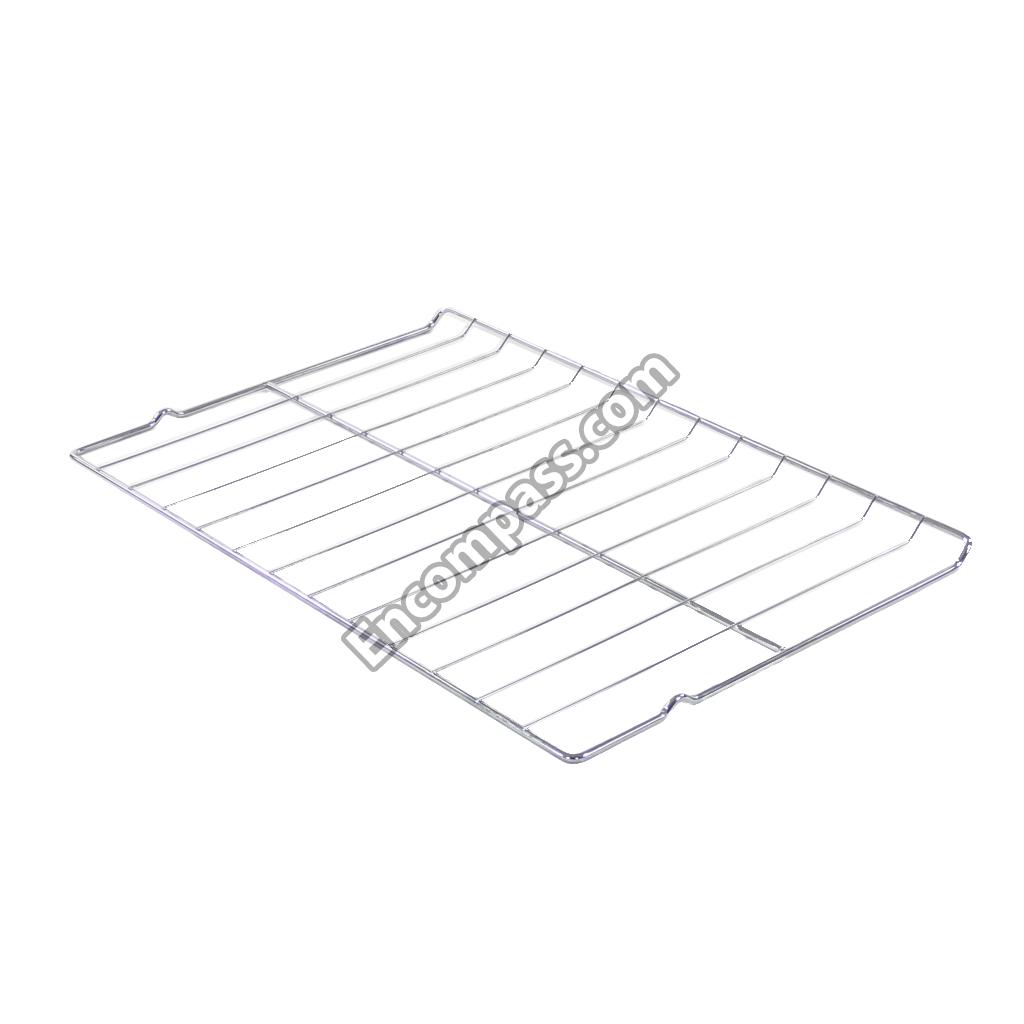

MHL64712101 MHL64712101 SHELF
3300W1N003P 3300W1N003P SHIELD PLATE
MGC62644028 MGC62644028 SIDE PANEL
MGC62644027 MGC62644027 SIDE PANEL
EAD65616902 EAD65616902 SINGLE HARNESS
EAD65616802 EAD65616802 SINGLE HARNESS
EAD61076101 EAD61076101 SINGLE HARNESS
6877W1N024F 6877W1N024F SINGLE HARNESS
EAD62349830 EAD62349830 SINGLE HARNESS
EAD62349832 EAD62349832 SINGLE HARNESS
EAD34822916 EAD34822916 SINGLE HARNESS
ADC30000601 ADC30000601 SUB DOOR ASSEMBLY
4980W1N014D 4980W1N014D SUPPORTER
MJH37701302 MJH37701302 SUPPORTER,HOLDER
EBF62174908 EBF62174908 SWITCH,ROTARY
EBF62174906 EBF62174906 SWITCH,ROTARY
EAU62862904 EAU62862904 SYNCHRONOUS AC MOTOR ASSEMBLY
EBF60663404 EBF60663404 TACT SWITCH
1TTL0402418 1TTL0402418 TAPPING SCREW
1TTL0403118 1TTL0403118 TAPPING SCREW
1SBF0402418 1SBF0402418 TAPTITE SCREW
EAG32629306 EAG32629306 TERMINAL BLOCK CONNECTOR
6930W1A003X 6930W1A003X THERMOSTAT
AJV73009307 AJV73009307 VENT ASSEMBLY
EBR83227508 EBR83227508 WIFI PCB ASSEMBLY
MJH66074001 MJH66074001 WINDOW SUPPORTER
