Model Image
Manufacturer

LG

Model Number

LRFWS2906S

Description

29 Cu Ft. French Door Refrigerator With Slim Desig

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AFC72909201 AFC72909201 ADJUST LEG ASSEMBLY
AAP74271331 AAP74271331 APPLIANCE DOOR BASKET
MAK64727006 MAK64727006 BAR
MAK64727011 MAK64727011 BAR
ABA74268214 ABA74268214 BRACKET ASSEMBLY,MOTOR
ABA74268215 ABA74268215 BRACKET ASSEMBLY,MOTOR
AEJ73579702 AEJ73579702 BRACKET HOLDER ASSEMBLY
ABH30001901 ABH30001901 BUTTON ASSEMBLY
MBG67853101 MBG67853101 BUTTON,FRAME
ABN74298110 ABN74298110 CAP ASSEMBLY,DUCT
MBL65277501 MBL65277501 CAP,RUBBER
EAE32501010 EAE32501010 CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL
AEH76036209 AEH76036209 CENTER HINGE ASSEMBLY
AEH76036210 AEH76036210 CENTER HINGE ASSEMBLY
AEH36821908 AEH36821908 CENTER HINGE ASSEMBLY
AEH73577637 AEH73577637 CENTER HINGE ASSEMBLY
AEH73577641 AEH73577641 CENTER HINGE ASSEMBLY
1PZZJA3013B 1PZZJA3013B COMMON PIN
AAN74048802 AAN74048802 COMPRESSOR BASE ASSEMBLY
MCQ66921101 MCQ66921101 COMPRESSOR DAMPER
4J00977P 4J00977P COMPRESSOR SEALING PIPE
4620JA3015A 4620JA3015A COMPRESSOR STOPPER
ACG76384402 ACG76384402 CONDENSER ASSEMBLY,WIRE
EBR60388516 EBR60388516 CONTROL BOARD
EBR71326806 EBR71326806 CONTROL BOARD,SENSOR
ACQ90063008 ACQ90063008 COVER ASSEMBLY,TRAY
5006JJ2009C 5006JJ2009C COVER CAP
MCR66849210 MCR66849210 COVER DECOR
ACJ73230105 ACJ73230105 COVER TV SUPPORTER
MCK69605202 MCK69605202 COVER,FILTER
MCK70864305 MCK70864305 COVER,LAMP
3550JA2273B 3550JA2273B COVER,MOTOR
MCK69300903 MCK69300903 COVER,PTC
1SZZJJ3010F 1SZZJJ3010F CUSTOMIZED SCREW
5040JA3071C 5040JA3071C DAMPER,COMPRESSOR
MCQ67254801 MCQ67254801 DAMPER,NOISE
5072JA3003G 5072JA3003G DAMPER,NOISE
EAU59551204 EAU59551204 DC MOTOR
EAU63103302 EAU63103302 DC MOTOR
EAU65058502 EAU65058502 DC MOTOR ASSEMBLY
MCR66849224 MCR66849224 DECOR,COVER
ABN74298103 ABN74298103 DISPENSER LEVER
ACQ30259504 ACQ30259504 DISPLAY COVER

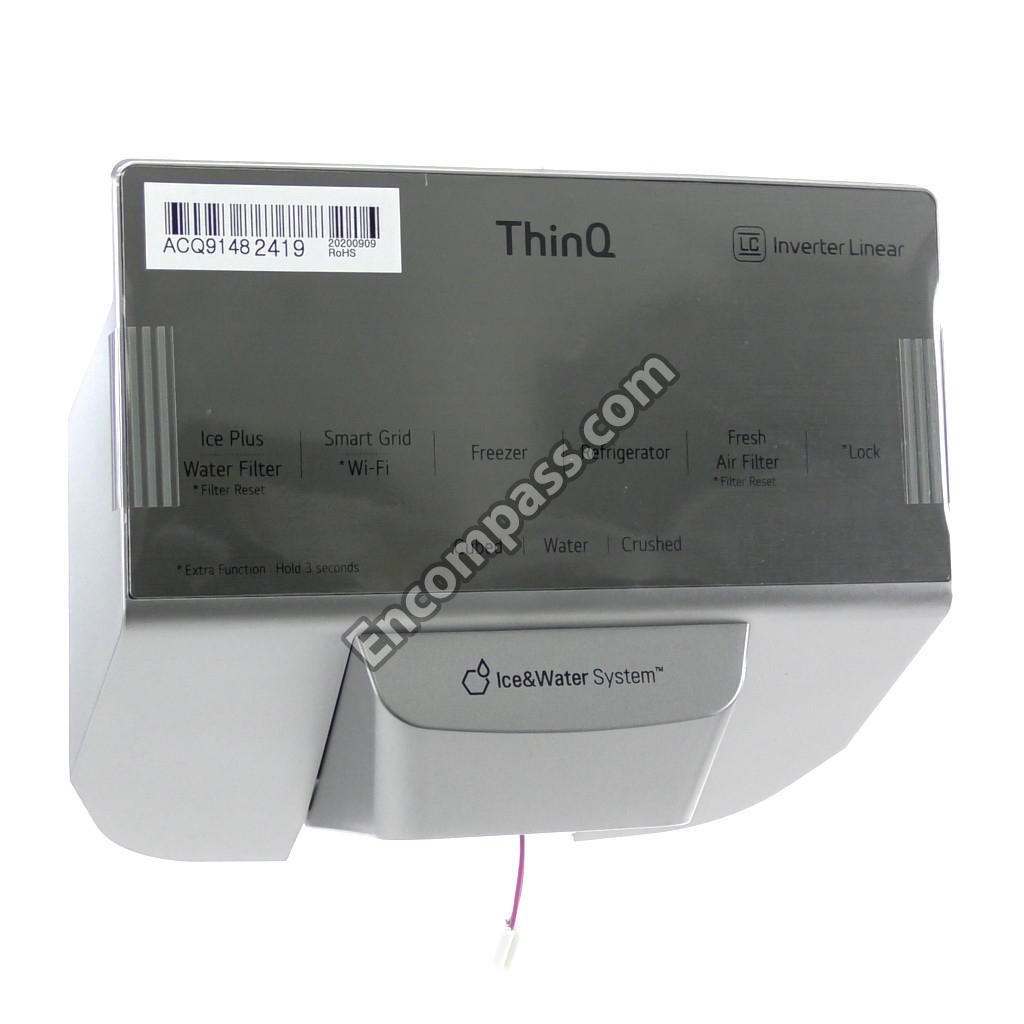

ACQ91482419 ACQ91482419 DISPLAY COVER ASSEMBLY
MAN63948504 MAN63948504 DOOR BASKET
MDS38201427 MDS38201427 DOOR GASKET
ADX72930474 ADX72930474 DOOR GASKET ASSEMBLY
ADX72930475 ADX72930475 DOOR GASKET ASSEMBLY
MEG61899901 MEG61899901 DOOR HOLDER
4620JJ2009A 4620JJ2009A DOOR STOPPER
AJC73112301 AJC73112301 DOOR STOPPER ASSEMBLY
MCK67227903 MCK67227903 DOOR SWITCH COVER
AJP73574405 AJP73574405 DRAIN TRAY ASSEMBLY
5251JA3003D 5251JA3003D DRAIN TUBE ASSEMBLY
MEA61842102 MEA61842102 DRAWER GUIDE
AJP73574528 AJP73574528 DRAWER TRAY
AJP75234932 AJP75234932 DRAWER TRAY
AJP73594404 AJP73594404 DRAWER TRAY ASSEMBLY
AJP75234908 AJP75234908 DRAWER TRAY ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY
4930JA3034A 4930JA3034A DRIER HOLDER
MJS65314001 MJS65314001 DRIP TRAY
ADJ74812531 ADJ74812531 DUCT ASSEMBLY,MULTI
ADL73762013 ADL73762013 EVAPORATOR ASSEMBLY
ADL73762028 ADL73762028 EVAPORATOR ASSEMBLY
ADL73762017 ADL73762017 EVAPORATOR ASSEMBLY
ADL73762016 ADL73762016 EVAPORATOR ASSEMBLY
ADP73273402 ADP73273402 FAN ASSEMBLY
ADP74833601 ADP74833601 FAN ASSEMBLY
MDX62732902 MDX62732902 FAN GRILLE
AEB73764526 AEB73764526 FAN GRILLE ASSEMBLY
MEA42772905 MEA42772905 FAN GUIDE
AGF80300705 AGF80300705 FILTER ASSEMBLY,WATER
MCK69605302 MCK69605302 FILTER COVER
MCK66849405 MCK66849405 FILTER COVER
AKN72949003 AKN72949003 FILTER HEAD ASSEMBLY
AKN72949013 AKN72949013 FILTER HEAD ASSEMBLY
ADD73719026 ADD73719026 FREEZER DOOR ASSEMBLY
AED37133172 AED37133172 FREEZER HANDLE ASSEMBLY
MJS62591802 MJS62591802 FREEZER TRAY
AJP75235107 AJP75235107 FRESH ROOM TRAY ASSEMBLY
MCK67107201 MCK67107201 FRONT COVER
AGU75188619 AGU75188619 FRONT PLATE ASSEMBLY
ADW73389905 ADW73389905 FUNNEL ASSEMBLY
MDS38201437 MDS38201437 GASKET,DOOR
MDT62287201 MDT62287201 GEAR,ICE
MCD62287401 MCD62287401 GEAR,ICE
MDT62207801 MDT62207801 GEAR,ICE
AEC74897825 AEC74897825 GUIDE ASSEMBLY,RAIL
MEA42772909 MEA42772909 GUIDE,FAN
AED37133173 AED37133173 HANDLE ASSEMBLY,FREEZER
AED73593115 AED73593115 HANDLE ASSEMBLY,FREEZER
MCR64337202 MCR64337202 HANDLE DECOR
MCR64337201 MCR64337201 HANDLE DECOR
MJB63190001 MJB63190001 HANDLE STOPPER
MEB65420102 MEB65420102 HANDLE,REAR
MEB65420101 MEB65420101 HANDLE,REAR
EAD64168606 EAD64168606 HARNESS ASSEMBLY
EAD62428627 EAD62428627 HARNESS ASSEMBLY
EAD64168601 EAD64168601 HARNESS ASSEMBLY
MEE63545715 MEE63545715 HEATER,SHEATH
AEH36821905 AEH36821905 HINGE ASSEMBLY,CENTER
AEH73577657 AEH73577657 HINGE ASSEMBLY,CENTER
MBJ62121901 MBJ62121901 HINGE CAM
ACQ86664774 ACQ86664774 HINGE COVER ASSEMBLY
ACQ86664782 ACQ86664782 HINGE COVER ASSEMBLY
4930JA3091A 4930JA3091A HOLDER,BRACKET
MEG63261302 MEG63261302 HOLDER,DOOR
4930JA3034C 4930JA3034C HOLDER,DRIER
MEG63342504 MEG63342504 HOLDER,RAIL
MEG63342505 MEG63342505 HOLDER,RAIL
AKC73249309 AKC73249309 ICE BUCKET ASSEMBLY
ACZ74170504 ACZ74170504 ICE DISPENSER ASSEMBLY
4510JA3003D 4510JA3003D ICE MAKER LEVER
EAU64063301 EAU64063301 INDOOR DC MOTOR ASSEMBLY
AEQ72909603 AEQ72909603 KIT ICE MAKER ASSEMBLY
AEQ73110219 AEQ73110219 KIT ICE MAKER ASSEMBLY
ABQ77180109 ABQ77180109 LAMP CASE ASSEMBLY
MCK66769007 MCK66769007 LAMP COVER
EAV64632103 EAV64632103 LED ASSEMBLY
EAV63613211 EAV63613211 LED ASSEMBLY
MBG66024514 MBG66024514 LEVER BUTTON
MHY62603704 MHY62603704 LEVER SPRING
MHY62603703 MHY62603703 LEVER SPRING
MFF62123101 MFF62123101 LINK
ACQ85930905 ACQ85930905 MACHINERY (REAR) COVER ASSEMBLY
EBF62234504 EBF62234504 MAGNET SWITCH
EBR83845023 EBR83845023 MAIN BOARD
EBR83845069 EBR83845069 MAIN BOARD
6600JB3001C 6600JB3001C MICRO SWITCH
EAU65058327 EAU65058327 MOTOR ASSEMBLY,DC
EAU65058511 EAU65058511 MOTOR ASSEMBLY,DC
ABA74268213 ABA74268213 MOTOR BRACKET ASSEMBLY
MCK67107303 MCK67107303 MOTOR COVER
5040JQ2003B 5040JQ2003B MOTOR SUPPORT DAMPER
5040JQ2002B 5040JQ2002B MOTOR SUPPORT DAMPER
MFT62346511 MFT62346511 NAME PLATE
MFT64808222 MFT64808222 NAME PLATE,PET
MHL64031802 MHL64031802 NET SHELF
MHL64031801 MHL64031801 NET SHELF
5072JA3003F 5072JA3003F NOISE DAMPER
6750CL0001F 6750CL0001F OVERLOAD PROTECT
6750CL0001D 6750CL0001D OVERLOAD PROTECT
EAF61170610 EAF61170610 OVERLOAD PROTECT
ACQ86388101 ACQ86388101 PCB COVER ASSEMBLY
MEG42758601 MEG42758601 PIPE HOLDER
MEG61879201 MEG61879201 PIPE HOLDER
MGE62010610 MGE62010610 PIPE,COMPRESSOR SEALING
AGU75188629 AGU75188629 PLATE ASSEMBLY,FRONT
EAD62329195 EAD62329195 POWER CORD ASSEMBLY
MCK70052506 MCK70052506 PTC COVER
EBG63205820 EBG63205820 PTC THERMISTOR ASSEMBLY
EAE58905704 EAE58905704 RADIAL ELECTRIC APPLIANCE FILM CAPACITOR
MCD62466804 MCD62466804 RAIL CONNECTOR
MCD62466803 MCD62466803 RAIL CONNECTOR
AEC74897820 AEC74897820 RAIL GUIDE ASSEMBLY
MEG63339904 MEG63339904 RAIL HOLDER
MEG63339903 MEG63339903 RAIL HOLDER
MEG63342502 MEG63342502 RAIL HOLDER
MEG63342503 MEG63342503 RAIL HOLDER
3650JA2061W 3650JA2061W REAR HANDLE
3650JA2061X 3650JA2061X REAR HANDLE
TCA36911411 TCA36911411 REFRIGERATOR COMPRESSOR
TCA37091605 TCA37091605 REFRIGERATOR COMPRESSOR
TCA37091615 TCA37091615 REFRIGERATOR COMPRESSOR
TCA34872319 TCA34872319 REFRIGERATOR COMPRESSOR
TCA35692205 TCA35692205 REFRIGERATOR COMPRESSOR
ADD76197001 ADD76197001 REFRIGERATOR DOOR FOAM ASSEMBLY
ADD73656078 ADD73656078 REFRIGERATOR DOOR FOAM ASSEMBLY
ADD76197025 ADD76197025 REFRIGERATOR DOOR FOAMR
AED73593256 AED73593256 REFRIGERATOR HANDLE
AED73593258 AED73593258 REFRIGERATOR HANDLE
AED75493802 AED75493802 REFRIGERATOR HANDLE
AED73593251 AED73593251 REFRIGERATOR HANDLE ASSEMBLY
MHL64031401 MHL64031401 REFRIGERATOR SHELF
AHT74574205 AHT74574205 REFRIGERATOR SHELF
AHT74574236 AHT74574236 REFRIGERATOR SHELF
AHT74574235 AHT74574235 REFRIGERATOR SHELF
AHT74574216 AHT74574216 REFRIGERATOR SHELF ASSEMBLY
AJU73432831 AJU73432831 REFRIGERATOR WATER INLET VALVE
MGZ62766901 MGZ62766901 RING
MHA62513601 MHA62513601 ROLLER
MHA62513604 MHA62513604 ROLLER
AHJ72909001 AHJ72909001 ROLLER ASSEMBLY
AHJ72909101 AHJ72909101 ROLLER ASSEMBLY
MBL62065801 MBL62065801 RUBBER CAP
EBR71326804 EBR71326804 SENSOR PCB ASSEMBLY
TCA37971203 TCA37971203 SET ASSEMBLY COMPRESSOR
MEE63545708 MEE63545708 SHEATH HEATER
MEG65119006 MEG65119006 SHELF HOLDER
MHL64031808 MHL64031808 SHELF,NET
MHL64031809 MHL64031809 SHELF,NET
MHL64031404 MHL64031404 SHELF,REFRIGERATOR
MHL64031504 MHL64031504 SHELF,REFRIGERATOR
MGT61844004 MGT61844004 SLIDE RAIL
MGT61844003 MGT61844003 SLIDE RAIL
MHU38218908 MHU38218908 SPANNER
MHU38218911 MHU38218911 SPANNER
MHY62644404 MHY62644404 SPRING
AJC73112302 AJC73112302 STOPPER ASSEMBLY,DOOR
EBR64730408 EBR64730408 SUB PCB ASSEMBLY
MJH62755901 MJH62755901 SUPPORTER,COVER TRAY
EBF64334701 EBF64334701 SWITCH,MAGNET
EBF61314813 EBF61314813 SWITCH,MAGNET
AJL72911513 AJL72911513 TANK ASSEMBLY,WATER
6500JB2002X 6500JB2002X TEMPERATURE SENSOR
EBG60663279 EBG60663279 THERMISTOR ASSEMBLY,PTC
EBG63205851 EBG63205851 THERMISTOR ASSEMBLY,PTC
MCK69585604 MCK69585604 TRAY COVER
ACQ90063005 ACQ90063005 TRAY COVER ASSEMBLY
MCR66806901 MCR66806901 TRAY DECOR
MJS65314003 MJS65314003 TRAY,DRIP
MCD63827601 MCD63827601 TUBE CONNECTOR
4932JA3009R 4932JA3009R TUBE CONNECTOR
3550JA2184J 3550JA2184J TUBE COVER
MJU66803801 MJU66803801 TUBE,INJECT
ACQ89579310 ACQ89579310 TV COVER ASSEMBLY
AEH60614115 AEH60614115 UPPER HINGE ASSEMBLY
AEH74216502 AEH74216502 UPPER HINGE ASSEMBLY
AJP75235042 AJP75235042 VEGETABLE TRAY ASSEMBLY
AJP75235043 AJP75235043 VEGETABLE TRAY ASSEMBLY
AGF80300704 AGF80300704 WATER FILTER ASSEMBLY
AJL72911502 AJL72911502 WATER TANK ASSEMBLY
MJX41869202 MJX41869202 WATER VALVE
AJU72992601 AJU72992601 WATER VALVE ASSEMBLY
ACG76384603 ACG76384603 WIRE CONDENSER ASSEMBLY
ACG76384401 ACG76384401 WIRE CONDENSER ASSEMBLY
