Model Image
Manufacturer

LG

Model Number

LRFXS2503D

Description

25 Cu. Ft. Smart Wi-fi Enabled French Door Refrige

Interactive Exploded View

Parts List

Part Number Description
4770JA3001E 4770JA3001E BAND
MAK64727007 MAK64727007 BAR
ABA74030402 ABA74030402 BRACKET ASSEMBLY,MOTOR
MBG66024531 MBG66024531 BUTTON,LEVER
MBJ62121901 MBJ62121901 CAM,HINGE
ABN74298103 ABN74298103 CAP ASSEMBLY,DUCT
MBL67039201 MBL67039201 CAP,COVER
ABQ76660203 ABQ76660203 CASE ASSEMBLY,LAMP
ABQ77180110 ABQ77180110 CASE ASSEMBLY,LAMP
ACG76384601 ACG76384601 CONDENSER ASSEMBLY,WIRE
4403JJ3001B 4403JJ3001B CONNECTOR ASSEMBLY
MCD61841113 MCD61841113 CONNECTOR,RAIL
MCD61841112 MCD61841112 CONNECTOR,RAIL
MCD61841107 MCD61841107 CONNECTOR,RAIL
MCD61841106 MCD61841106 CONNECTOR,RAIL
MCD63827601 MCD63827601 CONNECTOR,TUBE
ACM75678706 ACM75678706 CONTROLLER ASSEMBLY

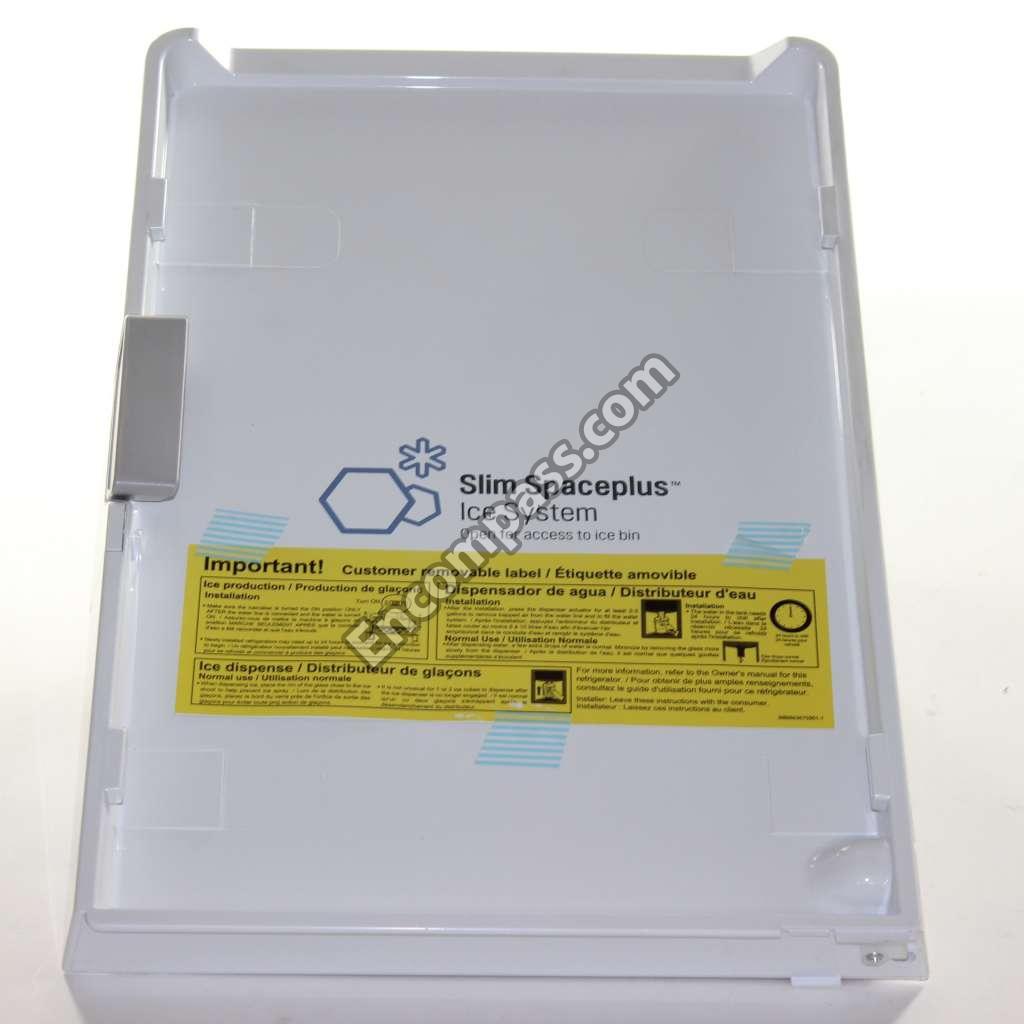

ACQ85995305 ACQ85995305 COVER ASSEMBLY,BUCKET ICE
ACQ87133811 ACQ87133811 COVER ASSEMBLY,HINGE
ACQ87133817 ACQ87133817 COVER ASSEMBLY,HINGE
ACQ90351401 ACQ90351401 COVER ASSEMBLY,MACHINERY(REAR)
ACQ86388101 ACQ86388101 COVER ASSEMBLY,PCB
ACQ85329203 ACQ85329203 COVER ASSEMBLY,PCB
ACQ91411402 ACQ91411402 COVER ASSEMBLY,PCB
ACQ89579411 ACQ89579411 COVER ASSEMBLY,TRAY
ACQ90063007 ACQ90063007 COVER ASSEMBLY,TRAY
ACQ89579342 ACQ89579342 COVER ASSEMBLY,TRAY VEGETABLE
ACQ89579309 ACQ89579309 COVER ASSEMBLY,TRAY VEGETABLE
MCK67227905 MCK67227905 COVER,DOOR SWITCH
MCK63645801 MCK63645801 COVER,FRONT
MCK66690601 MCK66690601 COVER,MOTOR
MCK69290701 MCK69290701 COVER,TUBE
MCQ66921103 MCQ66921103 DAMPER,COMPRESSOR
5040JA2004B 5040JA2004B DAMPER,MOTOR SUPPORT
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT
EAU63103301 EAU63103301 DC MOTOR
EAU59551204 EAU59551204 DC MOTOR
MCR66849219 MCR66849219 DECOR,COVER

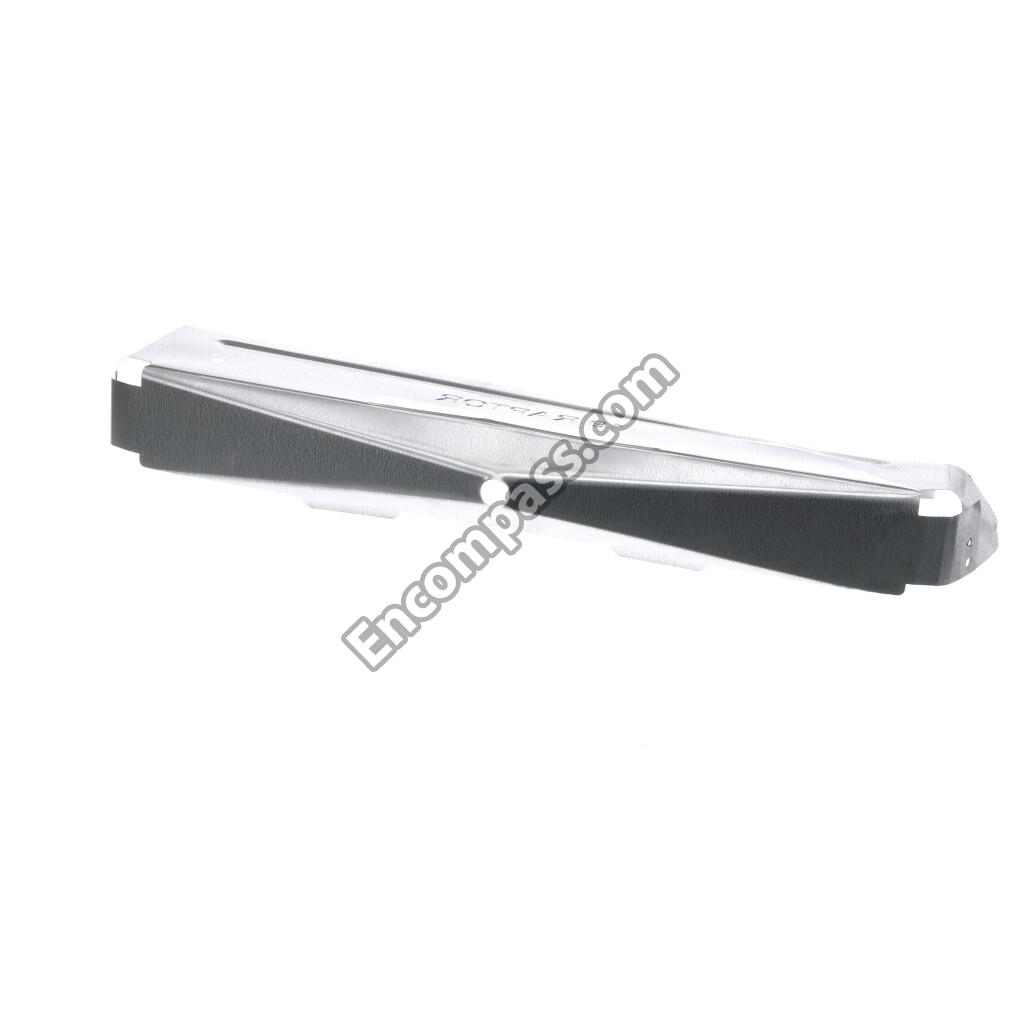

MCR65036304 MCR65036304 DECOR,HANDLE
MCR65036303 MCR65036303 DECOR,HANDLE
ACZ74010504 ACZ74010504 DISPENSER ASSEMBLY,ICE
ACQ91482410 ACQ91482410 DISPLAY COVER

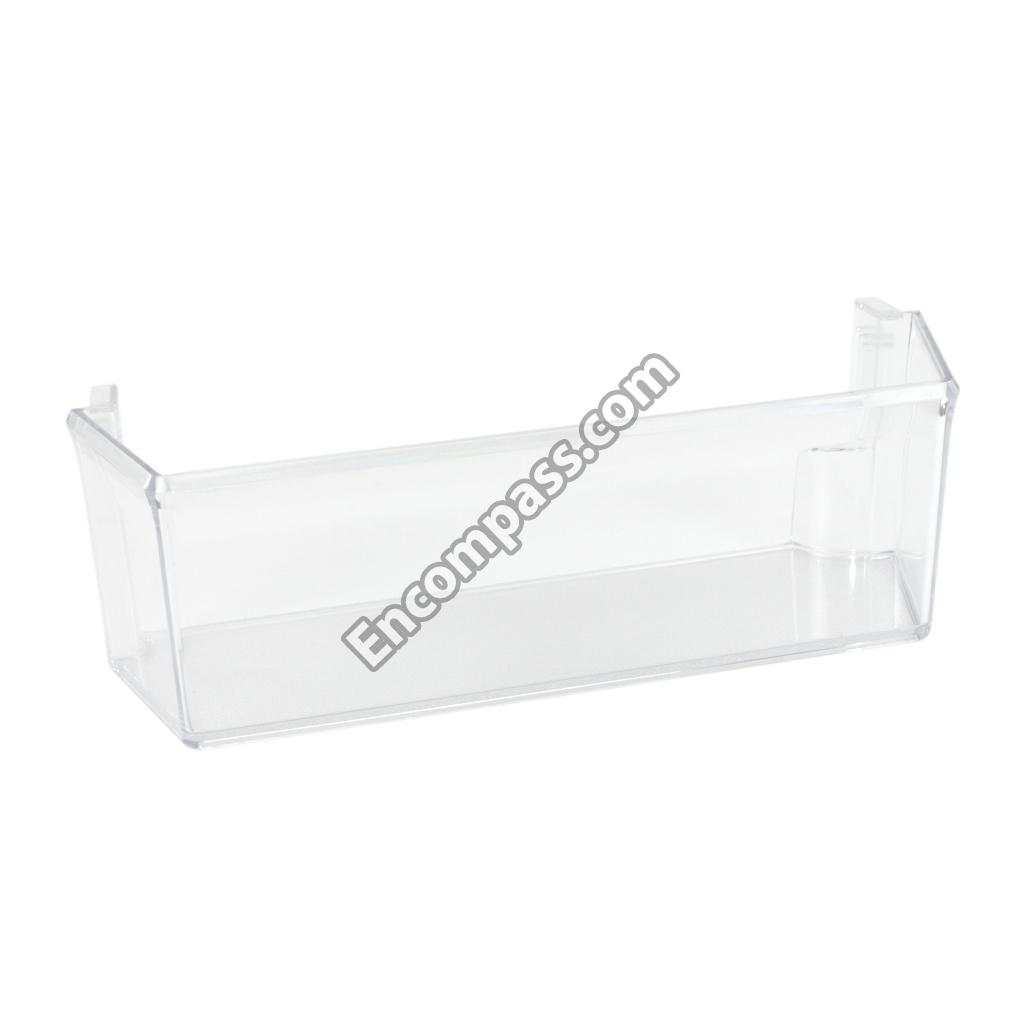

MAN64628501 MAN64628501 DOOR BASKET
MAN64628401 MAN64628401 DOOR BASKET
MAN64628601 MAN64628601 DOOR BASKET
ADX73571205 ADX73571205 DOOR GASKET
ADX73350636 ADX73350636 DOOR GASKET
ADX75550501 ADX75550501 DOOR GASKET
ADX75550610 ADX75550610 DOOR GASKET

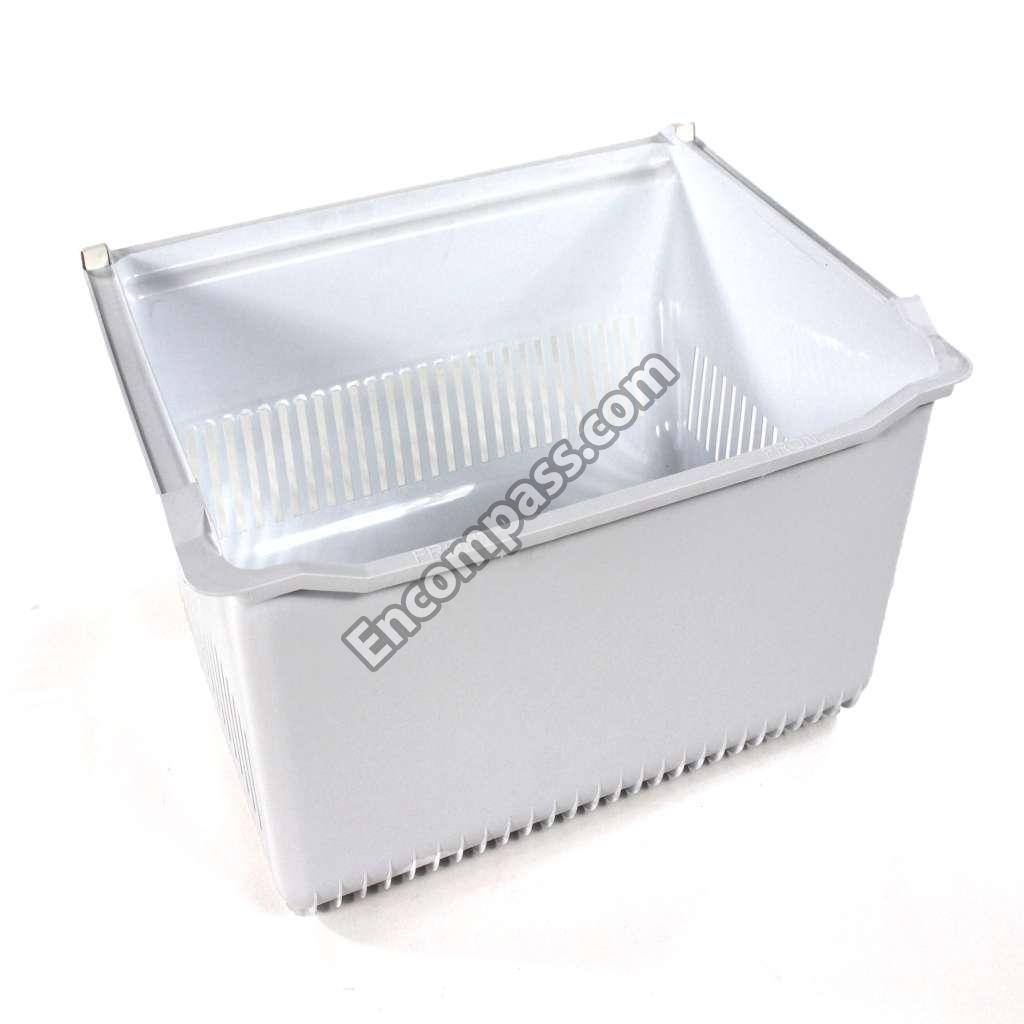

AJP75234921 AJP75234921 DRAWER TRAY
AJP73574522 AJP73574522 DRAWER TRAY
ADH73590332 ADH73590332 DRIER ASSEMBLY
ADH73150208 ADH73150208 DRIER ASSEMBLY

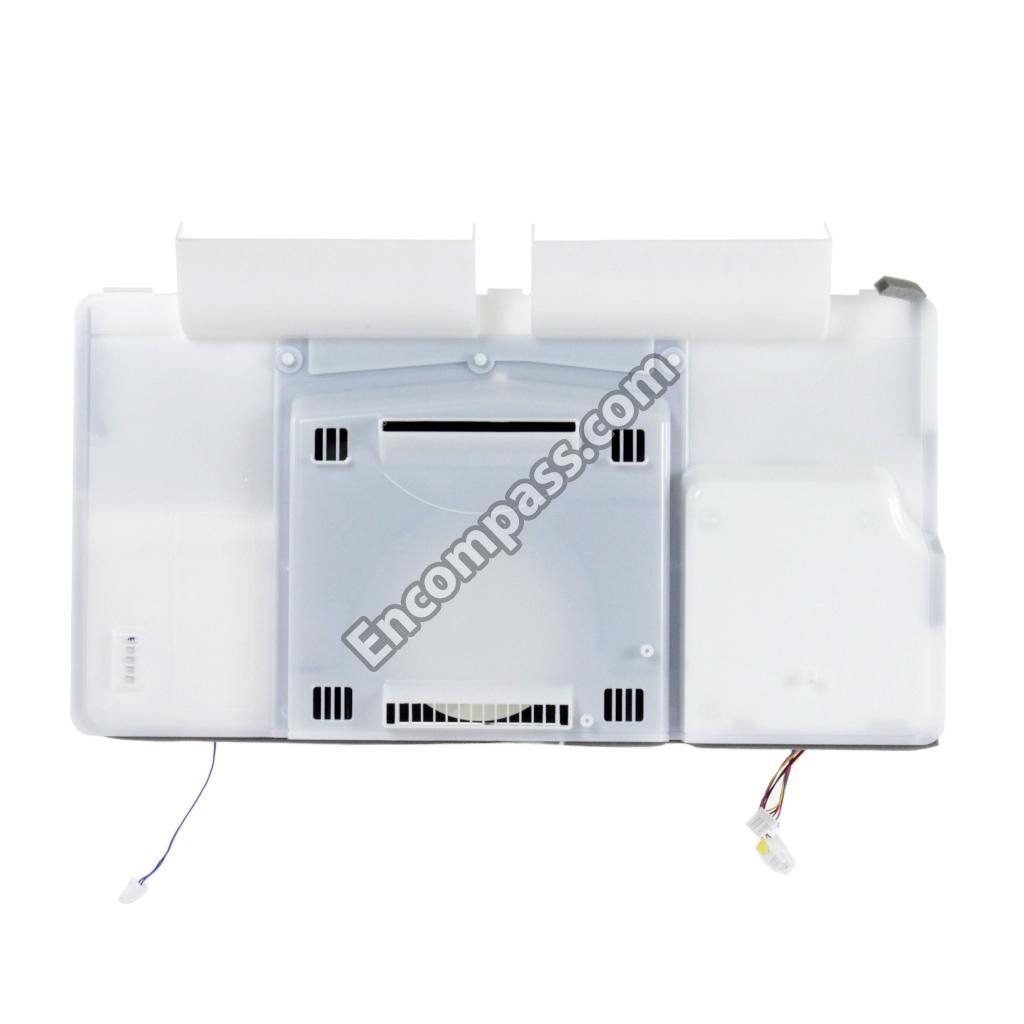

ADJ75472301 ADJ75472301 DUCT ASSEMBLY,MULTI
ADL76521401 ADL76521401 EVAPORATOR ASSEMBLY
ADP73273402 ADP73273402 FAN ASSEMBLY
ADP74833601 ADP74833601 FAN ASSEMBLY
AEB73564908 AEB73564908 FAN GRILLE
ADQ73214404 ADQ73214404 FILTER ASSEMBLY,AIR CLEANER
ADQ73693408 ADQ73693408 FILTER ASSEMBLY,WATER
AGF80300704 AGF80300704 FILTER ASSEMBLY,WATER
AGF80300705 AGF80300705 FILTER ASSEMBLY,WATER
ADC52734153 ADC52734153 FREEZER DOOR FOAM
ADW73389909 ADW73389909 FUNNEL ASSEMBLY
AEC74897813 AEC74897813 GUIDE ASSEMBLY,RAIL
AEC74897812 AEC74897812 GUIDE ASSEMBLY,RAIL
MEA62651201 MEA62651201 GUIDE,DRAWER
MEA65930101 MEA65930101 GUIDE,FAN
AED37133157 AED37133157 HANDLE ASSEMBLY,FREEZER
3650JA3041Y 3650JA3041Y HANDLE,REAR
MEB64014304 MEB64014304 HANDLE,REAR
3650JA3041W 3650JA3041W HANDLE,REAR
MEE64065001 MEE64065001 HEATER,SHEATH
AEH76036204 AEH76036204 HINGE ASSEMBLY,CENTER
AEH76036203 AEH76036203 HINGE ASSEMBLY,CENTER
AEH36821908 AEH36821908 HINGE ASSEMBLY,CENTER
AEH74156202 AEH74156202 HINGE ASSEMBLY,LOWER

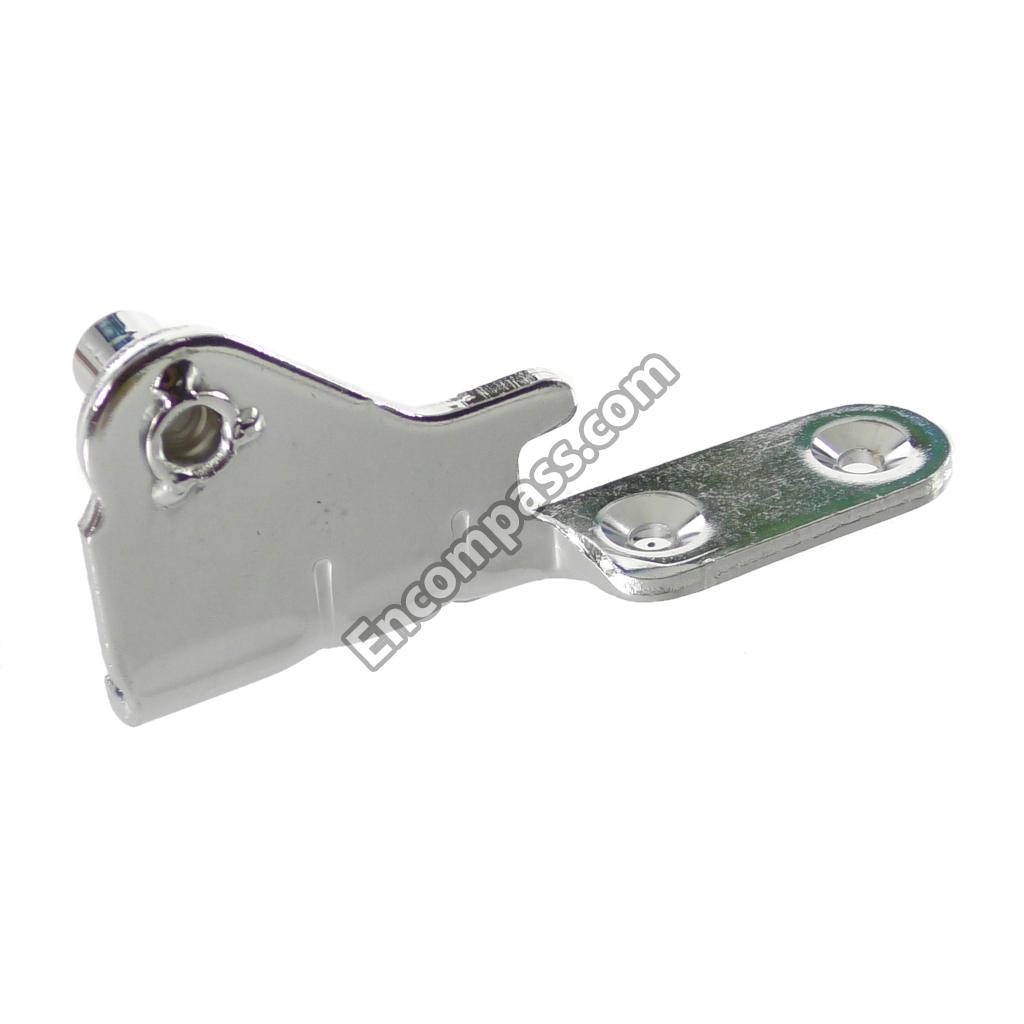

AEH73696402 AEH73696402 HINGE ASSEMBLY,UPPER
AEH75256503 AEH75256503 HINGE ASSEMBLY,UPPER
AEH75256504 AEH75256504 HINGE ASSEMBLY,UPPER
AEJ74940604 AEJ74940604 HOLDER ASSEMBLY
AEJ74940602 AEJ74940602 HOLDER ASSEMBLY
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
MEG65198801 MEG65198801 HOLDER,DOOR
MEG61863805 MEG61863805 HOLDER,DRIER
MEG64900401 MEG64900401 HOLDER,DRIER
AEC73437603 AEC73437603 HOLDER,RAIL
MEG62760504 MEG62760504 HOLDER,RAIL
MEG65119007 MEG65119007 HOLDER,SHELF
AKC72949312 AKC72949312 ICE BUCKET
EAV63332113 EAV63332113 LED ASSEMBLY
AFC73349801 AFC73349801 LEG ASSEMBLY,ADJUST
4779JQ3003J 4779JQ3003J LEG ASSEMBLY,ADJUST
MFF62123101 MFF62123101 LINK
EBR87463707 EBR87463707 MAIN BOARD
EAU65058326 EAU65058326 MOTOR ASSEMBLY,DC
EAU65058301 EAU65058301 MOTOR ASSEMBLY,DC
EAU65058308 EAU65058308 MOTOR ASSEMBLY,DC
EAU65058305 EAU65058305 MOTOR ASSEMBLY,DC
EAU63923603 EAU63923603 MOTOR ASSEMBLY,DC
EAU65062901 EAU65062901 MOTOR ASSEMBLY,DC,INDOOR
EAU64063301 EAU64063301 MOTOR ASSEMBLY,DC,INDOOR
MFT62346511 MFT62346511 NAME PLATE
MFT64808219 MFT64808219 NAME PLATE,PET
1PZZJA3013B 1PZZJA3013B PIN,COMMON
MGE39575306 MGE39575306 PIPE,COMPRESSOR SEALING
MGE62010602 MGE62010602 PIPE,COMPRESSOR SEALING
AGU75188627 AGU75188627 PLATE ASSEMBLY,FRONT
EAD61445253 EAD61445253 POWER CORD ASSEMBLY

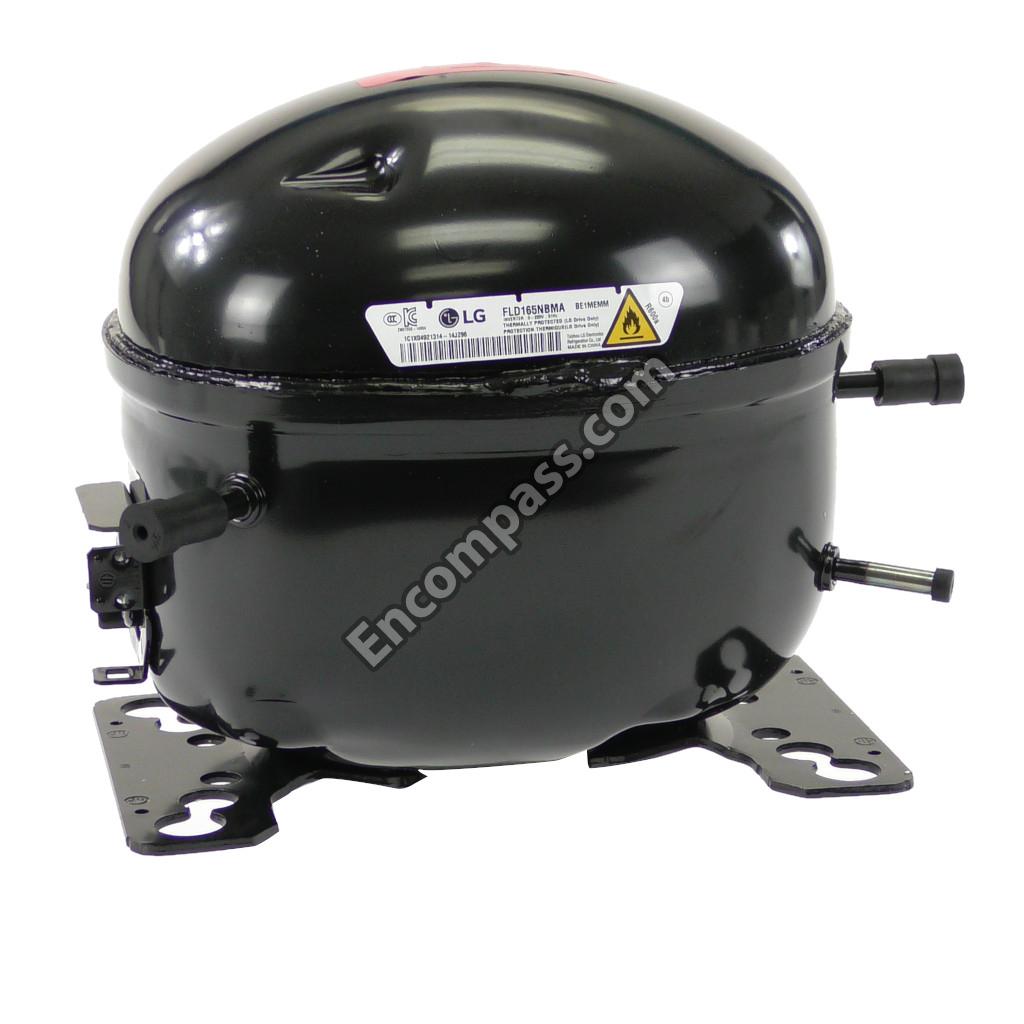

TCA36811415 TCA36811415 REFRIGERATOR COMPRESSOR
TCA36811409 TCA36811409 REFRIGERATOR COMPRESSOR
ADD73497638 ADD73497638 REFRIGERATOR DOOR FOAMR
ADD36429893 ADD36429893 REFRIGERATOR DOOR FOAMR

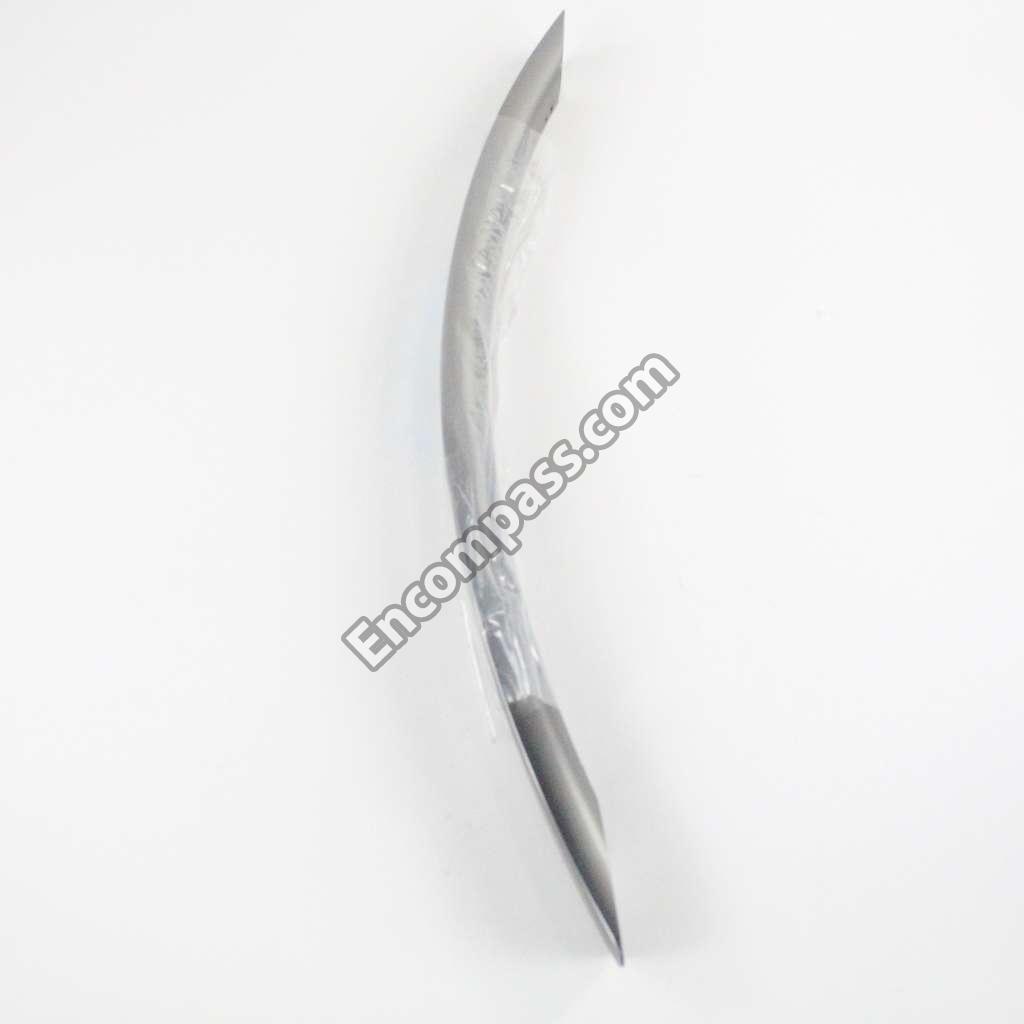

AED37082990 AED37082990 REFRIGERATOR HANDLE
AED74732909 AED74732909 REFRIGERATOR HANDLE

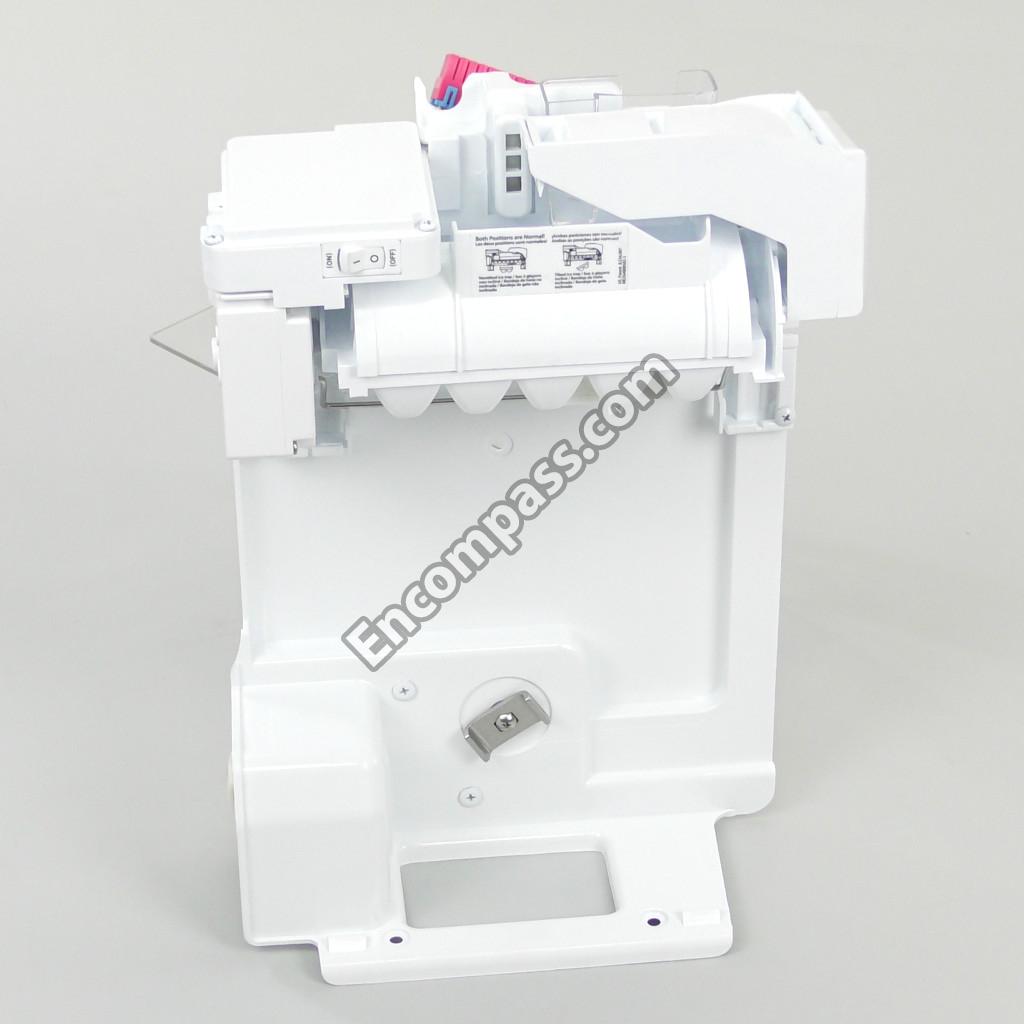

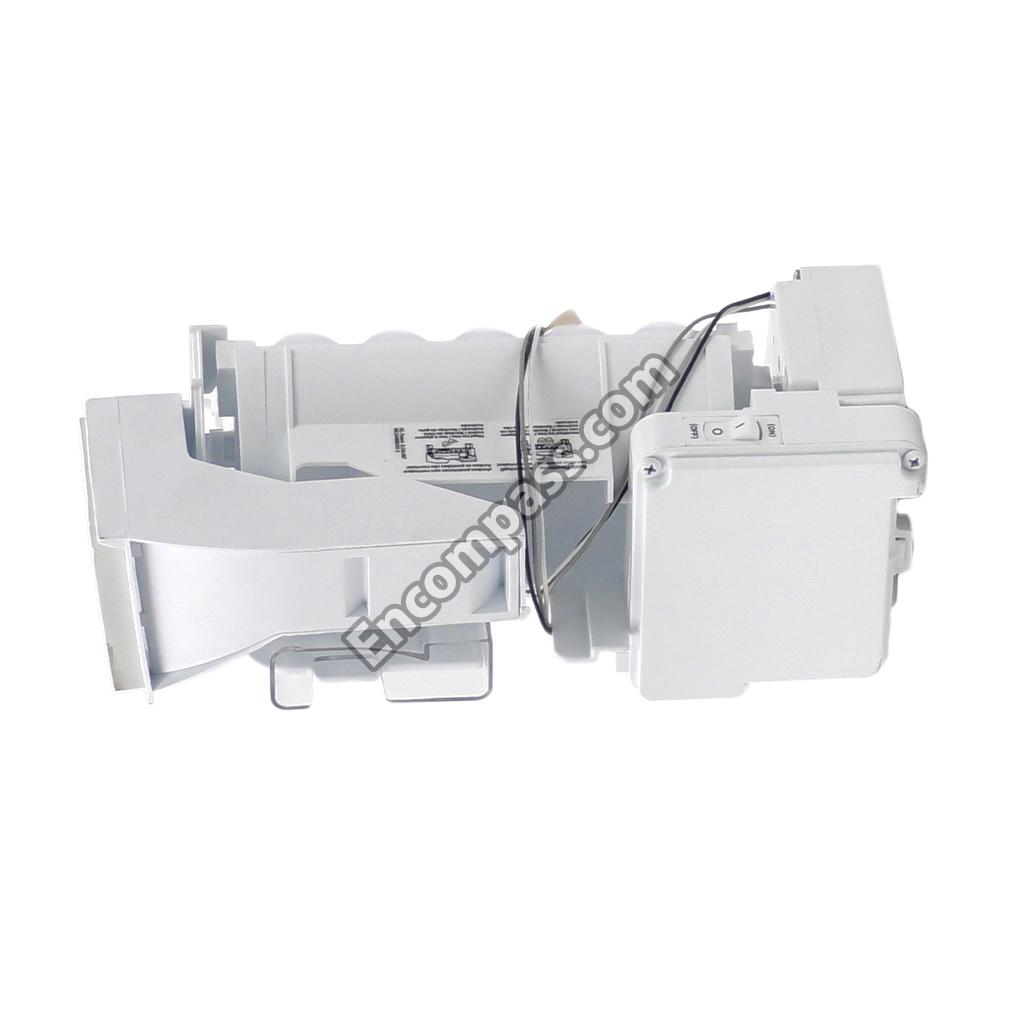

AEQ72910414 AEQ72910414 REFRIGERATOR ICE MAKER

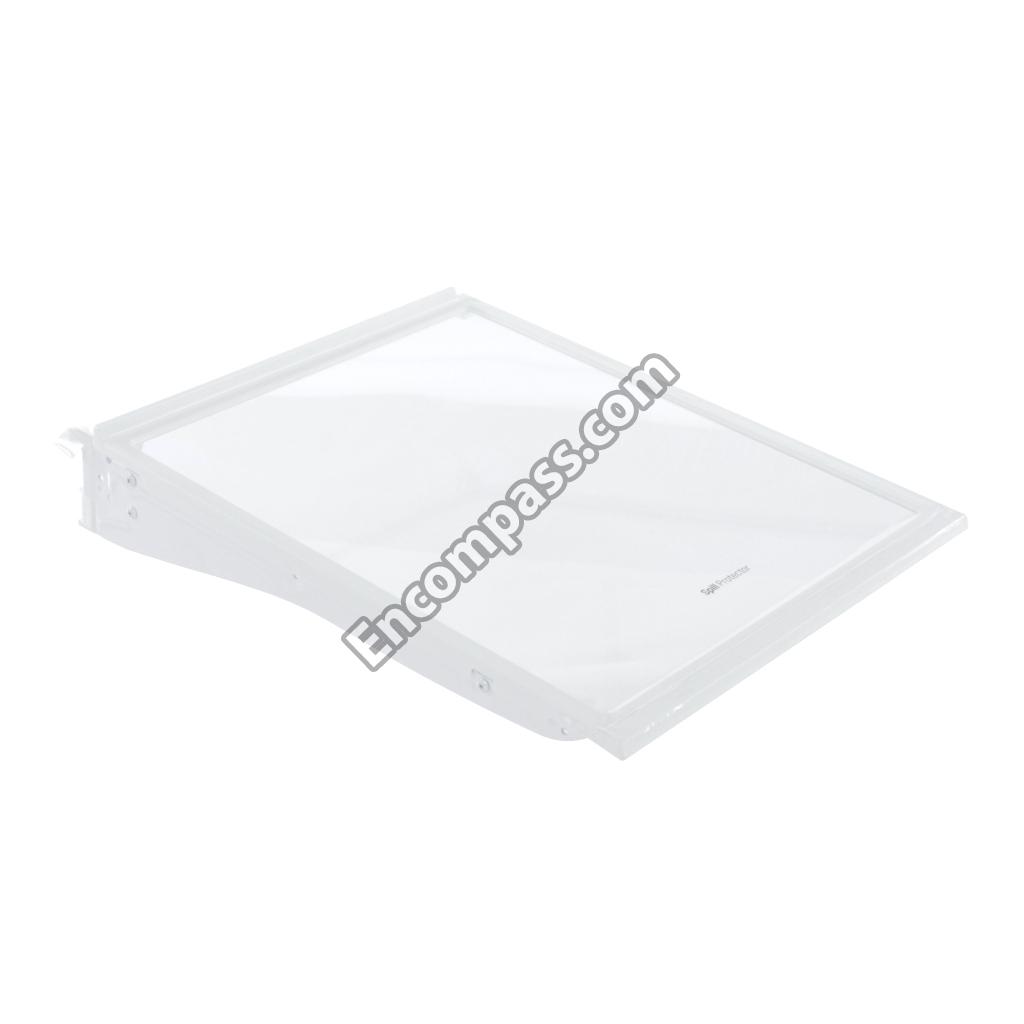

AHT74574213 AHT74574213 REFRIGERATOR SHELF
AHT74574304 AHT74574304 REFRIGERATOR SHELF
AHT74574214 AHT74574214 REFRIGERATOR SHELF

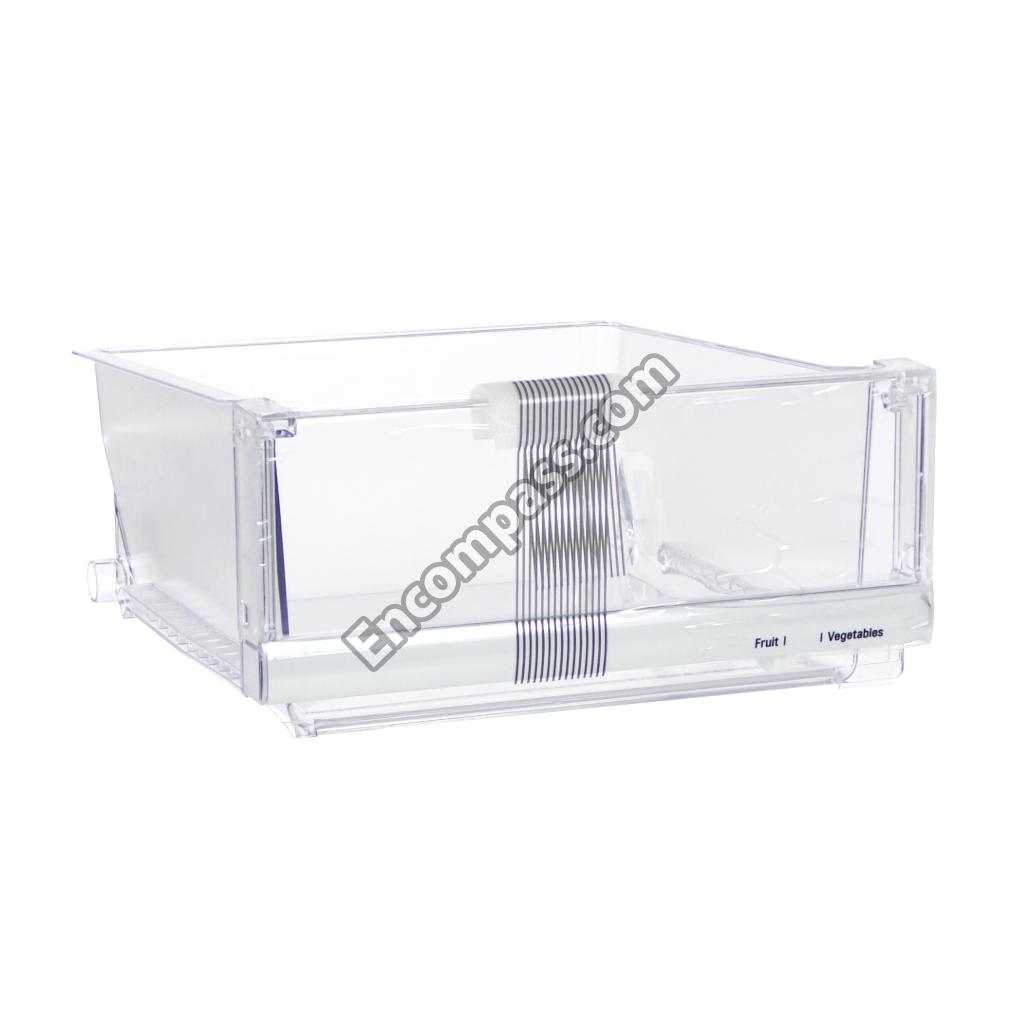

AJP75235023 AJP75235023 REFRIGERATOR VEGETABLE TRAY
AJP75235022 AJP75235022 REFRIGERATOR VEGETABLE TRAY
AJU75632504 AJU75632504 REFRIGERATOR WATER INLET VALVE
4350JA3005B 4350JA3005B RING
4580JJ3001G 4580JJ3001G ROLLER
AHJ73150001 AHJ73150001 ROLLER ASSEMBLY
AHJ73130001 AHJ73130001 ROLLER ASSEMBLY
FAB30025701 FAB30025701 SCREW,CUSTOMIZED
6500JB2002X 6500JB2002X SENSOR,TEMPERATURE
AHT73633805 AHT73633805 SHELF ASSEMBLY,NET
MHL64031809 MHL64031809 SHELF,NET
MHL64031808 MHL64031808 SHELF,NET
MHL64031806 MHL64031806 SHELF,NET
MHL64031807 MHL64031807 SHELF,NET

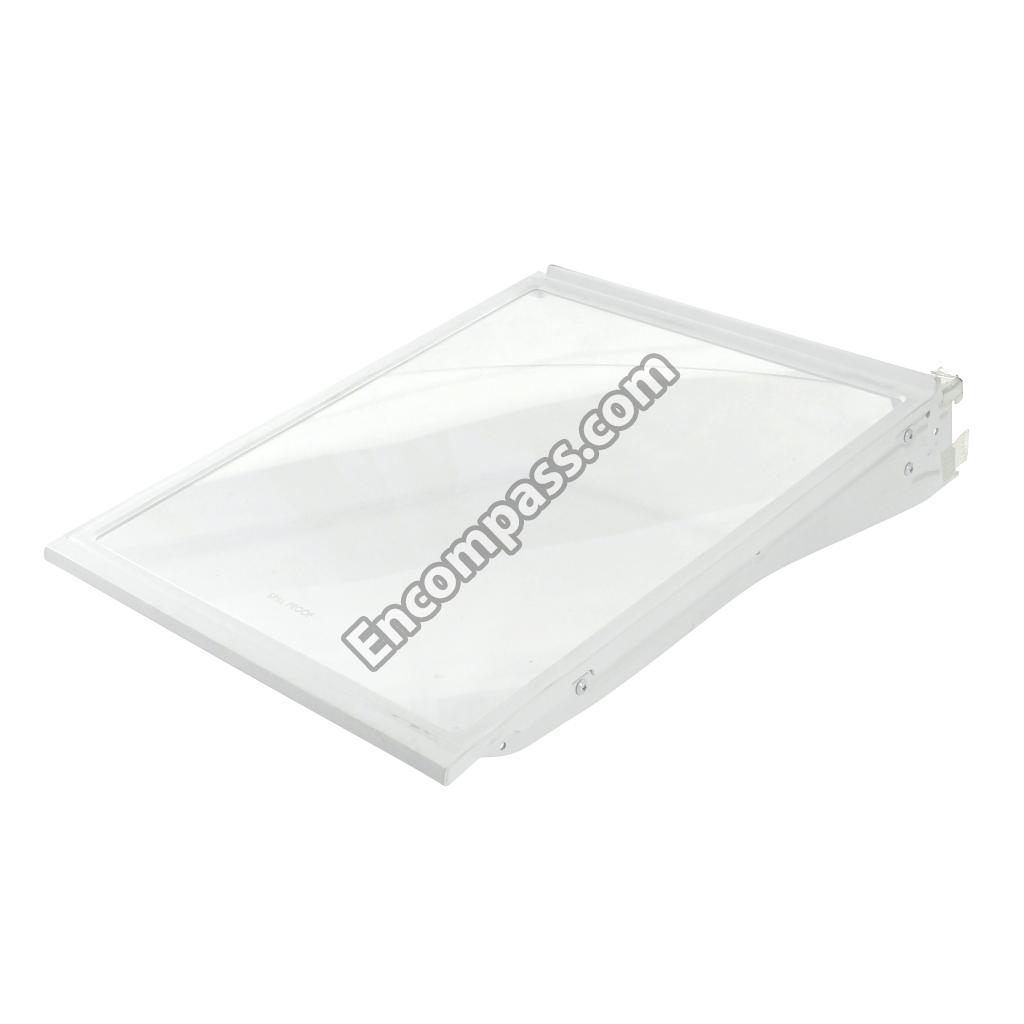

MHL64612201 MHL64612201 SHELF,REFRIGERATOR
MHL64612101 MHL64612101 SHELF,REFRIGERATOR
MHL64612001 MHL64612001 SHELF,REFRIGERATOR
MHL64611901 MHL64611901 SHELF,REFRIGERATOR

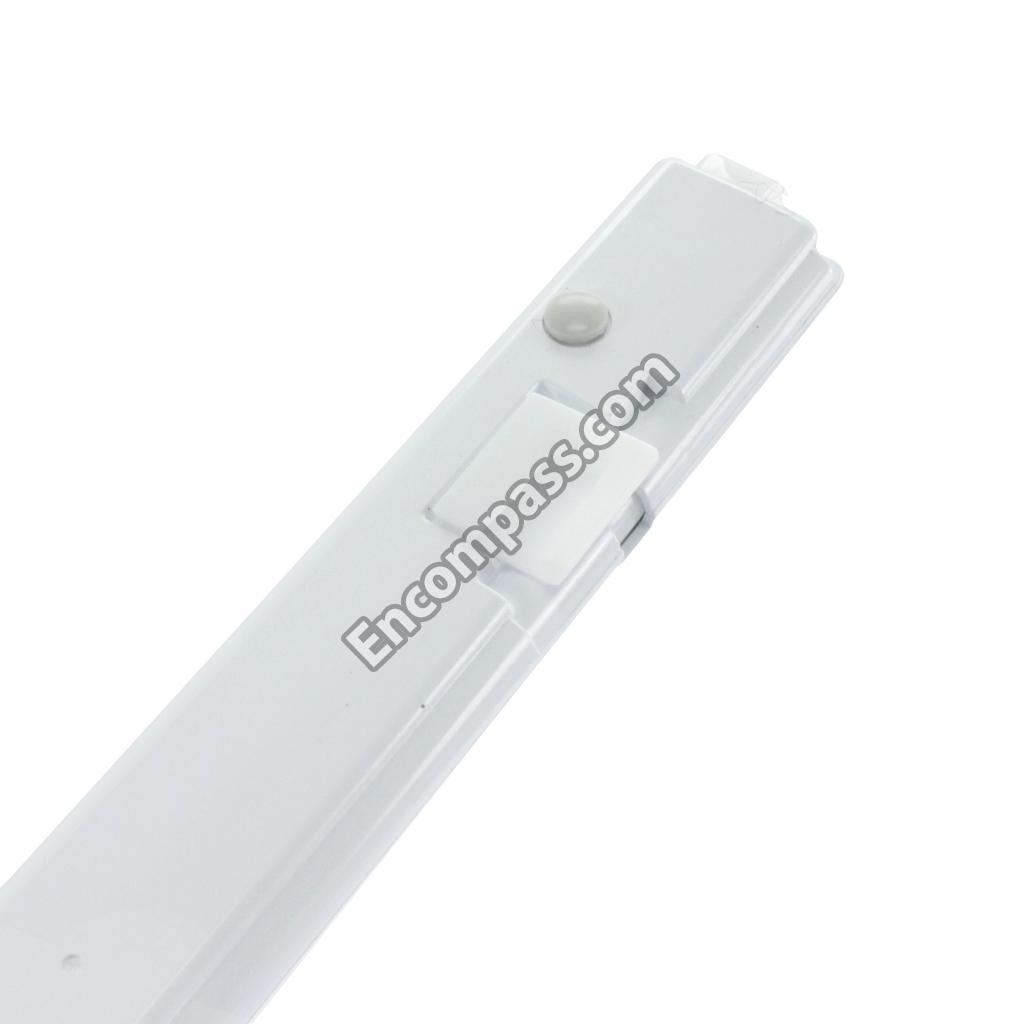

5218JA1010F 5218JA1010F SLIDE RAIL
5218JA1010E 5218JA1010E SLIDE RAIL
MHU62101101 MHU62101101 SPANNER
AJC68689617 AJC68689617 STOPPER ASSEMBLY,DOOR
AJC68689618 AJC68689618 STOPPER ASSEMBLY,DOOR
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR
4620JJ2009A 4620JJ2009A STOPPER,DOOR
MJB63190002 MJB63190002 STOPPER,HANDLE
EBF61314813 EBF61314813 SWITCH,MAGNET
6600JB3001C 6600JB3001C SWITCH,MICRO
4838JA2003L 4838JA2003L TANK,WATER

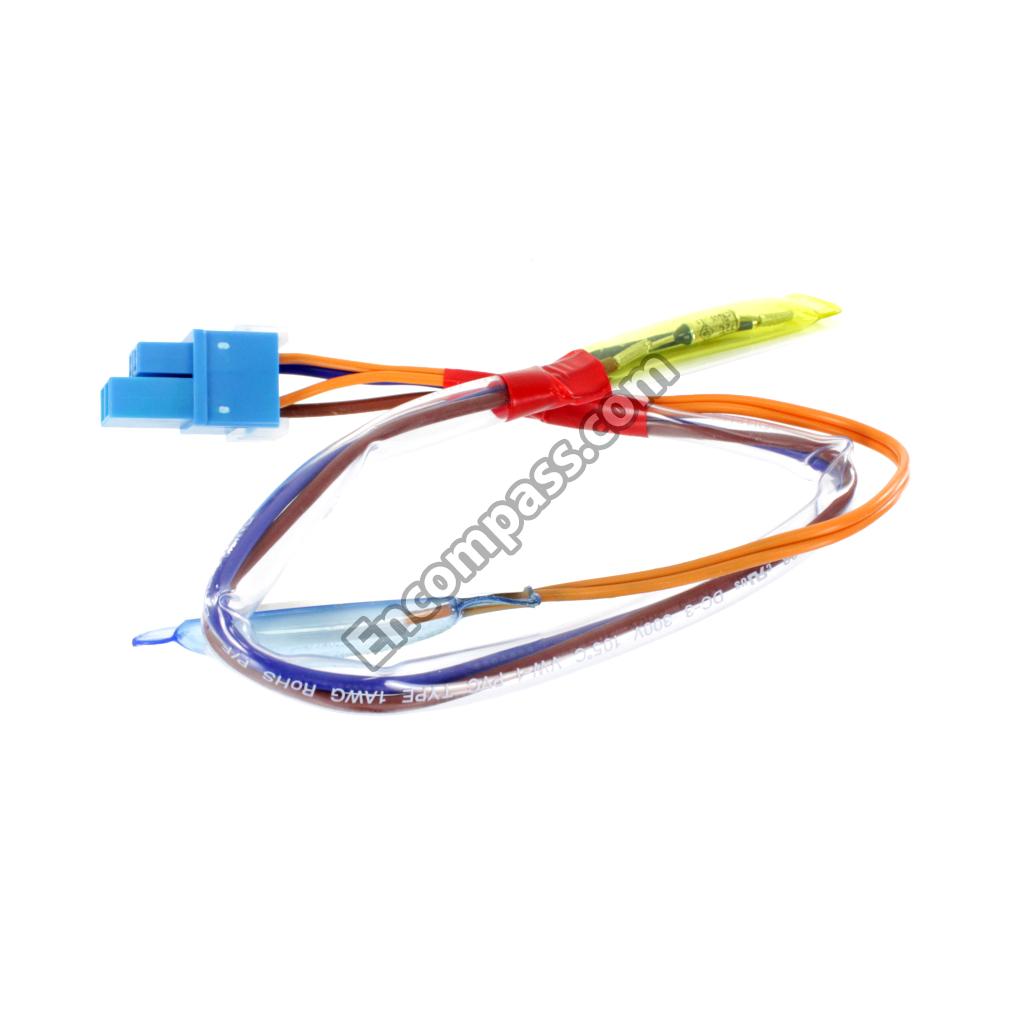

EBG63205845 EBG63205845 THERMISTOR ASSEMBLY,PTC
AJP76194503 AJP76194503 TRAY ASSEMBLY,DRAIN
AJP76194501 AJP76194501 TRAY ASSEMBLY,DRAIN
AJP75235113 AJP75235113 TRAY ASSEMBLY,FRESH ROOM
MJS63852101 MJS63852101 TRAY,DRAWER

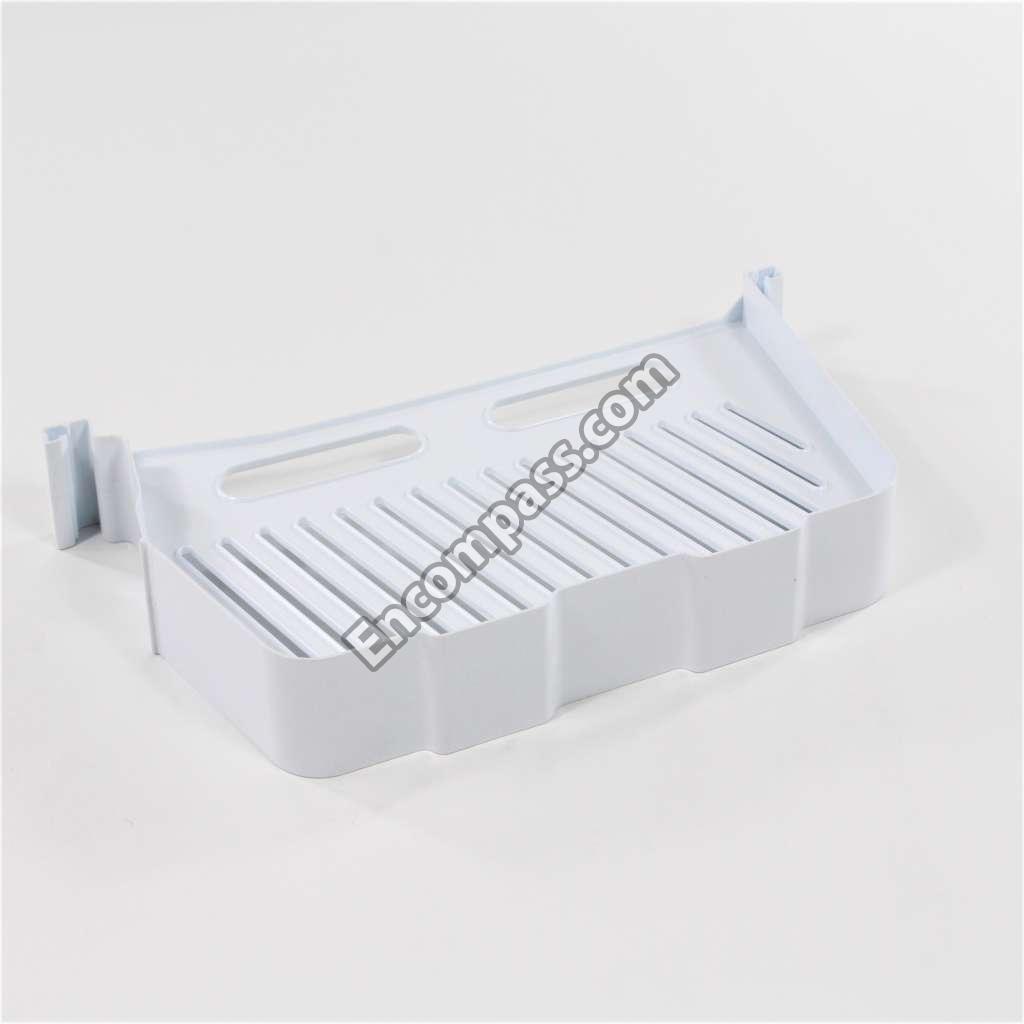

MJS65111701 MJS65111701 TRAY,DRIP
MJS62591803 MJS62591803 TRAY,FREEZER
AJP72909706 AJP72909706 TRAY,FREEZER
5251JA3003K 5251JA3003K TUBE ASSEMBLY,DRAIN
MJX64471502 MJX64471502 VALVE,WATER
