Model Image
Manufacturer

LG

Model Number

LRSES2706V

Description

27 Cu. Ft. Side-by-side Instaview Refrigerator

Interactive Exploded View

Parts List

Part Number Description

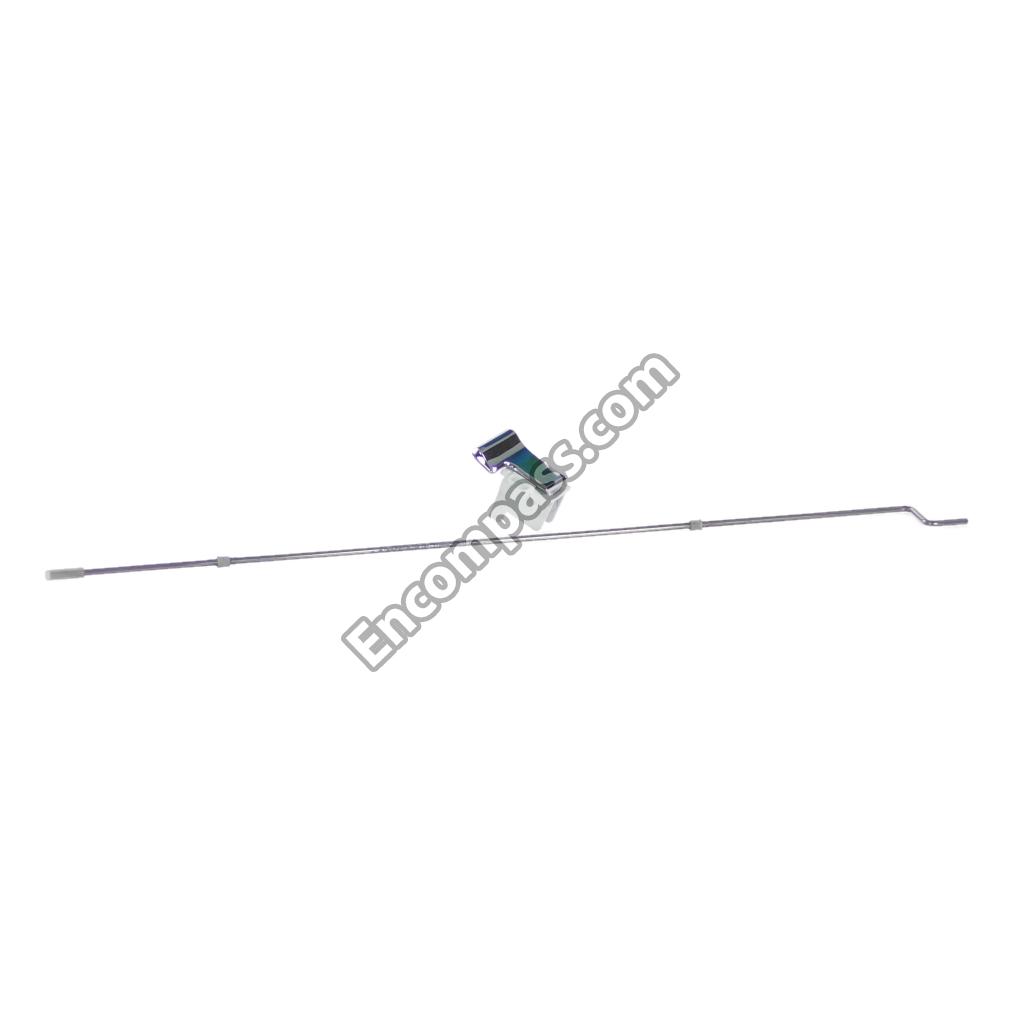

4770JA3001E 4770JA3001E BAND

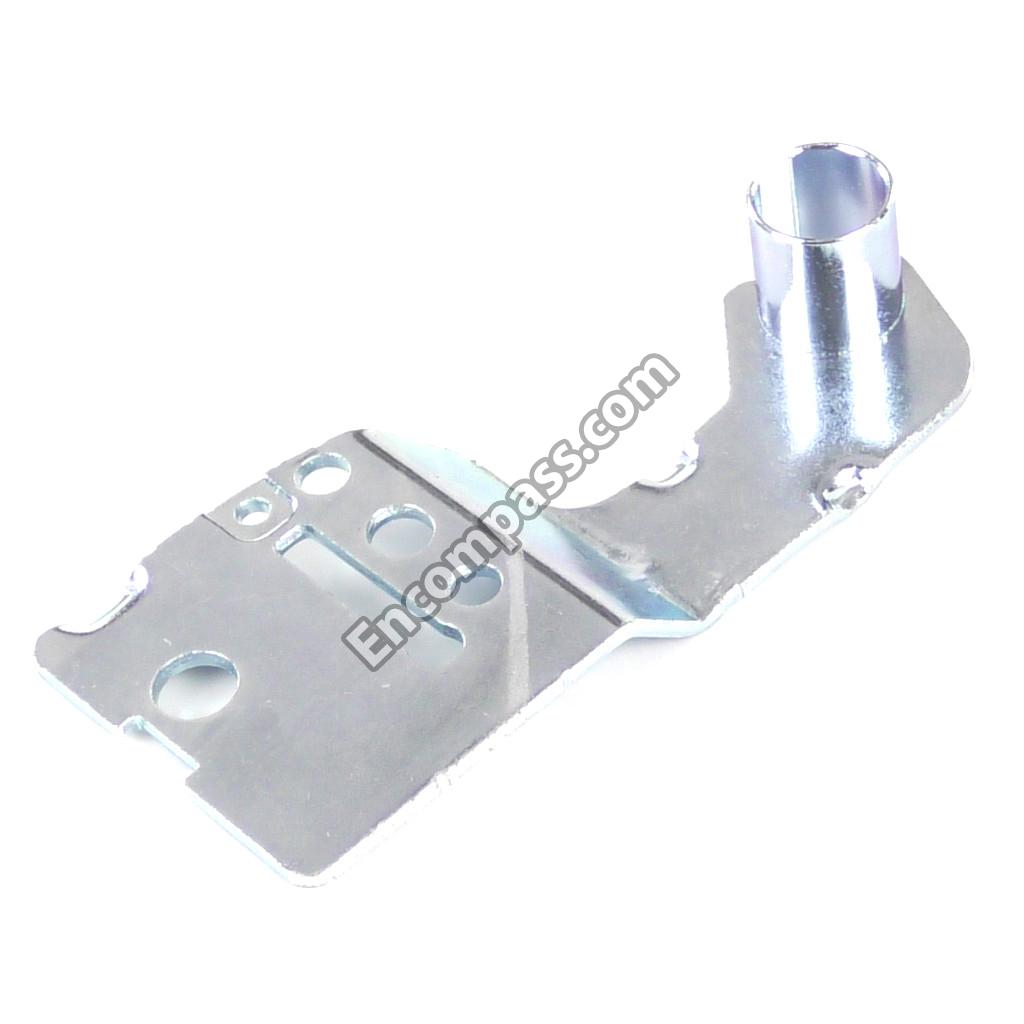

MAZ65353201 MAZ65353201 BRACKET,MOTOR
ABH74899823 ABH74899823 BUTTON ASSEMBLY
5006JA3123A 5006JA3123A CAP,DUCT

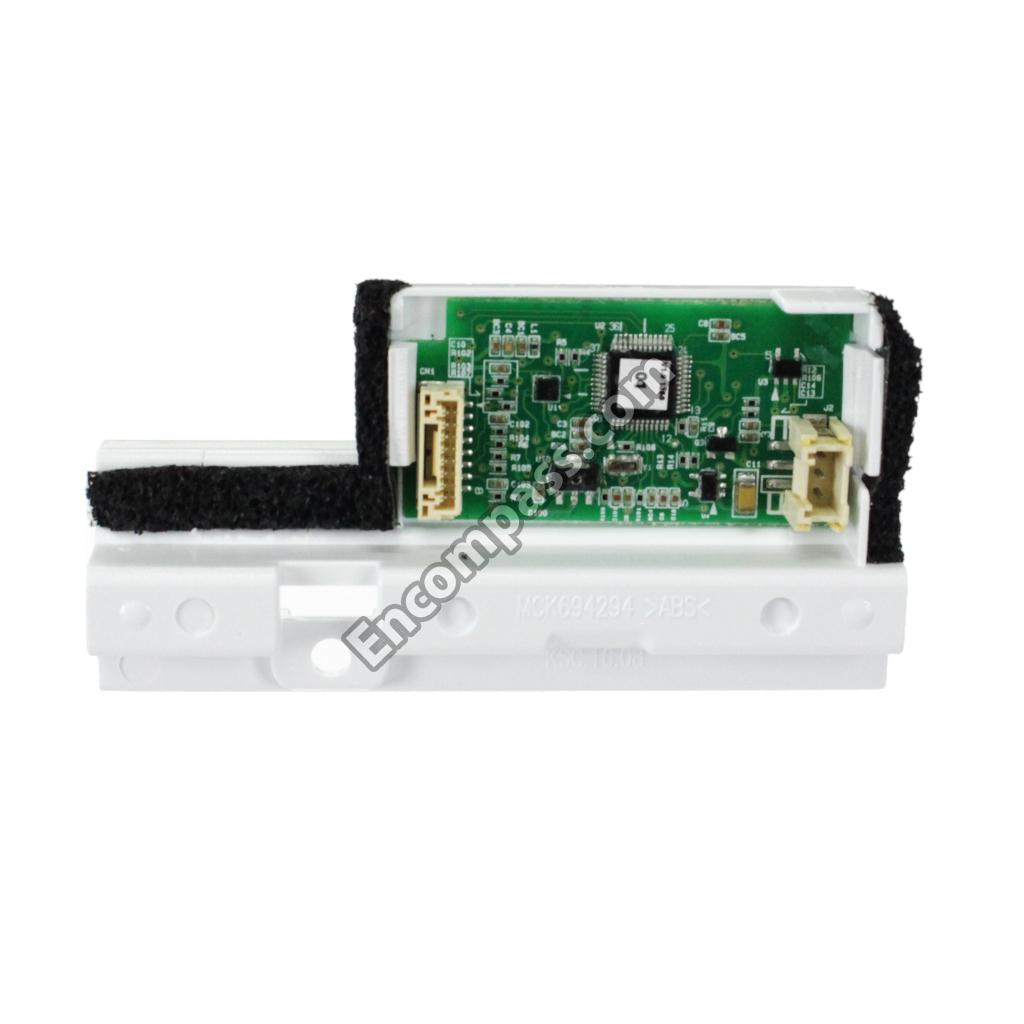

ABQ73984015 ABQ73984015 CASE ASSEMBLY,CONTROL REFRIGERATOR
MBN66225501 MBN66225501 CASE,HOME BAR
ACG76384503 ACG76384503 CONDENSER ASSEMBLY,WIRE
ACQ30041601 ACQ30041601 COVER ASSEMBLY,HINGE
ACQ86284807 ACQ86284807 COVER ASSEMBLY,MACHINERY(REAR)
ACQ85612409 ACQ85612409 COVER ASSEMBLY,PCB
ACQ88646125 ACQ88646125 COVER ASSEMBLY,PCB
ACQ76211726 ACQ76211726 COVER ASSEMBLY,TRAY
ACQ85968605 ACQ85968605 COVER ASSEMBLY,TRAY
ACQ76008429 ACQ76008429 COVER ASSEMBLY,TRAY VEGETABLE
MCK63310103 MCK63310103 COVER,DUCT
MCK69251909 MCK69251909 COVER,HINGE
MCK63331704 MCK63331704 COVER,LED
MCK63331804 MCK63331804 COVER,LED
MCK70052506 MCK70052506 COVER,PTC
3550JQ2073E 3550JQ2073E COVER,SENSOR
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
5040JA2004B 5040JA2004B DAMPER,MOTOR SUPPORT
5040JA2009B 5040JA2009B DAMPER,MOTOR SUPPORT
5072JA3003B 5072JA3003B DAMPER,NOISE
5072JQ3002F 5072JQ3002F DAMPER,NOISE

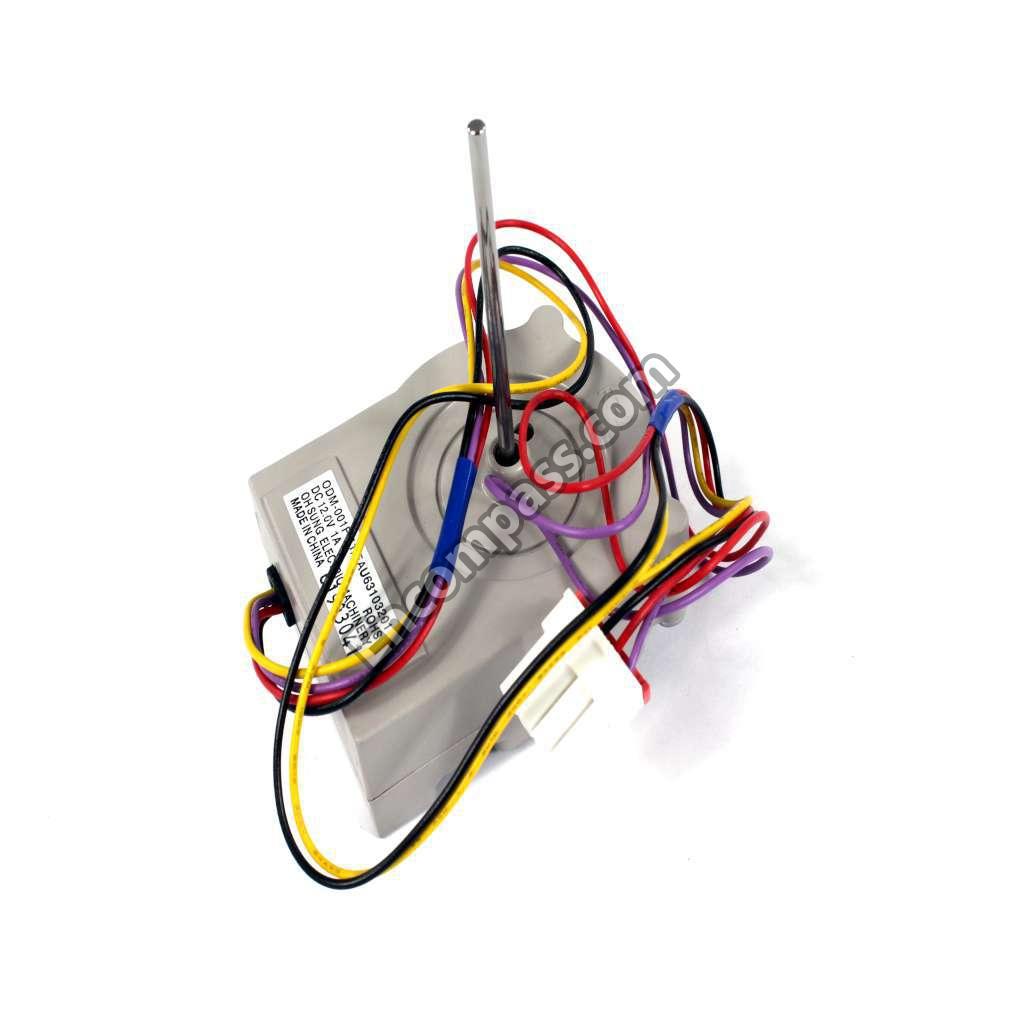

EAU63103201 EAU63103201 DC MOTOR
ACW75197201 ACW75197201 DECOR ASSEMBLY,DOOR
MCR68387301 MCR68387301 DECOR,COVER

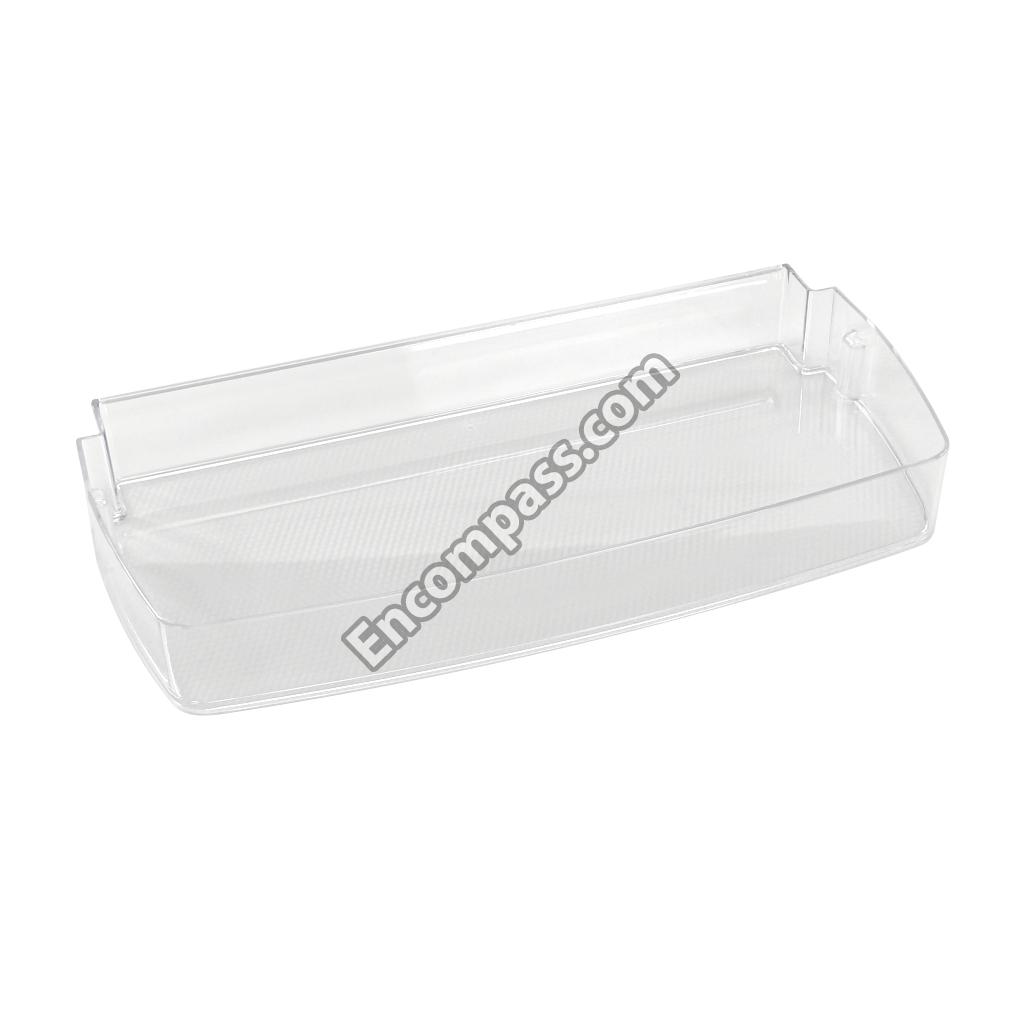

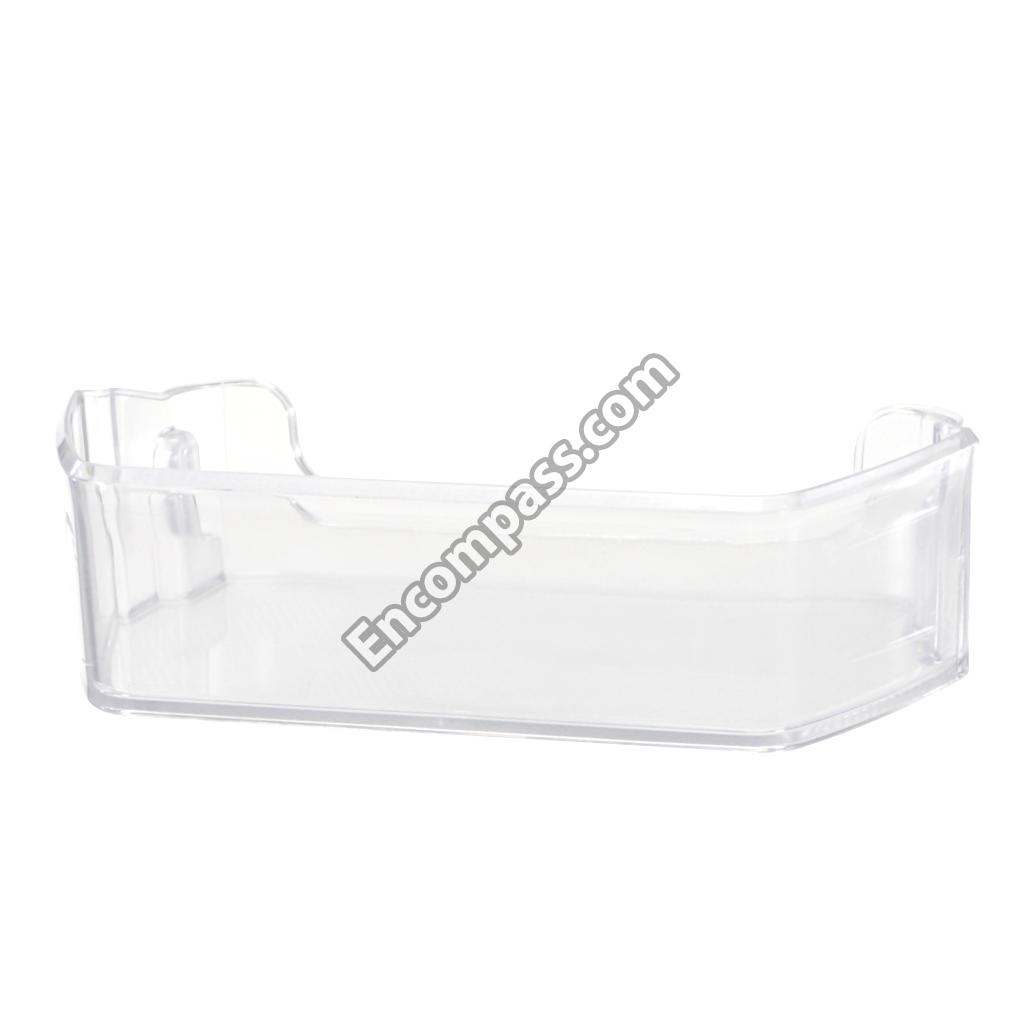

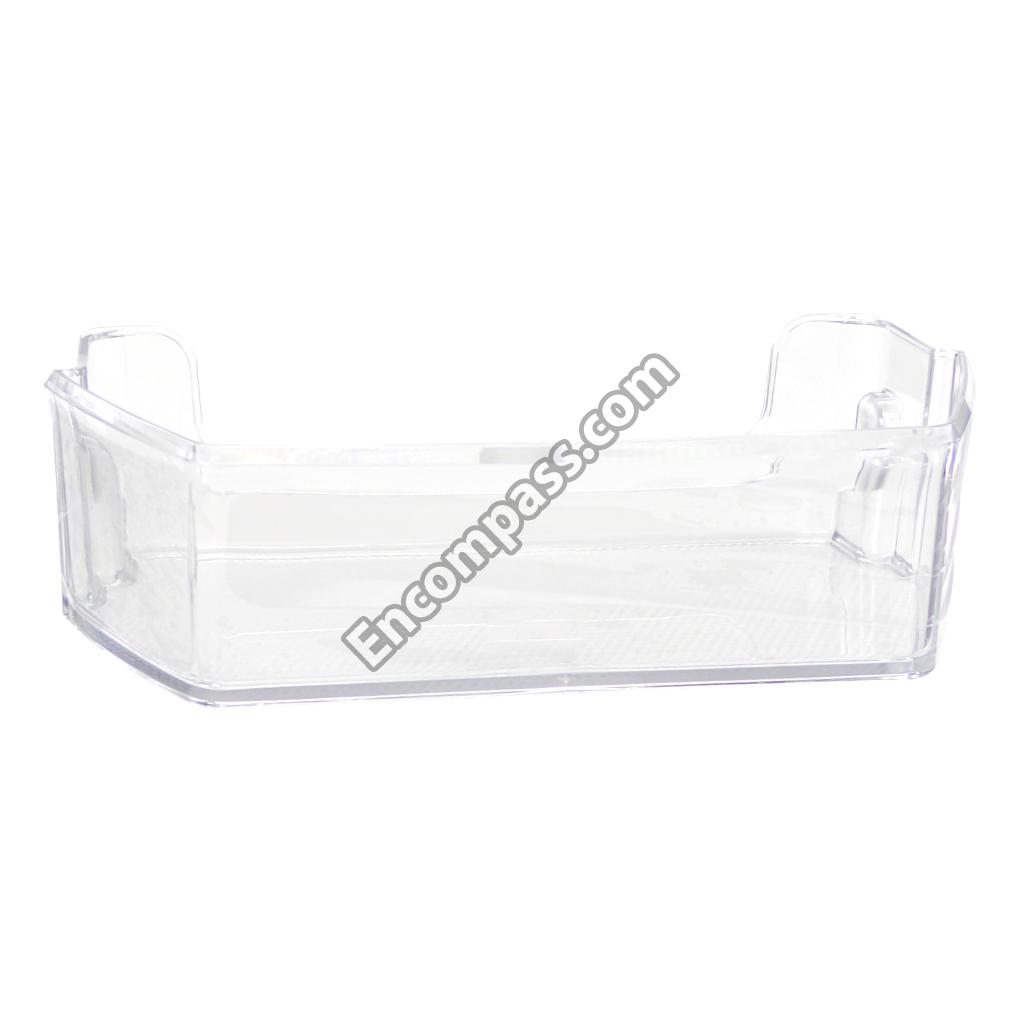

MAN63969410 MAN63969410 DOOR BASKET
MAN63908304 MAN63908304 DOOR BASKET
MAN63908204 MAN63908204 DOOR BASKET
MAN63108801 MAN63108801 DOOR BASKET
MAN63909402 MAN63909402 DOOR BASKET
MAN63909502 MAN63909502 DOOR BASKET
ADC75485554 ADC75485554 DOOR FOAM ASSEMBLY,HOME BAR
4987JJ1010Z 4987JJ1010Z DOOR GASKET
4987JJ1010Y 4987JJ1010Y DOOR GASKET
AJP73815118 AJP73815118 DRAWER TRAY
AJP73595145 AJP73595145 DRAWER TRAY
AJP73595144 AJP73595144 DRAWER TRAY
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ73292206 ADJ73292206 DUCT ASSEMBLY,INSULATION
ADJ73012203 ADJ73012203 DUCT ASSEMBLY,MULTI
ADL73901333 ADL73901333 EVAPORATOR ASSEMBLY
ADP73273402 ADP73273402 FAN ASSEMBLY
ADP74753501 ADP74753501 FAN ASSEMBLY
AEB72984718 AEB72984718 FAN GRILLE
MDX61932402 MDX61932402 FAN GRILLE
ADD76416401 ADD76416401 FREEZER DOOR FOAM
MDS67110105 MDS67110105 GASKET,FOAM
5400JJ2042T 5400JJ2042T GASKET,FOAM
5400JJ2042S 5400JJ2042S GASKET,FOAM
MDS62152466 MDS62152466 GASKET,HOME BAR
AEC74777701 AEC74777701 GUIDE,FAN

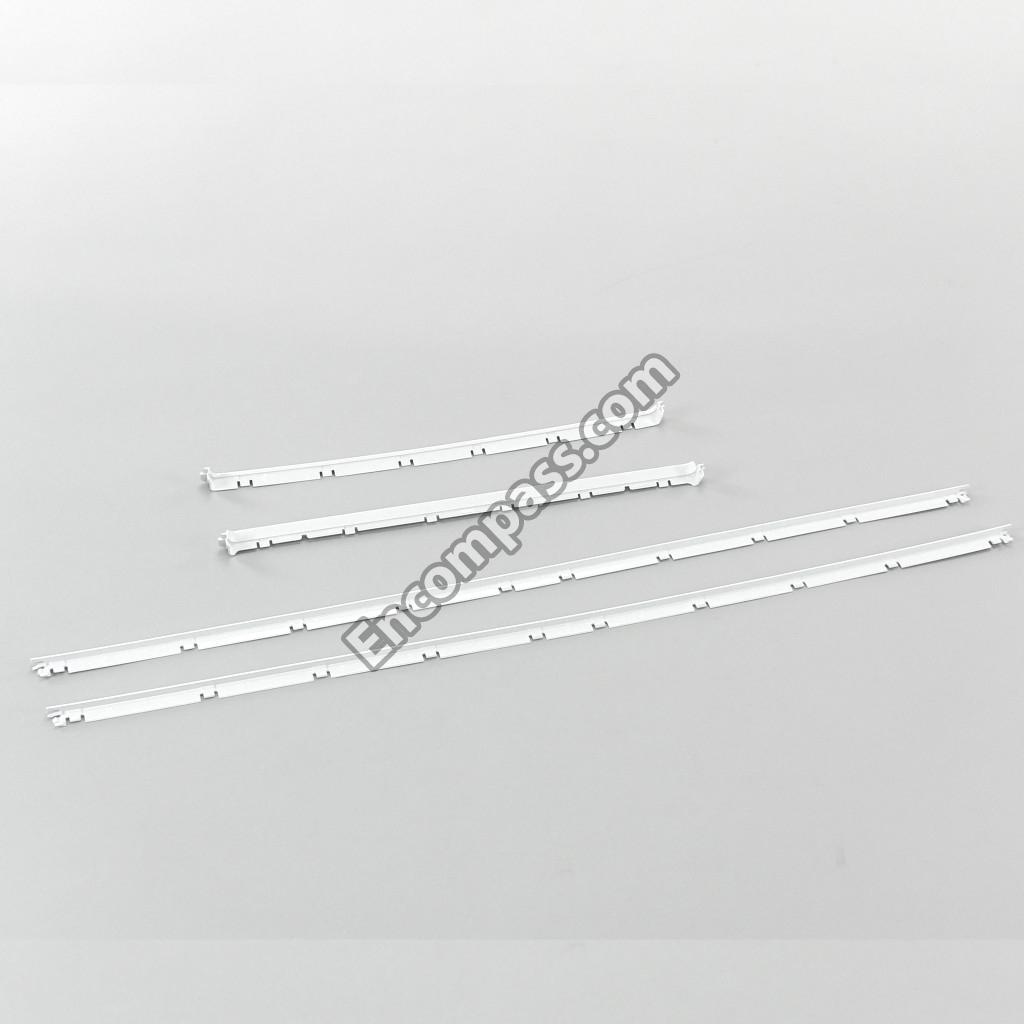

MEA64710401 MEA64710401 GUIDE,RAIL
MEA61973702 MEA61973702 GUIDE,RAIL
MEA62090802 MEA62090802 GUIDE,RAIL
MEA62090801 MEA62090801 GUIDE,RAIL
MEA62090702 MEA62090702 GUIDE,RAIL
MEA62090701 MEA62090701 GUIDE,RAIL
MEB64014304 MEB64014304 HANDLE,REAR
EAD64168606 EAD64168606 HARNESS ASSEMBLY
AEH75176304 AEH75176304 HINGE ASSEMBLY,LOWER
AEH75176202 AEH75176202 HINGE ASSEMBLY,LOWER

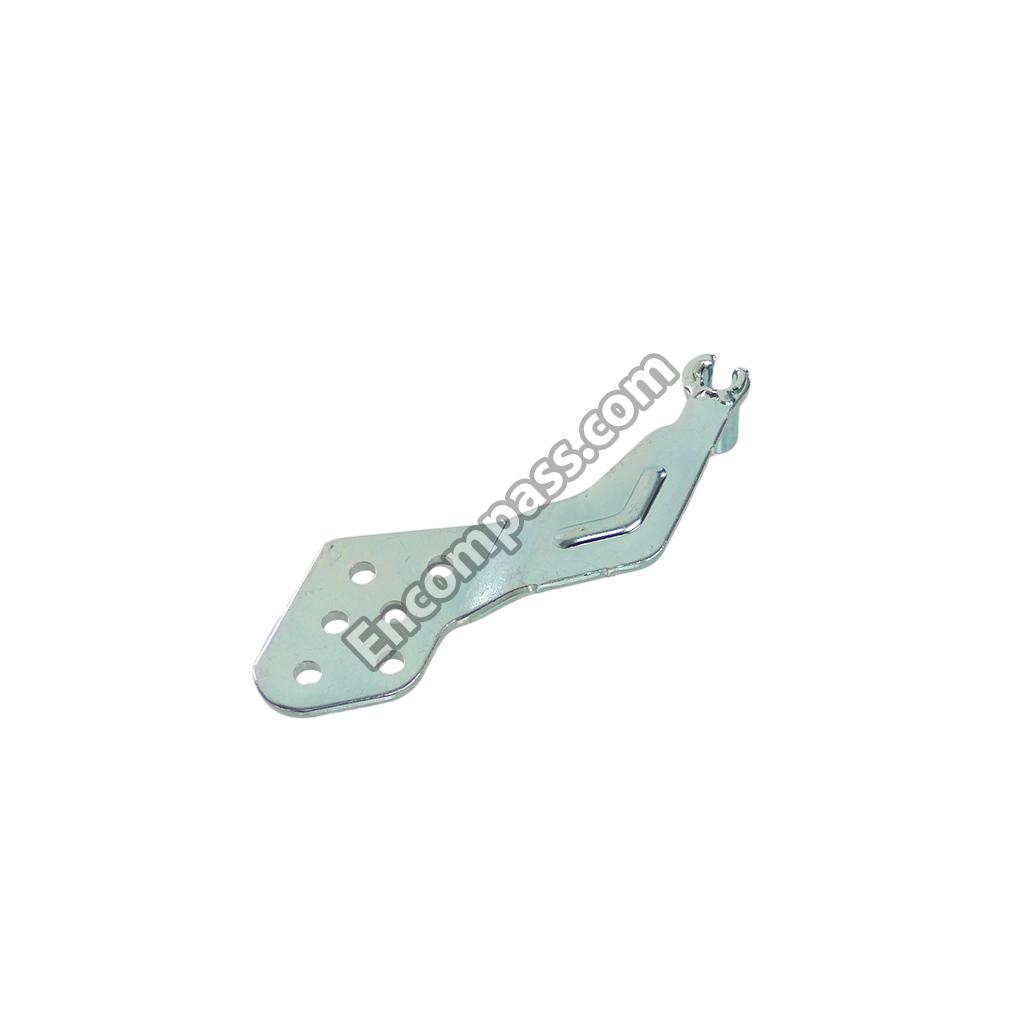

AEH73957102 AEH73957102 HINGE ASSEMBLY,UPPER
AEH75957301 AEH75957301 HINGE ASSEMBLY,UPPER
AEH75277305 AEH75277305 HINGE ASSEMBLY,UPPER
MEG61863805 MEG61863805 HOLDER,DRIER
MEG64900401 MEG64900401 HOLDER,DRIER
AKC74069201 AKC74069201 ICE BUCKET
EAV61875804 EAV61875804 LED ASSEMBLY
EAV61875815 EAV61875815 LED ASSEMBLY
EAV63332108 EAV63332108 LED ASSEMBLY
4510JA3004A 4510JA3004A LEVER,HINGE
EBR31600160 EBR31600160 MAIN BOARD
EAU65058326 EAU65058326 MOTOR ASSEMBLY,DC
EAU65058301 EAU65058301 MOTOR ASSEMBLY,DC
MFT62346511 MFT62346511 NAME PLATE
6750C-0002C 6750C-0002C OVERLOAD PROTECT
MFZ63453308 MFZ63453308 PACKING,DOOR
1PZZJA3013B 1PZZJA3013B PIN,COMMON
EAD61857348 EAD61857348 POWER CORD ASSEMBLY
TCA36811415 TCA36811415 REFRIGERATOR COMPRESSOR
ADD76416301 ADD76416301 REFRIGERATOR DOOR FOAMR
AEQ72909608 AEQ72909608 REFRIGERATOR ICE MAKER
AEQ72909606 AEQ72909606 REFRIGERATOR ICE MAKER

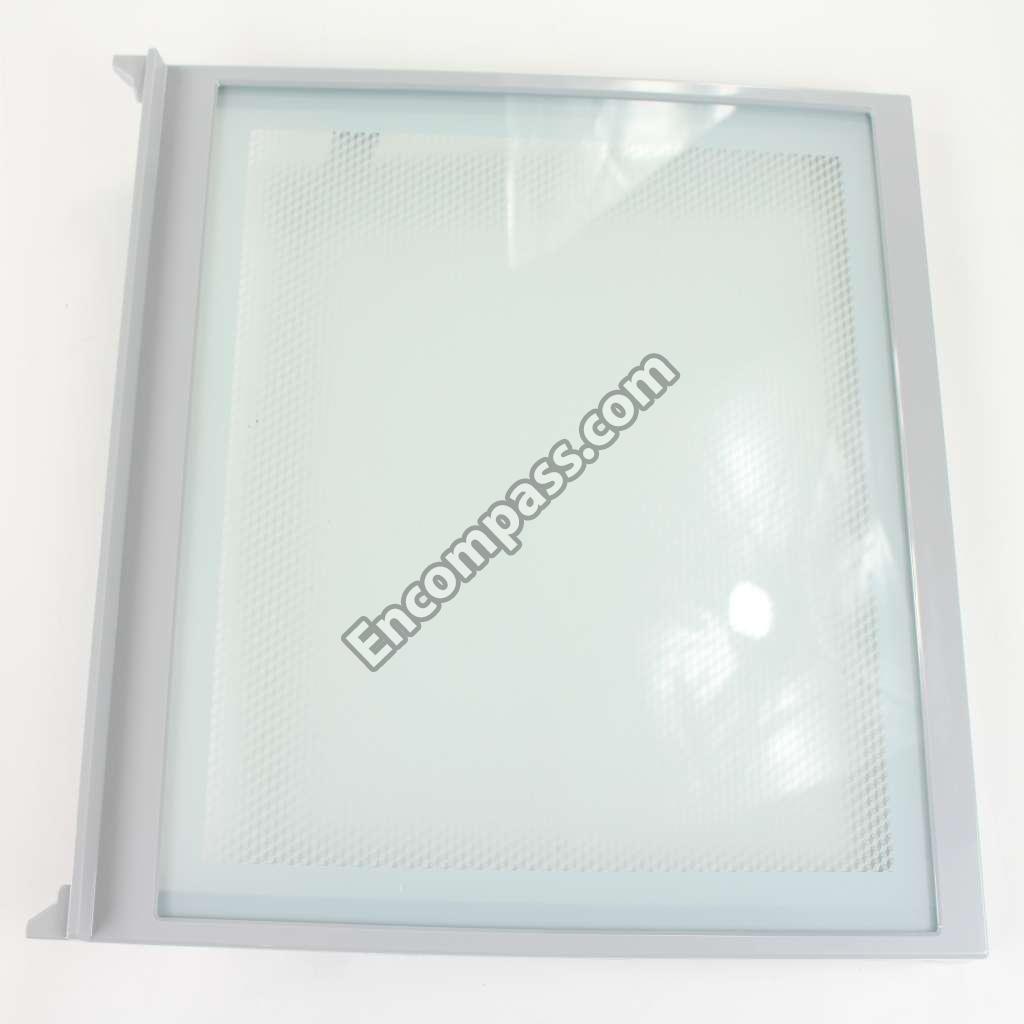

AHT73493834 AHT73493834 REFRIGERATOR SHELF

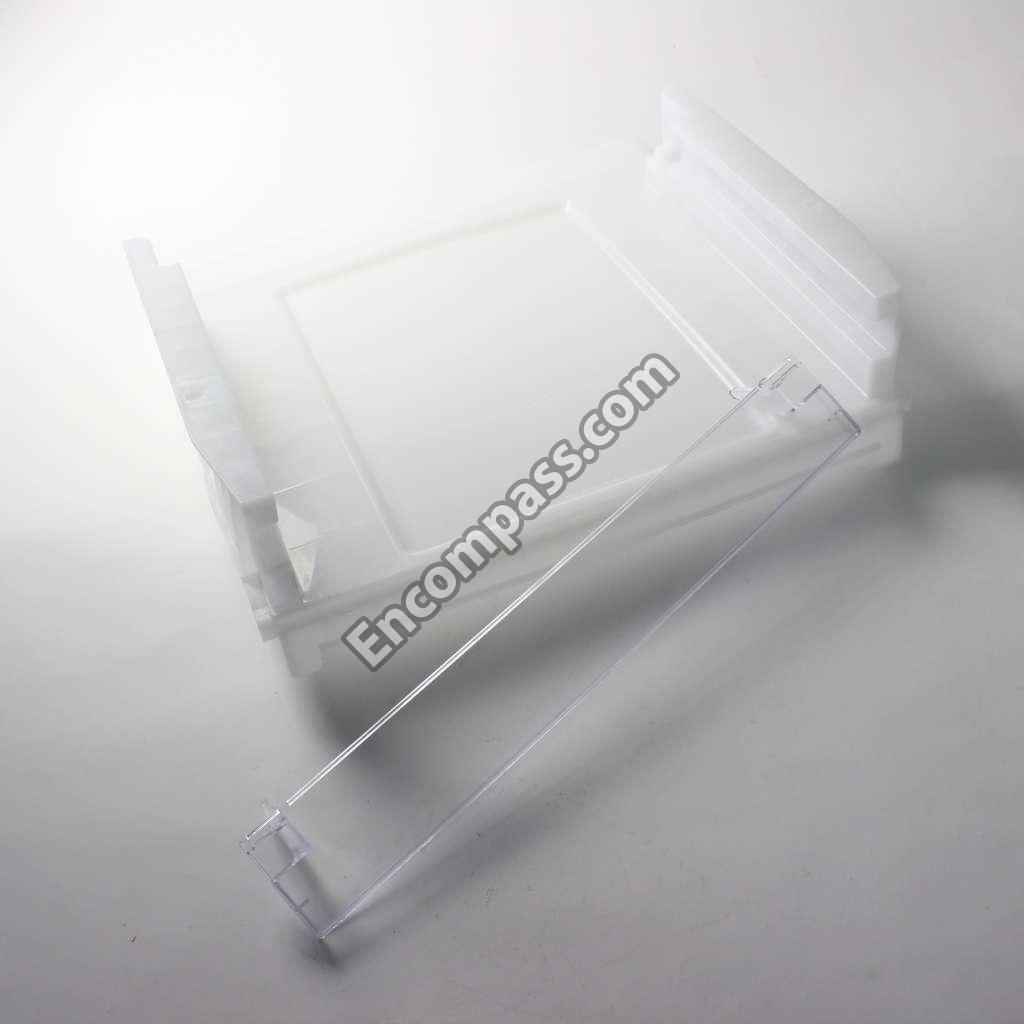

AJP73595012 AJP73595012 REFRIGERATOR VEGETABLE TRAY

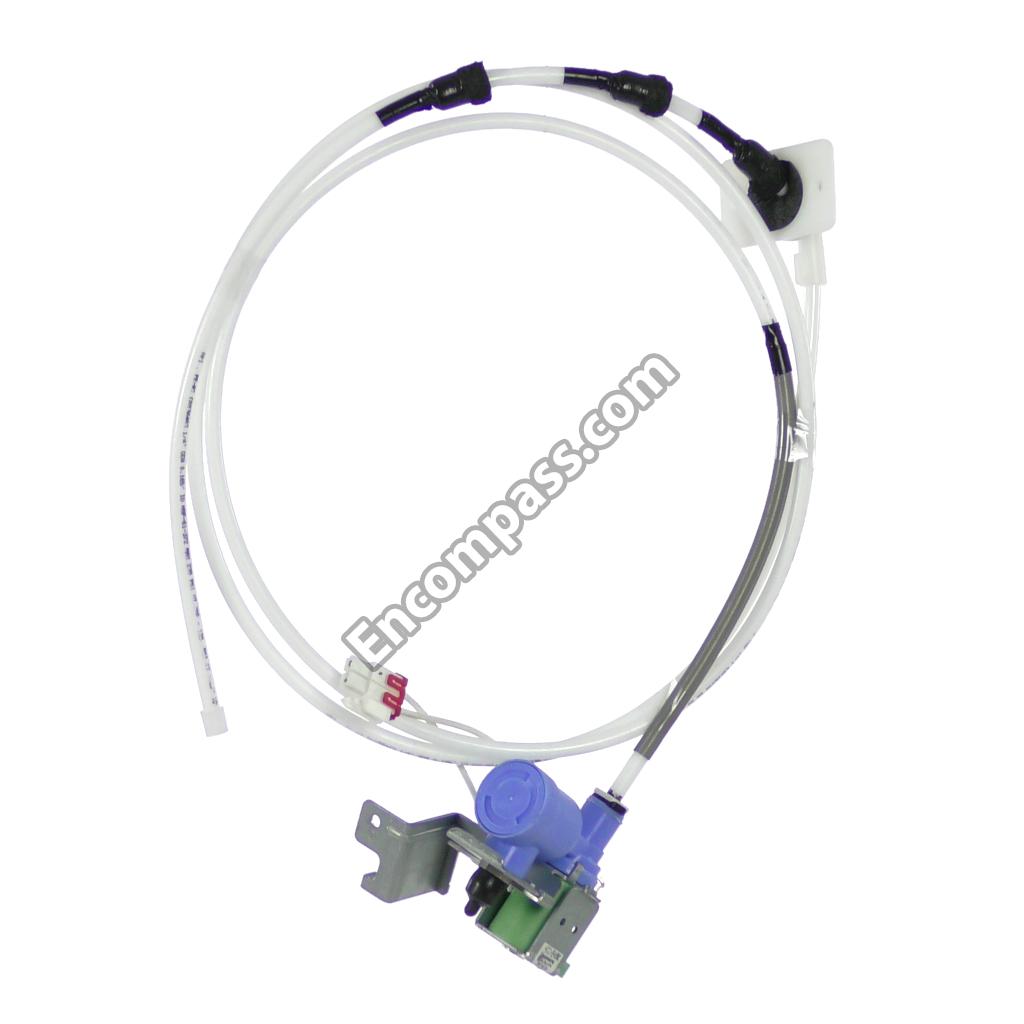

AJU73432824 AJU73432824 REFRIGERATOR WATER INLET VALVE
4580JJ3001G 4580JJ3001G ROLLER
6500JB1008D 6500JB1008D SENSOR,TEMPERATURE
6500JB2008Z 6500JB2008Z SENSOR,TEMPERATURE
AHT73493934 AHT73493934 SHELF ASSEMBLY,FREEZER
AHT73493935 AHT73493935 SHELF ASSEMBLY,FREEZER
MHN61882004 MHN61882004 SHROUD,FREEZER
4620JA3015A 4620JA3015A STOPPER,COMPRESSOR
EBG63205819 EBG63205819 THERMISTOR ASSEMBLY,PTC
AJP73014604 AJP73014604 TRAY ASSEMBLY,DRAIN
MJS65315101 MJS65315101 TRAY,DRIP
5251JA3004E 5251JA3004E TUBE ASSEMBLY,DRAIN
