Model Image
Manufacturer

LG

Model Number

LW1017ERSM

Description

10,000 Btu Smart Wi-fi Enabled Window Air Conditio

Interactive Exploded View
Exploded View

Parts List

Part Number Description

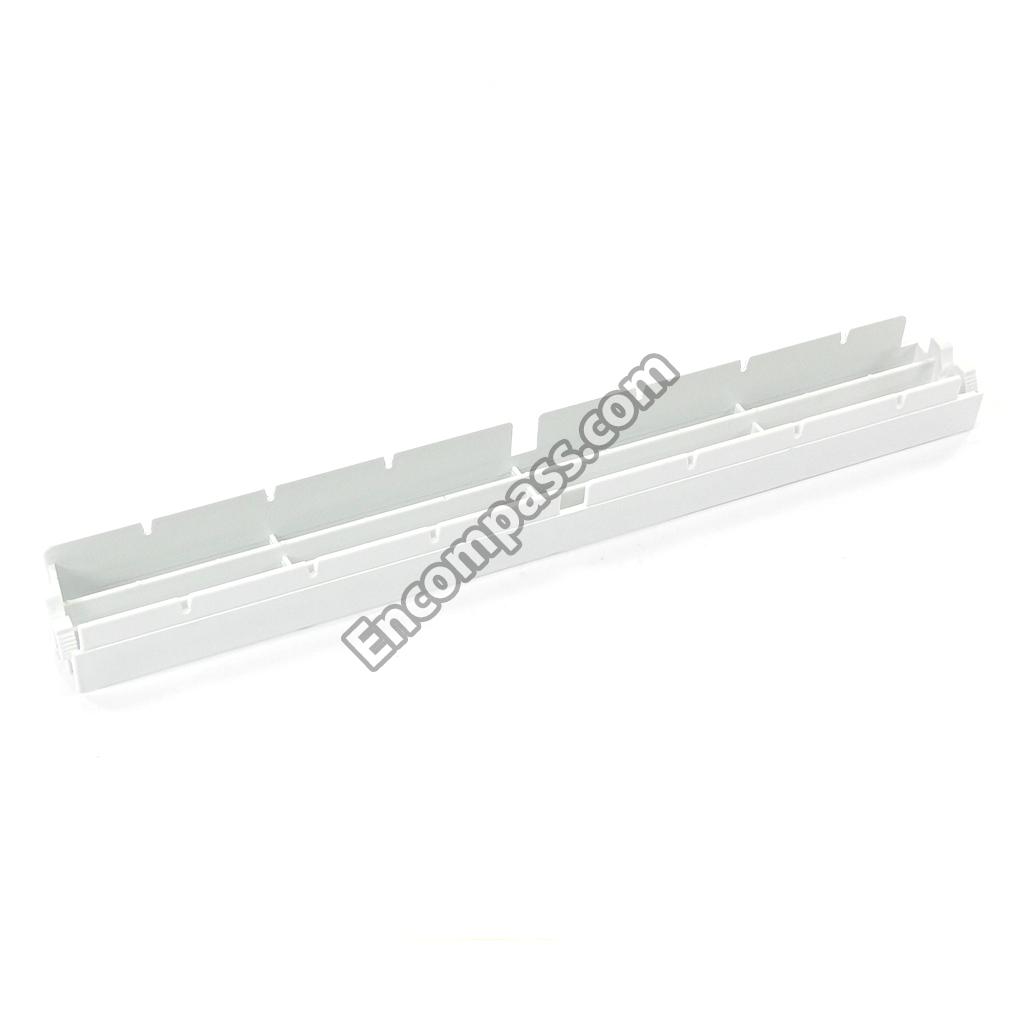

5238A20008F 5238A20008F AIR GUIDE
AAN73030708 AAN73030708 BASE ASSEMBLY,SINGLE

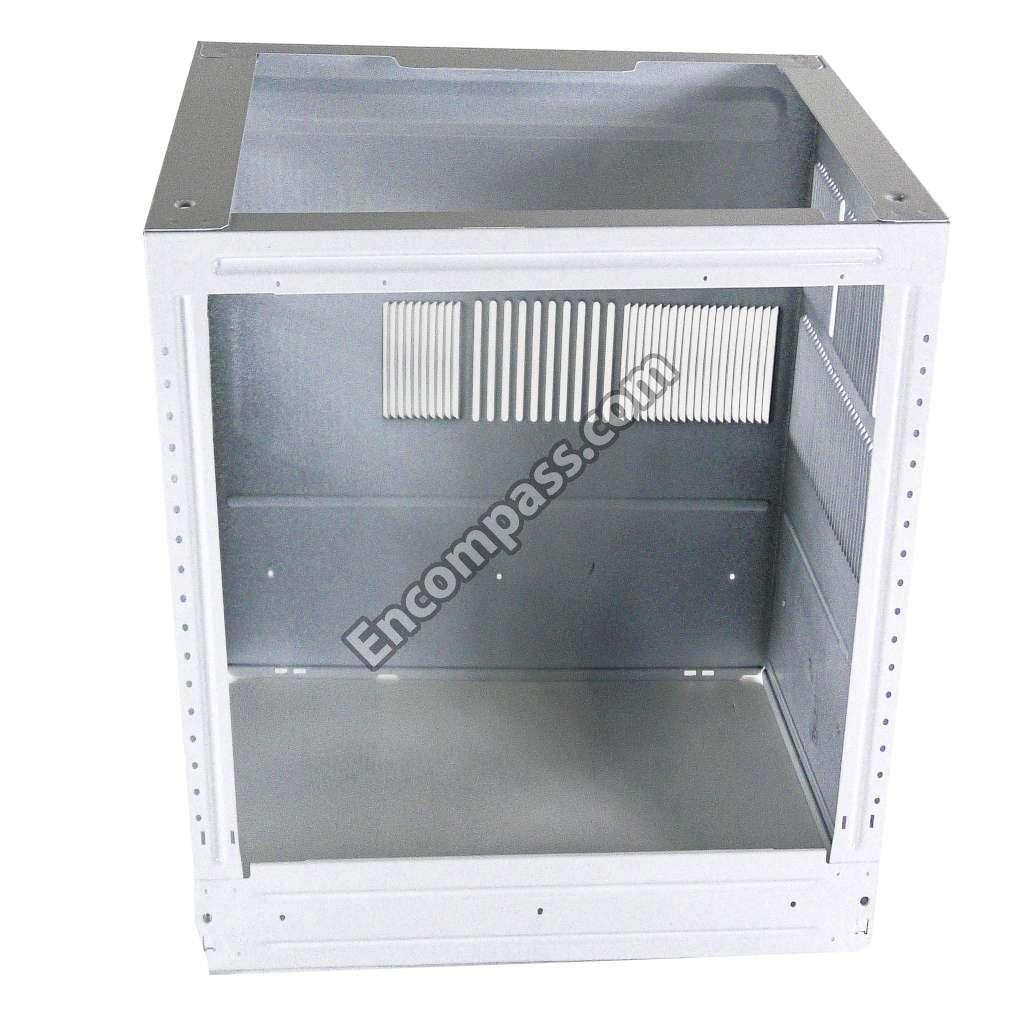

3091A10072H 3091A10072H CABINET ASSEMBLY,SINGLE
3091A10071W 3091A10071W CABINET ASSEMBLY,SINGLE
3091A10072N 3091A10072N CABINET ASSEMBLY,SINGLE
0CZZA20001N 0CZZA20001N CAPACITOR,FILM,BOX
ABQ30237904 ABQ30237904 CASE ASSEMBLY,CONTROL
ABQ76620203 ABQ76620203 CASE ASSEMBLY,CONTROL
ABQ75823226 ABQ75823226 CASE ASSEMBLY,CONTROL
ABQ76620205 ABQ76620205 CASE ASSEMBLY,CONTROL
3H02932B 3H02932B CLAMP,SPRING
TBZ37395701 TBZ37395701 COMPRESSOR SET,CHINA
TBZ38956701 TBZ38956701 COMPRESSOR SET,CHINA
ACG72924216 ACG72924216 CONDENSER ASSEMBLY,FIRST
ACG72924215 ACG72924215 CONDENSER ASSEMBLY,FIRST
ACG72924208 ACG72924208 CONDENSER ASSEMBLY,FIRST
EBR85871801 EBR85871801 CONTROL BOARD,WIFI
MCK69413206 MCK69413206 COVER
MCK69433207 MCK69433207 COVER
MCK69433203 MCK69433203 COVER
MCK69546411 MCK69546411 COVER
ABQ76620210 ABQ76620210 COVER
ABQ76620207 ABQ76620207 COVER
MCK69413201 MCK69413201 COVER
MCK69433201 MCK69433201 COVER
MCK69546401 MCK69546401 COVER
ACQ31027902 ACQ31027902 COVER ASSEMBLY,DISPLAY
3127A20074Y 3127A20074Y CURTAIN ASSEMBLY
MCQ62508904 MCQ62508904 DAMPER,COMPRESSOR
MCQ62508905 MCQ62508905 DAMPER,COMPRESSOR
4900A20002A 4900A20002A DAMPER,VENT

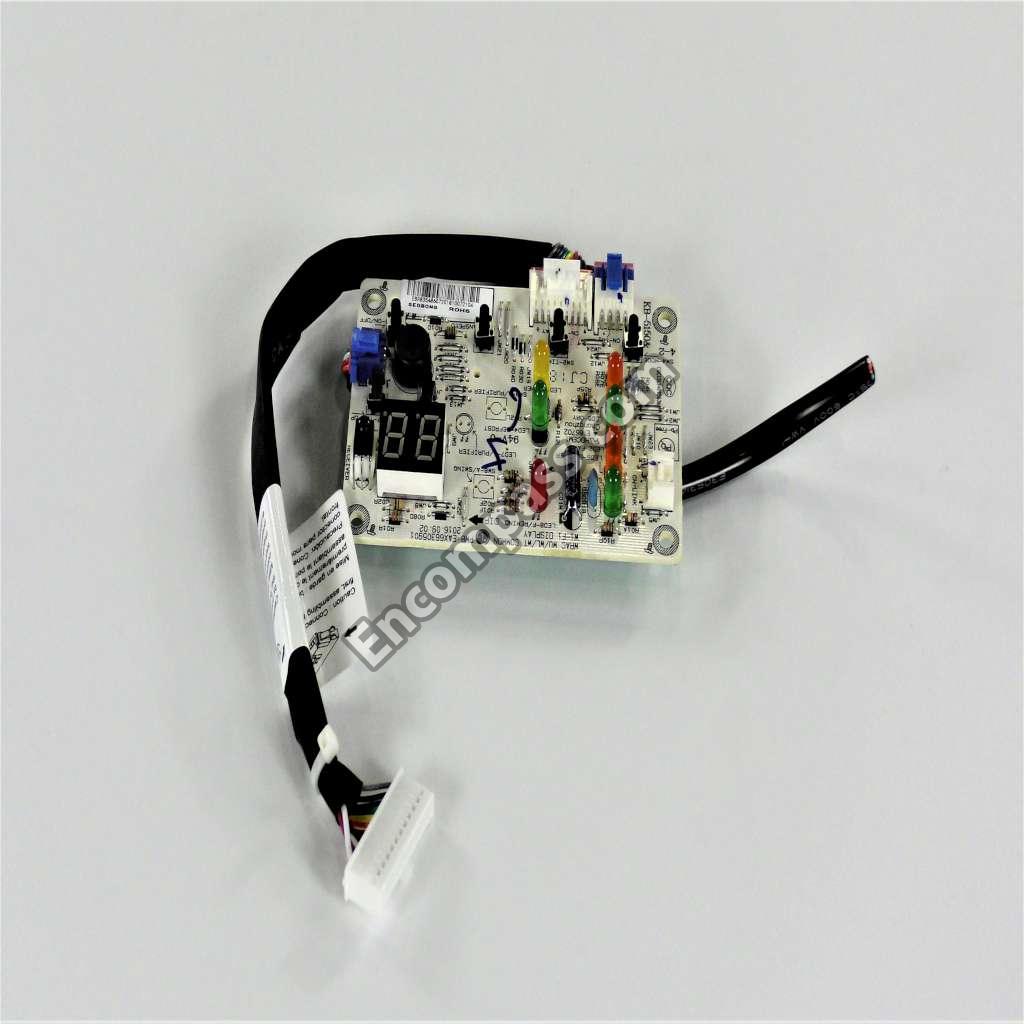

EBR89540814 EBR89540814 DISPLAY CONTROL BOARD
5239A20004L 5239A20004L DUCT ASSEMBLY
5239A20004E 5239A20004E DUCT ASSEMBLY
MDD62942306 MDD62942306 ESCUTCHEON
MDD62942304 MDD62942304 ESCUTCHEON
5421A20099W 5421A20099W EVAPORATOR ASSEMBLY,FIRST
5421A20099S 5421A20099S EVAPORATOR ASSEMBLY,FIRST
5421A20099M 5421A20099M EVAPORATOR ASSEMBLY,FIRST
5900A10009H 5900A10009H FAN,AXIAL
5900A10009G 5900A10009G FAN,AXIAL
5900A10009E 5900A10009E FAN,AXIAL
5900A10009B 5900A10009B FAN,AXIAL
MDG58298303 MDG58298303 FAN,TURBO
MDG58298302 MDG58298302 FAN,TURBO
MDG58298301 MDG58298301 FAN,TURBO
ADQ73953404 ADQ73953404 FILTER ASSEMBLY,AIR CLEANER
ADQ73953402 ADQ73953402 FILTER ASSEMBLY,AIR CLEANER
AEB74085922 AEB74085922 FRONT GRILLE ASSEMBLY
AEB76289929 AEB76289929 GRILLE ASSEMBLY,FRONT
AEB74085907 AEB74085907 GRILLE ASSEMBLY,FRONT
MDX63032504 MDX63032504 GRILLE,FRONT
4974AR3262S 4974AR3262S GUIDE
4974AR3262Q 4974AR3262Q GUIDE
5238A20008N 5238A20008N GUIDE,AIR
5238A20008L 5238A20008L GUIDE,AIR
5238A20008C 5238A20008C GUIDE,AIR
EAD63989002 EAD63989002 HARNESS,MULTI
EAD63989001 EAD63989001 HARNESS,MULTI
AET74151718 AET74151718 INSTALL PART ASSEMBLY,SET
AET74151710 AET74151710 INSTALL PART ASSEMBLY,SET
AET73691405 AET73691405 INSTALL PART ASSEMBLY,SINGLE
4520A20007C 4520A20007C LINK
4520A20007A 4520A20007A LINK
4758A20066D 4758A20066D LOUVER,HORIZONTAL
4758A20066C 4758A20066C LOUVER,HORIZONTAL
4758A10009E 4758A10009E LOUVER,VERTICAL
4758A10009F 4758A10009F LOUVER,VERTICAL
4758A10009A 4758A10009A LOUVER,VERTICAL
4758A10009B 4758A10009B LOUVER,VERTICAL
EAU61423711 EAU61423711 MOTOR ASSEMBLY,AC,SINGLE
EAU61423707 EAU61423707 MOTOR ASSEMBLY,AC,SINGLE
4948A10015F 4948A10015F ORIFICE
4948A10015D 4948A10015D ORIFICE
4948A10015A 4948A10015A ORIFICE
EAF61751212 EAF61751212 OVERLOAD PROTECT
EBR89540804 EBR89540804 PCB ASSEMBLY,DISPLAY
EBR83548607 EBR83548607 PCB ASSEMBLY,DISPLAY

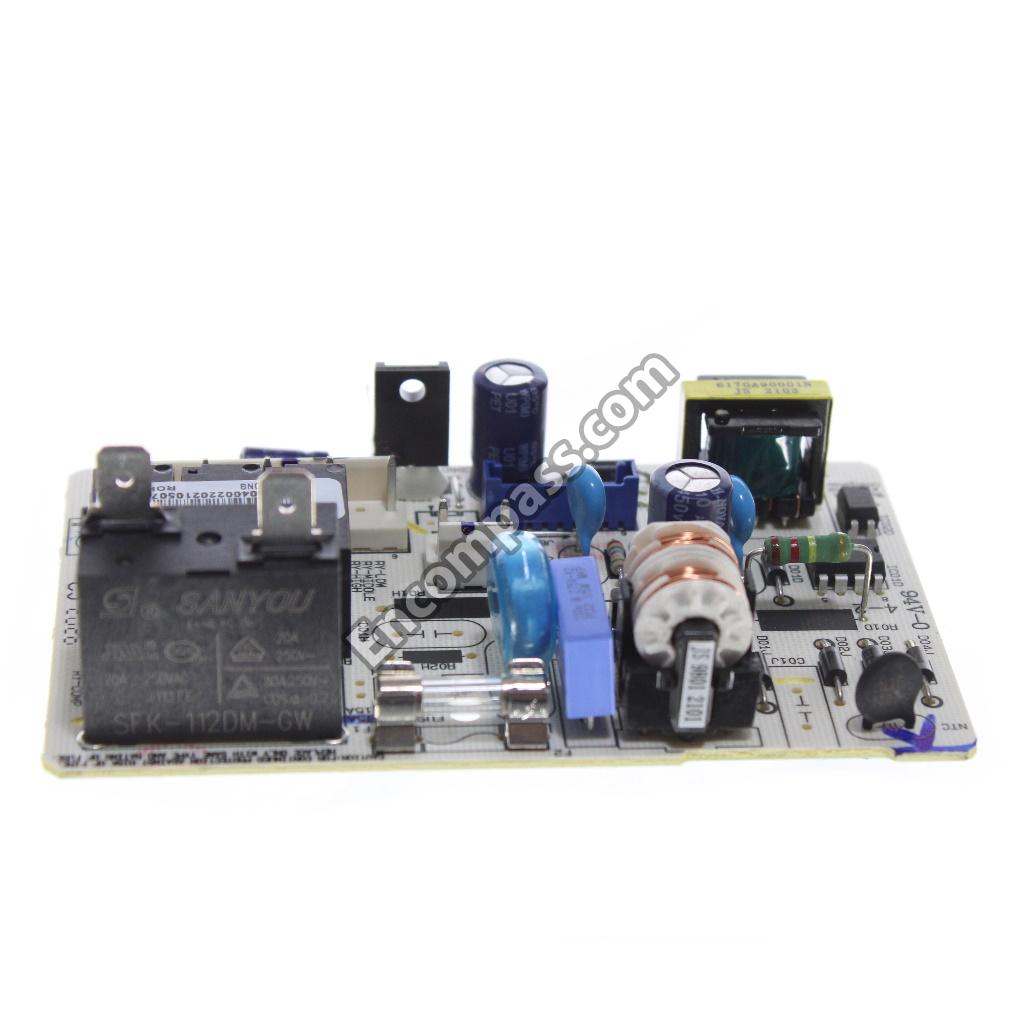

EBR89540702 EBR89540702 PCB ASSEMBLY,MAIN
EBR83604002 EBR83604002 PCB ASSEMBLY,MAIN
EBR82056913 EBR82056913 PCB ASSEMBLY,MODULE
EAD66043106 EAD66043106 POWER CORD ASSEMBLY
EAD63469528 EAD63469528 POWER CORD ASSEMBLY
EAD63469512 EAD63469512 POWER CORD ASSEMBLY
AKB73016019 AKB73016019 REMOTE CONTROL
AKB73795706 AKB73795706 REMOTE CONTROLLER ASSEMBLY
4998A10016K 4998A10016K SHROUD
4998A10016J 4998A10016J SHROUD
4998A10016C 4998A10016C SHROUD
MBU64446301 MBU64446301 SPRING CLAMP
3H02932C 3H02932C SPRING CLAMP
4800A30002G 4800A30002G SUPPORTER
4800A30002E 4800A30002E SUPPORTER
4800A30002D 4800A30002D SUPPORTER
AJR75625303 AJR75625303 TUBE ASSEMBLY,CONDENSER(OUT)
AJR75625301 AJR75625301 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73143114 AJR73143114 TUBE ASSEMBLY,CONNECTOR
AJR73143111 AJR73143111 TUBE ASSEMBLY,CONNECTOR
AJR75584715 AJR75584715 TUBE ASSEMBLY,DISCHARGE
AJR75584703 AJR75584703 TUBE ASSEMBLY,DISCHARGE
AJR33322521 AJR33322521 TUBE ASSEMBLY,EVAPORATOR(IN)
AJR73084016 AJR73084016 TUBE ASSEMBLY,SUCTION
AJR73084014 AJR73084014 TUBE ASSEMBLY,SUCTION
AJR73084009 AJR73084009 TUBE ASSEMBLY,SUCTION
AAN73030709 AAN73030709 TV STAND ASSEMBLY,SINGLE
