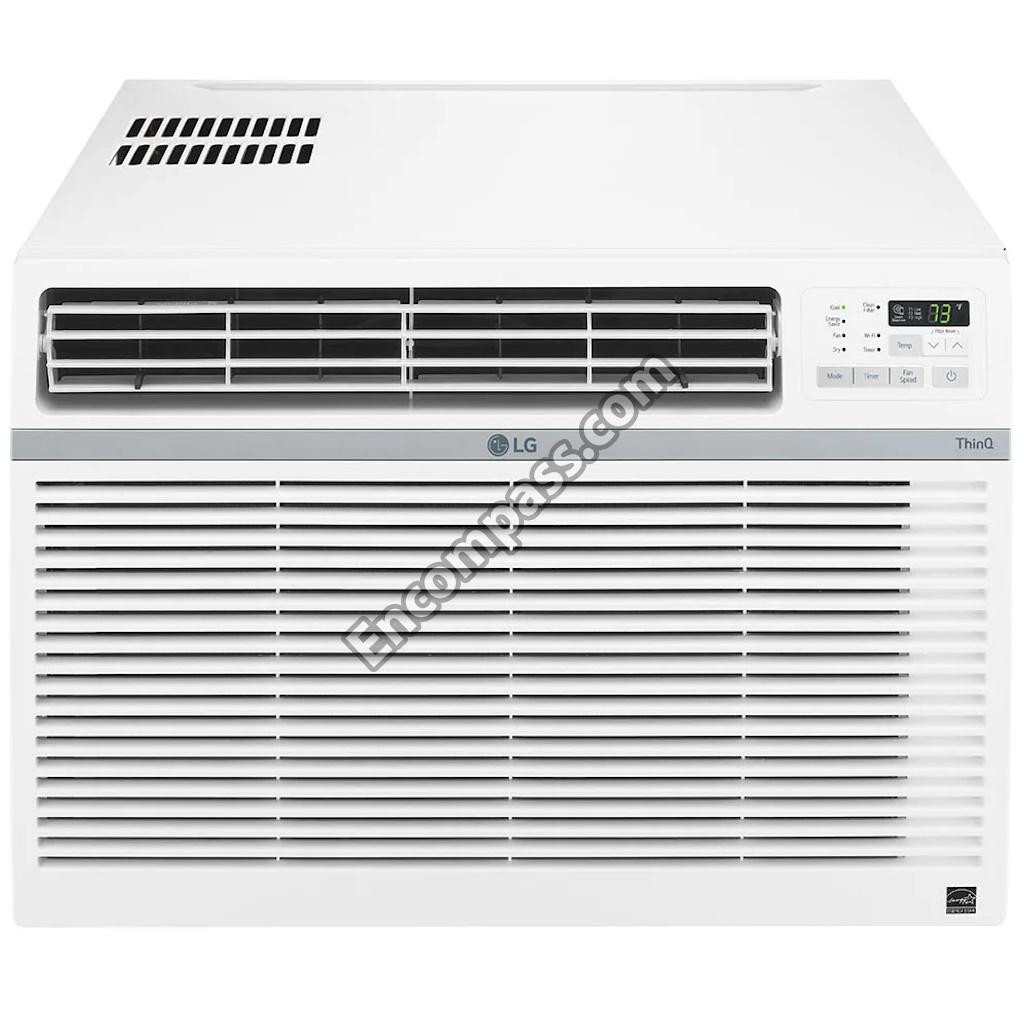

Model Image
Manufacturer

LG

Model Number

LW1521ERSM

Description

15,000 Btu Smart Wi-fi Enabled Window Air Conditio

Interactive Exploded View

Parts List

Part Number Description
AAN76849603 AAN76849603 BASE ASSEMBLY,SINGLE
4960A20056D 4960A20056D BRACKET,MOTOR
4960A20056C 4960A20056C BRACKET,MOTOR
3091A10064Z 3091A10064Z CABINET ASSEMBLY,SINGLE
3091A10064Y 3091A10064Y CABINET ASSEMBLY,SINGLE

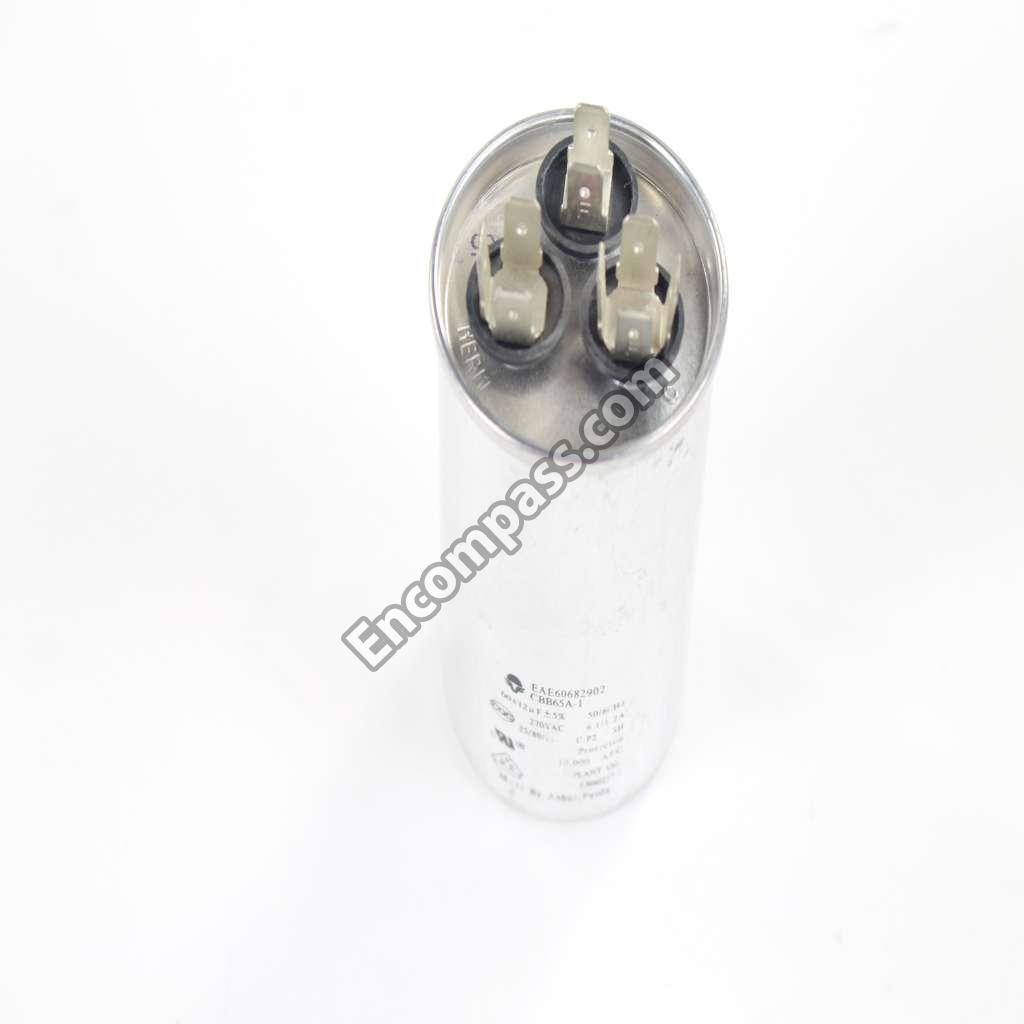

EAE60682902 EAE60682902 CAPACITOR,FILM,BOX
ABQ30237901 ABQ30237901 CASE ASSEMBLY,CONTROL
3H02932C 3H02932C CLAMP,SPRING
TBZ37317801 TBZ37317801 COMPRESSOR SET,CHINA
ACG75264904 ACG75264904 CONDENSER ASSEMBLY,FIRST
ACG75264901 ACG75264901 CONDENSER ASSEMBLY,FIRST
ACG75264903 ACG75264903 CONDENSER ASSEMBLY,FIRST
MCK69413206 MCK69413206 COVER
MCK69433207 MCK69433207 COVER
MCK69546411 MCK69546411 COVER
MCK69413201 MCK69413201 COVER
MCK69433201 MCK69433201 COVER
MCK69433203 MCK69433203 COVER
ABQ76620207 ABQ76620207 COVER
ABQ76620210 ABQ76620210 COVER
ACQ31027902 ACQ31027902 COVER ASSEMBLY,DISPLAY
5014A20003A 5014A20003A DAMPER,COMPRESSOR
MDD63322906 MDD63322906 ESCUTCHEON
ADL75221408 ADL75221408 EVAPORATOR ASSEMBLY,FIRST
ADL75221410 ADL75221410 EVAPORATOR ASSEMBLY,FIRST
5901A20009A 5901A20009A FAN ASSEMBLY,TURBO
5901A20009E 5901A20009E FAN ASSEMBLY,TURBO
5900A10011A 5900A10011A FAN,AXIAL
5900A10011D 5900A10011D FAN,AXIAL
ADQ73953603 ADQ73953603 FILTER ASSEMBLY,AIR CLEANER
AEB76289918 AEB76289918 GRILLE ASSEMBLY,FRONT
MDX63032703 MDX63032703 GRILLE,FRONT
MEA61972806 MEA61972806 GUIDE
5239A20017L 5239A20017L GUIDE ASSEMBLY,AIR
5239A20017G 5239A20017G GUIDE ASSEMBLY,AIR
5239A20020D 5239A20020D GUIDE ASSEMBLY,AIR
EAD63989001 EAD63989001 HARNESS,MULTI
EAD63989002 EAD63989002 HARNESS,MULTI

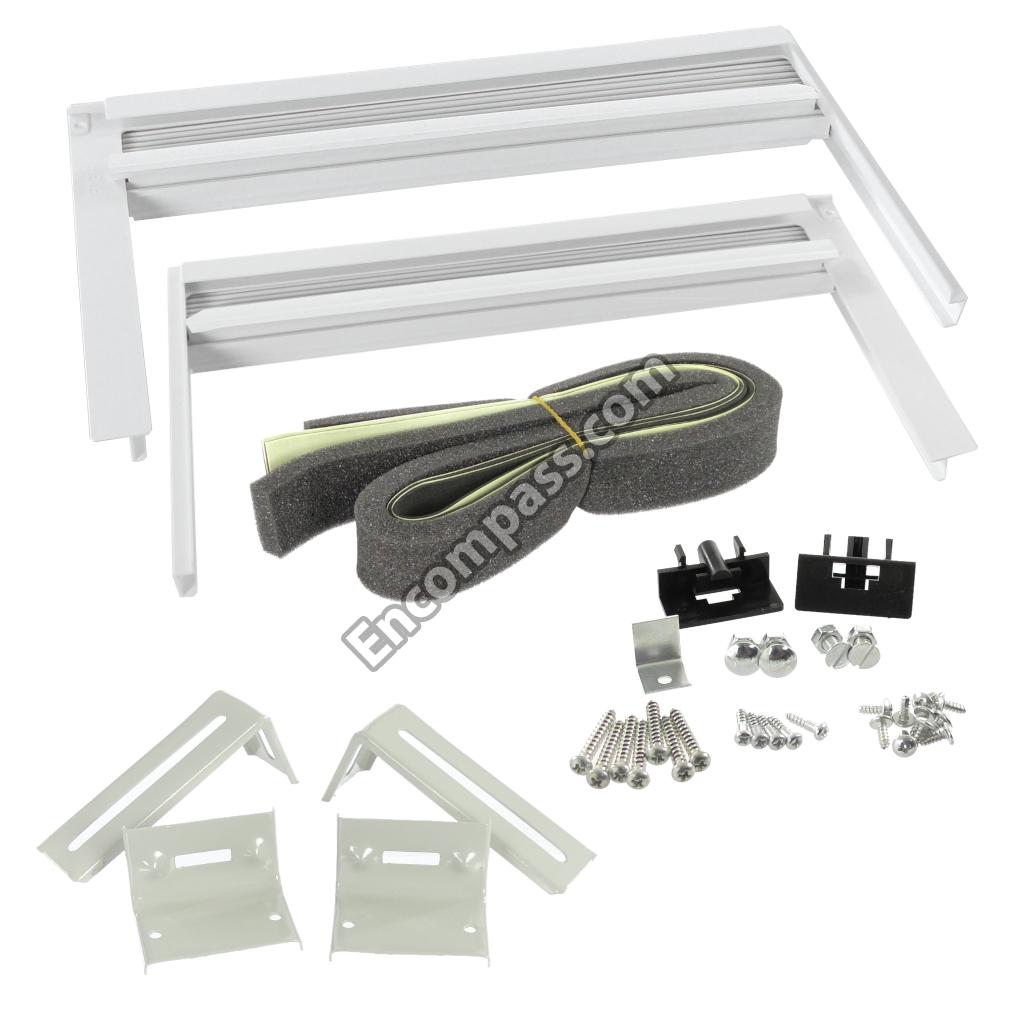

AET74151703 AET74151703 INSTALL PART ASSEMBLY,SET
AET74151719 AET74151719 INSTALL PART ASSEMBLY,SET
AET73691406 AET73691406 INSTALL PART ASSEMBLY,SINGLE
4520A30026G 4520A30026G LINK
4520A30026C 4520A30026C LINK
4758A30047D 4758A30047D LOUVER,HORIZONTAL
4758A30050G 4758A30050G LOUVER,VERTICAL
4758A30050H 4758A30050H LOUVER,VERTICAL
4758A30050E 4758A30050E LOUVER,VERTICAL
4758A30050F 4758A30050F LOUVER,VERTICAL
4681A20043P 4681A20043P MOTOR,AC
MFX62901902 MFX62901902 ORIFICE

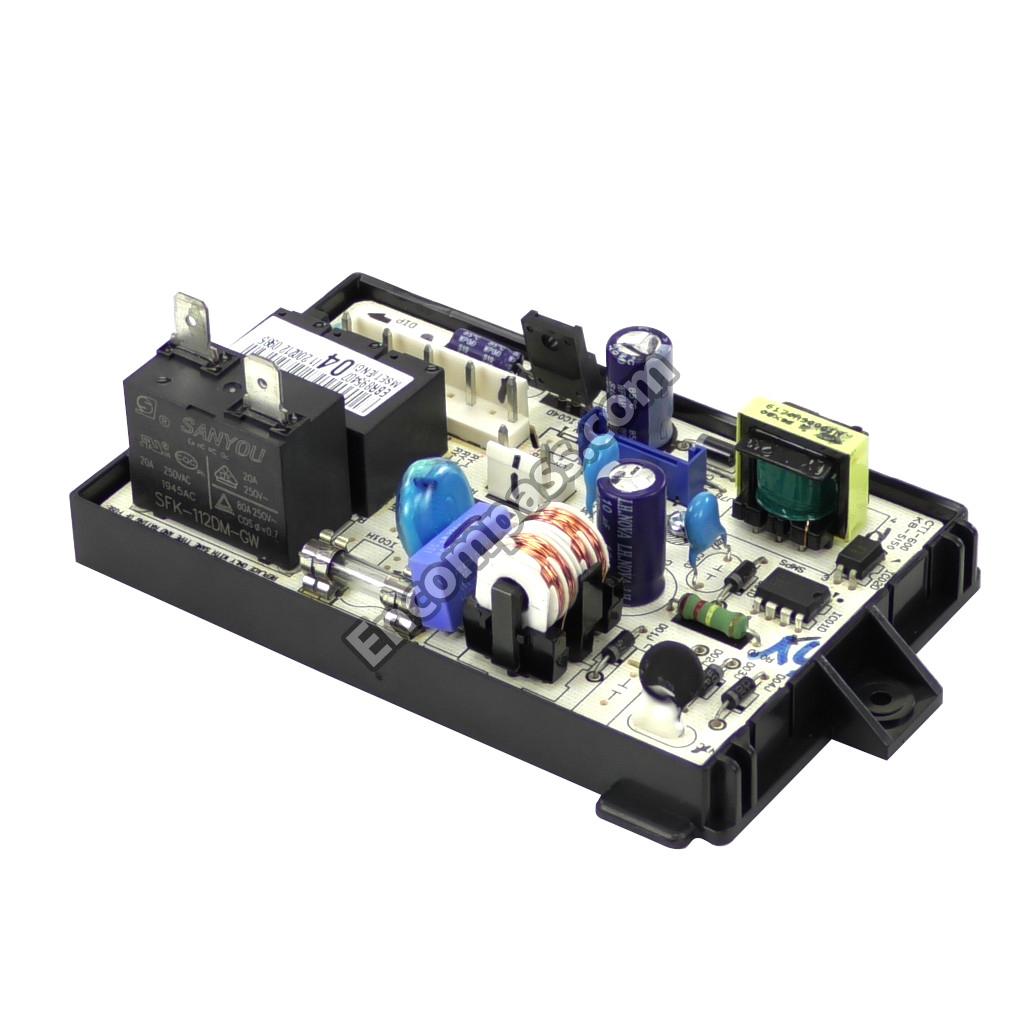

EBR89540814 EBR89540814 PCB ASSEMBLY,DISPLAY
EBR89540704 EBR89540704 PCB ASSEMBLY,MAIN
EBR85871801 EBR85871801 PCB ASSEMBLY,WIFI
EAD66043104 EAD66043104 POWER CORD ASSEMBLY
EAD63469504 EAD63469504 POWER CORD ASSEMBLY
EAD63469526 EAD63469526 POWER CORD ASSEMBLY
AKB73016019 AKB73016019 REMOTE CONTROLLER ASSEMBLY
4998A10035L 4998A10035L SHROUD
4800A20001F 4800A20001F SUPPORTER
4800A20001C 4800A20001C SUPPORTER
AJR72923109 AJR72923109 TUBE ASSEMBLY,CAPILLARY
AJR72923114 AJR72923114 TUBE ASSEMBLY,CAPILLARY
AJR73067827 AJR73067827 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73067830 AJR73067830 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73067843 AJR73067843 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73067845 AJR73067845 TUBE ASSEMBLY,CONDENSER(OUT)
AJR73083823 AJR73083823 TUBE ASSEMBLY,DISCHARGE
AJR73083829 AJR73083829 TUBE ASSEMBLY,DISCHARGE
5211A12002P 5211A12002P TUBE ASSEMBLY,SUCTION
AJR76382407 AJR76382407 TUBE ASSEMBLY,SUCTION
MJU64872303 MJU64872303 TUBE,CONNECTOR
MJU64872318 MJU64872318 TUBE,CONNECTOR
