Model Image
Manufacturer

LG

Model Number

LWS3063ST

Description

30-inch Built-in Single Electric Convection Wall O

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAA74970602 AAA74970602 ACCESSORY ASSEMBLY
AAA77169702 AAA77169702 ACCESSORY ASSEMBLY
AAA76709918 AAA76709918 ACCESSORY ASSEMBLY,CAVITY
MAL41753602 MAL41753602 BARRIER
MAL48432602 MAL48432602 BARRIER
MAZ41753502 MAZ41753502 BRACKET,CONTROL PANEL
MAZ47206702 MAZ47206702 BRACKET,CONTROL PANEL
MAZ48427301 MAZ48427301 BRACKET,HINGE
MAZ64603204 MAZ64603204 BRACKET,HINGE
MAZ64603202 MAZ64603202 BRACKET,HINGE
MAZ47170702 MAZ47170702 BRACKET,IDLE
4810W3G135A 4810W3G135A BRACKET,IDLE
MAZ40417401 MAZ40417401 BRACKET,MOTOR
MAZ47162501 MAZ47162501 BRACKET,MOUNT
MAZ55266201 MAZ55266201 BRACKET,MOUNT
5006841001A 5006841001A CAP,PROTECTOR
MBR40415301 MBR40415301 CHAMBER
6640000045A 6640000045A CONNECTOR,TERMINAL BLOCK
6640000045B 6640000045B CONNECTOR,TERMINAL BLOCK
MCK68473102 MCK68473102 COVER,HEATER
MCK68473119 MCK68473119 COVER,HEATER
MCK47161201 MCK47161201 COVER,INNER
MCK40417601 MCK40417601 COVER,INNER
AGM75509907 AGM75509907 COVER,PARTS ASSEMBLY,SVC
MCK40420102 MCK40420102 COVER,REAR
MCK40423201 MCK40423201 COVER,TOP
MCK41754301 MCK41754301 COVER,TOP
MCK41753701 MCK41753701 COVER,TOP
MCK41754101 MCK41754101 COVER,TOP
MCK40423001 MCK40423001 COVER,TOP
MCR68431102 MCR68431102 DECOR,VENT
ADJ52698704 ADJ52698704 DUCT ASSEMBLY
5901W1E002G 5901W1E002G FAN ASSEMBLY
5900W1N004B 5900W1N004B FAN,CONVECTION
ADV34868803 ADV34868803 FRAME ASSEMBLY,DOOR
MDX40418604 MDX40418604 GRILLE
MDX40418804 MDX40418804 GRILLE
MDX40418808 MDX40418808 GRILLE
MEB63574002 MEB63574002 HANDLE,DOOR
MEB62494913 MEB62494913 HANDLE,DOOR
MEB65414301 MEB65414301 HANDLE,DOOR
EAD34822907 EAD34822907 HARNESS,SINGLE
EAD62349814 EAD62349814 HARNESS,SINGLE
EAD34822959 EAD34822959 HARNESS,SINGLE
EAD34822923 EAD34822923 HARNESS,SINGLE
EAD34822958 EAD34822958 HARNESS,SINGLE
EAD51439109 EAD51439109 HARNESS,SINGLE
MEE41716501 MEE41716501 HEATER,SHEATH
MEE41716802 MEE41716802 HEATER,SHEATH
MEE61925405 MEE61925405 HEATER,SHEATH
MEE61925402 MEE61925402 HEATER,SHEATH
MEE61925406 MEE61925406 HEATER,SHEATH
AEH75637201 AEH75637201 HINGE ASSEMBLY
AEH75637214 AEH75637214 HINGE ASSEMBLY
4B72510F 4B72510F HOLDER,WIRE
4681W1N002B 4681W1N002B HOUSING,MOTOR
MEV40415401 MEV40415401 INSULATOR
MEV42726401 MEV42726401 INSULATOR
MEV40416109 MEV40416109 INSULATOR
MEV63330702 MEV63330702 INSULATOR
EAQ43128703 EAQ43128703 LAMP,HALOGEN
EAU43957801 EAU43957801 MOTOR ASSEMBLY,AC,SYNCHRONOUS
EAU43957805 EAU43957805 MOTOR ASSEMBLY,AC,SYNCHRONOUS
1NHB0500032 1NHB0500032 NUT,COMMON
1NZZW1N002A 1NZZW1N002A NUT,CUSTOMIZED
MFZ40418403 MFZ40418403 PACKING,GASKET
MFZ40418402 MFZ40418402 PACKING,GASKET
MFZ54382601 MFZ54382601 PACKING,GASKET
AGM75009034 AGM75009034 PARTS ASSEMBLY
AGM75509902 AGM75509902 PARTS ASSEMBLY

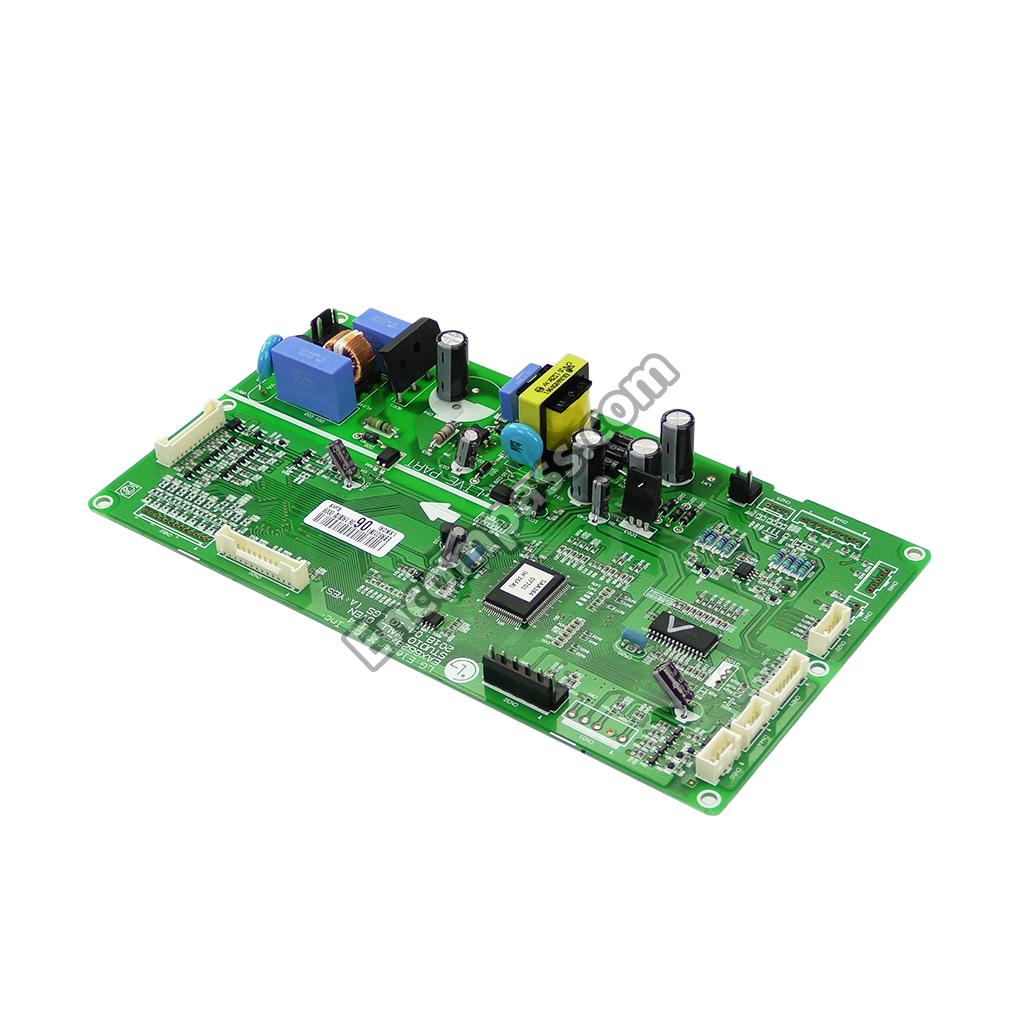

EBR80108106 EBR80108106 PCB ASSEMBLY,MAIN
EBR78789101 EBR78789101 PCB ASSEMBLY,NFC
EBR76332902 EBR76332902 PCB ASSEMBLY,OPTION

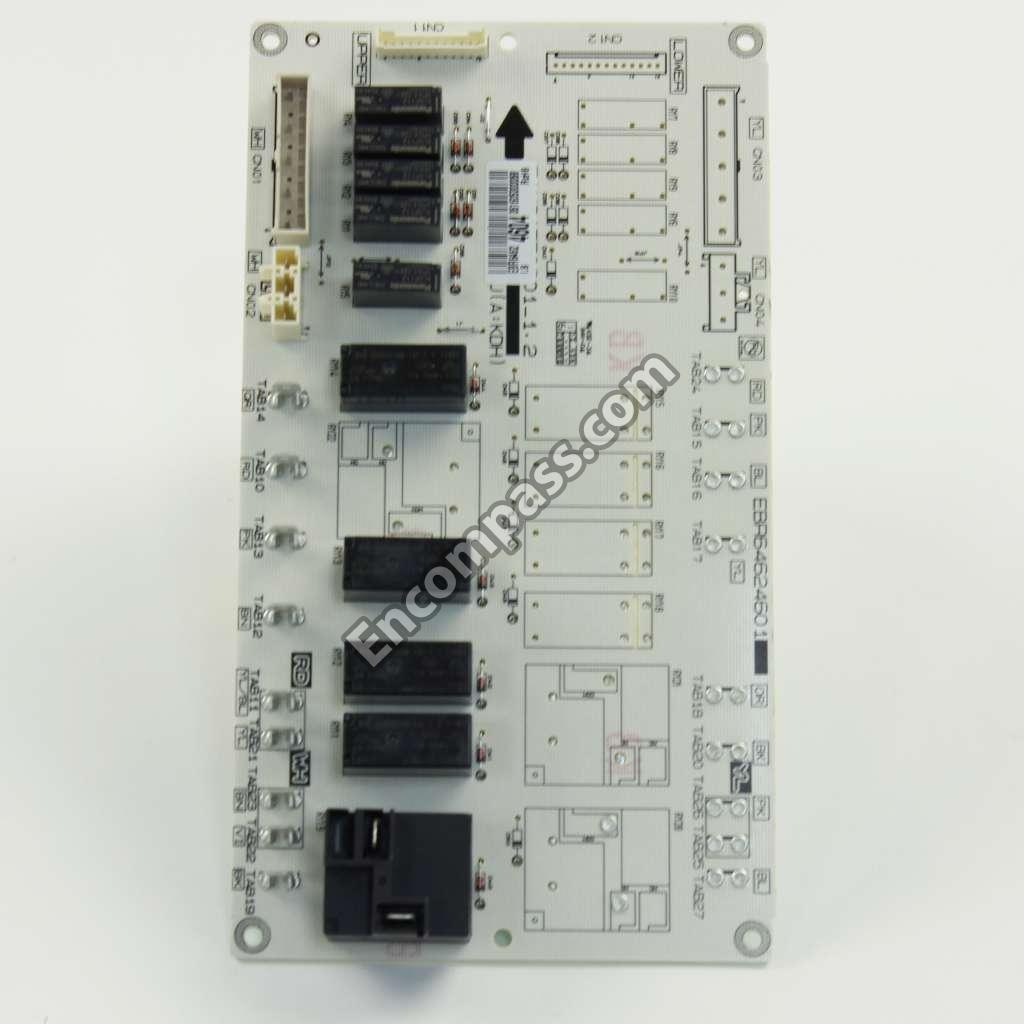

EBR64624604 EBR64624604 PCB ASSEMBLY,POWER
AGU56000301 AGU56000301 PLATE ASSEMBLY,BASE
AGU76528302 AGU76528302 PLATE ASSEMBLY,REAR
EAD42825102 EAD42825102 POWER CORD ASSEMBLY
4B73725E 4B73725E RING
MGZ63607001 MGZ63607001 RING
1SZZW1N006A 1SZZW1N006A SCREW,CUSTOMIZED
1SZZW5N001C 1SZZW5N001C SCREW,CUSTOMIZED
1SZZW5N001A 1SZZW5N001A SCREW,CUSTOMIZED
1SZZW2E001A 1SZZW2E001A SCREW,CUSTOMIZED
1SZZW5N001D 1SZZW5N001D SCREW,CUSTOMIZED
FAB30103101 FAB30103101 SCREW,TAPPING
1ATF0502610 1ATF0502610 SCREW,TAPTITE
MHL49207701 MHL49207701 SHELF
MHL49207702 MHL49207702 SHELF
4980W1N013A 4980W1N013A SUPPORTER
MJH41754202 MJH41754202 SUPPORTER
MJH55321601 MJH55321601 SUPPORTER
MJH65513101 MJH65513101 SUPPORTER,HANDLE
MJH41754001 MJH41754001 SUPPORTER,PCB
MJH62133901 MJH62133901 SUPPORTER,PCB
EBF60663403 EBF60663403 SWITCH,TACT
EBF60663404 EBF60663404 SWITCH,TACT
EBG61305805 EBG61305805 THERMISTOR,PTC
EBG51439303 EBG51439303 THERMOSTAT
MJS61850003 MJS61850003 TRAY,METAL
MJS61849903 MJS61849903 TRAY,METAL
MJZ41753802 MJZ41753802 VENT
AJV56083902 AJV56083902 VENT ASSEMBLY
EAJ62608104 EAJ62608104 VFD
EAJ62608102 EAJ62608102 VFD
EAJ62608105 EAJ62608105 VFD
1WSD0500075 1WSD0500075 WASHER,COMMON
1WZZ81N001A 1WZZ81N001A WASHER,COMMON
1WZZW3Z003C 1WZZW3Z003C WASHER,CUSTOMIZED
1WZZW3Z003E 1WZZW3Z003E WASHER,CUSTOMIZED
4890W1N005A 4890W1N005A WINDOW,GLASS
4890W1N009H 4890W1N009H WINDOW,GLASS
