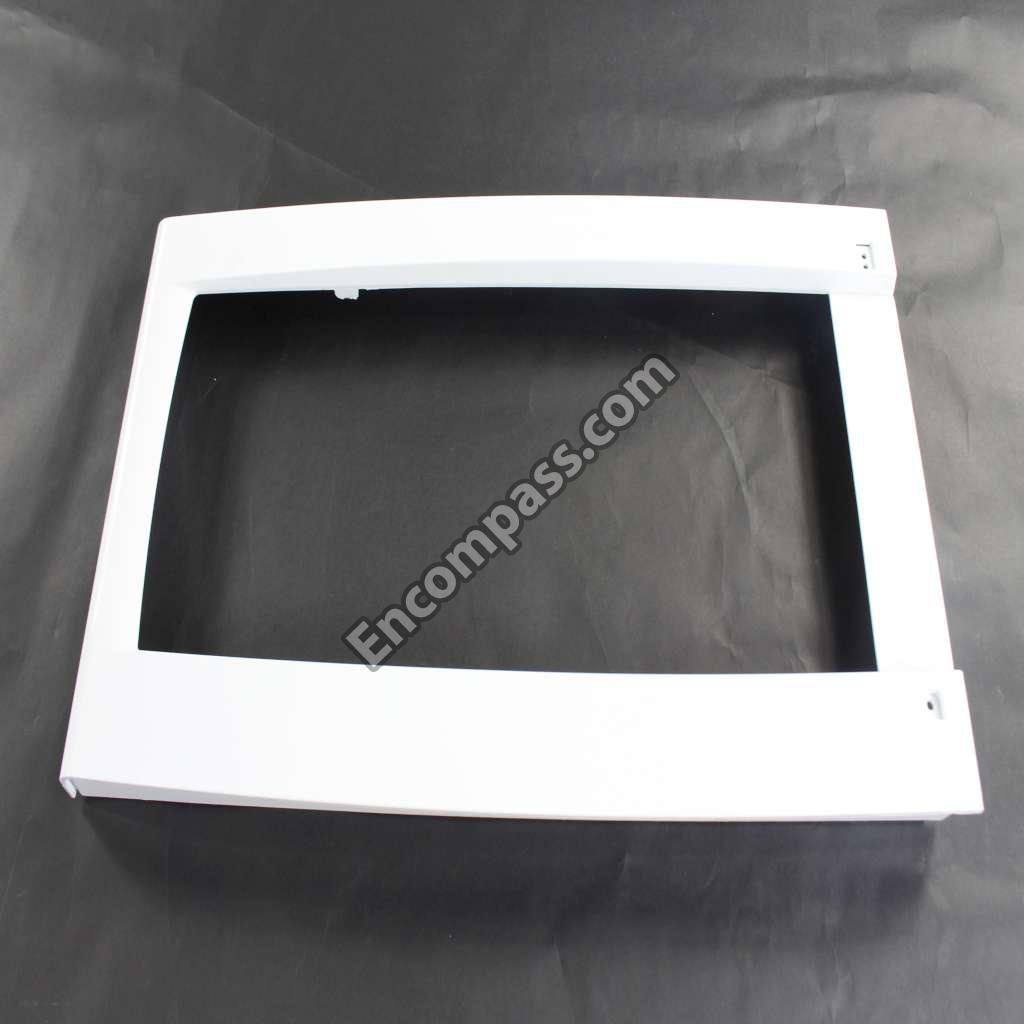

Model Image
Manufacturer

LG

Model Number

MV1611BB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
MAY57002204 MAY57002204 BOX
MAY57002205 MAY57002205 BOX
4810W1A313A 4810W1A313A BRACKET,CAPACITOR
4810W1A401A 4810W1A401A BRACKET,CONTROL PANEL
4810W1A151A 4810W1A151A BRACKET,IDLE
4810W1A150C 4810W1A150C BRACKET,LAMP
4811W1A008B 4811W1A008B BRACKET,MOUNT
4810W1A305B 4810W1A305B BRACKET,THERMOSTAT
6021W3B001V 6021W3B001V CABLE,ASSEMBLY
0CZZW1M001C 0CZZW1M001C CAPACITOR,FILM,BOX
0CZZW1H004C 0CZZW1H004C CAPACITOR,HIGH VOLTAGE
0CZZW1H004G 0CZZW1H004G CAPACITOR,HIGH VOLTAGE
0CZZW1H004B 0CZZW1H004B CAPACITOR,HIGH VOLTAGE
0CZZW1H004S 0CZZW1H004S CAPACITOR,HIGH VOLTAGE
3840W1T006F 3840W1T006F CARD,TECHNICAL
MBM61932902 MBM61932902 CARD,TECHNICAL
4922W5A057G 4922W5A057G CARD,TEMPLATE
4922W5A060B 4922W5A060B CARD,TEMPLATE
3112W1F056S 3112W1F056S CASE,U BENDING
MBN42272002 MBN42272002 CASE,U BENDING
3112W0U052V 3112W0U052V CASE,U BENDING
4051W3A001A 4051W3A001A CONNECTOR ASSEMBLY
4781W1M463K 4781W1M463K CONTROLLER ASSEMBLY
4781W1M463G 4781W1M463G CONTROLLER ASSEMBLY,KEYPAD
4781W1M463H 4781W1M463H CONTROLLER ASSEMBLY,KEYPAD
4781W1M463L 4781W1M463L CONTROLLER ASSEMBLY,KEYPAD
4781W1M463Q 4781W1M463Q CONTROLLER ASSEMBLY,KEYPAD
4781W1M463R 4781W1M463R CONTROLLER ASSEMBLY,KEYPAD
478181A001A 478181A001A CONTROLLER ASSEMBLY,SUB
3552W1A032J 3552W1A032J COVER,CHOKE
3550W1A189A 3550W1A189A COVER,LAMP
3550W1A190C 3550W1A190C COVER,LAMP
3052W1A002A 3052W1A002A COVER,RESIN
3550W1A126B 3550W1A126B COVER,STIRRER FAN
3550W1A126D 3550W1A126D COVER,STIRRER FAN
4900W1A001B 4900W1A001B DAMPER
3581W0A155G 3581W0A155G DOOR ASSEMBLY
3581W0A155H 3581W0A155H DOOR ASSEMBLY
3581W0A155K 3581W0A155K DOOR ASSEMBLY
3581W0A155L 3581W0A155L DOOR ASSEMBLY
5208W0A006C 5208W0A006C DUCT
5893W3A002D 5893W3A002D FAN
EAM35001801 EAM35001801 FILTER,AC LINE
EAM35001864 EAM35001864 FILTER,AC LINE
5230W1A011C 5230W1A011C FILTER,CHARCOAL
5230W1A011B 5230W1A011B FILTER,CHARCOAL
5230W1A012B 5230W1A012B FILTER,GREASE
3213W1A049F 3213W1A049F FRAME ASSEMBLY,DOOR
3213W1A049J 3213W1A049J FRAME ASSEMBLY,DOOR
3B74133C 3B74133C FUSE,TIME DELAY
3B74133Q 3B74133Q FUSE,TIME DELAY
353181A001A 353181A001A GRILLE ASSEMBLY
3530W0A055A 3530W0A055A GRILLE,VENT
3530W0A055B 3530W0A055B GRILLE,VENT
MEB62194801 MEB62194801 HANDLE,DOOR
MEB62194802 MEB62194802 HANDLE,DOOR
MEB62274501 MEB62274501 HANDLE,DOOR
MEB62274502 MEB62274502 HANDLE,DOOR
6877W1A597N 6877W1A597N HARNESS,SINGLE
EAD60756604 EAD60756604 HARNESS,SINGLE
EAD60756605 EAD60756605 HARNESS,SINGLE
EAD60756607 EAD60756607 HARNESS,SINGLE
3501W1A019D 3501W1A019D HOLDER ASSEMBLY,LOCKER
4930W1A069A 4930W1A069A HOLDER,COOK AUXILIARY
3500W1A028A 3500W1A028A HOLDER,LOCKER
3861W1A043A 3861W1A043A KIT ASSEMBLY
3850W1D069G 3850W1D069G LABEL,COOKING GUIDE
3850W1D141A 3850W1D141A LABEL,COOKING GUIDE
6620G00007B 6620G00007B LAMP HOLDER
6912W1Z004B 6912W1Z004B LAMP,INCANDESCENT
6912W1Z004C 6912W1Z004C LAMP,INCANDESCENT
4510W3A012B 4510W3A012B LEVER
4510W3A012C 4510W3A012C LEVER
4026W2A015A 4026W2A015A LOCKER
2B71165R 2B71165R MAGNETRON
3828W5A8536 3828W5A8536 MANUAL,OWNERS
MFL06317604 MFL06317604 MANUAL,OWNERS
MFM62217201 MFM62217201 MEMBRANE
MFM62217202 MFM62217202 MEMBRANE
MFM62217203 MFM62217203 MEMBRANE
MFM62217204 MFM62217204 MEMBRANE
MFM62477801 MFM62477801 MEMBRANE
MFM62477802 MFM62477802 MEMBRANE
6549W1S013K 6549W1S013K MOTOR, AC SYNCHRONOUS
6549W1V006P 6549W1V006P MOTOR, AC VENTILATION
6549W1V006Y 6549W1V006Y MOTOR, AC VENTILATION
EAU51230501 EAU51230501 MOTOR, AC VENTILATION
3720W0C305A 3720W0C305A PANEL,CONTROL
3720W0C305B 3720W0C305B PANEL,CONTROL
3720W0D414A 3720W0D414A PANEL,DOOR
3720W0D414B 3720W0D414B PANEL,DOOR
383EW5A334B 383EW5A334B PARTS ASSEMBLY
AGM67064606 AGM67064606 PARTS ASSEMBLY
EBR67471703 EBR67471703 PCB ASSEMBLY
6871W1A497E 6871W1A497E PCB ASSEMBLY,SUB
6871W1A497H 6871W1A497H PCB ASSEMBLY,SUB
4960W1A022B 4960W1A022B PLATE
4960W1A022C 4960W1A022C PLATE
3303W1A072N 3303W1A072N PLATE ASSEMBLY,BASE
3302W0A047M 3302W0A047M PLATE,BASE
3300W1A003D 3300W1A003D PLATE,BOTTOM
3300W1A045C 3300W1A045C PLATE,BOTTOM
3300W1A046C 3300W1A046C PLATE,BOTTOM
3300W0A030A 3300W0A030A PLATE,MOUNT
6411W1A019M 6411W1A019M POWER CORD ASSEMBLY
EAD59116213 EAD59116213 POWER CORD ASSEMBLY
4B70188C 4B70188C SCREW,CUSTOMIZED
1MTC0403019 1MTC0403019 SCREW,MACHINE
1TPL0402618 1TPL0402618 SCREW,TAPPING
1TTL0402418 1TTL0402418 SCREW,TAPPING
1TTL0402818 1TTL0402818 SCREW,TAPPING
1TTL0402822 1TTL0402822 SCREW,TAPPING
1TTG0402422 1TTG0402422 SCREW,TAPPING[TRUSS HEAD]
1TTL0402816 1TTL0402816 SCREW,TAPPING[TRUSS HEAD]
4370W1A006B 4370W1A006B SHAFT,TURNTABLE
5026W1A048C 5026W1A048C SHELF
4970WRA001G 4970WRA001G SPRING
3740W1A005E 3740W1A005E SUPPORTER
3740W1A011B 3740W1A011B SUPPORTER
6600W1K001D 6600W1K001D SWITCH,MICRO
6600W1K001C 6600W1K001C SWITCH,MICRO
3B73362F 3B73362F SWITCH,MICRO
3536W1A012B 3536W1A012B TAPE,SEALING
6930W1A003E 6930W1A003E THERMOSTAT
6170W1D052Z 6170W1D052Z TRANSFORMER,HIGH VOLTAGE
EBJ60664602 EBJ60664602 TRANSFORMER,HIGH VOLTAGE
1B71961H 1B71961H TRAY,GLASS
5889W2A012P 5889W2A012P TURNTABLE ASSEMBLY
4890W1A045A 4890W1A045A WINDOW,GLASS
4890W1A065T 4890W1A065T WINDOW,GLASS
4890W1A065U 4890W1A065U WINDOW,GLASS
4890W4A001G 4890W4A001G WINDOW,GLASS
