Model Image
Manufacturer

LG

Model Number

UPFXC2466S

Description

36-inch Counter-depth French Door Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
MAK62347401 MAK62347401 BAR
MAK64727001 MAK64727001 BAR
AAN37031304 AAN37031304 BASE ASSEMBLY,COMPRESSOR
AAN77088901 AAN77088901 BASE ASSEMBLY,COMPRESSOR
AAP73252302 AAP73252302 BASKET ASSEMBLY,DOOR
MAN62430001 MAN62430001 BASKET,DOOR
MAN63088501 MAN63088501 BASKET,DOOR
MAN63088701 MAN63088701 BASKET,DOOR
MAN63248201 MAN63248201 BASKET,DOOR
1STZJA3004F 1STZJA3004F BOLT, HINGE
1BZZJA2002A 1BZZJA2002A BOLT,DRAWING
ABA72913415 ABA72913415 BRACKET ASSEMBLY,MOTOR
MAZ63010801 MAZ63010801 BRACKET,MOTOR
MAZ61845401 MAZ61845401 BRACKET,MOTOR
AKC73369914 AKC73369914 BUCKET ASSEMBLY,ICE
MBF62704701 MBF62704701 BUSH
ABH74399601 ABH74399601 BUTTON ASSEMBLY
ABH75459801 ABH75459801 BUTTON ASSEMBLY
ABN72938901 ABN72938901 CAP ASSEMBLY,DUCT
ABN72938909 ABN72938909 CAP ASSEMBLY,DUCT
ABN73019101 ABN73019101 CAP ASSEMBLY,HEAD
MBL65698202 MBL65698202 CAP,COVER
MEG61879201 MEG61879201 CAP,COVER
MBL65042004 MBL65042004 CAP,DECOR REFRIGERATOR
MBL65024301 MBL65024301 CAP,DECOR REFRIGERATOR
MBL65039902 MBL65039902 CAP,DUCT
MBL37761911 MBL37761911 CAP,HANDLE
MBL65077501 MBL65077501 CAP,HINGE
MBL65046501 MBL65046501 CAP,HINGE
MBL62065801 MBL62065801 CAP,RUBBER
5040JA3033B 5040JA3033B CAP,RUBBER
EAE32501017 EAE32501017 CAPACITOR,ELECTRIC APPLIANCE FILM,RADIAL
ABQ72940040 ABQ72940040 CASE ASSEMBLY,PCB
ABQ72940048 ABQ72940048 CASE ASSEMBLY,PCB
MBN62547401 MBN62547401 CASE,HOME BAR
MBN62347601 MBN62347601 CASE,LAMP
4004JA3002A 4004JA3002A CLIP
4004JA3003A 4004JA3003A CLIP
TCA38151706 TCA38151706 COMPRESSOR,SET ASSEMBLY
ACG73645004 ACG73645004 CONDENSER ASSEMBLY,WIRE
MCD62328902 MCD62328902 CONNECTOR,RAIL
MCD62748402 MCD62748402 CONNECTOR,RAIL
MCD62328901 MCD62328901 CONNECTOR,RAIL
4932JA1009A 4932JA1009A CONNECTOR,RAIL
4932JA3009A 4932JA3009A CONNECTOR,TUBE
MCD63827601 MCD63827601 CONNECTOR,TUBE
ACM73919214 ACM73919214 CONTROLLER ASSEMBLY
6615JB2005R 6615JB2005R CONTROLLER ASSEMBLY
ACQ73657702 ACQ73657702 COVER ASSEMBLY
ACQ73657701 ACQ73657701 COVER ASSEMBLY
ACQ88074301 ACQ88074301 COVER ASSEMBLY,DISPLAY
ACQ85723609 ACQ85723609 COVER ASSEMBLY,FRONT
ACQ85432701 ACQ85432701 COVER ASSEMBLY,FRONT
ACQ85695401 ACQ85695401 COVER ASSEMBLY,FRONT
ACQ85449506 ACQ85449506 COVER ASSEMBLY,LAMP
ACQ86284801 ACQ86284801 COVER ASSEMBLY,MACHINERY(REAR)
ACQ90087901 ACQ90087901 COVER ASSEMBLY,MOTOR
3551JA2144M 3551JA2144M COVER ASSEMBLY,PCB
ACQ73244001 ACQ73244001 COVER ASSEMBLY,SENSOR
MCK67227902 MCK67227902 COVER ASSEMBLY,SENSOR
ACQ85448403 ACQ85448403 COVER ASSEMBLY,TRAY
ACQ85428613 ACQ85428613 COVER ASSEMBLY,TV
MCK66849403 MCK66849403 COVER,FILTER
MCK66584901 MCK66584901 COVER,FILTER
MCK66908001 MCK66908001 COVER,FRONT
MCK69605601 MCK69605601 COVER,FRONT
ACQ86664712 ACQ86664712 COVER,HINGE
MCK68187502 MCK68187502 COVER,HINGE
MCK66593601 MCK66593601 COVER,HOME BAR
MCK66932201 MCK66932201 COVER,HOME BAR
MCK66932401 MCK66932401 COVER,HOME BAR
MCK66584301 MCK66584301 COVER,LAMP
MCK66584302 MCK66584302 COVER,LAMP
MCK66544101 MCK66544101 COVER,LAMP
MCK66769001 MCK66769001 COVER,LAMP
MCK61881401 MCK61881401 COVER,LAMP
MCK66592001 MCK66592001 COVER,LED
MCK63734907 MCK63734907 COVER,LEVER
MCK67046601 MCK67046601 COVER,LEVER
MCK61880502 MCK61880502 COVER,MOTOR
3550JA2110B 3550JA2110B COVER,P.T.C
MCK70052506 MCK70052506 COVER,PTC
MCK70052501 MCK70052501 COVER,PTC
3550JA2184A 3550JA2184A COVER,TUBE
5040JA3063B 5040JA3063B DAMPER
MCQ66921101 MCQ66921101 DAMPER,COMPRESSOR
MCR64742907 MCR64742907 DECOR,COVER
MCR66127001 MCR66127001 DECOR,DRAIN
ADC72987149 ADC72987149 DOOR ASSEMBLY,FREEZE ROOM
ADC73448256 ADC73448256 DOOR ASSEMBLY,FREEZER
ADD74775803 ADD74775803 DOOR FOAM ASSEMBLY,HOME BAR
ADD74795801 ADD74795801 DOOR FOAM ASSEMBLY,REFRIGERATOR
ADD73536415 ADD73536415 DOOR FOAM ASSEMBLY,REFRIGERATOR
5251JA3003D 5251JA3003D DRAIN ASSY, PIPE-Z
ADH73150208 ADH73150208 DRIER ASSEMBLY
ADJ73252234 ADJ73252234 DUCT ASSEMBLY,MULTI
MCZ62293801 MCZ62293801 DUCT,MULTI
MCZ63273301 MCZ63273301 DUCT,MULTI
MCZ63273401 MCZ63273401 DUCT,MULTI
ADL73981017 ADL73981017 EVAPORATOR ASSEMBLY
ADL73341411 ADL73341411 EVAPORATOR ASSEMBLY
5901JA1021A 5901JA1021A FAN ASSEMBLY
5901JA1022A 5901JA1022A FAN ASSEMBLY
ADQ73214408 ADQ73214408 FILTER ASSEMBLY,AIR CLEANER
ADQ36011714 ADQ36011714 FILTER ASSEMBLY,HEAD
ADQ36006108 ADQ36006108 FILTER ASSEMBLY,WATER
MDQ64416601 MDQ64416601 FRAME,FUNNEL
MDR62602201 MDR62602201 FUNNEL
ADW73349901 ADW73349901 FUNNEL ASSEMBLY
ADX73250604 ADX73250604 GASKET ASSEMBLY,DOOR
ADX73250601 ADX73250601 GASKET ASSEMBLY,DOOR
ADX72930460 ADX72930460 GASKET ASSEMBLY,DOOR
ADX72930461 ADX72930461 GASKET ASSEMBLY,DOOR
MDS38201426 MDS38201426 GASKET,DOOR
MDS62111103 MDS62111103 GASKET,DOOR
MDS64013907 MDS64013907 GASKET,FOAM
MDS62152412 MDS62152412 GASKET,HOME BAR
MDT62287201 MDT62287201 GEAR,ICE
AEB72913929 AEB72913929 GRILLE ASSEMBLY,FAN
AEC73317720 AEC73317720 GUIDE ASSEMBLY,RAIL
AEC73317806 AEC73317806 GUIDE ASSEMBLY,RAIL
AEC73337403 AEC73337403 GUIDE ASSEMBLY,RAIL
AEC73337404 AEC73337404 GUIDE ASSEMBLY,RAIL
AEC73317502 AEC73317502 GUIDE ASSEMBLY,RAIL
AEC73317705 AEC73317705 GUIDE ASSEMBLY,RAIL
AEC73317603 AEC73317603 GUIDE ASSEMBLY,TV
AEC73317604 AEC73317604 GUIDE ASSEMBLY,TV
MEA62770401 MEA62770401 GUIDE,DRAWER
MEA42772903 MEA42772903 GUIDE,FAN
MEA63570501 MEA63570501 GUIDE,WATER
AED74352802 AED74352802 HANDLE ASSEMBLY
AED74352801 AED74352801 HANDLE ASSEMBLY
AED74352803 AED74352803 HANDLE ASSEMBLY
3650JA2061X 3650JA2061X HANDLE,BACK
3650JA2061W 3650JA2061W HANDLE,BACK
MEB62455901 MEB62455901 HANDLE,DECOR
MEB61894003 MEB61894003 HANDLE,HOME BAR
EAD62356704 EAD62356704 HARNESS ASSEMBLY
MEE62105217 MEE62105217 HEATER,SHEATH
MEE62225112 MEE62225112 HEATER,SHEATH
AEH73816904 AEH73816904 HINGE ASSEMBLY,CENTER
AEH73816902 AEH73816902 HINGE ASSEMBLY,CENTER
AEH36821908 AEH36821908 HINGE ASSEMBLY,CENTER
AEH73577901 AEH73577901 HINGE ASSEMBLY,LOWER
AEH73856403 AEH73856403 HINGE ASSEMBLY,LOWER
AEH74216501 AEH74216501 HINGE ASSEMBLY,UPPER
AEH60614106 AEH60614106 HINGE ASSEMBLY,UPPER
AEH72976201 AEH72976201 HINGE ASSEMBLY,UPPER
AEH73816801 AEH73816801 HINGE ASSEMBLY,UPPER
4930JJ3018A 4930JJ3018A HOLDER
AEJ73579702 AEJ73579702 HOLDER ASSEMBLY,BRACKET
AEJ72914501 AEJ72914501 HOLDER ASSEMBLY,BRACKET
AEJ73440301 AEJ73440301 HOLDER ASSEMBLY,BRACKET
AEJ75159701 AEJ75159701 HOLDER ASSEMBLY,BRACKET
4930JA3091A 4930JA3091A HOLDER,BRACKET
MEG62999601 MEG62999601 HOLDER,BUTTON
MEG62781701 MEG62781701 HOLDER,BUTTON
MEG61899901 MEG61899901 HOLDER,DOOR
4930JA3034A 4930JA3034A HOLDER,DRIER
MEG63262301 MEG63262301 HOLDER,LEVER
MEG42758601 MEG42758601 HOLDER,PIPE
MEG62900602 MEG62900602 HOLDER,RAIL
MEG62900402 MEG62900402 HOLDER,RAIL
MEG62900601 MEG62900601 HOLDER,RAIL
AEC73317802 AEC73317802 HOLDER,RAIL
MEG62900401 MEG62900401 HOLDER,RAIL
MEG62685901 MEG62685901 HOLDER,SHELF
MEG62685803 MEG62685803 HOLDER,SHELF
AEQ73130004 AEQ73130004 ICE MAKER ASSEMBLY,KIT
EAV62052301 EAV62052301 LED ASSEMBLY
EAV61652805 EAV61652805 LED ASSEMBLY
EAV61572001 EAV61572001 LED ASSEMBLY
EAV48995113 EAV48995113 LED ASSEMBLY
AFC72909201 AFC72909201 LEG ASSEMBLY,ADJUST
ADQ36006118 ADQ36006118 LT700P REFRIDGERATER WATER FILTER (3 PK)
AGF80300702 AGF80300702 LT700P---WATER FILTER
EAU65089701 EAU65089701 MOTOR ASSEMBLY,DC
EAU60784231 EAU60784231 MOTOR, AC INDOOR
EAU62563503 EAU62563503 MOTOR,AC
EAU61524007 EAU61524007 MOTOR,DC
EAU62025701 EAU62025701 MOTOR,DC
EAU59551204 EAU59551204 MOTOR,DC
MFT63706301 MFT63706301 NAME PLATE
6750CL0001D 6750CL0001D OVERLOAD PROTECT
EBR76787004 EBR76787004 PCB ASSEMBLY,DISPLAY

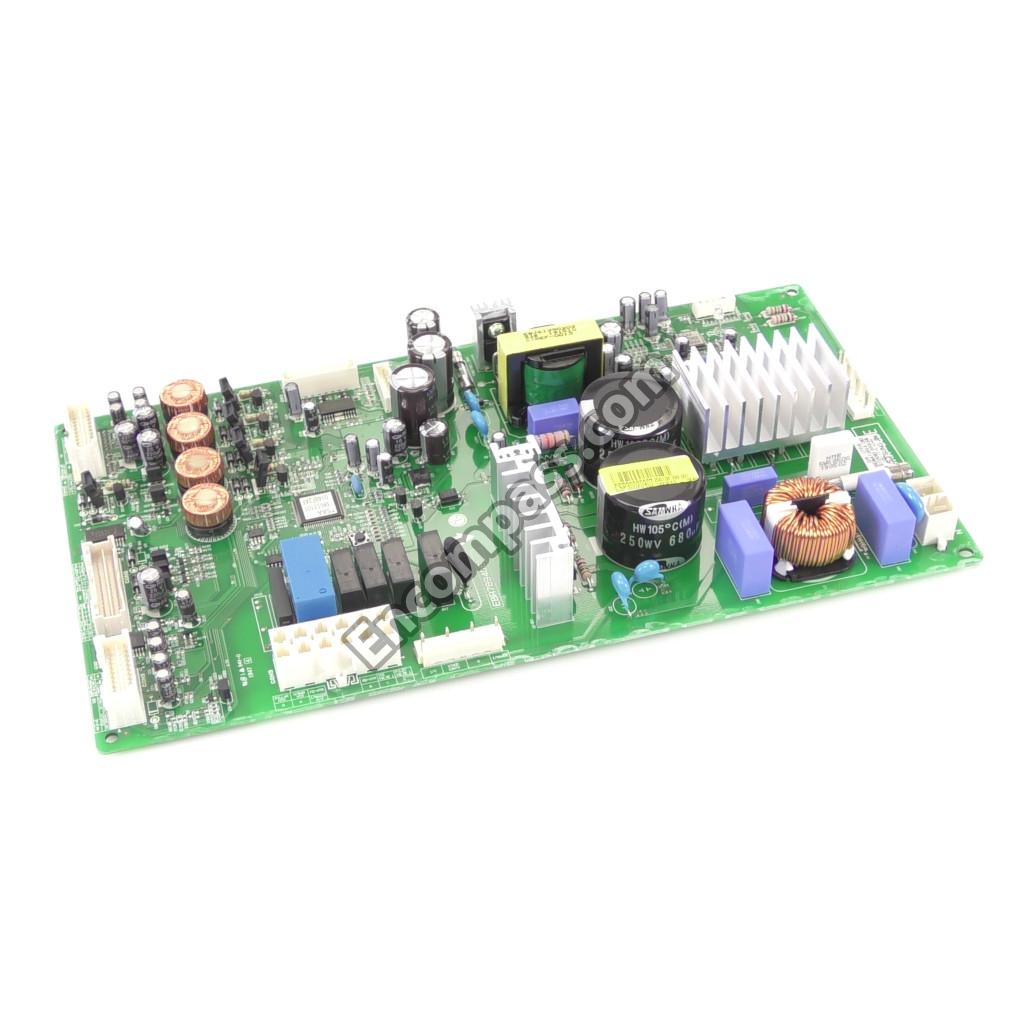

CSP30020907 CSP30020907 PCB ASSEMBLY,MAIN

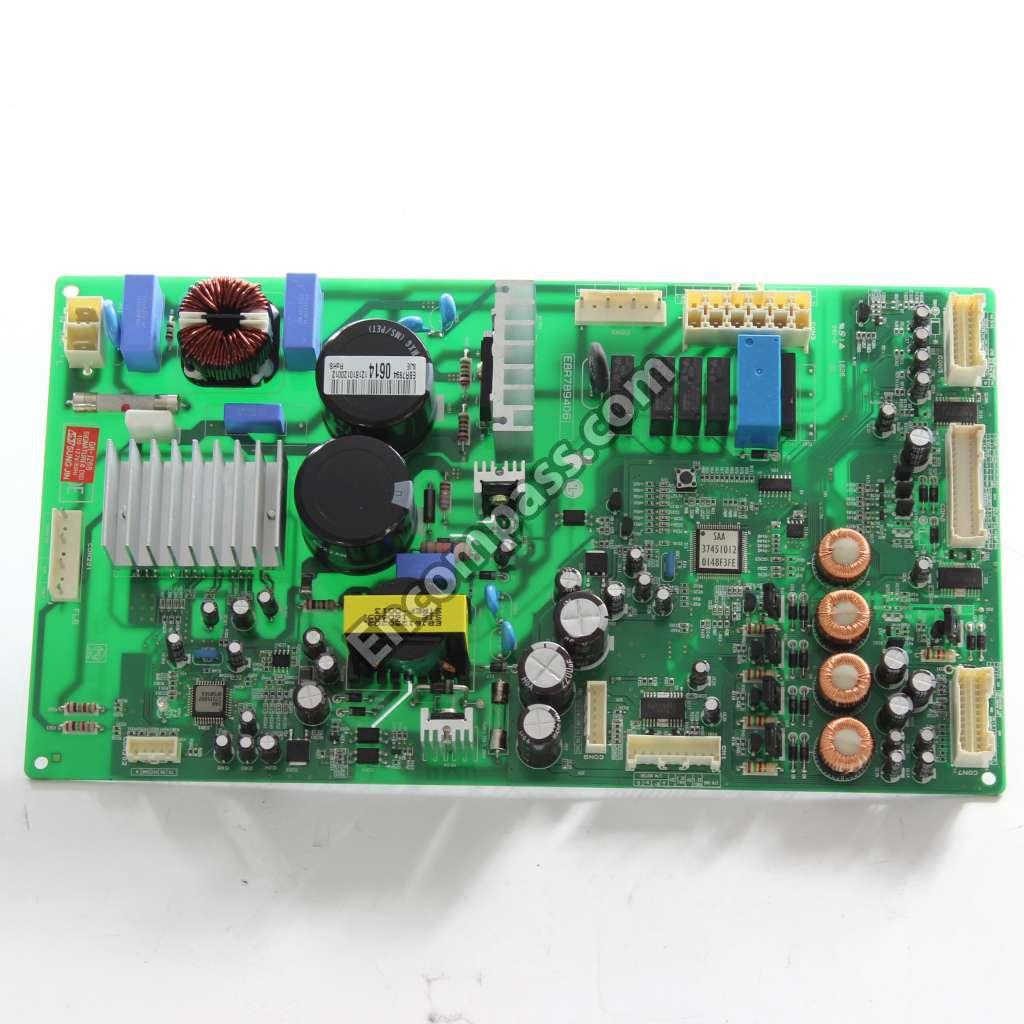

EBR78940614 EBR78940614 PCB ASSEMBLY,MAIN
EBR71326804 EBR71326804 PCB ASSEMBLY,SENSOR
EBR64730408 EBR64730408 PCB ASSEMBLY,SUB
1PZZJA3013B 1PZZJA3013B PIN,COMMON
4J00977P 4J00977P PIPE,COMPRESSOR SEALING
MGE62010606 MGE62010606 PIPE,COMPRESSOR SEALING
AGU75407901 AGU75407901 PLATE ASSEMBLY,FRONT
EAD61445236 EAD61445236 POWER CORD ASSEMBLY
5218JA1008C 5218JA1008C RAIL,SLIDE
5218JA1009M 5218JA1009M RAIL,SLIDE
5218JA1009L 5218JA1009L RAIL,SLIDE
MGZ42997101 MGZ42997101 RING
4350JA3005B 4350JA3005B RING
4580JT3001B 4580JT3001B ROLLER
MHA62652801 MHA62652801 ROLLER
MHA62513601 MHA62513601 ROLLER
AHJ73070401 AHJ73070401 ROLLER ASSEMBLY
5040JA2009B 5040JA2009B RUBBER,MOTOR-F
5040JA2004A 5040JA2004A RUBBER,MOTOR-F
4000W4A004A 4000W4A004A SCREW SPECIAL MV-1126M
4J00415D 4J00415D SCREW TAPPTING, GR-510W/C
4J00415H 4J00415H SCREW,CUSTOMIZED
1SZZJJ3010F 1SZZJJ3010F SCREW,CUSTOMIZED
1SZZJA3010A 1SZZJA3010A SCREW,CUSTOMIZED
1SZZJA3016C 1SZZJA3016C SCREW,CUSTOMIZED
1SZZJA3005K 1SZZJA3005K SCREW,CUSTOMIZED
1SZZJA3022B 1SZZJA3022B SCREW,CUSTOMIZED
FAB30025701 FAB30025701 SCREW,CUSTOMZIED
1SZZJA3016A 1SZZJA3016A SCREW,DRAWING
1SBZJA3004L 1SBZJA3004L SCREW,DRAWING
4J01425A 4J01425A SCREW,DRAWING
3J05696W 3J05696W SCREW[PAINT]
6500JB2001B 6500JB2001B SENSOR
AHT73273801 AHT73273801 SHELF ASSEMBLY,NET
AHT73233939 AHT73233939 SHELF ASSEMBLY,REFRIGERATOR
AHT73234024 AHT73234024 SHELF ASSEMBLY,REFRIGERATOR
AHT73234003 AHT73234003 SHELF ASSEMBLY,REFRIGERATOR
MHL42613229 MHL42613229 SHELF,GLASS
MHL62511402 MHL62511402 SHELF,NET
MHL62511401 MHL62511401 SHELF,NET
MHN62542001 MHN62542001 SHROUD,REFRIGERATOR
MHU38218908 MHU38218908 SPANNER
4000W4A003A 4000W4A003A SPECIAL SCREW(EARTH) D4.0 L10
MHY62645401 MHY62645401 SPRING
MHY62644404 MHY62644404 SPRING
MHY62603707 MHY62603707 SPRING,LEVER
MHY62603708 MHY62603708 SPRING,LEVER
AJR56656503 AJR56656503 SPRING,W
AJC68689642 AJC68689642 STOPPER ASSEMBLY,DOOR
4620JA3015A 4620JA3015A STOPPER,COMP
MJB62830601 MJB62830601 STOPPER,DOOR
MJB62729802 MJB62729802 STOPPER,DOOR
MJB62650401 MJB62650401 STOPPER,DOOR
MJB62951301 MJB62951301 STOPPER,DOOR
MJB64469801 MJB64469801 STOPPER,DOOR
MJB63190001 MJB63190001 STOPPER,HANDLE
MJH62553605 MJH62553605 SUPPORTER,COVER TV
EBF61314816 EBF61314816 SWITCH,MAGNET
EBF61314804 EBF61314804 SWITCH,MAGNET
EBF62234504 EBF62234504 SWITCH,MAGNET
6600JB3001C 6600JB3001C SWITCH,MICRO
AJL72911502 AJL72911502 TANK,WATER
EBG60663230 EBG60663230 THERMISTOR ASSEMBLY,PTC
EBG63205831 EBG63205831 THERMISTOR ASSEMBLY,PTC
3391JJ2013H 3391JJ2013H TRAY ASSEMBLY,DRAIN
3391JJ2013J 3391JJ2013J TRAY ASSEMBLY,DRAIN
AJP73334502 AJP73334502 TRAY ASSEMBLY,DRAWER
AJP73334610 AJP73334610 TRAY ASSEMBLY,DRAWER
AJP72909905 AJP72909905 TRAY ASSEMBLY,DRAWER
AJP73314427 AJP73314427 TRAY ASSEMBLY,FRESH ROOM
AJP73334415 AJP73334415 TRAY ASSEMBLY,VEGETABLE
AJP73334413 AJP73334413 TRAY ASSEMBLY,VEGETABLE
AJP73334414 AJP73334414 TRAY ASSEMBLY,VEGETABLE
MJS62233502 MJS62233502 TRAY,DRIP
MJS42266201 MJS42266201 TRAY,FREEZER
5251JA2006A 5251JA2006A TUBE ASSEMBLY,DRAIN
AJR56656502 AJR56656502 TUBE ASSEMBLY,ICE WATER
AJU73872501 AJU73872501 VALVE ASSEMBLY,GAS
AJU74532703 AJU74532703 VALVE ASSEMBLY,WATER
AJU72992603 AJU72992603 VALVE ASSEMBLY,WATER
