Model Image
Manufacturer

LG

Model Number

WM3470CW

Description

5.0 Cu. Ft. Mega Capacity Front Load Washer

Interactive Exploded View

Parts List

Part Number Description
MAG64124202 MAG64124202 BALANCE WEIGHT
MAG64124302 MAG64124302 BALANCE WEIGHT

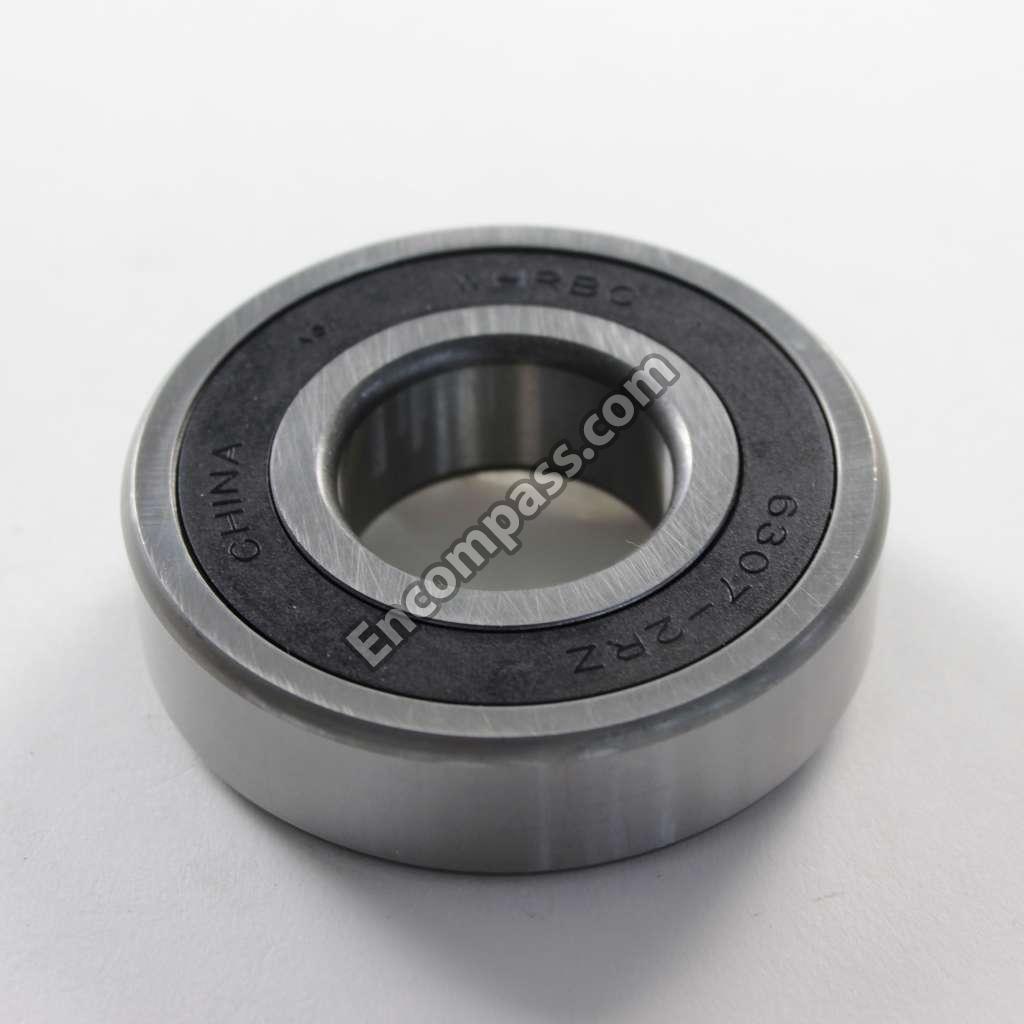

4280EN4001G 4280EN4001G BEARING,BALL
MAP64954204 MAP64954204 BEARING,BALL
4280EN4001C 4280EN4001C BEARING,BALL
FAA31690704 FAA31690704 BOLT ASSEMBLY
FAA31690709 FAA31690709 BOLT ASSEMBLY
FAA31690703 FAA31690703 BOLT ASSEMBLY
FAA31690708 FAA31690708 BOLT ASSEMBLY
FAA31690705 FAA31690705 BOLT ASSEMBLY
FAA31690710 FAA31690710 BOLT ASSEMBLY
4040FR4051C 4040FR4051C BOLT ASSEMBLY
4011FA4353B 4011FA4353B BOLT,COMMON
3891ER2003H 3891ER2003H BOX ASSEMBLY,DETERGENT
4810ER3006A 4810ER3006A BRACKET,BASE
4810ER3021A 4810ER3021A BRACKET,HINGE
MAZ65884101 MAZ65884101 BRACKET,HINGE
4830ER3001A 4830ER3001A BUSH
ABJ76047119 ABJ76047119 CABINET ASSEMBLY
MBL62818307 MBL62818307 CAP,COVER
AGM75389901 AGM75389901 CAP,PARTS ASSEMBLY,SVC
MBL67700011 MBL67700011 CAP,SIPHONE
MBL67499009 MBL67499009 CAP,SOFTENER
MBN47927902 MBN47927902 CASE
MBN63106101 MBN63106101 CASE
3504ER3002C 3504ER3002C CHAMBER,AIR
4861FR3068A 4861FR3068A CLAMP
4860FR3092D 4860FR3092D CLAMP
4860FR3092C 4860FR3092C CLAMP
4861FR3068E 4861FR3068E CLAMP
ACA56078801 ACA56078801 CLAMP ASSEMBLY
4861ER2001J 4861ER2001J CLAMP ASSEMBLY
4861ER2001P 4861ER2001P CLAMP ASSEMBLY
AGL30120733 AGL30120733 CONTROL PANEL
ACQ30105002 ACQ30105002 COVER ASSEMBLY,REAR
MCK58110512 MCK58110512 COVER,CABINET
MCK69784901 MCK69784901 COVER,PROTECT
MCK71366108 MCK71366108 COVER,TUB
ACV72909503 ACV72909503 DAMPER ASSEMBLY,FRICTION
ACV72909506 ACV72909506 DAMPER ASSEMBLY,FRICTION

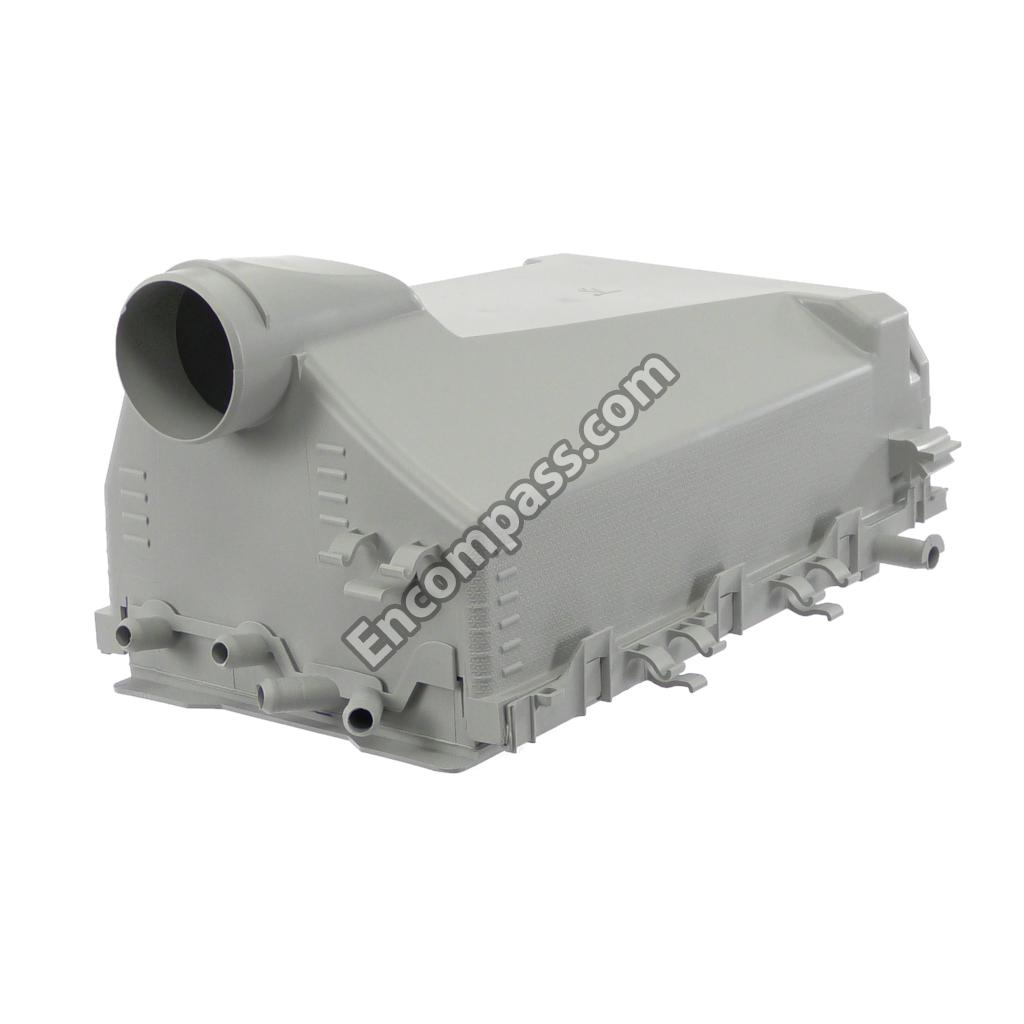

ACZ74070504 ACZ74070504 DISPENSER ASSEMBLY
EBR89076009 EBR89076009 DISPLAY CONTROL BOARD
ADC74154913 ADC74154913 DOOR ASSEMBLY
EAM60991315 EAM60991315 FILTER ASSEMBLY
EAM63891317 EAM63891317 FILTER ASSEMBLY
4769ER4001B 4769ER4001B FLOAT ASSEMBLY
ADV77726105 ADV77726105 FRAME ASSEMBLY
MDQ65336604 MDQ65336604 FRAME,DOOR(INNER)
MDQ65336401 MDQ65336401 FRAME,DOOR(OUTER)

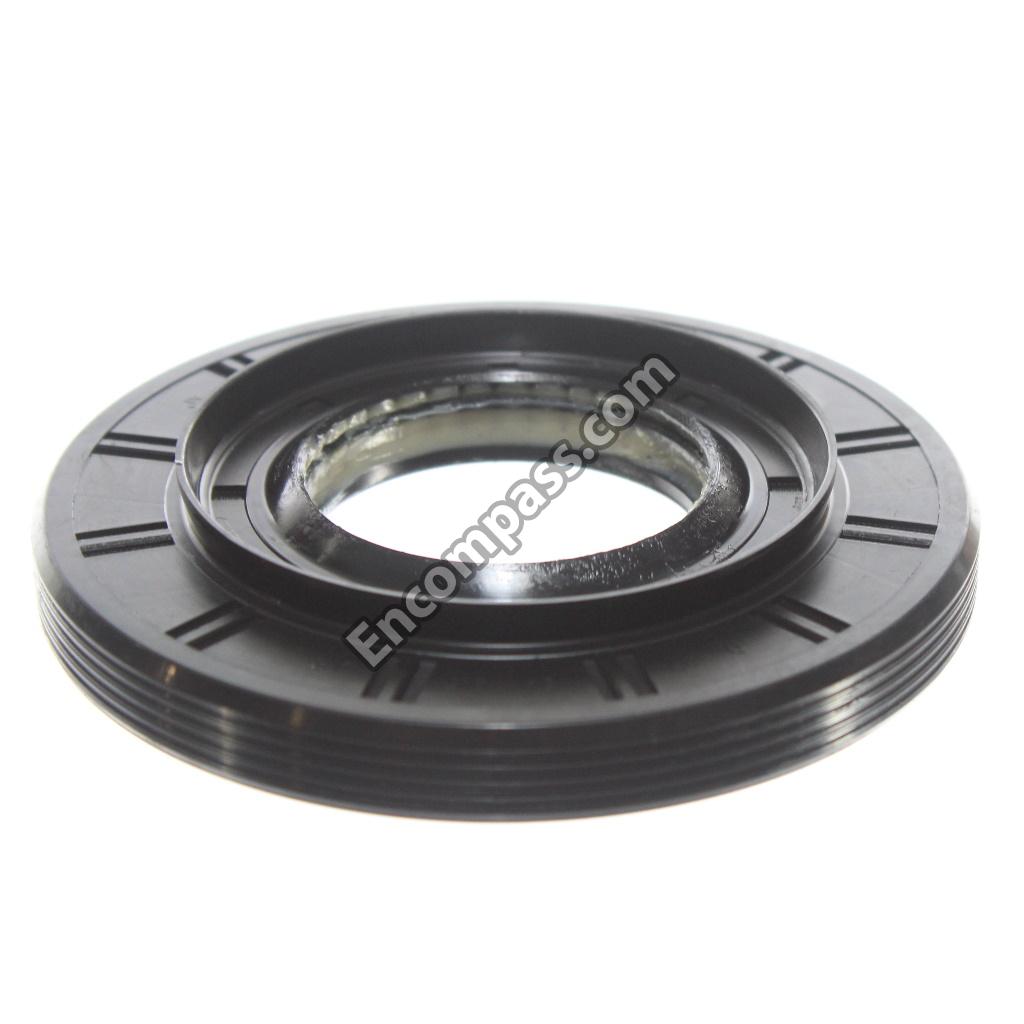

MDS62058301 MDS62058301 GASKET
4036ER4001M 4036ER4001M GASKET
4036FR4050A 4036FR4050A GASKET
MDS66290821 MDS66290821 GASKET
4974ER3008A 4974ER3008A GUIDE,WATER
MEB63035504 MEB63035504 HANDLE
4991EN3002J 4991EN3002J HANGER ASSEMBLY,PIVOT
EAD64545398 EAD64545398 HARNESS,MULTI
6877ER1016X 6877ER1016X HARNESS,MULTI
EAD64545802 EAD64545802 HARNESS,SINGLE
4774FR3118B 4774FR3118B HINGE
4774FR3118E 4774FR3118E HINGE

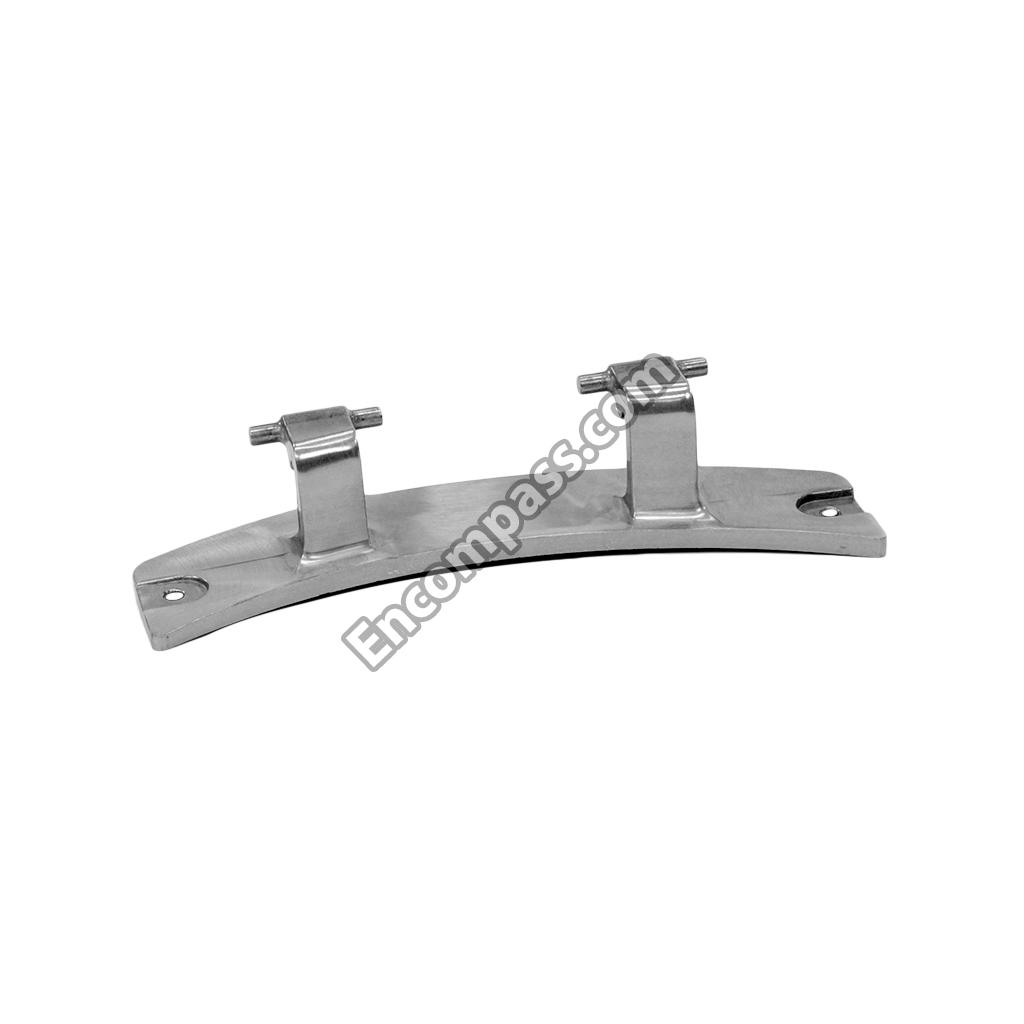

AEH75656401 AEH75656401 HINGE ASSEMBLY
4930EN3005A 4930EN3005A HOLDER
4930EN3005K 4930EN3005K HOLDER
MEG64919202 MEG64919202 HOLDER
AEJ33026601 AEJ33026601 HOLDER ASSEMBLY
AEJ74840003 AEJ74840003 HOLDER ASSEMBLY
AEJ74840005 AEJ74840005 HOLDER ASSEMBLY
AEM74772904 AEM74772904 HOSE ASSEMBLY,DRAIN
5214ER4001A 5214ER4001A HOSE,INLET
5214ER4001B 5214ER4001B HOSE,INLET
MEJ62524902 MEJ62524902 HOSE,INLET
5214ER4001H 5214ER4001H HOSE,INLET
5214ER4001J 5214ER4001J HOSE,INLET
MEJ62524903 MEJ62524903 HOSE,INLET
MEJ62305110 MEJ62305110 HOSE,INLET
AFC72755404 AFC72755404 LEG ASSEMBLY
AFC72755406 AFC72755406 LEG ASSEMBLY
AFH73209001 AFH73209001 LIFTER ASSEMBLY
AFH73209003 AFH73209003 LIFTER ASSEMBLY
MFG63099101 MFG63099101 LOCKER,HOOK
EBR36816210 EBR36816210 MAIN BOARD

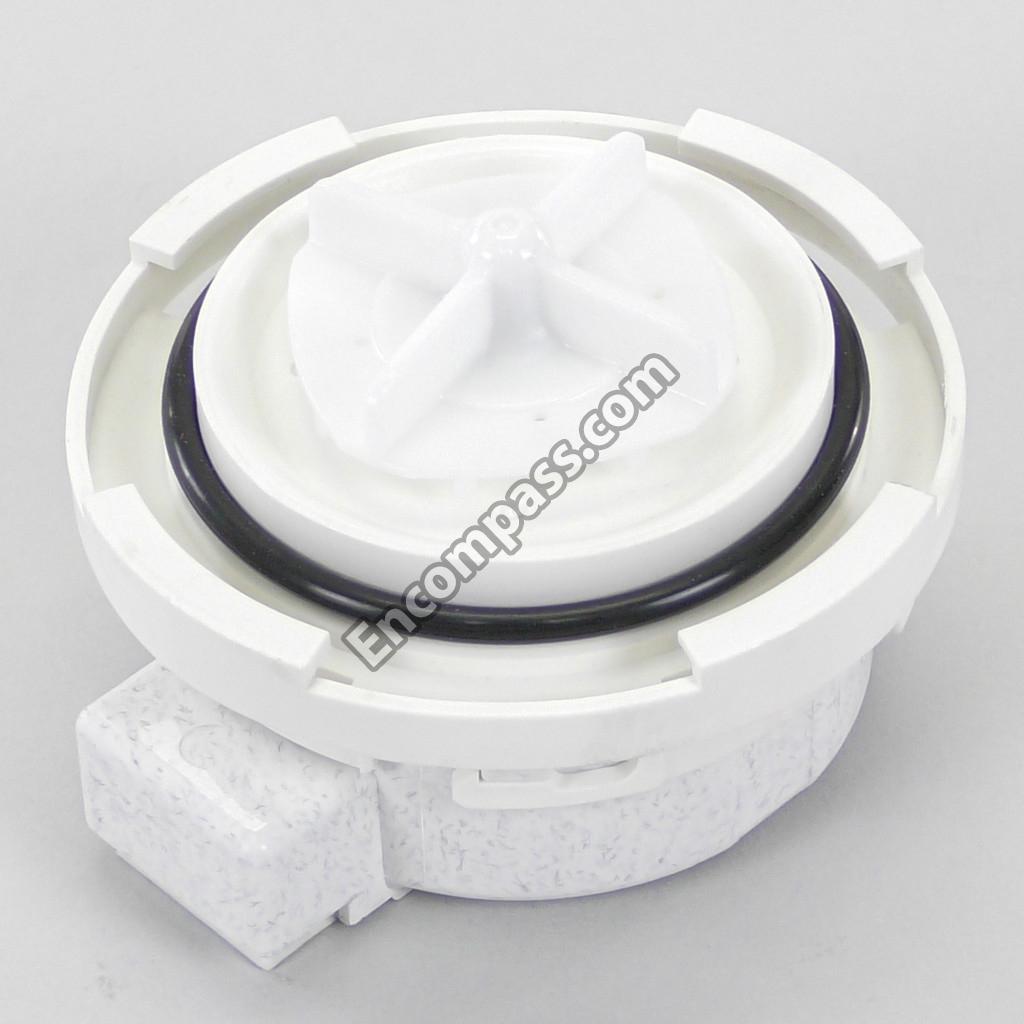

EAU63743803 EAU63743803 MOTOR ASSEMBLY,DC,PUMP
AGL30005693 AGL30005693 PANEL ASSEMBLY,DRAWER
AGU73909741 AGU73909741 PLATE ASSEMBLY,TOP
EAD61246487 EAD61246487 POWER CORD ASSEMBLY

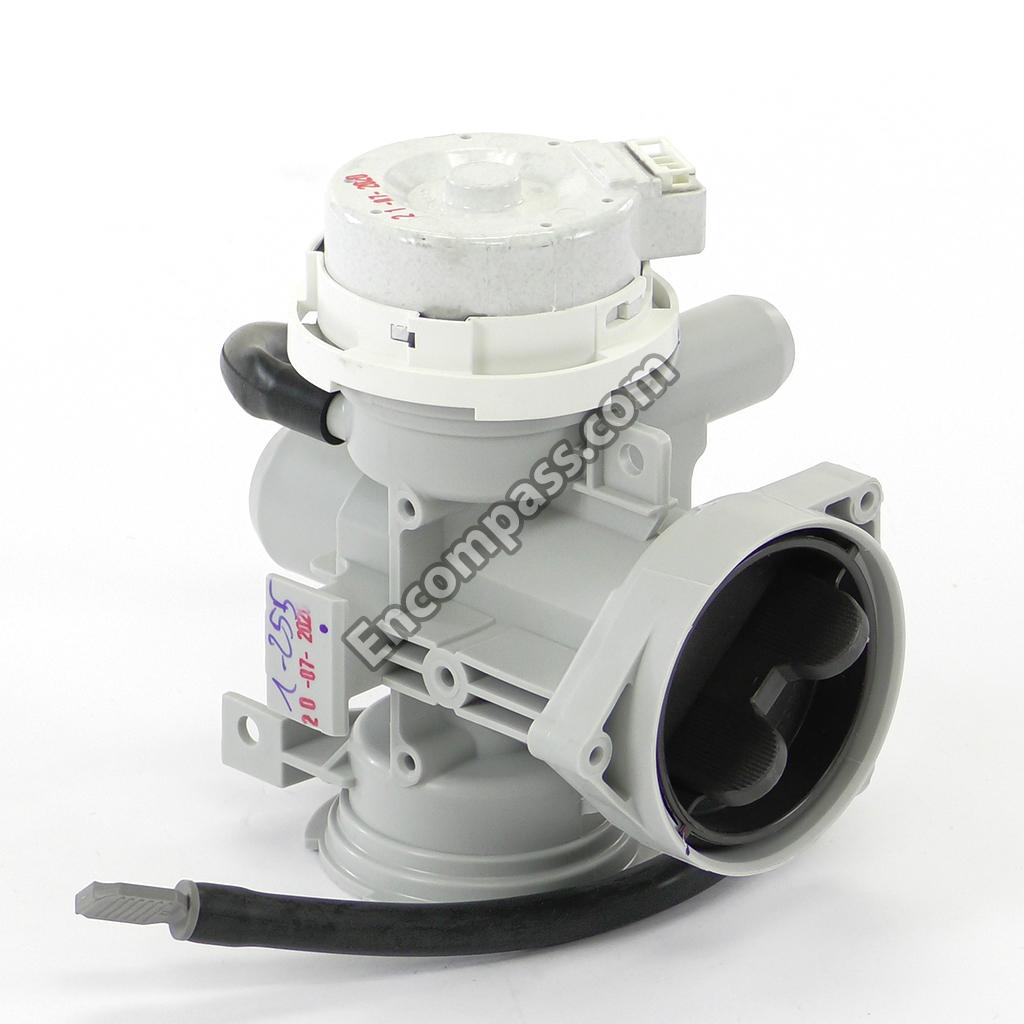

AHA75693425 AHA75693425 PUMP ASSEMBLY,DRAIN
AHA75693450 AHA75693450 PUMP ASSEMBLY,DRAIN
AHL72914414 AHL72914414 ROTOR ASSEMBLY
AHL76195110 AHL76195110 ROTOR ASSEMBLY,COMBINED
4000FR4031C 4000FR4031C SCREW,CUSTOMIZED
4000FR4031D 4000FR4031D SCREW,CUSTOMIZED
1SZZFA4362C 1SZZFA4362C SCREW,CUSTOMIZED
EBD48922821 EBD48922821 SENSOR ASSEMBLY
AGM73171801 AGM73171801 SHEET,INSTALLATION
MHW62661501 MHW62661501 SPIDER
MHY65223701 MHY65223701 SPRING,HINGE
AGF75223050 AGF75223050 SPRING,HINGE,PACKAGE ASSEMBLY,C/SKD
AJB73816033 AJB73816033 STATOR ASSEMBLY
AJB76315017 AJB76315017 STATOR ASSEMBLY,COMBINED

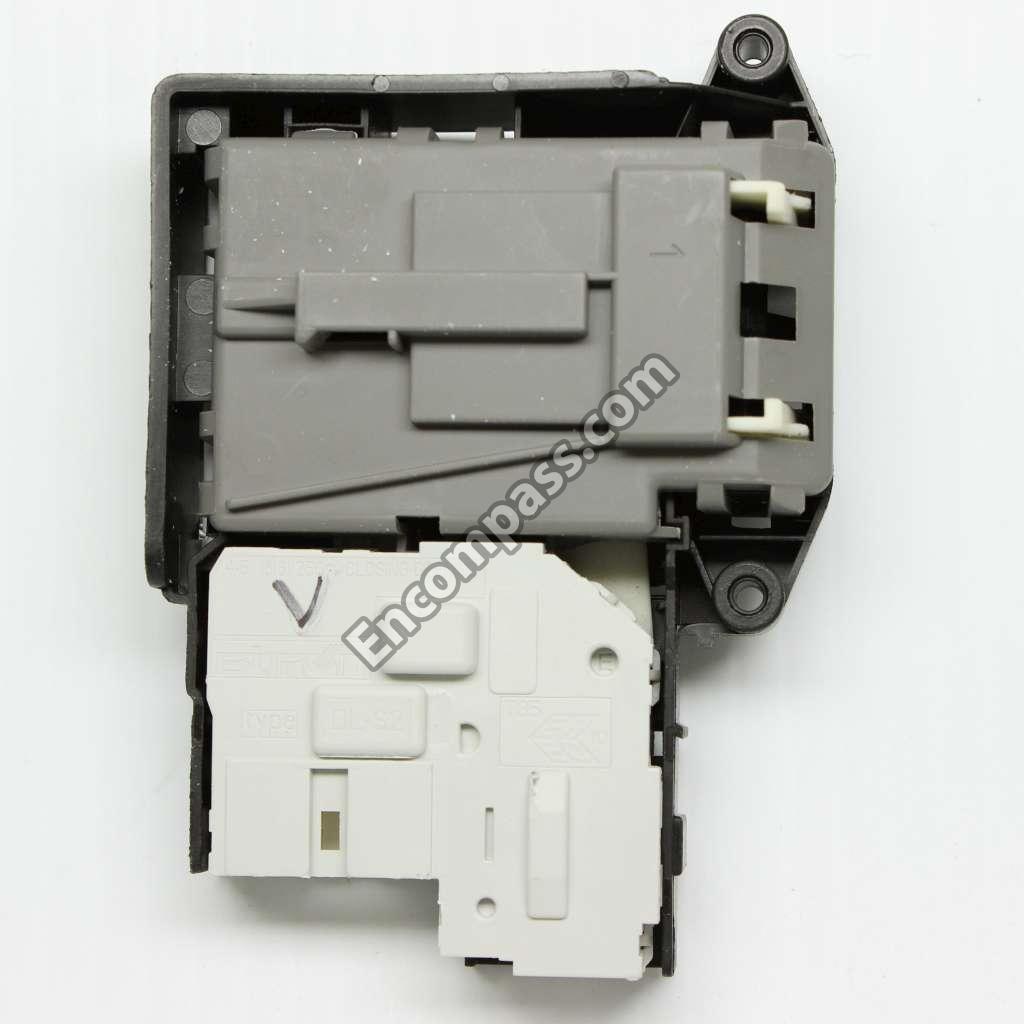

EBF61315802 EBF61315802 SWITCH ASSEMBLY,LOCKER
EBF63534901 EBF63534901 SWITCH ASSEMBLY,PRESSURE
6322FR2046C 6322FR2046C THERMISTOR,NTC
AGM75510745 AGM75510745 TUB ASSEMBLY,PARTS ASSEMBLY,SVC
AAN74468847 AAN74468847 TV STAND ASSEMBLY,CABINET
4738ER1004B 4738ER1004B WASHER DOOR BELLOWS
4738ER2002A 4738ER2002A WASHER DOOR BELLOWS
MAR62521901 MAR62521901 WASHER DOOR BELLOWS
AJQ73674437 AJQ73674437 WASHER INNER DRUM
5221ER1003S 5221ER1003S WATER INLET VALVE
5220FR2006Z 5220FR2006Z WATER INLET VALVE
