Model Image
Manufacturer

LG

Model Number

WT1501CW

Description

Lg Wt1501cw Top Loading Washer 4.5 Cu Ft White

Interactive Exploded View
Exploded View

Parts List

Part Number Description
AAJ72909607 AAJ72909607 BALANCE ASSEMBLY
AAN73431003 AAN73431003 BASE ASSEMBLY,CABINET

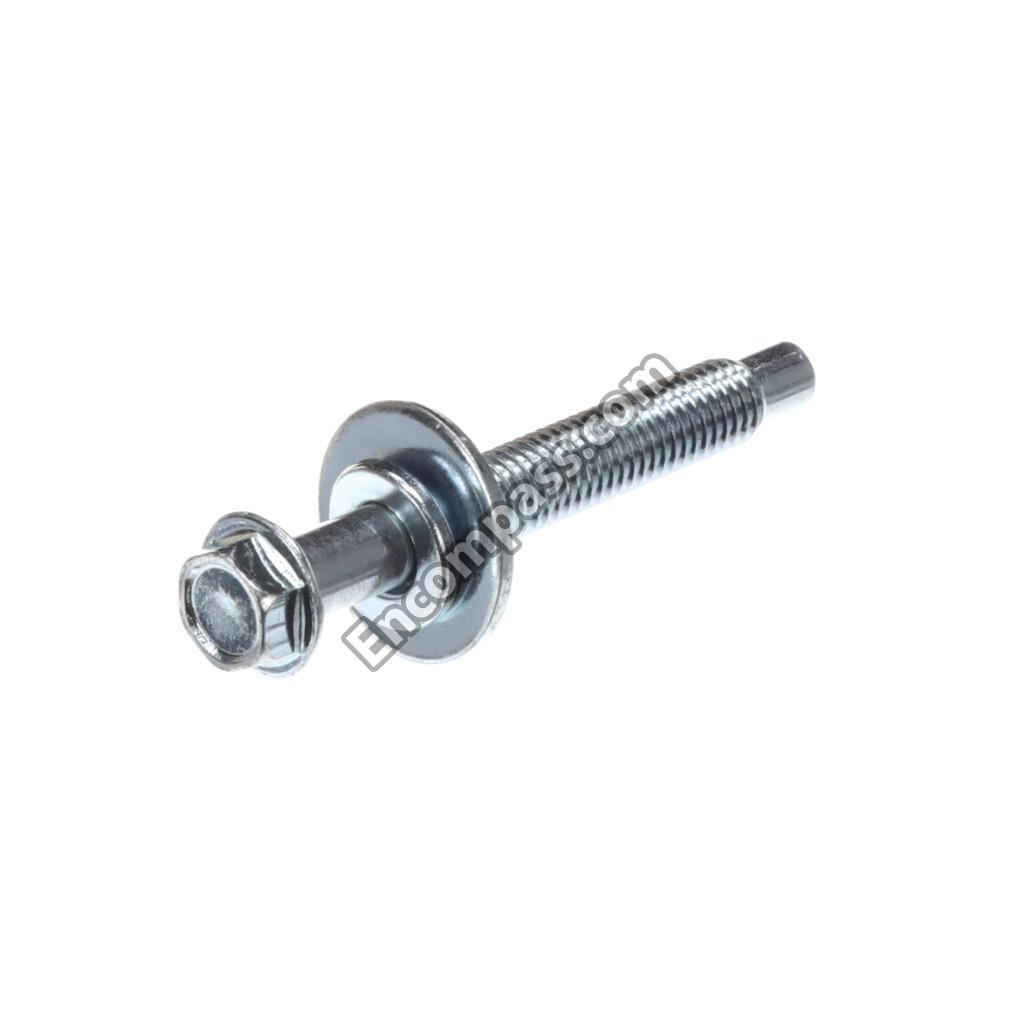

FAA30850701 FAA30850701 BOLT,COMMON
AAZ72925601 AAZ72925601 BOX ASSEMBLY,DETERGENT
MAY65797106 MAY65797106 BOX,DETERGENT
MAY65797210 MAY65797210 BOX,DETERGENT
MAZ63674301 MAZ63674301 BRACKET,TOP
ABJ72919622 ABJ72919622 CABINET ASSEMBLY
MBL65540801 MBL65540801 CAP,COVER
5006EA3009B 5006EA3009B CAP,PULSATOR

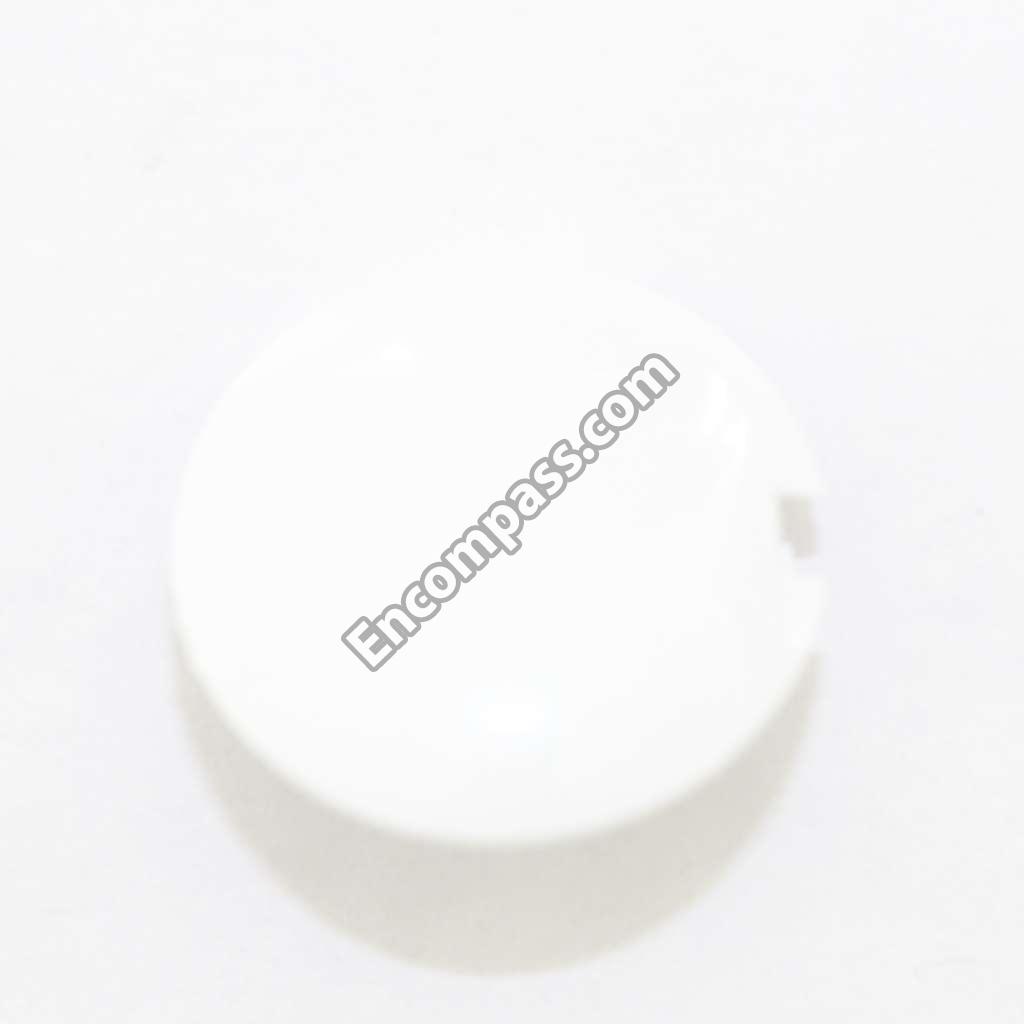

MBL66417403 MBL66417403 CAP,SCREW
MBL62061601 MBL62061601 CAP,SOFTENER
MBL62061501 MBL62061501 CAP,SOFTENER
4861FR3068A 4861FR3068A CLAMP
ACJ73350401 ACJ73350401 CONNECTOR ASSEMBLY
MBU62225402 MBU62225402 CONNECTOR,DRAIN HOSE
4323EA2001C 4323EA2001C COUPLING ASSEMBLY
ACQ85605501 ACQ85605501 COVER ASSEMBLY,TUB
MCK67634401 MCK67634401 COVER,LOWER
3550EA3007C 3550EA3007C COVER,PROTECT
MCK67652501 MCK67652501 COVER,REAR
MCK67394604 MCK67394604 COVER,TOP
5040FA4226B 5040FA4226B DAMPER

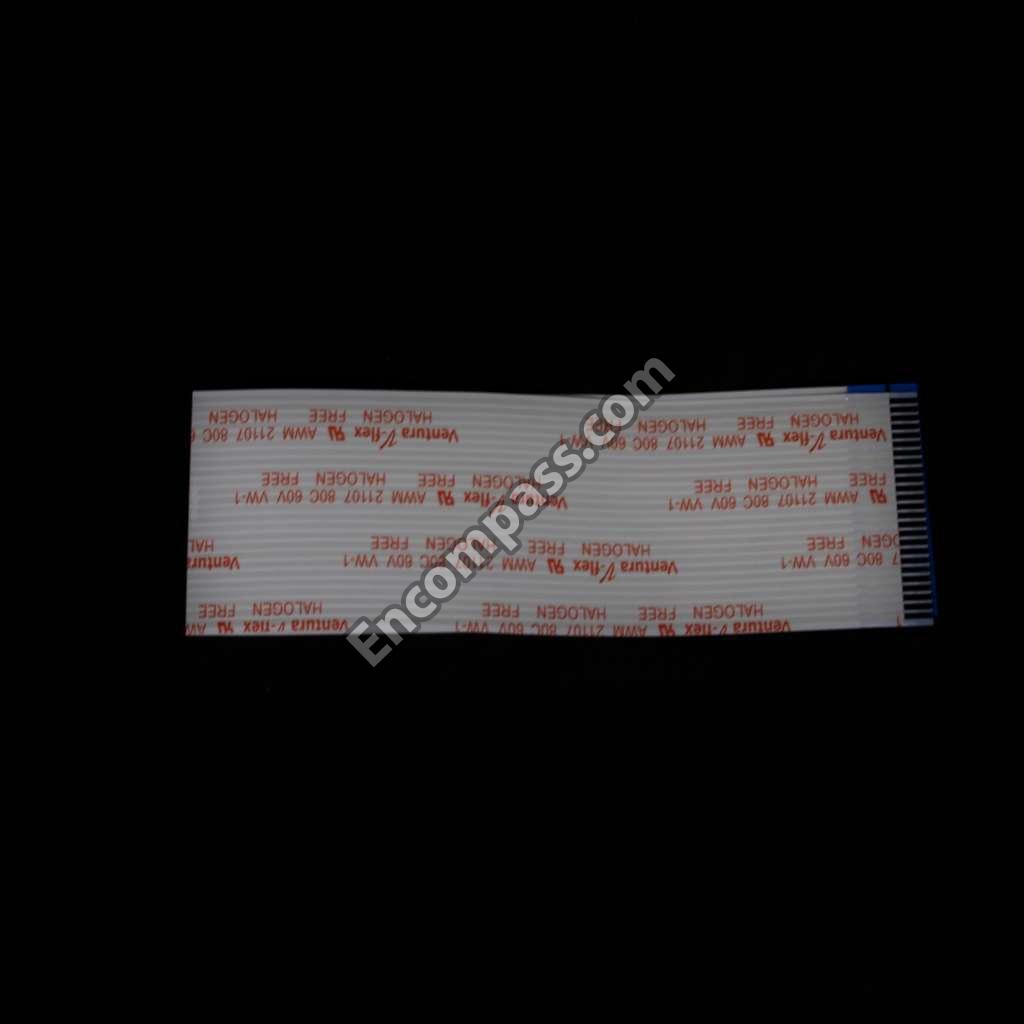

MCQ67395225 MCQ67395225 DAMPER
MCQ67395226 MCQ67395226 DAMPER
ACV73730201 ACV73730201 DAMPER ASSEMBLY,FRICTION
ACZ73270501 ACZ73270501 DISPENSER ASSEMBLY
EAM60930604 EAM60930604 FILTER ASSEMBLY
4036FA4364B 4036FA4364B GASKET
4974EA2004B 4974EA2004B GUIDE,WATER
EAD64149701 EAD64149701 HARNESS,MULTI
EAD62290516 EAD62290516 HARNESS,MULTI
EAD64129602 EAD64129602 HARNESS,MULTI
6877EA3001N 6877EA3001N HARNESS,SINGLE
MEF62462103 MEF62462103 HINGE
MEG64858801 MEG64858801 HOLDER
4930EA3002A 4930EA3002A HOLDER
AEM73213001 AEM73213001 HOSE ASSEMBLY,DRAIN
AEM73732901 AEM73732901 HOSE ASSEMBLY,DRAIN
MEJ61841803 MEJ61841803 HOSE,CONNECTOR
5214EA3004B 5214EA3004B HOSE,INLET
3661EA1006D 3661EA1006D HOUSING ASSEMBLY,BEARING
AEN73131403 AEN73131403 HOUSING ASSEMBLY,CLUTCH COUPLING
AEN72910503 AEN72910503 HOUSING ASSEMBLY,DETERGENT
MEK61843402 MEK61843402 HOUSING,BEARING(UPPER)
MEL61841406 MEL61841406 HUB,TUB(INNER)
4263FA3933C 4263FA3933C LEG ASSEMBLY

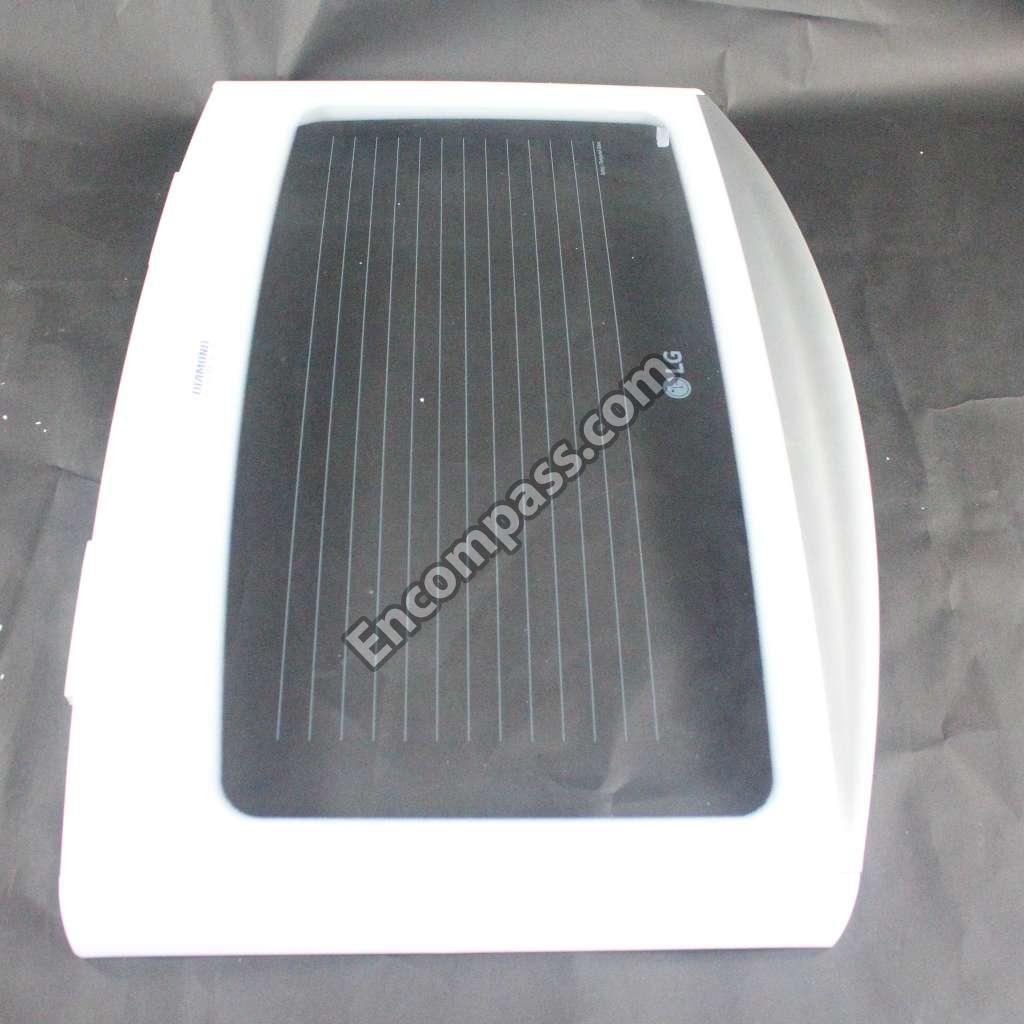

AFG73269711 AFG73269711 LID ASSEMBLY

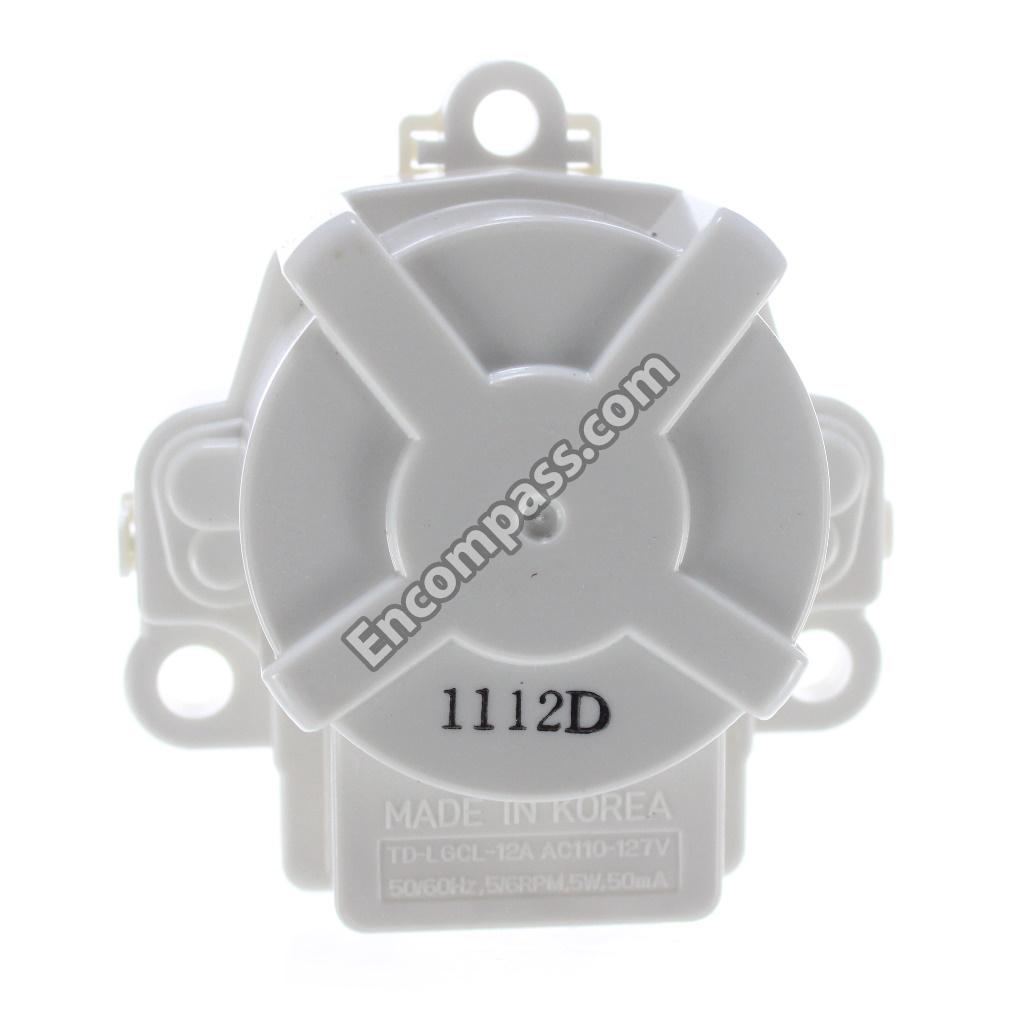

4681EA1009C 4681EA1009C MOTOR ASSEMBLY,AC
AGB73672403 AGB73672403 NOZZLE ASSEMBLY
1NZZEA4001A 1NZZEA4001A NUT,COMMON
4020FA4208J 4020FA4208J NUT,COMMON

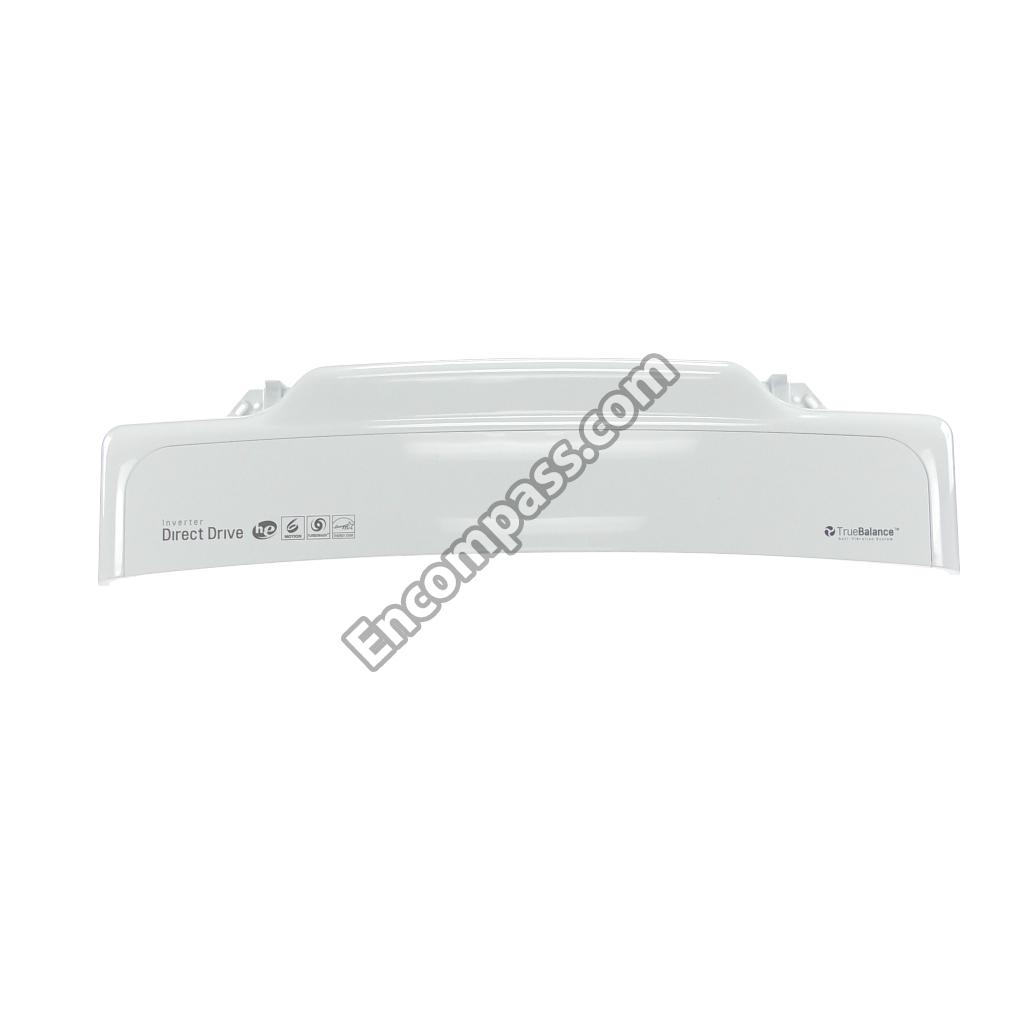

AGL74774209 AGL74774209 PANEL ASSEMBLY,REAR
MGC64339101 MGC64339101 PANEL,FRONT
EBR81300801 EBR81300801 PCB ASSEMBLY,DISPLAY

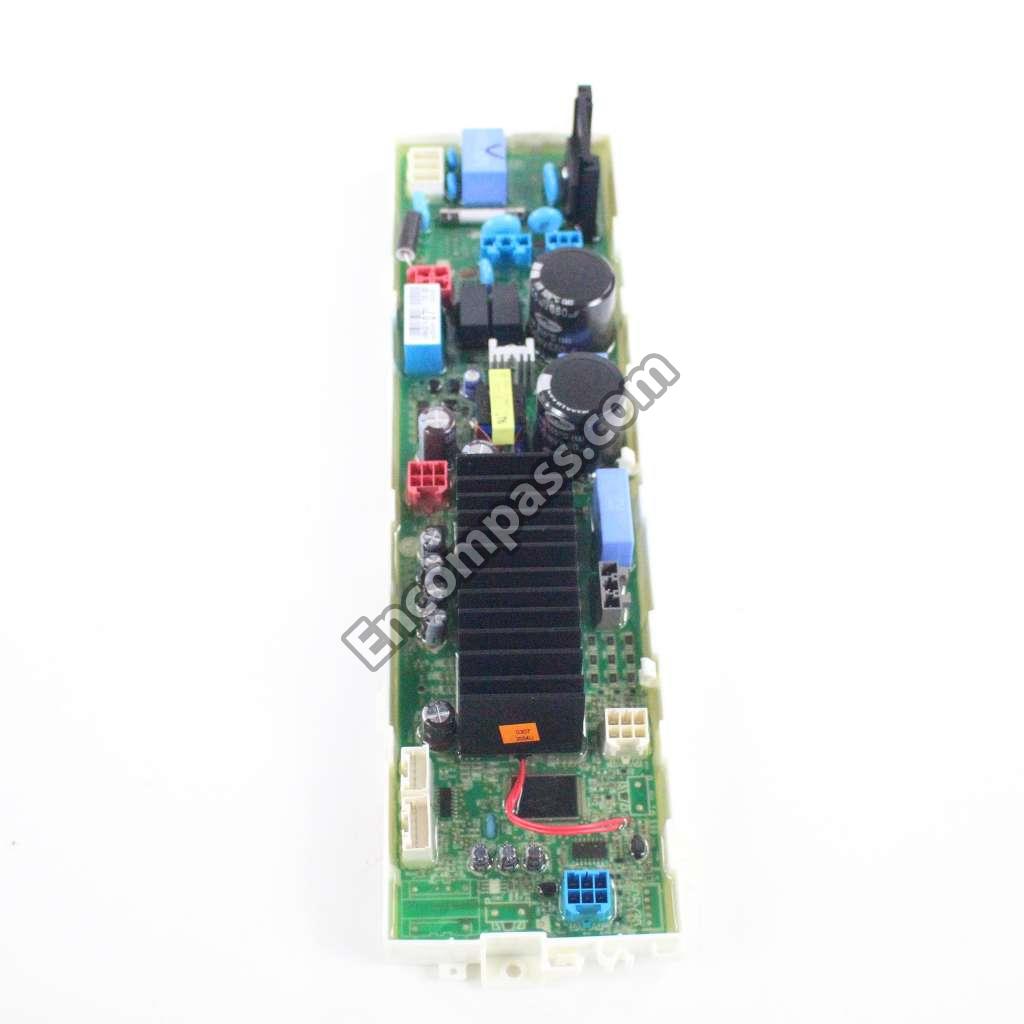

EBR80321807 EBR80321807 PCB ASSEMBLY,MAIN
MGJ64945601 MGJ64945601 PLATE,CONTROL
EAD60778446 EAD60778446 POWER CORD ASSEMBLY
AGZ72909711 AGZ72909711 PULSATOR ASSEMBLY
5859EA1004F 5859EA1004F PUMP ASSEMBLY,DRAIN

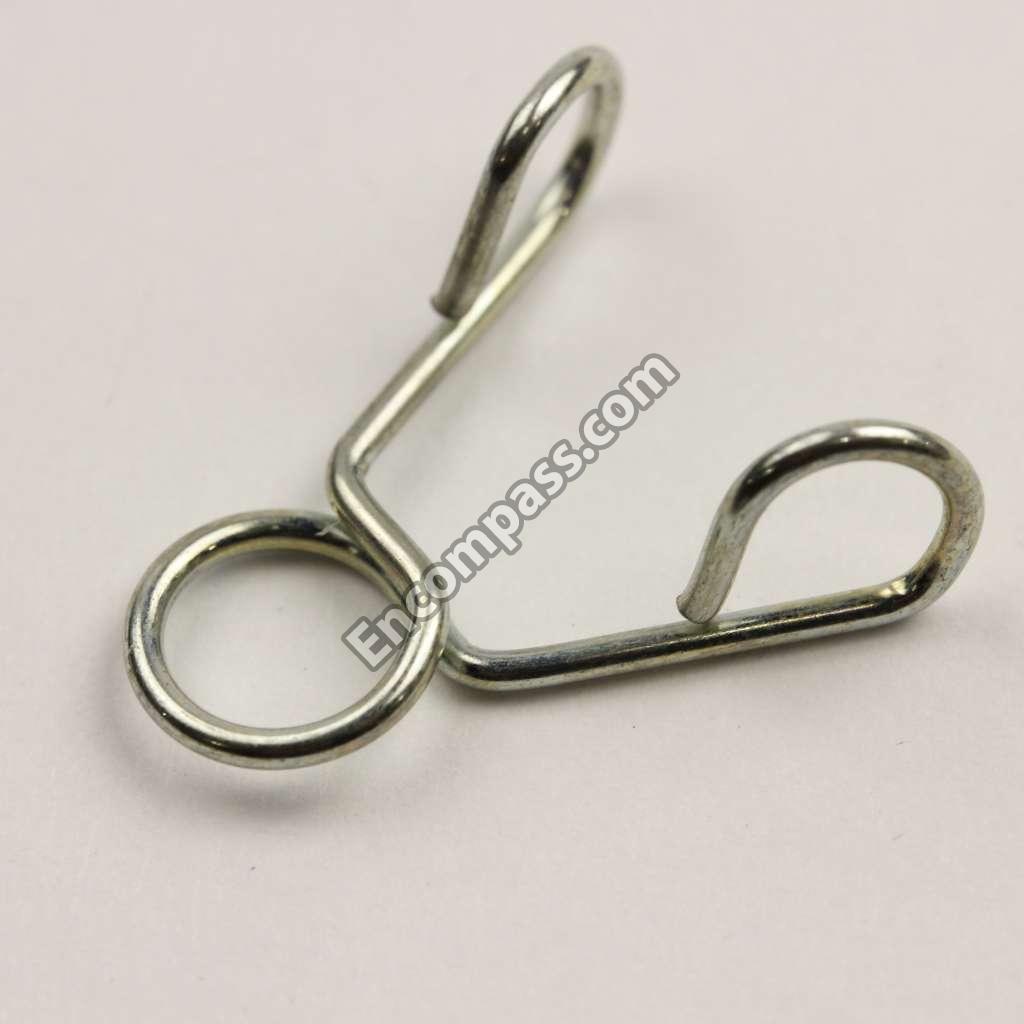

3W50012U 3W50012U RING,SNAP
AHL72914404 AHL72914404 ROTOR ASSEMBLY
FAB30598601 FAB30598601 SCREW,CUSTOMIZED
4000FA4196Q 4000FA4196Q SCREW,CUSTOMIZED
FAB32139901 FAB32139901 SCREW,TAPPING
AJB73816004 AJB73816004 STATOR ASSEMBLY
4902EA1002Q 4902EA1002Q SUSPENSION ASSEMBLY
EBF61215202 EBF61215202 SWITCH ASSEMBLY
6501EA1001R 6501EA1001R SWITCH ASSEMBLY,SENSOR
AJQ73293810 AJQ73293810 TUB ASSEMBLY,INNER

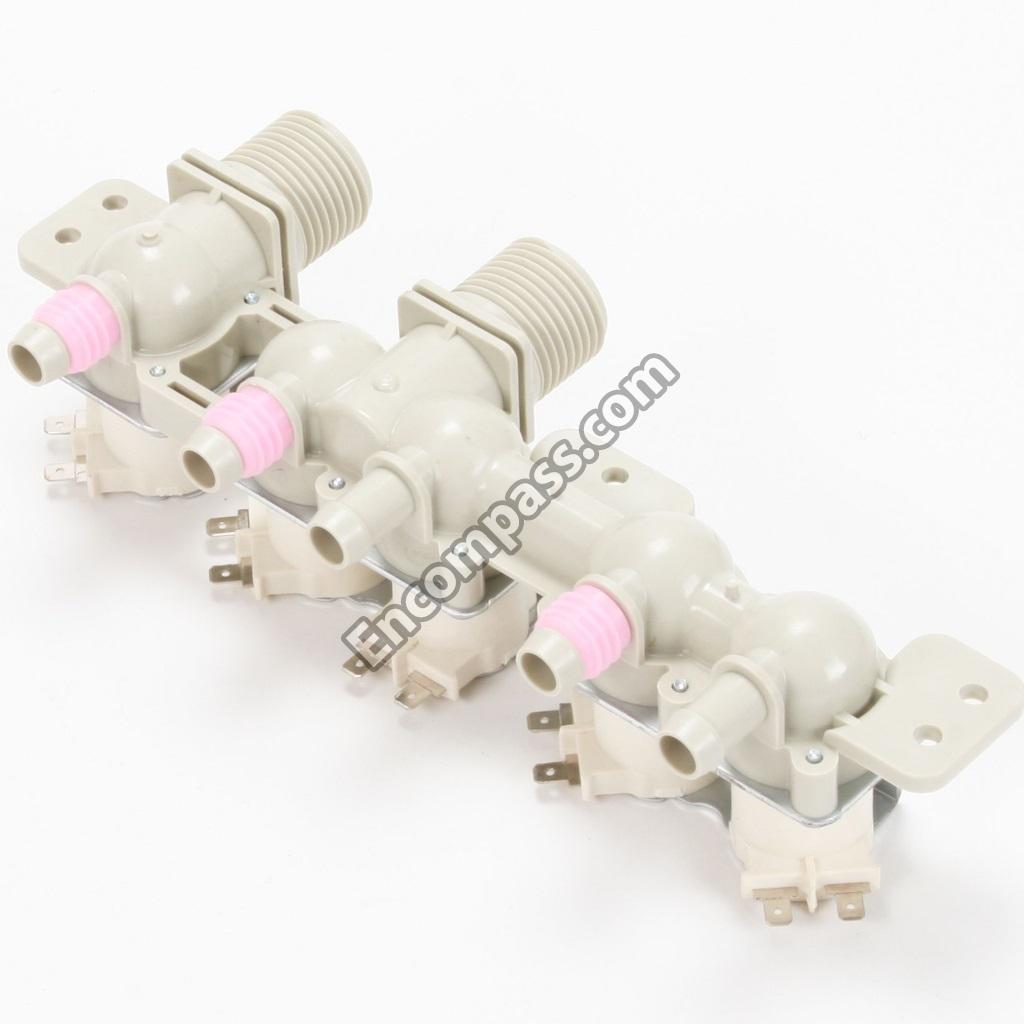

5221EA1008F 5221EA1008F VALVE ASSEMBLY,INLET
AJU73213301 AJU73213301 VALVE ASSEMBLY,INLET
4040FA4045C 4040FA4045C WASHER,COMMON
FAF30369201 FAF30369201 WASHER,COMMON
4W50100D 4W50100D WASHER,CUSTOMIZED
