Manufacturer
International Comfort Products

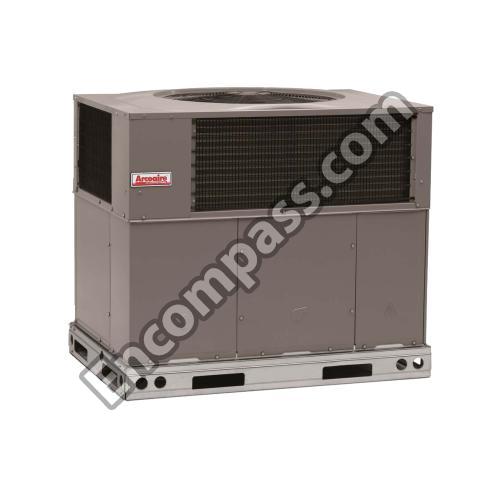

Model Number
PDD442060H000D1
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 1173719 | ACCUMULATOR |
| 1178423 | BAFFLE FLUE 24MM |
| 1183373 | BASE PAN CONDENSER (LG CHASSIS) |
| 1178403 | BASE RAIL |
| 1178402 | BASE RAIL |
| 1178014 | BASE RAIL |
| 1185790 | BOARD CONTROL |
| 1176085 | BRACKET BLOWER SUPPORT |
| 1177728 | BRACKET BURNER |
| 1176023 | BRACKET SUPPORT 10-INCH |
| 1178357 | BRACKET SWITCH |
| 1171095 | BURNERS |
| 1175999 | CAP HOOD |
| 1178358 | CIRCUIT BOARD |
| 1179571 | COIL CONDENSER AL/CU FRMD |
| 1179570 | COIL CONDENSER AL/CU FRMD |
| 1178359 | COIL EVAPORATOR AL/CU |
| 1172619 | COIL REV VALVE 24V |
| 1178426 | CONTROL BOX |
| 1173177 | CORE VALVE |
| 1176062 | COVER ASSEMBLY DUCT |
| 1178480 | COVER TOP COND |
| 1173661 | FAN BLADE |
| 1172311 | FILTER DRIER |
| 1177338 | GRILLE ASSEMBLY 18-INCH |
| 1177337 | GRILLE ASSEMBLY 18-INCH |
| 1177336 | GRILLE ASSEMBLY 18-INCH |
| 1178481 | GRILLE OUTLET |
| 1176613 | GROMMET |
| 1171270 | GROMMET COMPRESSOR |
| 1187321 | HARNESS ASSEMBLY, CONTROL ECONO |
| 1184083 | HEATER CC WP 40W 240V CH196 |
| 1178429 | HOUSING ASY INDUCER FAN |
| 1177661 | IGNITION CONTROL MODULE |
| 1177663 | IGNITOR |
| 1178464 | INSUL ASSEMBLY BLOWER PANEL |
| 1178743 | INSUL ASSEMBLY FAN PARTITION LG |
| 1178961 | INSUL ASSEMBLY PANEL COIL LARGE |
| 1178960 | INSUL ASSEMBLY PANEL DUCT LARGE |
| 1176083 | INSUL ASSEMBLY TOP EVAP |
| 1177727 | INSULATION ASSEMBLY FLUE BOX 60K |
| 1176088 | KIT BLW MTR MTG LG CHAS |
| 1172300 | LUG GROUND |
| 1178455 | MANIFOLD 2 SPUD |
| 1173990 | METERING DEVICE .040 |
| 1186359 | MOTOR |
| 1178420 | MOTOR ASSEMBLY INDUCER |
| 1177596 | MOTOR BLOWER 1/230 3/4 VS 600-1200 |
| 1177798 | MOTOR IDF 1/230V 1/15 3200 |
| 1172235 | ORIFICE MAIN 38 |
| 1171357 | PAINT HAZ -HAZ- |
| 1178465 | PANEL ACCESS ELEC |
| 1184080 | PANEL ASSEMBLY INSULATED |
| 1178463 | PANEL COMP ACCESS LG |
| 1177347 | PANEL CORNER 18-INCH COND |
| 1177349 | PANEL CORNER 18-INCH HDR |
| 1177348 | PANEL CORNER 18-INCH HDR |
| 1177021 | PLATE ASY |
| 1176076 | PLATE FAN TOP |
| 1176000 | PLATE INSUL |
| 1177022 | PLUG COMPRESSOR |
| 1178479 | RACEWAY OFM 14-INCH |
| 1176074 | SCROLL |
| 1177662 | SENSOR FLAME |
| 1177731 | SUPPORT BURNER |
| 1176116 | SWITCH LMT 140-100 |
| 1178677 | SWITCH TEMP |
| 1177658 | SWITCH TEMP O320 C270 |
| 1172197 | SWITCH VENT PRESS |
| 1174407 | SWITCH,PRESS HI |
| 1174412 | SWITCH,PRESS LO |
| 1171496 | TRANSFORMER |
| 1178417 | TUBE VENT PRESSURE-2 FT |
| 1173176 | VALVE BODY |
| 1175976 | VALVE N HIS SNAP WR 36G22512 |
| 1185357 | VALVE REVERSING |
| 1176870 | VALVE TXV 4.0 TON R410A |
| 1177025 | WHEEL 11-10DD CCW |
| 1175971 | WHEEL DD 5X1 CWW |
| 1177654 | WIRE ASY INGNITION |
