Manufacturer
International Comfort Products
Model Number
PHR524000KAD0B1
Description

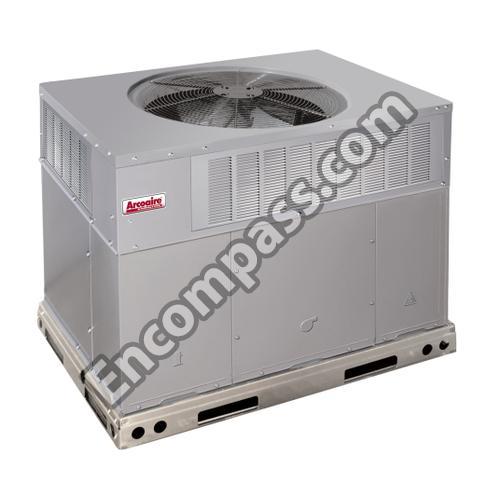

Quietcomfort 15 Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 1174937 | ACCUMULATOR 174 3/4 5-INCH DIA. |
| 1178014 | BASE RAIL |
| 1178013 | BASE RAIL |
| 1178012 | BASE RAIL |
| 1185790 | BOARD CONTROL |
| 1176023 | BRACKET SUPPORT 10-INCH |
| 1185358 | CIRCUIT BOARD |
| 1188556 | COIL ASSEMBLY CONDENSER FORMED LF AL/CU |
| 1188557 | COIL ASSEMBLY CONDENSER FORMED RT AL/CU |
| 1186116 | COIL ASSEMBLY EVAPORATOR AL/CU TIN |
| 1186721 | COIL RVS 24V |
| ZPS20K5E-PFV-830 | COMPRESSOR |
| 1172472 | CONTACTOR |
| 1173177 | CORE VALVE |
| 1176139 | COVER |
| 1175990 | COVER ASSEMBLY DUCT |
| 1186085 | FAN MOTOR |
| 1186207 | FAN PROP |
| 1172311 | FILTER DRIER |
| 1188312 | GRILLE ASSEMBLY, 22 IN, BK SM TW |
| 1188313 | GRILLE ASSEMBLY, 22 IN, LF TW |
| 1188314 | GRILLE ASSEMBLY, 22 IN, RT SM TW |
| 1178503 | GRILLE ASSEMBLY;22 IN. FR/RT/LF HG |
| 1188152 | GRILLE, OUTLET |
| 1176613 | GROMMET |
| 1171270 | GROMMET COMPRESSOR |
| 1178010 | INSUL ASSEMBLY BLOWER PANEL |
| 1178739 | INSUL ASSEMBLY COIL PARTITION SM |
| 1178737 | INSUL ASSEMBLY COIL PARTITION SM |
| 1178020 | INSUL ASSEMBLY ELEC PANEL |
| 1178959 | INSUL ASSEMBLY PANEL COIL SMALL |
| 1178958 | INSUL ASSEMBLY PANEL DUCT SMALL |
| 1178914 | INSUL ASSEMBLY SIDE PANEL SM |
| 1175988 | INSUL ASSEMBLY TOP EVAP |
| 1176140 | INSUL CONTROL PLATE |
| 1175958 | KIT BLW MTR MTG |
| 1172300 | LUG GROUND |
| 1190520 | MOTOR BLOWER, ECM 5.0 |
| 1178008 | PANEL COMP ACCESS SML |
| 1178506 | PANEL CORNER 22-INCH COND |
| 1178508 | PANEL CORNER 22-INCH HDR |
| 1186204 | PISTON |
| 1178015 | PLATE ASSEMBLY FAN |
| 1176143 | PLATE CONTROL |
| 1178017 | PLATE FAN |
| 1177316 | PLUG ASSEMBLY COMP SOL COIL 51-INCH LDS |
| 1177318 | PLUG COMP |
| 1178424 | RACEWAY OFM 13-INCH |
| 1176010 | SCROLL |
| 1188501 | SWITCH, TEMP O55 C33 |
| 1174407 | SWITCH,PRESS HI |
| 1174412 | SWITCH,PRESS LO |
| 1178005 | TOP COVER SML |
| 1171496 | TRANSFORMER |
| 1173176 | VALVE BODY |
| 1173715 | VALVE REVERSING |
| 1188503 | VALVE, TXV |
