Manufacturer
International Comfort Products
Model Number
PHR542000H000A1
Description

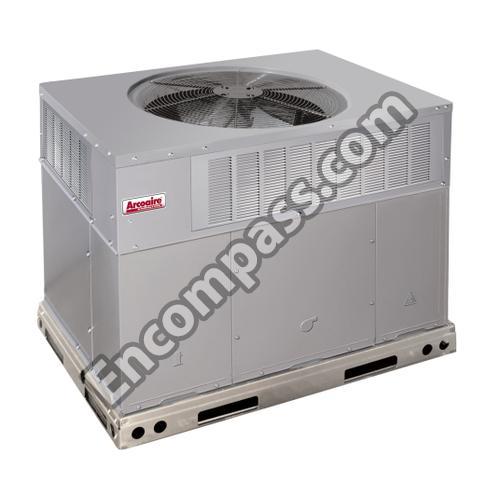

Quietcomfort 15 Packaged Heat Pump
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 1173714 | ACCUMULATOR |
| 1183373 | BASE PAN CONDENSER (LG CHASSIS) |
| 1178403 | BASE RAIL |
| 1178402 | BASE RAIL |
| 1178014 | BASE RAIL |
| 1185790 | BOARD CONTROL |
| 1185866 | BOARD INDOOR FAN CONTROL |
| 1176085 | BRACKET BLOWER SUPPORT |
| 1176023 | BRACKET SUPPORT 10-INCH |
| 1186127 | COIL ASSEMBLY CONDENSER FRMD AL/CU |
| 1186126 | COIL ASSEMBLY CONDENSER FRMD AL/CU |
| 1186210 | COIL ASSEMBLY EVAPORATOR AL/CU TIN |
| 1172619 | COIL REV VALVE 24V |
| 1173177 | CORE VALVE |
| 1176139 | COVER |
| 1176062 | COVER ASSEMBLY DUCT |
| 1178480 | COVER TOP COND |
| 1173661 | FAN BLADE |
| 1172311 | FILTER DRIER |
| 1178516 | GRILLE ASY 20-INCH |
| 1178514 | GRILLE ASY 20-INCH |
| 1178512 | GRILLE ASY 20-INCH |
| 1178481 | GRILLE OUTLET |
| 1176613 | GROMMET |
| 1171270 | GROMMET COMPRESSOR |
| 1184083 | HEATER CC WP 40W 240V CH196 |
| 1178464 | INSUL ASSEMBLY BLOWER PANEL |
| 1178612 | INSUL ASSEMBLY ELEC PANEL LG |
| 1178961 | INSUL ASSEMBLY PANEL COIL LARGE |
| 1178960 | INSUL ASSEMBLY PANEL DUCT LARGE |
| 1178915 | INSUL ASSEMBLY SIDE PANEL LG |
| 1176083 | INSUL ASSEMBLY TOP EVAP |
| 1178741 | INSUL ASY COIL PARTITION LG |
| 1176140 | INSUL CONTROL PLATE |
| 1176088 | KIT BLW MTR MTG LG CHAS |
| 1172300 | LUG GROUND |
| 1185646 | MOTOR BLOWER 3/4 HP |
| 1176113 | PANEL CNR 20-INCH HAIRPIN |
| 1176111 | PANEL CNR 20-INCH HDR |
| 1178463 | PANEL COMP ACCESS LG |
| 1176109 | PANEL CORNER 20-INCH COND |
| 1177021 | PLATE ASY |
| 1176143 | PLATE CONTROL |
| 1176076 | PLATE FAN TOP |
| 1177316 | PLUG ASSEMBLY COMP SOL COIL 51-INCH LDS |
| 1177022 | PLUG COMPRESSOR |
| 1178479 | RACEWAY OFM 14-INCH |
| 1176074 | SCROLL |
| 1178677 | SWITCH TEMP |
| 1173669 | SWITCH TEMP ACT |
| 1174407 | SWITCH,PRESS HI |
| 1174412 | SWITCH,PRESS LO |
| 1171496 | TRANSFORMER |
| 1185357 | VALVE REVERSING |
| 1177748 | VALVE TXV 3 TON |
| 1177025 | WHEEL 11-10DD CCW |
