Manufacturer
Amana Commerical
Model Number
ACE208D2
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 12002804 | ACCESS PAN WLD-E CT |
| 20172101 | ACCESS- PNT BOTTOM |
| 92113P01 | BIT, CROWS FOOT DRIVER |
|
|
BLADE, FAN |
| 12537901 | BLADE, FAN |
| 10825904Q | BLADE, STIRRER |
| 10091101 | BLOCK-FUSE |
|
|
BOARD, DISPLAY |
| 12189004 | BRACKET-HINGE SUPPORT |
| M0571003 | BUSHING-SNAP |
| M0571001 | BUSHING-SNAP |
| M0295503 | CAP, SCREW |
| 59001167 | CAPACITOR- .90 |
| M0104106 | CLIP, CORD |
| 59001230 | COVER, HINGE- GRAY |
|
|
COVER, STIRRER |
| 59174559 | COVER- LIGHT HARDWARE |
| 20172201 | COVER-LIGHT |
| 12470201 | COVER-VENT |
|
|
DIODE |
| 13091701 | DIODE |
| 13098205 | DOOR, OUTER |
| 10978601 | DUCT-BLOWER/MAG |
| 12002901Q | FLUE DUCT WELD |
|
|
FUSE-30A |
| 12019002 | GASKET |
|
|
GASKET-SILICONE |
| 12019005 | GASKET-SILICONE |
|
|
GRILL, AIR INLET THUMBSCREWS |
| 21028602 | GRILLE-AIR INLET |
|
|
HANDLE-DOOR |
| 13095501 | HARNESS-INTERLOCK |
| 12543401 | HARNESS-OVEN LT |
| 13018301 | HARNESS-PC BOARD |
| 12020003Q | HEATER BOX WELD |
| 59001869 | HINGE, DOOR |
| 12576901 | INSERT-HANDLE |
| 12474904 | INSULATION, DOOR- LARGE |
| 12474903 | INSULATION-DOOR |
|
|

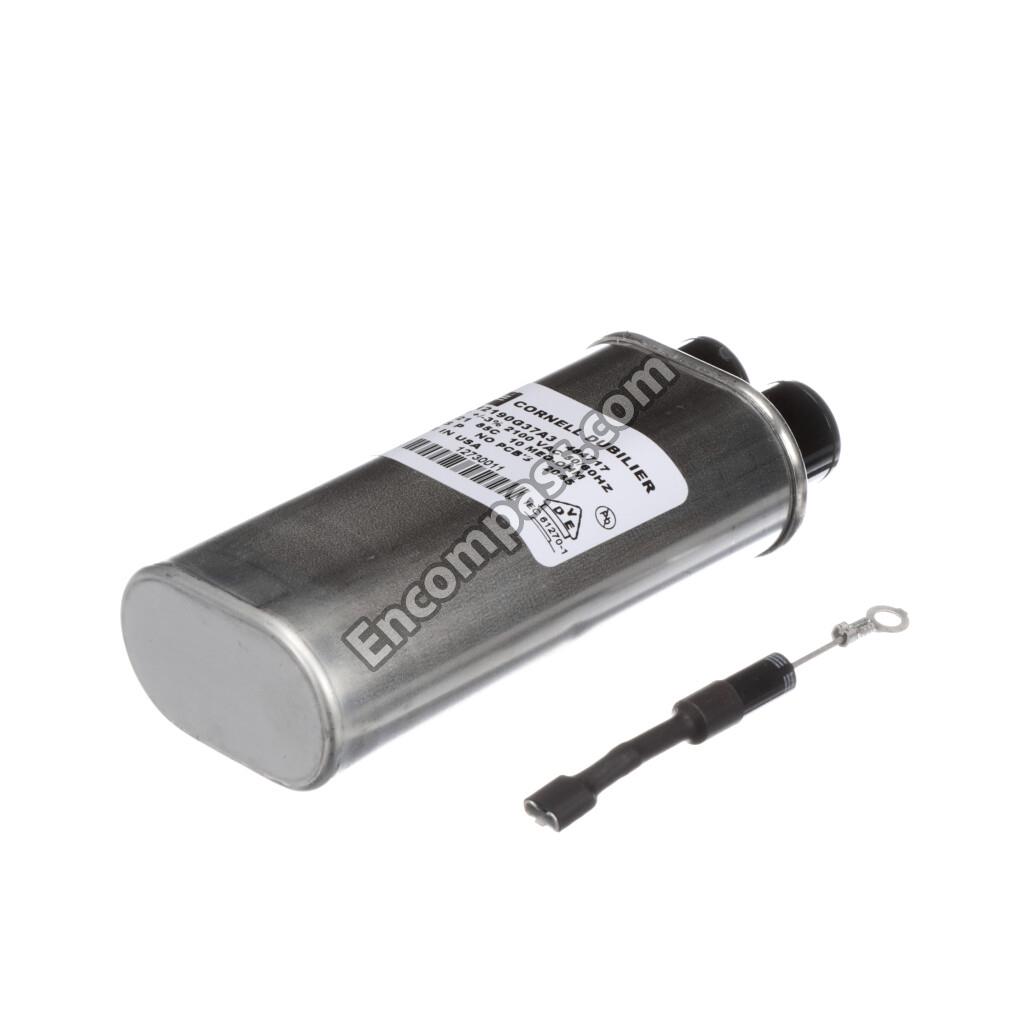

KIT, CAPACITOR- .90 DIODE |
| 12002760 | KIT, INNER DOOR W/LATCH CAPS |
|
|
KIT, INTERLOCK SWITCH |
| 14129071 | KIT, RACK STUDS |
| R0130737 | KIT, STIRRER BLADE INSERT |
| R0157373 | KIT, TRIAC |
|
|
KIT, TRIAC(40A) SNUBBER |
| 14179137 | KIT- BLADE, INSERT, SHAFT |
| 14189143 | KIT- MOTOR, WHEEL, BLADE |
| 14179138 | KIT- STUDS HARDWARE |
|
|
LAMP (40W-250V) |
|
|
MAGNETRON |
| 59004030 | MOTOR, BLOWER |
| 59004036 | MOTOR, CONVECTION |
| M0287016 | NUT, SPEED |
| 13045502 | NUT- #8 KEPS |
| 13045501 | NUT-#6 KEPS |
| M0288215 | NUT-#6 SPEED |
| 12538001 | NUT-CAP |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
|
|
PLUG-HOLE |
|
|
PLUG-WHITE BUTTON |
|
|
POWER CORD |
|
|
RELAY |
| M0370003 | RELIEF-STRAIN |
| 12188901 | RETAINER-TRAY |
| M0220417 | SCREW |
| M0213802 | SCREW |
| 13046902 | SCREW-SET/CONE ROHS |
|
|
SCREW-SET/CONE ROHS |
|
|
SCREW-SET/DOG ROHS |
| 12990529 | SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990526 | SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990522 | SCREW-SM/HEX ROHS |
| 12991101 | SCREW-SM/KNIFE ROHS |
| 12990606 | SCREW-SM/PAN |
| 13042701 | SCREW-TC/HOLT ROHS |
|
|
SCREW-TC/SOCKET TORX |
| 12992307 | SCREW-TF/HEX |
| 12992302 | SCREW-TF/HEX ROHS |
| 13042001 | SCREW-TF/OVAL ROHS |
| 13041505 | SCREW-TF/PAN |
| 20299601 | SCREW-TF/ROUND |
| 13042901 | SCREW-THUMB |
| 10797203Q | SCROLL WELD |
| 59004004 | SEALER, RTV 2.8OZ-RED-HI-TEMP |
|
|
SENSOR-TEMP |
| 12004401 | SHAFT-STIRRER |
| 12210101 | SHIELD-TRIAC |
|
|
SNUBBER ASSEMBLY |
| C8893505 | SPRING- DOOR LATCH |
| A4055406 | STRAP-CAPACITOR |
| M0590602 | SUPPORT |
| B5684119 | THERMAL CUTOUT |
| B5684102 | THERMAL CUTOUT |
| 31866P01 | THERMAL CUTOUT |
| 59104132 | TOUCH PANEL ASSEMBLY- TOP |
| 59001626 | TRANSFORMER, HV |
| 10977801 | TRANSITION-BLOWER |
| 59174560 | TRIM- OC SCREWS |
| 10909005 | TRIM-OC |
| M0272513 | WASHER |
| 12546101 | WASHER |
| M0295502 | WASHER-CAP SCREW |
| M0274066 | WASHER-NYLON |
| C3670809 | WHEEL-BLOWER |
| 10908909Q | WRAPPER- STAINLESS |
| 10908901Q | WRAPPER- STAINLESS |
