Manufacturer
Amana Commerical
Model Number
ALD10DT
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 56001428 | AIR DEFLECTOR- REAR |
| 56001440 | AIR GUIDE |
| 56001438 | BASE |
| 56001411 | BLOWER MOTOR ASSEMBLY |
| 56001218 | BRACKET, CAPACITOR |
| 56001435 | CAPACITOR- 1.05 |
| 56001418 | CONTROL PANEL ASSEMBLY |
| 20241101 | CORD-POWER,60 |
| 56001421 | COUPLER, TIMER |
| 56001420 | COUPLER, VPC KNOB |
|
|
DIODE |
| 56002008 | DOOR ASSEMBLY |
| 56001423 | DOOR ASSY |
| 56001456 | FOOT, BASE |
| 56002005 | FUSE BLOCK / FILTER ASSEMBLY |
| 56001444 | FUSE BLOCK / FILTER ASSEMBLY |
|
|
FUSE, 20 A |
| 56001353 | FUSE, 20 A |
| 56001474 | FUSE, HV |
| 56001426 | FUSE, THERMAL- CAVITY |
| 53001610 | GASKET |
| 56001445 | GASKET |
| 56001453 | HARNESS, MAIN |
| 56001446 | HARNESS, MAIN |
| 56001439 | HINGE, BOTTOM |
|
|
KIT, COVER/STIRRER BLADE/RIVET |
| 14100039 | KIT, DOOR HANDLE |
| 12002870 | KIT, DOOR HANDLE |
|
|
KIT, MAGNETRON |
|
|
KIT, SPRING/LATCH/CHOKE COVER |
| 56001417 | KNOB, TIMER |
| 56001416 | KNOB, VPC |
| 56001034 | LAMP/ SOCKET ASSEMBLY |
|
|
LAMP/SOCKET ASSEMBLY |

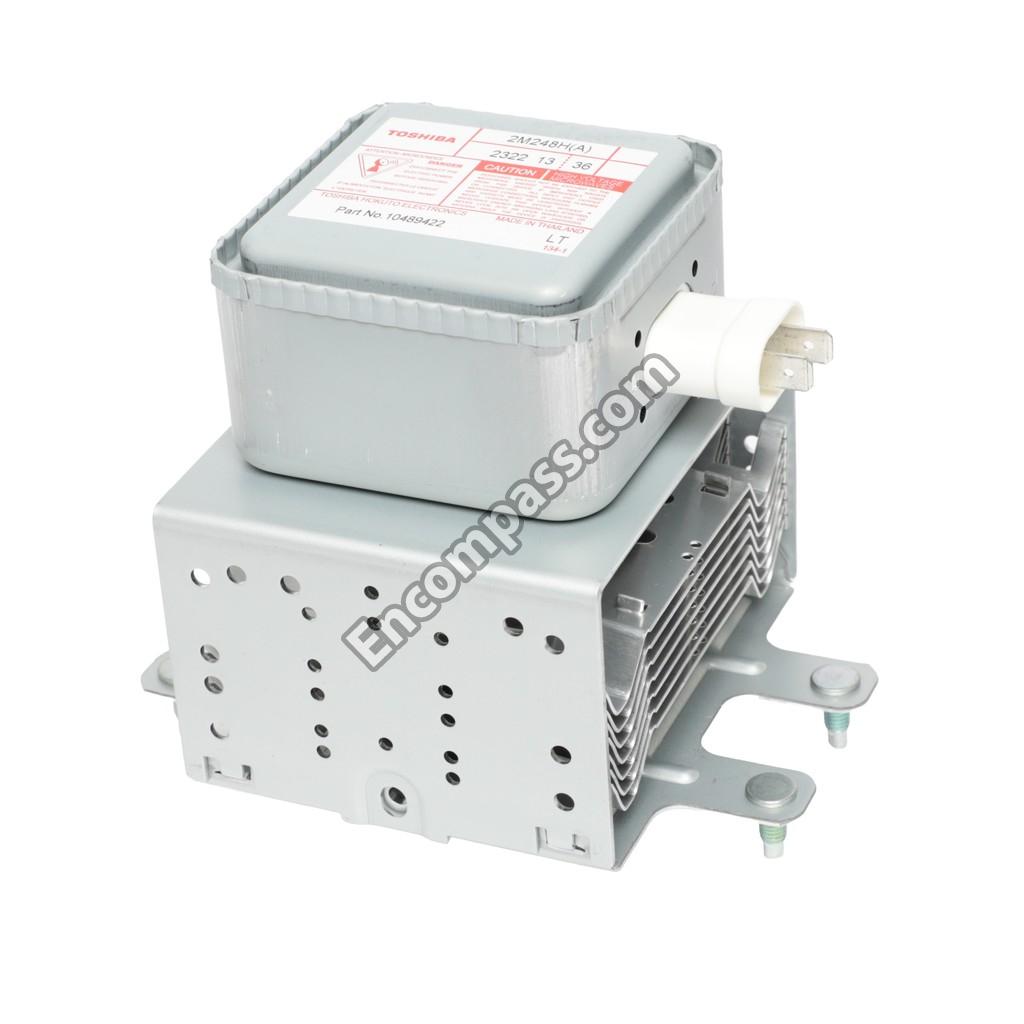

| 56001433 | MAGNETRON |
| 56002013 | MOTOR, ANTENNA |
| 56001337 | MOTOR, ANTENNA |
| 54127056 | MOTOR, BLOWER BLADE |
| 20003101 | NUT-MAGNETRON |
| 56001454 | POWER CORD |
| 56001450 | RIVET ASSEMBLY |
| 56001230 | SCREW |
| 56001222 | SCREW |
| 56001217 | SCREW |
| 56001210 | SCREW |
| 12876603 | SCREW- PLASTITE |
| 20280101 | SCREW-METRIC/HEX |
| 56001419 | SPRING, FLAT |
| 56001447 | SUPPORT |
| 56002003 | SWITCH, INTERLOCK ASSEMBLY |
| 56001412 | SWITCH, INTERLOCK ASSEMBLY |
| 56001413 | SWITCH, INTERLOCK ASSEMBLY |
|
|
THERMAL CUTOUT, MAG |
| 56001432 | THERMAL CUTOUT, MAG |
| 56002021 | TRANSFORMER, HV |
| 56001437 | TRANSFORMER, HV |
| 56001441 | TRAY ASSY |
| 54127018 | TRAY, CERAMIC |
| 56001406 | WINDOW, INNER |
