Manufacturer
Amana Commerical
Model Number
AMS510TS
Description
Commercial Microwave Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 58101002 | BASEPAN |
| 58151091 | BLADE, STIRRER |
| 58161099 | BLOWER MOTOR ASSEMBLY |
| 58101057 | BRACKET, CAPACITOR |
| 58101039 | BRACKET, SUPPORT |
| 58101067 | BRACKET, SUPPORT- MAG |
|
|

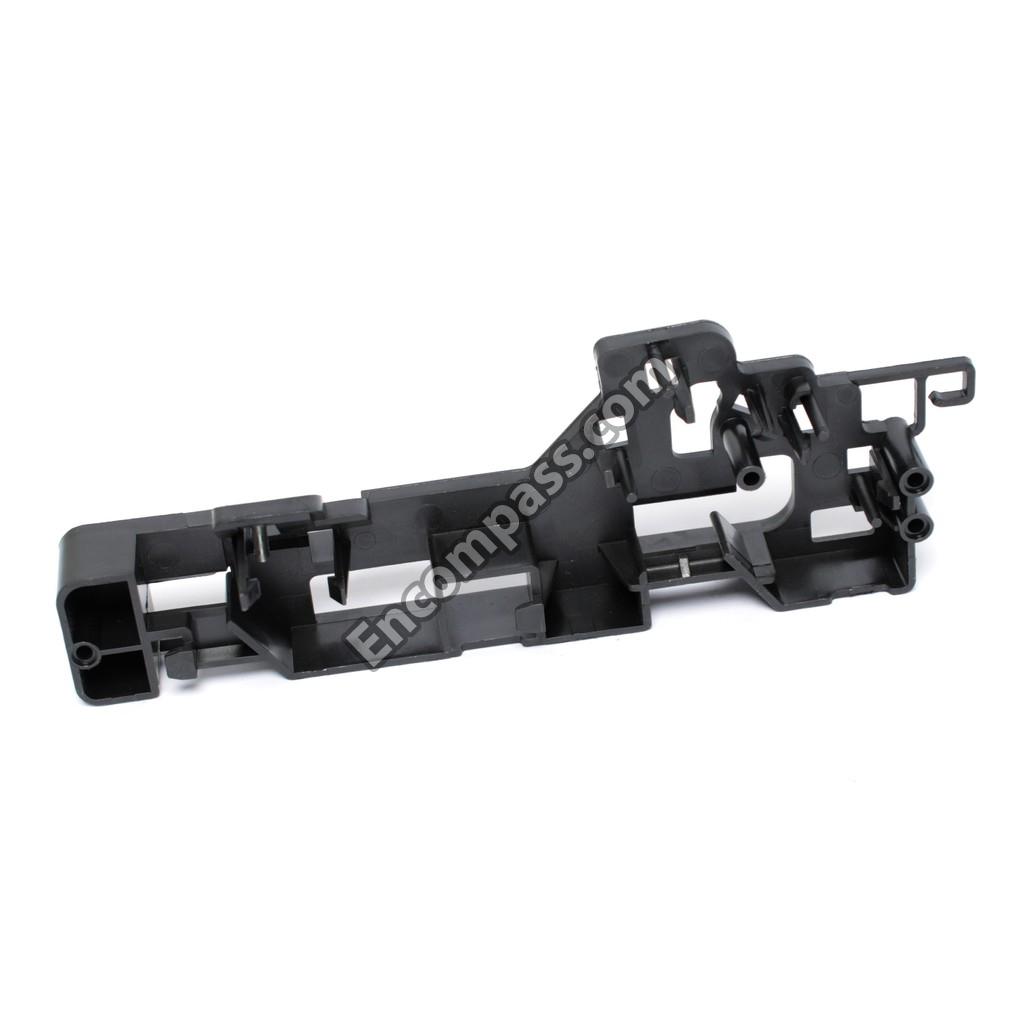

BRACKET, SWITCH |
| 58101019 | CAPACITOR, 1.1 |
| 58171105 | CONTROL ASSEMBLY |
| 58101040 | DEFLECTOR |
| 58101020 | DIODE |
|
|

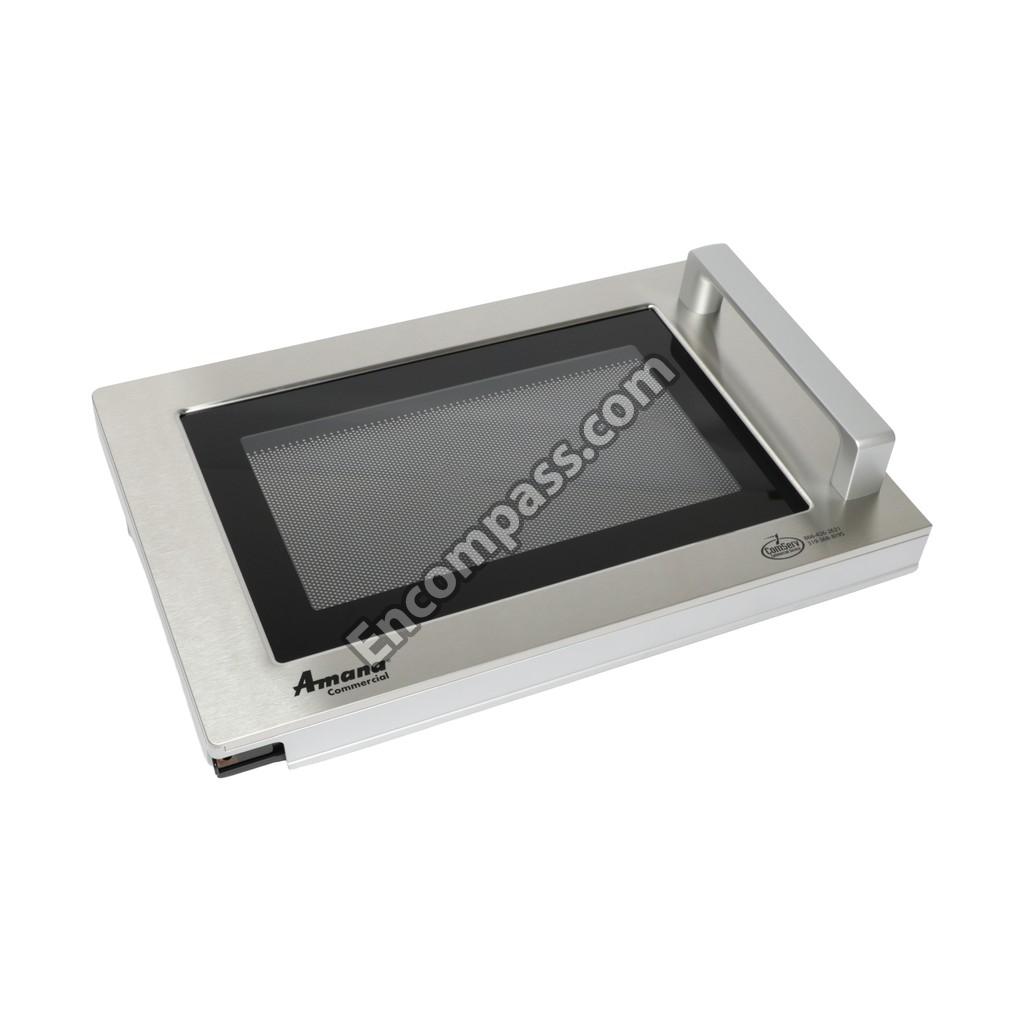

DOOR ASSEMBLY- AM |
| 58101038 | DUCT, AIR |
| 58101003 | FOOT |
| 58101022 | FUSE BLOCK / FILTER ASSEMBLY |
| 58101028 | FUSE, HV |
| 20034004 | FUSE-10A TDM |
| A3030374 | GASKET |
| 59004077 | GASKET, PER FT |
| 58101060 | GUIDE, AIR- RIGHT |
| 58101037 | HARNESS, MAIN |
| 58101066 | HINGE, LOWER |
| 58191109 | KIT, DOOR HANDLE |
|
|
LAMP / SOCKET ASSEMBLY |
| 58101035 | LEVER |
|
|

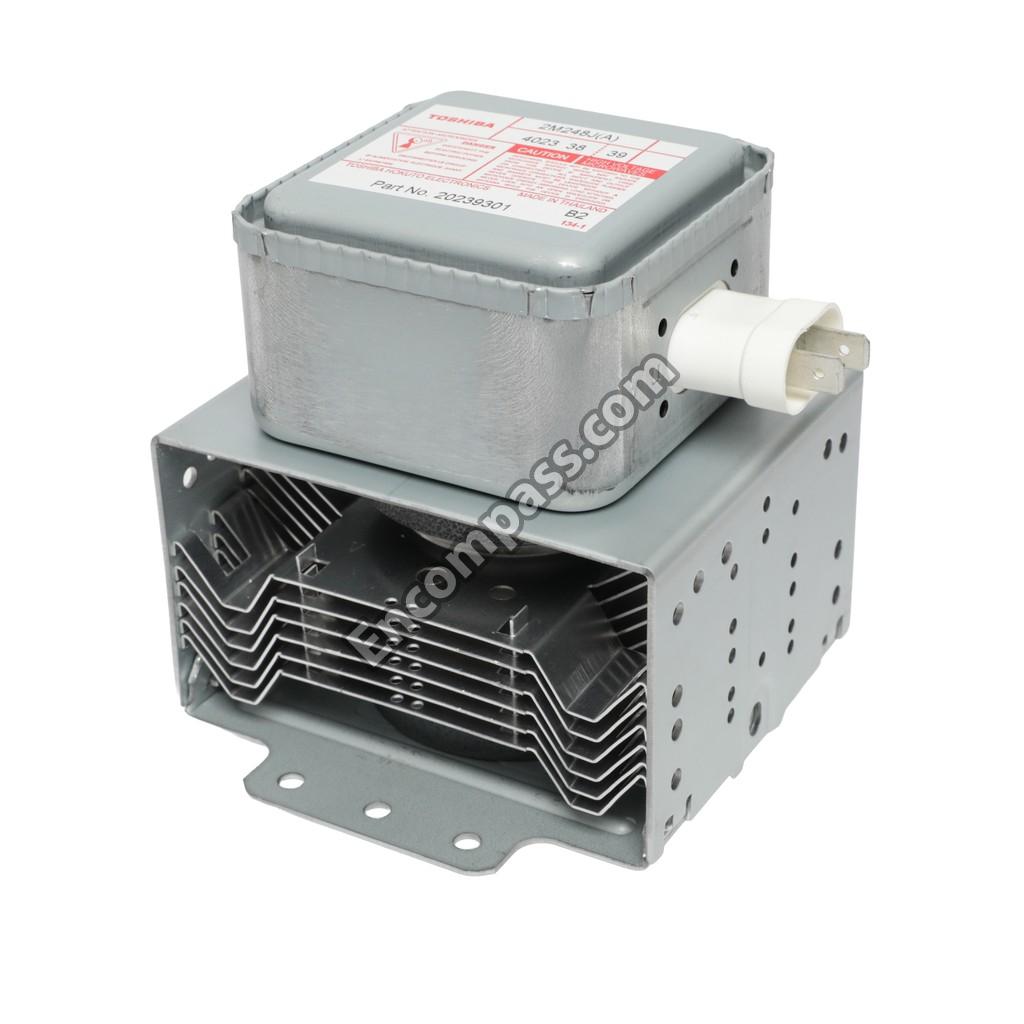

MAGNETRON |
| 58101053 | MOTOR, ANTENNA |
| 58101027 | POWER CORD |
|
|
RIVET ASSEMBLY |
| 58101041 | SCREW |
| 58101043 | SCREW |
| 58101044 | SCREW |
| 58101045 | SCREW |
| 58101047 | SCREW |
| 58101049 | SCREW |
| 58101050 | SCREW |
| 58101069 | SCREW |
| 58101068 | SCREW-TX |
|
|
SEALER |
| 58101033 | SPACER |
|
|

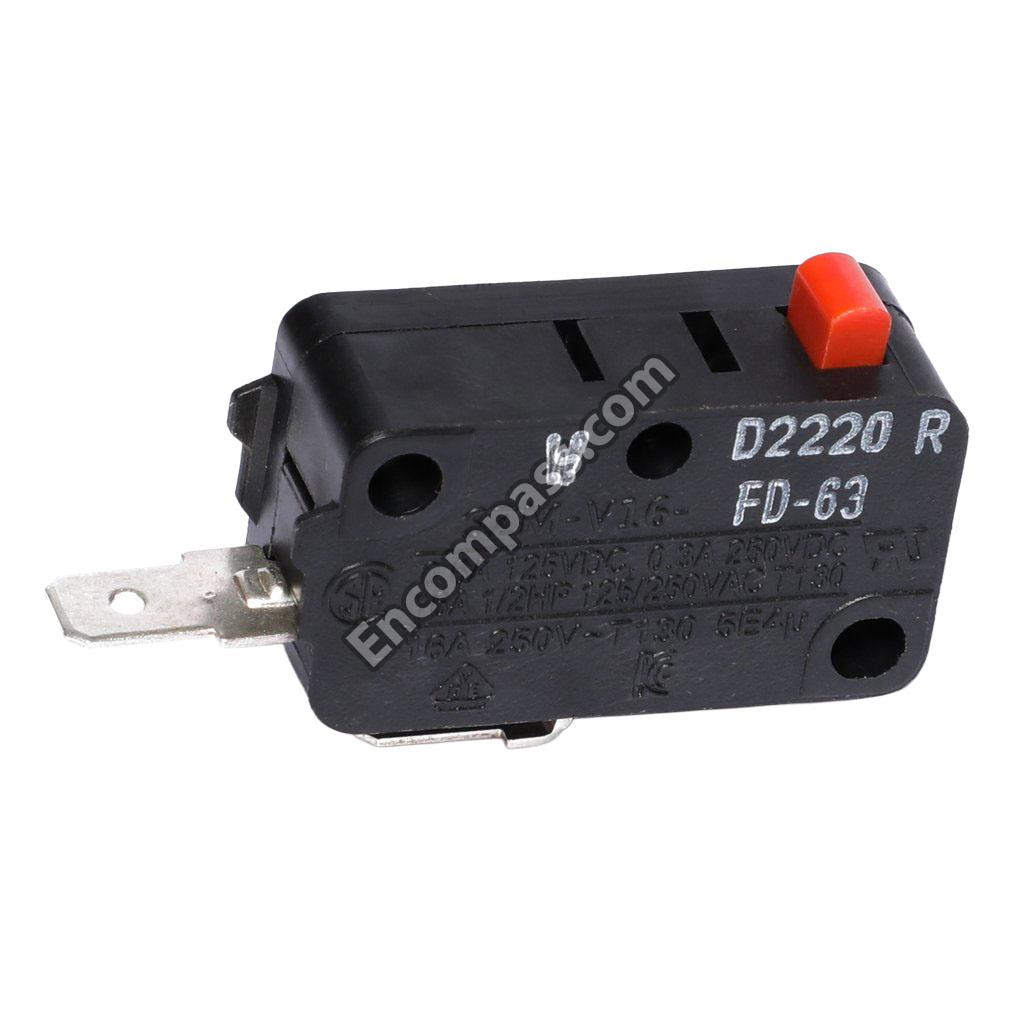

SWITCH, INTERLOCK- PRIMARY |
| 59002157 | SWITCH, MONITOR |
|
|

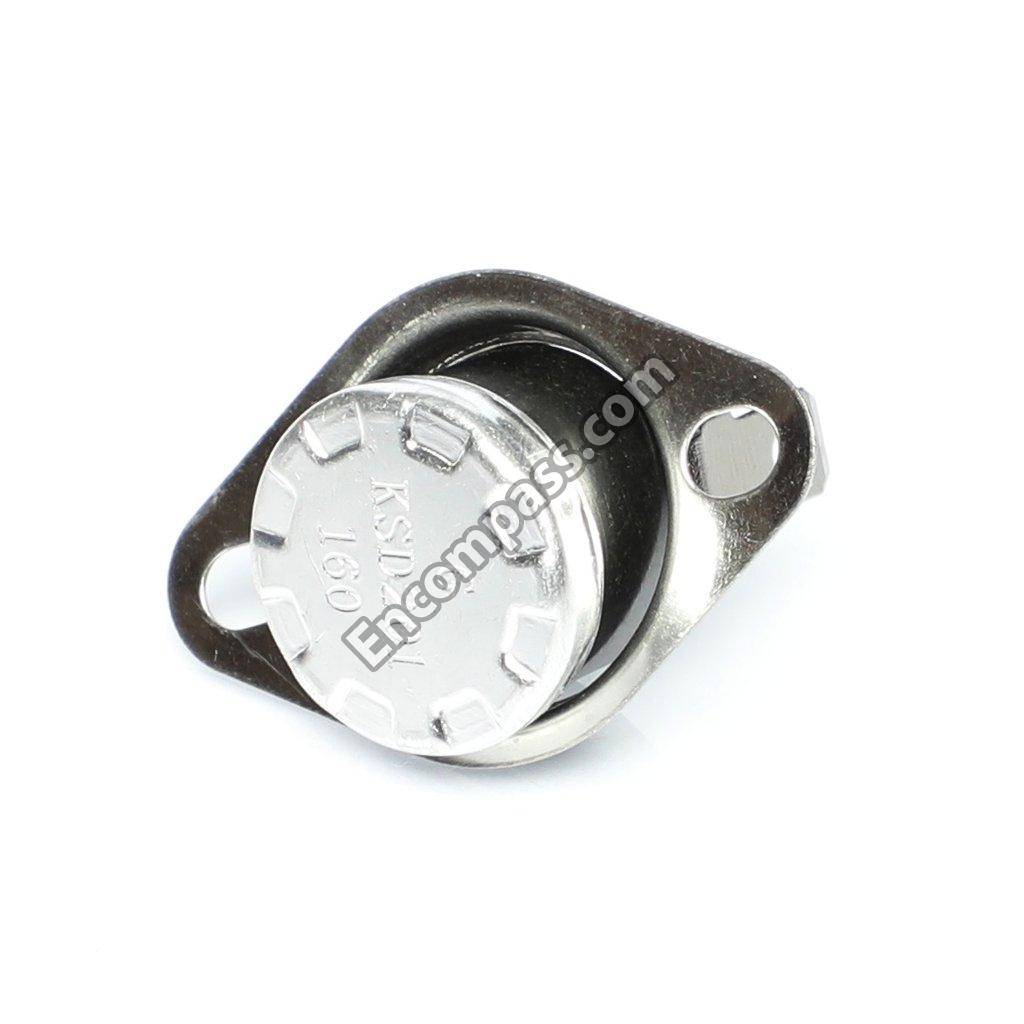

THERMAL CUTOUT, CAVITY |
|
|

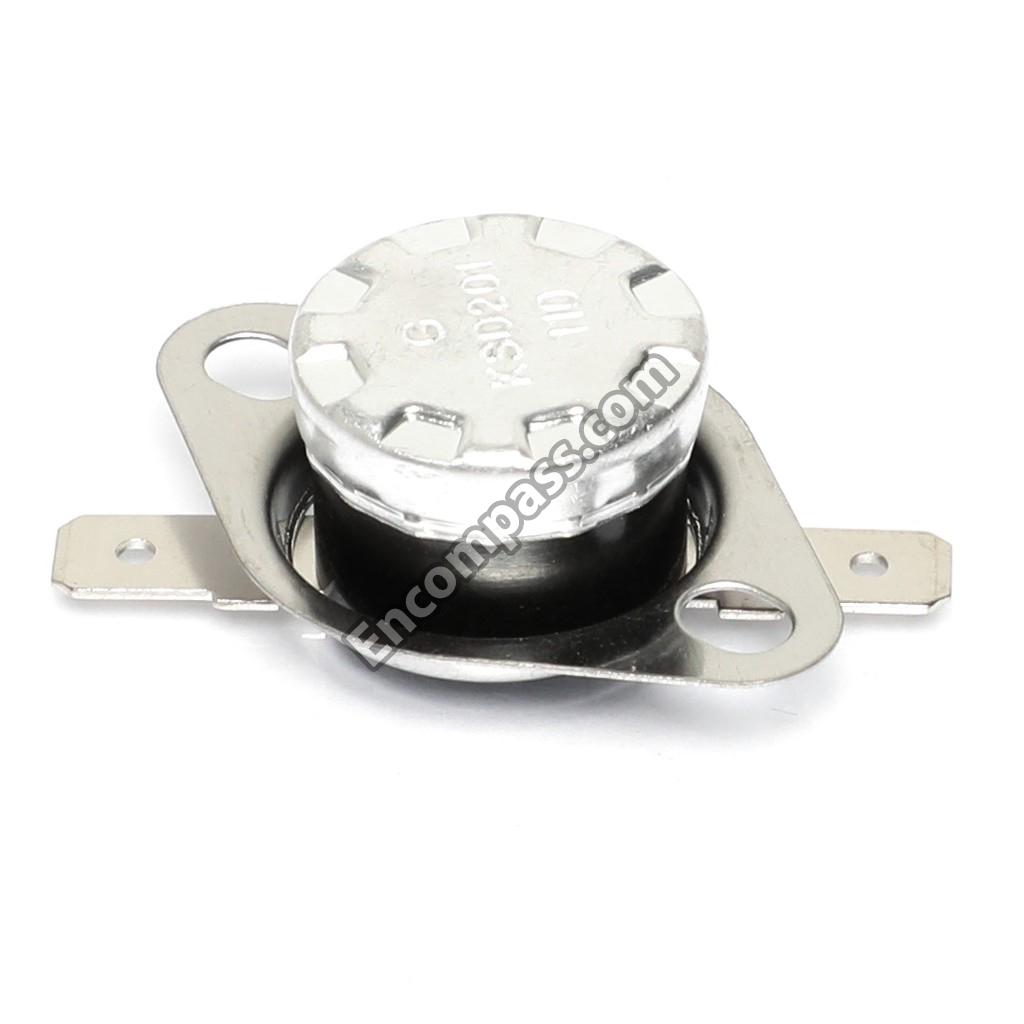

THERMAL CUTOUT, MAG |
| 58101017 | TRANSFORMER, HV |
| 58101001 | TRAY, CERAMIC |
| 58101051 | WASHER, LOCK |
| 58101059 | WRAPPER |
