Manufacturer
Amana Commerical
Model Number
HDC122
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 12210804 | ABSORBER-ENERGY |
| 12296806 | ACCESS PANEL-E CT |
| 12296804 | ACCESS PANEL-E CT |
| 59124202 | ANTENNA SHIELD |
| 12126601 | ANTENNA SHIELD |
| 12525701 | BARRIER-AIR |
| 12486002 | BASE COVER-E CT |
| R0000036 | BASE PAN ASSEMBLY |
| 59184621 | BASEPAN GASKET ASSEMBLY |
|
|
BLADE, FAN |
| 10091101 | BLOCK-FUSE |
| 20043001Q | BLOWER BRACKET WELD |
|
|
BLOWER MOTOR ASSEMBLY |
| 12126806 | BOTTOM HINGE PLATE WELD |
| 12271103 | BRACKET-BLOWER WSH |
| 12114401 | BRKT-DOOR LATCH WSH |
| M0308801 | CAP-SCREW |
| 59174587 | CAPACITOR- .88 |
| 12135604 | CAVITY EXH DUCT-E CT |
| M0118901 | CLIP |
| M0104106 | CLIP, CORD |
| M0118705 | CLIP-GUIDE |
| 59174559 | COVER- LIGHT HARDWARE |
| 20173001 | COVER-BASE |
| 10785608 | COVER-LIGHT |
|
|
DIODE |
| 13098101 | DOOR RING WELD |
| 12472202 | DOOR RING WELD-E CT |
| R9900567 | DOOR, OUTER |
| 12135704 | DUCT, CAVITY EXHAUST |
| 12296601 | DUCT-AIR |
|
|
ENDCAP-ESC RIGHT |
| 12131002 | ENDCAP-L ESC |
|
|
FILTER, AIR |
| M0805201 | FUSE-25A |
| A3030302 | GASKET |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 59001642 | GASKET, BASEPAN- CUT |
| 59001643 | GASKET, BASEPAN- CUT |
| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 10966607 | GASKET-NEOPRENE |
| 10966601 | GASKET-NEOPRENE |
|
|
GRILL, AIR INLET THUMBSCREWS |
|
|
HANDLE-DOOR |
| 59001697 | HARNESS, WIRE |
| R0150148 | INNER DOOR ASSEMBLY |
|
|
INNER DOOR ASSEMBLY |
| R0150186 | KIT, ANTENNA MOTOR |
|
|
KIT, ANTENNA- TOP |
| R0150144 | KIT, CERAMIC TRAY SEALER |
| 14159092 | KIT, CERAMIC TRAY SEALER |
| 14179127 | KIT, EXHAUST DUCTS GASKET |
|
|
KIT, HINGES- TOP BOTTOM |
| R0000277 | KIT, INTERLOCK SWITCH |
| R9900584 | KIT, RECEPTACLE |
| R0157373 | KIT, TRIAC |
|
|
KIT, TRIAC(40A) SNUBBER |
|
|
KIT, WINDOW |
| 14179138 | KIT- STUDS HARDWARE |
|
|
LABEL-MENU |
| 12155701 | LABEL-MENU |
| A3073101 | LAMP-25W |
|
|
LAMP-LED |
| 59154466 | LAMP-LED 3W, 120V |
|
|
LATCH-DOOR |
| 12526201 | LINKAGE-DOOR LATCH |
|
|
MAGNETRON |
| 10489404 | MAGNETRON-2M248K |
| 12138102 | MOTOR, BLOWER |
| 12127002 | PIN, LATCH |
| 12127001 | PIN-LATCH |
|
|

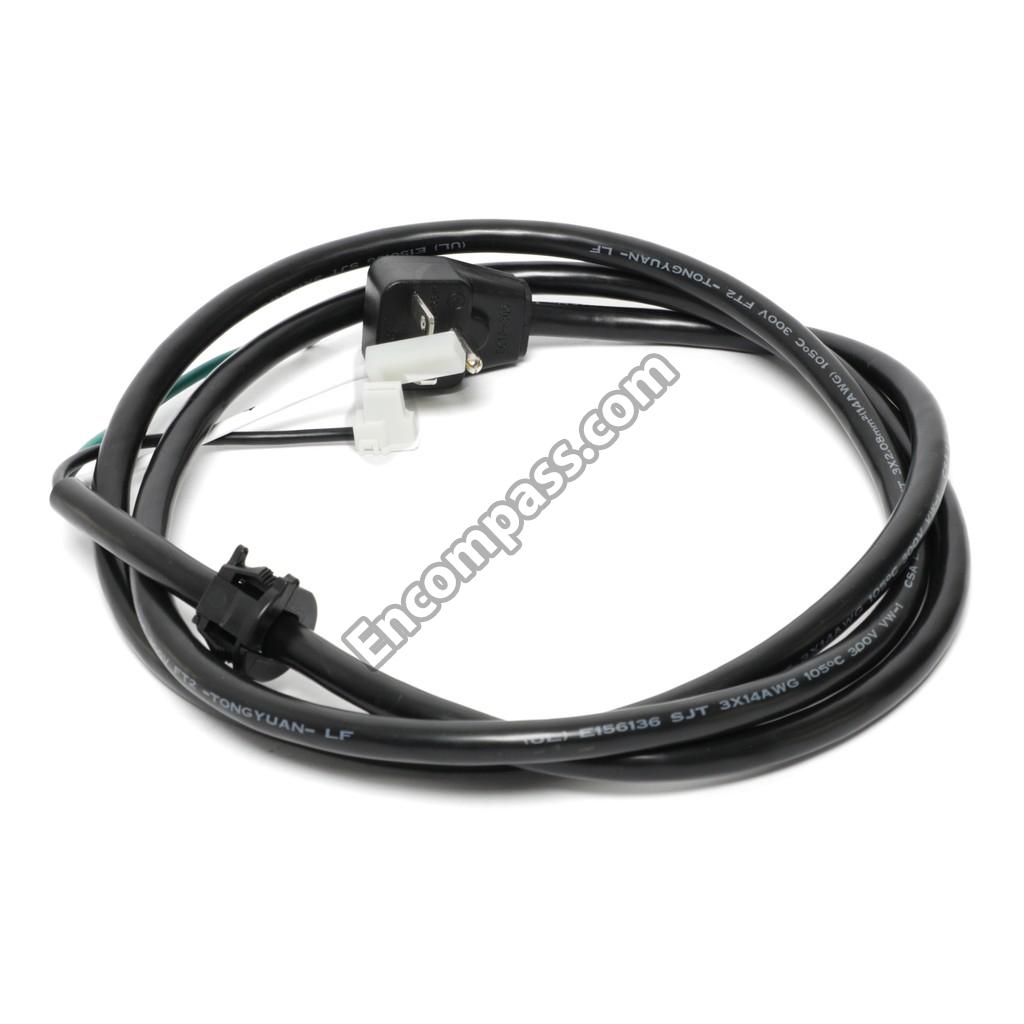

POWER CORD |
| 59001672 | POWER CORD |
| B8383102 | RECTIFIER |
| M0370003 | RELIEF-STRAIN |
| 20020502 | RETAINER |
| M0249632 | SCREW |
| M0230815 | SCREW |
| M0216703 | SCREW |
| M0216517 | SCREW |
| M0216515 | SCREW |
| M0251028 | SCREW, T.C. |
| M0253540 | SCREW, TC |
| M0230518 | SCREW, TC |
| 12993002 | SCREW-HI LO/PAN |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990522 | SCREW-SM/HEX ROHS |
| 12991101 | SCREW-SM/KNIFE ROHS |
| 12990402 | SCREW-SM/TRUSS TORX |
| M0229916 | SCREW-TC |
| 13047402 | SCREW-TC/FLAT |
| 12991611 | SCREW-TC/HEX |
| 12991610 | SCREW-TC/HEX |
|
|
SCREW-TC/SOCKET TORX |
| 12992307 | SCREW-TF/HEX |
| 12138302 | SCROLL, BLOWER |
| M0275598 | SEALER |
|
|
SEALER |
| 12160602 | SHIELD-SPILL |
|
|
SNUBBER ASSEMBLY |
| 10172901Q | SNUBBER ASSY |
| M0800501 | SPACER |
| M0274072 | SPACER, RUBBER |
| C8893502 | SPRING-DOOR LATCH |
| 12132501 | STRAP-CAPACITOR |
| 12496801 | SUPPORT-SHELF |
| 59154448 | TAPE, FOAM (1 ROLL) |
| M0275163 | TAPE-TRANSFER |
|
|
THERMAL CUTOUT |
| 59001667 | THERMAL CUTOUT |
| 12126805 | TOP HINGE PLATE WELD |
| R9900111 | TOUCH PANEL ASSEMBLY |
| 59174527 | TOUCH PANEL ASSEMBLY END CAPS |
| 59004025 | TRANSFORMER, HV |
| 10426610 | TRANSFORMER, HV |
| 12131301 | TRIM |
| 12873701 | TRIM, OC |
| M0274066 | WASHER-NYLON |
|
|
WASHER-NYLON SHOULDER |
|
|
WHEEL, BLOWER |
| 59104139 | WINDOW, OUTER |
| 12133804 | WINDOW, OUTER |
| 12180902 | WIRE, HV JUMPER |
| 12408503Q | WRAPPER |
| 12408501 | WRAPPER-OC |
