Model Image
Manufacturer

Amana Commerical

Model Number

HDC518A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
12210804 ABSORBER-ENERGY
12296806 ACCESS PANEL-E CT
12296804 ACCESS PANEL-E CT
59124202 ANTENNA SHIELD
12126601 ANTENNA SHIELD
12525701 BARRIER-AIR
12544201 BARRIER-LAMP
12486002 BASE COVER-E CT
R0000036 BASE PAN ASSEMBLY
59184621 BASEPAN GASKET ASSEMBLY
B5706704 B5706704 BLADE, FAN
10091101 BLOCK-FUSE
B5677203 BLOCK-TERMINAL
20043001Q BLOWER BRACKET WELD
59174525 BLOWER MOTOR ASSEMBLY
12470106 BOARD, HV/LV
12126806 BOTTOM HINGE PLATE WELD
12271103 BRACKET-BLOWER WSH
12114401 BRKT-DOOR LATCH WSH
M0308801 CAP-SCREW
10366914 CAPACITOR
M0118901 CLIP
M0104106 CLIP, CORD
M0118705 CLIP-GUIDE
59174559 COVER- LIGHT HARDWARE
20173001 COVER-BASE
10785608 COVER-LIGHT
12905601 DIVIDER, FLOW
13098101 DOOR RING WELD
12472202 DOOR RING WELD-E CT
R9900567 DOOR, OUTER
R0150161 DUCT ASSY
12107304 DUCT, MAG INLET
12107407 DUCT, MAG OUTLET
12296601 DUCT-AIR
12131001 12131001 ENDCAP-ESC RIGHT
12131002 ENDCAP-L ESC
59001659 59001659 FILTER, AIR
12135804 FILTER, AIR
59001893 FILTER, LINE
12173001 FILTER, LINE
B5795302 FUSE, THERMAL

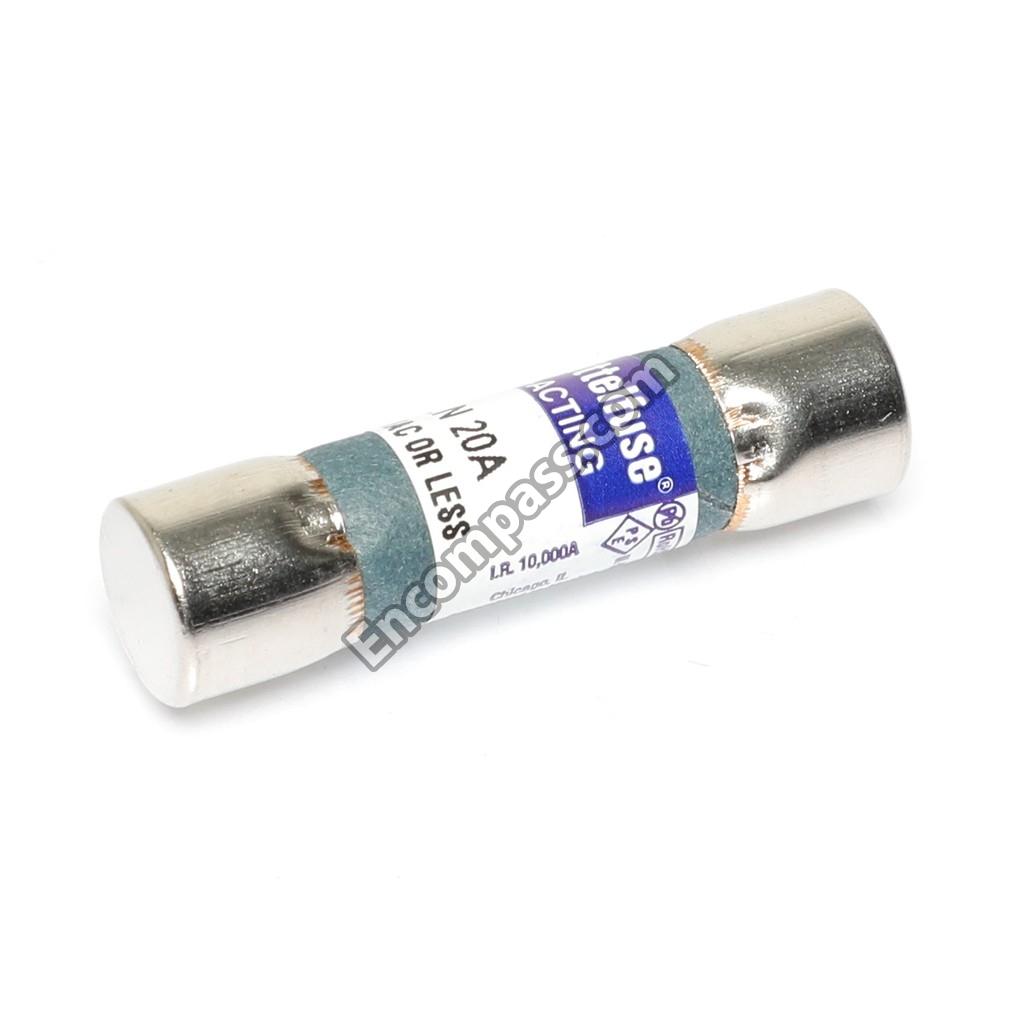

M0805203 M0805203 FUSE-20A
10732514Q GASKET, BASEPAN
R0000413 GASKET, BASEPAN- 90 IN (228 CM
12570101 GEAR-SPUR
12133901 12133901 HANDLE-DOOR
13017901 HARNESS, HV
12485601 HARNESS, LW ANTENNA
12538603 HARNESS, WIRE
13017801 HARNESS-LW ANT MOTOR
R0150148 INNER DOOR ASSEMBLY
59004007 59004007 INNER DOOR ASSEMBLY

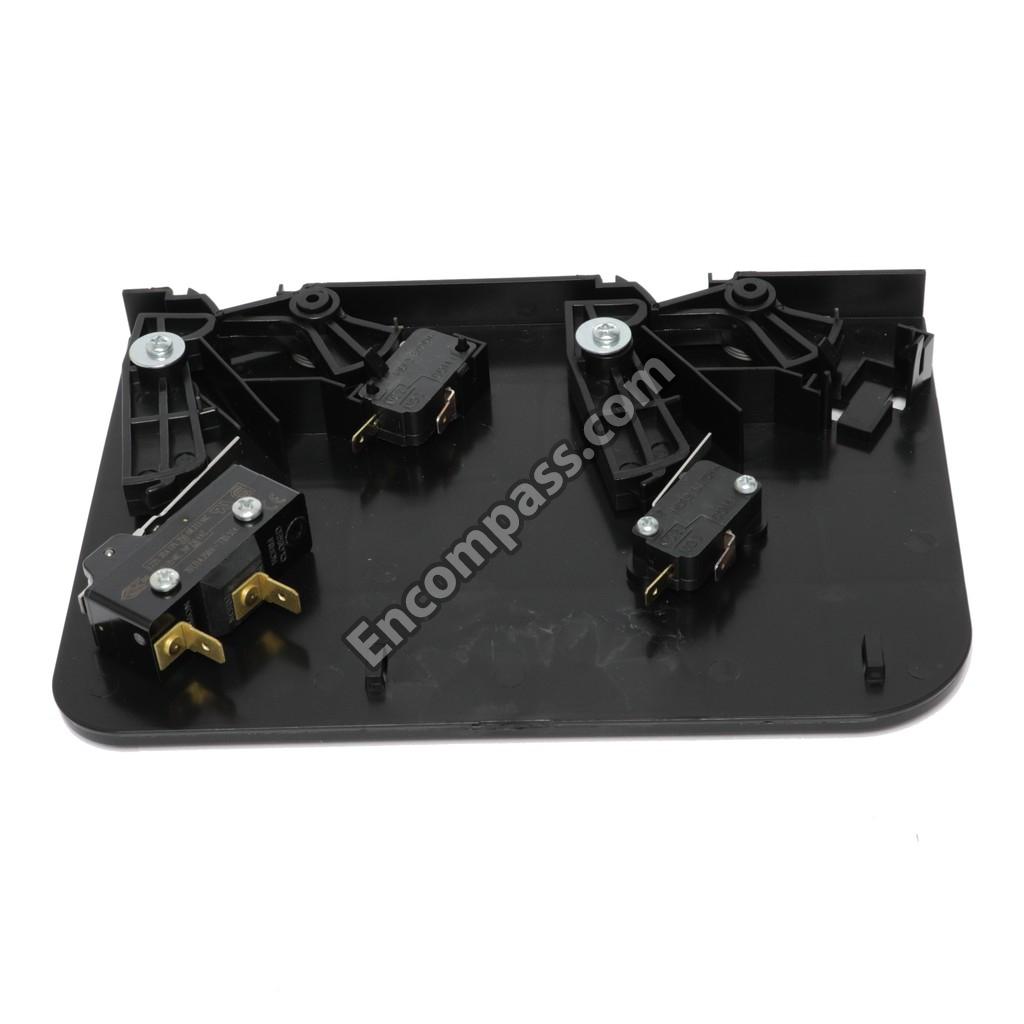

59114167 59114167 INTERLOCK SWITCH ASSEMBLY
R9900668 KIT, ANTENNA MOTOR- BOTTOM
R0150197 R0150197 KIT, ANTENNA MOTOR- TOP
R9900585 R9900585 KIT, ANTENNA- BOTTOM
R0150185 R0150185 KIT, ANTENNA- TOP
59174540 59174540 KIT, CAPACITOR- .85 DIODE
14159099 KIT, CAVITY- 18 21
12002678 KIT, CAVITY- HDC18, 21
R0150144 KIT, CERAMIC TRAY SEALER
14159092 KIT, CERAMIC TRAY SEALER
R9800022 R9800022 KIT, DIODE

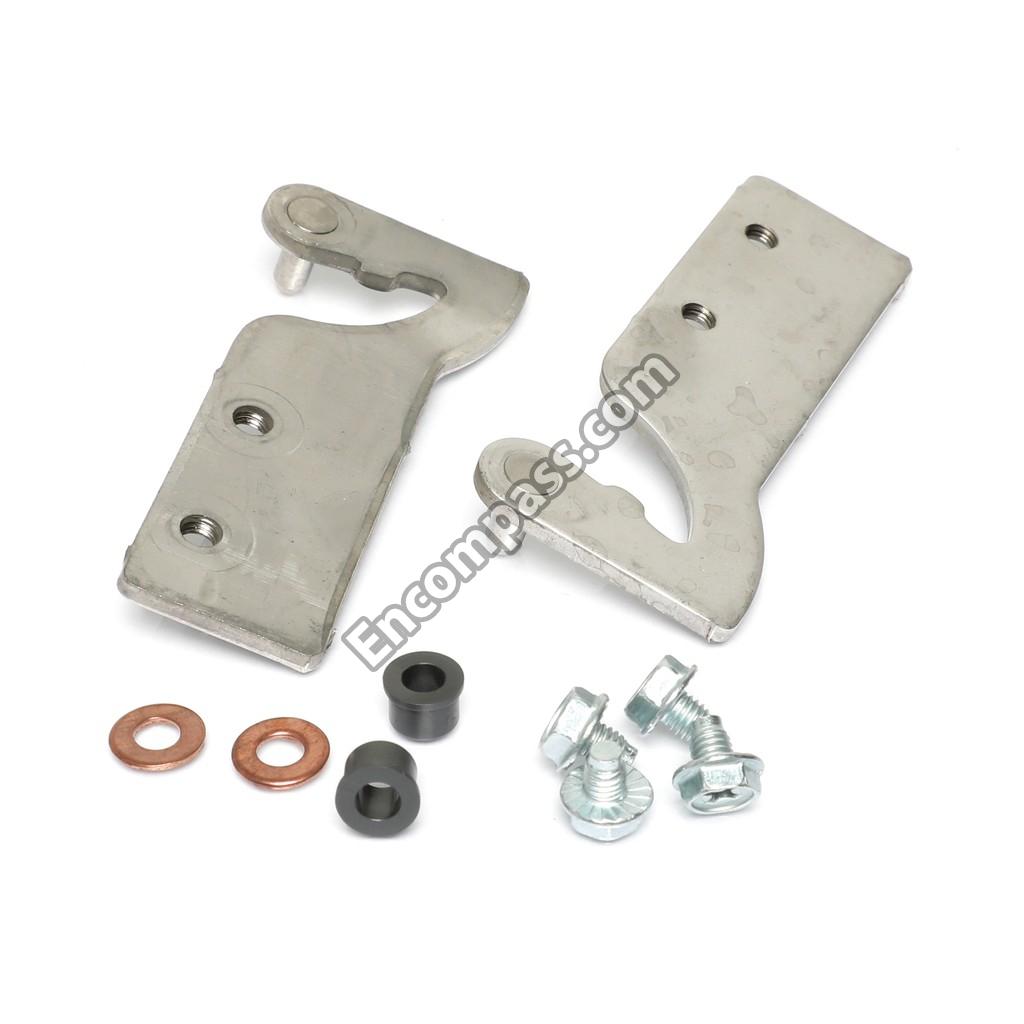

14179128 14179128 KIT, HINGES- TOP BOTTOM
R0157373 KIT, TRIAC
59174520 59174520 KIT, TRIAC(40A) SNUBBER
R9900114 R9900114 KIT, WINDOW
M0360402 LAMP, 230/240 VAC
59154464 LAMP-LED 3W, 220/240V
12126901 12126901 LATCH-DOOR
12526201 LINKAGE-DOOR LATCH
59004013 59004013 MAGNETRON
D7831007 MAGNETRON-2M229K
12138105 MOTOR, BLOWER
M0282021 NUT, KEPS
12127002 PIN, LATCH
12127001 PIN-LATCH
B8380601 PLATE-TC MOUNTING
B8380602 PLATE-TCO MOUNTING
12163802 RECEPTACLE-EXPORT
M0370009 RELIEF-STRAIN
20020502 RETAINER
M0274702 RING, RETAINER
A4539618 RIVET, .156 POP
A4539601 A4539601 RIVET, POP
M0234403 SCREW
M0230815 SCREW
M0216703 SCREW
M0216517 SCREW
M0216515 SCREW
YM0237618 SCREW YDRIVE HEAD
M0249619 SCREW, T F
M0251028 SCREW, T.C.
M0253540 SCREW, TC
M0230518 SCREW, TC
12993002 SCREW-HI LO/PAN
12990525 12990525 SCREW-SM/HEX
12990523 12990523 SCREW-SM/HEX
12990522 SCREW-SM/HEX ROHS
12991101 SCREW-SM/KNIFE ROHS
12990402 SCREW-SM/TRUSS TORX
M0229916 SCREW-TC
13047402 SCREW-TC/FLAT
12991611 SCREW-TC/HEX
12991610 SCREW-TC/HEX
20095801 20095801 SCREW-TC/SOCKET TORX
12992307 SCREW-TF/HEX
12992306 SCREW-TF/HEX ROHS
13042001 SCREW-TF/OVAL ROHS
12138302 SCROLL, BLOWER
M0275598 SEALER
59002167 59002167 SEALER
12160602 SHIELD-SPILL
59002017 59002017 SNUBBER ASSEMBLY
10172901Q SNUBBER ASSY
M0800501 SPACER
M0274072 SPACER, RUBBER
C8893502 SPRING-DOOR LATCH
12132501 STRAP-CAPACITOR
12496801 SUPPORT-SHELF
12538901Q SWITCH, INTERLOCK ASSEMBLY
B5684121 B5684121 THERMAL CUTOUT
B5795319 B5795319 THERMAL CUTOUT, CAVITY
12126805 TOP HINGE PLATE WELD
44780P01 TOROID
R9900111 TOUCH PANEL ASSEMBLY
59174527 TOUCH PANEL ASSEMBLY END CAPS
59001993 TRANSFORMER, HV
12136105 TRANSFORMER, HV
12131301 TRIM
12873701 TRIM, OC
12520001 WASHER-BEARING
M0274066 WASHER-NYLON
5210001001 5210001001 WASHER-NYLON SHOULDER
14179138 WASHER-U TYPE

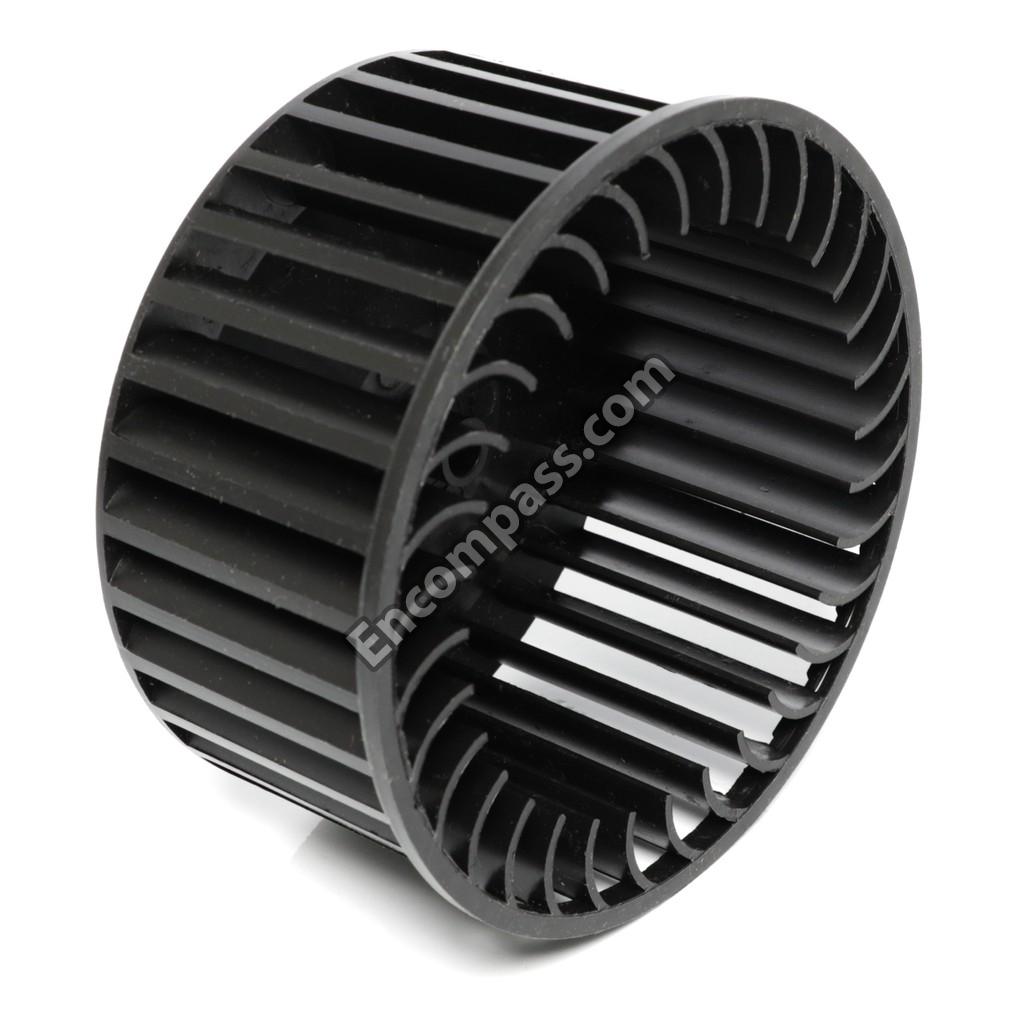

12138201 12138201 WHEEL, BLOWER
59104139 WINDOW, OUTER
12133804 WINDOW, OUTER
12408503Q WRAPPER
12408501 WRAPPER-OC
