Manufacturer
Amana Commerical
Model Number
KFC3W2
Description
Commercial Microwave Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 10827220 | Amana Commerical ACCESS PANEL WLD-E CT |
|
|
Amana Commerical ANTENNA SHIELD |
| 10790306Q | Amana Commerical BASEPAN GASKET ASSEMBLY |
|
|
Amana Commerical BIT, NON MAGNETIC Y DRIVE |
|
|
Amana Commerical BLOCK, FUSE- 3 POLE |
|
|
Amana Commerical BLOWER MOTOR ASSEMBLY- MC, RC |
| 20281507Q | Amana Commerical BOARD, HV- KFC |
| M0325401 | Amana Commerical BUSHING-TERMINAL |
| 20241404 | Amana Commerical CUTOUT-THERMAL, MAG |
| 20269501 | Amana Commerical ESCUTCHEON-TOP |
|
|
Amana Commerical FUSE-12A |
|
|
Amana Commerical FUSE-30A |
| R0000413 | Amana Commerical GASKET, BASEPAN- 90 IN (228 CM |
|
|
Amana Commerical GASKET, PER FT |
| 10966601 | Amana Commerical GASKET-NEOPRENE |
|
|
Amana Commerical GRILL, AIR INLET THUMBSCREWS |
|
|
Amana Commerical HANDLE & SCREWS- BLK |
| 12696201 | Amana Commerical HARNESS, HV |
| 20270301 | Amana Commerical HARNESS- OVEN |
| 13018801 | Amana Commerical HARNESS-LW ANT MTR |
| 20290501 | Amana Commerical HARNESS-OVEN LT |
|
|
Amana Commerical INNER DOOR ASSEMBLY (NO SCREWS) |
|
|
Amana Commerical KIT, CAPACITOR- .69 DIODE |
| R0156942 | Amana Commerical KIT, CERAMIC TRAY SEALER |
|
|
Amana Commerical KIT, TRIAC(40A) SNUBBER |
| 14179134 | Amana Commerical KIT- ANTENNA (BLUE TIP) MOTOR |
|
|
Amana Commerical KIT- ANTENNA (PLAIN TIP) & MOTOR |
| 14179140 | Amana Commerical KIT- HINGE DOOR RING WELD- RC |
|
|
Amana Commerical KIT- MONITOR RELAY BRD, FUSE (30A) & BLOCK |
| 59214763 | Amana Commerical KIT- RC 3 TUBE CAVITY |
| 14179138 | Amana Commerical KIT- STUDS HARDWARE |
| 14179136 | Amana Commerical KIT- TOP BOTTOM EXHAUST DUCTS |
|
|
Amana Commerical LAMP-LED |
|
|

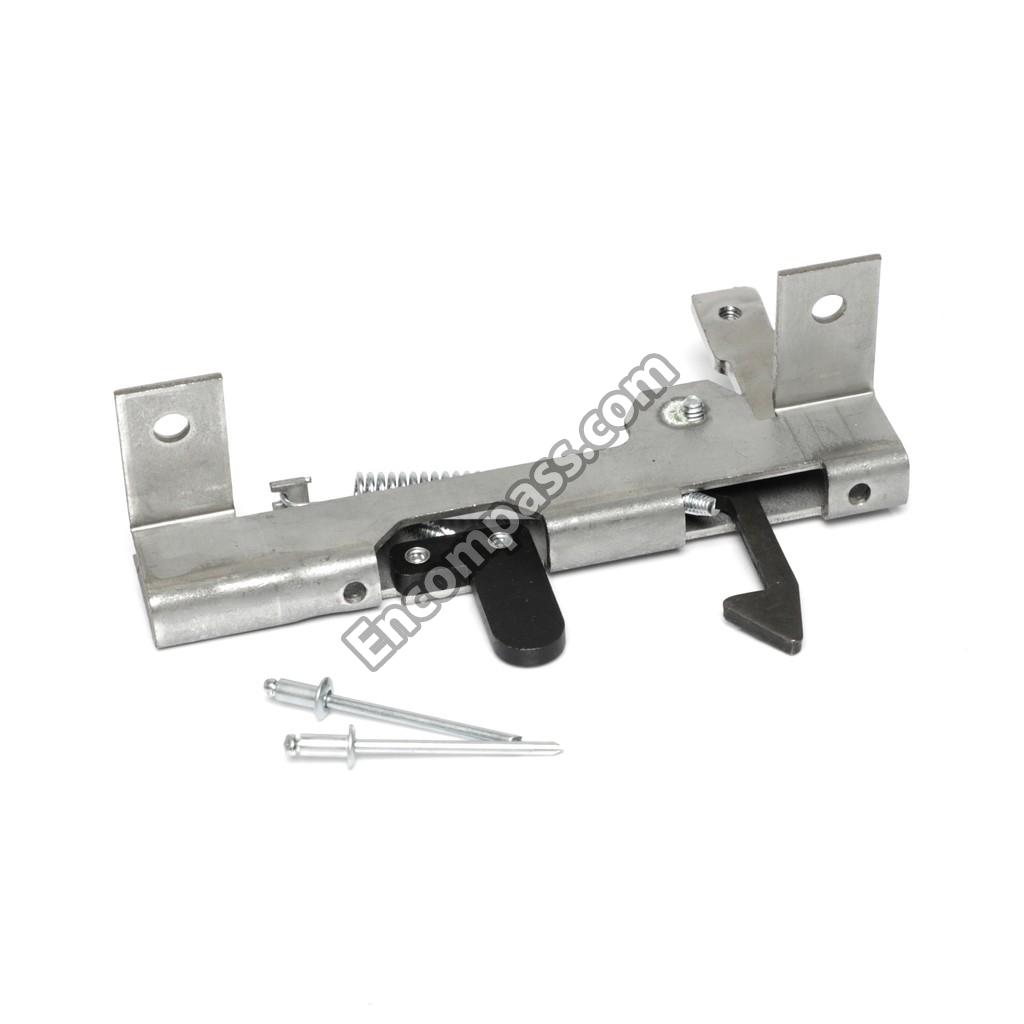

Amana Commerical LATCH ASSEMBLY |
| 59174554 | Amana Commerical LIGHT COVERS- INSIDE OUT |
|
|
Amana Commerical MAGNETRON |
| R0156918 | Amana Commerical OUTER DOOR ASSY- WINDOW |
| 59174558 | Amana Commerical PCB SUPPORTS (10) SCREWS (10) |
|
|
Amana Commerical POWER CORD |
|
|
Amana Commerical RELAY |
|
|
Amana Commerical SCREW-HI LO Y-DRIVE |
| 12993002 | Amana Commerical SCREW-HI LO/PAN |
|
|
Amana Commerical SCREW-SM/HEX |
| 12990529 | Amana Commerical SCREW-SM/HEX |
| 13095201 | Amana Commerical SCREW-SM/OVAL |
| A4055406 | Amana Commerical STRAP-CAPACITOR |
|
|
Amana Commerical SWITCH, INTERLOCK ASSEMBLY |
| B5684130 | Amana Commerical THERMAL CUTOUT |
|
|
Amana Commerical THERMAL CUTOUT, CAVITY |
|
|
Amana Commerical TOUCH PANEL & DISPLAY ASSY |
| 59001626 | Amana Commerical TRANSFORMER, HV |
| 59174560 | Amana Commerical TRIM- OC SCREWS |
| 10901303 | Amana Commerical WIRE, JUMPER |
| 10908909Q | Amana Commerical WRAPPER- STAINLESS |
