Manufacturer
Amana Commerical
Model Number
MDC1015
Description
Heavy Duty Commercial Compact Microwave
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 12296806 | Amana Commerical ACCESS PANEL-E CT |
|
|
Amana Commerical ANTENNA SHIELD |
| 59174545 | Amana Commerical BARRIER-AIR GASKETS |
| 59184621 | Amana Commerical BASEPAN GASKET ASSEMBLY |
|
|

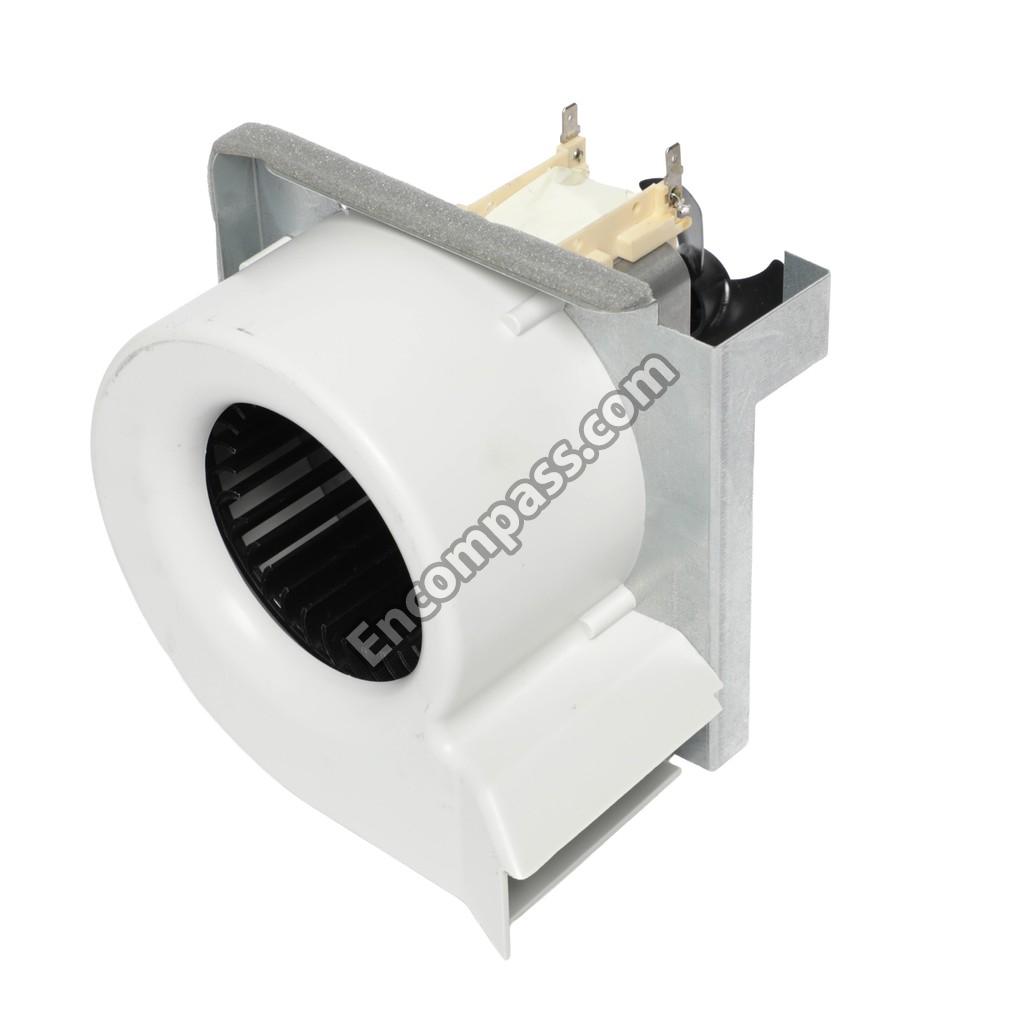

Amana Commerical BLOWER MOTOR ASSEMBLY |
| 59194645 | Amana Commerical BOARD, CONTROL |
| 21028802 | Amana Commerical BRACKET-CAPACITOR |
| M0104106 | Amana Commerical CLIP, CORD |
| 10098938 | Amana Commerical CORD-POWER |
|
|
Amana Commerical CUTOUT-THERMAL, MAG |
| 12905602 | Amana Commerical DIVIDER-FLOW |
| 12107304 | Amana Commerical DUCT, MAG INLET |
| 12107407 | Amana Commerical DUCT, MAG OUTLET |
|
|
Amana Commerical FILTER, AIR |
|
|
Amana Commerical FUSE-20A |
| R0000413 | Amana Commerical GASKET, BASEPAN- 90 IN (228 CM |
|
|
Amana Commerical GASKET, PER FT |
| 10966612 | Amana Commerical GASKET-NEOPRENE |
|
|
Amana Commerical HARNESS, HV |
| 20274201 | Amana Commerical HARNESS-OVEN |
| 59114168 | Amana Commerical INNER DOOR |
| 14179123 | Amana Commerical KIT, ANTENNA MOTOR- BOTTOM |
| 14179119 | Amana Commerical KIT, ANTENNA MOTOR- TOP |
| 59204724 | Amana Commerical KIT, CAPACITOR- .50 & DIODE |
| 14159098 | Amana Commerical KIT, CAVITY- HDC12A2 |
| 14119064 | Amana Commerical KIT, DOOR ASSEMBLY- MM |
| 14179127 | Amana Commerical KIT, EXHAUST DUCTS GASKET |
|
|
Amana Commerical KIT, INTERLOCK FUSES BLOCK |
|
|
Amana Commerical KIT, TRIAC(40A) SNUBBER |
|
|
Amana Commerical KIT, WINDOW |
|
|
Amana Commerical LABEL-MENU |
|
|
Amana Commerical LAMP-LED |
|
|
Amana Commerical LIGHT COVERS- INSIDE OUT |
|
|
Amana Commerical MAGNETRON |
| 20018904 | Amana Commerical NUT-#6 HEX |
| 20159201 | Amana Commerical SCREW-MACH/HEX |
|
|
Amana Commerical SCREW-SM/HEX |
|
|
Amana Commerical SCREW-SM/HEX |
| 12990522 | Amana Commerical SCREW-SM/HEX ROHS |
| 12990524 | Amana Commerical SCREW-SM/HEX ROHS |
|
|
Amana Commerical SCREW-TC/SOCKET TORX |
| 20261601 | Amana Commerical SHIELD-SPILL |
| A4055406 | Amana Commerical STRAP-CAPACITOR |
| 20071101 | Amana Commerical SUPPORT-CAVITY |
| 59174546 | Amana Commerical TAPE, FOAM (12 IN) |
| M0275163 | Amana Commerical TAPE-TRANSFER |
| B5684129 | Amana Commerical THERMAL CUTOUT |
|
|
Amana Commerical THERMAL CUTOUT, CAVITY |
| 59194638 | Amana Commerical TOUCH PANEL & DISPLAY ASSEMBLY |
| 59114144 | Amana Commerical TRANSFORMER, HV |
| 59174522 | Amana Commerical TRAY, CERAMIC SUPPORTS |
| 12408503Q | Amana Commerical WRAPPER |
