Manufacturer
Amana Commerical
Model Number
MRX2QTN
Description
High Speed Commercial Combination Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| TB10S | 11 (279 MM) X 11 (279 MM) NON-STICK BASKET |
| SB10S | 5.5 (139 MM) X 11 (279 MM) NON-STICK BASKET |
| MB10S | 5.5 (139 MM) X 5.5 (139 MM) NON-STICK BASKET |
| 59214765 | ANTENNA & IMPINGEMENT COVERS |
| 20212801 | ANTENNA BOX VENT WELD |
| BC10R | ARX/MRX BACK COVER |
| CP10 | ARX/MRX COOK PLATE |
| PA10R | ARX/MRX OVEN PADDLE |
| TL10R | ARX/MRX PTFE NON-STICK LINERS |
| TS10R | ARX/MRX TOP SHELF |
| 59184606 | BASEPAN GASKET ASSEMBLY |
| 12136503 | BLOCK-1 POLE FUSE |
| B5677214 | BLOCK-TERMINAL |
| 59174578 | BOARD- MAIN CONTROL |
|
|

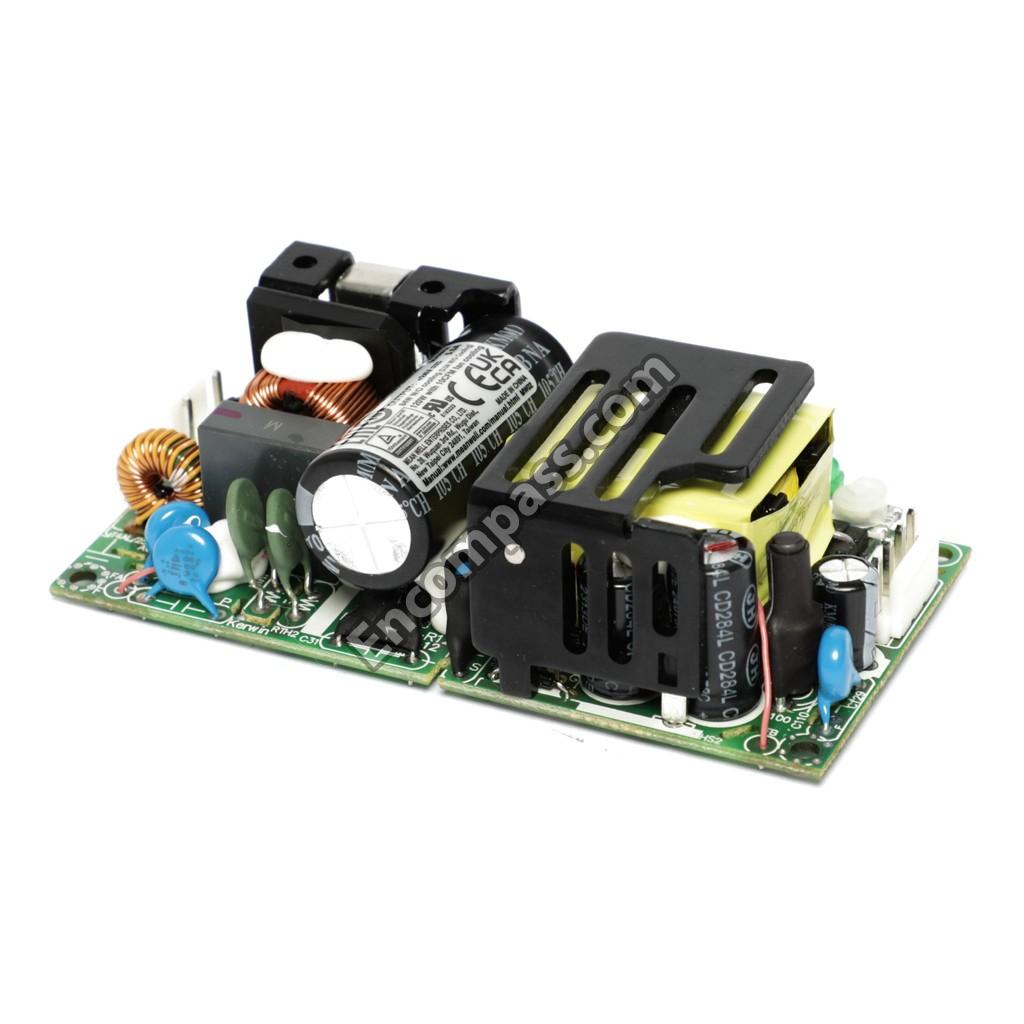

BOARD- POWER SUPPLY (24V DC) |
| A3293506 | BUSHING-SNAP |
| 59164514 | CABLE, ETHERNET |
| 59184632 | CONVECTION MOTOR GASKET |
| 20241404 | CUTOUT-THERMAL, MAG |
| 59184605 | DOOR ASSEMBLY- SS |
| 59184616 | FILTER- FRONT |
| 59184615 | FILTER- SIDE |
| 20162001 | FOOT-SUPPORT |
|
|
FUSE-12A |
|
|
FUSE-30A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 59004077 | GASKET, PER FT |
|
|

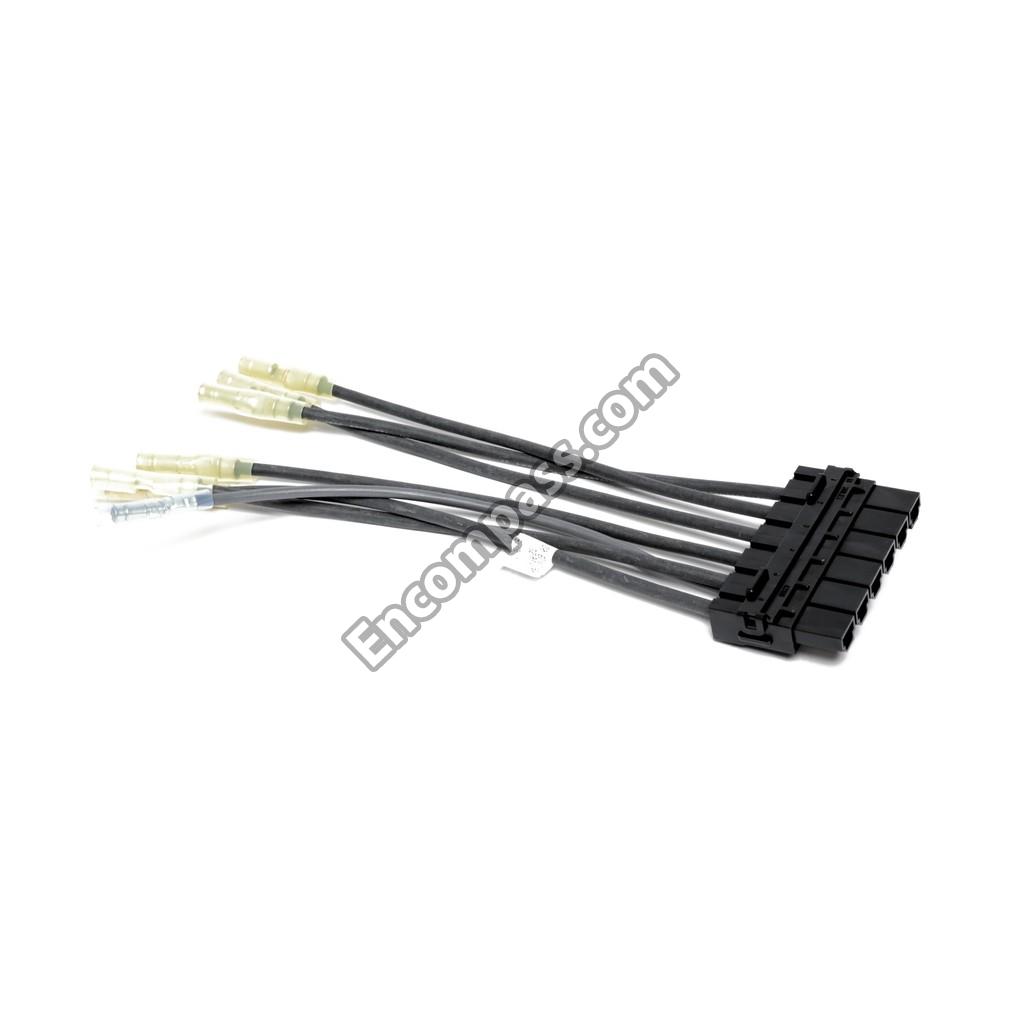

HARNESS, CTRL BD TO FLTR BD |
| 20218701 | HARNESS-HV |
| 20292101 | HARNESS-LV |
| 20283601 | HARNESS-OVEN |
| 59204720 | IMPINGEMENT COVER & SCREWS |
|
|
J5 CONNECTOR HARNESS |
|
|
KIT, CAPACITOR- .85 DIODE |
|
|
KIT, TRIAC(40A) SNUBBER |
| 59204737 | KIT, USB DOOR |
| 59174585 | KIT- ANTENNAS, MOTOR, GEARS |
| 59174592 | KIT- CATALYST, GASKETS, TAPE |
| 59174582 | KIT- COOLING FANS, RELAY, & CAPS |
|
|
KIT- DOOR HINGES |
| 59174593 | KIT- ELEMENT, GASKETS, TAPE |
| 59174580 | KIT- F1 FUSE, SWITCHES, RELAY, BLOCK |
| 59174594 | KIT- THERMAL LIMITER, GASKETS, & TAPE |
| 59174586 | KIT- WAVEGUIDE MAG |
| LG10 | LEG KIT FOR XP XPRESS OVENS |
| 21053003 | MAG DUCT WELD |
| 59164491 | MAGNETRON |
| 20272703 | NAMEPLATE,XPRESSCHEF |
| 59184608 | OUTER PANEL LEFT- SS |
| 59184609 | OUTER PANEL RIGHT-SS |
| 59184607 | OUTER PANEL TOP- BL |
| 59174574 | OUTERCASE- BACK |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
| ST10R | PIZZA STONE FOR A/MRX XPRESS OVENS |
|
|
POWER CORD |
| 20214401 | R HINGE BRACKET ASSEMBLY |
|
|
SCREW-TC/SOCKET TORX |
|
|
SENSOR, TEMP |
| A4055406 | STRAP-CAPACITOR |
| 59224798 | SWITCH & BOOT- PRIMARY |
| GP10T | TALL REVERSIBLE GRILL PLATE |
| 20070008 | TAPE, CLOTH- 15 FT (4.5 M) |
| 59174546 | TAPE, FOAM (12 IN) |
|
|

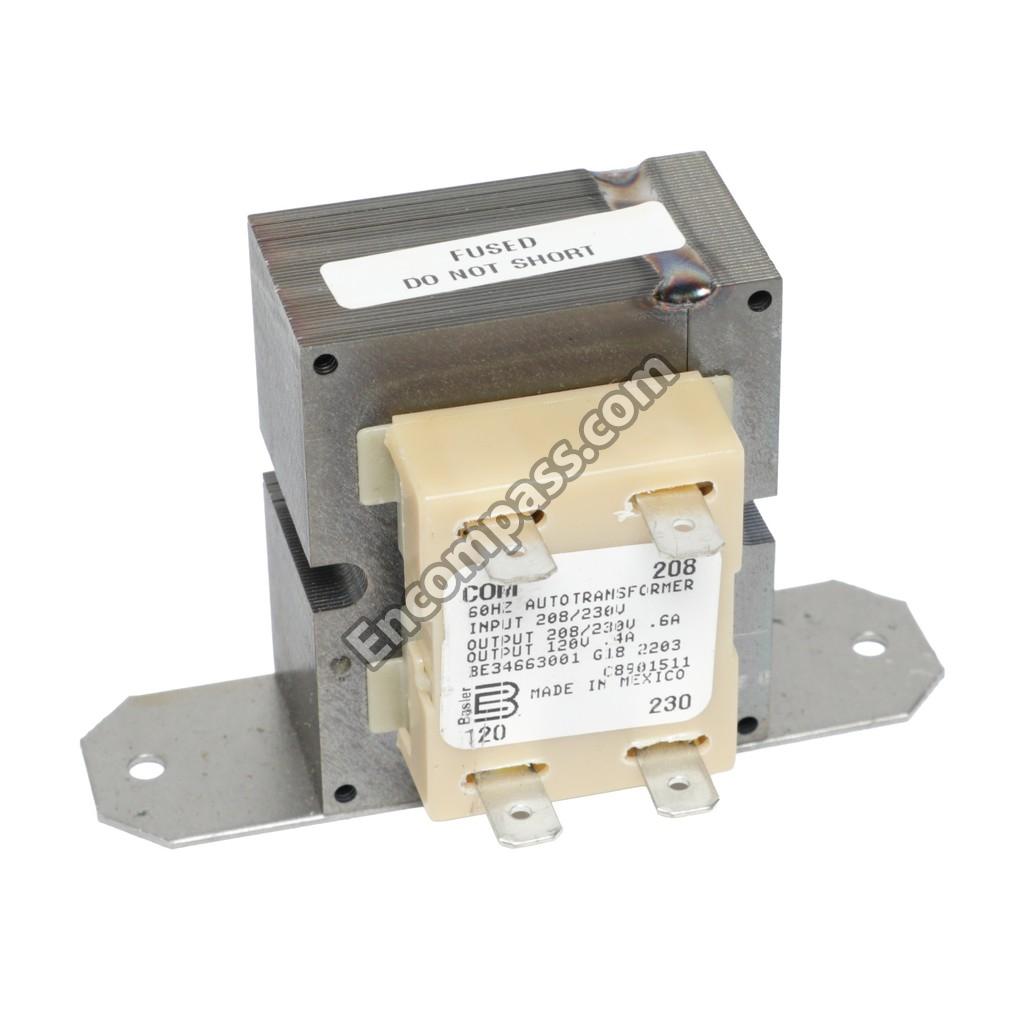

TRANSFORMER- AUTO SNUBBER |
| 59174588 | TRANSFORMER- HV |
| 59174591 | VENT- CAVITY STEAM |
|
|
XPRESS OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZL |
| CK10 | XPRESS OVEN SAMPLE CLEANER KIT |
| SH10 | XPRESS OVEN SHIELD (6) 1 LITER BOTTLES, (2) NOZZLE |
