Manufacturer
Amana Commerical
Model Number
MXP22TLTN
Description
High Speed Combination Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| TB10 | 10 (254 MM) X 12 (305 MM) NON-STICK BASKET |
| OB10 | 13.5 X 13.5 (343 MM) NON-STICK BASKET |
| SB10 | 6 (152 MM) X 12 (305 MM) NON-STICK BASKET |
| SQ10 | ALUMINUM PAN FOR XP XPRESS OVENS |
|
|
BLOCK, FUSE- 3 POLE |
| B5677215 | BLOCK, TERMINAL |
| 10091101 | BLOCK-FUSE |
| B5677214 | BLOCK-TERMINAL |
| 59214782 | BOARD- DISPLAY ASSEMBLY- NON WI-FI |
| 59174578 | BOARD- MAIN CONTROL |
|
|
BOARD- POWER SUPPLY (24V DC) |
| 21006802 | BRACKET-ANTENNA MOTOR |
| M0571003 | BUSHING-SNAP |
| 59164514 | CABLE, ETHERNET |
| 59204723 | CATALYTIC CONVERTER & GASKETS |
| M0104106 | CLIP, CORD |
|
|
CONVECTION MOTOR ASSEMBLY |
| 59164513 | COVER, ELEMENT |
| 20241404 | CUTOUT-THERMAL, MAG |
| 59194676 | DOOR- OUTER |
| 13087603 | DUCT-LH |
| 21007102 | DUCT-MAGNETRON |
| 13087102 | DUCT-RH |
|
|
ELEMENT- TOP CONVECTION & GASKET |
|
|
FILTER, AIR |
|
|
FUSE-12A |
| M0805201 | FUSE-25A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 13077802 | GASKET, CONV BLOWER |
| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 13077702 | GASKET-PLENUM NOZZLE |
| 13077902 | GASKET-PLENUM RETURN |
| 13095701 | HANDLE, BASEPAN |
| 59194675 | HANDLE- DOOR |
| 20257301 | HARNESS-OVEN |
|
|

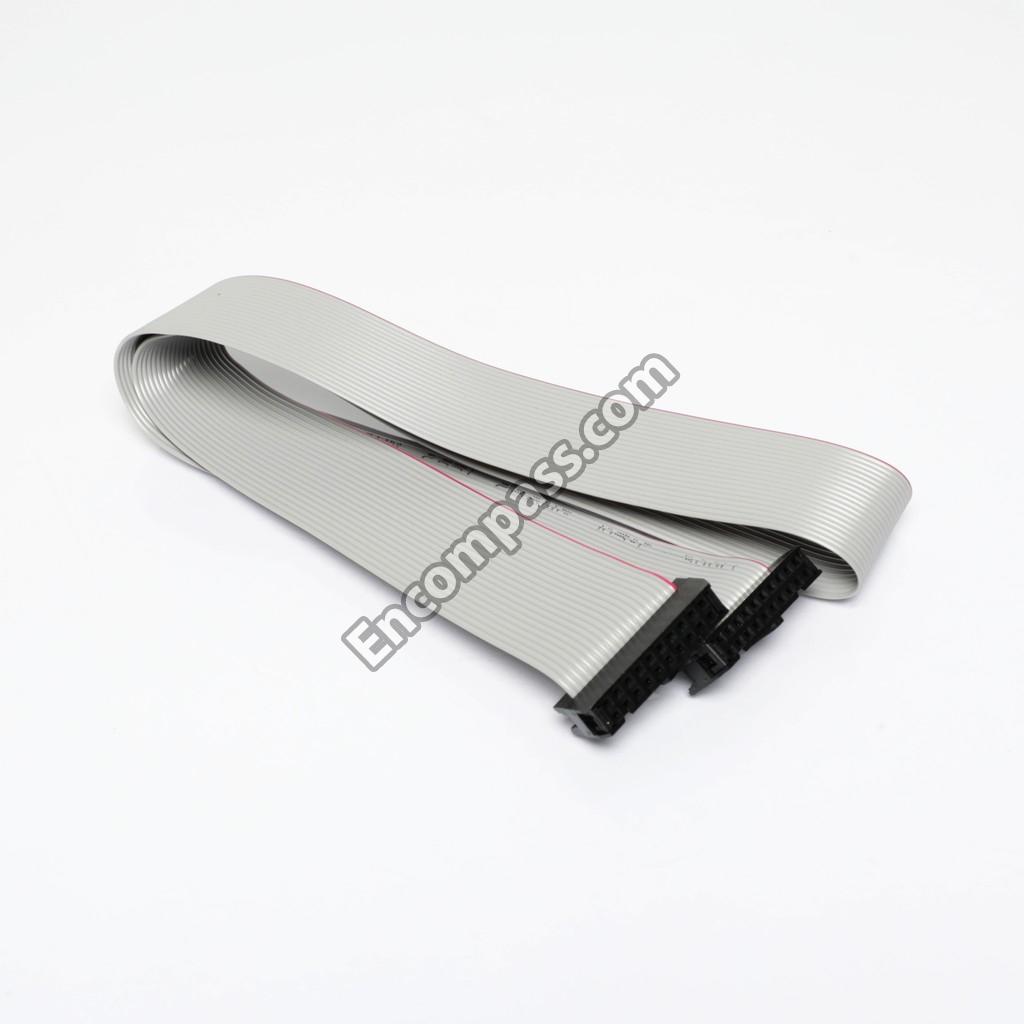

HARNESS-PC BOARD |
| 59194677 | HINGES- DOOR |
| 59194673 | INNER DOOR ASSEMBLY |
| 20004202Q | INSUL RETAINER WELD |
| 59194674 | INSULATION- DOOR |
| 20260301 | INSULATION-TOP |
| 13084602 | INSULATION-TOP/SIDES CAVITY |
|
|
J5 CONNECTOR HARNESS |
|
|
KIT, ANTENNA MOTOR GEARS |
|
|
KIT, ANTENNA STIRRER COVER |
|
|
KIT, BOTTOM ELEMENT |
|
|
KIT, CAPACITOR- 1.00 DIODE |
|
|
KIT, FAN MOTOR |
|
|
KIT, TRIAC(40A) SNUBBER |
| 59204737 | KIT, USB DOOR |
|
|
KIT, WAVEGUIDE- LH |
| 14119055 | KIT, WAVEGUIDE- RH |
| 59194639 | KIT- DRIP CAPS SPLASH GUARDS |
|
|
KIT- F1 FUSE, SWITCHES, RELAY, |
| 14179138 | KIT- STUDS HARDWARE |
| LG10 | LEG KIT FOR XP XPRESS OVENS |
|
|
MAGNETRON |
| 20272703 | NAMEPLATE,XPRESSCHEF |
| 13045502 | NUT- #8 KEPS |
| 20289302 | OC BACK WELD-E CT |
| 59194670 | OUTER PANEL- LEFT |
| 59194671 | OUTER PANEL- RIGHT |
| 59194672 | OUTER PANEL- TOP |
| PA10 | OVEN PADDLE |
| GR10 | PANINI GRILL FOR XP XPRESS OVENS |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
| ST10X | PIZZA STONE FOR A/MXP XPRESS OVENS |
| 21005904 | PLATE-L HINGE PARTITION |
| 21004901 | PLATE-L PLENUM |
| 21073602 | PLATE-R HINGE PARTITION |
| 21005001 | PLATE-R PLENUM |
| 21004802 | PLATE-TOP PLENUM |
|
|
POWER CORD |
| 59002140 | RACK, OVEN |
| 21070003 | REAR AIR DUCT-E CT |
|
|
RELAY |
| 59174565 | RESISTORS- FAN |
| 21007301 | RETAINER-HEATER INSUL |
| 12991602 | SCREW |
| 12991611 | SCREW-TC/HEX |
| 12991605 | SCREW-TC/HEX ROHS |
| 13074001 | SCREW-TC/PAN TORX ROHS |
|
|
SCREW-TC/SOCKET TORX |
|
|
SENSOR, TEMP |
| TL10T2 | SET OF 2 NON-STICK LINERS FOR XP XPRESS OVENS |
| TL10T | SET OF 4 NON-STICK LINERS FOR XP XPRESS OVENS |
|
|
SNUBBER ASSEMBLY |
| 20176201 | SPACER-THREADED |
| A4055406 | STRAP-CAPACITOR |
| 59224798 | SWITCH & BOOT- PRIMARY |
| 59174556 | SWITCH- RESET |
| 20070008 | TAPE, CLOTH- 15 FT (4.5 M) |
| 59154448 | TAPE, FOAM (1 ROLL) |
| 59194679 | TAPE- FOAM GASKET |
| M0275089 | TAPE- ROLL |
| B5684130 | THERMAL CUTOUT |
| 59174519 | THERMAL CUTOUT, CAVITY- MECHANICAL |
| 59002124 | TRANSFORMER, HV |
|
|
VENT, CAVITY STEAM |
|
|
WIRE, JUMPER- MAG FA TO CAP |
| PRS10 | XP XPRESS PANINI PRESS |
|
|
XPRESS OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZL |
| CK10 | XPRESS OVEN SAMPLE CLEANER KIT |
| SH10 | XPRESS OVEN SHIELD (6) 1 LITER BOTTLES, (2) NOZZLE |
