Manufacturer
Amana Commerical
Model Number
MXP5221TL
Description
High Speed Combination Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 13086601 | BARRIER, RECIRCULATION |
| 59004037 | BASEPAN GASKET ASSEMBLY |
|
|

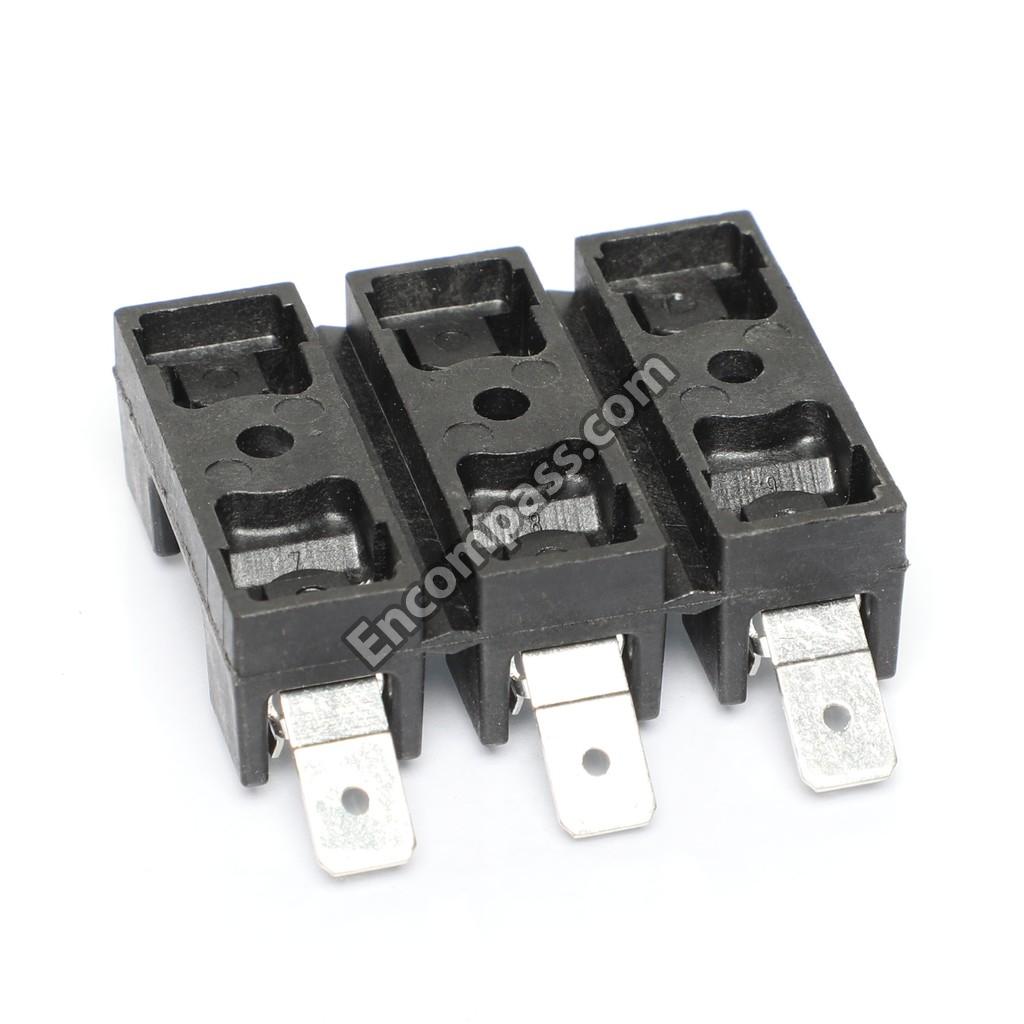

BLOCK, FUSE- 3 POLE |
| B5677215 | BLOCK, TERMINAL |
| 10091101 | BLOCK-FUSE |
| B5677214 | BLOCK-TERMINAL |
| 59004108 | BOARD, MAIN CONTROL |
| 59002118 | BOARD, POWER SUPPLY (24V DC) |
| 59114156 | BOARD, VFD |
| 59184623 | BOARD- MAIN CONTROL |
| 59204176 | BOARD-POWER SUPPLY (24V DC) |
| 20049801 | BOARD-USB- SEE BULLETIN TCM-0081-B |
| 21004702 | BOTTOM-PLENUM |
| 21006802 | BRACKET-ANTENNA MOTOR |
| 20049901 | BRACKET-USB COVER |
| M0571003 | BUSHING-SNAP |
| 21008602 | CAP-MAGNETRON DRIP |
| 59194639 | CAP-SUMP DRIP |
| 59001168 | CAPACITOR- 1.00 |
| 20025101 | CHOKE FILTER RING |
| M0104106 | CLIP, CORD |
|
|
CONVECTION MOTOR ASSEMBLY |
| 13076301 | CONVERTER- CATALYTIC |
| 20241404 | CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 13091701 | DIODE |
| 21007102 | DUCT, MAGNETRON |
| 13087603 | DUCT-LH |
| 13087102 | DUCT-RH |
|
|
ELEMENT- TOP CONVECTION & GASKET |
| 13079702 | ESCUTCHEON, SIDE |
| 13098505 | ESCUTCHEON- TOP |
| 13098504 | ESCUTCHEON- TOP |
|
|
FILTER, AIR |
| 59002139 | FILTER, AIR |
| 59194669 | FILTER-LINE |
|
|
FUSE-12A |
| M0805201 | FUSE-25A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 13077802 | GASKET, CONV BLOWER |
| 13077801 | GASKET, CONV BLOWER |

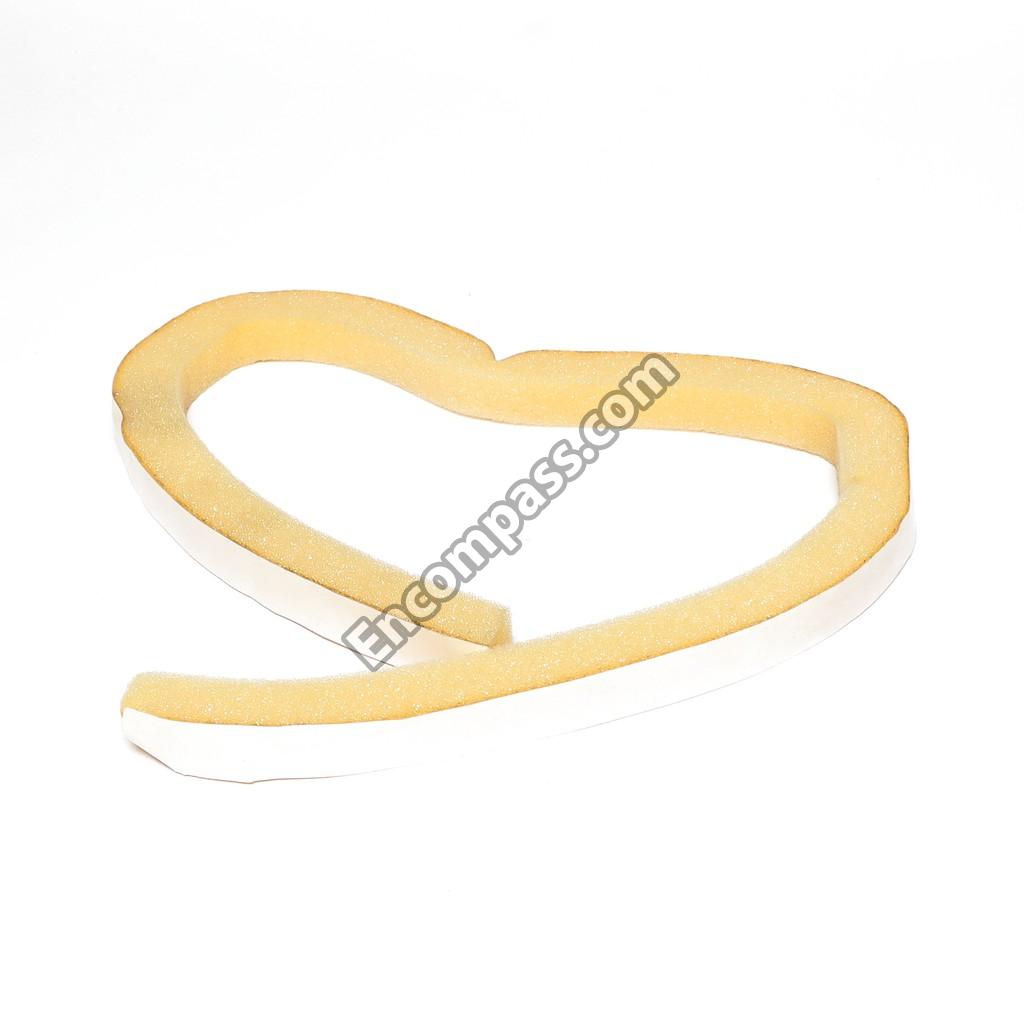

| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 13077702 | GASKET-PLENUM NOZZLE |
| 13077902 | GASKET-PLENUM RETURN |
| 13095701 | HANDLE, BASEPAN |

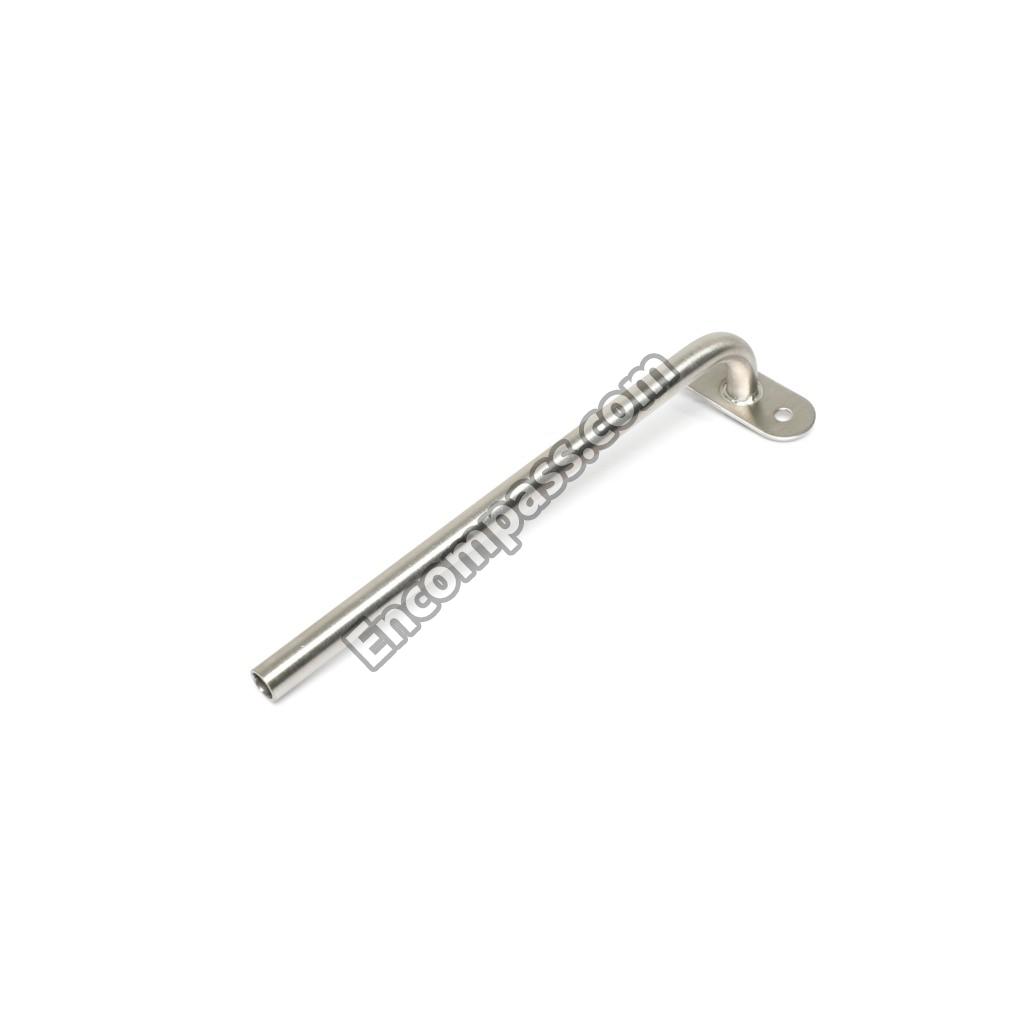

| 59002142 | HANDLE, DOOR |
|
|

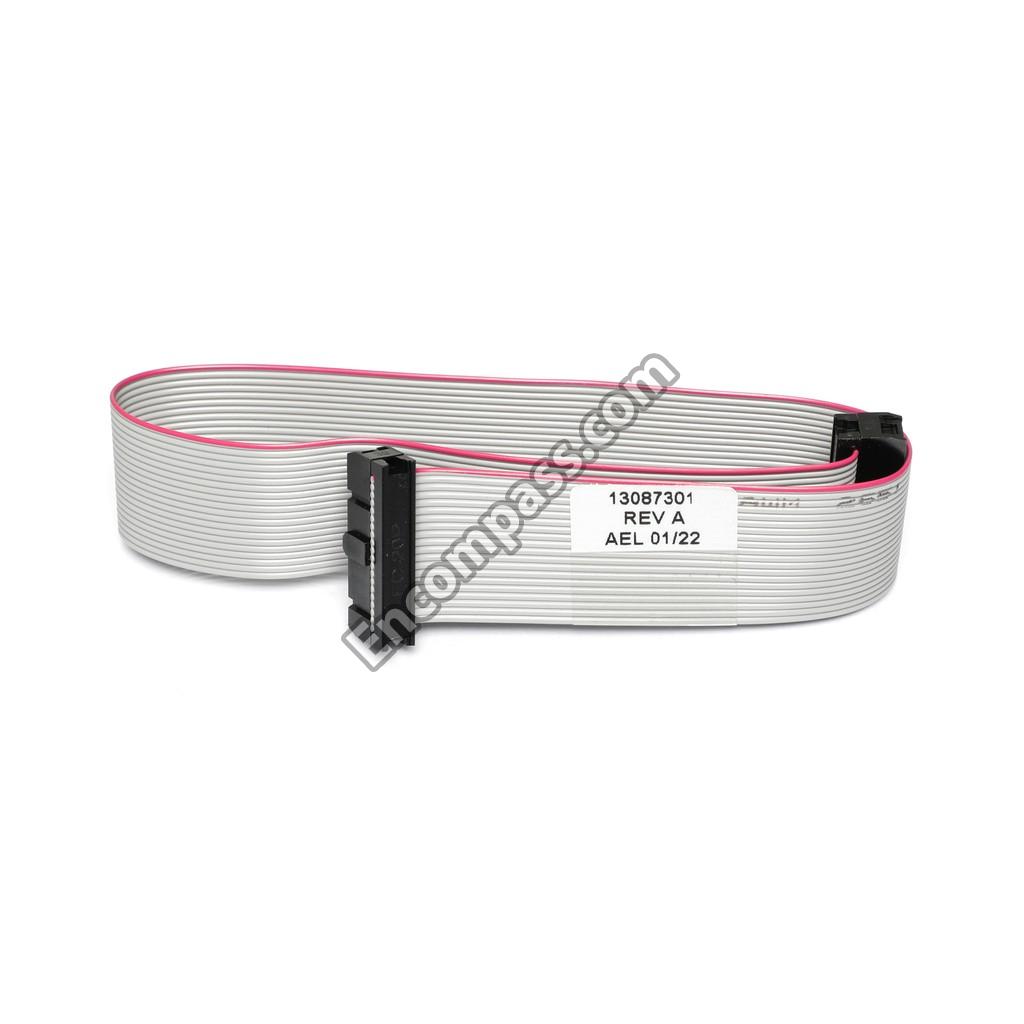

HARNESS, CTRL BD TO FLTR BD |
| 12696201 | HARNESS, HV |
| 20136201 | HARNESS, MAIN |
| 13087401 | HARNESS-DATA KEY |
| 59004080 | HINGE |
| 59194677 | HINGES- DOOR |
| 59184622 | HOLE PLUGS- 6 PACK |
| 20004202Q | INSUL RETAINER WELD |
| 20025401 | INSUL-DOOR |
| 13094201 | INSUL-DOOR CHOKE |
| 13097801 | INSUL-HINGE |
| 13096101 | INSUL-OUTER DOOR |
| 20177001 | INSULATION-HINGE |
| 13084602 | INSULATION-TOP/SIDES CAVITY |
| 59124197 | INTERLOCK SWITCH ASSEMBLY |
| 21011302 | KEY-CAVITY EXPANSION |
|
|
KIT, ANTENNA MOTOR GEARS |
|
|
KIT, ANTENNA STIRRER COVER |
|
|

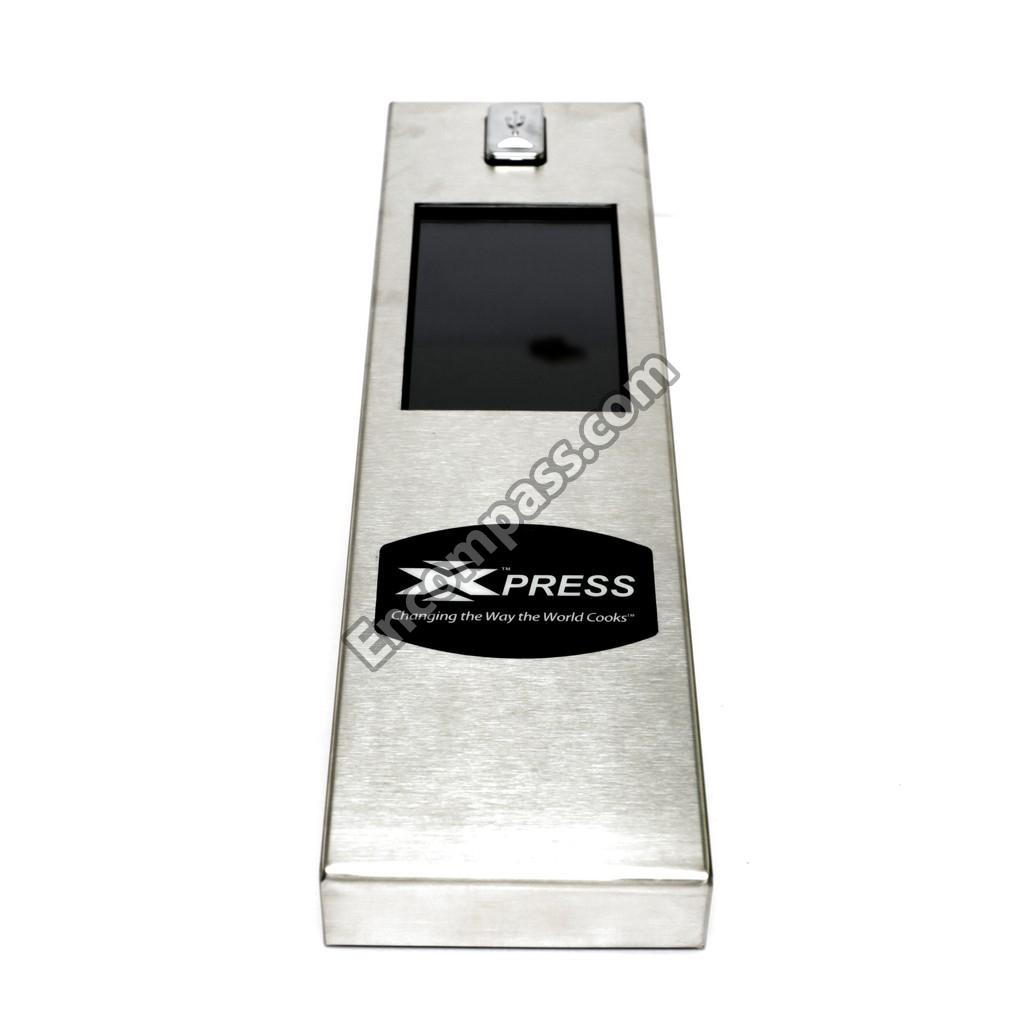

KIT, AXP / MXP CONTROL ASSEMBLY |
|
|
KIT, BOTTOM ELEMENT |
| 12002872 | KIT, CAM (FOR ANTENNA MOTOR) |
|
|

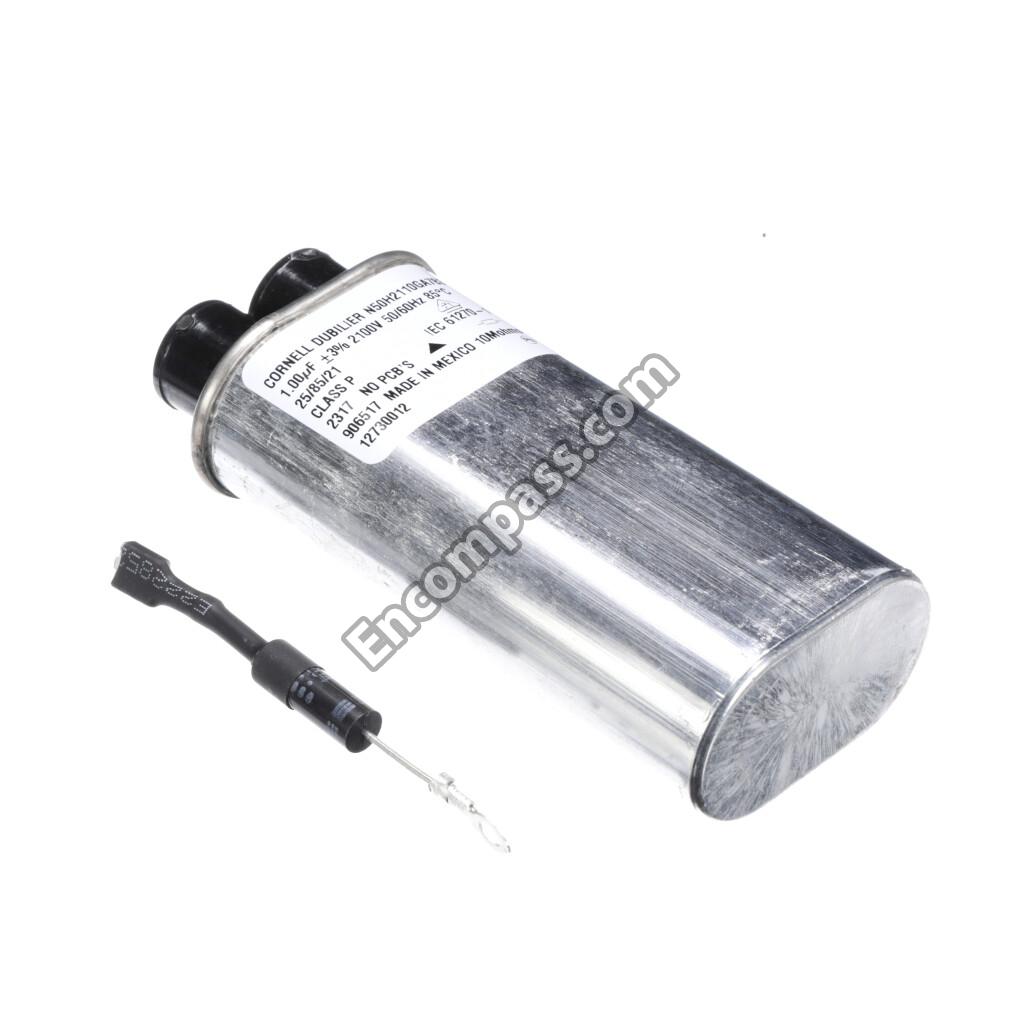

KIT, CAPACITOR- 1.00 DIODE |
| 14139074 | KIT, DISPLAY USB BOARD |
|
|

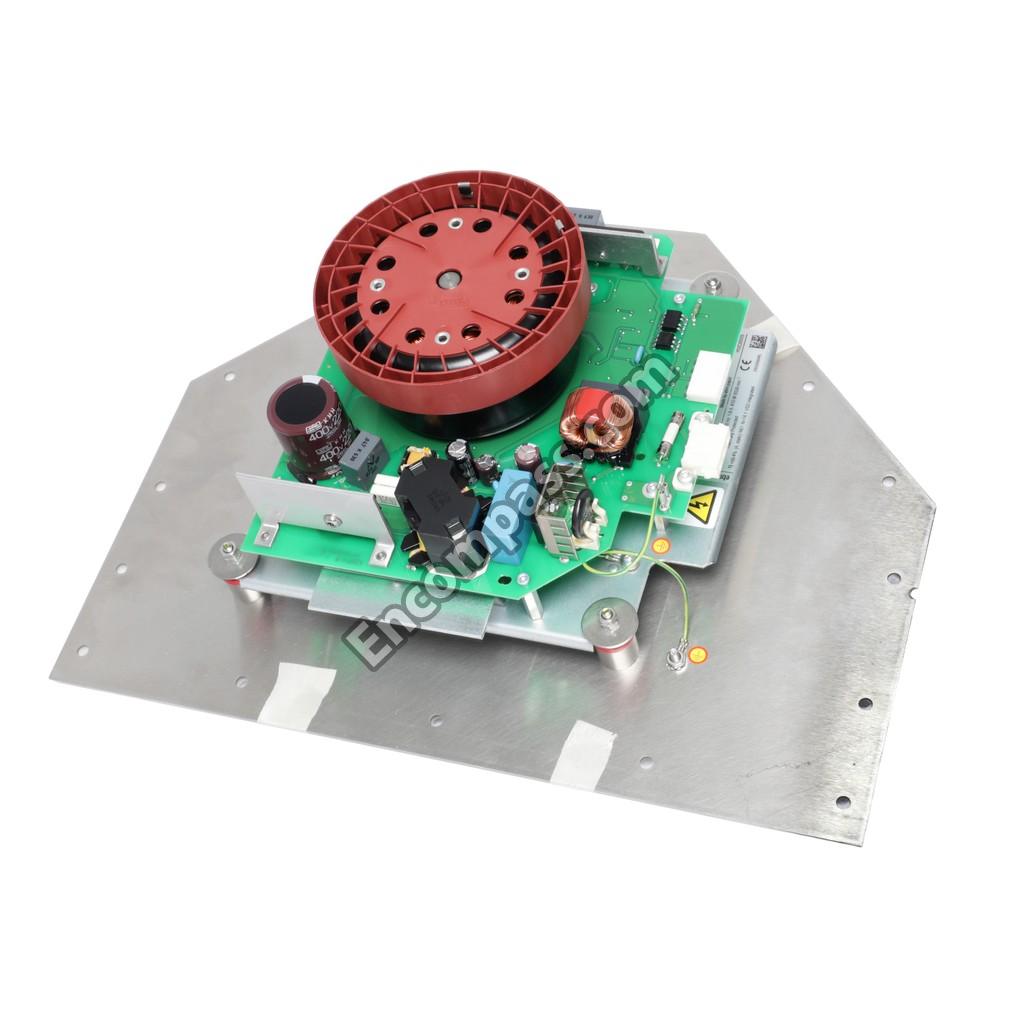

KIT, FAN MOTOR |
| 12002867 | KIT, GEAR RACK |
| 14169111 | KIT, INNER DOOR |
| 14080014 | KIT, INNER DOOR |
| 14080015 | KIT, OUTER DOOR |
| 14114052 | KIT, STIRRER COVER |
| 12002873 | KIT, STIRRER MOTOR |
|
|
KIT, TRIAC(40A) SNUBBER |
| 14080001 | KIT, TUNING STUB- AXP |
|
|

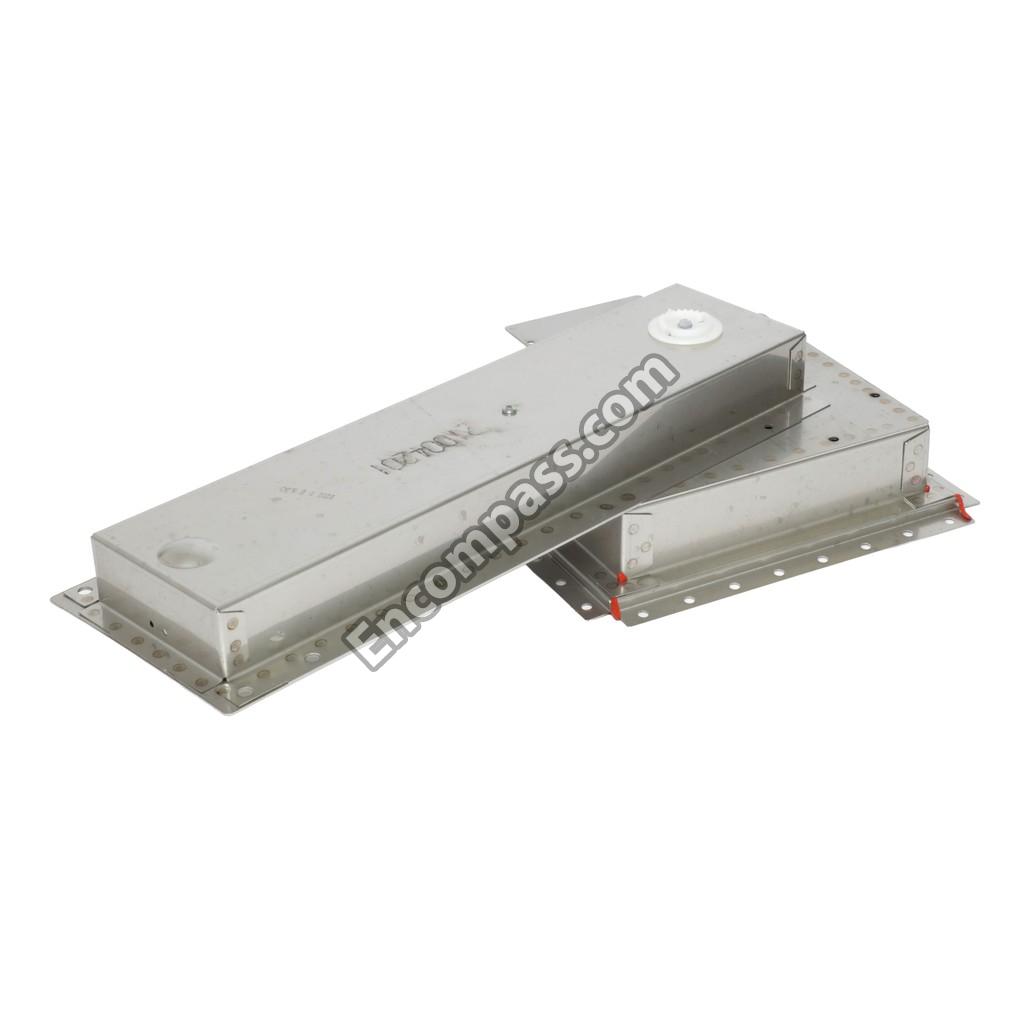

KIT, WAVEGUIDE- LH |
| 14119055 | KIT, WAVEGUIDE- RH |
|
|

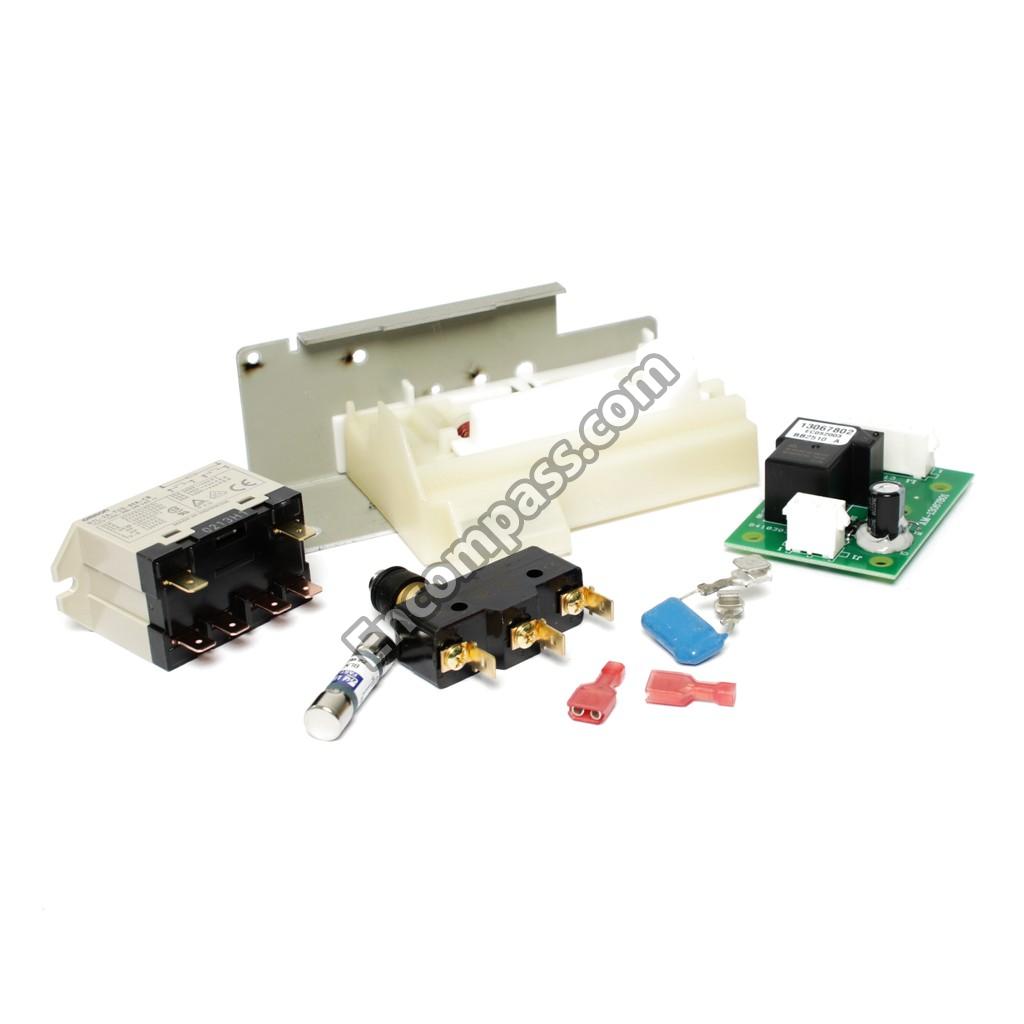

KIT- F1 FUSE, SWITCHES, RELAY, |
| 14119060 | KIT- F1 FUSE, SWITCHES, RELAY, RELAY BRD |
| 14179138 | KIT- STUDS HARDWARE |
| 59002133 | LIMITER, ELECTRONIC |
|
|
MAGNETRON |
| 59001484 | MAGNETRON |
| 59002132 | MOTOR, FAN (24V DC) |
| 13079802 | NAMEPLATE- MENUMASTER |
| 13081906 | OC BACK WELD |
| 59002138 | OUTER PANEL- LH |
| 59002137 | OUTER PANEL- RH |
| 59002136 | OUTER PANEL- TOP |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
| 21005904 | PLATE-L HINGE PARTITION |
| 21005902 | PLATE-L HINGE PARTITION |
| 21004901 | PLATE-L PLENUM |
| 21006002 | PLATE-R HINGE PARTITION |
| 21005001 | PLATE-R PLENUM |
| 21004802 | PLATE-TOP PLENUM |
| 13098801 | PLUG |
| 20070101 | PLUG-USB PORT |
|
|

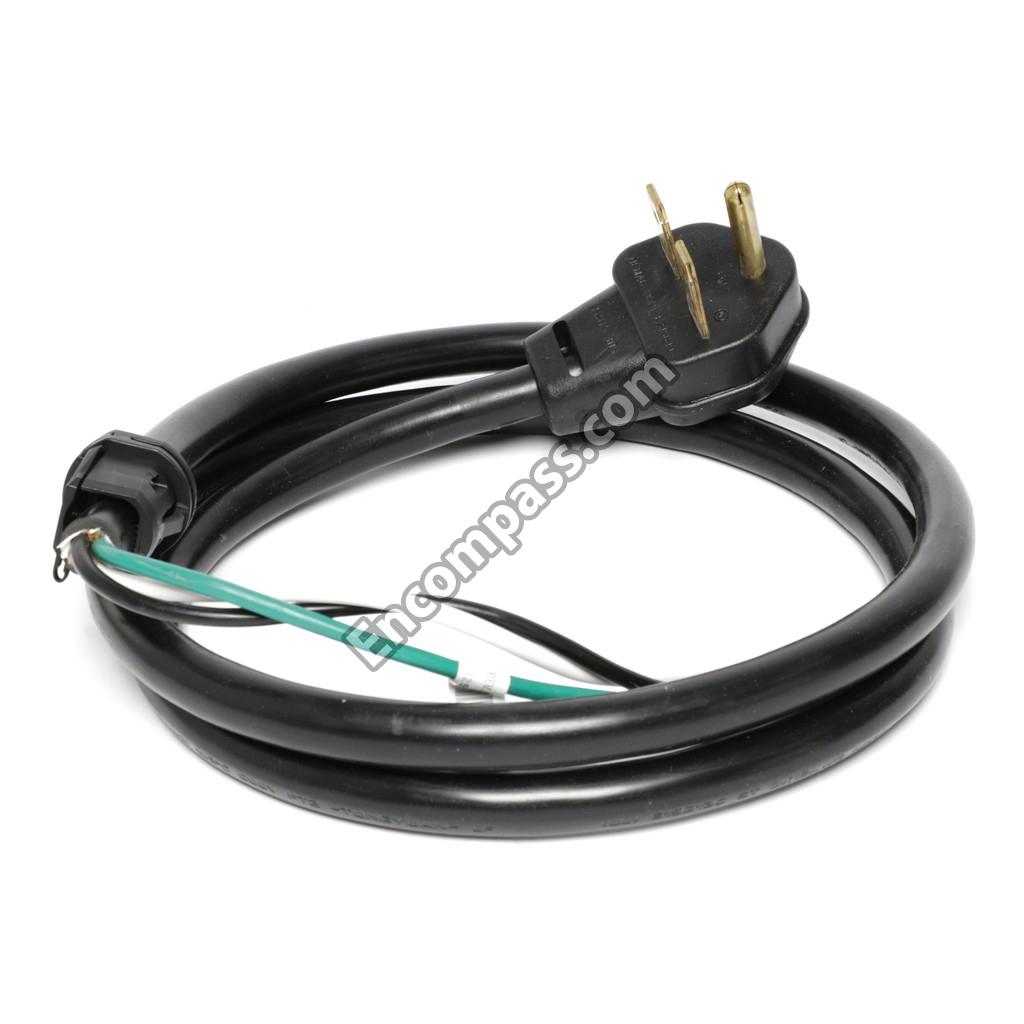

POWER CORD |
| 59002140 | RACK, OVEN |
|
|
RELAY |
| M0370011 | RELIEF-STRAIN |
| 21007301 | RETAINER-HEATER INSUL |
| 13083701 | RIVET, NYLON |
| 12991602 | SCREW |
| 13083601 | SCREW-HI LO/FLAT ROHS |
| 13079101 | SCREW-MACH/SHLD ROHS |
| 20021702 | SCREW-SM/FLAT |
| 12990529 | SCREW-SM/HEX |
| 12990524 | SCREW-SM/HEX ROHS |
| 12990522 | SCREW-SM/HEX ROHS |
| 12990515 | SCREW-SM/HEX ROHS |
| 12990512 | SCREW-SM/HEX ROHS |
| 12990511 | SCREW-SM/HEX ROHS |
| M0229916 | SCREW-TC |
| 13047403 | SCREW-TC/FLAT ROHS |
| 12991611 | SCREW-TC/HEX |
| 12991605 | SCREW-TC/HEX ROHS |
| 13074001 | SCREW-TC/PAN TORX ROHS |
|
|
SCREW-TC/SOCKET TORX |
| 12992302 | SCREW-TF/HEX ROHS |
| 13042001 | SCREW-TF/OVAL ROHS |
| 13041504 | SCREW-TR/PAN ROHS |
| 13041503 | SCREW-TR/PAN ROHS |
| 13042202 | SCREW-TR/ROUND ROHS |
| 12992405 | SCREW-TRIGHT HANDEX |
| 13087001 | SEAL-HINGE |
|
|
SENSOR, TEMP |
| TL10 | SET OF 5 NON-STICK LINERS FOR XP XPRESS OVENS |
|
|
SNUBBER ASSEMBLY |
| 13074201 | SPACER-DOOR |
| A4055406 | STRAP-CAPACITOR |
| M0590602 | SUPPORT |
| 59224798 | SWITCH & BOOT- PRIMARY |
| 59154448 | TAPE, FOAM (1 ROLL) |
| M0275089 | TAPE- ROLL |
| B5684130 | THERMAL CUTOUT |
| B5795317 | THERMAL CUTOUT, CAVITY |
|
|

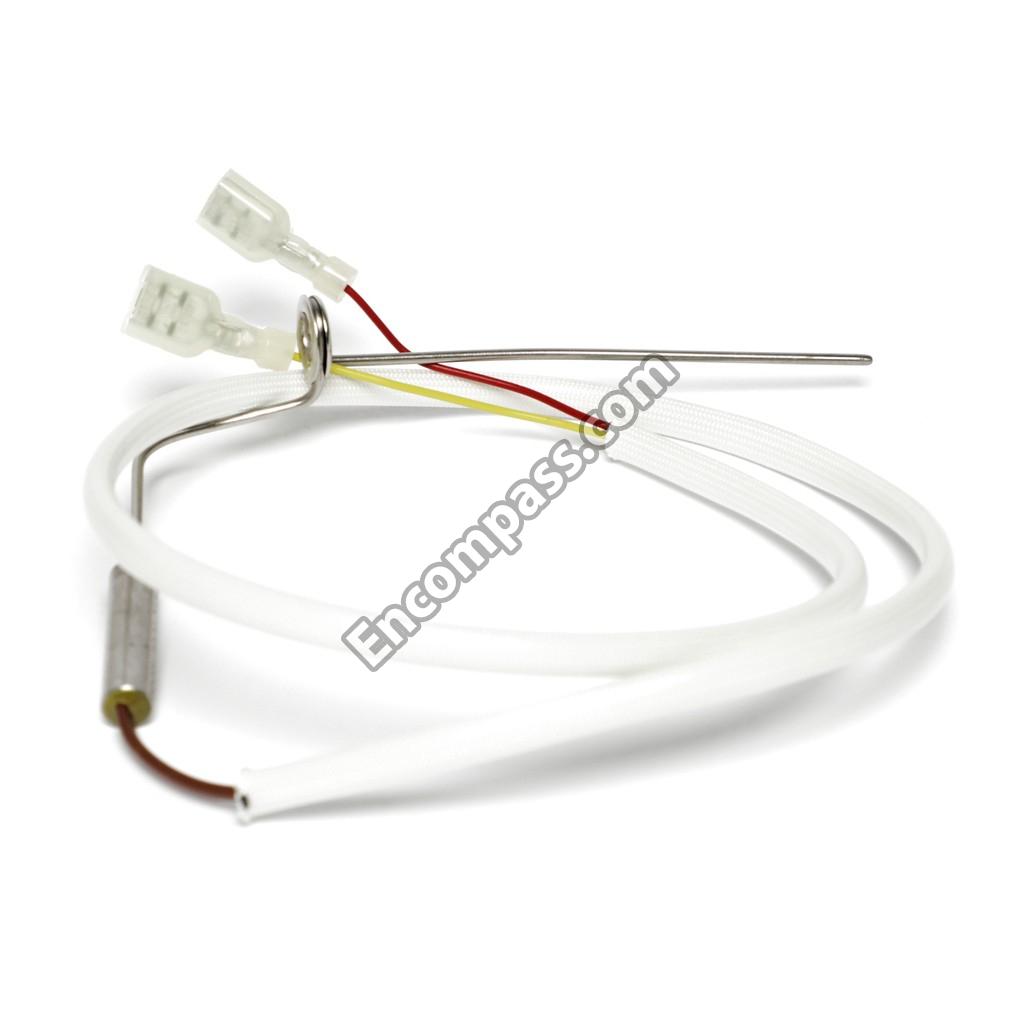

THERMOCOUPLE |
| M0322202 | TIE-WIRE |
|
|

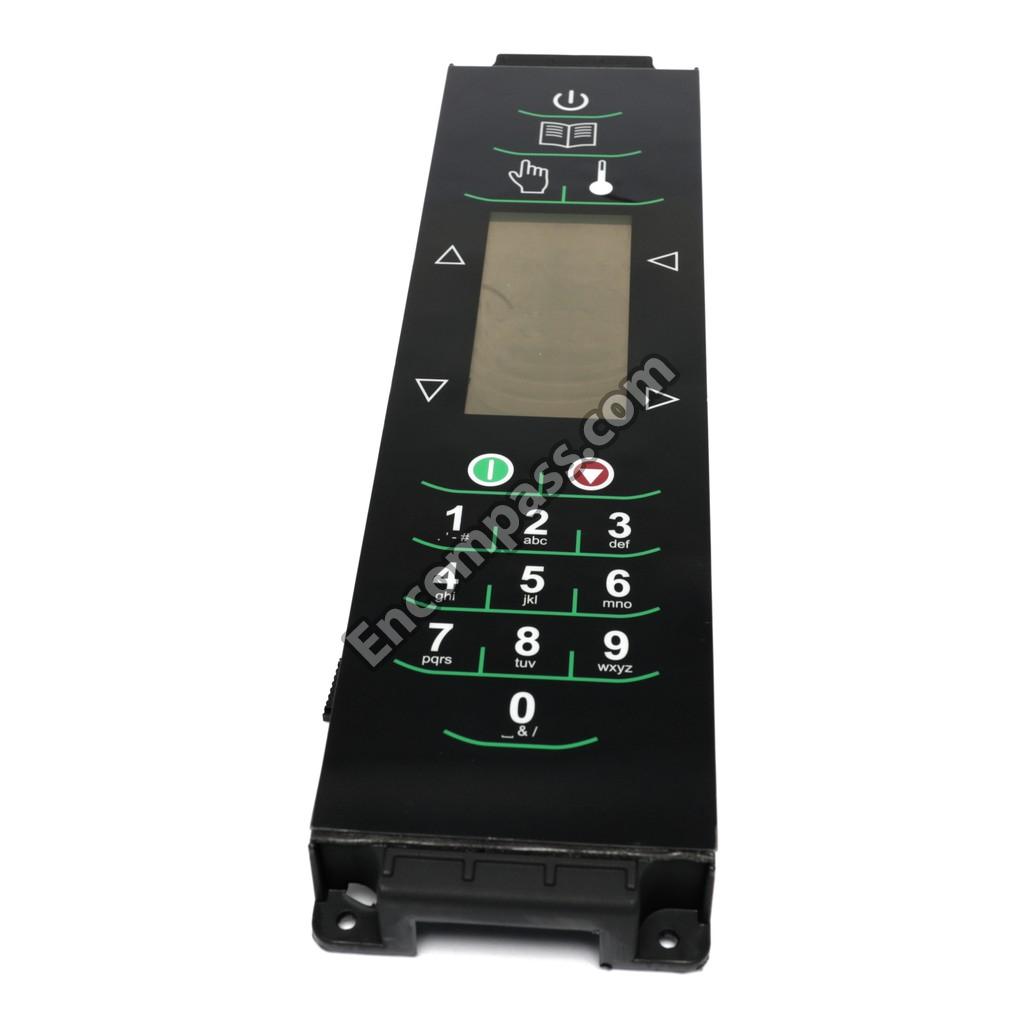

TOUCH PANEL ASSEMBLY |
| 59004041 | TRANSFORMER, HV |
| 59002026 | TRIAC (40A) |
|
|

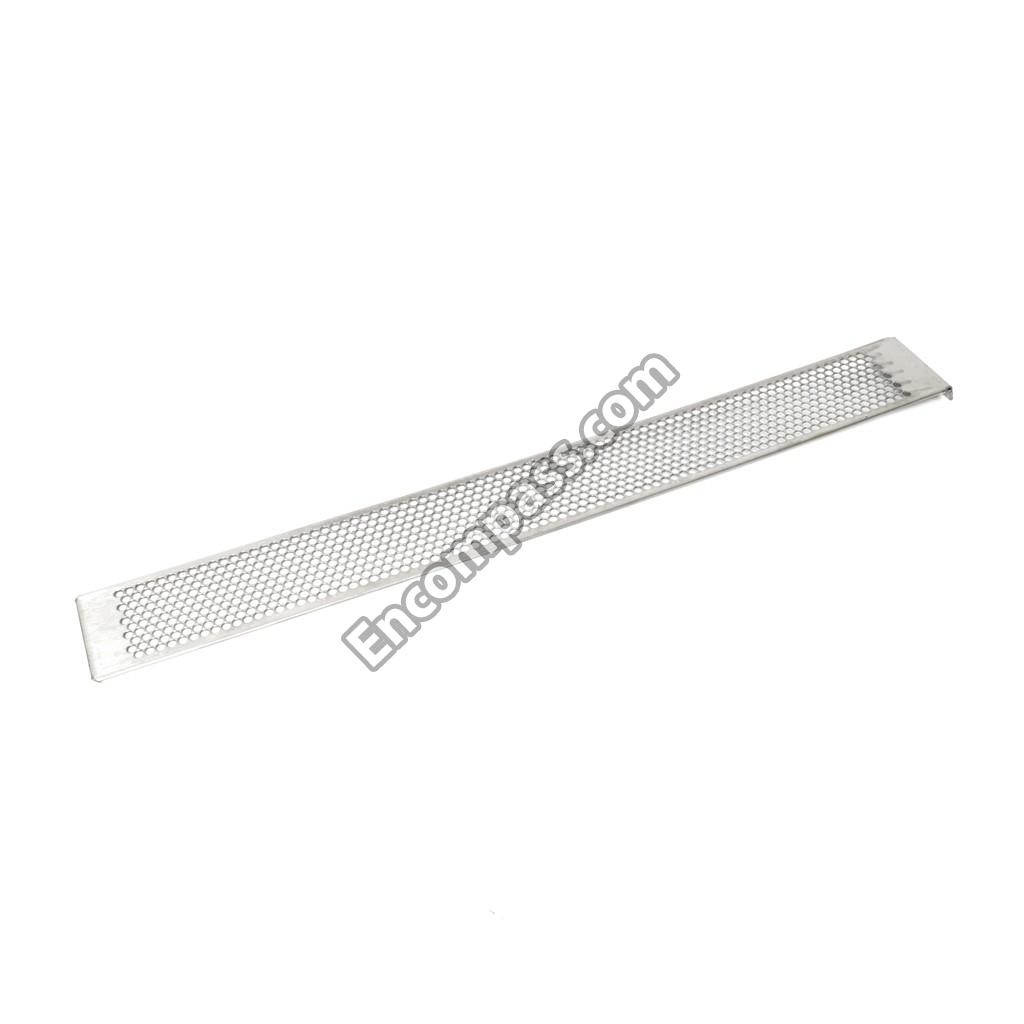

VENT, CAVITY STEAM |
|
|

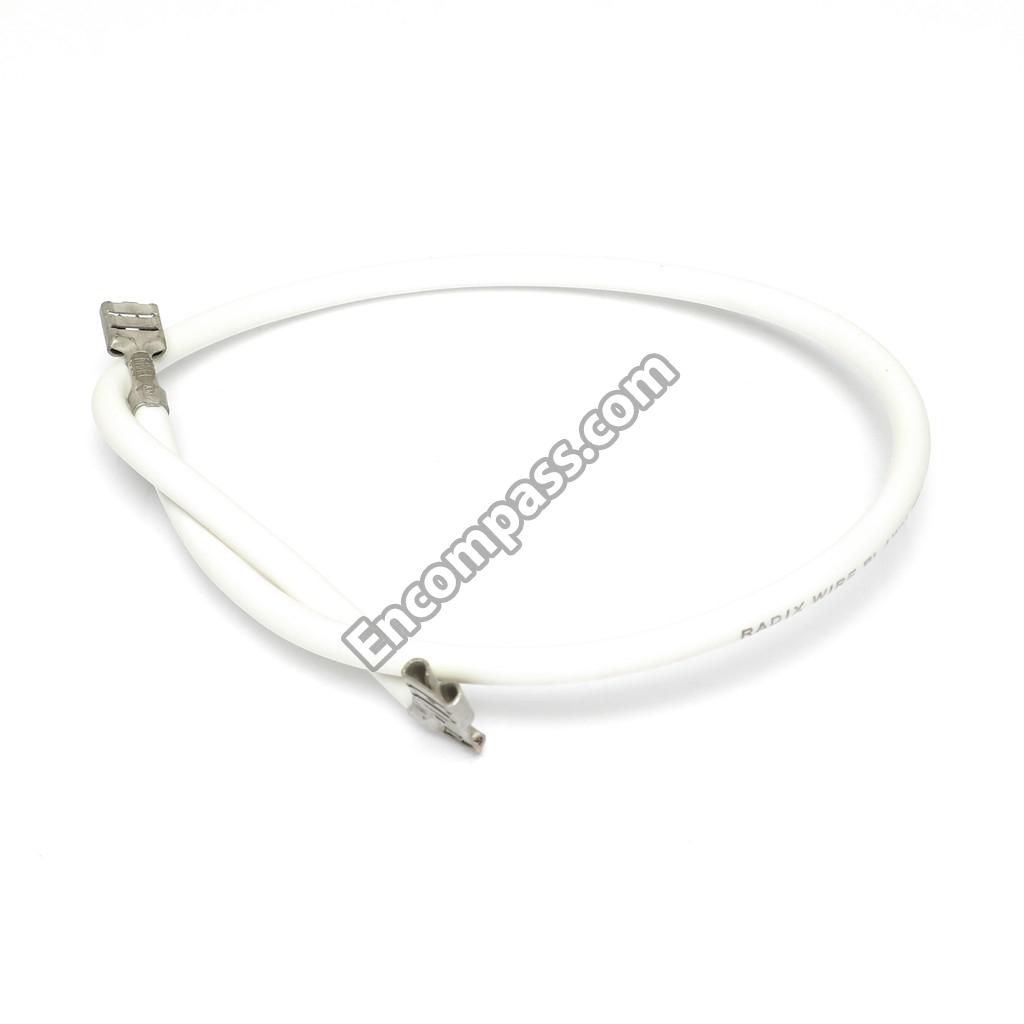

WIRE, JUMPER- MAG FA TO CAP |
