Manufacturer
Amana Commerical
Model Number
RC5PHBU
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 10827220 | ACCESS PANEL WLD-E CT |
| 20172101 | ACCESS- PNT BOTTOM |
|
|
ANTENNA SHIELD |
| 10766601 | ANTENNA SHIELD |
| 59001130 | BASEPAN GASKET ASSEMBLY |
|
|
BIT, NON MAGNETIC Y DRIVE |
|
|
BLADE, FAN |
|
|
BLOCK, FUSE- 3 POLE |
| 12136502 | BLOCK, FUSE- 3 POLE |
| 10091101 | BLOCK-FUSE |
| B5677203 | BLOCK-TERMINAL |
|
|
BLOWER MOTOR ASSEMBLY- MC, RC |
|
|
BOARD, DISPLAY |
| 59001611 | BOARD, HV |
| 10782402 | BOTTOM ACCESS-E CT |
| 20172901 | BRACKET-HINGE SUPPORT |
| 12189003 | BRACKET-HINGE SUPPORT |
| 12502401 | BRD, DISPLAY- SEE BULLETIN TCM0086A-B / ITCM0062A- |
| B8376701 | BRKT-LIGHT |
| 59001128 | BUSHING, SNAP |
| A3293506 | BUSHING-SNAP |
| M0325401 | BUSHING-TERMINAL |
| M0308801 | CAP-SCREW |
| 12548810 | CAPACITOR- 1.00 |
| B5795306 | CAVITY OVERLOAD |
| M0288213 | CLIP |
| M0104106 | CLIP, CORD |
| B5667304 | CLIP-WIRE |
| 59174559 | COVER- LIGHT HARDWARE |
| 10785608 | COVER-LIGHT |
| 20241404 | CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 10781901 | DUCT- EXHAUST |
| 59174557 | DUCT- EXHAUST GASKET |
| 12173003 | FILTER, LINE |
|
|
FUSE-15A |
|
|
FUSE-30A |
| A3030330 | GASKET |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 59001647 | GASKET, BASEPAN- CUT |
| 59001646 | GASKET, BASEPAN- CUT |
| A3263904 | GASKET, EACH |
| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 10966601 | GASKET-NEOPRENE |
| 12570102 | GEAR-SPUR |
| 12570101 | GEAR-SPUR |
|
|
GRILL, AIR INLET THUMBSCREWS |
| 10853102 | GRILLE-AIR INLET |
| 12164102 | GROMMET, RUBBER |
| 12164101 | GROMMET, RUBBER |
| 12490901 | HANDLE-DOOR |
| 12696101 | HARNESS, HV |
| 59001613 | HARNESS, HV |
| 12543101 | HARNESS, INTERLOCK/DISPLAY BD |
| 12598201 | HARNESS, LOWER ANTENNA MOTOR |
| 13095501 | HARNESS-INTERLOCK |
| 13018801 | HARNESS-LW ANT MTR |
| C8961811 | HINGE-DOOR |
| R0130262 | KIT, ANTENNA |
|
|
KIT, CAPACITOR- 1.00 DIODE |
| R0156942 | KIT, CERAMIC TRAY SEALER |
|
|
KIT, HANDLE SCREWS |
| R0130265 | KIT, HARNESS- HVB/DISPLAY |
|
|
KIT, INTERLOCK SWITCH |
| R0000282 | KIT, LATCH |
|
|
KIT, LATCH- RC CHASSIS |
| R0157373 | KIT, TRIAC |
|
|
KIT, TRIAC(40A) SNUBBER |
|
|
KIT- ANTENNA (PLAIN TIP) & MOTOR |
| 14179140 | KIT- HINGE DOOR RING WELD- RC |
| 14179136 | KIT- TOP BOTTOM EXHAUST DUCTS |
|
|
LAMP (40W-250V) |
| 67002552 | LAMP- 40W-250V |
| 59174554 | LIGHT COVERS- INSIDE OUT |
|
|
MAGNETRON |
| 59001484 | MAGNETRON |
|
|
MOTOR, ANTENNA (230V) |
| 59001482 | MOTOR, BLOWER |
| R0156918 | OUTER DOOR ASSY- WINDOW |
| R0156970 | PANEL, ACCESS- REAR |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
|
|
PLATE-PARTITION |
|
|
PLUG-HOLE |
| 12360701 | PLUG-HOLE (BLK) |
|
|
PLUG-WHITE BUTTON |
| B5669025 | POWER CORD |
| 59002001 | POWER CORD |
| B8383102 | RECTIFIER |
|
|
RELAY |
| 12492202 | RELAY |
| M0370009 | RELIEF-STRAIN |
| 12570202 | RETAINER, GEAR SHAFT |
| 12570201 | RETAINER, GEAR SHAFT |
|
|

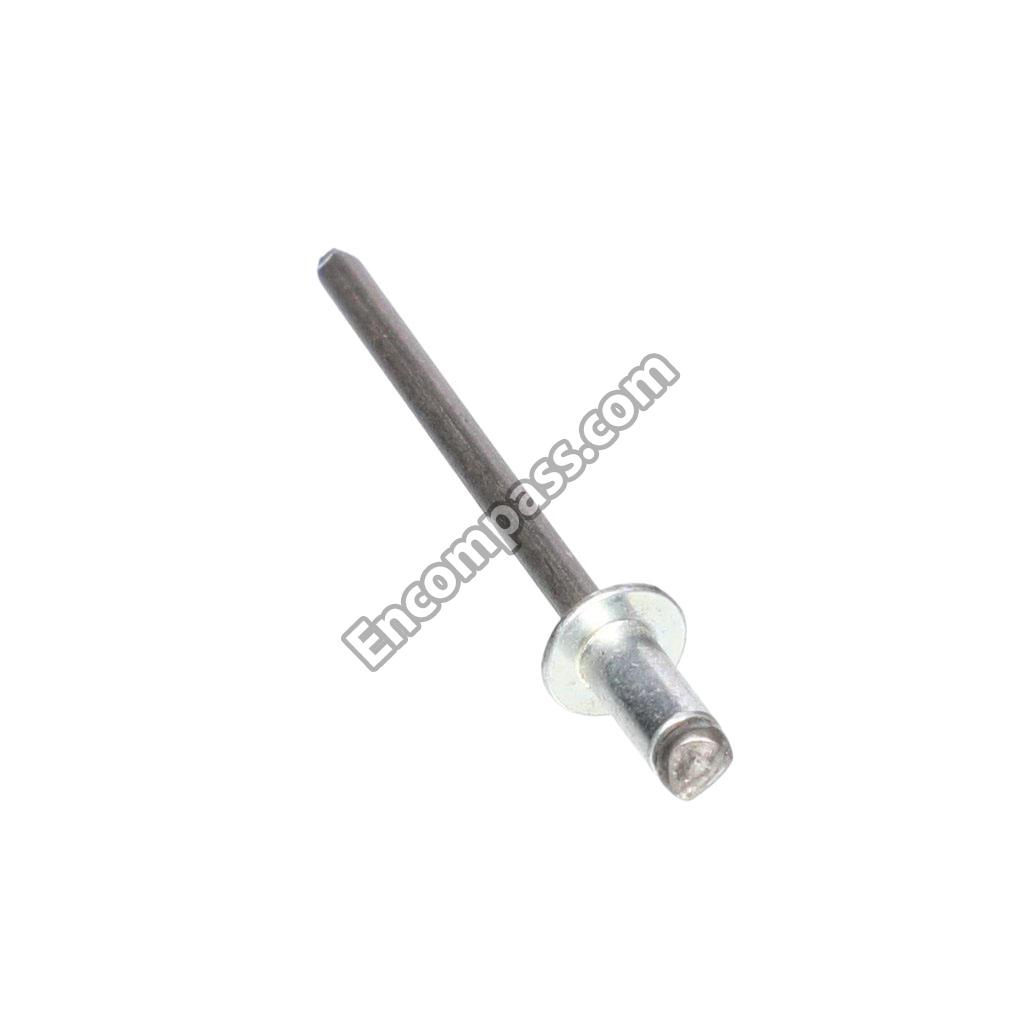

RIVET, POP |
| M0249632 | SCREW |
| M0220417 | SCREW |
| M0216703 | SCREW |
| 12990609 | SCREW |
| M0216517 | SCREW |
| M0216515 | SCREW |
| 12990607 | SCREW |
| M0209701 | SCREW, DECORATIVE |
| 59001208 | SCREW, HEX HEAD |
| M0232218 | SCREW, HI/LO Y DRIVE |
| M0208943 | SCREW, SET |
| M0208342 | SCREW, SET |
| M0231617 | SCREW, TF |
|
|
SCREW-HI LO Y-DRIVE |
|
|
SCREW-SET/CONE ROHS |
|
|
SCREW-SET/DOG ROHS |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990522 | SCREW-SM/HEX ROHS |
| M0229916 | SCREW-TC |
|
|
SCREW-TC/SOCKET TORX |
| 12992306 | SCREW-TF/HEX ROHS |
| 12992302 | SCREW-TF/HEX ROHS |
| 20299601 | SCREW-TF/ROUND |
| 12552001 | SCROLL, BLOWER |
| M0275598 | SEALER |
|
|
SEALER |
|
|
SNUBBER ASSEMBLY |
| 10172901Q | SNUBBER ASSY |
| B8376801 | SOCKET-LIGHT |
| C8893502 | SPRING-DOOR LATCH |
| 3010003001 | STANDOFF-POLY |
| A4055406 | STRAP-CAPACITOR |
| M0590602 | SUPPORT |
|
|
THERMAL CUTOUT, CAVITY |
| B5684124 | THERMAL CUTOUT, MAG |
| M0322202 | TIE-WIRE |
| 44780P01 | TOROID |
| R0130108 | TOUCH PANEL ASSEMBLY- TOP |
| 59104128 | TOUCH PANEL ASSEMBLY- TOP |
| 59004054 | TRANSFORMER, HV 230V 50 HZ |
| 10909001 | TRIM |
| 59174560 | TRIM- OC SCREWS |
| M0274066 | WASHER-NYLON |
| 10903002 | WASHER-SPUR GEAR |
| C3670809 | WHEEL-BLOWER |
| B8367701 | WINDOW-OVEN LIGHT |
| 10908909Q | WRAPPER- STAINLESS |
| 10908901Q | WRAPPER- STAINLESS |
