Manufacturer
Amana Commerical
Model Number
RCS10
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BIT, NON MAGNETIC Y DRIVE |
| 12136503 | BLOCK-1 POLE FUSE |
| M0308801 | CAP-SCREW |
| 59002153 | CAPACITOR-.74 |
| M0104102 | CLIP, CORD |
| M0118903 | CLIP-PUSH |
|
|

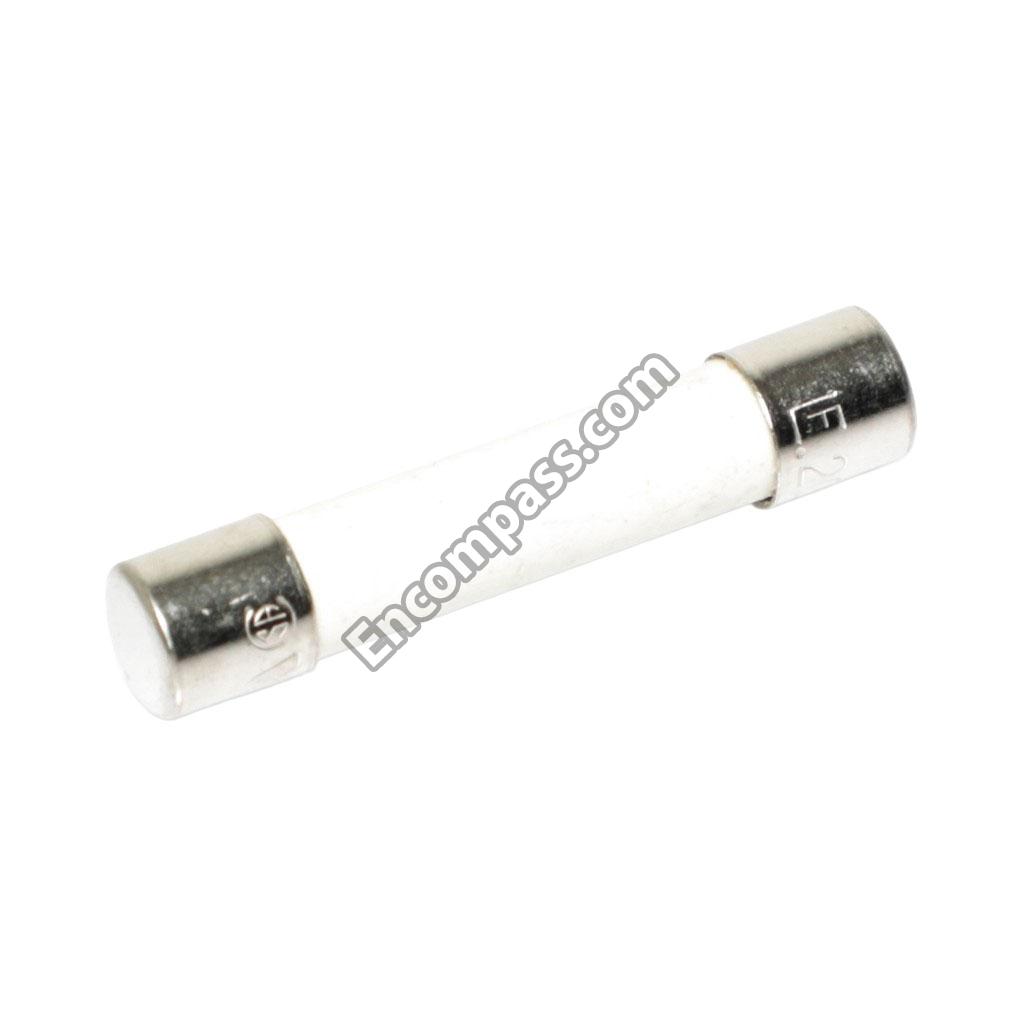

FUSE, 20 A |
| A3263904 | GASKET, EACH |
| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 59004034 | HINGE, DOOR |
|
|
INNER DOOR ASSEMBLY (NO SCREWS) |
|
|
KIT, CAPACITOR- .74 DIODE |
|
|
KIT, HANDLE SCREWS |
|
|
KIT, INTERLOCK SWITCH |
| R0000282 | KIT, LATCH |
|
|
KIT, LATCH- RC CHASSIS |
| 14179140 | KIT- HINGE DOOR RING WELD- RC |
| 14179138 | KIT- STUDS HARDWARE |
|
|
LABEL-MENU |
|
|
LAMP-41W |
| 59174554 | LIGHT COVERS- INSIDE OUT |
| B8380602 | PLATE-TCO MOUNTING |
|
|
PLUG-WHITE BUTTON |
| B8371401 | RECEPTACLE-LAMP |
| M0370003 | RELIEF-STRAIN |
| A4539619 | RIVET, POP |
|
|
RIVET, POP |
| 12990607 | SCREW |
|
|
SCREW-HI LO Y-DRIVE |
|
|
SCREW-SET/CONE ROHS |
|
|
SCREW-SET/DOG ROHS |
|
|
SCREW-SM/HEX |
| 12990526 | SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990522 | SCREW-SM/HEX ROHS |
| 13074001 | SCREW-TC/PAN TORX ROHS |
|
|
SCREW-TC/SOCKET TORX |
| 13042101 | SCREW-TC/Y DRIVE ROHS |
| 12992302 | SCREW-TF/HEX ROHS |
|
|
SEALER |
|
|
SEALER, RTV- TUBE |
| C8893502 | SPRING-DOOR LATCH |
| A4055406 | STRAP-CAPACITOR |
| B8367701 | WINDOW-OVEN LIGHT |
