Model Image
Manufacturer

Bosch

Model Number

WTMC532CUS05

Description

Dryer

Interactive Exploded View

Parts List

Part Number Description
00474893 00474893 BACK PANEL
00424038 00424038 BAND
00424037 00424037 BAND
00472728 00472728 BASKET FOR WOOLLENS
00618931 00618931 BEARING DR
00491679 00491679 BELT
00491647 00491647 BOSCH DOOR HINGE
00605033 00605033 BRACKET
00422210 00422210 BUSHING
00421685 00421685 CABLE HARN
00421679 00421679 CABLE HARN
00421678 00421678 CABLE HARN
00421673 00421673 CABLE HARN
00421663 00421663 CABLE HARN
00421597 00421597 CABLE HARN
00421596 00421596 CABLE HARN
00421681 00421681 CABLE HARNESS
00421680 00421680 CABLE HARNESS
00421677 00421677 CABLE HARNESS
00421665 00421665 CABLE HARNESS
00421664 00421664 CABLE HARNESS
00421662 00421662 CABLE HARNESS
00421660 00421660 CABLE HARNESS
00421658 00421658 CABLE HARNESS
00421626 00421626 CABLE HARNESS
00640549 00640549 COVER
00496224 00496224 COVER
00491627 00491627 COVER
00478177 00478177 COVER
00444099 00444099 COVER
00443602 00443602 COVER
00422175 00422175 COVER
00540773 00540773 CUSTOMER INFORMATION
00479920 00479920 DECOR PANEL
00246298 00246298 DOOR
00491673 00491673 DOOR LATCH
00491630 00491630 DOOR SEAL

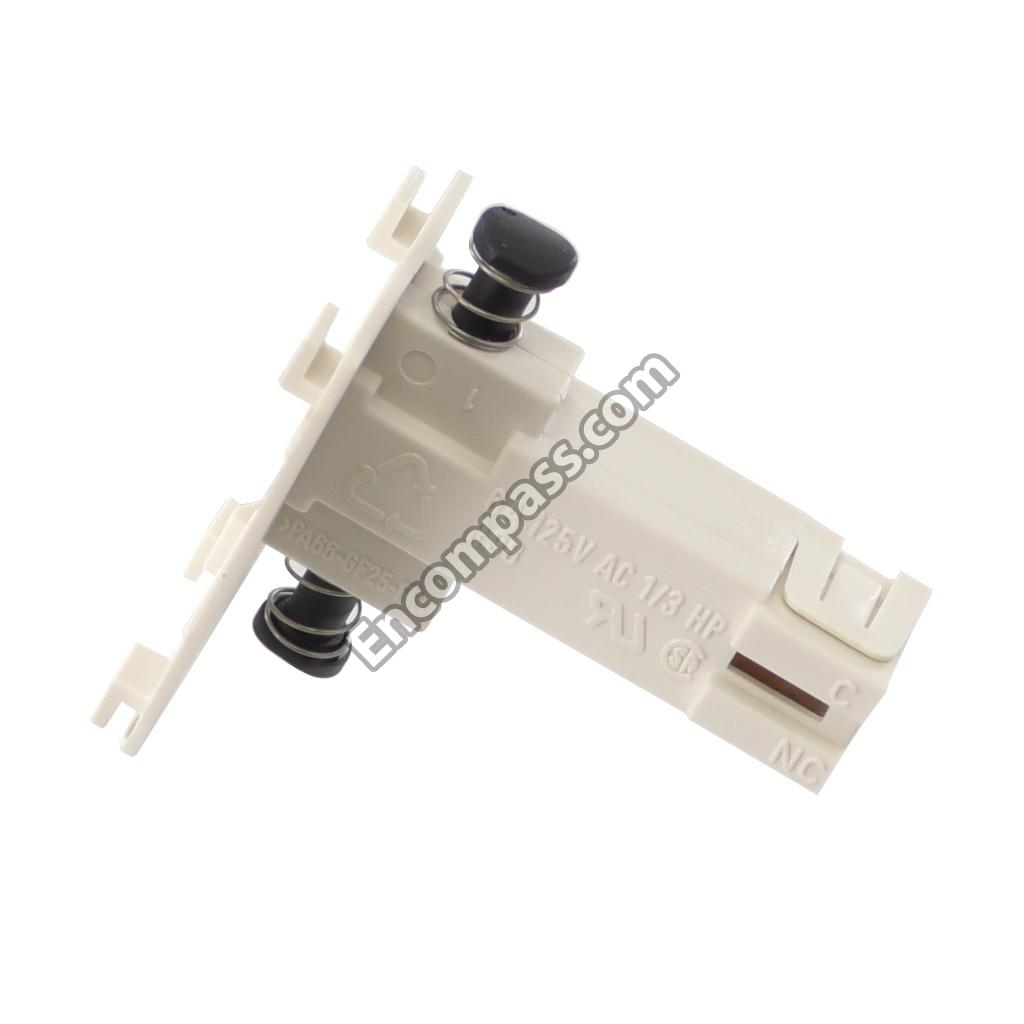

00422183 00422183 DOOR SWITCH
00241109 00241109 DRUM
00422202 00422202 DRYER MOISTURE SENSOR
00436457 00436457 EXHAUST BAFFLE
00491640 00491640 FAN WHEEL
00436417 00436417 FLAP
00422201 00422201 FOOT
00241091 00241091 FRONT
00246087 00246087 FRONT PANEL
00609584 00609584 GROMMET
00491624 00491624 HOLDER
00427417 00427417 HOLDER
00436458 00436458 HOUSING PART
00541846 00541846 INSTRUCTION MANUAL
00422173 00422173 LAMP
00422272 00422272 LIMITER
00422177 00422177 LIMITER-TE
00436476 00436476 LINT SCREEN
00603975 00603975 LOCKING CAP
00424036 00424036 LOCKING CAP
00424035 00424035 LOCKING CAP
00666016 00666016 MODULE-CONTROL
00436441 00436441 MOTOR
00665441 00665441 PANEL FACIA
00605032 00605032 PLUG
00427416 00427416 PLUG
00474975 00474975 REAR CASE PART

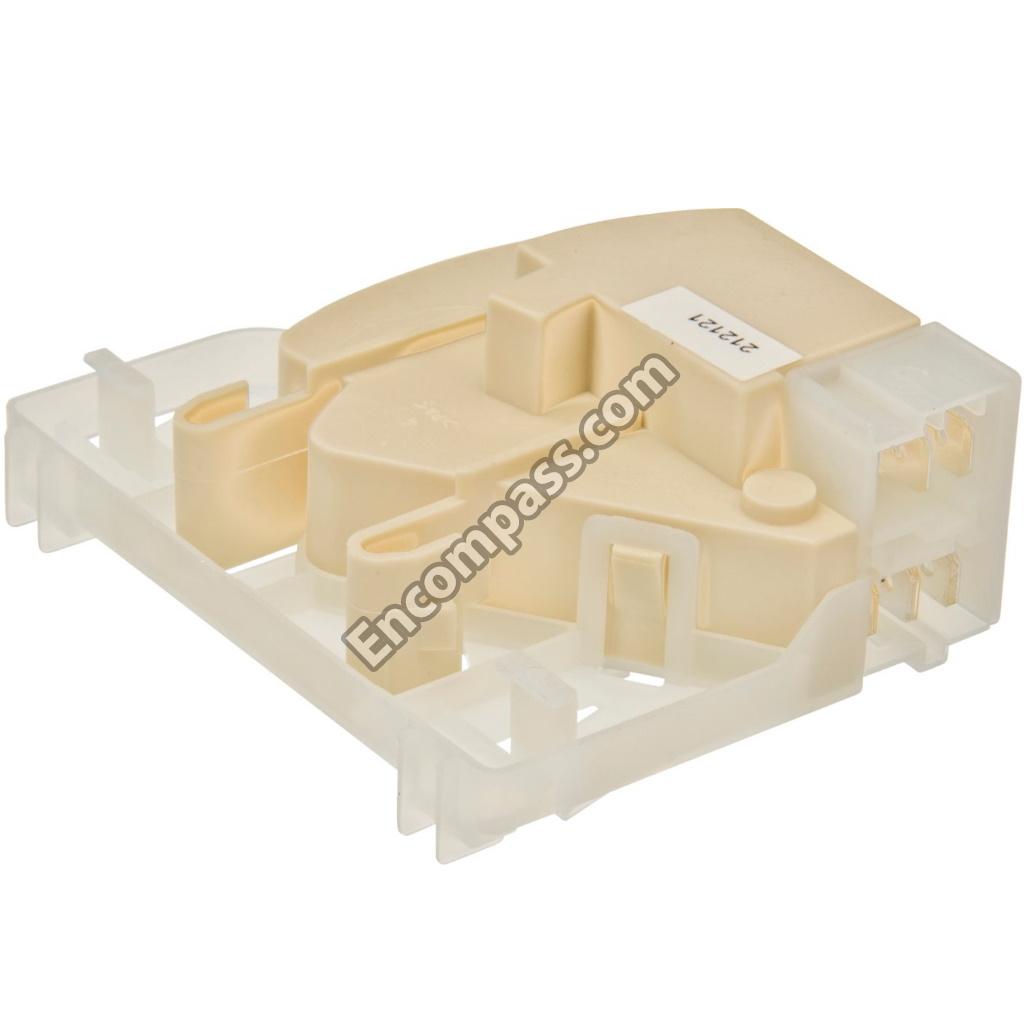

00422203 00422203 RELAY
10010119 10010119 REPAIR-SET
00422226 00422226 RET CLIP
00649746 00649746 S/00649746 SEALING STRIP
00617527 00617527 SCREW
00428030 00428030 SCREW
00422243 00422243 SCREW
00422239 00422239 SCREW
00422223 00422223 SCREW
00422180 00422180 SCREW
00422126 00422126 SCREW
00189345 00189345 SCREW
00422240 00422240 SCREW M3.9
00154165 00154165 SEAL
00491693 00491693 SEALING

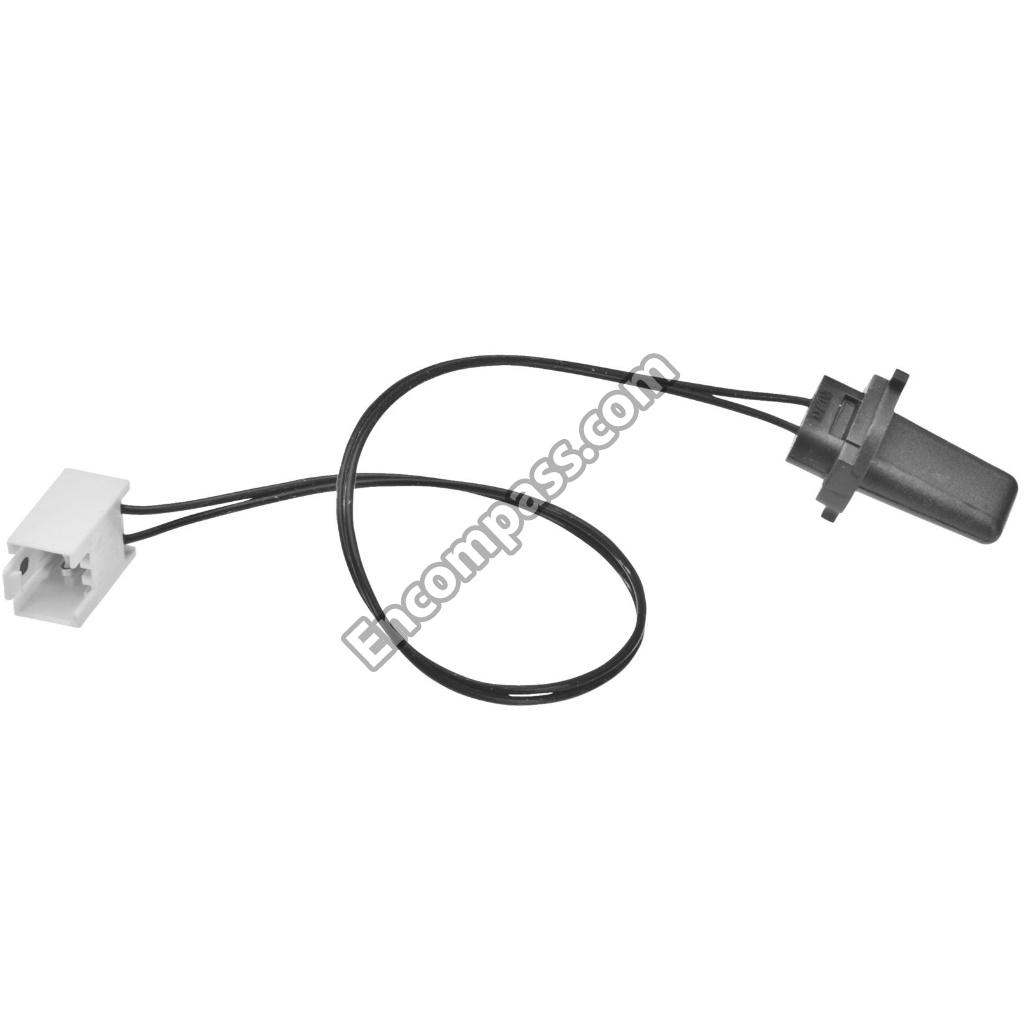

00422221 00422221 SENSOR-NTC
00422204 00422204 SLEEVE
00436460 00436460 SPIRAL HEATER ASSM
00491706 00491706 SPRING
00491684 00491684 SPRING
00424034 00424034 SPRING CLIP
00447475 00447475 SUPPORT
00491611 00491611 SWITCH

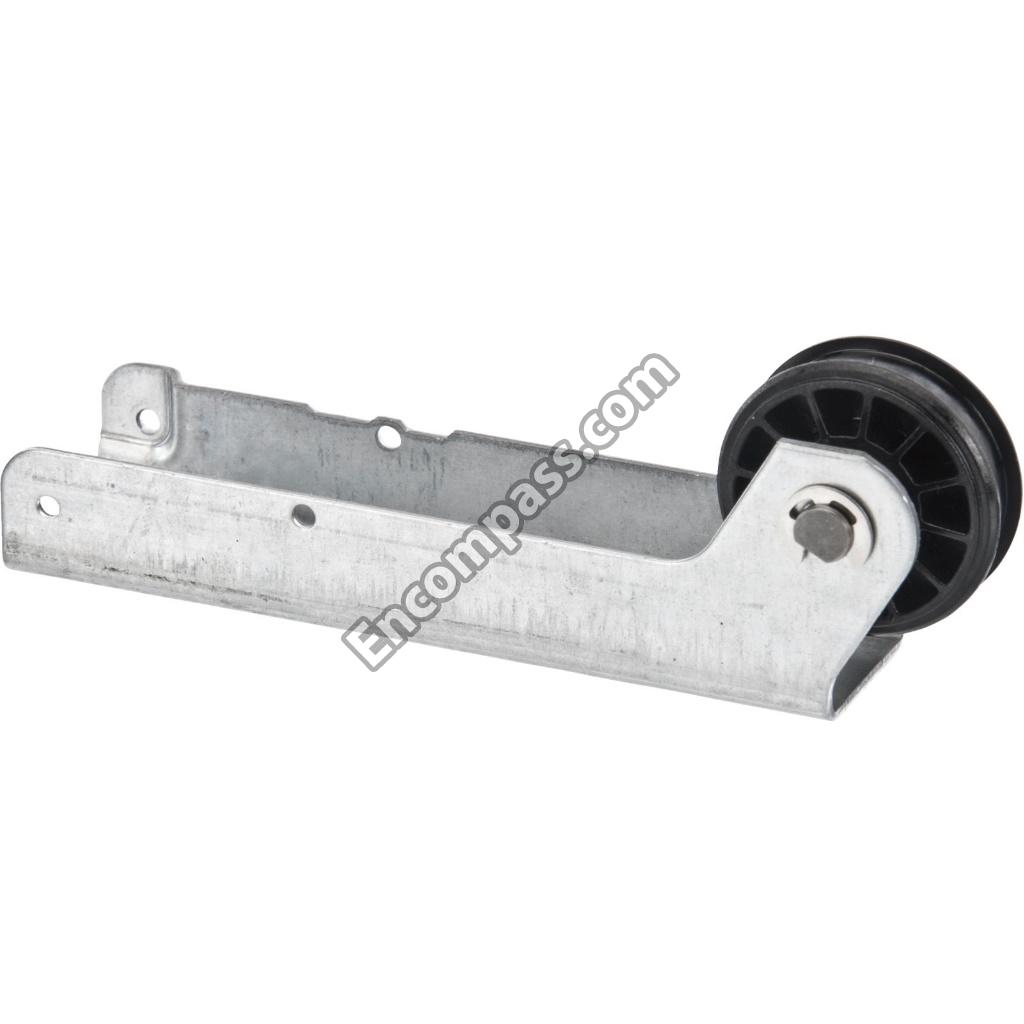

00491608 00491608 TEN ROLLER
00493823 00493823 TERMINAL
00641115 00641115 TERMINAL B
00441668 00441668 TRAY
00441667 00441667 TRAY
00441666 00441666 TRAY
00422181 00422181 WASHER
00422200 00422200 WHEEL
00680865 00680865 WINDOW
