Manufacturer
Blomberg
Model Number
7188286010
Description
24 Inch Ventless Heat Pump Dryer Hpd24412wh
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADJUSTABLE PLASTIC FOOT |
|
|
ADJUSTABLE PLASTIC FOOT ASSY. |
|
|
AIR GUIDING GASKET |
|
|
AIR GUIDING PART SNAPPER |
|
|
ASSYMETRIC DOOR GLASS |
|
|
ATLAS MOTOR SOCKET COVER |
|
|
BACK COVER ASSY_(ARES HP) |
|
|
BEARING WASHER |
|
|
BELT TENSON SPRING |
|
|
BOLT DIN7985 M4X10 5.8 (MRC HEADED) |
|
|
BUTTON |
|
|
CABLE CHANNEL |
|
|
CABLE HARNESS(COMMUNICATION CABLE-UL) |
|
|
CABLE HARNESS(HP_UL_SENSOR_CABLE) |
|
|
CABLE HARNESS(POWERLED CABLE HARNESS_UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HOLDER |
|
|
CABLE TRAY |
|
|
CAPACITOR (ARCOTRONICS 10 UF)W_CAP_UL |
|
|
CHANNEL COVER |
|
|
COMP. OVERALL PROTECTOR(B90-150B-241C) |
|
|
COMPRESSION SPRING |
|
|
COMPRESSOR BASE PLATE ASSEMBLY (RECHI) |
|
|
COMPRESSOR COOL FAN |
|
|
COMPRESSOR COOLINGFAN SOCKET COVER FRONT |
|
|
COMPRESSOR FOOT RUBBER |
|
|
COMPRESSOR OVERLOAD PROTECTOR SPRING |
|
|
COMPRESSOR TERMINAL COVER |
|
|
CONDENSER PUMP (HANYU_60HZ_B13-5AE12110) |
|
|
COUNTERSUNK HEAD PT SCREW (4.5X12) |
|
|
COUNTERSUNK HEAD SCREW (PT-4X14) |
|
|
DAMPING FOAM |
|
|
DELTA PT SCREW |
|
|
DELTA PT VIDA 50X26 WN 5454 HB |
|
|
DOME HEAD BOLT. (AM4X10 DIN 7985 8.8-H) |
|
|
DOOR GASKET |
|
|
DOOR GROUP |
|
|
DOOR_GASKET |
|
|
DOWEL PLASTIC CLAMP |
|
|
DOWN HINGE GUIDE_B13-HOEM-BLG15 |
|
|
DRAIN HOSE HOLDER |
|
|
DRAWER PANEL(B13_BEKO USA SPECIAL_ARC1) |
|
|
DRUM ASSEMBLY |
|
|
DRUM LIFTER (60CM_CLAMP_5VB) |
|
|
DRUM LIFTER (60CM_NO_CLAMP_5VB) |
|
|
DRYER MOTOR GROUP (BLDC 22 PACKET) |
|
|
ELASTIC POLY-V BELT. 7PH 1956 |
|
|
ELEC. PCB ASSY(B13_GD+_A+++_8KG_60CM_W) |
|
|
ELECTRONIC CARD ASSEMBLY |
|
|
ELECTRONIC CARD HOLDER CAP_(SMART LED) |
|
|
ELECTRONICCARDHOLDER(SMART-LED)(ABS V0) |
|
|
ENCODER_CARD |
|
|
EVAPORATOR FILTER CASSETTE LOCK |
|
|
EVAPORATOR FILTER SPONGE |
|
|
FASTON HARNESS(USA_10 AWGX4C_T105) |
|
|
FIBERED_NUT_M6X1_DIN_985 |
|
|
FILTER DRAWER ASSY |
|
|
FRONT PANEL (B2013) |
|
|
FRONT PANEL SUPPORT BRACKET |
|
|
FRONT SELING FELT |
|
|
GROUNDING TERMINAL (MESA) |
|
|
HEAT EXCHANGER COVER ASSEMBLY (UL) |
|
|
HEAT PUMP ASSY.(A+++_UL_RECHI )_SERVICE |
|
|
HINGE BUSHING |
|
|
HINGE HOLDER_(ARC722_PIANO_BLACK) |
|
|
HINGE PIN HOLDER (PLASTIC) |
|
|
HINGE SUPPORT BRACKET |
|
|
HINGE_B13(IRREVERSIBLE) |
|
|
HOOK HOLDER_(ARC722_PIANO_BLACK) |
|
|
HOSE AND CABLE HOLDER |
|
|
INNER DOOR_(ARC722_PIANO_BLACK) |
|
|
INNER INLAY_(ARC722_PIANO_BLACK) |
|
|
KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT |
|
|
KICK PLATE BUTTON (ARC-GR) |
|
|
KICK PLATE BUTTON SPRING |
|
|
KICK PLATE-LEFT |
|
|
KOMP_FAN_ENCLOSURE(REAR) |
|
|
LAMP COVER |
|
|
LOCK ASSEMBLY_(REVERSIBLE) |
|
|
LOCK HAUSING |
|
|
M5X0_8 NUT WITH WASHER DIN6923 |
|
|
M5X10 BOLT |
|
|
MAIN CABLE HARNESS(HP_W/LAMP_BLDC_RV) |
|
|
METAL LOCK HOOK |
|
|
METAL MIKROSWITCH PIN |
|
|
MICRO SWITCH ASS. |
|
|
MICRO SWITCH ASS. |
|
|
MICROSWITCH ASSY |
|
|
MICROSWITCH EDPM FOAM |
|
|
MOTOR BRACKET CLAMP (PLASTIC) |
|
|
MOTOR CABLE HARNESS(ATLAS) |
|
|
MOTOR CABLE HARNESS(ATLAS_UVW) |
|
|
MOTOR SHAFT SEAL |
|
|
MX10 RYSB PERFORATED SCREW |
|
|
NTC |
|
|
NTC |
|
|
NTC (EPCOS_12K) |
|
|
NTC CABLE HOLDER |
|
|
NTC GASKET |
|
|
NUT (M5 DIN 934) |
|
|
OUTER DOOR_(TYPE04+CHROME) |
|
|
PANEL ASSY(HPD24412W-ABD_A+++_1_716_745) |
|
|
PANEL BODY ASSY(HPD24412W-ABD_1_716_745) |
|
|
PCB CARD HOLDER COVER_B13_GOOD+_V0 |
|
|
PCB HOLDER |
|
|
PCB HOLDER (ATLAS) |
|
|
PCB HOLDER COVER (ATLAS) |
|
|
PLASTIC CLAMP |
|
|
PLASTIC CLAMP |
|
|
PLASTIC CLAMP 100 MM |
|
|
PLASTIC CLAMP 152 MM |
|
|
PLASTIC CLAMP 250 MM |
|
|
PLASTIC SCREW (4_10) |
|
|
PLASTIC SCREW (4_12) |
|
|
PLASTIC SCREW (4_14) |
|
|
PLASTIC SCREW (DIAMETER 4X10) INOX |
|
|
PLASTIC SCREW (DIAMETER 4X12) INOX |
|
|
POLY-V 285 H 4 MA BELT |
|
|
POMP COVER |
|
|
POMP COVER |
|
|
POWER LED (230V-UL)-5600K |
|
|
POWER SUPPLY CABLE GLAND |
|
|
PROCESS FAN (SIRIUS_HP_NONSINTER) |
|
|
PROGRAM KNOB ASSY(B13-CHROME_ARC1_ARC1) |
|
|
PROGRAMME KNOB LOCKING PART (B13_NEW) |
|
|
PROGRAMME LIGHT GUIDE (B13-BEST) |
|
|
PT SCREW (3_5X14) |
|
|
PT SCREW (3_5X8) |
|
|
PT SCREW (4_5X12) |
|
|
PULLEY ASSY FOR SERVICE-ARES |
|
|
PUMP FLOAT |
|
|
PUMP SOCKET COVER |
|
|
PUMP WATER TANK HOSE(STRAIGHT_L_1600_UL) |
|
|
PUSH BUTTON SPRING |
|
|
REAR DRUM TIGHTNESS PLATE ASSY |
|
|
REAR PANEL ASSY |
|
|
RUBBER STOPPER |
|
|
RUBBER_GASKET |
|
|
SENSOR CARRIER ASSY. COMPLETE |
|
|
SERRATED LOCK WASHER (A4.3 DIN 6798) |
|
|
SERRATED LOCK WASHER (M5 DIN 6798) |
|
|
SHAFT DRUM COVER |
|
|
SHAFT-FRONT BEARING ASSY |
|
|
SHEET METAL SCREW |
|
|
SHEET METAL SCREW (B4.2X13 DIN 7981-H) |
|
|
SHEET METAL SCREW(B4_2X9_5-PERFORATED) |
|
|
SHEET METAL SCREW(B4_2X9_5-PERFORATED) |
|
|
SHEET METAL SCREW(SELF WASHER) |
|
|
SIDE PANEL |
|
|
SIDE SUPPORT BRACKET (60CM) |
|
|
SIDE SUPPORT BRACKET RIGHT (60CM) |
|
|
SIDE WALL PIN |
|
|
SILICONE GASKET |
|
|
SINGLE ADHESINE EPDM FOAM |
|
|
SINGLE ADHESINE EPDM FOAM |
|
|
SINGLE ADHESINE EPDM FOAM. |
|
|
SINGLE ADHESIVE PE FOAM |
|
|
SOCKET COVER LOWER |
|
|
SPECAL WASHER (8,1*17*1,5) |
|
|
SPRING BACK BUTTON |
|
|
SPRING HOOK |
|
|
ST SCREW 4X9.5 |
|
|

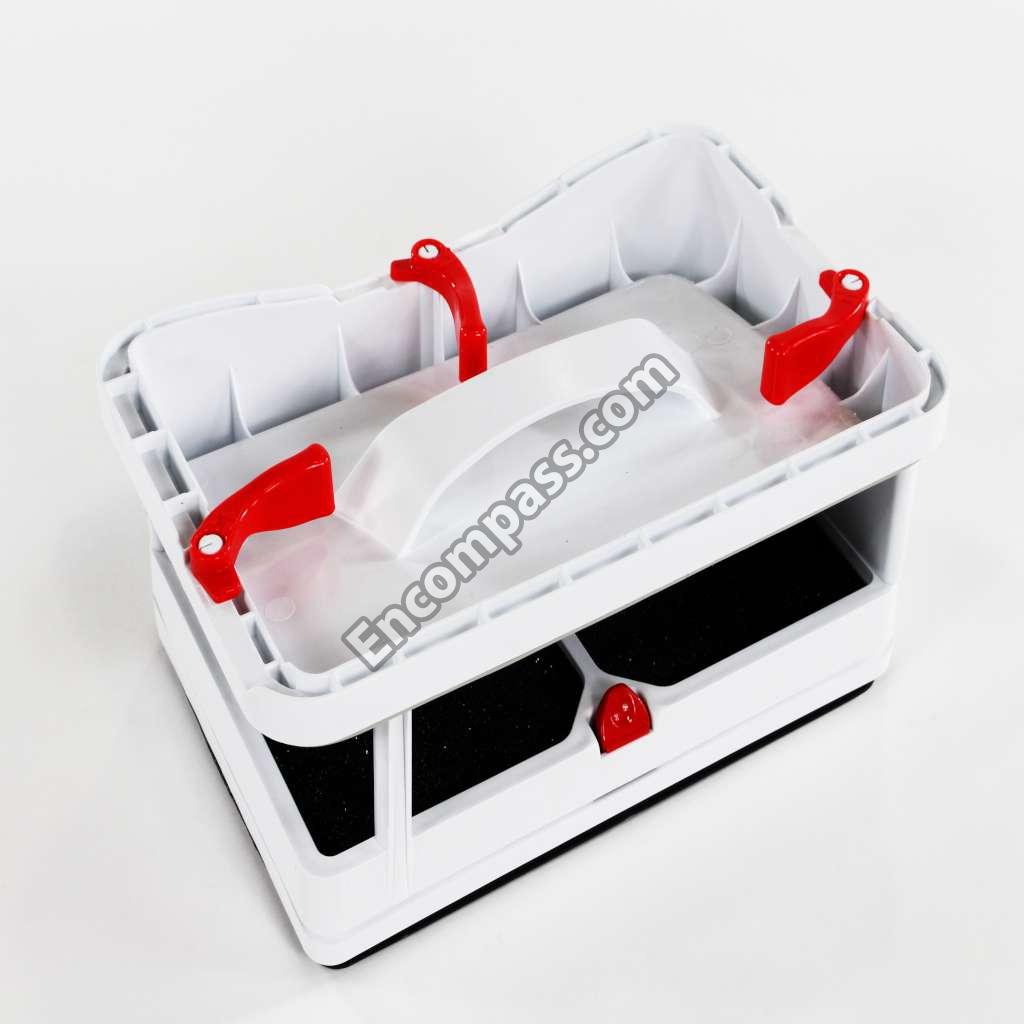

TALL FILTER CASSETTE ASSY. |
|
|
TERMINAL BLOCK ASSEMBLY |
|
|
TERMINAL BOX ASSEMBLY |
|
|
TERMINAL BOX COVER GASKET |
|
|
TERMNAL(AMP) |
|
|
TOP PLATE GR. |
|
|
TRANSPARENT_DOOR_COVER |
|
|
TUBE INSULATION SPONGE(EVA-COND) |
|
|
UP HINGE GUIDE_B13-HOEM-BLG15 |
|
|
USER'S MANUAL (ENGLISH) |
|
|
USER'S MANUAL (FRENCH) |
|
|
USER'S MANUAL (SPANISH) |
|
|
WASHER 12X18X1 DIN 988.. |
|
|
WASHERED NUT (M6X1) |
|
|
WASHER_A_6_4X1_5_DIN_9021 |
|
|
WASHING MACHINE PLUG SOCKET |
|
|
WELDED PLASTIC CHASSIS ASSY.(HP)(UL) |
|
|
WHEEL (RUBBER) |
|
|
WHEEL (RUBBER) |
|
|
ZEEGER 9X1 DIN 6799 DRCS68 |
